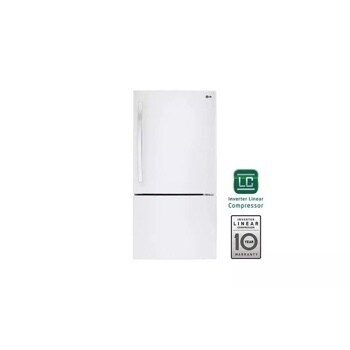

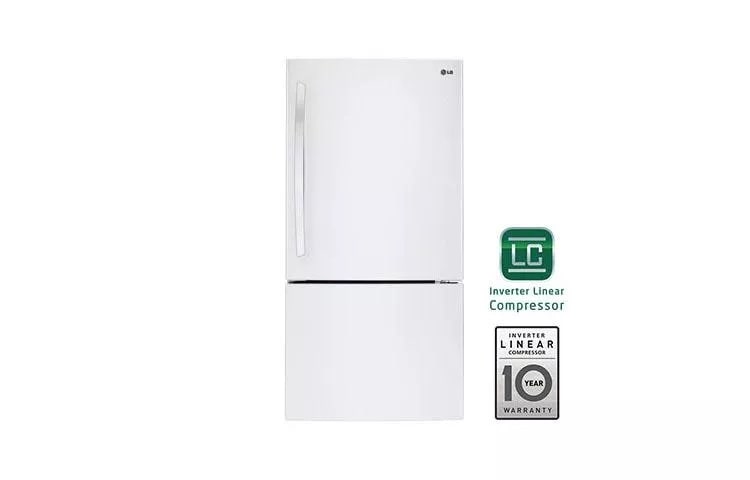

24 cu. ft. Large Capacity Swing Door Bottom Freezer Refrigerator

  • LBC24360SW

  • Smooth White
  • Discontinued Product
LBC24360SW

Key Features

  • 24 cu. ft. Capacity
  • Multi-Air Flow Freshness System
  • Swing Door Freezer
  • Sophisticated Style & Design
AVAILABLE COLORS:
24 cu. ft. Large Capacity Swing Door Bottom Freezer Refrigerator
(11Reviews)
Energy Guide Download Energy Guide Download Spec Sheet
SUMMARY
Door Type Bottom Freezer
Total Capacity 24.1 cu. ft.
Size (W x H x D) 32 3/4" x 69 7/8" x 34 7/8"
Color Stainless Steel
CAPACITY
Refrigerator 16.40 cu. ft.
Freezer 7.70 cu. ft.
Total 24.1 cu. ft.
FEATURES
Energy Rating ENERGY STAR® Qualified
Ice System Factory Installed Ice Maker
Daily Ice Production 2.0 lbs
Ice Storage Capacity 4.0 lbs
Smart Cooling® System Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 6
Linear Compressor Yes
Display Type Membrane (Green LED)
Hidden Hinges Yes
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
REFRIGERATOR
No. of Shelves 1 Full / 2 Split
Folding Shelf Yes
Cantilevered Shelves Yes
Shelf Construction Hybrid Cantilevered Shelving
Crisper Bins 2 Humidity Crispers
Glide N’ Serve® Yes
Refrigerator Light Premium LED
REFRIGERATOR DOOR
No. of Shelves/Bin 5 Total (3 Full, 1 Flip-Up + Dairy)
Door Bin Construction Clear
Dairy Corner Yes
FREEZER
Door Type Swing
Drawers 2
Handle Smart Pull® Freezer Handle
Ice Bin Yes
Freezer Light Premium LED
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Smooth White, Stainless Steel
Handles Matching Commercial Handles
SPECIFICATIONS
Depth with Handles 34 7/8"
Depth without Handles 33"
Depth without Door 29"
Depth (Total with Door Open) 62 3/4"
Height to Top of Case 68 5/8"
Height to Top of Door Hinge 69 7/8"
Width 32 3/4"
Door Edge Clearance with Handle 4 1/4"
Door Edge Clearance without Handle 2"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 249 lbs. / 271 lbs.
Carton Dimensions (WxHxD) 34 3/8" x 70 1/2" x 36 6/8"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231785983

What People Are Saying

Rated 5 out of 5 by from Tons of Room for a Refrigeator of the Size We weren't ready for a new fridge. Needed this because the other broke down...and never turn back!
Date published: 2016-10-20
Rated 5 out of 5 by from Great Unit. Very accessible to everything in the refrigerator without straining or bending to find it. Very large items fit in the door. Just the best functional unit we have ever had.
Date published: 2016-01-23
Rated 3 out of 5 by from Very nice, but... We bought this refrigerator nearly a year ago and have been happy with it. If you leave the door open for a few seconds it has an annoying chime to let you know, but that is probably a good thing. In the last month we have started to experience a very loud grinding noise which lasts maybe 3 seconds. It happens once every week or two. We're going to have it serviced, but since the noise isn't predictable we have some concern about being able to remedy it. Right now I would not recommend it, but that may change.
Date published: 2015-06-09
Rated 5 out of 5 by from Everything we expected it to be - good reputation 24 cubic feet in a 33" wide space is hard to find, this is about it and it's a nice unit! Makes lots of ice Big fridge drawers, and the third drawer is neat and use-able! LED lighting is bright, easy to see all areas. Spill proof shelving can save a mess before it happens. Alarm telling you the door is open too long is a great feature too! Buy this fridge!
Date published: 2015-04-29
Rated 4 out of 5 by from Rating applies replacement refrigerator We had this refrigerator for a very short time when it began to make "grinding" noises and not holding the temperature setting. I contacted Sears (which is where it was purchased) and, since it was within the 30 day return policy, it was replaced with like kind. Since then, the new one has been very quiet and has been holding the temperature. We are happy with the refrigerator at this point.
Date published: 2015-01-07
Rated 5 out of 5 by from Great refrigerator/freezer It works fine and is much quieter than our old Amana refrigerator/freezer. If you keep a door open overly long it plays a tune to wake you up, which is amusing. The freezer is nice and fairly accessible. I guess there's no good way to design a small freezer for accessibility, but this is acceptable and it works nicely. Lots of space. Small point: the door handle is smooth so it cleans nicely unlike matte finish appliances which always seem to hold the dirt. Good purchase, good product.
Date published: 2014-12-02
Rated 5 out of 5 by from Very pleased I ended up spending a little more than i planned on a new fridge but i'm glad i did. It runs quietly and i love the bottom freezer. Side by side didn't work for me because the fridge is located next to a wall. The delivery man swapped the door to open to the left and solved all my problems.
Date published: 2014-11-19
Rated 5 out of 5 by from Happy Consumer! I have been shopping and researching for months for a very specific style and quality. I am so happy to have waited and purchased this refrigerator. The interior lighting is excellent. I love the ease of having everything within reach up top. The freezer drawer closes smoothly. The ice dispenser is precisely located (the ice is abundant). It is very solid. It is quiet and very attractive. I previously had a side by side with water and ice in the door. I was not happy with the look or more importantly the problems that came with faulty water dispensing.
Date published: 2014-10-08
  • y_2017, m_7, d_13, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_11
  • loc_en_US, sid_MD05073300, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 11ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LBC24360SW Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

where do i order parts for this fridge.it swings left  handed now,i want it to swing right handed

Asked by: alex44444
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts.
Answered by: NeilE
Date published: 2016-07-22

What hardware is needed for my LG Model #lrbn20512ww

Asked by: Cherrie35
We appreciate your interest in this refrigerator. It is uncertain to what type of hardware is being referred for this product. Please contact our Customer Interactive Center at 800-243-0000 for additional information.
Answered by: NeilE
Date published: 2016-04-09

 I need parts for my freezer door on my LG refrigerator

Asked by: Vangie
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts.
Answered by: NeilE
Date published: 2016-02-09

convert to split shelves

Can you purchase the rear bar and shelves to convert from 2 full size shelves to adjustable 1/2 shelves?
Asked by: shelves
I apologize, but no; it will not be possible to provide information relating to the modification of a product to something different than the original specifications.
Answered by: NeilE
Date published: 2015-03-30

CAN THE GLASS FROM THE SHELF COME OUT OF THE FRAME.

ON ONE OF THE ADJUSTABLE SHELF'S STUFF HAS GOTTEN UNDER THE GLASS ON THE BACK BETWEEN THE FRAME AND THE GLASS IT WILL NOT SOAK CLEAN AND IT LOOKS GROSS. WHEN I LOOK AT THE BOTTOM IT LOOKS LIKE THERE TWO TABS THAT HOLD THE GLASS & FRAME BUT I CANT FIGURE HOW TO GET IT TO OPEN. HELP PLEASE THANK YOU
Asked by: 1CPWQDrJ
We regret the trouble you have experienced with this refrigerator. The upper two shelves both appear to be constructed in a manner, so as to not be taken apart. Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number of the Refrigerator Shelves is MHL62812402.
Answered by: NeilE
Date published: 2015-02-19

The ice maker

Does the ice maker has a water filtration system?
Asked by: TTMA
No ice maker
Answered by: Scott106
Date published: 2015-04-21

How do I get the shelf out about the crisper drawers

I have liquid spilled under the glass on the shelf above the crisper drawers. I can't get it to come out so I can clean it. What can I do
Asked by: mtngal
We regret the trouble you have experienced with this product. The glass for the shelf over the crisper drawers is designed to be lifted out from inside the drawers. Open and/or remove the crisper drawers and lift the glass from beneath it. Information about this can be found on page 40 of your owner’s manual.
Answered by: NeilE
Date published: 2014-07-23

Does the LBC24360SW have a linear compressor

The spec sheet on this website indicates that it does under the warranty statement but, none of the other literature mentions it. I just ordered this model but my hopes of the linear compressor are fading.
Asked by: chauncy
We appreciate your interest in this refrigerator. According to our service materials on this model, it would appear that this model was designed with a ROTARY Compressor. It appears that this one notation mentioned may have been in error.
Answered by: NeilE
Date published: 2015-03-27
  • y_2017, m_7, d_13, h_1CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_21
  • loc_en_US, sid_MD05073300, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getContent, 10ms
  • QUESTIONS, PRODUCT

RECENTLY VIEWED

*Largest in total capacity; based on manufacturer’s published specifications as of 10/03/2013. Excludes other LG manufactured products.

Better freezer placement. Better fridge.
Bending down to access your food is now a thing of the past. With a generous 24 cu. ft. of capacity, This LG Bottom Freezer is designed to provide easy access to refrigerator compartment food in your line of sight. The swing door freezer is well designed with maximum space efficiency and easy roll-out drawers. Featuring spacious full width door shelves, adjustable drawers plus a mini bin, this refrigerator frees up interior shelf space and makes room for all your storage needs. That's smart design and smart technology, from one great refrigerator
Design, features and specifications subject to change without notice. Screen images simulated and/or dramatized. Some features in videos may not be available on all models. Please refer to the TECHNICAL SPECIFICATIONS tab for a complete list of features by model.
