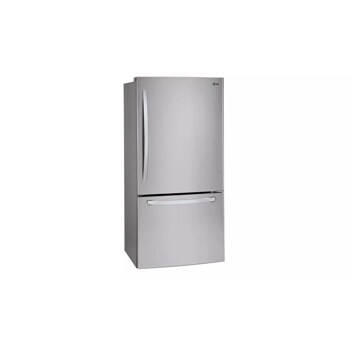

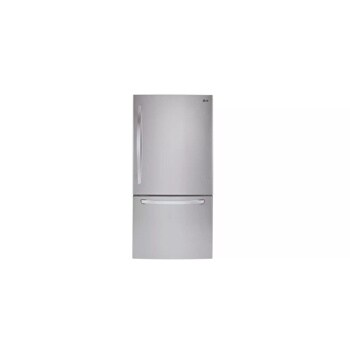

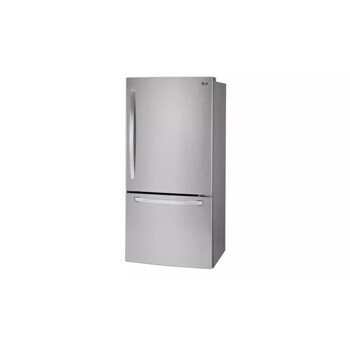

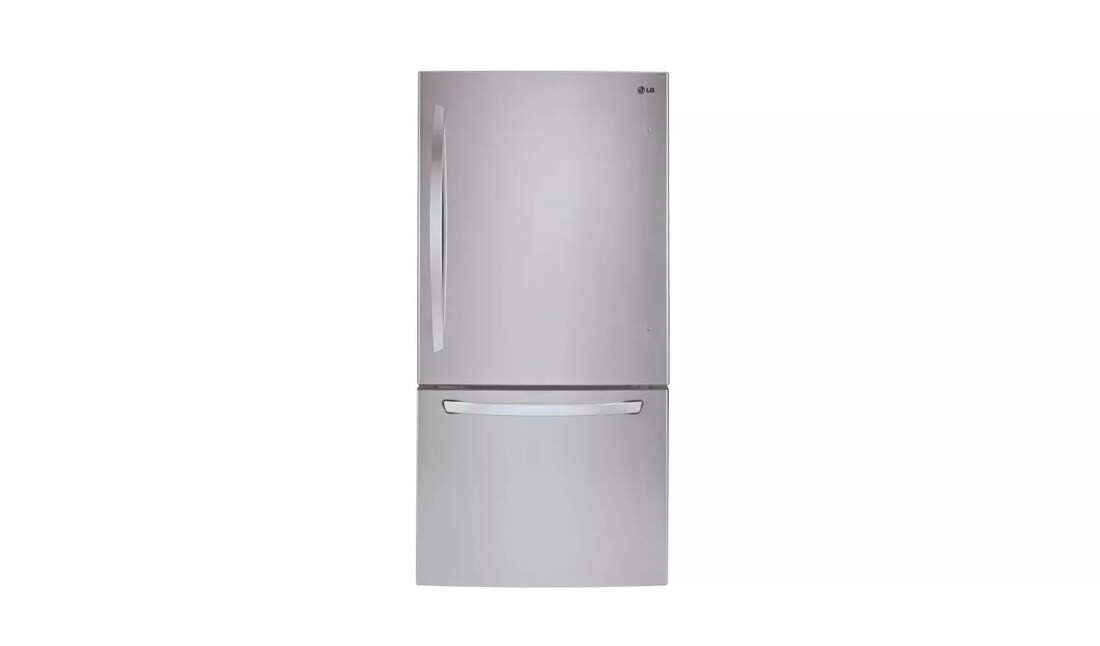

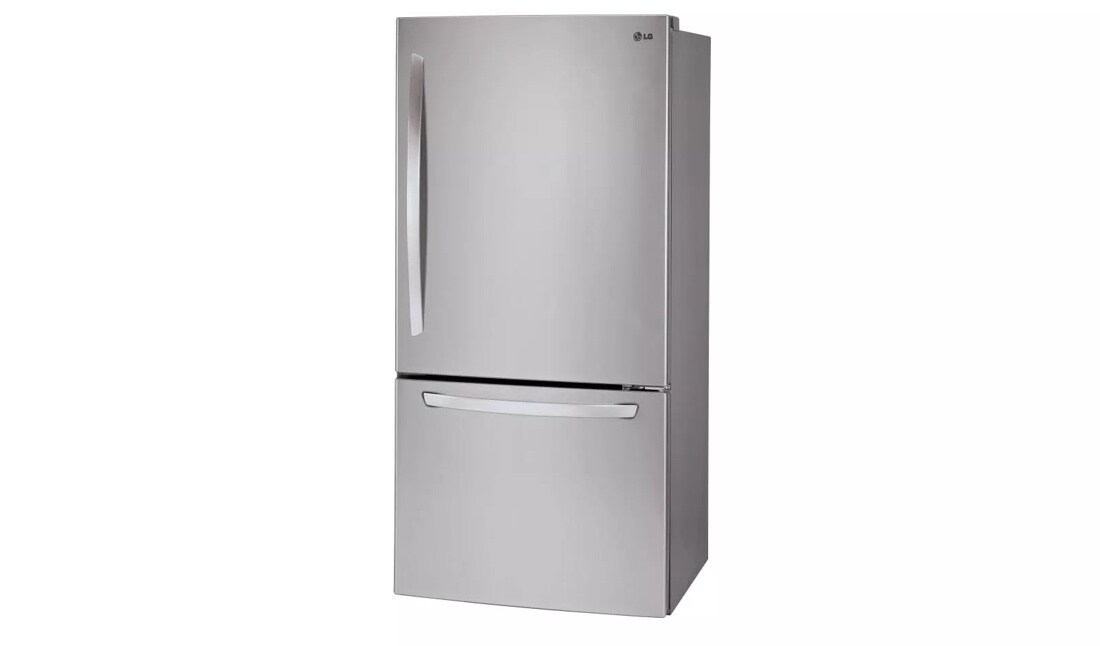

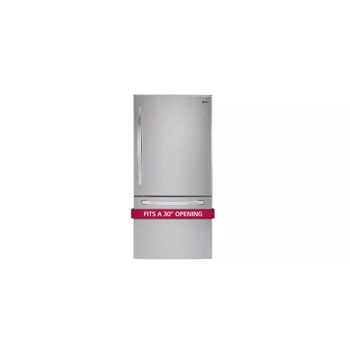

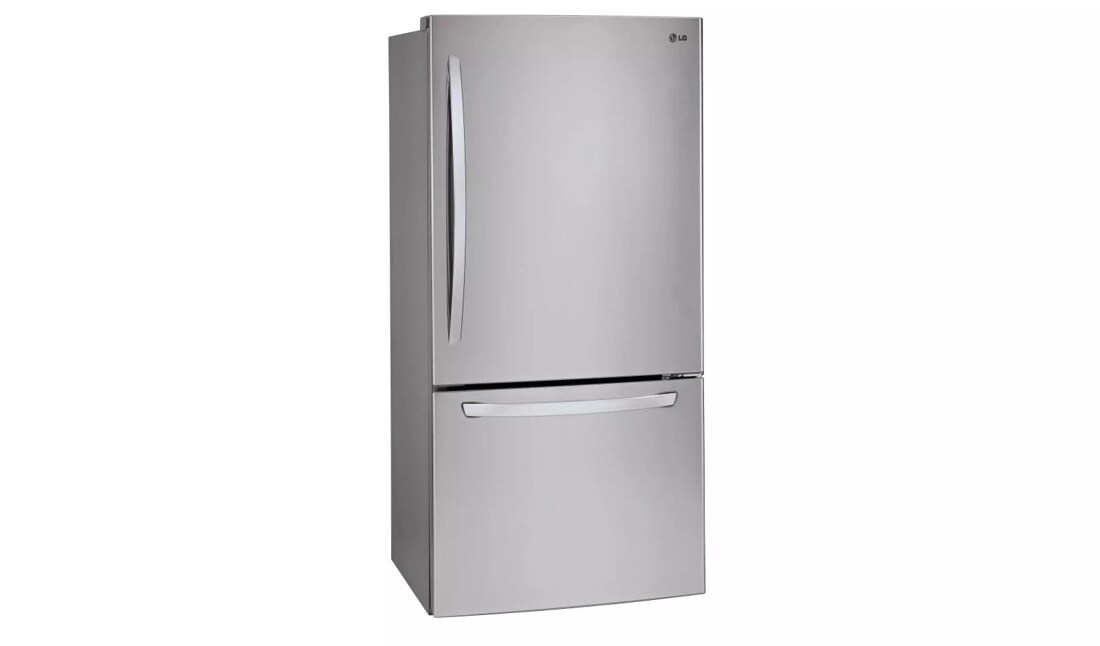

22 cu. ft. Large Capacity 30” Wide Bottom Freezer Refrigerator

  • LDCS22220S

  • Stainless Steel

Key Features

  • 22 cu.ft., Largest Capacity
  • Smart Cooling® System
  • SmartDiagnosis™ System
  • 10-Year Manufacturer’s Limited Warranty on Linear Compressor
  • ENERGY STAR® Qualified


Get the space you need in a refrigerator that's right for your kitchen. With 22 cu. ft. of space, this largest capacity bottom mount refrigerator offers ample room to meet your storage needs.

Fresher is better.

Fresher is better.

Smart Cooling® system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.

Sophisticated style and Design.

Sophisticated style and Design.

Contoured doors, hidden hinges, and a host of great interior features like LED lighting give your refrigerator a look as sophisticated as it is functional.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Get wise

Get wise

If you ever experience an issue with your LG refrigerator, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

Door Type Bottom Freezer
Refrigerator 14.80 cu. ft.
Freezer 7.30 cu. ft.
Total 22.1 cu. ft.
ENERGY STAR® Qualified Yes (589 kWh/Year)
Ice System Factory Installed Ice Maker
Daily Ice Production 2.8 lbs / 3.1 lbs (IcePlus)
Ice Storage Capacity 12 lbs
Smart Cooling® System Yes
Linear Compressor Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 6
Display Type Membrane (Green LED)
Hidden Hinges Yes
Temperature Controls Electronic/Digital
Door Alarm Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
No. of Shelves 2 Full
Shelf Construction SpillProtector™ Tempered Glass
Crisper Bins 2-Humidity Crispers
Glide N’ Serve® Yes
Refrigerator Light Premium LED
No. of Shelves/Bin 5 Total (3 Full, 1 Flip-Up + Dairy)
Door Bin Construction Clear
Dairy Corner Yes
Drawers 2-Tier Organization
Handle Vista
Ice Maker Yes
Ice Bin Yes
Freezer Light Premium LED
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S), White (W)
Handles Matching Commercial Handles
Depth with Handles 34 7/8"
Depth without Handles 33"
Depth without Door 29"
Depth (Total with Door Open) 59 1/2"
Height to Top of Case 67 1/4"
Height to Top of Door Hinge 68 1/2"
Width 29 3/4"
Width (Door Open 90˚ with Handle) 33 1/2"
Width (Door Open 90˚ without Handle) 31 1/2"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 235.4 lbs./255.4 lbs.
Carton Dimensions (WxHxD) 32" x 70" x 38 "
Limited Warranty 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)
UPC 048231787901

What People Are Saying

Rated 5 out of 5 by from I've had this refrigerator for a couple of months and am very happy with it. It is quiet and the ice maker works great. I would recommend this refigerator/freezer.
Date published: 2017-11-07
Rated 4 out of 5 by from Great fridge for a teeny tiny kitchen! After a few weeks with our new fridge, I can honestly say that I'm very happy we made this purchase. The obvious battle was with the fridge shelving, which doesn't allow for many tall objects, but we've learned to be compatible with it. I LOVE the wide drawer at the bottom - we've stuffed it full of cheese! I appreciate that all pieces in the fridge and freezer portion are removable for cleaning...this made things much easier. It's a good thing I can turn off the door alarm as my little dog barks at any such thing. I am concerned about the exterior finish as our toddler could wield a kitchen tool she's commandeered and dent it with one whack...but so far, so good. Overall, I would buy this fridge again and I would recommend it to others as well. Practicality is a must for me and this one fit the bill.
Date published: 2017-11-06
Rated 5 out of 5 by from Works perfectly for our family/looks gorgeous! Purchased at Best Buy after reviewing several different models. Functional and very pleased with overall look and quality.
Date published: 2017-10-19
Rated 5 out of 5 by from LG has Great Appliances ! I purchased two LG appliances this year and One two years ago and I am very happy with my decision. I purchased a LG washer two years ago and have had nothing but great performance. This year I purchased a refrigeration which I am happy to say I am ver, very happy with. I never realized how my old refrigerator was so wasteful. With my LG, my food stays fresher longer, the bottom freezer is so much more accommodating and the lighting and shelving on the upper level makes access so easy. I also purchased a range this year. and I am happy to say I am very pleased with this as well.
Date published: 2017-09-28
Rated 1 out of 5 by from One bad apple Our fridge is lovely except the uncovered ice tray makes for poor tasting ice. How can we fix this?
Date published: 2017-09-26
Rated 5 out of 5 by from Love this refrigerator Originally purchased with a french door. I had to swap for a single door because the handle on left side was hitting the wall. Lots of room, actually seemed a little bigger than french door. So glad I was able to return.
Date published: 2017-09-24
Rated 4 out of 5 by from I bought this over a month ago and am pleased with the refrigerator. I think the refrigerator is vrey spacious,however, the freezer could be a little bigger. One thing I do not like is that both freezer sections pull out when the freezer is opened.
Date published: 2017-09-22
Rated 5 out of 5 by from I love the features ... I got it this year and am Very Happy with mine. Always wanted a One -door Refrigerator with the Freezer in the bottom that pulls out (in my small kitchen.) Getting foods out of both sections is so much easier for me than it was with my Old one-door , with the small top- freezer .
Date published: 2017-09-22
  • y_2018, m_1, d_23, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.6
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_17
  • loc_en_US, sid_MD05783949, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 5ms

We're here to support you with our product.

View LDCS22220S Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Is there a water filter on this unit

Asked by: Cindybrew
There is not a water filter on this refrigerator model number LDCS22220S. If you are in need of any assistance, have additional questions, or would just like to see our helpful tips, check us out on Twitter @LGUSSupport ^CP
Answered by: ChrisPSM
Date published: 2017-12-12

Ldcs2222os shown handle on left. Can it be on right?

Asked by: Jimbonj
Yes the LDCS22220S door handle can be reversed depending on preference. ^CP
Answered by: ChrisPSM
Date published: 2017-12-11

What causes the place where it tell the temperature to say CF on the freezer side and E on the refrigerator side

Asked by: Shuntay
Error codes can vary depending on numerous factors. We would recommend checking out the following troubleshooting guide in our help library: If you are still in need of assistance, we may be reached via Twitter @LGUSSupport via Facebook or via phone 800-243-0000.
Answered by: Shena
Date published: 2017-11-09

can the ice maker be removed. i'm trying to find a product with no ice maker - lg has been no help in answering this for me.

Asked by: rockandroll
Just keep it turned off and dont hook it up to the water line. But this one does have with or without ice maker.
Answered by: katinbrant
Date published: 2017-12-02

Does this refrigerator have a reversible door?

Asked by: Mett
The refrigerator door on the ENERGY STAR® Qualified LG 22 cu. ft. Large Capacity 30” Wide Bottom Freezer Refrigerator, Model # LDCS22220S is reversible...^IFV
Answered by: LGJoel
Date published: 2017-09-11

Ice maker quit making ice

Asked by: Maw maw 03
We regret the trouble you have experienced with this refrigerator and its functions. If the ice maker no longer produces, then it would be suggested to check the freezer temperature, door gasket condition and water flow to the ice maker. If this does not resolve the matter, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2017-05-31

What color is the refrigerator case on the stainless steel

Asked by: pattypatty123
The case on the LG 22 cu. ft. Large Capacity 30” Wide Bottom Freezer Refrigerator, Model # LDCS22220S is grey...^IFV
Answered by: LGJoel
Date published: 2017-04-20

Is the refrigerator door reversible?

Asked by: Lloyd1432
The refrigerator door on the ENERGY STAR® Qualified LG 22 cu. ft. Large Capacity 30” Wide Bottom Freezer Refrigerator, Model # LDCS22220W is reversible...^IFV
Answered by: LGJoel
Date published: 2017-11-03
