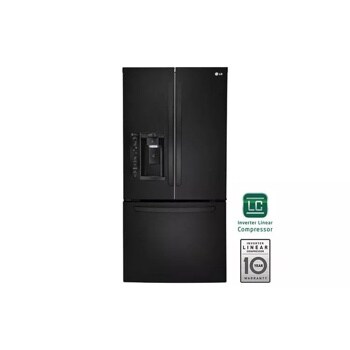

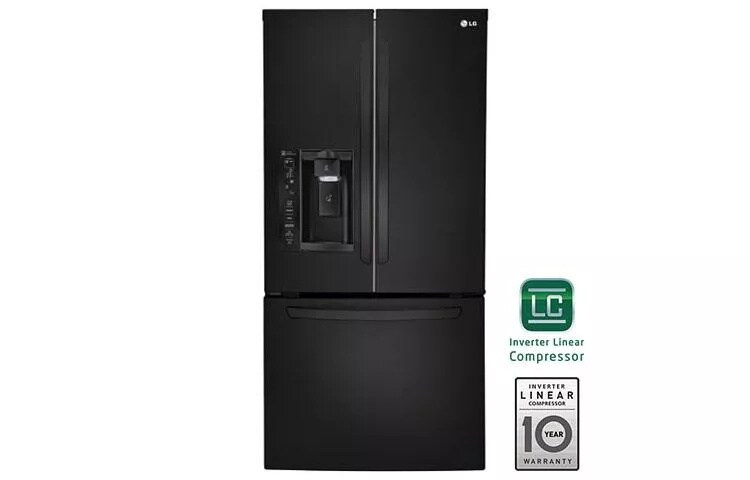

24.2 cu. ft. Ultra Capacity 3-Door French Door Refrigerator

  • LFXS24623B

  • Smooth Black

Key Features

  • 25 cu. ft. Capacity
  • Slim SpacePlus® Ice System
  • Extra Door Bins and Shelf Space
  • 10 Year Limited Manufacturer’s Warranty on Linear Compressor

J.D. Power Award Winner

“Highest in Customer Satisfaction with French Door Refrigerators”

Large Capacity for 33

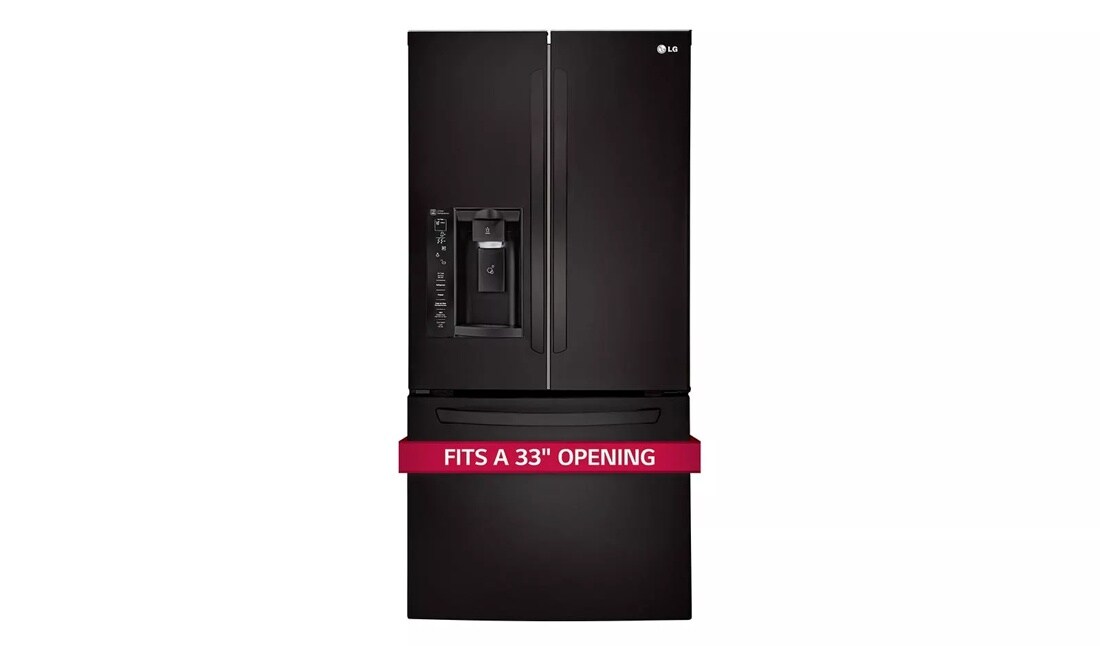

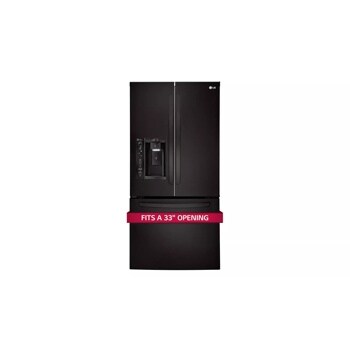

Large Capacity for 33" Width

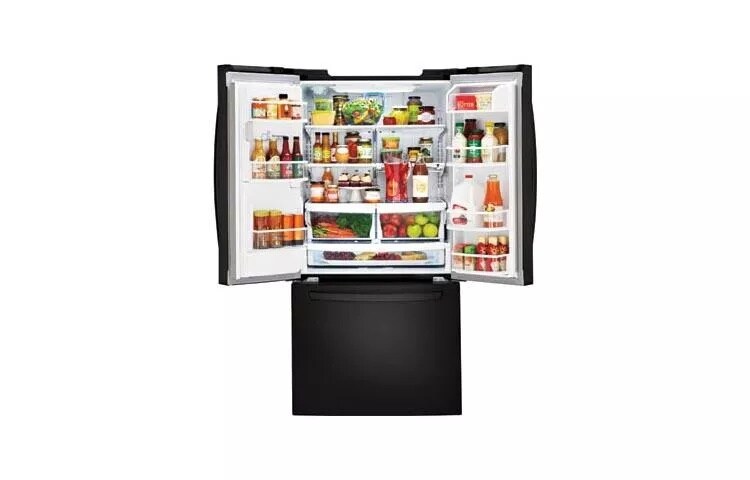

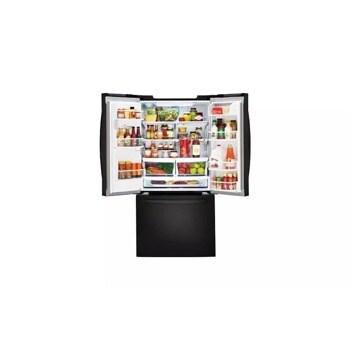

If you feel like you never have enough space for your groceries, or find yourself cramming them in, it's time to discover the convenience of having a large capacity refrigerator. With 24 cu. ft. of space in a 33" wide refrigerator, you have plenty of room for plenty more.

Most shelf space.*

Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.

*Standard width french door refrigerator, excludes other LG manufactured products

Fresher is better.

Fresher is better.

Smart Cooling® system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Easy in. Easy out.

Easy in. Easy out.

The Smart Pull® handle makes opening and closing the freezer quick and easy. All it takes is a simple lift of the handle for effortless access to your freezer.

CONVENIENT AUTOMATIC FILTER REPLACEMENT



Enjoy Fresh Water, Ice & Air with LG Filters.

Subscribe today and enjoy savings and maximum freshness. We’ll even ship your next refrigerator filter to you when you need it automatically.*

SUMMARY
Door Type French 3-Door
CAPACITY
Refrigerator 16.20 cu. ft.
Freezer 8.0 cu. ft.
Total 24.2 cu. ft.
FEATURES
ENERGY STAR® Qualified Yes (688 kWh/Year)
Ice & Water Dispenser Yes
Dispenser Type Tall Ice & Water Dispenser®
Ice System Slim SpacePlus®
Daily Ice Production 2.4 lbs/2.5 IcePlus
Ice Storage Capacity 2.2 +12.0 lbs.
Water Filtration System Filter LT700P
Air Filter Fresh Air Filter
Temperature Sensors 7
Linear Compressor Yes
Fresh Air Filter Yes, Air Filter LT120F
Display Type White LED
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
REFRIGERATOR
No. of Shelves 4 Split (3 Fixed / 1 Folding)
Folding Shelf 1
Cantilevered Shelves Yes
Shelf Construction SpillProtector™ Tempered Glass
Crisper Bins 2 Humidity Crispers
Glide N’ Serve® Yes
Refrigerator Light Premium LED
REFRIGERATOR DOOR
No. of Shelves/Bin 7 (2 Adjustable, 2 Gallon)
Door Bin Construction Clear Bins with Deco
FREEZER
Door Type Pull Drawer
Drawers 2
DuraBase™ Solid Drawer Base Yes
Drawer Divider Yes
Ice Bin 1 Extra Ice Bin
Freezer Light Premium LED
Handle Smart Pull®
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S), Smooth White (W), Smooth Black (B), Black Stainless Steel (D)
Handles Matching Commercial Handles
SPECIFICATIONS
Depth with Handles 35 3/8"
Depth without Handles 32 7/8"
Depth without Door 29"
Depth (Total with Door Open) 46 1/8"
Height to Top of Case 68 5/8"
Height to Top of Door Hinge 69 7/8"
Width 32 3/4"
Width (Door Open 90° with Handle) 41 1/8"
Width (Door Open 90° without Handle) 36 1/4"
Door Edge Clearance with Handle 4 1/2"
Door Edge Clearance without Handle 1 3/4"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 327 lbs/ 358 lbs
Carton Dimensions (WxHxD) 35" x 73" x 38"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231786546

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 501ms
  • REVIEWS, PRODUCT
  • bvseo-msg: Execution timed out, exceeded 500ms;

We're here to support you with our product.

View LFXS24623B Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

How do I take the water filter out?

Asked by: Nlf111
We appreciate you interest in this refrigerator. To remove the water filter from the unit you would: 1) Push the button to open the filter cover. 2) Pull the cartridge downward. 3) Pull out the filter cartridge. More information can be located on pages 30 - 31 in the owner's manual.
Answered by: NeilE
Date published: 2017-08-29

Does this come with any connections for the water line? I plan to have the 1/4" copper water line installed by the time the fridge gets here, but need to know if the connector from fridge to copper pipe is included?

Asked by: Royurt
The ENERGY STAR® Qualified LG 24.2 cu. ft. Ultra Capacity 3-Door French Door Refrigerator, Model # LFXS24623S does not come with a water line or any connections for it...^IFV
Answered by: LGJoel
Date published: 2017-08-28

How can I remove the silver and black 10 year warranty emblem from the front of my brand new LG refrigerator? LG should place than in a different location.

Asked by: Wyggit
If you wish to have this removed, and it has not been possible to remove the label by hand, then it is suggested to hold a hair dryer over the label to weaken the adhesive, or to use a soft cloth and hot soapy water to remove it.
Answered by: NeilE
Date published: 2017-07-17

Can the door width be adjusted?

Asked by: DanaJ
The door width for the ENERGY STAR® Qualified LG 24.2 cu. ft. Ultra Capacity 3-Door French Door Refrigerator, Model # LFXS24623S cannot be adjusted...^IFV
Answered by: LGJoel
Date published: 2017-06-29

My ice maker is not working. Is it under warranty

Asked by: Jessebailey
We appreciate your interest in this refrigerator. Operational components of this machine are covered by the manufacturer’s warranty for the period of up to one year from the date of purchase. For additional information, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2017-05-18

My ice maker will not work because it is cracked where turning shaft is. Where can I buy that part containing turning shaft, part # AEQ 72910412?

Asked by: Big Dick
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders and pricing information, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. For components such as interior parts, it is highly recommended to enlist the assistance of a qualified service technician for purchase and installation. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2017-05-09

The freezer keeps building up ice under the drawer and melting then running out onto the floor, is this because it's to full of food  or is there another issue that can stop this from occurring...

Asked by: Brigham
We regret the trouble you have experienced with this refrigerator. The description given suggests that the drain duct, which should be located on the floor of the refrigerator compartment, may be clogged or blocked, causing the ice buildup, followed by the defrost cycle, which would cause it to melt and leak. If this cannot be resolved, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2017-04-17

How can i keep ice from clogging up ice maker; ice seems to melt and freeze up even with it set to ice- plus?

Asked by: daddywagg01
We regret the trouble you have experienced with this refrigerator. If the ice is melting and refreezing, then it would be recommended to check for air leaks around the refrigerator door, the ice room door and the ice dispenser flap. If this does not resolve the matter, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2017-03-14
