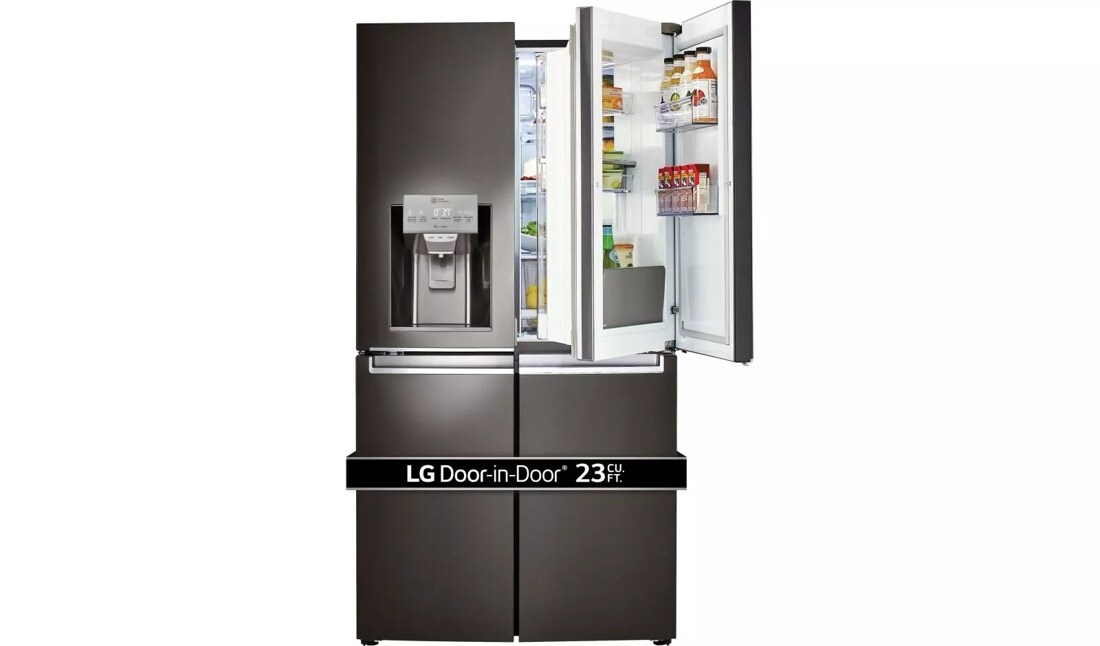

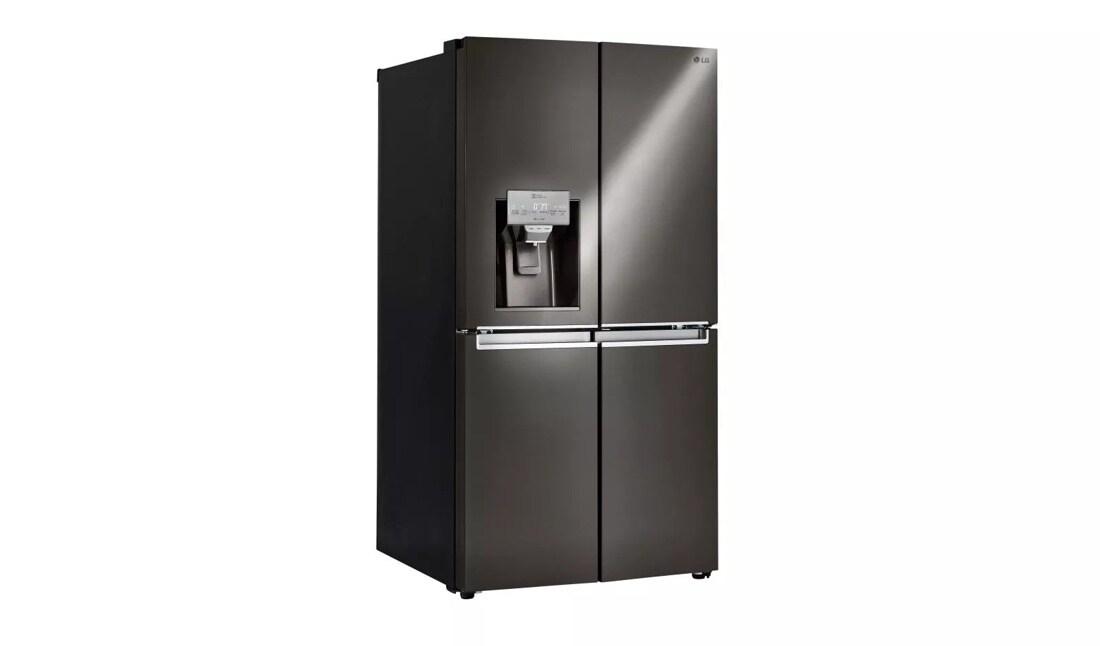

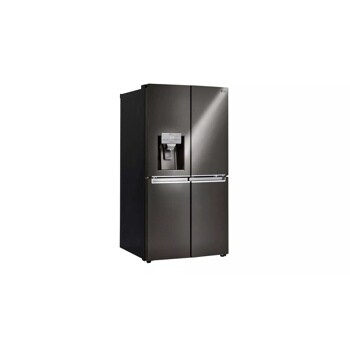

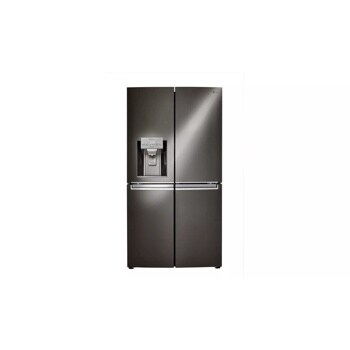

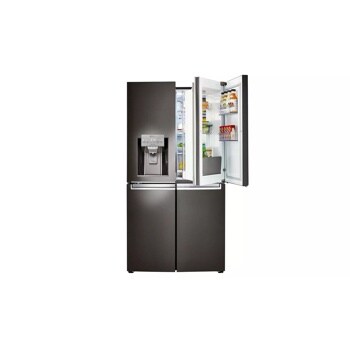

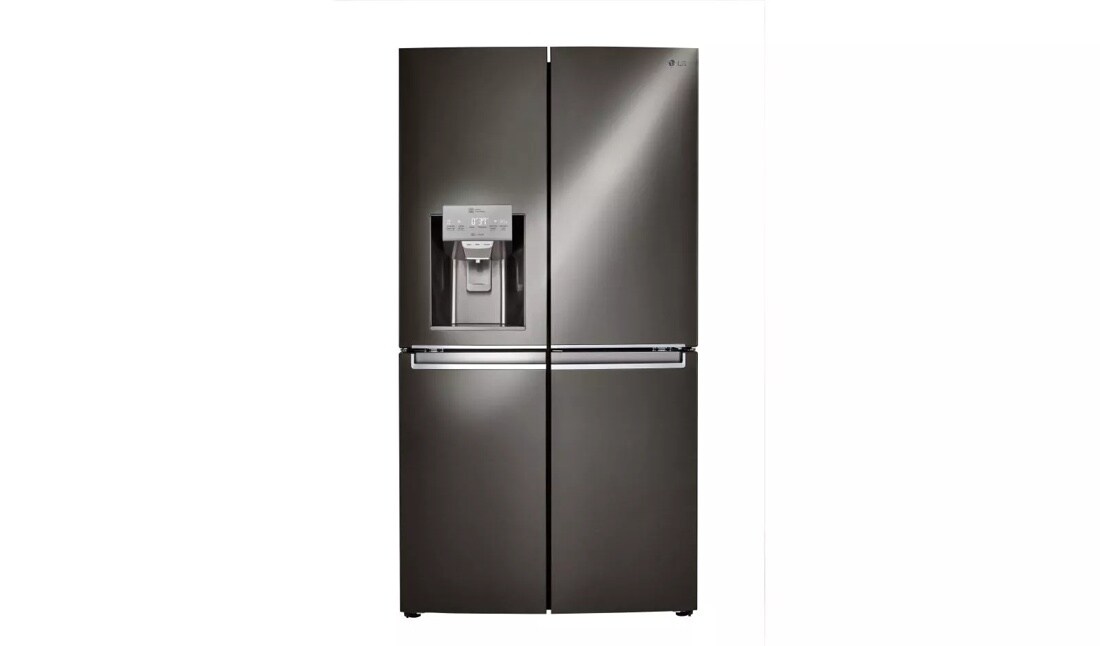

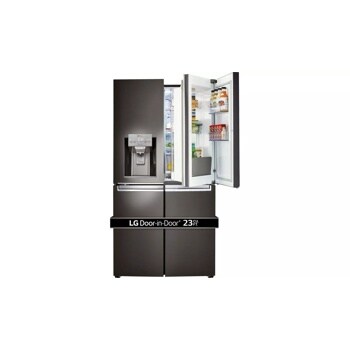

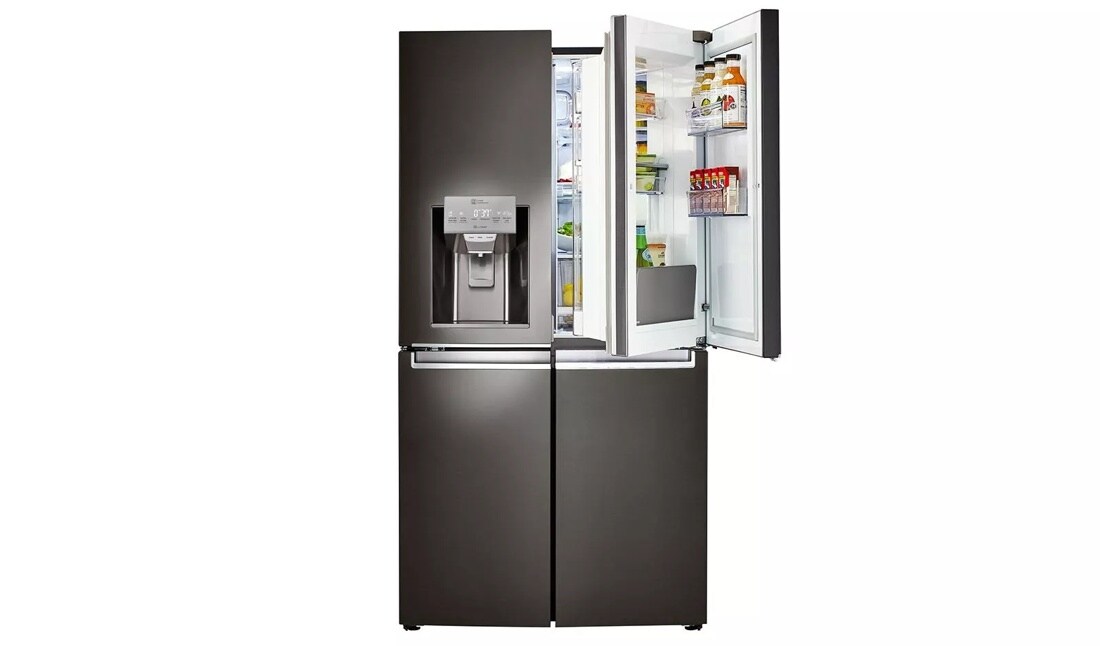

LG Black Stainless Steel Series 23 cu. ft. 4-Door Counter-Depth Refrigerator with Door-in-Door®

  • LNXC23766D

  • Black Stainless Steel

Key Features

  • 23 cu. ft. Capacity
  • Finger Print and Smudge Resistant Finish
  • SmartThinQ™ Technology
  • Door-in-Door®
  • Counter-Depth
  • ENERGY STAR® Qualified

What Is Counter-Depth?

LG counter-depth refrigerators align with countertops and cabinetry for a uniform profile, creating a sophisticated built-in look without the high-end price tag.

Design is all in the finish.

Channel your inner designer to create your ideal custom kitchen with the new LG Virtual Designer

Stylish Design You Can’t Wait to Get Your Hands On

Fingerprint and smudge resistant finish easily wipes clean with a soft, dry cloth, so the only lasting impression is your impeccable taste. At last, the kitchen you can’t wait to show off is the kitchen that handles real-life in style.

Think you’ll run out of ice? ThinQ Again.

Think you’ll run out of ice?
ThinQ Again.

From making extra ice for tonight’s dinner party to getting smartphone notifications when the door is left open, use the LG SmartThinQ™ app to control key features and get important notifications from anywhere. It even works with the Google Assistant and Amazon Alexa, so you can operate smart features with your voice.

Easy Access to Family Favorites

For those fly-by visits to the refrigerator, the Door-in-Door® feature allows you to get in and get out providing easy access to beverages and snacks. The open button is now conveniently located right on the pocket handle so you can seamlessly open the door.

Fold-Away Tray

The handy fold-away tray automatically folds down when you open the Door-in-Door® compartment, so you can use it to fill a glass with your favorite drink or use it as a staging area while loading groceries. When you’re done, the tray automatically retracts out of the way as you close the door.

Extend Food Freshness

Door-in-Door® with ColdSaver™ Panel acts like a barrier keeping cold air in where it matters most - in the inside - giving you peace of mind that food will stay fresh longer. It reduces cold air loss by up to 47% helping keep food fresher longer.

Organize Your Freezer

Our swing door freezer features 6 independent storage compartments and 6 door bins for added organization and flexibility that make it easier to find and access frozen foods.

CONVENIENT AUTOMATIC FILTER REPLACEMENT



Enjoy Fresh Water, Ice & Air with LG Filters.

Subscribe today and enjoy savings and maximum freshness. We’ll even ship your next refrigerator filter to you when you need it automatically.*

SUMMARY
Door Type French 4-Door
Refrigerator Type Counter Depth
Ice & Water Dispenser Yes
SmartThinQ™ Yes
CAPACITY
Refrigerator 13.60 cu. ft.
Freezer 9.10 cu. ft.
Total 22.7 cu. ft.
FEATURES
Door-in-Door® Yes
ENERGY STAR® Qualified Yes (716 kWh/Year)
Ice & Water Dispenser Yes
Dispenser Type Integrated Tall Ice & Water Dispenser®
Daily Ice Production 4.5 lbs / 4.9 (IcePlus)
Ice Storage Capacity 3.0 lbs
Water Filtration System LT800P
Smart Cooling System Yes
Multi Air Flow Cooling Yes
Temperature Sensors 6
Linear Compressor Yes
Fresh Air Filter Yes
Display Type Smooth Touch Control (White LED)
CONVENIENCE
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
REFRIGERATOR
No. of Shelves 4 Split (3 Fixed/1 Folding)
Folding Shelf Yes
Cantilevered Shelves Yes
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 2 Crispers
EasyReach™ Bins Yes
Refrigerator Light Premium LED (Ceiling and Side)
REFRIGERATOR DOOR
No. of Shelves/Bin 8 Total
Door Bin Construction 1 Piece (Clear)
FREEZER
Door Type Side Swing
Handle Pocket Handle
Freezer Light Premium LED
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Smooth
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Black Stainless Steel (D)
Handles Pocket Handles
DIMENSIONS / CLEARANCES / WEIGHTS
Depth with Handles 29 7/8"
Depth without Handles 29 7/8"
Depth without Door 24 7/8"
Depth (Total with Door Open) 43 1/4"
Height to Top of Case 70"
Height to Top of Door Hinge 70 1/2"
Width 35 7/8"
Width (Door Open 90˚ with Handle) 40 1/8"
Width (Door Open 90˚ without Handle) 40 1/8"
Door Edge Clearance with Handle 4 5/8"
Door Edge Clearance without Handle 2 1/4"
Installation Clearance Sides 1/8", Top 1", Back 2"
Weight (Unit/Carton) 320 lbs / 346 lbs.
Carton Dimensions (WxHxD) 37 5/8" x 73 3/8" x 31 1/2"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231787956

What People Are Saying

Rated 4 out of 5 by from LG 4 (5) Door Fridge We purchased this refrigerator about a month ago, upgrading from a 20 yr old side-by-side unit. Love the "black stainless" color, the "door-in-door" feature, easy to access frequently used items and able to reach through for some additional items if needed. Had no interest in "seeing through the door" or writing on tablet or using phone to transmit shopping list, this unit has neither of those items, though it does have wi-fi capability for troubleshooting if necessary. More items to go wrong IMO. Also like having two freezer doors vs. pull-out drawer. Some minor items to consider, the ice maker doesn't hold as much ice due to its location on the refrigerator section door. We justified the ability to store additional ice in a bin in the freezer if necessary to make it a non-issue. Water/Ice dispenser on front of that door advertises as "taller" however can only fit a smaller water bottle under it completely for re-filling and must use hand to push the dispenser as it is set back further, not a big issue just have to angle larger bottles. Should work fine for glass filling. Last item is it is taking some adjustment to bending down for freezer access particularly the bottom drawers however due to the nature of the design not much that an be done for that. Overall very happy with our purchase.
Date published: 2017-11-05
Rated 4 out of 5 by from Getting Acquainted Love the spacious 2 door freezer!! Room for everything! I’m currently having storage problems with the freg and lack of depth on indoor shelves!
Date published: 2017-10-22
Rated 5 out of 5 by from Love, love my new 4 door LG refrigerator!!! I delayed the purchase of my refrigerator for over a year. After one day using my new refrigerator I regretted waiting so long. It's quiet, spacious, and convenient. The freezer is so spacious and easy to keep things organized. The two doors on the freezer makes it easy to open, slide a drawer out and grab what I need. I would recommend this 4 door refrigerator to everyone who is looking to purchase a new fridge.
Date published: 2017-09-23
Rated 5 out of 5 by from Excellent storage I love this product. Even though it is smaller than my previous refrigerator the bins are arranged for much better storage.
Date published: 2017-09-23
Rated 5 out of 5 by from We love the fridge and it's features. Only I have found is there are 5 doors but only 4 alarms. The 5th door needs an alarm also. When you live with a stroke survivor they can be forgetful and that is the only door with no alarm, hence the one that is left open!
Date published: 2017-09-22
Rated 5 out of 5 by from Great Capacity and Features I purchased it several months ago, and is currently very pleased with it.
Date published: 2017-09-22
