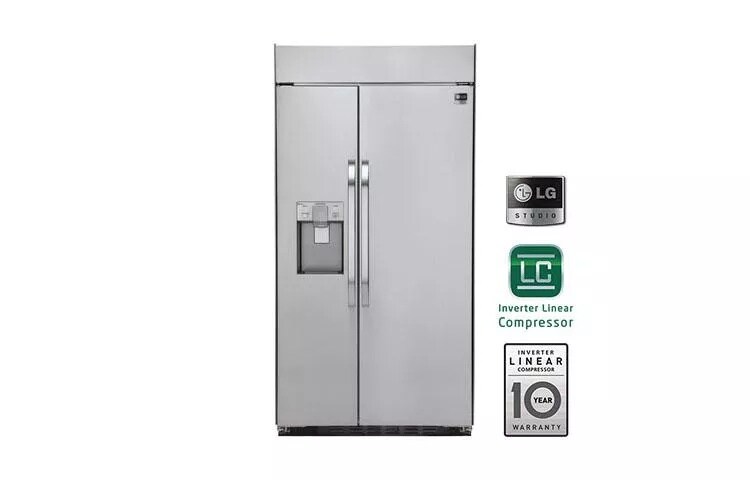

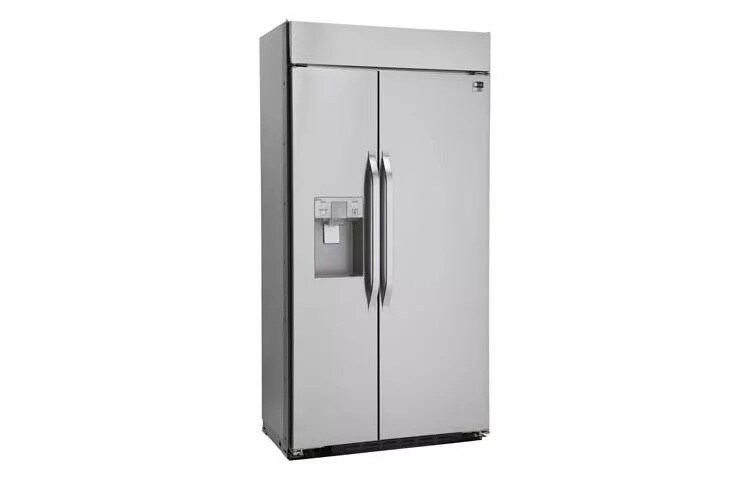

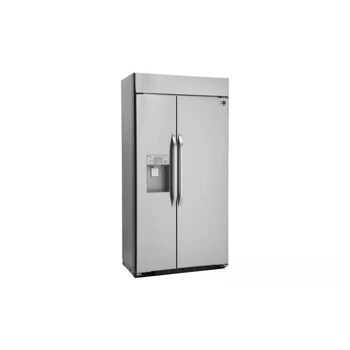

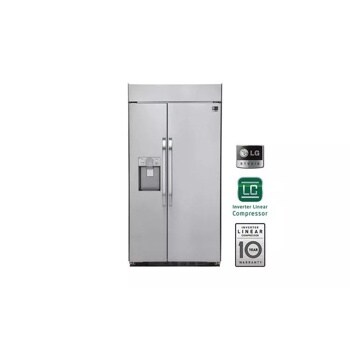

LG Studio - Ultra-Large Capacity Side-By-Side Refrigerator with Ice & Water Dispenser

  • LSSB2691ST

  • Stainless Steel
  • Discontinued Product

Key Features

  • 42" built-in side by side refrigerator
  • Ultra-Capacity (25.6 cubic feet)
  • Tall Ice & Water Dispensing System (9.2")
  • In-Door Ice Maker
  • Sliding Door Baskets, Removable Drawers, Slam-Proof Drawers & Doors
Door Type Side-by-Side
Refrigerator 16.25 cu. ft.
Freezer 9.35 cu. ft.
Total 25.6 cu. ft.
Energy Consumption 762 kWh/Year (2014 Standard)
Energy Rating ENERGY STAR ® (2014 Standard)
Ice & Water Dispenser Yes
Dispenser Type External Ice & Water Dispenser
Ice System SpacePlus™ Ice System
Water Filtration System Filter LT700P
Linear Compressor Yes
Temperature Controls SmoothTouch External WH LED
LoDecibel™ Operation Yes, 40 dB
IcePlus™ Yes
Cooling System Multi-Air-Flow™ Technology
No. of Shelves 5
Folding Shelf No
Cantilevered Shelves Yes
Shelf Construction Tempered Glass
Crisper Bins 3 (2 Magic Crispers)
Glide N’ Serve™ Drawer No
Refrigerator Light Premium LED
No. of Shelves/Bin 4 (3 Easy Moving Function)
Door Bin Construction 3 Piece (Clear+Opaque+Spray Deco)
Door Type Swing Doors
Drawers 4
DuraBase™ Solid Drawer Base No
Ice Bin No
No. of Shelves 4
Freezer Light Premium LED
No. of Door Bins/Drawers/Construction 2 Door Bins / 3 Drawers / Plastics
Contour Door Flat
Hidden Hinges Yes
Surface Stainless Steel Clad Type
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (ST)
Handles Studio Style Handles
Depth with Handles 27.5"
Depth without Handles 25.5"
Depth without Door 25.5"
Depth (Total with Door Open) 48.3"
Height 82 1/2"
Width 42"
Weight (Product) 282(kg), 621.7(lb)
Carton Dimensions (WxHxD) 1120x765x2301(mm) 44.1"X30.1"X90.6"(inch)
Limited Warranty 2 Years Parts and Labor, 7 Years on the Sealed System 10 Years on Linear Compressor
UPC 048231784443
