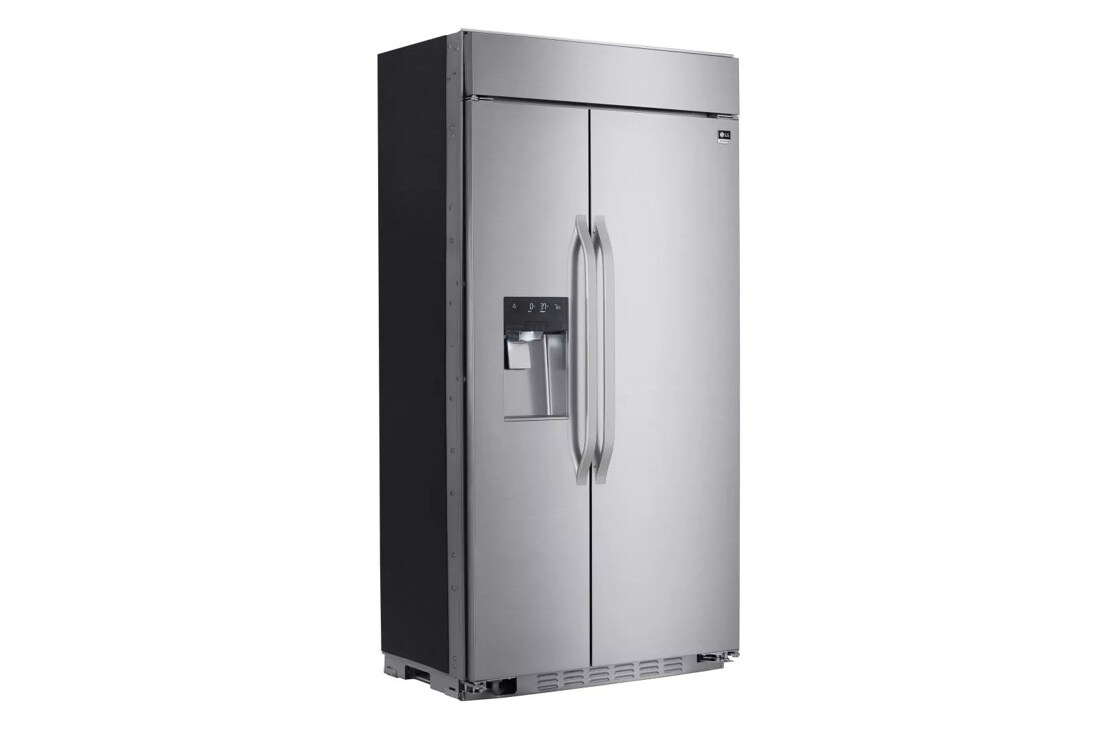

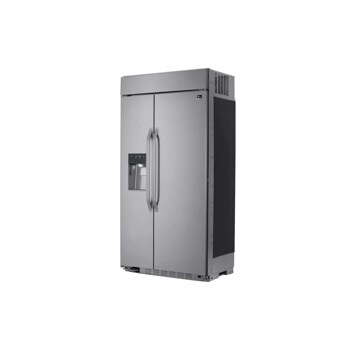

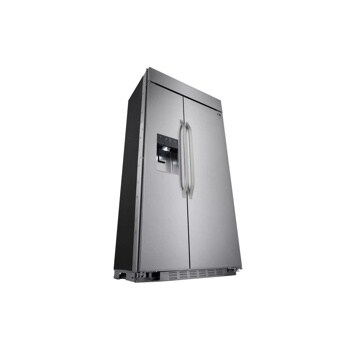

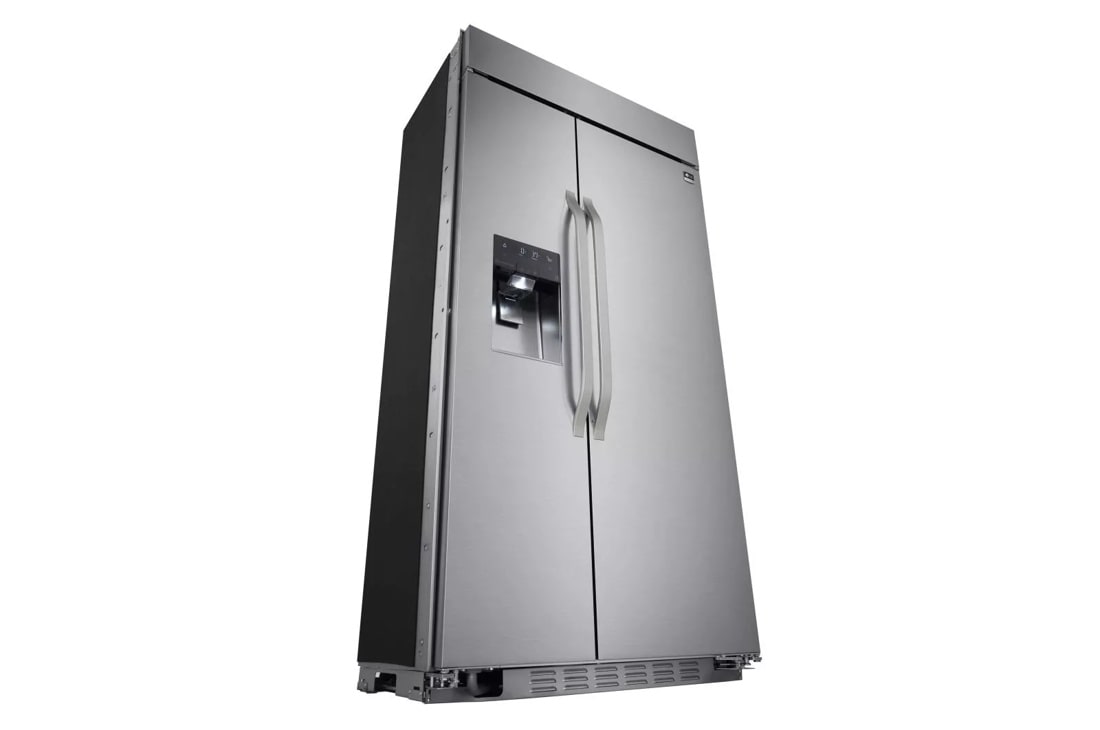

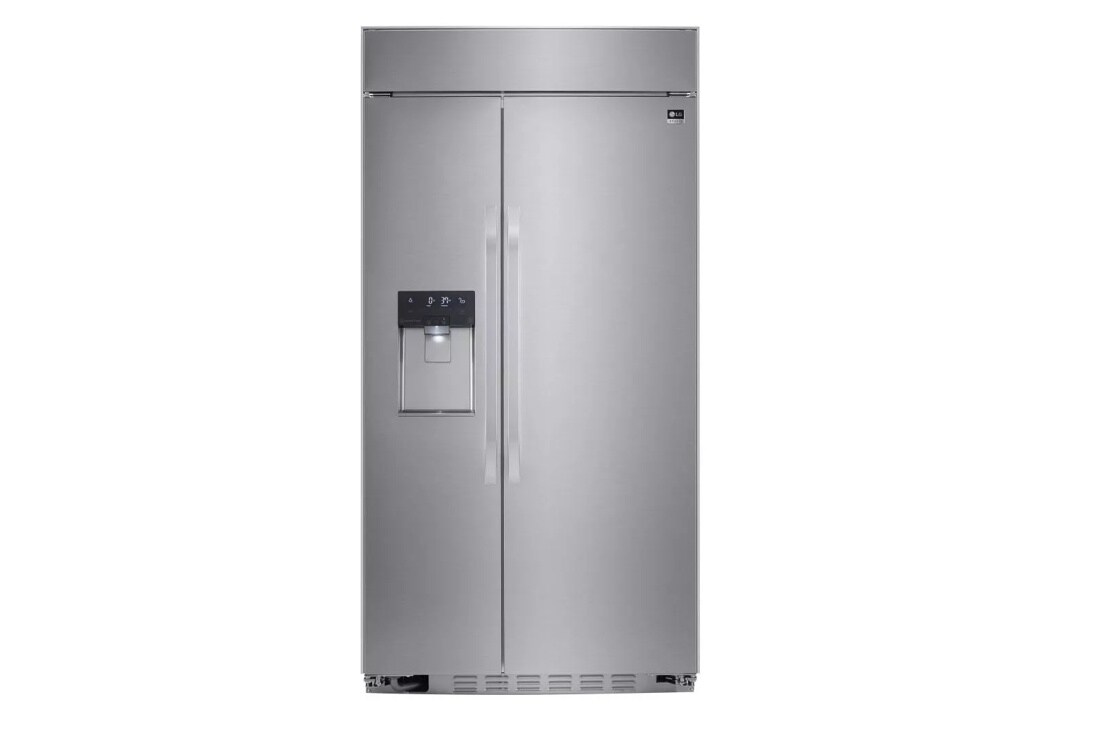

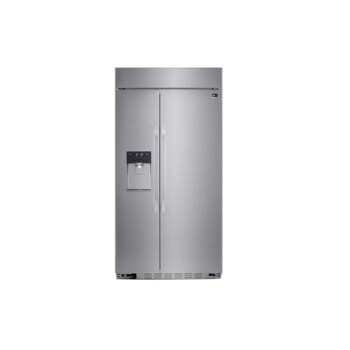

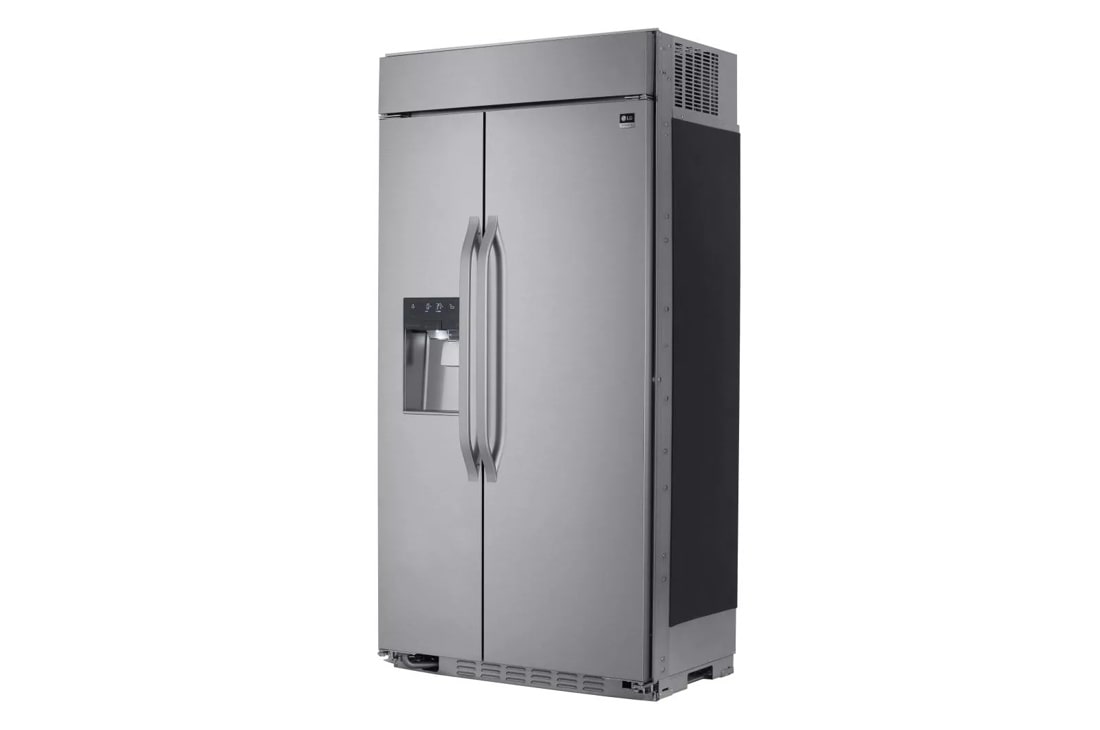

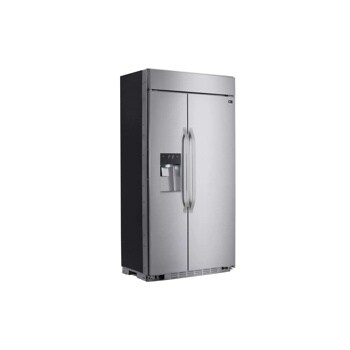

LG STUDIO - 26 cu. ft. Ultra-Large Capacity Side-by-Side Refrigerator with Ice & Water Dispenser

  • LSSB2692ST

  • Stainless Steel

Key Features

  • Pro-Style Design inspired by Nate Berkus
  • Ultra Large Capacity (25.6 cubic feet)
  • Tall Ice & Water Dispenser® (9'2") with SmoothTouch™ Controls
  • Easy Moving Door Bin
  • SpacePlus® Ice System
  • ENERGY STAR® Qualified

Kitchen design for a refined palate.

Use the LG STUDIO Virtual Designer to create and share your perfect kitchen.

Pro- Style Design inspired by Nate Berkus

This built-in refrigerator makes a statement in any kitchen. Inspired by our artistic advisor, Nate Berkus, this refrigerator boasts premium design details inside and out- like stainless steel backing on the tall ice and water dispenser®, LED lighting that brightens the interior, and sleek wave door handles unique to the LG STUDIO line.

Large Capacity for 33

Ultra Large Capacity

With the ultra-large capacity at 25.6 cu.ft., you can store more food than ever before. And keep it all fresher, longer.

Tall Ice and Water Dispenser

Tall Ice and Water Dispenser®

The Ice & Water Dispenser® in this LG refrigerator is one of the tallest around in its class, measuring in at 9.2 inches. From pitchers to pint glasses, finally an ice and water dispenser that can accommodate just about any container.

Easy Moving Door Bin

Fast and Flexible

Tall item to store in the door? Easy moving door binsslide up and down with minimal effort—so you can quickly adjust storage on the fly.

More Space Where You Need it Most

Maximum shelf space.

Ice makers are great, but not if it means you can't fit all of your food in the fridge. Located on the freezer door, the ingenious SpacePlus® ice system offers easy access to ice when you need it while freeing shelf space for additional storage.

Save money. Save energy.

Save money. Save energy.

When your refrigerator uses at least 20% less energy than required by federal standards, you’re going to make an impact—on your energy bill, your energy consumption, and most importantly, the environment.

CONVENIENT AUTOMATIC FILTER REPLACEMENT



Enjoy Fresh Water, Ice & Air with LG Filters.

Subscribe today and enjoy savings and maximum freshness. We’ll even ship your next refrigerator filter to you when you need it automatically.*

SUMMARY
LG STUDIO Yes
Door Type Side-by-Side
TYPE
Type 42” Built-In Side-By-Side Refrigerator
CAPACITY
Refrigerator 16.25 cu. ft.
Freezer 9.35 cu. ft.
Total 25.6 cu. ft.
FEATURES
Energy Rating ENERGY STAR® Qualified
Energy Consumption 762 kWh/Year
Ice & Water Dispenser Yes
Control Type SmoothTouch
Dispenser Type External Ice & Water Dispenser
NFC Ready Yes
Ice System SpacePlus® Ice System
Temperature Sensors 7 (Humidity, R-EVA def , F-Eva def 1ea)
Linear Compressor Yes
Cooling System Multi-Air-Flow™ Technology
CONVENIENCE
Temperature Controls SmoothTouch External (White LED)
Door Alarm Yes
LoDecibel™ Quiet Operation Yes
Soft Closing Door Hinge Yes
REFRIGERATOR
No. of Shelves 5
Cantilevered Shelves Yes
Shelf Construction Tempered Glass
Crisper Bins 3 (2 Magic Crispers)
Refrigerator Light Surrounding LED
REFRIGERATOR DOOR
No. of Shelves/Bin 4 Gallon Sized (3 Easy Moving Function)
Door Bin Construction 3 Piece (Clear+Opaque+Spray Deco)
FREEZER
Door Type Swing Doors (Soft Closing)
Drawers 3
Freezer Light Surrounding LED
No. of Door Bins/Drawers/Construction 2 Door Bins / 3 Drawers / Plastics
MATERIALS AND FINISHES
Contour Door Flat
Hidden Hinges Yes
Surface Stainless Steel Clad Type
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (ST)
Handles LG STUDIO Style Handles
DIMENSIONS/CLEARANCES/WEIGHTS
Depth with Handles 27 1/2"
Depth without Handles 25 3/8"
Depth without Door 22 1/2"
Depth (Total with Door Open) 48 5/16"
Height to Top of Case 83 1/2"
Width 42"
Width (Door Open 90˚ with Handle) 45"
Width (Door Open 90˚ without Handle) 41"
Installation Clearance Sides 1/4", Top 1/4", Back 1/6"
Cabinet Dimension Cut-Out Size 41 1/2” x 83 3/4” x 24”
Weight (Unit/Carton) 538 lbs./595 lbs.
Carton Dimensions (WxHxD) 44 1/10" x 90 3/5" x 30 1/10"
WARRANTY
Limited Warranty 2 Years Parts and Labor, 7 Years on the Sealed System 10 Years on Linear Compressor
UPC 048231787482

What People Are Saying

Rated 5 out of 5 by from Nice unit! I recently did a complete kitchen remodel, and although I have a rather small kitchen, I wanted to upgrade to a overhead compressor unit. The challenge was that I could not fit the more common 48" wide premium refrigerators, I only had room for the much less common 42" wide models, of which there were very few brands to choose from. My local dealer happened to have this unit on their showroom floor, which made inspecting all of it's features very convenient. I did research on comparable brands, but still came back to the LG. The unit is now installed and we are very happy with it.
Date published: 2017-08-11
Rated 4 out of 5 by from Looks great, run s great We installed this refrigerator about a month ago. It looks great and works wonderfully. The only issue I have is the water/ice dispenser. It's a little cumbersome to have to advance the selection button for ice selection. Other than that I think this product is wonderful.
Date published: 2017-08-11
Rated 5 out of 5 by from Great features 4 years ago and still look like I just bought it.i strongly recommend that kind of refrigerator.
Date published: 2017-08-11
Rated 4 out of 5 by from Nice It's good frig, ice maker a little loud , great design of the frig.
Date published: 2017-08-11
  • y_2017, m_8, d_18, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_US, sid_MD05601191, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LSSB2692ST Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Is it possible to get this model without the water/ice dispenser?

Asked by: saila1
Regrettably, the ENERGY STAR® Qualified LG STUDIO - 26 cu. ft. Ultra-Large Capacity Side-by-Side Refrigerator with Ice & Water Dispenser, Model # LSSB2692ST is only available with the Factory Installed Tall Ice & Water Dispenser®...^IFV
Answered by: LGJoel
Date published: 2017-07-17
