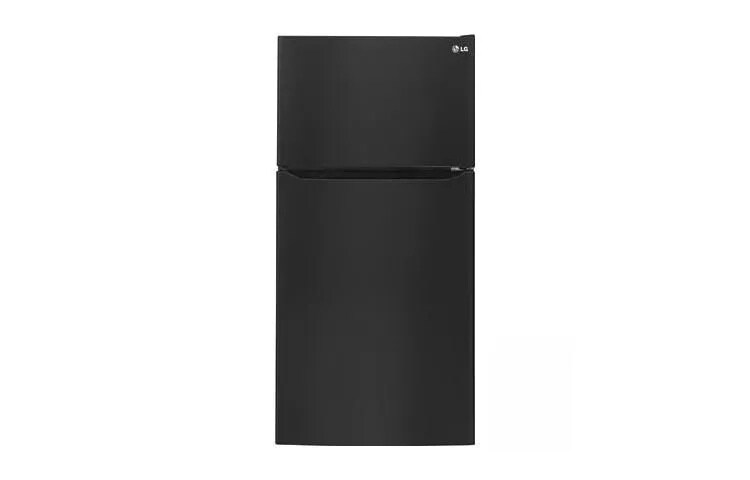

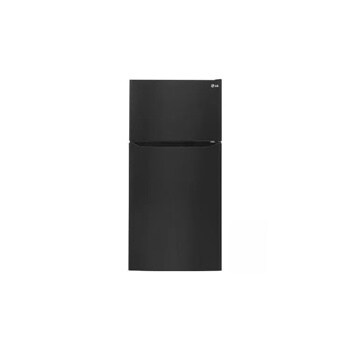

20 cu. ft. 30” Wide Top Mount refrigerator W/Ice Maker

  • LTCS20220B

  • Smooth Black

Key Features

  • 20 cu. ft. Capacity
  • 30” Width, Under 66”
  • Full Width Pantry Drawer
  • Factory Installed Ice Maker

J.D. Power Award Winner

“Highest in Customer Satisfaction with Top-Mount Freezer Refrigerators”

Great Space in Style

Great Space in Style

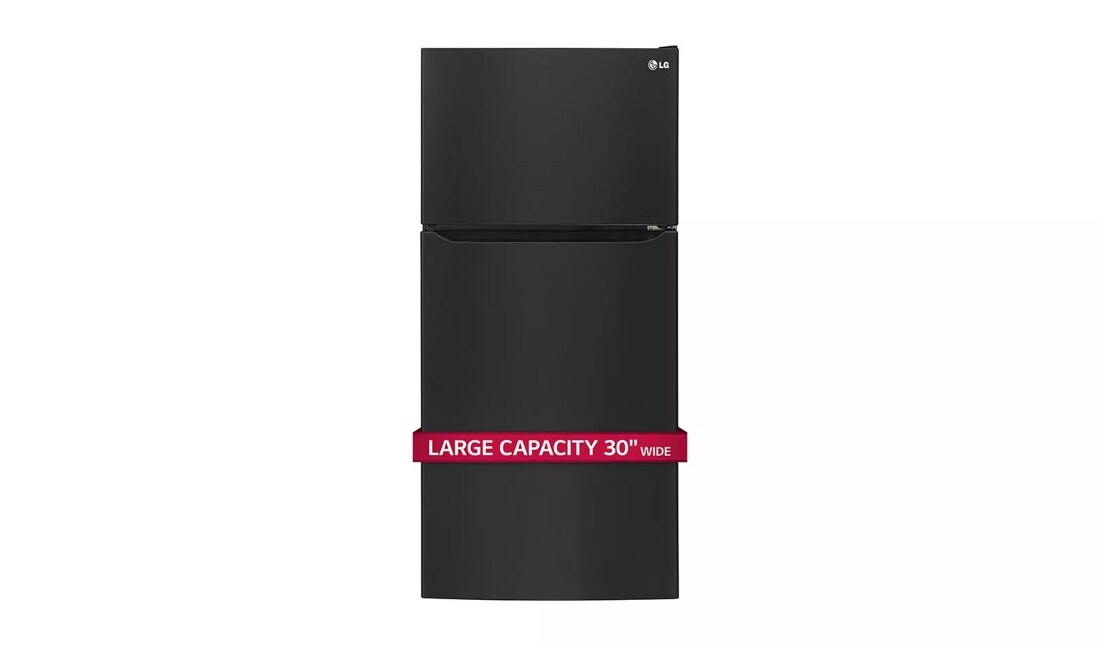

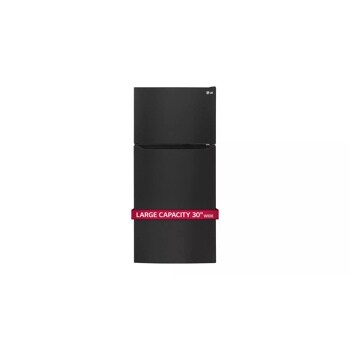

Get the space you need in a refrigerator that’s right for your kitchen. With 20 cu. ft. of space, this top mount refrigerator offers one of the largest capacities in its category at 30” wide.

Space to Keep it Fresh

Space to Keep it Fresh

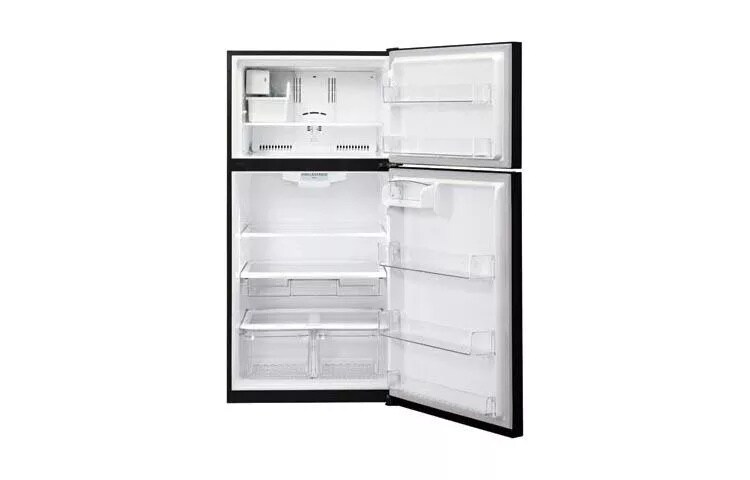

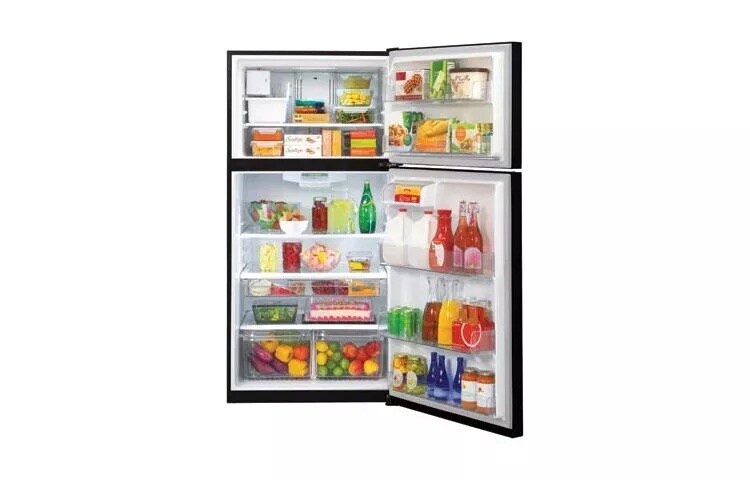

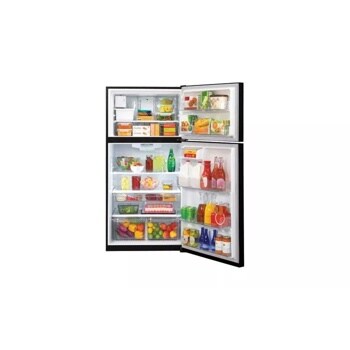

With two humidity-controlled crisper drawers and a full-width Glide N’ Serve® Pantry Drawer, keeping all of your food organized and fresh couldn’t be simpler. Store wide items with easier access in the Glide N’ Serve® Pantry Drawer, and the two humidity controlled crisper drawers are perfect for fruits, vegetables and beverages.

Great Light.

Great Light.

LED panels located on the rear of the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.

Sophisticated style and Design.

Sophisticated style and Design.

Contoured doors, hidden hinges, and a host of great interior features like LED lighting give your refrigerator a look as sophisticated as it is functional.

Cold as ice.

Cold as ice.

An automatic ice maker means you'll always have ice on hand.

SUMMARY
Door Type Top Mount Freezer
CAPACITY
Refrigerator 14.7 cu. ft.
Freezer 5.5 cu. ft.
Total 20.2 cu. ft.
FEATURES
ENERGY STAR® Qualified Yes (471 kWh/Year)
Temperature Sensors Yes
Temperature Controls Electronic
LoDecibel™ Quiet Operation Yes
Freezer Door Type Top Swing Door
REFRIGERATOR
No. of Shelves 2 Full
Shelf Construction Tempered Glass
Crisper Bins 2 Humidity Crispers
Full Width Pantry Drawer Yes
Gallon Storage 2 Gallons
Refrigerator Light Premium LED
Daily Ice Production 3.7 lbs
Ice Storage Capacity 5.5 lbs
Multi-Air Flow Cooling Yes
Temperature Sensors 4
Compressor Type Inverter
Full Snack Tray/2 Bottle Guides Yes
REFRIGERATOR DOOR
Ice Bin Yes
Dairy Bin 1
No. of Door Bins 3
FREEZER
Ice Maker Yes
Ice Bin Yes
No. of Shelves 1
Shelf Construction Tempered Glass
Freezer Light Premium LED
No. of Door Bins/Shelves 2
Auto Defrost Yes
MATERIALS AND FINISHES
Contour Door Yes
Reversible Doors Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S), Smooth White (W), Smooth Black (B)
SPECIFICATIONS
Dimensions (W case x H top of hinge x D with handles) 29 3/4" x 66 1/8" x 33 3/8"
Depth including Door 33 3/8"
Depth without Door 29"
Depth (Total with Door Open) 60"
Height to Top of Case 65 1/2"
Height to Top of Door Hinge 66 1/8"
Width 29 3/4"
Installation Clearance 2"
Weight (Unit/Carton) 202 lbs./226 lbs.
Carton Dimensions (WxHxD) 31 4/5" x 69 3/8" x 38 1/7"
RATINGS
Amps 20 Amp
UL Listed Yes
Energy Consumption 406kWh
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System
UPC 048231786607

What People Are Saying

Rated 4 out of 5 by from love the lighting I enjoy having lights in the freezer and the refrigerator. I was a little concerned at the swish sound followed by the short clicks, but the people at LG assured me this is normal operating sounds.
Date published: 2017-09-06
Rated 5 out of 5 by from Excellent refrigerator! This thing is amazing. Beautiful design and works great.
Date published: 2017-08-12
Rated 4 out of 5 by from Nice Fridge We like this fridge, features are quite good and love the lighting except the fridge compartment needs a center top LED light like the freezer as the side lights are not enough. Cools well, crisper drawers are large. Like the built in handle on the outside. Some issues with the ice maker, ice is sticking together in the bucket even after making sure the water line was not crimped and upped the freezer temperature. Note sure what the 3 lights on the ice maker are for as the manual does not show them or explain what they are about.
Date published: 2017-08-01
Rated 4 out of 5 by from Fits the bill:-) Just moved into a small condo needed to replace what was there - size and color was important. Was looking for LG brand. Really liked the style - non handles. Like the LED lights however disappointed did not have more lights either on top or in the rear. Bought the unit at Lowe's as non stock item & out of the carton - deep discounted. Have had it for only several days - will update in a few months.
Date published: 2017-06-26
Rated 5 out of 5 by from New Refrigerator We have had the refrigerator for just a few weeks but we really like it. It looks nice and fits the spot perfectly. It warns when the door is open to long and has a reader on top that allows a repairmen to analyze problems.
Date published: 2017-06-19
Rated 5 out of 5 by from My favorite appliance! I originally bought this because of the height requirement in my kitchen - bought it online - store had none on display. When it came to the house, the delivery guy wanted one! It's beautiful, has amazing amount of space and plenty of lights inside - is so quiet I thought it wasn't working! Have had it almost a year now and I just love it! I'm sold on LG!
Date published: 2017-06-16
Rated 4 out of 5 by from Great price We we're looking for a cheaper fridge for an addition and we could only find small ones 15-17 cubic ft. We found this one at 20 cubic ft for less money. AND it came with an ice maker, that many of the others didn't have.
Date published: 2017-06-14
Rated 5 out of 5 by from Great features The refrigerator has many great features. The interior lights, no actual door handles. The only thing we don't like is the doors don't stay open. The swing back at your and close hard.
Date published: 2017-06-05
  • y_2017, m_9, d_21, h_4
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_48
  • loc_en_US, sid_MD05135543, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LTCS20220B Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

I am thinking about buying the LTCS20220w refrigerator as a second refrigerator. Will the unit operate normally if the ice maker is completely removed?

Asked by: Richard in USVI
We appreciate your interest in this refrigerator. The ice maker is not designed to be removed from the unit. Do so would void the 1 year manufacturers' warranty.
Answered by: NeilE
Date published: 2017-09-08

Why is ice maker slow?

Asked by: Wsws
There are multiple factors that can cause reduced ice production. Ensure the temperature for the freezer compartment is 0°F. If the freezer temperature is warmer, ice production will be affected. If this not the case, please contact our Customer Interactive Center at 800-243-0000 for further assistance.
Answered by: NeilE
Date published: 2017-08-27

Does this have a filter for ice maker

Asked by: Nshsbs
The ENERGY STAR® Qualified LG 20 cu. ft. 30” Wide Top Mount refrigerator w/Ice Maker, Model # LTCS20220W does not have a built-in water filter. If Filtration is required, you will need to add a reverse osmosis water filtration system between the refrigerator and your cold water supply...^IFV
Answered by: LGJoel
Date published: 2017-08-04

My ice cream is soft. What number should the freezer be on?

Asked by: Muffy
It is recommended that, when the unit is first installed, the freezer temperature should be set to 0 degrees Fahrenheit, while the refrigerator should be set to 37 degrees. Once the unit reaches these temperatures, you may change the setting to however you would prefer.
Answered by: NeilE
Date published: 2017-06-16

My current (21-year-old) refrigerator has adjustable shelves on the door. This feature is important for me for a new fridge. Does this LG model have adjustable door shelves?

Asked by: GoodFridgeSeeker
The Refrigerator Door Bins in the ENERGY STAR® Qualified LG 20 cu. ft Large Capacity 30" Wide Top Freezer Refrigerator w/Ice Maker, Model # LTCS20220S can be removed easily for cleaning or for adjustment...^IFV
Answered by: LGJoel
Date published: 2017-03-24

New ltcs20220 3/17/2017. It's been run for ~ 5 hours and the refrigerator section is sitll above 45 degrees. Very little air flow from the refrigerator vents; novents are obstructed. My guess is that the vent door to the refrigerator isn't open. Advice? T

Asked by: JohnMA
We regret the trouble you have experienced with this air conditioner. It is stated that none of the refrigerator vents are obstructed. It is suggested to check the vents in the FREEZER compartment, as cold air will flow from the freezer to the refrigerator. If this does not resolve the matter, please contact our Customer Interactive Center at 800-243-0000 to further troubleshoot the matter.
Answered by: NeilE
Date published: 2017-03-21

Does this refrigerator have a door alarm?

Asked by: Debbie M
The ENERGY STAR® Qualified LG 20 cu. ft. 30” Wide Top Mount refrigerator W/Ice Maker, Model # LTCS20220B does not have a door alarm...^IFV
Answered by: LGJoel
Date published: 2017-03-21

Can I buy this but not hook up water line to the ice maker? Can the ice maker be removed?

Asked by: jazure
The Factory Installed Automatic Ice Maker in the ENERGY STAR® Qualified LG 20 cu. ft Large Capcity 30" Wide Top Freezer Refrigerator w/Ice Maker, Model # LTCS20220S has an On/Off switch. If you do not have a water line attached to the refrigerator and do not intend to use the Ice Maker, be sure to turn the Ice Maker off before turning the the refrigerator on...^IFV
Answered by: LGJoel
Date published: 2017-03-20
