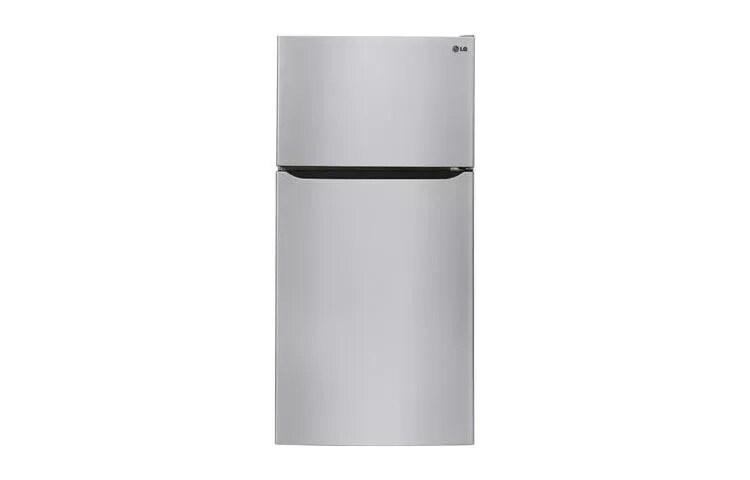

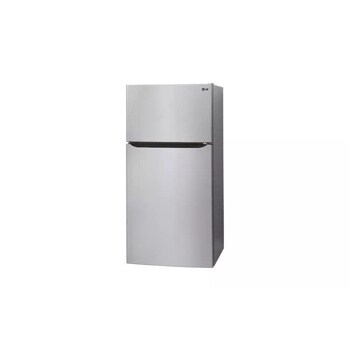

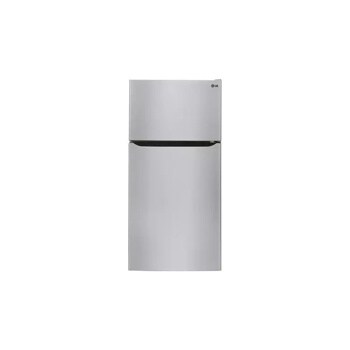

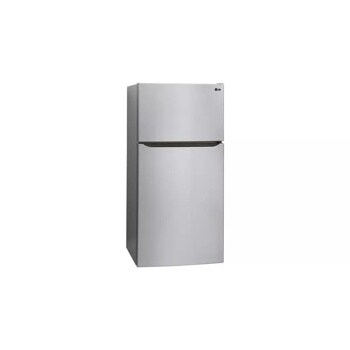

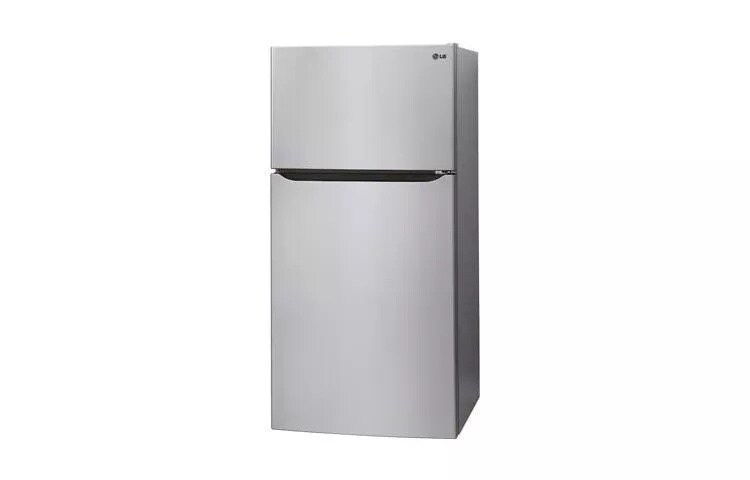

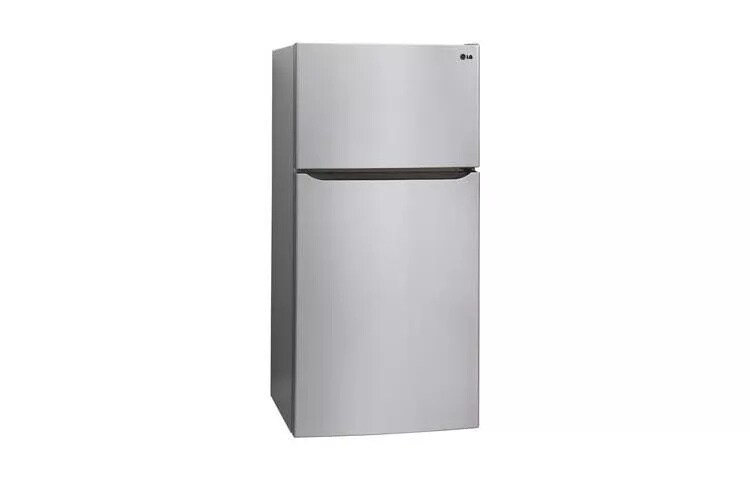

20 cu. ft Large Capcity 30" Wide Top Freezer Refrigerator w/Ice Maker

  • LTCS20220S

  • Stainless Steel

Key Features

  • 20 cu. ft. Capacity
  • 30” Width, Under 66”
  • Full Width Pantry Drawer
  • Factory Installed Ice Maker
Great Space in Style

Great Space in Style

Get the space you need in a refrigerator that’s right for your kitchen. With 20 cu. ft. of space, this top mount refrigerator offers one of the largest capacities in its category at 30” wide.

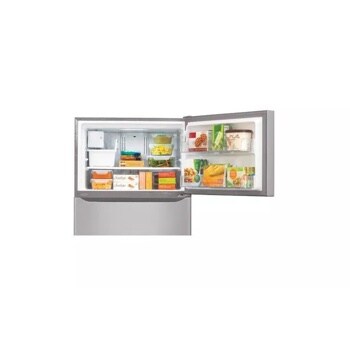

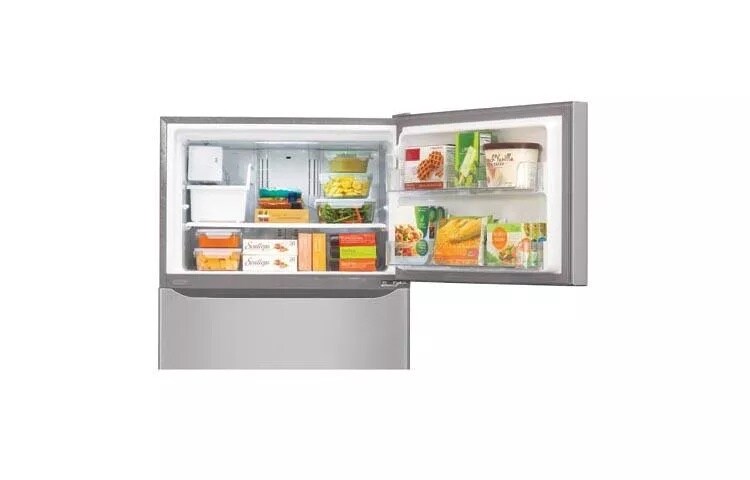

Space to Keep it Fresh

Space to Keep it Fresh

With two humidity-controlled crisper drawers and a full-width Glide N’ Serve® Pantry Drawer, keeping all of your food organized and fresh couldn’t be simpler. Store wide items with easier access in the Glide N’ Serve® Pantry Drawer, and the two humidity controlled crisper drawers are perfect for fruits, vegetables and beverages.

Great Light.

Great Light.

LED panels located on the rear of the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.

Sophisticated style and Design.

Sophisticated style and Design.

Contoured doors, hidden hinges, and a host of great interior features like LED lighting give your refrigerator a look as sophisticated as it is functional.

Cold as ice.

Cold as ice.

An automatic ice maker means you'll always have ice on hand.

SUMMARY
Door Type Top Mount Freezer
CAPACITY
Refrigerator 14.7 cu. ft.
Freezer 5.5 cu. ft.
Total 20.2 cu. ft.
FEATURES
ENERGY STAR® Qualified Yes (471 kWh/Year)
Temperature Sensors Yes
Temperature Controls Electronic
LoDecibel™ Quiet Operation Yes
Freezer Door Type Top Swing Door
REFRIGERATOR
No. of Shelves 2 Full
Shelf Construction Tempered Glass
Crisper Bins 2 Humidity Crispers
Full Width Pantry Drawer Yes
Gallon Storage 2 Gallons
Refrigerator Light Premium LED
Daily Ice Production 3.7 lbs
Ice Storage Capacity 5.5 lbs
Multi-Air Flow Cooling Yes
Temperature Sensors 4
Compressor Type Inverter
Full Snack Tray/2 Bottle Guides Yes
REFRIGERATOR DOOR
Dairy Bin 1
No. of Door Bins 3
Tall Item Retainer Yes
FREEZER
Ice Maker Yes
Ice Bin Yes
No. of Shelves 1
Shelf Construction Tempered Glass
Freezer Light Premium LED
No. of Door Bins/Shelves 2
Auto Defrost Yes
MATERIALS AND FINISHES
Contour Door Yes
Reversible Doors Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S), Smooth White (W), Smooth Black (B)
SPECIFICATIONS
Dimensions (W case x H top of hinge x D with handles) 29 3/4" x 66 1/8" x 33 3/8"
Depth including Door 33 3/8"
Depth without Door 29"
Depth (Total with Door Open) 60"
Height to Top of Case 65 1/2"
Height to Top of Door Hinge 66 1/8"
Width 29 3/4"
Installation Clearance 2"
Weight (Unit/Carton) 202 lbs./226 lbs.
Carton Dimensions (WxHxD) 31 4/5" x 69 3/8" x 38 1/7"
RATINGS
Amps 20 Amp
UL Listed Yes
Energy Consumption 406kWh
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System
UPC 048231 786584

What People Are Saying

Rated 5 out of 5 by from so far so good The best buy and workes great ,Wife is very pleased.Think we will be very pleased.No regrets .
Date published: 2017-04-17
Rated 5 out of 5 by from Awesome sleek Wonderful led lighting roomy and great icemaker nice appliance
Date published: 2017-04-11
Rated 5 out of 5 by from like everything about it I would recommend friends and family to at least look at the LG and compare looks, space, design, functionality, price and modern look with the led lights, sol cool.
Date published: 2017-03-17
Rated 4 out of 5 by from Works for Me! Very pleased with this one in all ways - except I wish that the door fronts were the same black crinkle finish that the sides are. Then they wouldn't show the finger prints that the plain black and the stainless finishes do. High maintenance there!
Date published: 2017-03-14
Rated 5 out of 5 by from Nice features The refrigerator is nicely laid out inside, drawers are effortless to open and close and it is VERY quiet!
Date published: 2017-03-12
Rated 5 out of 5 by from Great features We really like the LED lighting. We don't have light bulbs hanging down, getting in the way. Everything is laid out nicely and the door storage is excellent - nice and wide.
Date published: 2017-02-11
Rated 5 out of 5 by from Very Nice Large organized storage, nice bright LED lighted interior, very very quiet, liking the smooth black rather than a textured exterior finish, nice strong magnetic closing for doors, fits a standard kitchen opening while adding a modern look. We aren't all "mega-sized" side by side double door people, but appreciate an up-to-date, well thought out design. Hope it lasts because we really like it.
Date published: 2017-02-01
Rated 4 out of 5 by from good product plenty of room, quiet operation , lighting is good
Date published: 2017-01-22
  • y_2017, m_4, d_23, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_39
  • loc_en_US, sid_MD05135541, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 5ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LTCS20220S Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

My current (21-year-old) refrigerator has adjustable shelves on the door. This feature is important for me for a new fridge. Does this LG model have adjustable door shelves?

Asked by: GoodFridgeSeeker
The Refrigerator Door Bins in the ENERGY STAR® Qualified LG 20 cu. ft Large Capacity 30" Wide Top Freezer Refrigerator w/Ice Maker, Model # LTCS20220S can be removed easily for cleaning or for adjustment...^IFV
Answered by: LGJoel
Date published: 2017-03-24

New ltcs20220 3/17/2017. It's been run for ~ 5 hours and the refrigerator section is sitll above 45 degrees. Very little air flow from the refrigerator vents; novents are obstructed. My guess is that the vent door to the refrigerator isn't open. Advice? T

Asked by: JohnMA
We regret the trouble you have experienced with this air conditioner. It is stated that none of the refrigerator vents are obstructed. It is suggested to check the vents in the FREEZER compartment, as cold air will flow from the freezer to the refrigerator. If this does not resolve the matter, please contact our Customer Interactive Center at 800-243-0000 to further troubleshoot the matter.
Answered by: NeilE
Date published: 2017-03-21

Does this refrigerator have a door alarm?

Asked by: Debbie M
The ENERGY STAR® Qualified LG 20 cu. ft. 30” Wide Top Mount refrigerator W/Ice Maker, Model # LTCS20220B does not have a door alarm...^IFV
Answered by: LGJoel
Date published: 2017-03-21

Can I buy this but not hook up water line to the ice maker? Can the ice maker be removed?

Asked by: jazure
The Factory Installed Automatic Ice Maker in the ENERGY STAR® Qualified LG 20 cu. ft Large Capcity 30" Wide Top Freezer Refrigerator w/Ice Maker, Model # LTCS20220S has an On/Off switch. If you do not have a water line attached to the refrigerator and do not intend to use the Ice Maker, be sure to turn the Ice Maker off before turning the the refrigerator on...^IFV
Answered by: LGJoel
Date published: 2017-03-20

How do I get the ice maker to work after turning it on and plugging the water tube in

Asked by: Bj09
We appreciate your interest in this refrigerator and its features. After turning on your refrigerator, the ice will start to be made within 12 to 24 hours. Be certain that the Power Switch, on the ice maker, is in the ON position. For additional assistance, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2017-02-21

Where is the water filter located for the ice maker

Asked by: Frank s
We appreciate your interest in this refrigerator. This model does not appear to have a water filter integrated into the cabinet. The only filter available on this model would have to be installed on the water line before it connects to the refrigerator’s water valve.
Answered by: NeilE
Date published: 2017-02-15

Does the bar on the ice maker need to be up or down to work

Asked by: cutey5780
We appreciate your interest in this refrigerator. It appears that this particular design is supposed to operate when the sensor bar is in its downward position.
Answered by: NeilE
Date published: 2017-02-13

Hello where can I order the water filter for this fridge ?

Asked by: Liz0302
We appreciate your interest in this refrigerator. This model does not appear to have been produced with a water filter. If one is desired, this can be added to the water line between the water valve and the water connection on the back of the cabinet. As no particular filter has been designed for this model, any filter can be ordered from any location.
Answered by: NeilE
Date published: 2017-02-13
