LAA015F

130" All-in-one LED Screen

Key Features

  • Pixel Pitch: 1.5mm
  • Screen Size: 130"
  • Brightness: 500 cd/m²
  • HDR10 Pro / Surface Sound
  • Embedded System Controller
bg-d_1568795814366

The Most Effective Audiovisual Effects

130" Large Screen with No Bezel

The greatest advantage of LG's LED screen is the 130-inch large-sized screen with no bezel. Even bigger than four 55-inch conventional LCD displays combined, it displays content without lines or distortions and provides a more immersive visual experience.

bg-900_1568796145802

bg-d_1568795814366

The Most Effective Audiovisual Effects

Vivid Color Expression Powered by HDR10 Pro

With HDR10 Pro support, content becomes more vivid and has greater visual impact. The wider color spectrum and greater contrast ratio allows viewers to fully enjoy content as it appears in real life.

bg-900_1568796145802

bg-d_1568795814366

The Most Effective Audiovisual Effects

Immersive Surface Sound

The 130" All-in-one LED Screen doesn't require any additional speakers for its impactful audio effect. Its embedded Surface Sound comes from the entire screen with 162W (4.5W x 36points) and is able to reach all meeting attendees, including people seated far from the screen.

bg-900_1568796145802

LAA015FL7B1_05_Multi-Screen-with-PBP-PIP-Indoor-LED-Signage-LED-Signage-ID-_1567389699989_1568796427408

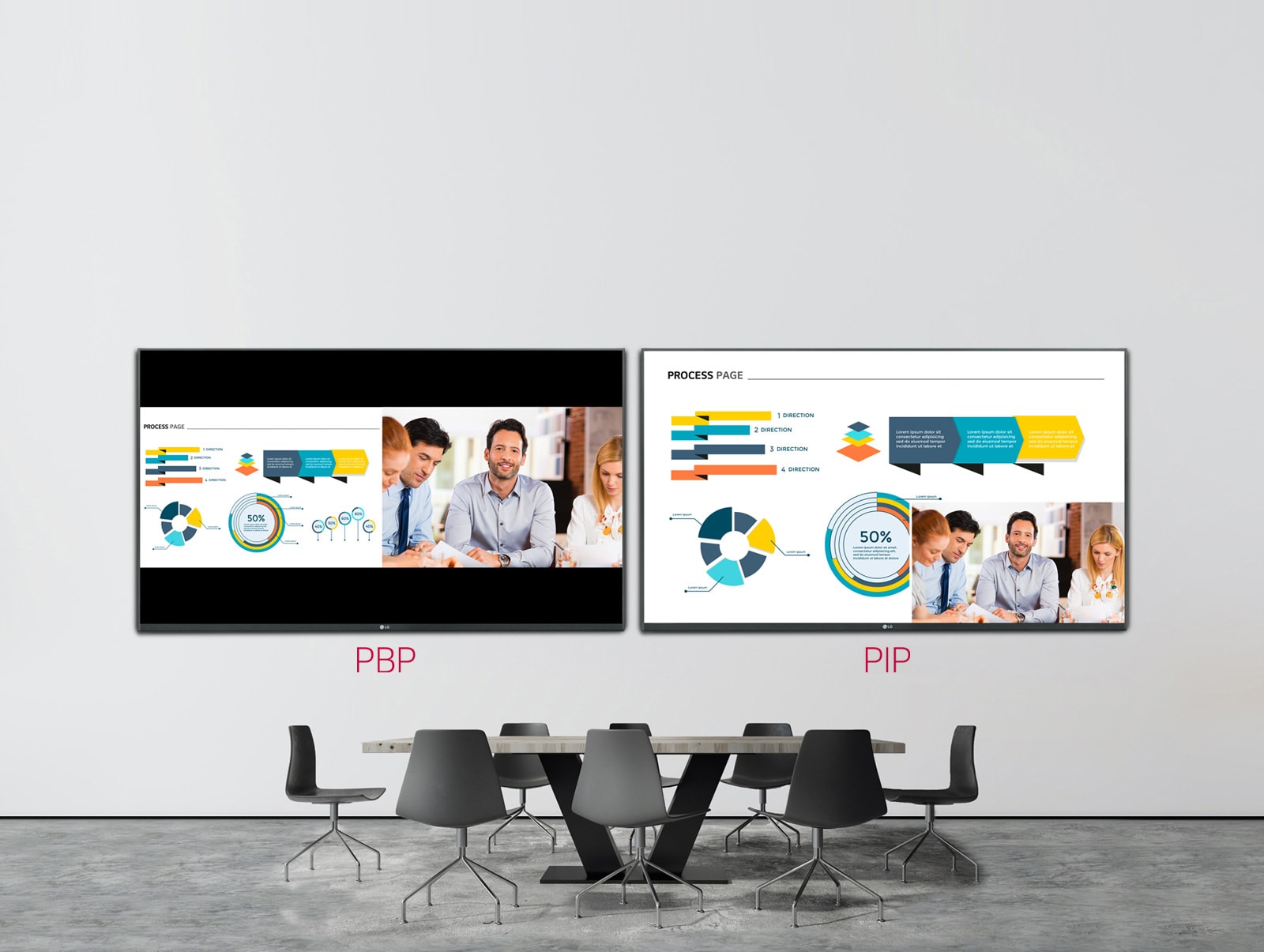

Multi Screen with PBP/PIP

PBP (Picture-By-Picture) features multi screen in a single display with upto 2 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

D05_LAA015FL7B1_05_M01_Installation-Options-for-Various-Environments_1562280760716_1566558554778

Easy Installation for User Convenience

Installation Options for
Various Environments

The 130" All-in-one LED Screen can be installed in various setups, depending on its environment.

* Mounting accessories (wall mount, stand, etc.) are not included with LG products.

D06_LAA015FL7B1_06_M02_Easy-Remote-Control-Support_1562280797340_1566558584293

Easy Installation for User Convenience

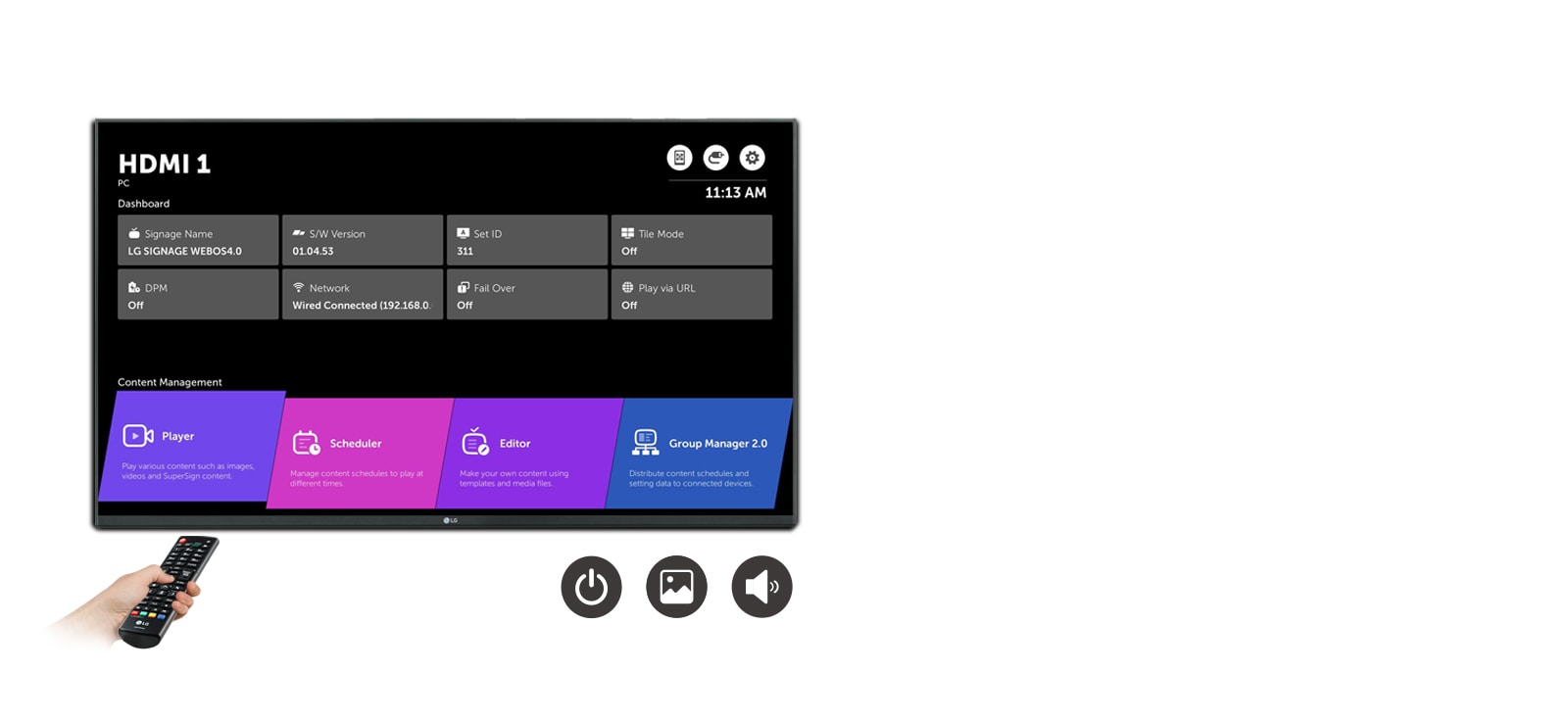

Easy Remote Control Support

The 130" All-in-one LED Screen allows the user to easily access the settings, such as picture mode, volume, etc. using a remote control instead of needing to connect to a PC. It uses the same UI as general LG digital signages, so users can easily learn how to use it.

D07_LAA015FL7B1_07_M03_Front-Serviceability_1562280834326_1566558616888

Easy Installation for User Convenience

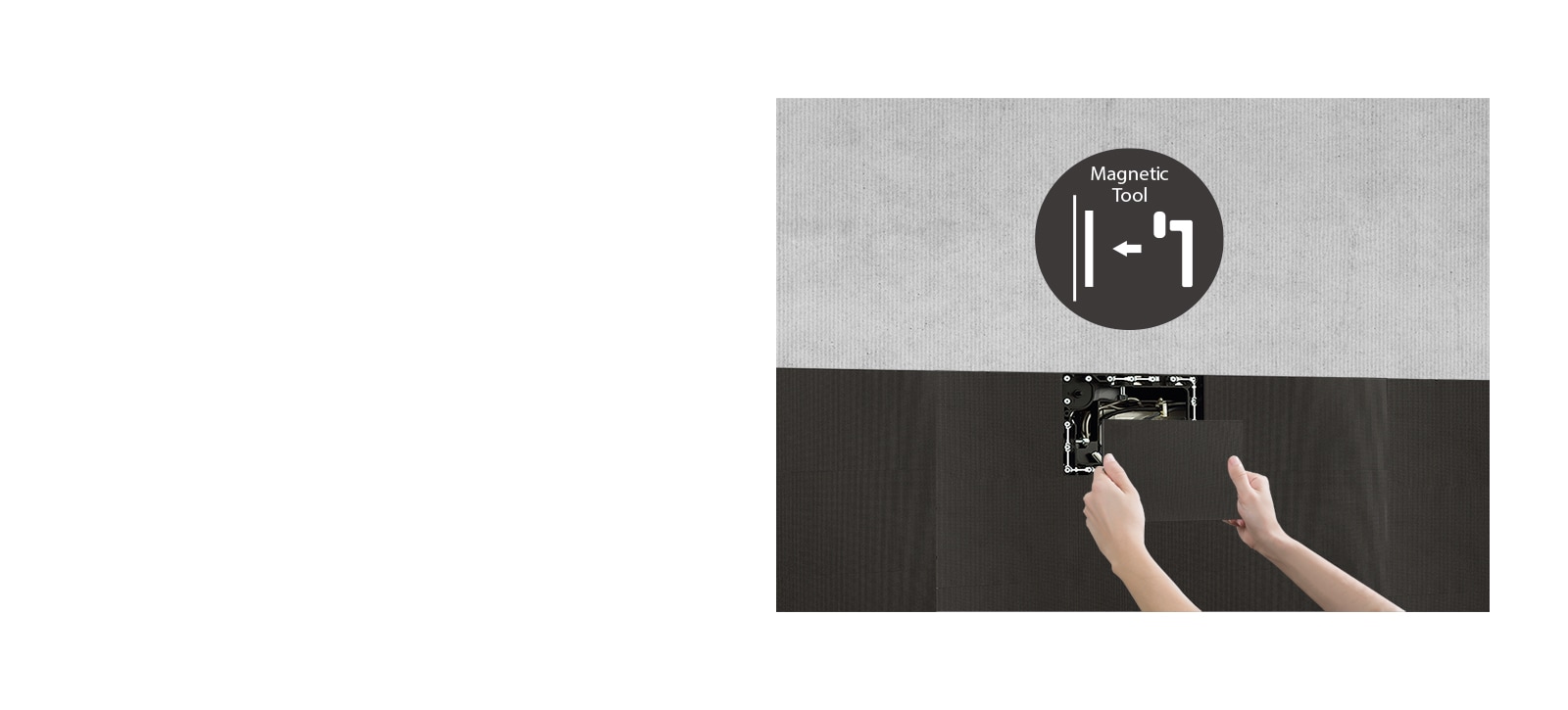

Front Serviceability

The LED screen can be easily installed and managed from the front side for easy operation. Its LED modules can also be simply attached or detached by hand or with a magnetic tool.

D08_LAA015FL7B1_08_M02_Auto-Configuration_1562280870438_1566558641491

Easy Installation for User Convenience

Auto Configuration

LG's 130" All-in-one LED Screen is composed of one master unit case and eight slave unit cases. Each unit case automatically recognizes its location and setting values, so the screen doesn't require any complicated screen setup process. All you need to do is turn on the screen.

LAA015F-High_1573789699449

Operational Efficiency

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

D09_LAA015FL7B1_09_M03_Compatibility-with-AV-Control-Systems_1562281170869_1566559294865

High Compatibility for Meeting Room

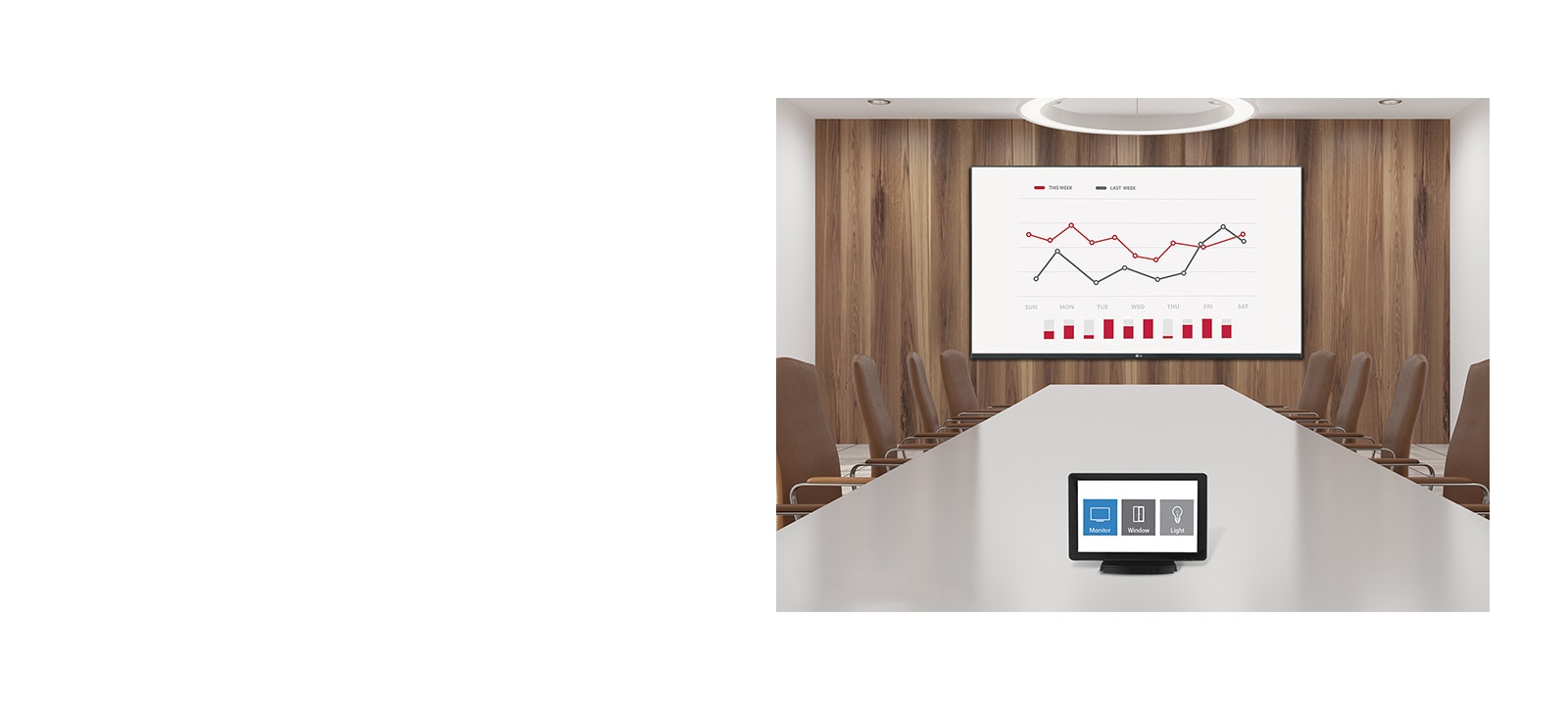

Compatibility with AV Control Systems

The LED screen has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network-based control

D10_LAA015FL7B1_10_B05B_Compatibility-with-LG-Software-Solutions_Blank_1562300322221_1566558690072

Compatibility with LG Software Solutions

*The availability of the "Signage365Care" service differs by region, so please contact the LG sales representative in your region for more details.

Physical Parameters
Optical Parameter
Electrical Parameter
Operation Conditions
Certification
Connectivity (Embedded Controller)
Basic Accessory
