LAT240DT1

Color Transparent LED Film

Key Features

  • Pitch: 24mm
  • LED Type: R,G,B 3in1 Color Package
  • Transmittance: 73%
  • Curvature(Convex and Concave): 1,100R
  • Self-adhesive Film
01_High-Transparency_1524104566714_1554962670950

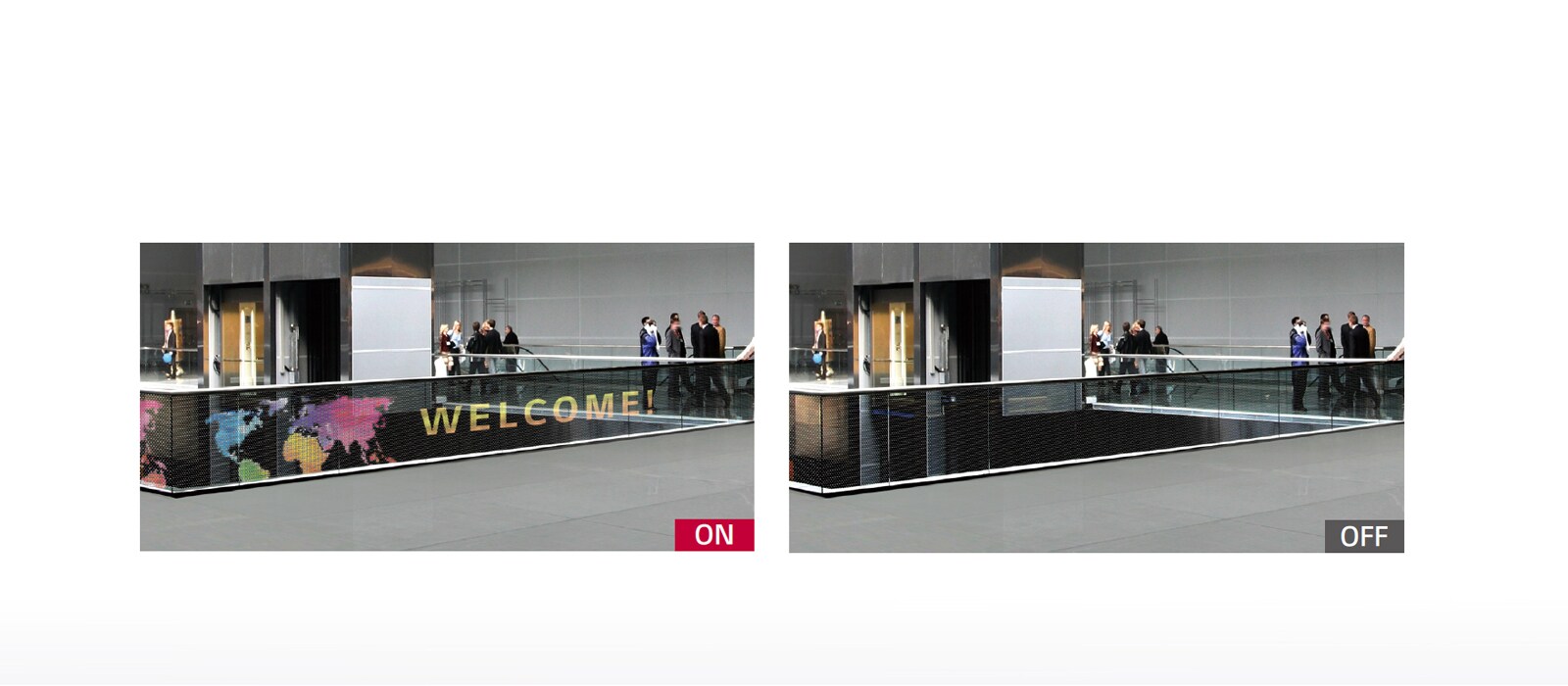

High Transparency

High transparency*(73%) allows glass to remain visible even after attaching the
film, with no adverse effects on the original design. When the LED is OFF, the film
is unnoticeable, blending into the glass completely.

02_Full-Color-Expression_1523953378699_1554962760685

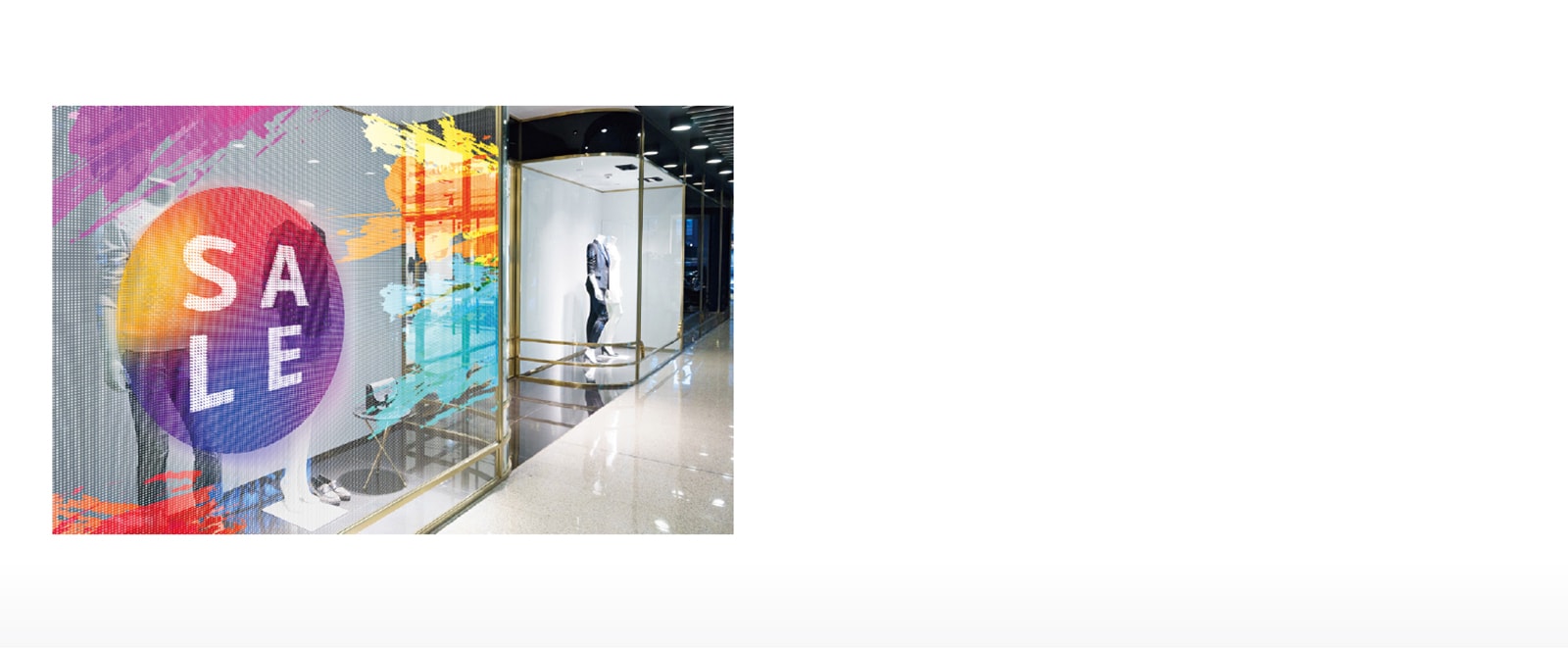

Full Color Expression

LG Color Transparent LED film delivers a surprisingly wide range of colors using a 24 mm pitch. Applications can be extended to display an entire video or pictures in which various colors combinations are possible.

03_Self-adhesive-Film_1523953436179_1556098404351

Easy Space Innovation

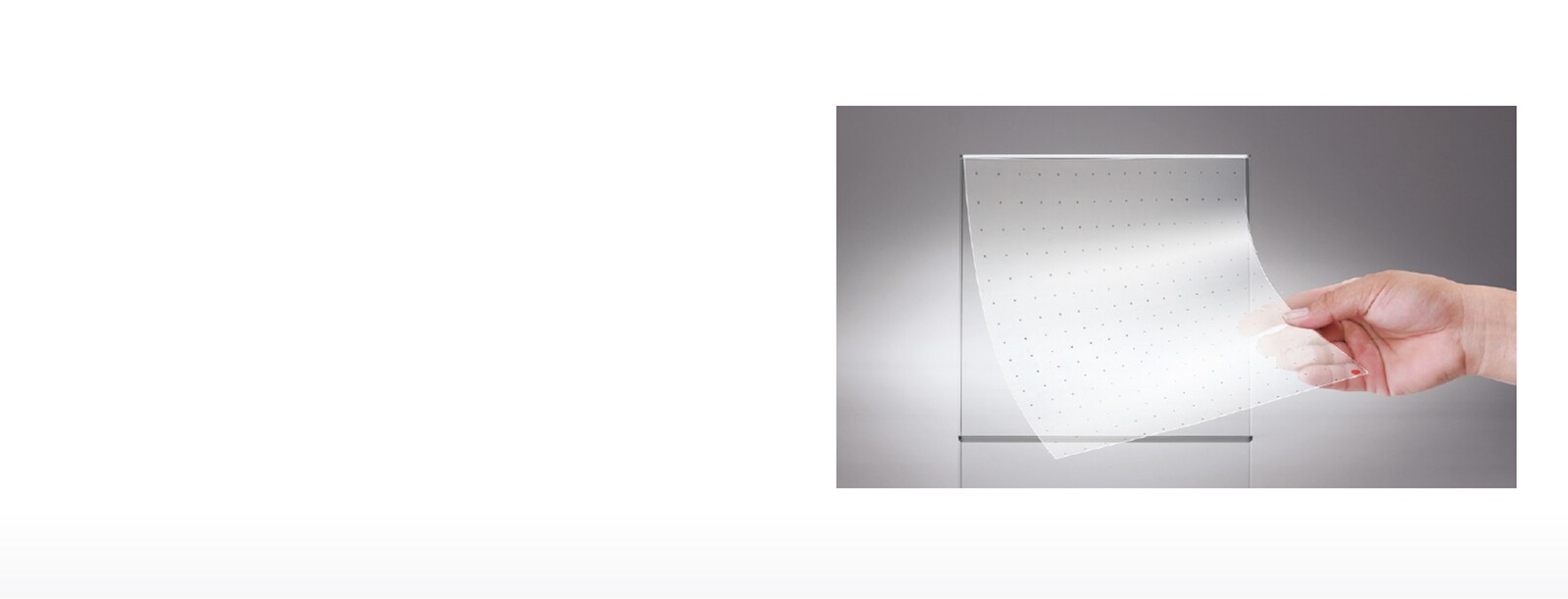

Self-adhesive Film

The transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass wihout the need for any complicated construction.

04_Superb-Expandability-and-Flexibility_1523953497485_1554963021223

Easy Space Innovation

Superb Expandability and Flexibility

The size and layout of the film can be customized to fit in to the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

* The film must be cut in parallel with the bezel by 1 pixel.

05_Curved-Format-Supported_1524104739726_1554963378200

Easy Space Innovation

Curved Format Supported

The transparent LED film supports curvatures up to 1,100R Convex and Concave for curved glass or window applications. This allows a wider range of venues to be redesigned as a landmark.

System-Connection_D1_1556098214016

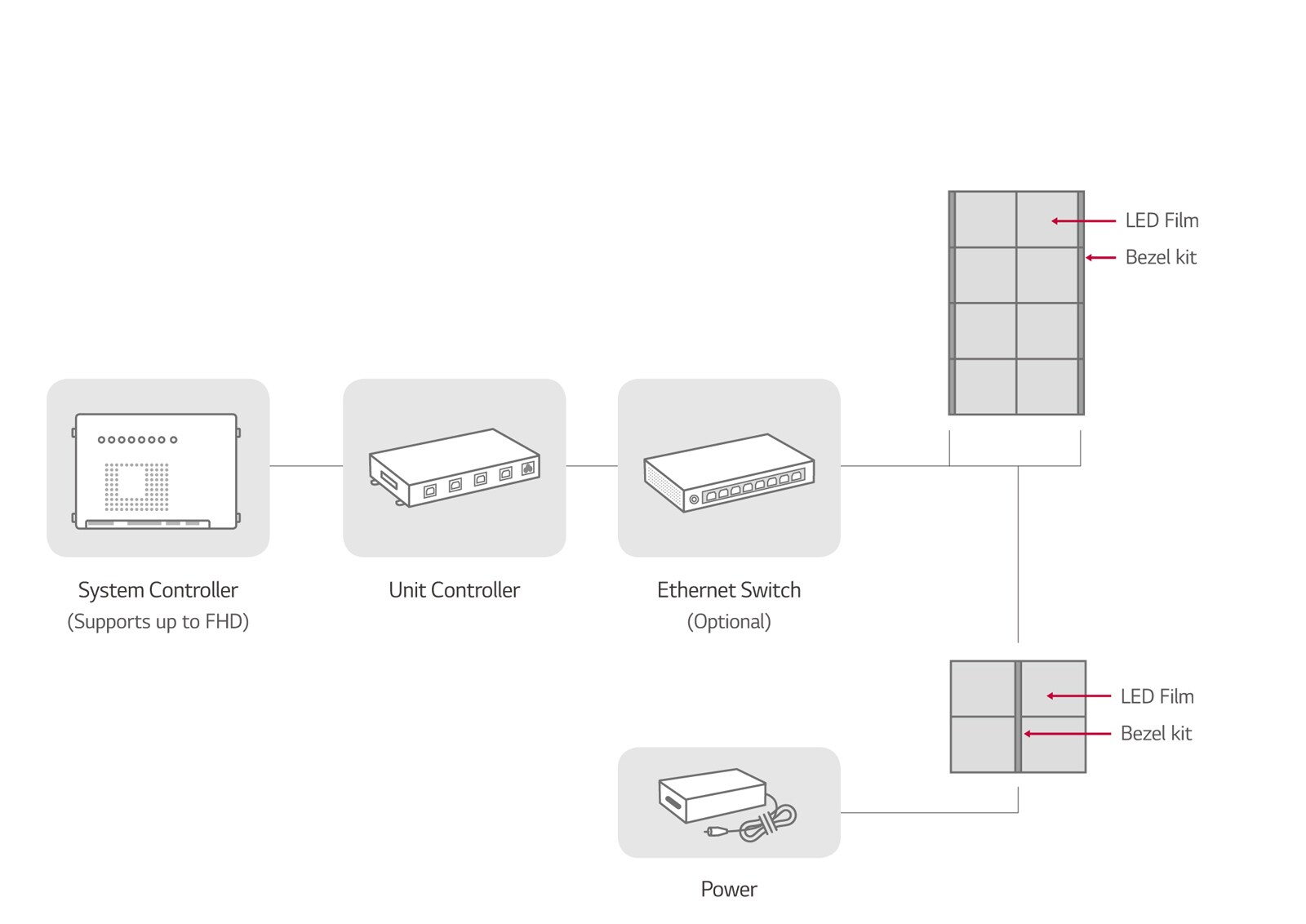

System Connection

※ The actual system structure may be subject to change from the above example

LAT240DT1
1st Bezel Kit
Common Bezel Kit
Unit Controller
System Controller
Power
