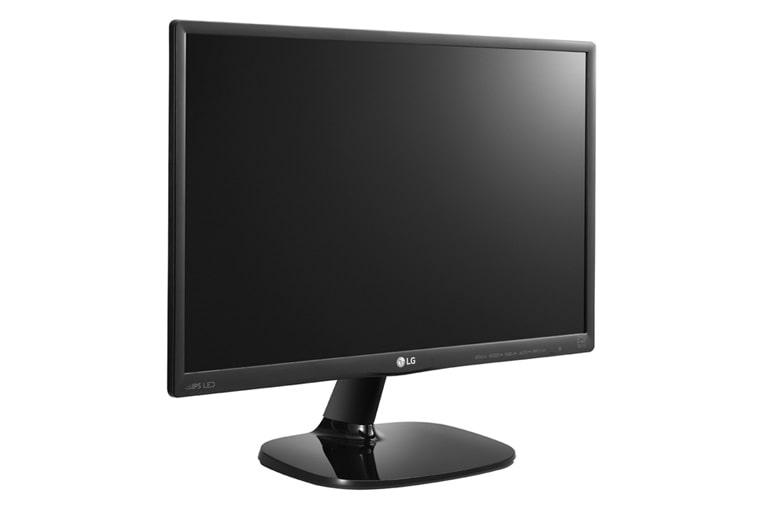

20MP48

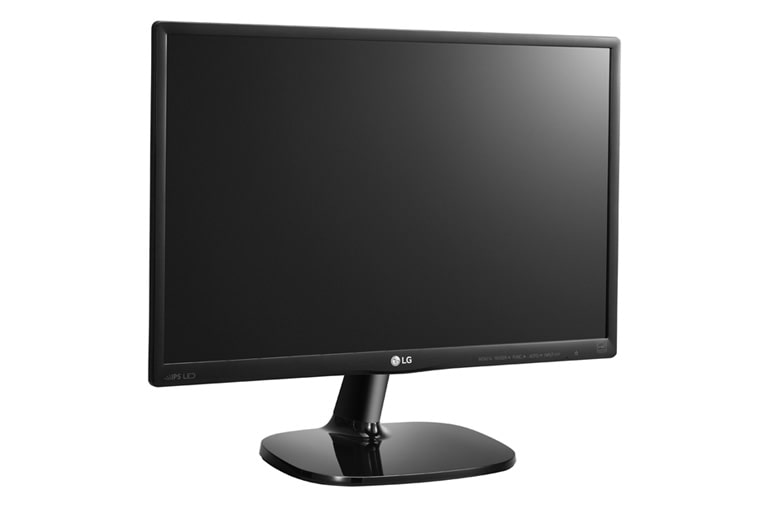

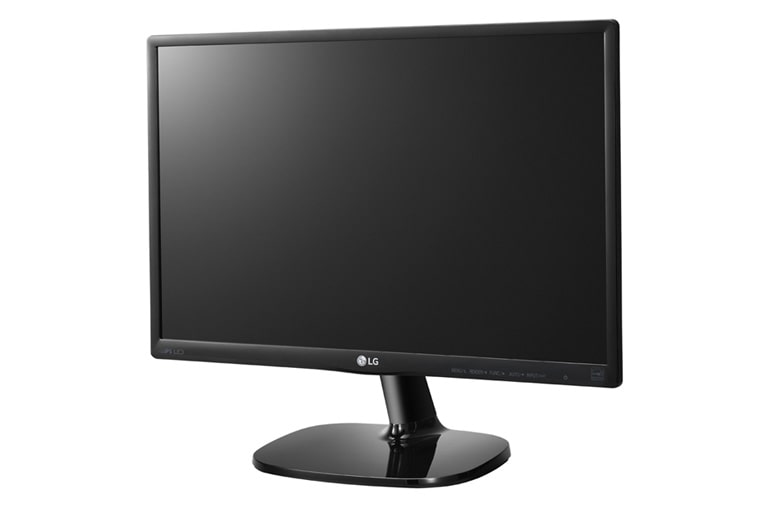

20'' IPS LED Monitor (19.5'' Diagonal)
  • IPS Display
  • Flicker Safe
  • Reader Mode

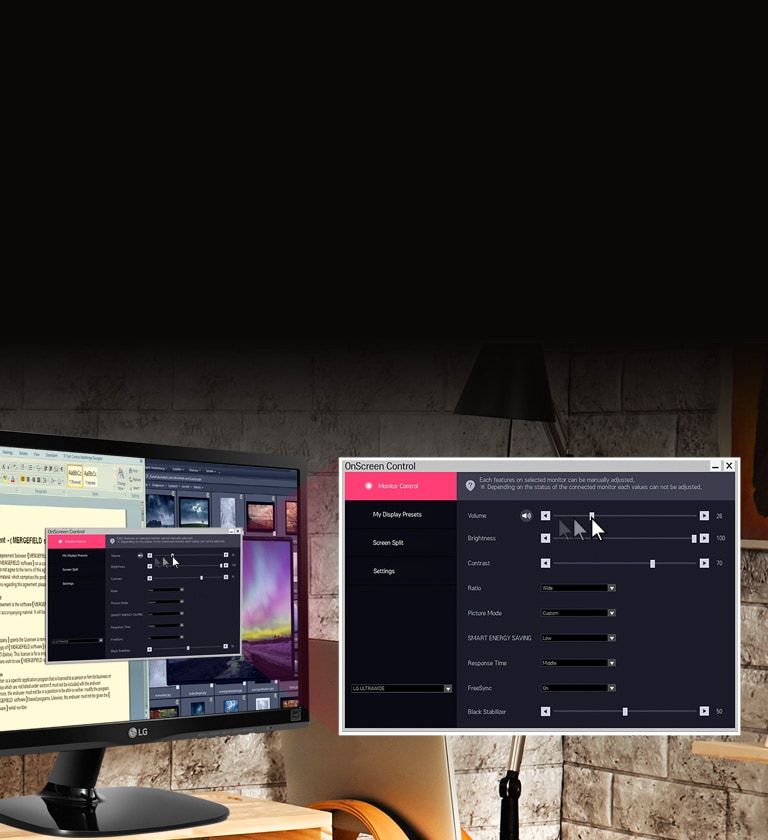

  • OnScreen Control

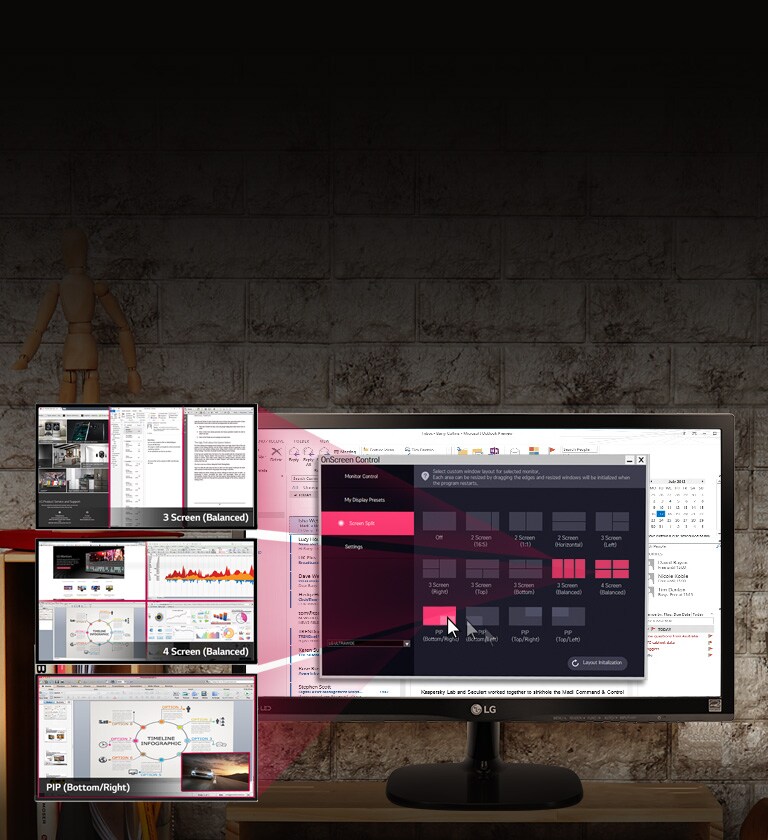

  • Screen Split 2.0 (PIP Mode)

component-OBScountrySelectDesc

20" IPS LED Monitor (19.5" Diagonal)

GENERAL

  • Size (Inch)
    19.5"
    Panel Type
    AH-IPS
  • Color Gamut (CIE1976)
    72%
    Color Depth (Num of Colours)
    16.7M colors
  • Pixel Pitch (mm)
    0.2915*0.2915
    Aspect Ratio
    16:10
  • Resolution
    1440*900
    Brightness(Typ.)
    200cd/m2
  • Contrast Ratio(Original)
    1000:1
    (DFC)
    5M:1
  • Response Time_Typ.(on/off)
    14ms
    Viewing Angle(CR≥10)
    178/178
  • Inverter(with/without)
    without
    Surface Treatment(Glare/non Glare)
    Hard coating(3H) & Anti-Glare

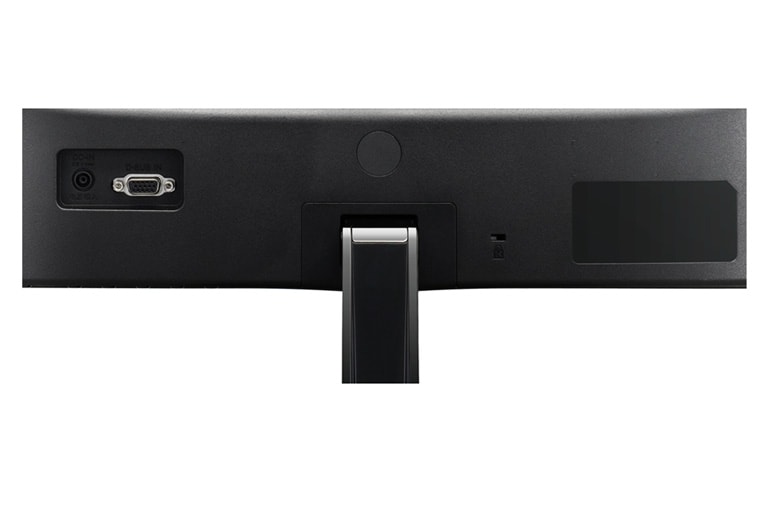

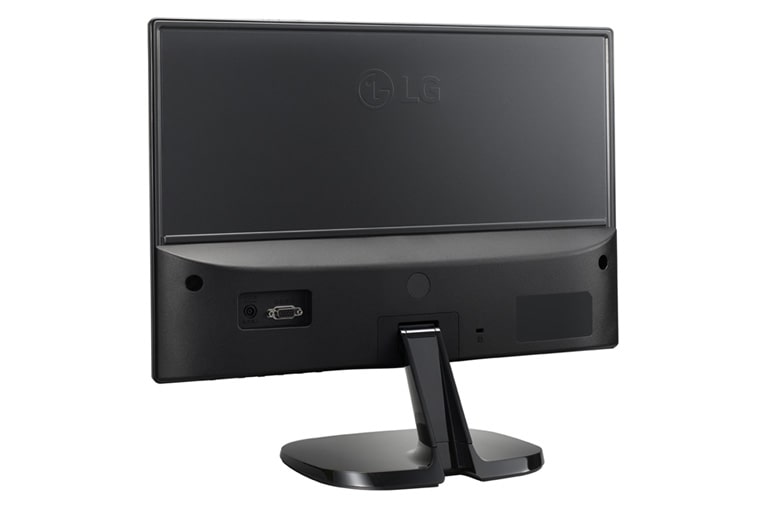

JACK INPUT/OUTPUT

  • Signal Input / D-Sub
    Yes

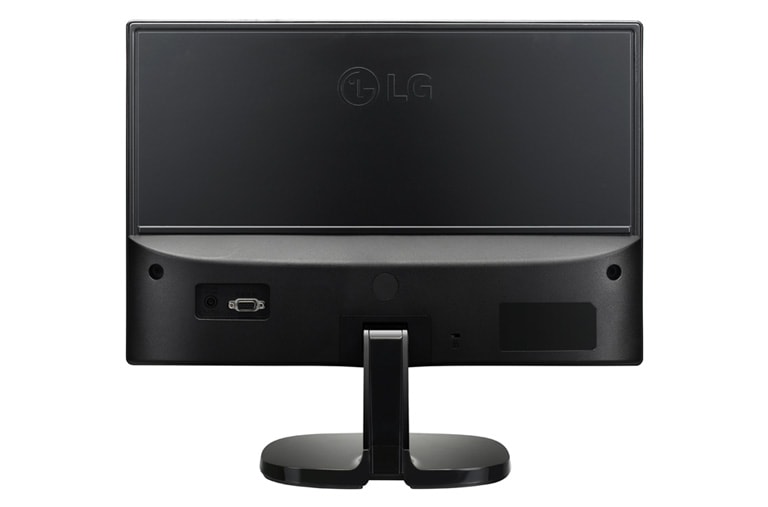

    [ Jack Location ]
    Back

POWER

  • Input / Output (Type)
    Adapter
    Input
    100-240V, 50/60Hz 0.8A max
  • Output(for Speaker)
    19V / 0.84A
    Consumption / Normal On(EPA6.0)
    15W
  • Consumption / Normal On (Typ.)
    17W
    Power Save/Sleep Mode(Max)
    0.3W Under
  • Consumption / DC Off(Max)
    0.3W under

FREQUENCY

  • Analog / H-Frequency
    30~83kHz
    Analog / V-Frequency
    56~75Hz

RESOLUTION

  • PC/Analog
    1440*900

CONTROL KEY

  • Key Number (Power Key Included)
    6
    Key Type
    Tact type
  • LED Color(On mode)
    White
    LED Color(Power save mode)
    White Blinking
  • [Key Location]
    Bottom

OSD

  • Country
    English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(Brazil), Hindi
    Number of Language
    17

SPECIAL FEATURE

  • Picture Mode
    Yes
    Reader Mode
    Yes
  • Original Ratio
    Yes
    DDC/CI
    Yes
  • Intelligent Auto (Auto Adjustment)
    Yes
    Key Lock
    Yes
  • Plug & Play
    Yes
    Color weakness
    Yes
  • Flicker safe
    Yes
    Six Axis Control
    Yes
  • Smart Energy Saving
    Yes
    OnScreen Control
    Yes

COLOR

  • Front
    Black High glossy(Side : texture)
    B/Cover
    Texture
  • Stand
    Black High glossy
    Base
    Texture(Hair line)

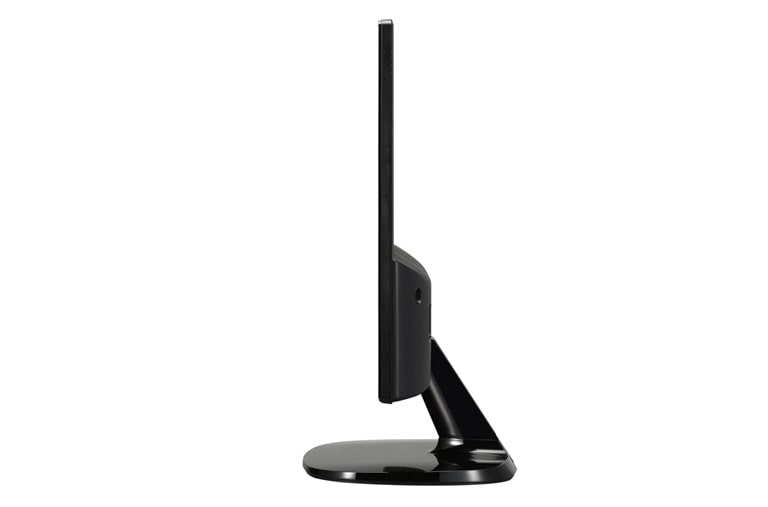

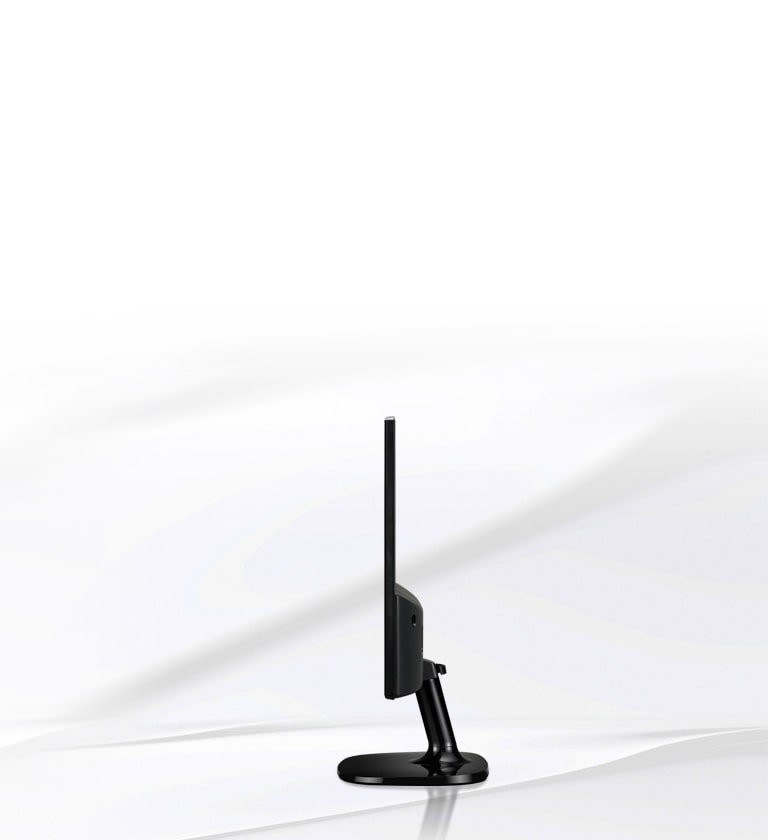

STAND

  • Base Detchable
    Yes
    Tilt (Angle)
    -5 ~ 20 Degree

DIMENSION

  • Set (with Stand)
    441.9x187.4x376.3
    Set (without Stand)
    441.9x59.8x297.4
  • Box
    511 x 365 x 114

WEIGHT(KG)

  • Set (with Stand)
    2.1kg
    Set (without Stand)
    1.9kg
  • Box
    3.3kg

STUFFING

  • Individual(20ft/40ft/40ft HC)
    1188*2484*2898
    Pallet(20ft/40ft/40ft HC)
    1080/2376/2772

WRAP

  • Packing Material
    EPS
    Stacking Type
    Face down
  • Stand Packing Type
    None
    Box Printing Type
    Flexo
  • Handle
    Hand hole

STANDARD

  • TCO
    Yes (6.0)
    UL (cUL)
    Yes
  • TUV-TYPE
    Yes
    FCC-B, CE
    Yes
  • EPA 6.0
    Yes
    EPEAT
    Yes (Gold)
  • Windows
    Win10

ACCESSORY

  • Power Cord
    Option
    D-Sub
    Yes
  • CD
    Yes
    Manual
    Yes
  • ESG
    Yes
    Stand body
    Yes
  • Stand base
    Yes
