ADD TO WISHLIST

I23TNB
DUALCOOL AC 1.5 Ton, Faster Cooling, Energy Saving, Less Noise
  • 65°C Dual Inverter Compressor™
  • 10 Year Warranty
  • 60% Faster Cooling
  • 65% Energy Saving
  • Comfort Sleep
  • Gold Fin™

component-OBScountrySelectDesc

DUALCOOL AC 1.5 Ton, Faster Cooling, Energy Saving, Less Noise
It shows the carbon footprint certification label obtained for the wall-mounted split air conditioner of LG Electronics.

CARBON TRUST (UK)

The carbon footprint of this product has been measured and certified by the CarbonTrust
  • Dual Inverter Compressor™1

    Dual Inverter Compressor™

    A compressor with a wider rotational frequency saves more energy and has a faster cooling range

  • 10 Year Warranty

    10 Year Warranty

    Verification obtained from TUV Rheinland for 10-year product life cycle

  • TUV Rheinland

    TUV Rheinland

    TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(aS-b246KcBd, BS-x186Kyb3)

4Way Swing1

4Way Swing

LG air conditioners deliver cool air to every corner of your room. The 4 way swing function blows the air quickly and efficiently in many direction.
  • lorem ipsum dolor sit amet, consectetuer1

    lorem ipsum dolor sit amet, consectetuer

    Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat. Ut wisi enim ad minim veniam, quis nostrud exerci tatio

  • Vertical 6 Steps Louver Control

    Vertical 6 Steps Louver Control

    Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.

  • Comfort Sleep

    Comfort Sleep

    Avail the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic), with the simple click of button.

  • Gold Fin™

    Gold Fin™

    The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

  • Auto Cleaning

    Auto Cleaning

    It prevents forming of bacteria & mold on the heat exchanger. Thus provides a pleasant environment.

  • Dual Protection Filter

    Dual Protection Filter

    The Dual Protection Filter captures dust size over 10㎛ and bacteria.

  • Silent Mode

    Silent Mode

    LG's unique new skew fan & low vibration compressor technology achieve world's lowest sound levels.

Recommended Products

  I27TCP I34TKF I38TKF
I27TCP
I34TKF
I38TKF
Features
DUALCOOL Inverter AC 2 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling
DUALCOOL Inverter AC 2.5 Ton, 65°Operation, 65% Energy Saving, ThinQ
DUALCOOL Inverter AC 3 Ton, 65°Operation, 65% Energy Saving, ThinQ
Capacity 2 Ton 2.5 Ton 3 Ton
Dimension Indoor 998 x 345 x 210 / Outdoor 870 x 650 x 330 Indoor 1200 x 265 x 360 / Outdoor 950 x 832 x 330 Indoor 1200 x 265 x 360 / Outdoor 950 x 832 x 330
Dual Inverter Compressor™ Yes Yes Yes
Faster Cooling Yes Yes Yes
ThinQ NA Yes Yes
  where to buy where to buy where to buy


Features
Capacity
Dimension
Dual Inverter Compressor™
Faster Cooling
ThinQ

I27TCP I34TKF I38TKF
I27TCP
I34TKF
I38TKF
DUALCOOL Inverter AC 2 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling
DUALCOOL Inverter AC 2.5 Ton, 65°Operation, 65% Energy Saving, ThinQ
DUALCOOL Inverter AC 3 Ton, 65°Operation, 65% Energy Saving, ThinQ
2 Ton 2.5 Ton 3 Ton
Indoor 998 x 345 x 210 / Outdoor 870 x 650 x 330 Indoor 1200 x 265 x 360 / Outdoor 950 x 832 x 330 Indoor 1200 x 265 x 360 / Outdoor 950 x 832 x 330
Yes Yes Yes
Yes Yes Yes
NA Yes Yes
where to buy where to buy where to buy

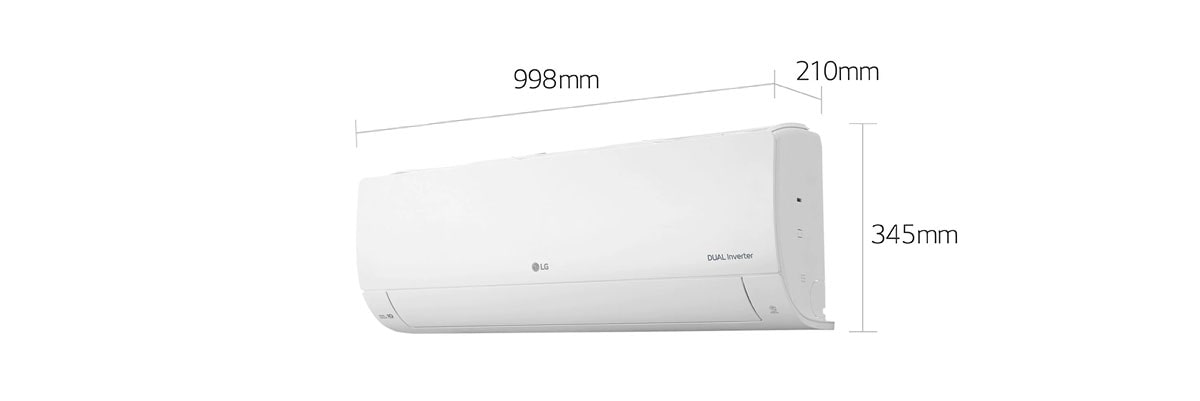

Dimensions
I23TNB I23TNB
SPEC SUMMARY
  • Capacity
    1.5 Ton
  • Dimension (W x H x D) mm
    998 x 345 x 210
  • Main Technology
    Dual Inverter Compressor™
  • Additional Benefit
    10 Year Warranty
CAPACITY
  • Cooling - Min ~ Rated ~ Max(kW)
    0.900 / 5.280 / 6.890
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3070 / 18000 / 23500
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    0.790 / 4.500 / 6.150
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    2700 / 15300 / 21000
POWER INPUT
  • Cooling - Min ~ Rated ~ Max(W)
    320 / 1452 / 2800
    Cooling (T3) - Min ~ Rated ~ Max(W)
    374 / 1754 / 2800
RUNNING CURRENT
  • Cooling - Min ~ Rated ~ Max(A)
    1.45 / 6.70 / 14.00
    Cooling (T3) - Min ~ Rated ~ Max(A)
    1.77 / 8.20 / 14.00
EER
  • EER(W/W)
    3.64
    EER((Btu/h)/W)
    12.40
EER(T3)
  • EER (T3)(W/W)
    2.57
    EER (T3)((Btu/h)/W)
    8.72
ENERGY LABEL GRADE
  • Cooling / Heating
    2
ANNUAL ENERGY CONSUMPTION
  • Cooling / Heating(kWh/year)
    3508
POWER SUPPLY
  • Ø / V / Hz
    1, 220-240, 50
AVAILABLE VOLTAGE RANGE
  • Available Voltage Range(V)
    187 ~ 276
POWER FACTOR
  • Cooling / Heating(%)
    98
MOISTURE REMOVAL
  • Moisture Removal(l/h)
    2.50
INDOOR
  • Air Flow Rate - Cooling, SH / H / M / L(m³/min)
    19.0 / 14.0 / 12.5 / 10.0
    Sound Pressure Level - Cooling, H / M / L / SL(dB(A))
    45 / 42 / 38 / 29
  • Dimensions (W × H × D) - Net(mm)
    998 x 345 x 210
    Dimensions (W × H × D) - Shipping(mm)
    1076 x 433 x 287
  • Weight - Net(kg)
    10.9
    Weight - Shipping(kg)
    12.5
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
  • Air Flow Rate - Max(㎥/min)
    49.0
    Fan Motor Speed - Cooling, Min ~ Max(rpm)
    190 ~ 850
  • Sound Pressure Level - Cooling, Rated(dB(A))
    55
    Dimensions (W × H × D) - Net(mm)
    870 x 650 x 330
  • Dimensions (W × H × D) - Shipping(mm)
    1040 x 710 x 455
    Weight - Net(kg)
    42.200
  • Weight - Shipping(kg)
    45.700
    Max. Fuse Size(A)
    20.000
  • Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
    Operation Range - Cooling(℃ DB)
    18 ~ 54
CIRCUIT BREAKER
  • Circuit Breaker(A)
    25
POWER SUPPLY CABLE
  • Power Supply Cable(No. × ㎟)
    3 x 2.5
POWER SUPPLY TO UNIT
  • Power Supply to Unit
    Outdoor
POWER AND COMMUNICATION CABLE
  • Power and Communication Cable(No. × ㎟)
    4 x 0.75
PIPING
  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 12.7
  • Connections Method - Indoor / Outdoor
    Flared / Flared
DRAIN HOSE SIZE
  • O.D, I.D(mm)
    21.5, 16
BETWEEN INDOOR & OUTDOOR
  • Piping Length - Min / Standard / Max(m)
    3 / 5 / 30
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    25
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes
REFRIGERANT
  • Type
    R410A
    Pre Charge(kg)
    1.350
  • Additional Charge(g/m)
    20
    Control
    Electronic Expansion Valve
  • Global Warning Potential
    2087.5
    t-CO₂ eq
    2.818
DEFROST METHOD
  • Defrost Method
    Reverse Cycle
TOOL CODE(CHASSIS)
  • Indoor / Outdoor
    SK / U24A
COMPRESSOR
  • Type
    Twin Rotary
    Model
    GAT156MCA
  • Motor Type
    BLDC
    Oil Type / Maker
    POE (RN68GP) / Jx Nippon, PVE (FW68D) / IDEMITSU
  • Oil Charge (cc)
    400
    Manufacturer / Country of Origin
    LG Electronics / China
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output(W)
    30
FAN(OUTDOOR)
  • Type
    Propeller, Fan
    Motor Type
    BLDC
  • Motor Output (W)
    85
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO / IPX4 / 0
HEAT EXCHANGER
  • Evaporator - Material, Tube / Fin
    Cu / Al
    Evaporator - (ø x Row x Column x FPI x L) x Qty.(#1)
    (ø 7 x 2 x 16 x 20 x 744) x 1
  • Evaporator - Corrosion Protection
    PCM
    Evaporator - Fin Type
    Wide Louver Plus
  • Condenser - Material, Tube / Fin
    Cu / Al
    Condenser - (ø x Row x Column x FPI x L) x Qty.(#1)
    (ø 7 x 2 x 28 x 14 x 940) x 1
  • Condenser - Corrosion Protection
    Gold
    Condenser - Fin Type
    Wide Louver Plus
