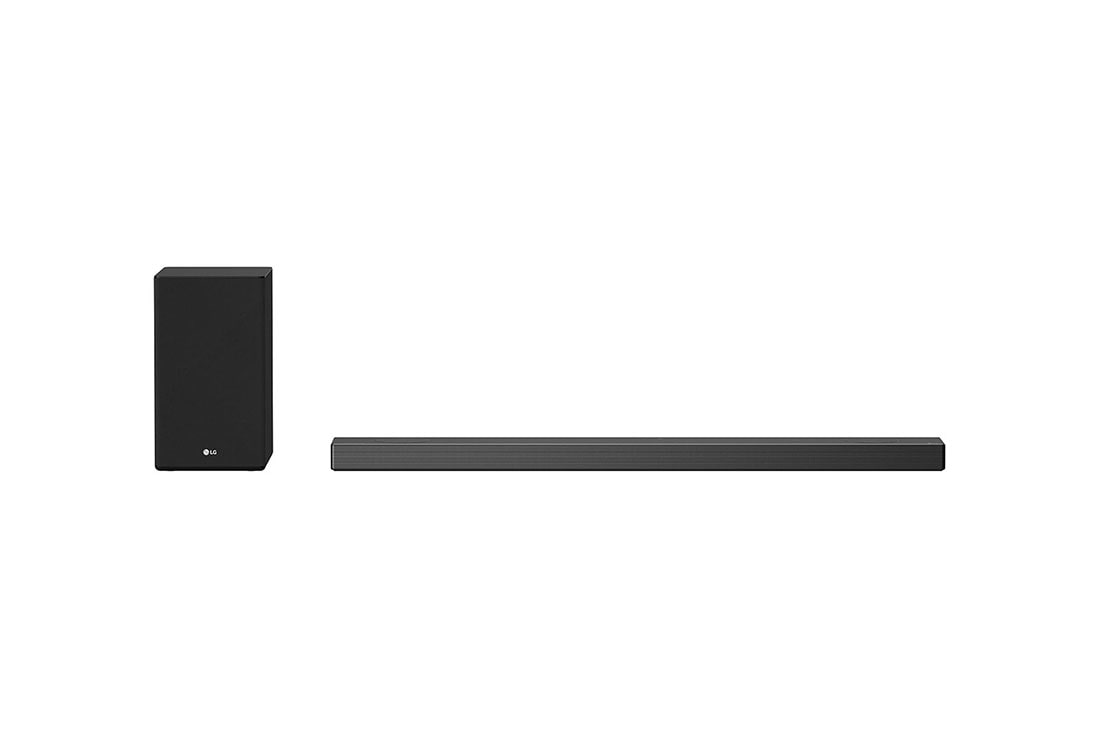

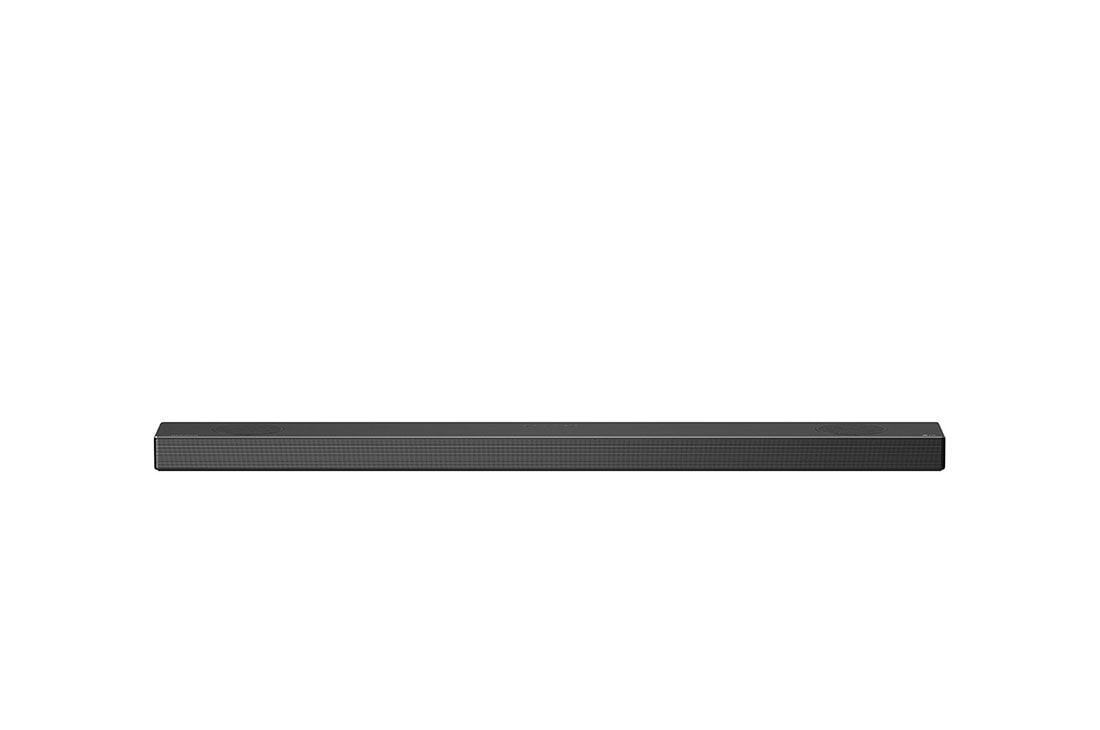

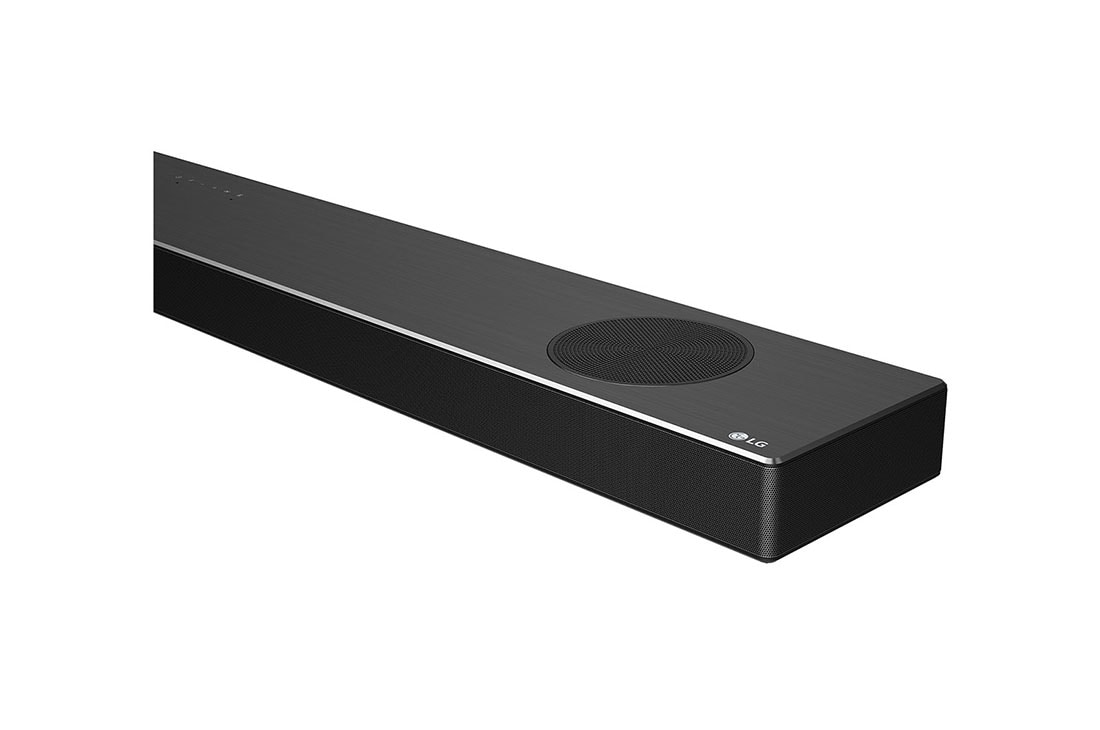

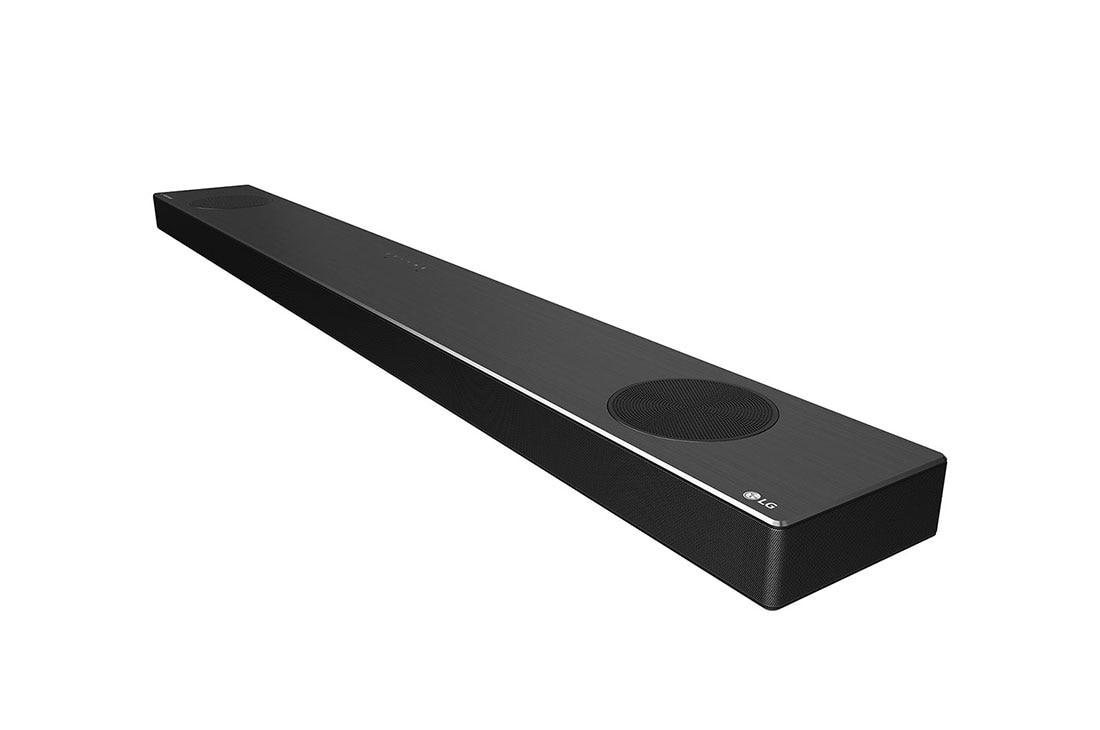

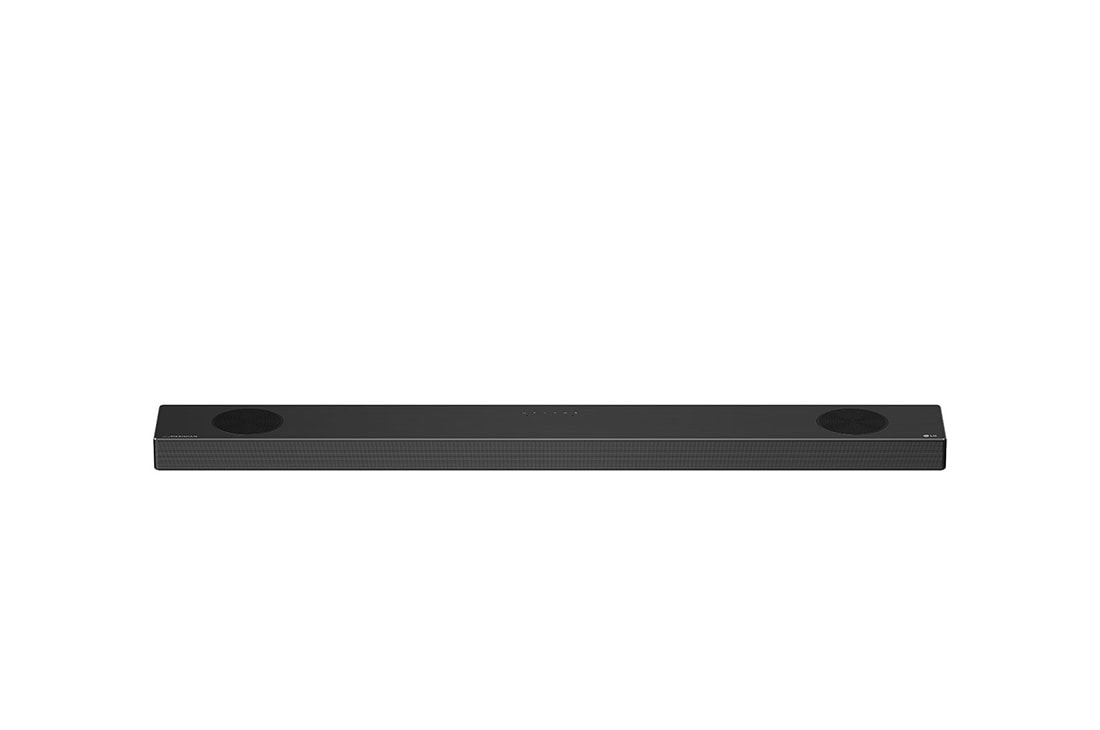

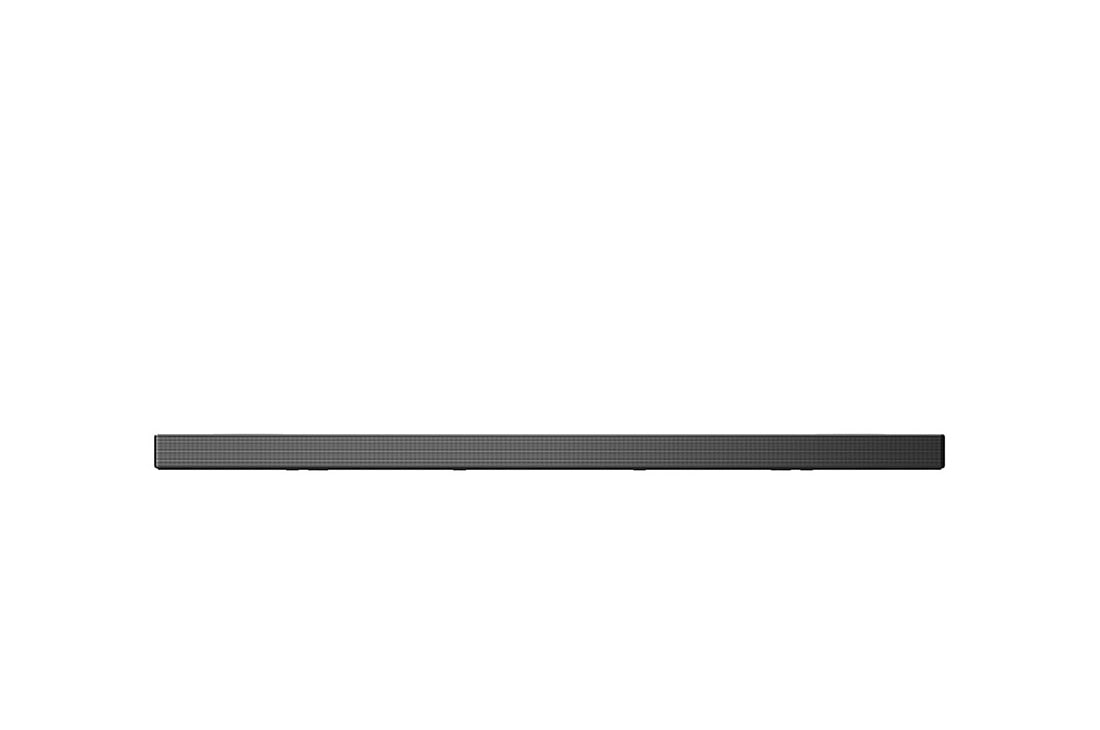

LG SoundBar SN9Y | 5.1.2ch | 520W | Dolby Atmos

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

LG SoundBar SN9Y | 5.1.2ch | 520W | Dolby Atmos
Close
MODEL INFORMATION
  • Brand Information
    Sound Bar
    Model Name
    SN9Y
  • Subwoofer Model Name
    SPN8-W
    System (Main Chip)
    MT8531
  • Mainset / Subwoofer Color
    Dark Steel Silver
SIZE(W X H X D, MM)

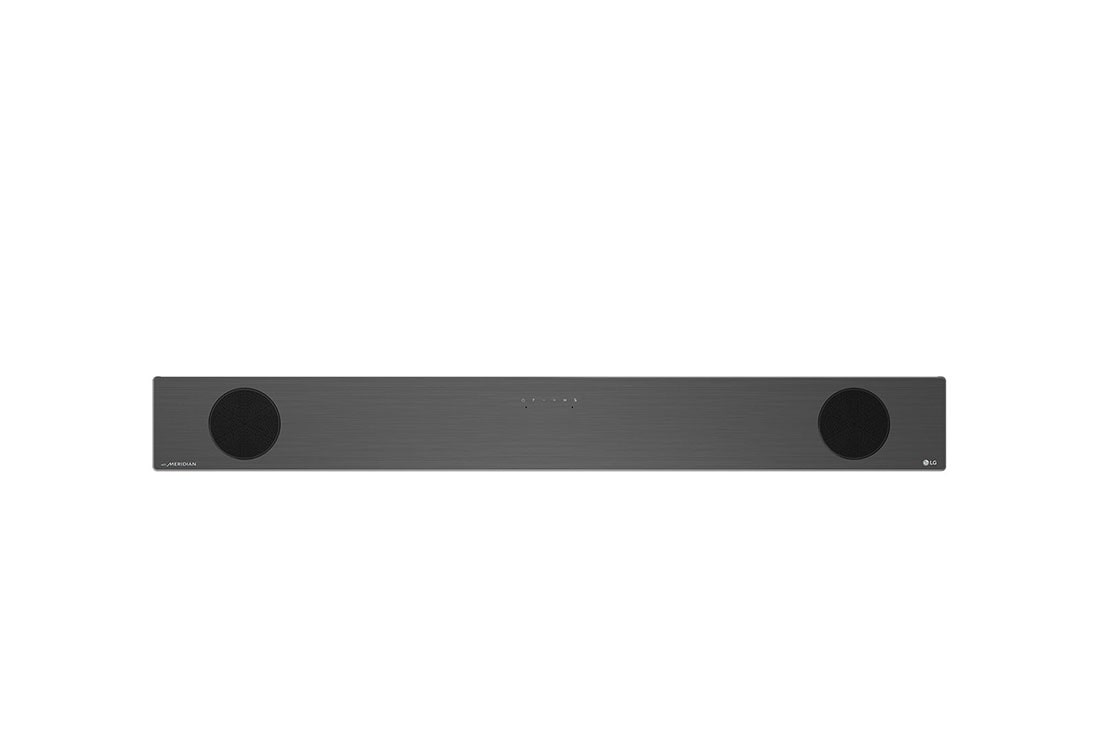

  • Main (w/ Foot )
    1220 x 57 x 145
    Matching TV size (`20 New)
    55 inch ↑

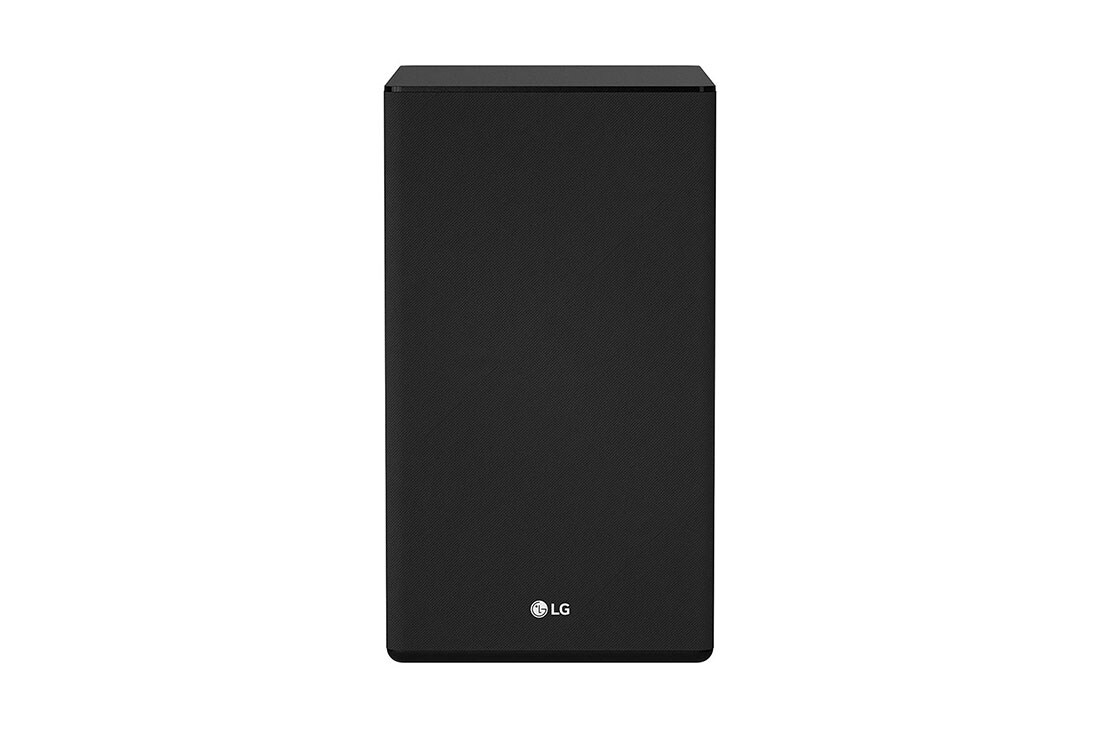

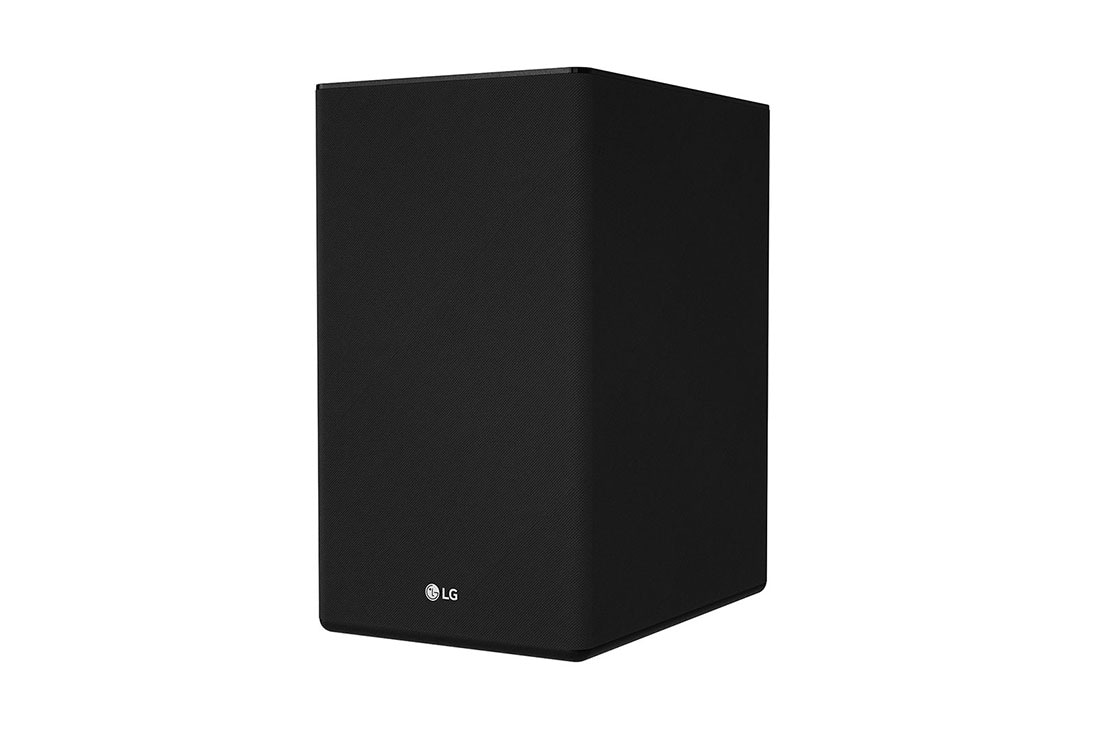

  • Subwoofer
    221.0 x 390.0 x 312.8
MATERIAL
  • Main - Front / Top / Bottom
    Metal Grille/Mold/Mold
    Subwoofer - Front / Body
    Jersey / Wood
WEIGHT(KG)
  • Main
    6.3Kg
    Subwoofer
    7.8Kg
  • Gross Weight
    18.3Kg
CARTON BOX
  • Size (W x H x D) mm
    1286 x 284 x 467
    Type
    TipOn
  • Color
    White+Yellow
Container Q
  • 20ft
    136
    40ft
    292
  • 40ft (HC)
    365

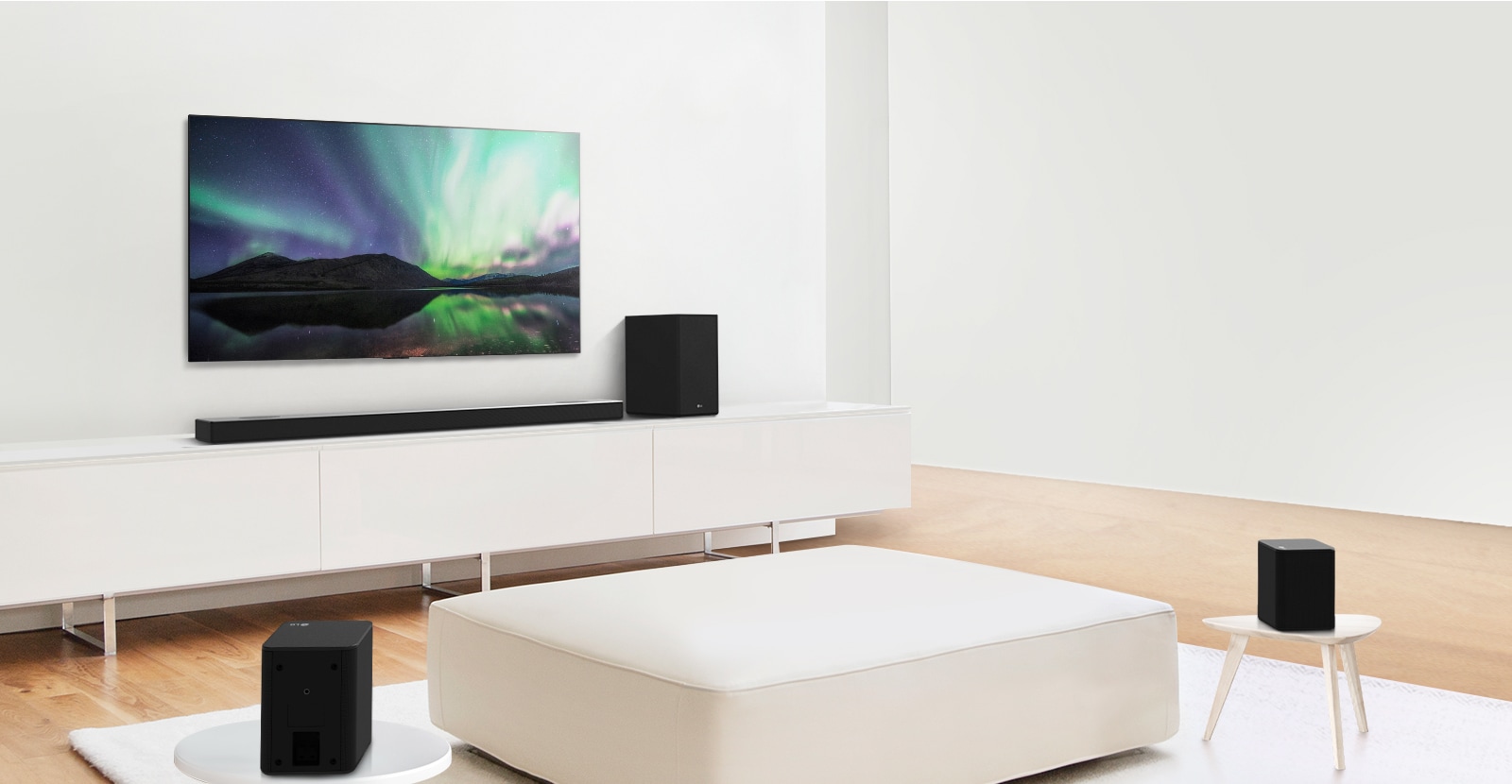

NUMBER OF CHANNELS
  • Number of channels
    5.1.2ch
OUTPUT POWER(THD 10%)
  • Total
    520W
    Front
    40W*2
  • Center
    40W
    Surround (Side)
    40W*2
  • Top
    50W*2
    Subwoofer
    220W(Wireless)
SPEAKER UNIT_FRONT(L/R)
  • SPL
    82dB
    System
    Closed
  • Tweeter Unit
    20mm Silk Dome
    Woofer Unit
    40 x 100 mm
  • Impedance
    4ohm
SPEAKER UNIT_CENTER
  • SPL
    82dB
    System
    Closed
  • Tweeter Unit
    20mm Silk Dome
    Woofer Unit
    40x100mm
  • Impedance
    4ohm
SPEAKER UNIT_SURROUND(SIDE)(L/R)
  • SPL
    82dB
    System
    Closed
  • Woofer Unit
    40x100mm
    Impedance
    4ohm
SPEAKER UNIT_TOP(L/R)
  • SPL
    83dB
    System
    Closed
  • Woofer Unit
    2.5 inch
    Impedance
    4ohm
SPEAKER UNIT_SUBWOOFER
  • SPL
    85dB
    System
    Bass Reflex
  • Woofer Unit
    7 inch
    Impedance
    3ohm
NO. OF SPEAKER UNIT
  • Number of speakers
    11EA

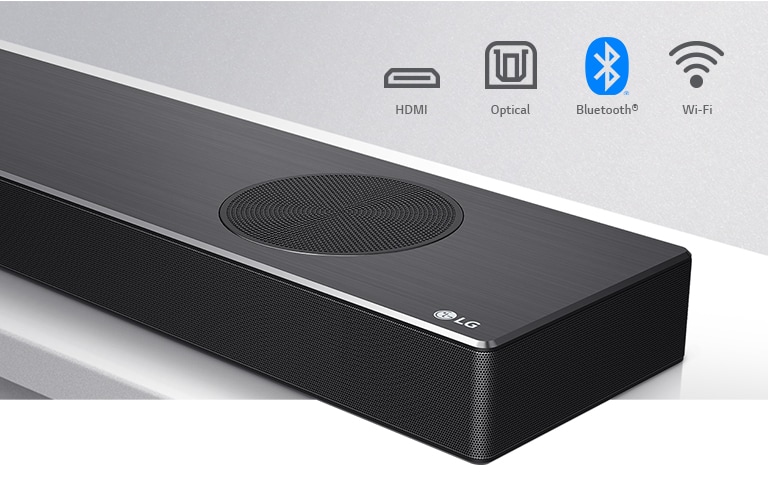

CONNECTIVITY_GENERAL
  • Optical
    Yes (1)

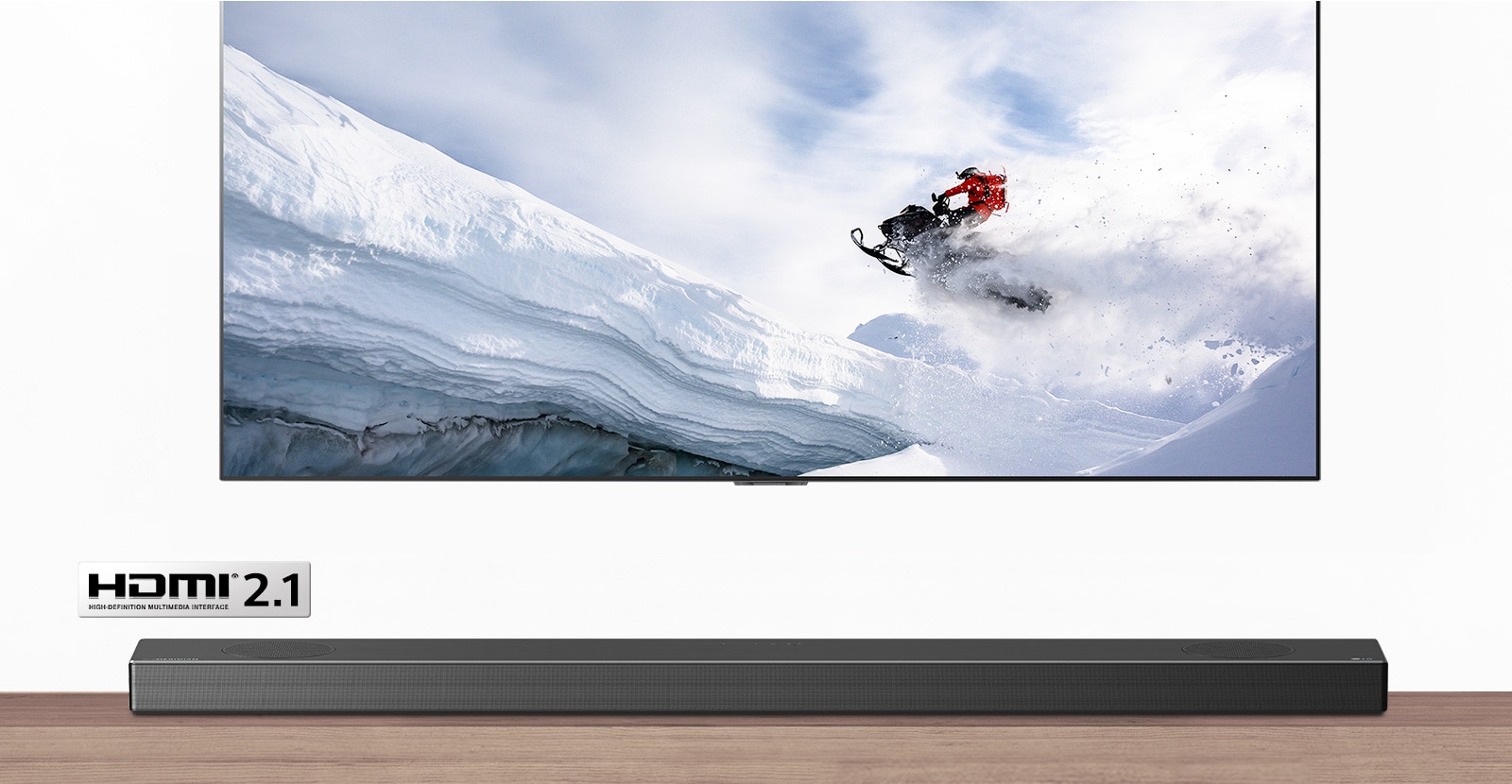

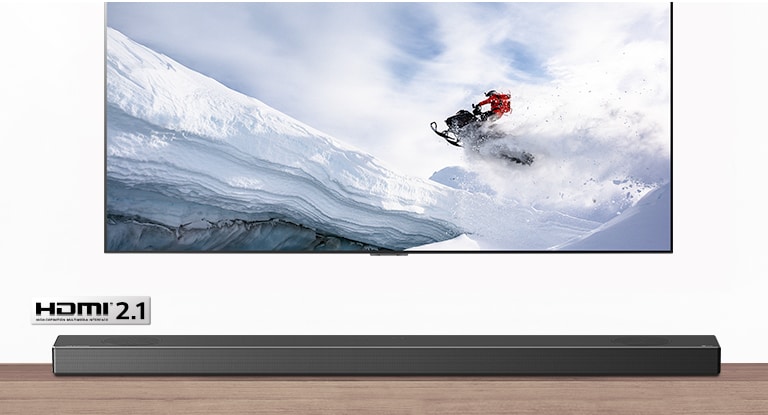

    HDMI 2.1 (HDCP 2.3) - In / Out
    Yes(1) / Yes(1)
  • HDR10
    Yes
    Dolby Vision
    Yes
  • USB
    Yes
CONNECTIVITY_WIRELESS
  • Bluetooth Version
    5.0
    Bluetooth Codec - SBC
    Yes
  • Wi-Fi (2.4G / 5G)
    Yes
    Wireless Rear Ready
    Yes (1:1)
DISPLAY INFORMATION
  • Display Type
    LCD (5 char.)

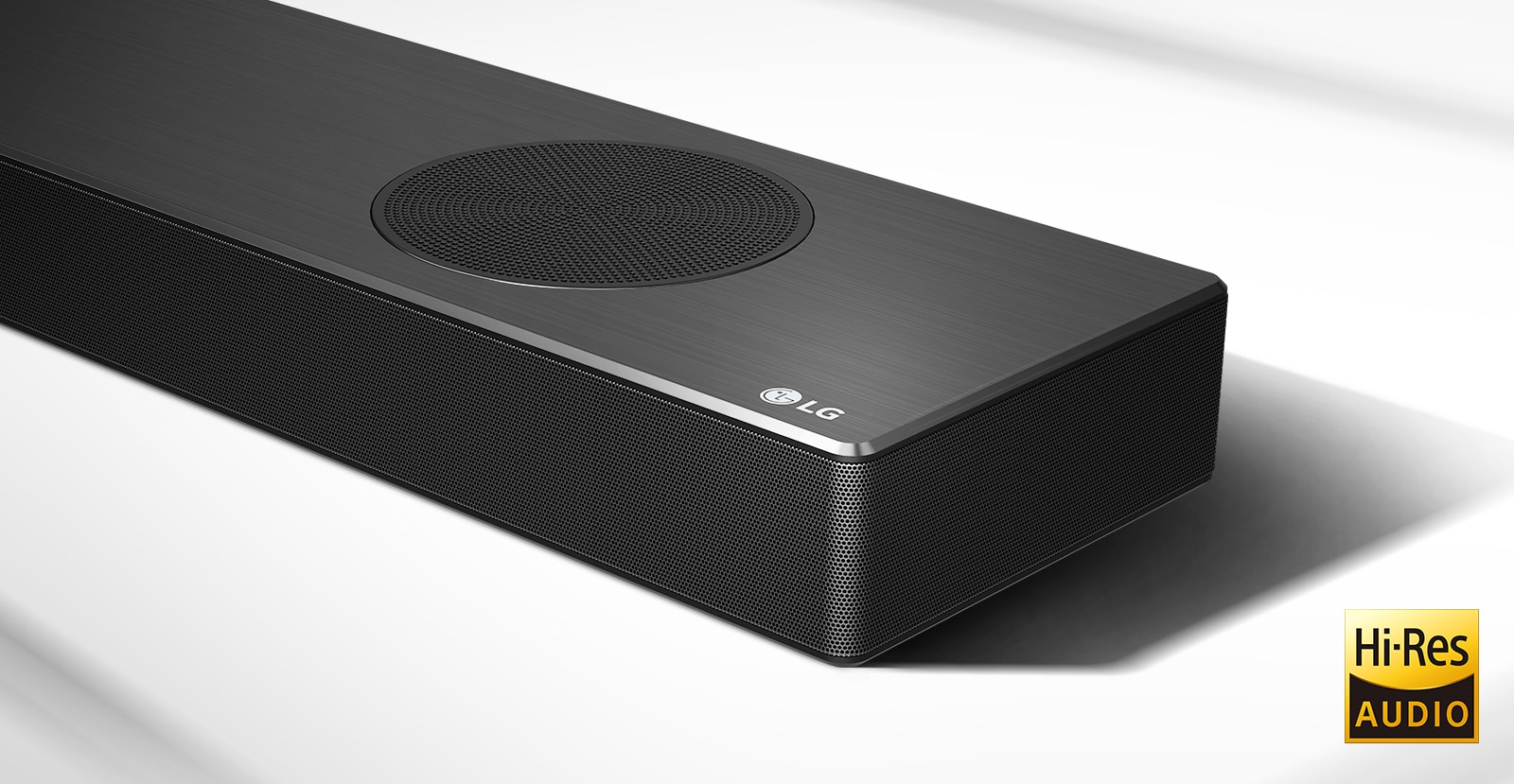

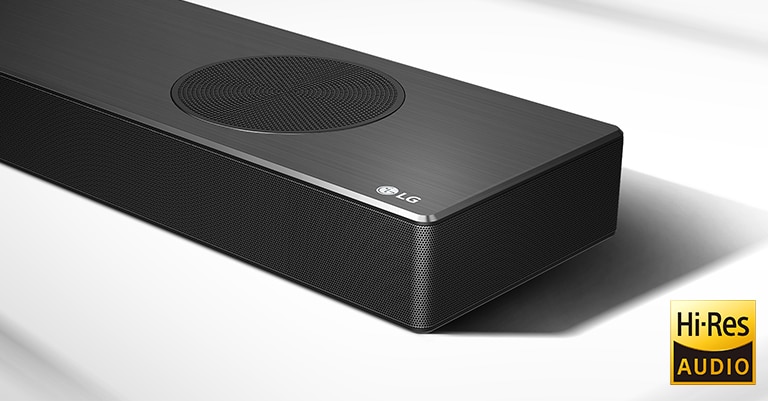

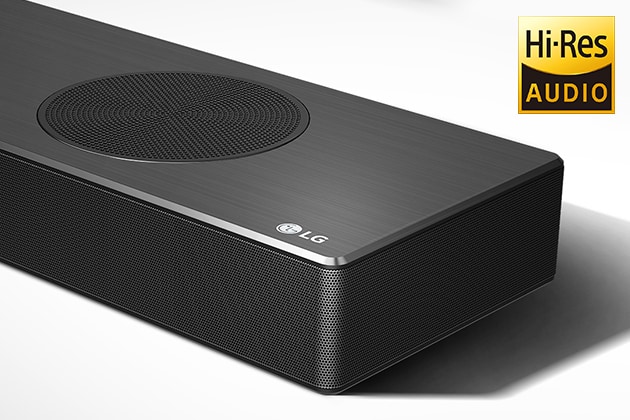

HI-RESOLUTION AUDIO
  • Sampling - "24bit/192kHz" / "24bit/96kHz"
    Yes / Yes
    Upbit/upsampling - "24bit/192kHz"
    Yes
SOUND EFFECT

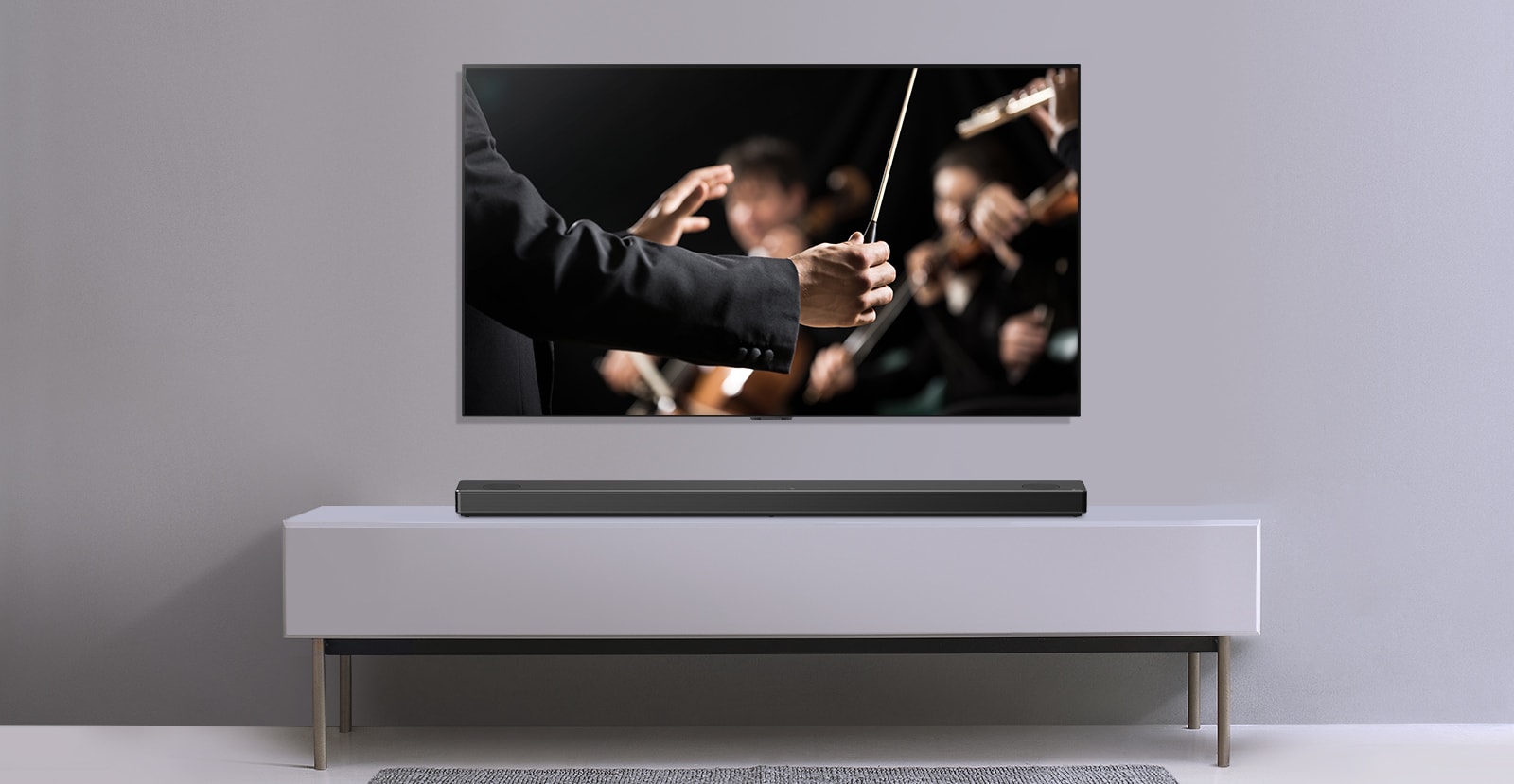

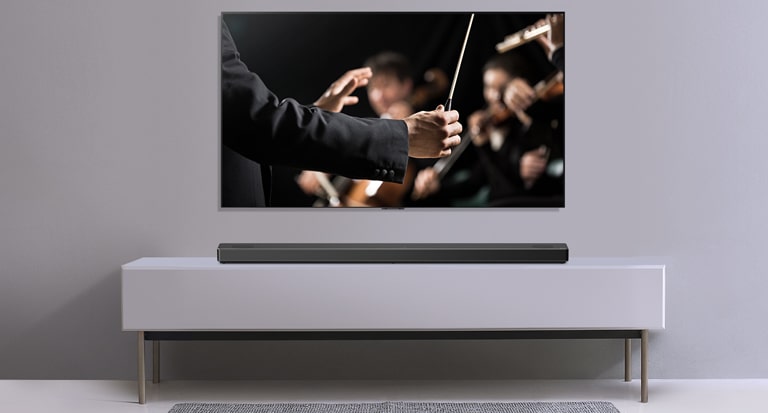

  • AI Sound Pro
    Yes
    Standard

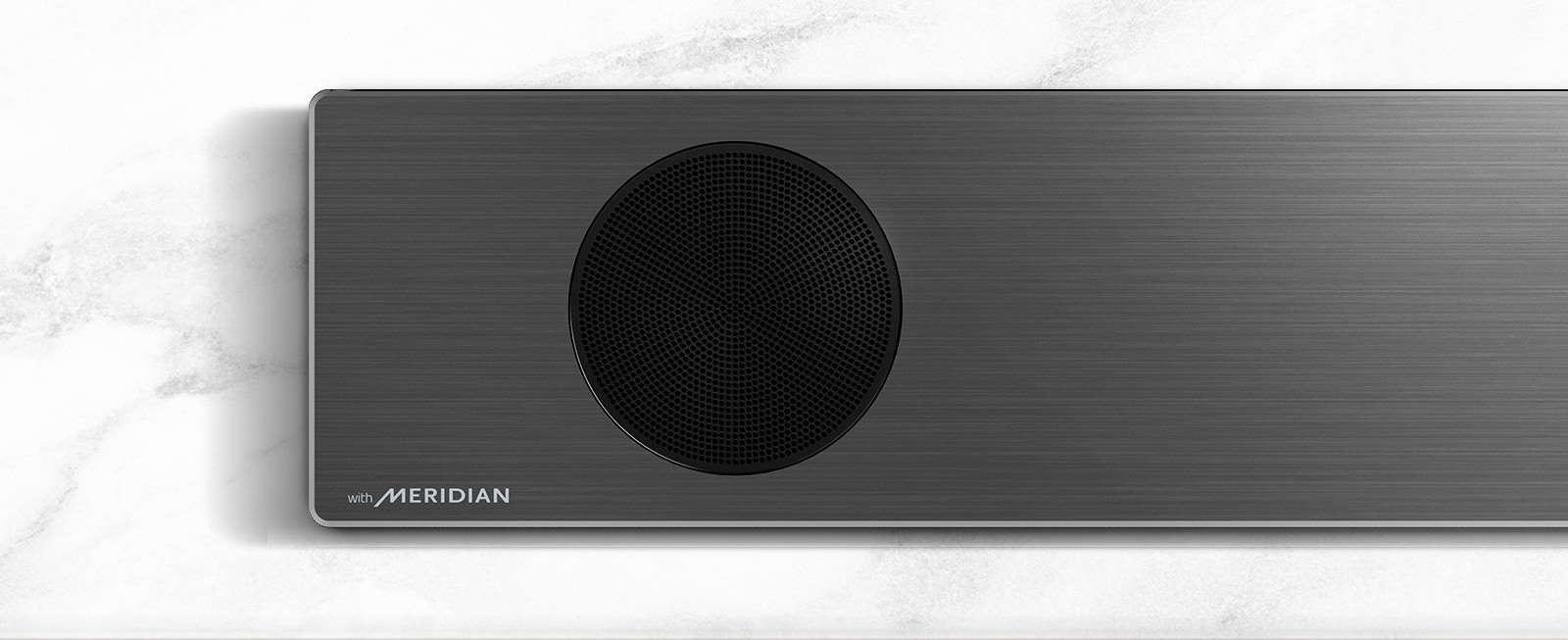

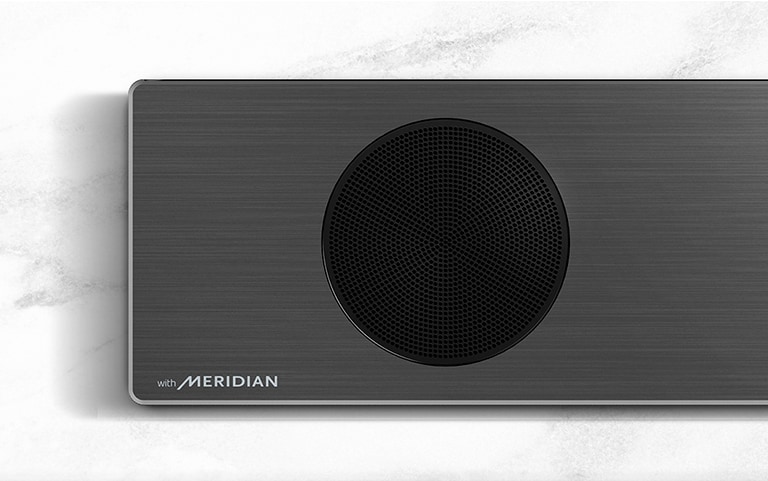

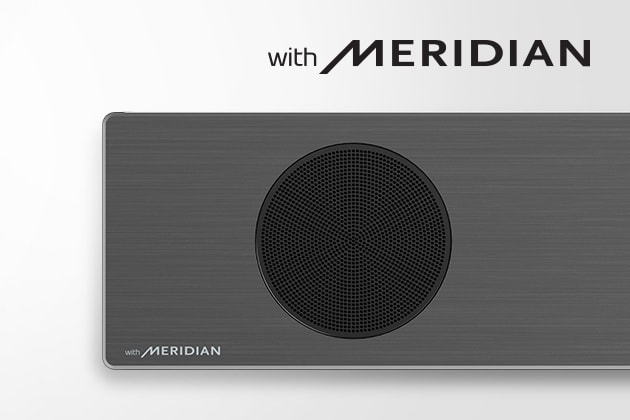

    Yes (w/ Meridian)
  • Music
    Yes
    Bass Blast/Bass Blast +
    Yes
  • Movie (Dolby Surround)
    Yes

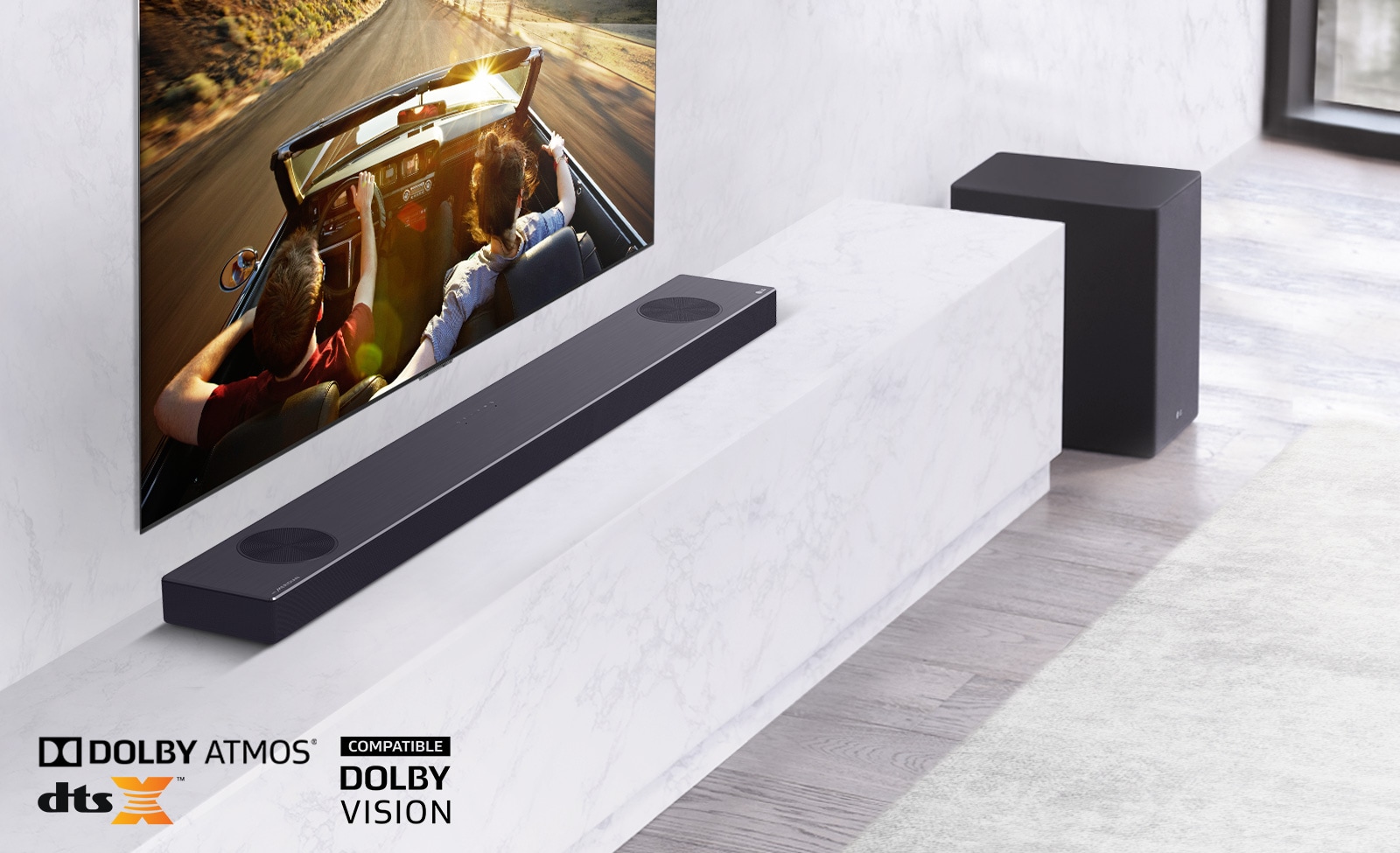

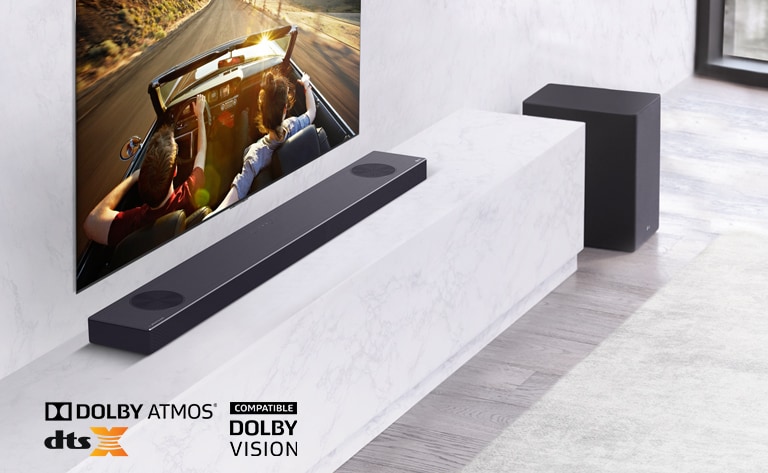

    Dolby ATMOS
    Yes
  • DTS:X
    Yes
SOUND CONTROL
  • User EQ - RCU/App
    Yes / Yes
    Night Time On/Off - App
    Yes
  • Dynamic Rage On/Off - App
    Yes
    Auto Volume Leveler On/Off - App
    Yes
  • AI Room Calibration (2 MIC In) - App
    Yes
Google Supported
  • Works with the Google Assistant (Controllee)
    Yes
    Chromecast
    Yes
  • Google Multi Zone (One Source → Multi Speaker)
    Yes
CONVENIENCE
  • Remote App - iOS / Adroid OS
    Yes / Yes
    Smart Phone File Playback
    Yes
  • EZ setup (BLE)
    Yes
    NSU
    Yes
  • Control with your TV Remote (Vol+/-, Mute)
    Yes
    Sound Sync - Optical
    Yes
  • Auto Power On/Off -Optical
    Yes
    A/V Sunc (0~300ms) - APP
    Yes
  • HDMI SIMPLINK
    Yes
    HDMI Audio Return Channel (ARC)
    Yes
  • HDMI Audio Return Channel (e-ARC)
    Yes
    Woofer Level (-15 ~ 6dB, 1dB/Step)
    Yes
  • "Channel Level (-6 ~ 6dB, 1dB/Step) - Top / Center / Surround / Rear "
    Yes / Yes / Yes / Yes
    Mute
    Yes
  • Auto Dimmer
    Yes
    Sleep Timer - App
    Yes
  • USB Host / Charge
    Yes
    Built-in Music
    Yes
  • Auto Detect (Bluetooth)
    Yes
AUDIO FORMAT(BITSTREAM)
  • LPCM
    Yes
    Dolby Atmos
    Yes
  • Dolby TrueHD
    Yes
    Dolby Digital Plus
    Yes
  • Dolby Digital
    Yes
    DTS:X
    Yes
  • DTS-HD Master Audio
    Yes
    DTS Digital Surround
    Yes
  • DTS-HD High Resolution
    Yes
    AAC / AAC+
    Yes
FILE FORMAT
  • FLAC - C4A / USB
    Yes / Yes
    OGG - C4A / USB
    Yes / Yes
  • WAV - C4A / USB
    Yes / Yes
    MP3 - C4A / USB
    Yes / Yes
  • AAC - C4A / USB
    Yes / Yes
POWER_MAIN
  • SMPS
    100~240V, 50/60Hz
    Power Off Consumption
    0.5W ↓
  • Power Consumption
    70W
POWER_SUBWOOFER
  • Type (SMPS)
    100~240V, 50/60Hz
    Power Off Consumption
    0.5W ↓
  • Power Consumption
    38W
    Wireless Frequency
    5GHz
ACCESSORY_MANUAL
  • Web Manual (File)
    Yes (Full)
    Built-in Manual (Book) (Simple or Full)
    Yes (Simple)
  • Wall Mount Guide
    Yes
    Wireless Speaker Reset Guide
    X
  • Open Source - Yes (Full or Simple)
    Yes (Full)
    Warranty Card
    Yes
ACCESSORY_REMOTE CONTROL
  • Model Name
    MA7
    Battery(Size)
    AAA x 2
  • Battery Built-in
    Yes
ACCESSORY_OTHERS
  • Optical Cable
    Yes
    Wall Mount Bracket
    Yes
