Pro:Centric® SMART Set Top Box
All Spec
ACCESSORY
Included
Power, Display Control (4 Pin Phone Jack), External IR, AV In, Service, Digital Optical Out, LAN Port, HDMI Out
AUDIO
Optical Sound Sync
Yes (SPDIF)
DIMENSION(UNIT :MM)
W x H x D / weight (set)
233 x 29.8 x 180.5 / 0.76kg
W x H x D / weight (Packing)
366 x 218 x 143 / 1.89kg
GENERAL FEATURES
Pro:Centric ® - Type
Smart
Pro:Centric ® - Data Streaming (IP&RF)
IP Only
Pro:Centric ® - Pro:Centric Application
PCA 3.7
Pro:Centric ® - Tuner
No
Pro:Centric ® - HCAP (SDK)
GEM / Flash / HTML5
Smart Features
Commercial Smart Home, Web Browser, softAP, Magic Remote (Ready)
Connectivity
Smart Share, Screen Share, Bluetooth Sound Sync
DRM (Digital Right Management)
Pro:Idiom
Management
Remote Diagnostics, EzManager (for initial configuration)
Interactivity
HTNG / HDMI-CEC
RJP Interface
RS232C, HDMI
Advanced Setting Option
Auto Off / Auto Sleep, Motion Eye Care, Smart Energy Saving

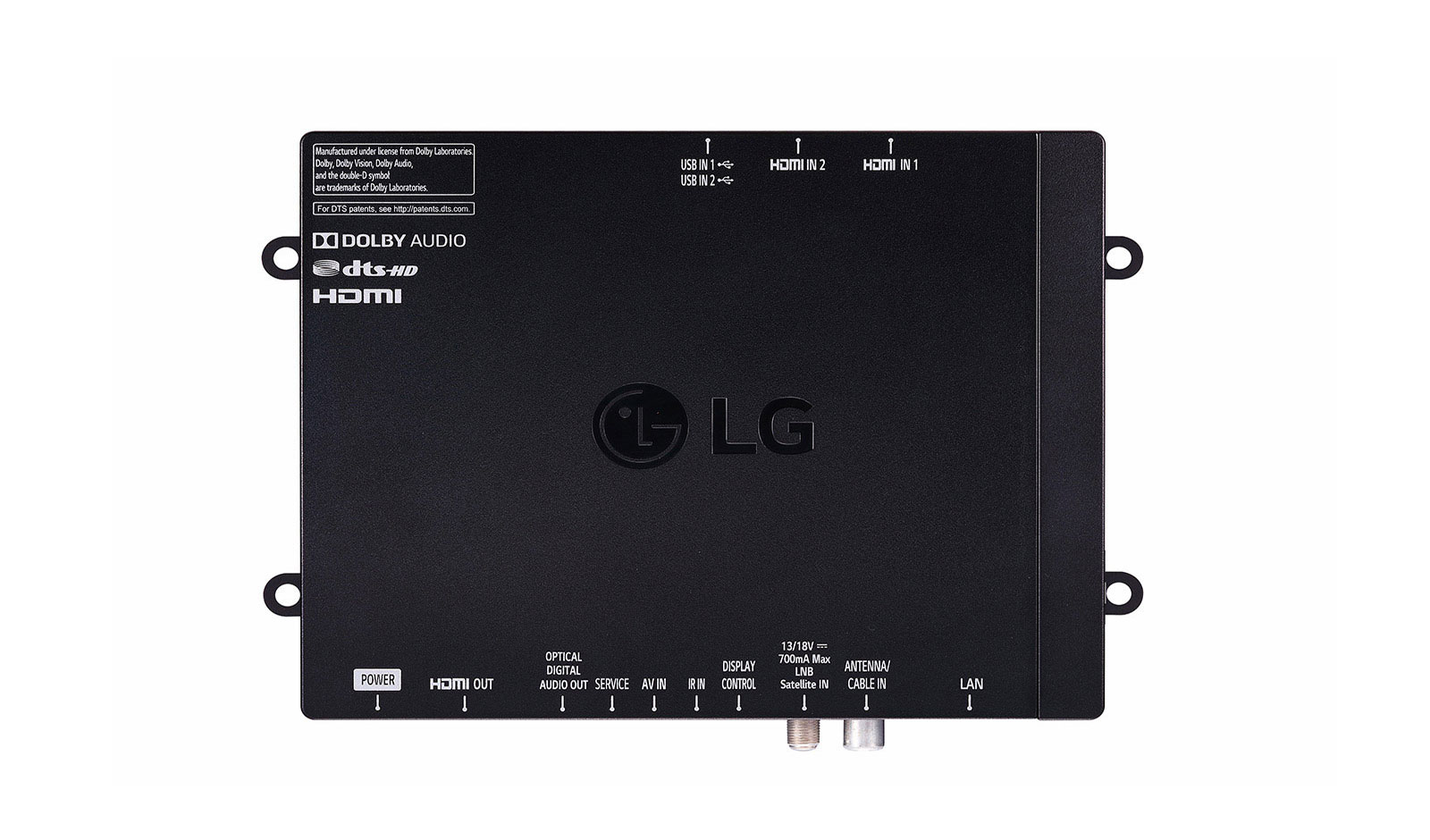

INTERFACE

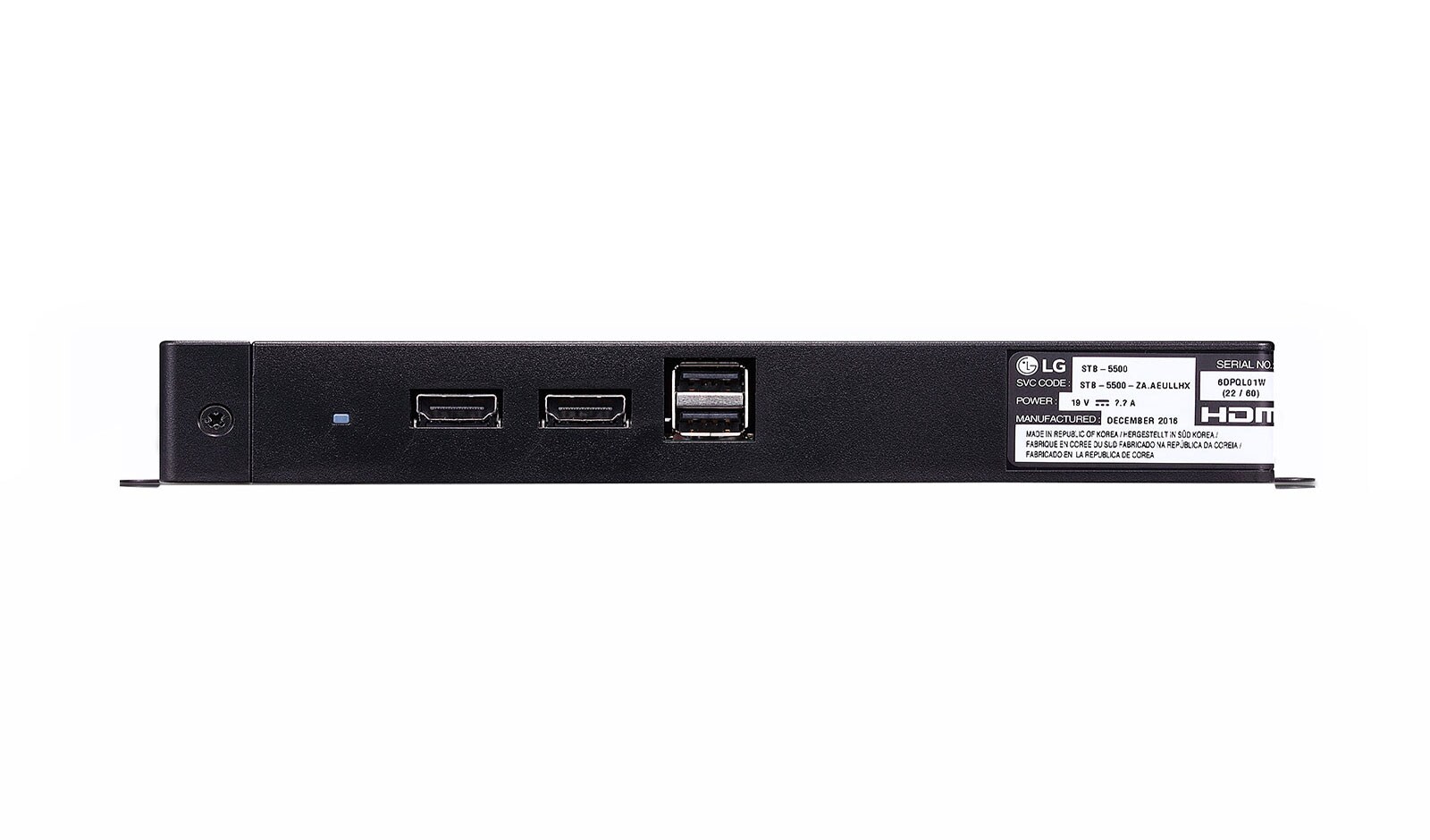

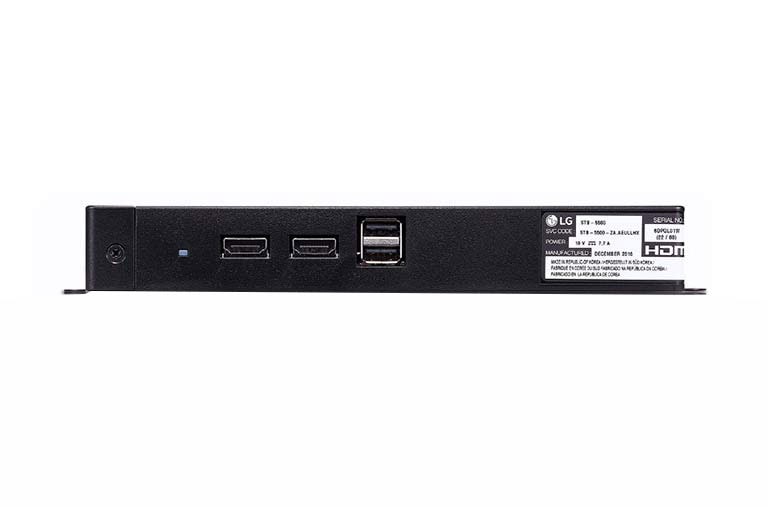

Upper Side
HDMI (2), USB (2)
Lower Side

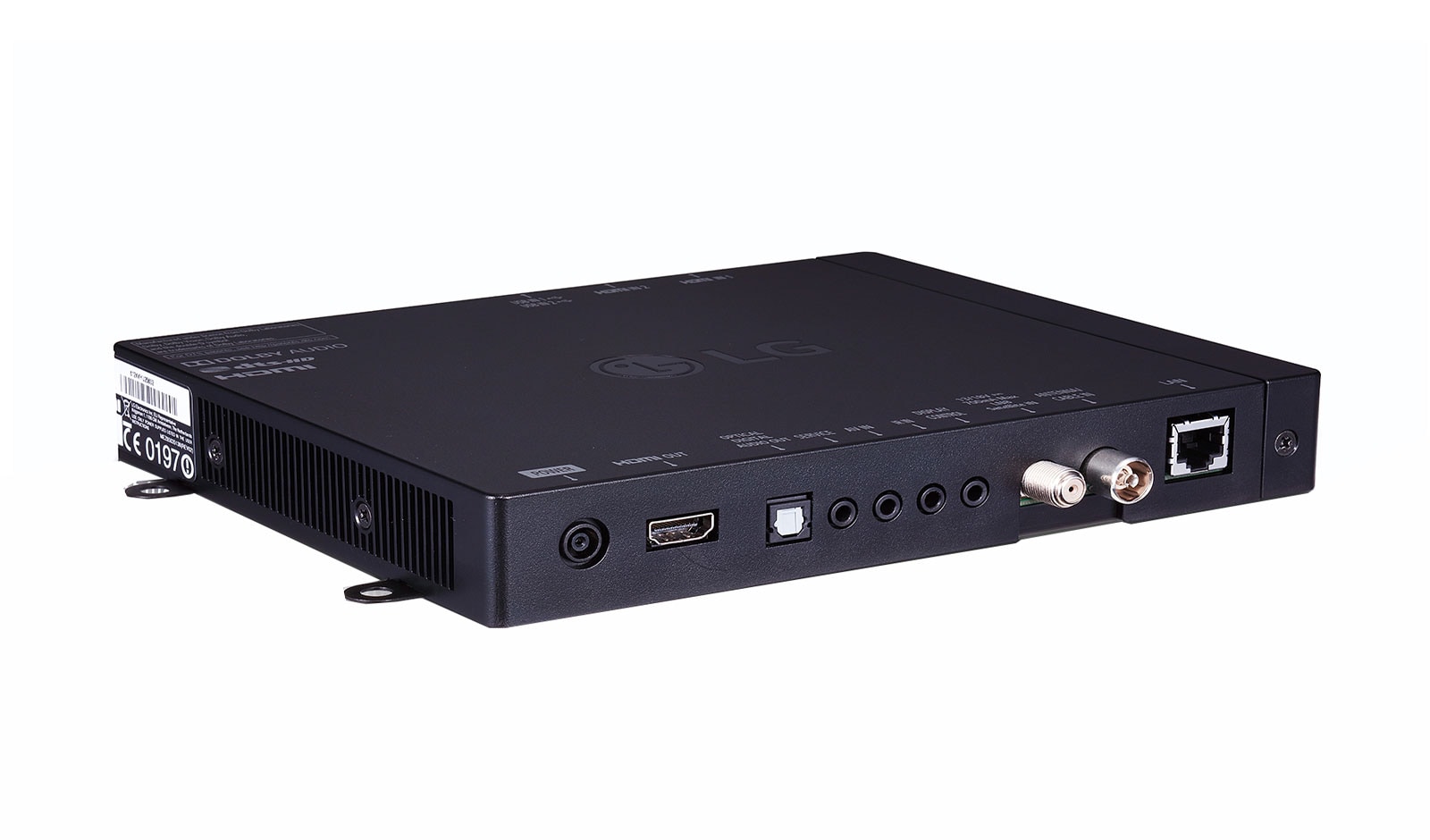

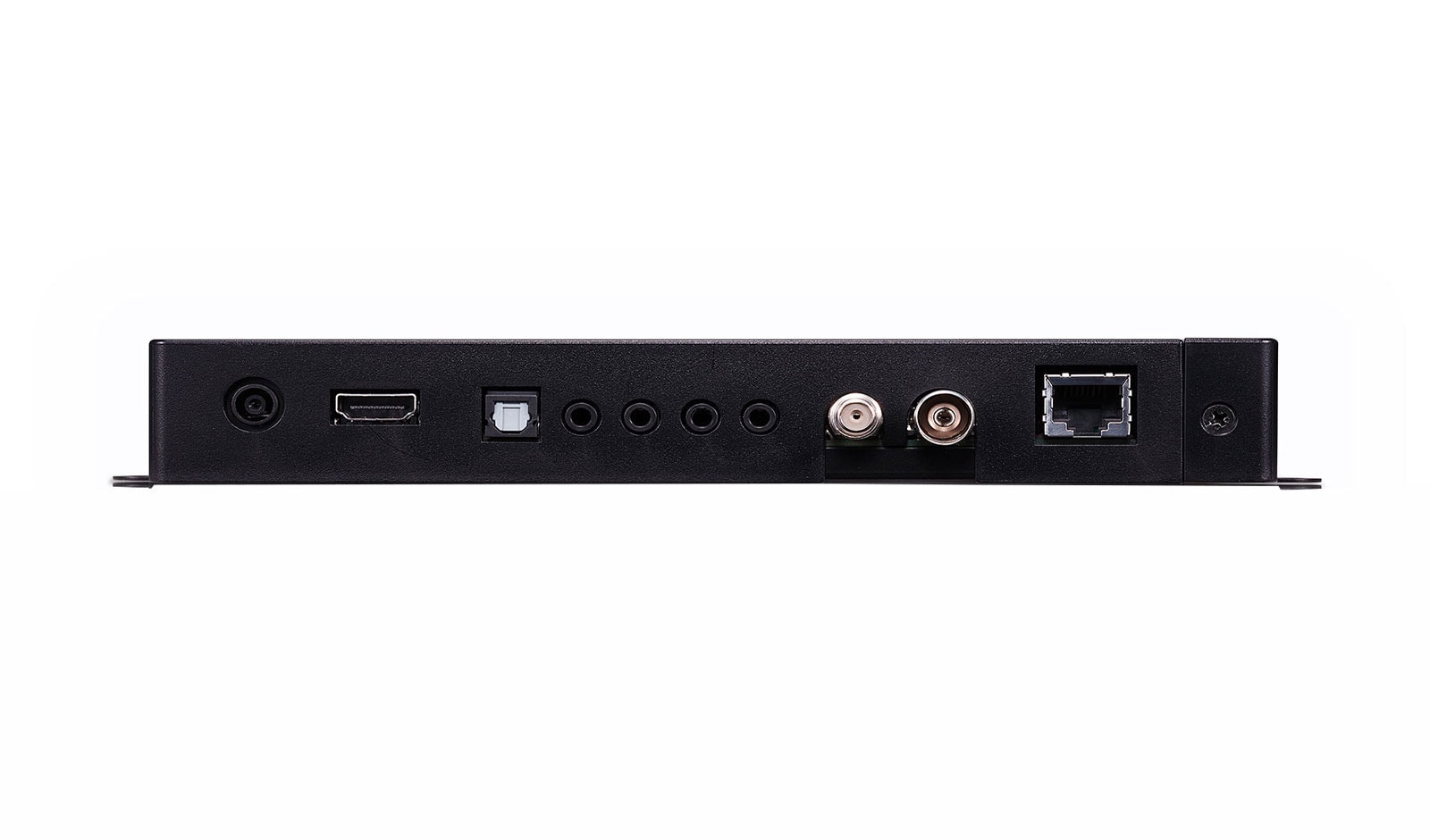

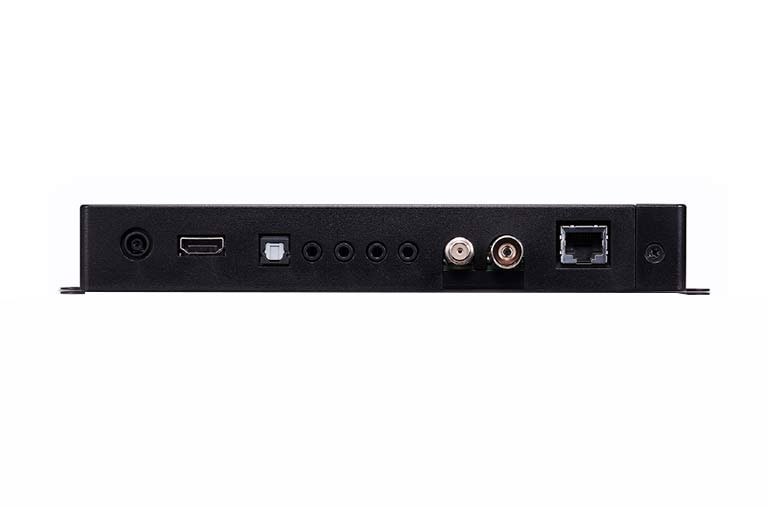

Power, Display Control (4 Pin Phone Jack), External IR, AV In, Service, Digital Optical Out, LAN Port, HDMI Out
POWER(UNIT : WATTS)
Voltage, Hz
100~240V, 50 / 60 Hz
Typical
5.3
Stand-by
0.3 ↓
STANDARD APPROVAL
Safety
RCM, CB Scheme
EMC
AS/NZS CISPR32 (Class B), RCM
Environment
CE
Etc.
ROHS
VIDEO
XD Engine
Yes
Real Cinema 24p (3:3 Pull down)
Yes
Output Resolution
720p/1366x768/1080p/2160p
