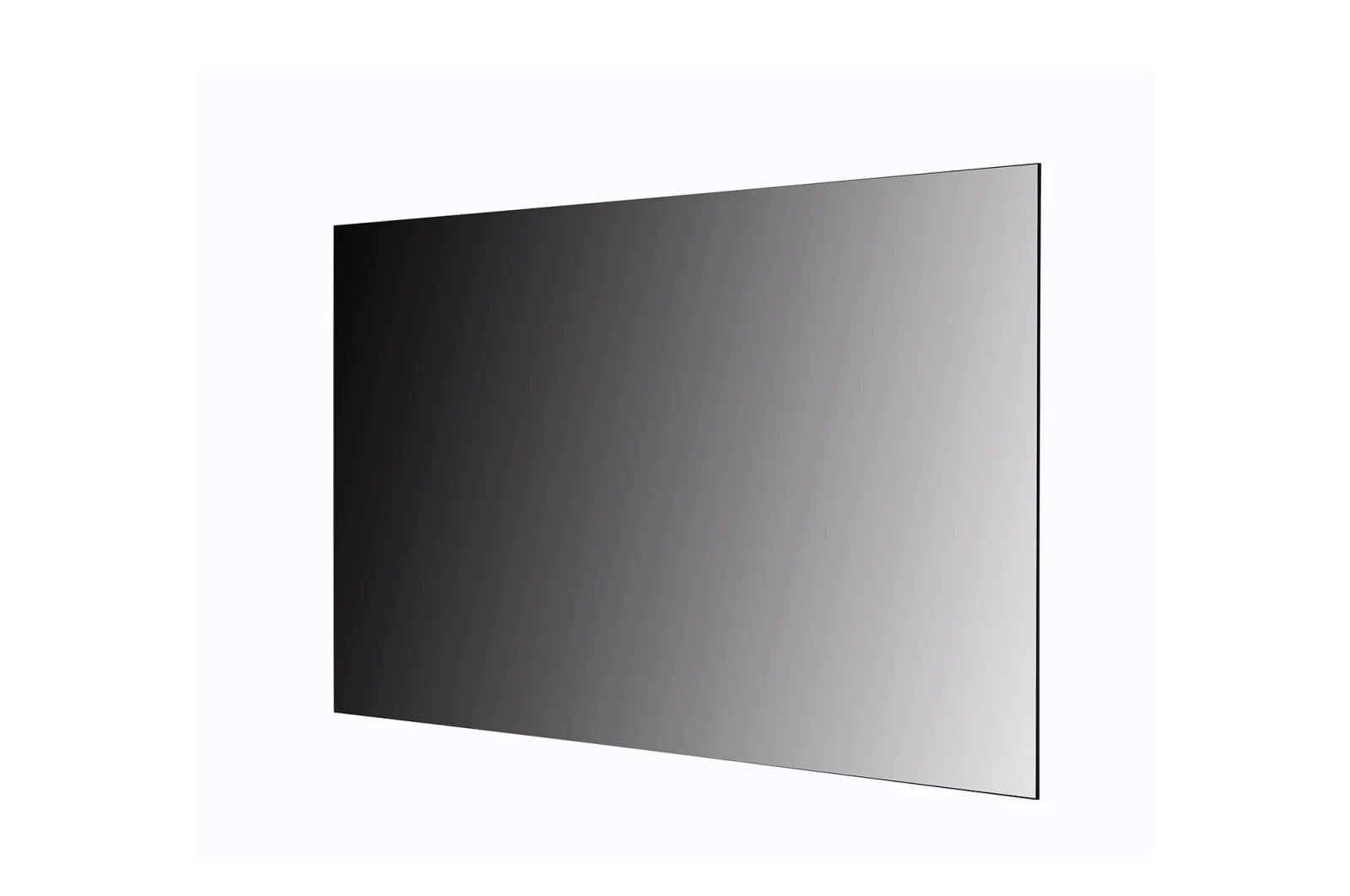

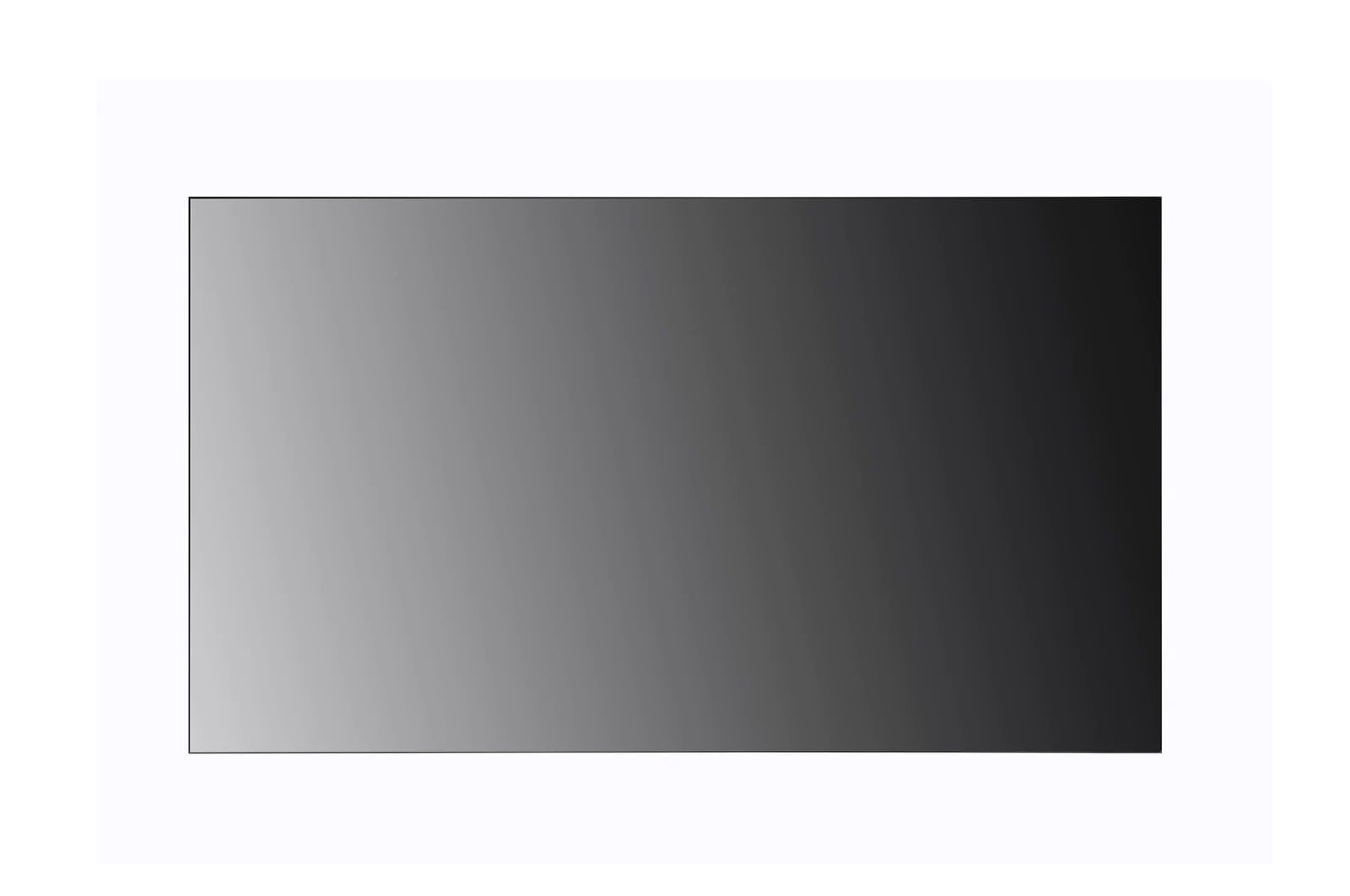

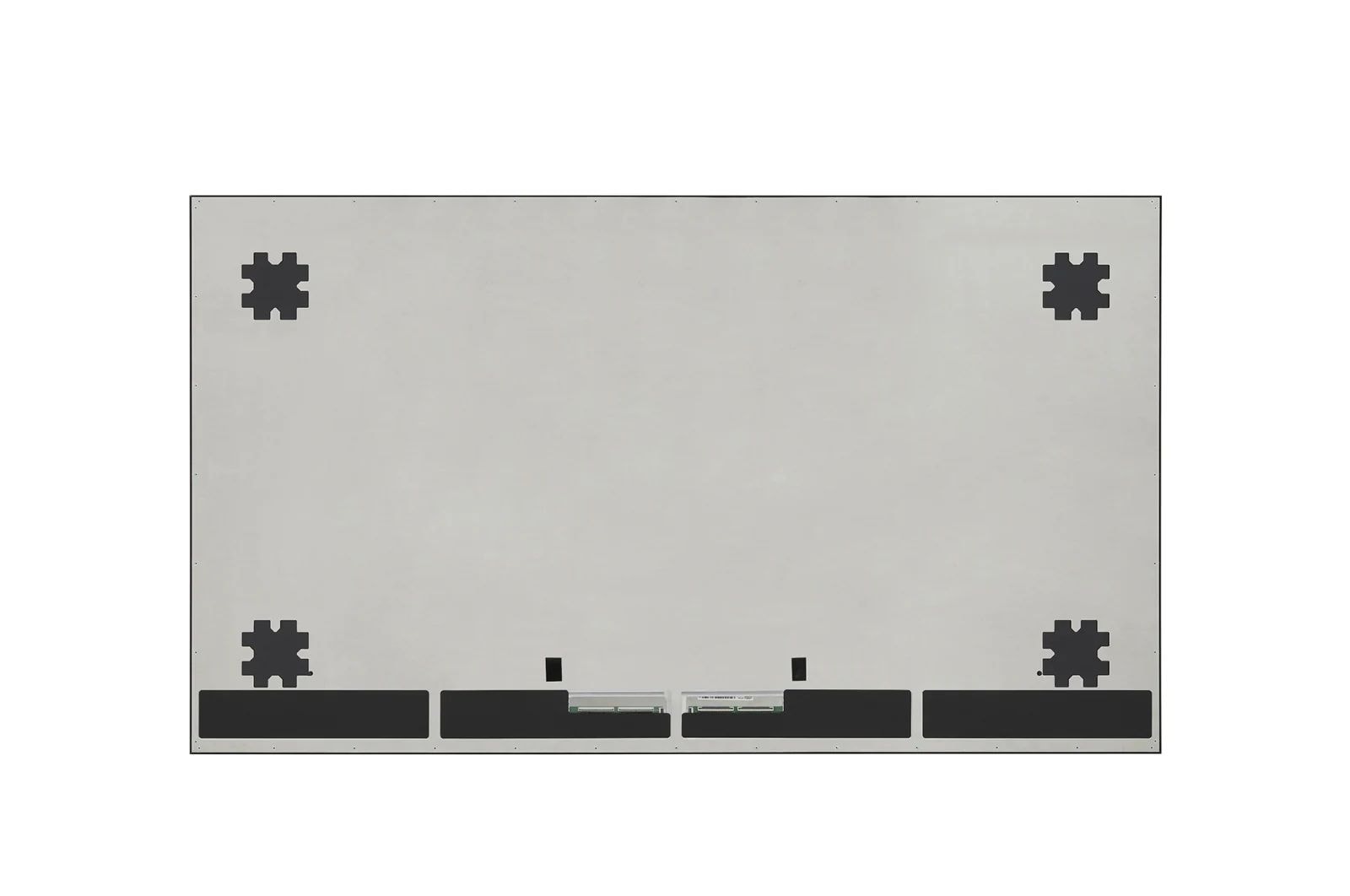

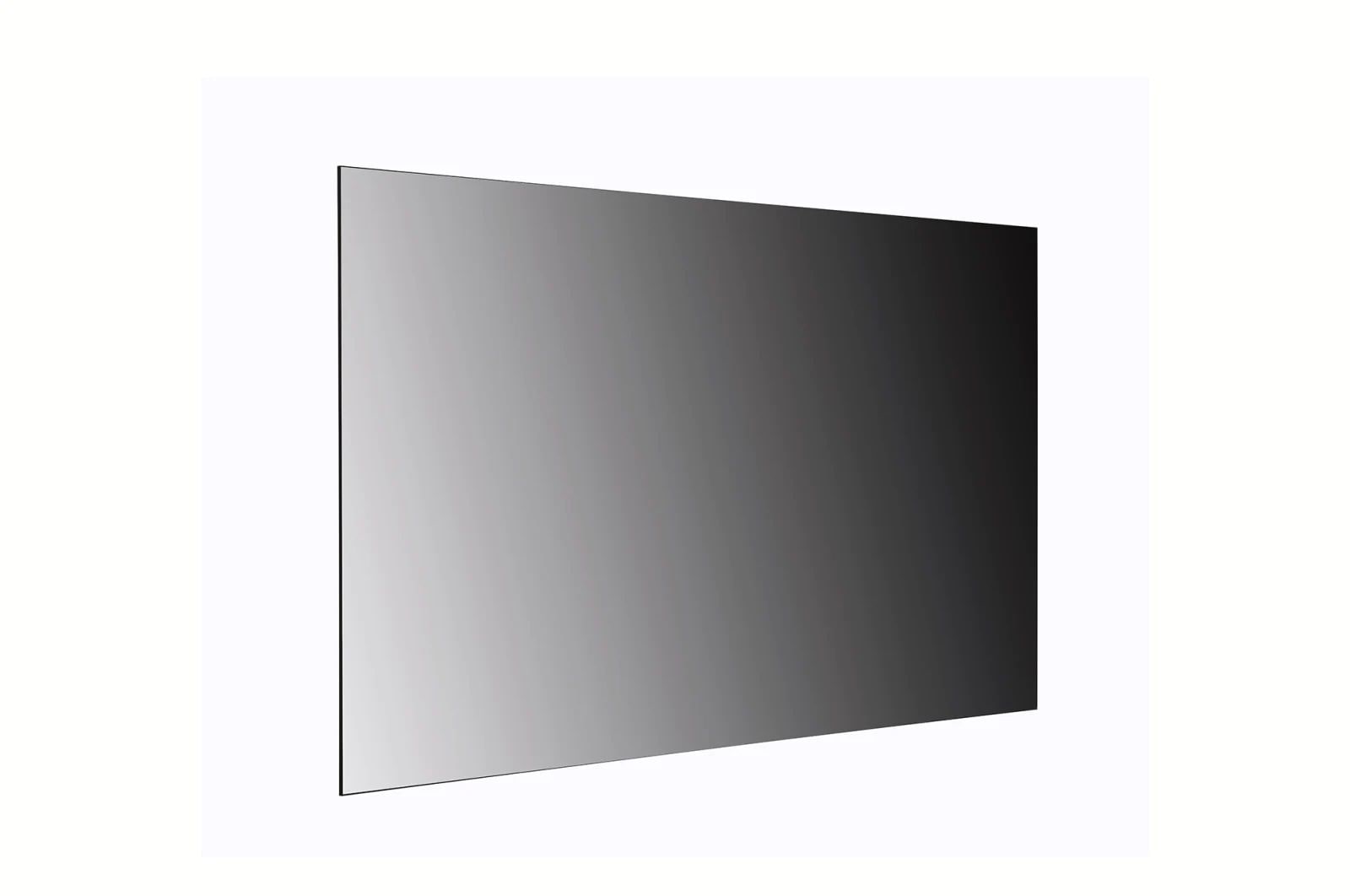

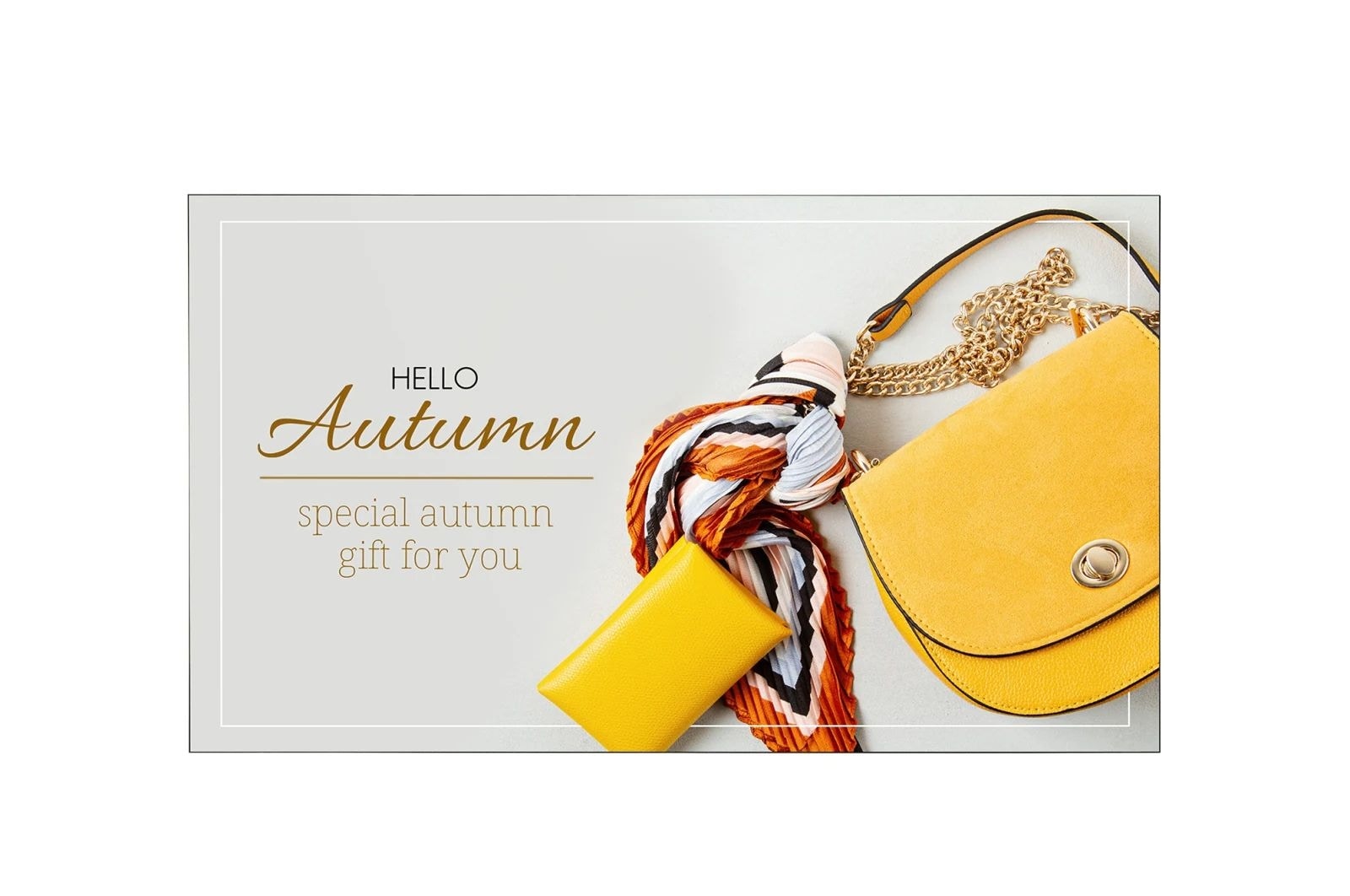

55" Wallpaper OLED Signage
All Spec
ACCESSORY
Optional
No
CERTIFICATION
Safety
AS/NZS 60950,CB Scheme
EMC
CISPR32
CONNECTIVITY
Input
HDMI(1), DP(1), USB2.0 Type A(2)
Output
DP, Audio (Off / Fixed / Variable)
External Control
RS232C in/out, RJ45 in/out, IR (Shared w/ RS232C Out Port)
ENVIRONMENT CONDITIONS
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
KEY FEATURES
Key Features
Internal Memory (16 GB), Temperature Sensor, webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected® (Network based control), Power (PM Mode, Wake on LAN), HDMI-CEC (Compatibility may differ by equipment), SI Server Setting, Pro:Idiom
MECHANICAL SPECIFICATION
Bezel Colour
Black
Weight
6.5Kg (Head) 3.4Kg (Signage Box)
Monitor Dimensions (W × H × D)
1220.3 x 696.8 x 4.9mm (Head) 782.8x 238.4 x 34.7mm (Signage Box)
Carton Dimensions (W x H x D)
1345 x 804 x 207mm
Packed Weight
23.1kg
PANEL
Screen Size
55”
Panel Technology
OLED
Native Resolution
1920 x 1080 (FHD)
Brightness (Typ.)
150/400nit (APL 100%/25%)* Average Picture Level
Contrast Ratio
150,000 : 1
Colour Gamut
BT709 120%
Viewing Angle (H x V)
178 x 178
Colour Depth
1.07 Billion Colours (10 bit)
Response Time
1ms (G to G), 8ms (MPRT)
Surface Treatment
Hard coating (2H), Reflectance Typ. 1.2%
Lifetime
30,000 Hrs (Typ.)
Operation Hours (Hours / Day)
18 hrs/7 days (Moving video only)
Portrait / Landscape
Yes / Yes
POWER
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
POWER CONSUMPTION
Typ./Max
309W/318W
DPM
0.5W
Power Off
0.5W
SOFTWARE COMPATIBILITY
Software Compatibility
SuperSign CMS, SuperSign Control / Control+, LG ConnectedCare
OPS COMPATIBILITY
OPS Type Compatible
No
White Paper
To access more technical documentation and resources, please visit the LG B2B partner portal.
