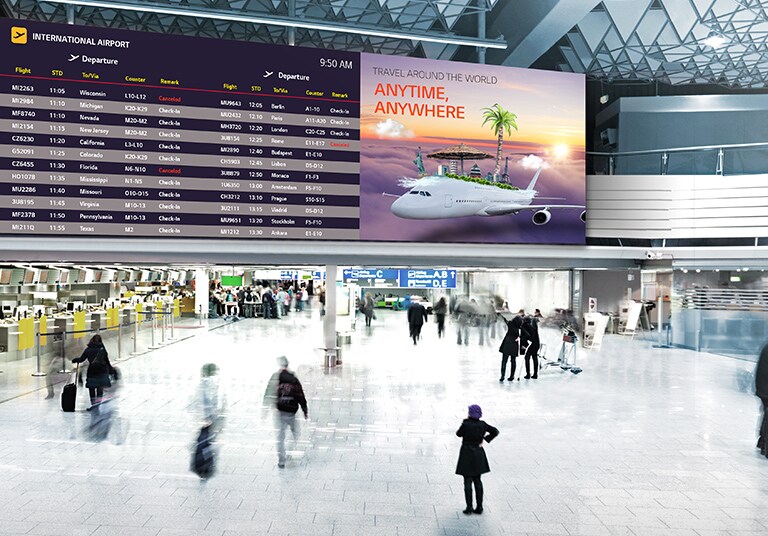

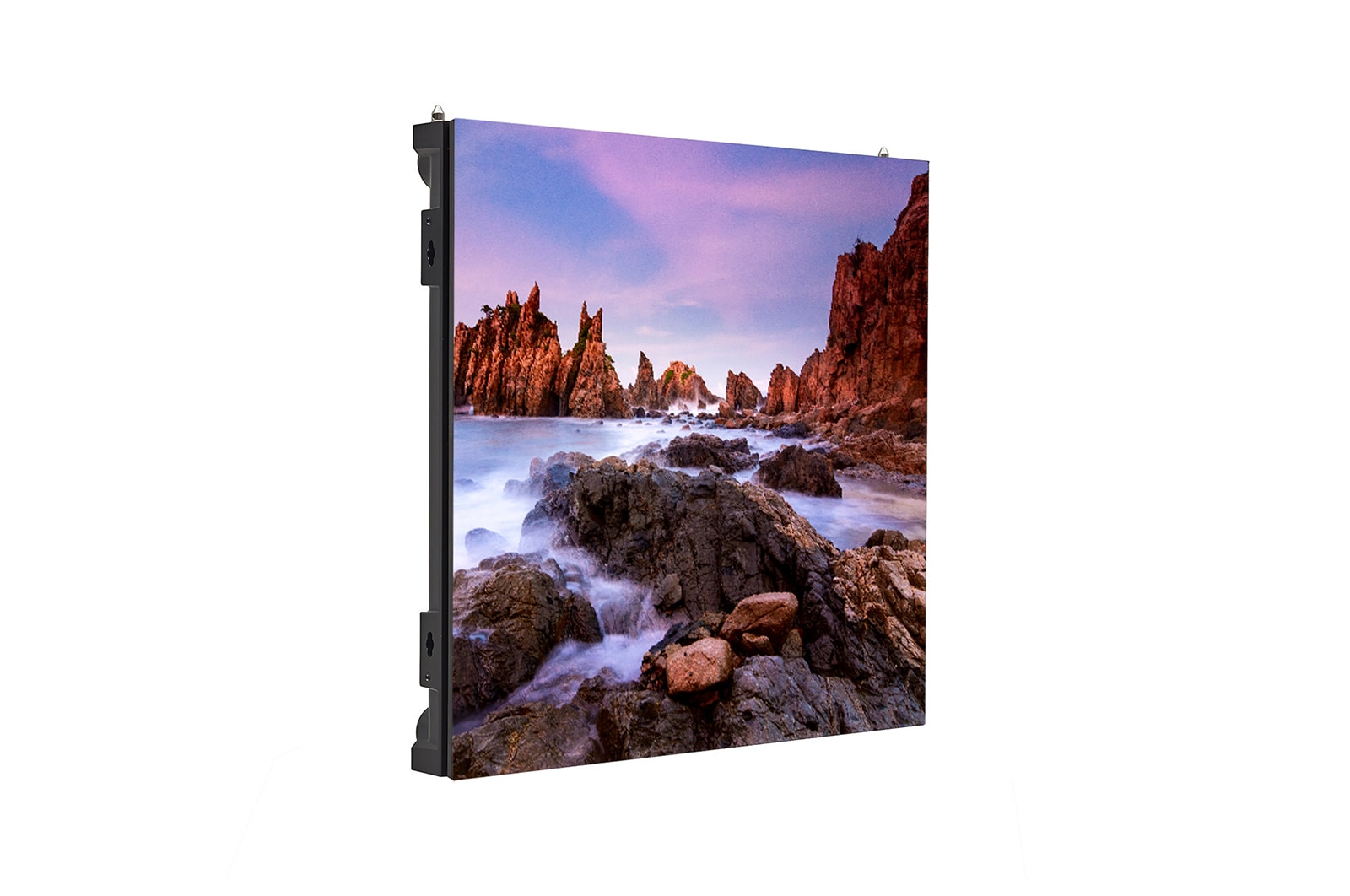

LSCA Versatile Series
Fast Installation
Two Cabinet Options
* LSCA-RK = Full size cabinet / LSCA-CK = Half size cabinet

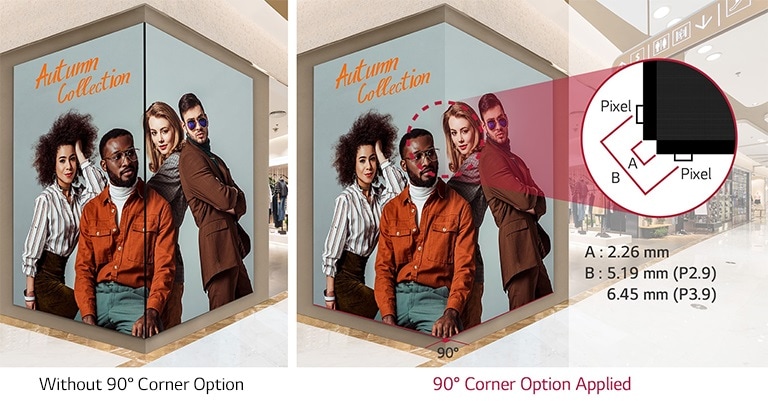

90° Corner Design Available
Certification
CE,FCC,ETL
Input
HDMI, DP, USB2.0
Output
Gigabit Ethernet ×16
Control
RJ45 In (LAN), RS-232C In/Out
Power
AC-100-240V-50/60HZ
Power Consumption(W/Unit, Max)
135
Power Consumption(W/Unit, Avg)
45
Power Consumption(W/m²）
540
Environment
RoHS
Min. Brightness(After Calibration)
1000 cd/m²
Colour Temperature
3,200~9,300
Visual Viewing Angle(Horizontal)
160
Visual View Angel(Vertical)
160
Brightness Uniformity
97%
Colour Uniformity
±0.003CxCy
Contrast Ratio
7,000
Processing Depth(bit)
14
Pixel Configuration
3 in 1 SMD
Pixel Pitch
3.91
Module Resolution(WxH)
64x128
Module Dimensions(WxH,mm)
250x500
Weight per Module(Kg)
1.3
No. of Modules per Unit Case(WxH)
2x1
Unit Case Resolution(WxH)
128x128
Unit Case Dimensions(WxHxD, mm)
500 x 500 x 74.88
Unit Case Surface Area(m²)
0.25
Weight per Unit Case(kg/unit)
8.5
Weight per Square Meter(Kg/m²)
34
Physical Pixel Density(Pixels/m²)
65,536
Unit Case material
Die Casting Aluminum Alloy
Service Access
Front or Rear (Select one Only)
Life time (Half Brightness)
100,000
Operating Temperature(℃)
-10℃ to +45℃
Operating Humidity
0~80%RH
IP Rating Front
IP30
IP Rating Rear
IP30
To access more technical documentation and resources, please visit the LG B2B partner portal.
