Water-cooled Screw Heat Pump

LG Water-cooled Screw Heat Pump is a highly efficient and economical system that supplies hot water with the temperature up to 80℃ by using 70-80% of unused energy.
Features
Features INQUIRE TO BUY

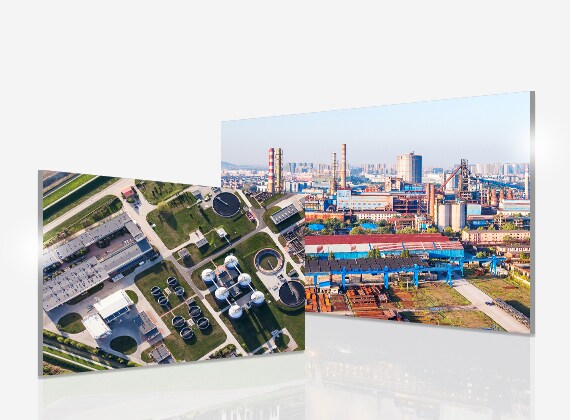

  • Aerial view showcases a sewage plant with a green area to the left, and slightly overlapping, an industrial site to the right.

    Applicable for Various Sites

    Hot water production is possible at various sites such as industrial site and sewage treatment plant. Specialized solution is provided to offer stable and efficient operation even under harsh conditions.

  • Bar graphs for LNG, Bunker C, and Heat Pump are displayed from left to right. The Heat Pump graph is highlighted in red, indicating its energy-saving rate.

    Economical Energy Saving System

    With Centrifugal Heat Pump, 70% of the operational cost and 80% of the greenhouse gas emission can be saved in comparison to fossil fuels.

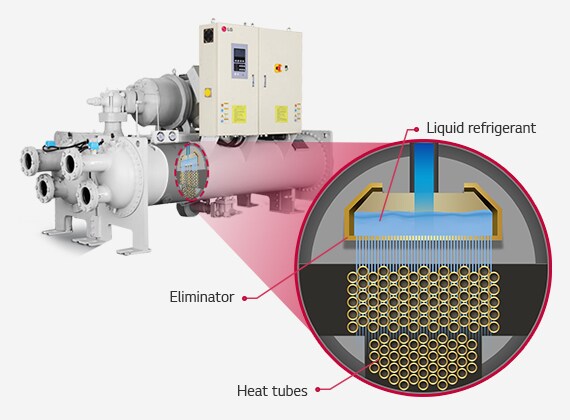

  • LG  Water-cooled Screw Heat Pump is presented with a zoomed-in at center, revealing three distinct internal layers of load evaporator.

    High Efficiency Load Evaporator

    By applying gravity type refrigerant distribution system, reliable operation is provided, and evaporation efficiency is improved by optimizing arrangement of eliminator and evaporator tube.

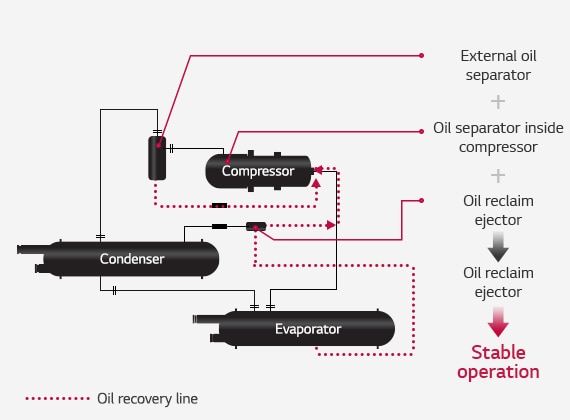

  • Connection diagram features complex lines connecting the compressor, condenser, and evaporator, with a dotted line indicating the oil recovery line.

    Oil Recovery System

    The oil supplied during the high-speed rotation of the compressor is recovered through a three-stage separation system. When refrigerant is moved, it prevents impurities from entering and improves cooling efficiency. By continuously supplying and recovering oil, oil shortage can be prevented.

  • LG  Water-cooled Screw Heat Pump at the center is highlighted with a white box-shaped line, accompanied by a red arrow indicating the reduced size.

    Reduced Weight & Size

    Valuable floor space can be saved by reducing installation area and weight.

  • The white speaker with a simple design with a downward-facing arrow within a semicircle, indicating noise reduction.

    Noise Reduction

    It minimized turbulence in intake port and reduced inconvenience of noise by preventing outflow.

  • Laptop screen shows  Water-cooled Screw Heat Pump and diagnosis data. Yellow triangle with exclamation mark placed at top left corner.

    Black Box Feature

    It stores and analyzes operation record for quick diagnosis to provide solution in case of failure.

Water-cooled Screw Heat Pump Line Up

LG  Water-cooled Screw Heat Pump lineup chart includes R-134a heat pump, detailing model name, and usRT. LG  Water-cooled Screw Heat Pump lineup chart includes R-134a heat pump, detailing model name, and usRT.
* Heat Pump type can be manufactured only on special orders.
