All-in-one Essential 多合一顯示器系列

All-in-one Essential 多合一顯示器系列

All-in-one Essential 多合一顯示器系列

LAEB015
LAEB015-GN 的正視圖
LG All-in-one Essential 多合一顯示器系列, LAEB015
LG All-in-one Essential 多合一顯示器系列, LAEB015
LG All-in-one Essential 多合一顯示器系列, LAEB015
LG All-in-one Essential 多合一顯示器系列, LAEB015
LAEB015-GN 的正視圖
LG All-in-one Essential 多合一顯示器系列, LAEB015
LG All-in-one Essential 多合一顯示器系列, LAEB015
LG All-in-one Essential 多合一顯示器系列, LAEB015
LG All-in-one Essential 多合一顯示器系列, LAEB015

主要功能

  • 136 吋全高清屏幕
  • 像素間距：1.56 mm
  • 亮度：800 cd/m²
  • 內置系統控制器
  • 額外專用配件：掛牆架、電動支架
更多

All-in-one Essential 多合一顯示器系列

*此頁面的所有圖像僅供參考。

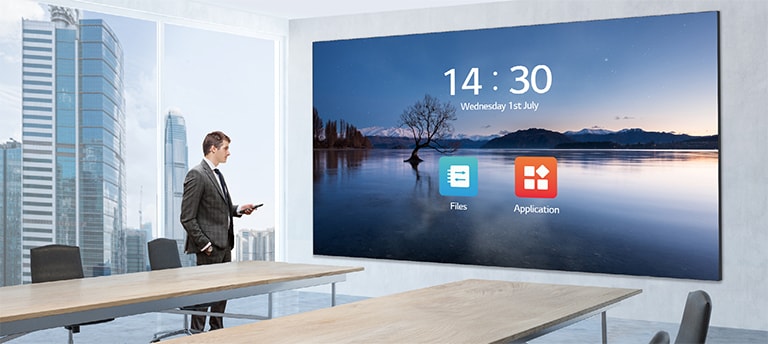

多合一 LED 顯示器

All-in-one Essential 系列是 136 吋多合一 LED 顯示器套裝，包括一個內置控制器。此系列不需要連接控制器或配置模組，簡單安裝後，只需要使用遙控器開啟螢幕，就像開啟家用電視一樣輕易。消除大眾認為 LED 顯示器安裝困難和複雜的印象。

多合一 LED 顯示器

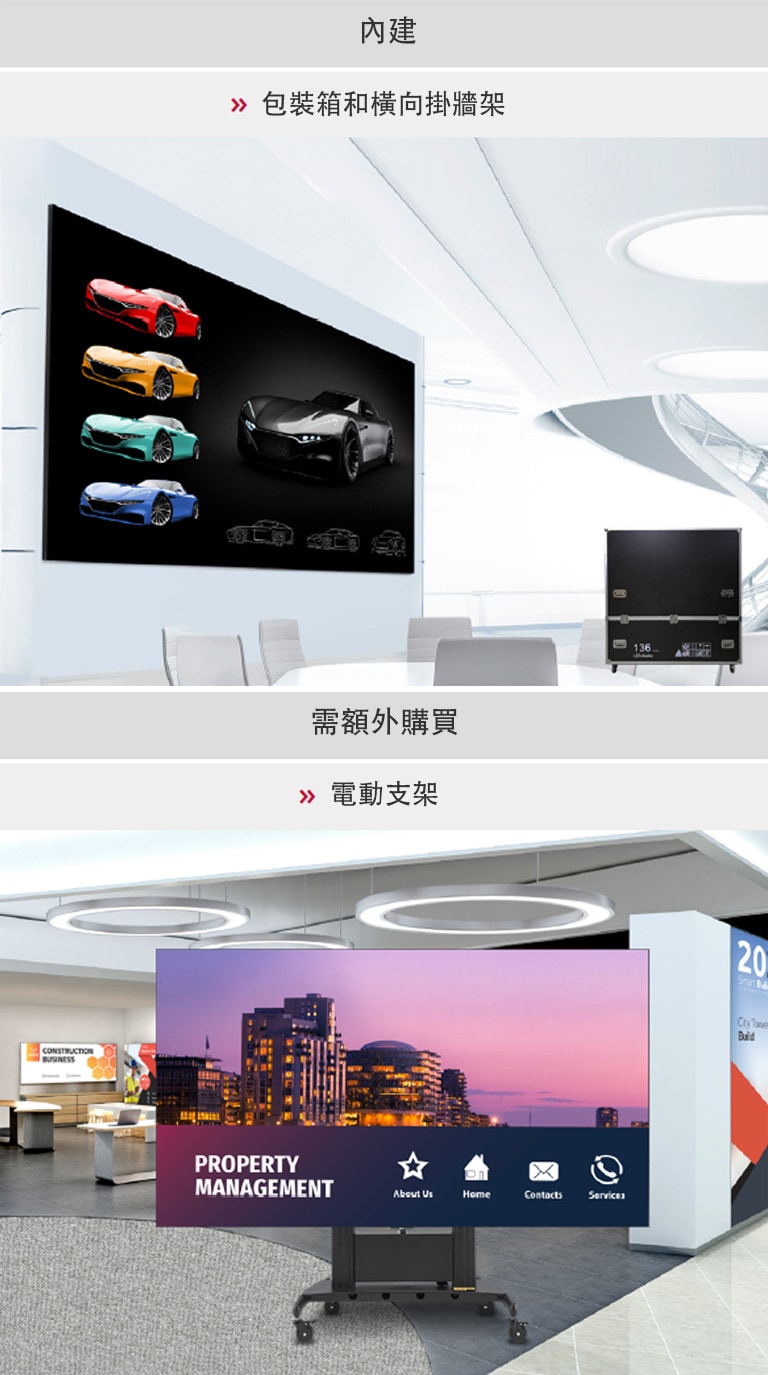

專用配件

產品附有必要的組件，包括橫向掛牆架和安裝工具，用家按照場地而把顯示器的螢幕高度從 2.0 米調整到 2.5 米。而電動支架則為額外選購零件。

專用配件

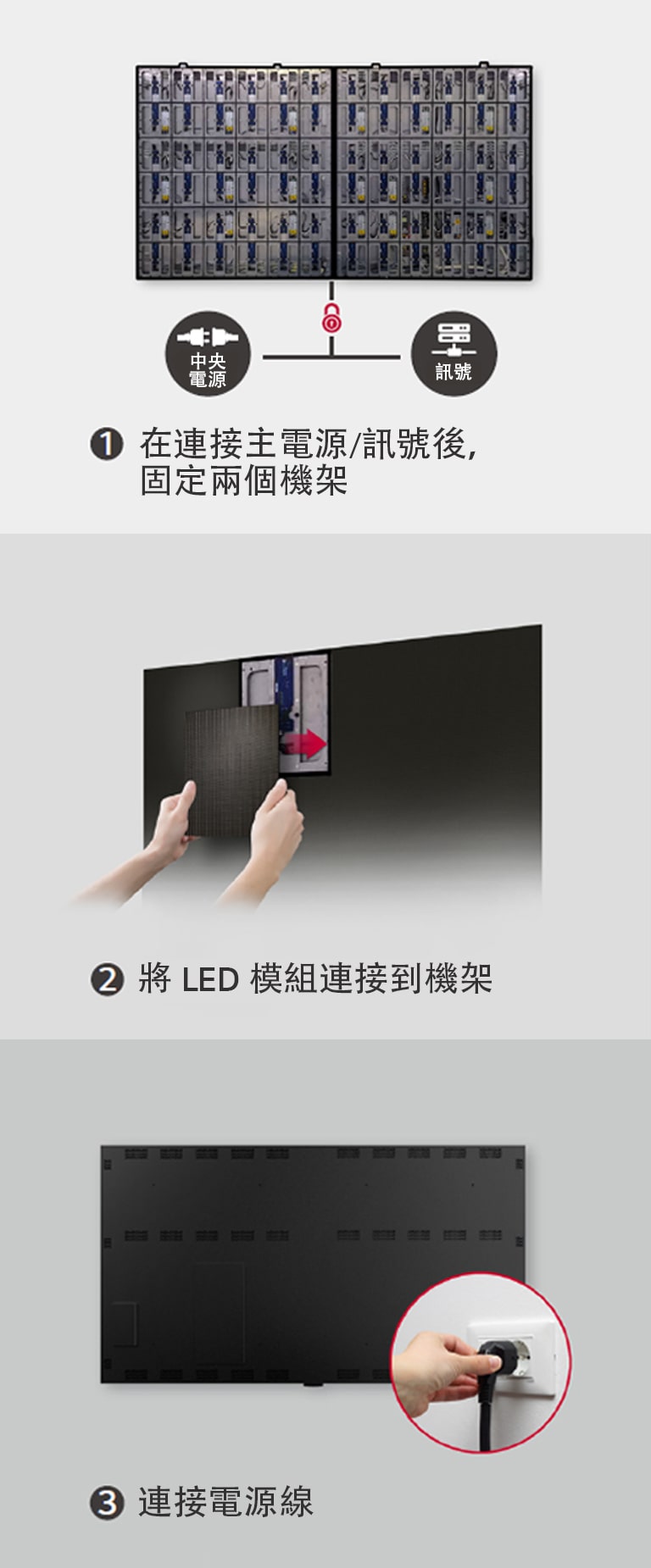

簡易安裝

All-in-one Essential 系列的安裝非常簡單，包裝箱套裝包括兩個機架，固定位置後再將每個 LED 顯示模組連接。最後，插入電源線。輕而易舉的安裝步驟節省時間和人力，使用家可以輕鬆地操作 LED 顯示器。

簡易安裝

*需要額外固定螺絲或安裝掛牆架/配件。
維修簡易快速

維修簡易快速

如出現與 LED 模組或系統主板相關的故障，可以從正面進行維修。用家可以利用隨包裝提供的磁性工具拆卸 LED 模組，並且毋須接線即可快速更換。
簡易電源連接

簡易電源連接

LAEB 系列可透過單一或兩條 AC 電纜*操作而無需複雜的電源連接，可確保安裝能整齊一致地進行。

* 110V AC 需要兩條 AC 電纜。
在潮濕環境中運行

在潮濕環境中運行

All-in-one Essential 系列可在相對濕度低於 90% *的環境下運行。

*沒有凝結
省電待機模式

省電待機模式

當有一段時間沒有輸入時，屏幕會關閉，LED 機身內的主電路零件亦會進入待機模式，節省能源消耗。
列印

所有規格

CERTIFICATION

  • Certification

    CE,FCC,ETL,CB

CONTROLLER

  • Controller

    Embedded

PHYSICAL PARAMETERS

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch(mm)

    1.56

  • Screen Resolution

    1,920 x 1,080

  • Module Dimensions(WxH,mm)

    250 x 281.25

  • No. of Modules per Screen (WxH)

    12x6 (Total 72)

  • Screen Resolution (WxH)

    1,920x1,080

  • Screen Dimensions (W x H x D, mm)

    3,004.6 × 1,692.1 x 35.5

  • Screen Surface Area (㎡)

    5.06

  • Screen Weight (kg)

    131

  • Physical Pixel Density (pixels/m²)

    409,600

  • Flatness of Cabinet (mm)

    ±0.2

  • Cabinet Material

    Aluminum

  • Service Access

    Front

ENVIRONMENT

  • Environment

    RoHS, REACH

OPTICAL SPECIFICATIONS

  • Brightness

    800

  • Color Temperature

    6,500

  • Visual Viewing Angle (H × V)

    160 × 160

  • Brightness Uniformity

    98%

  • Color Uniformity

    ±0.015Cx,Cy

  • Contrast Ratio

    3,000

  • Processing Depth (bit)

    16

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Screen, Max.)

    3,000

  • Power Consumption (W/Screen, Avg.)

    1,200

  • Power Consumption (W/m², Max.)

    593

  • Power Consumption (BTU/hr/Screen, Max.)

    10,236

  • Power Consumption (BTU/hr/Screen, Avg.)

    4,094

  • Power Consumption (BTU/hr/m², Max.)

    2022

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    ≥2880

OPERATION SPECIFICATIONS

  • Lifetime (Hours to Half Brightness)

    100,000

  • Operating Temperature(℃)

    0°C to +40°C

  • Operating Humidity

    <90%RH(without condensation)

  • IP Rating Front / Rear

    IP40 / IP20
