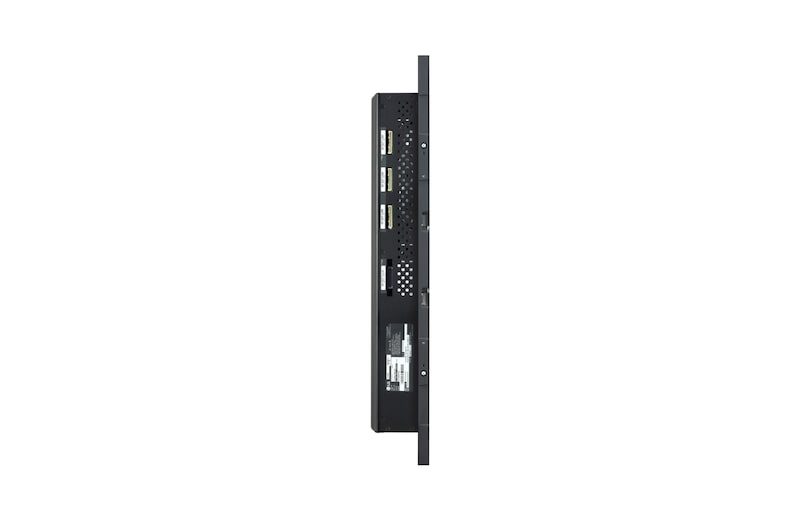

LAPE 系列 - 極細緻像距 LED 顯示屏 (Embedded Power Model)
EMC
FCC Class A / CE / KC
Environment
RoHS
Video Inputs
HDMI In, DP In, OPS In, USB
Control
RJ45 In, RS232C In/out
Special Features
HDR10, Temperature Sensor, Power Detection
Controller
LCLG005-A
Power Consumption (W/Unit, Max.)
200
Power Consumption (W/Unit, Avg.)
67
Power Consumption (W/m², Max.)
770
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Duration of Half Brightness in Hours)
100,000
Operating Temperature (°C)
0°C to + 40°C
Operating Humidity
10-80% RH
Min. Brightness (After Calibration)
700 cd/m²
Color Temperature
3,200 ~ 9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
95%
Color Uniformity
±0.015Cx, Cy
Contrast Ratio
6,000
Processing Depth (bit)
16 (HDR10)
Pitch Name
P1.5
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
1.50

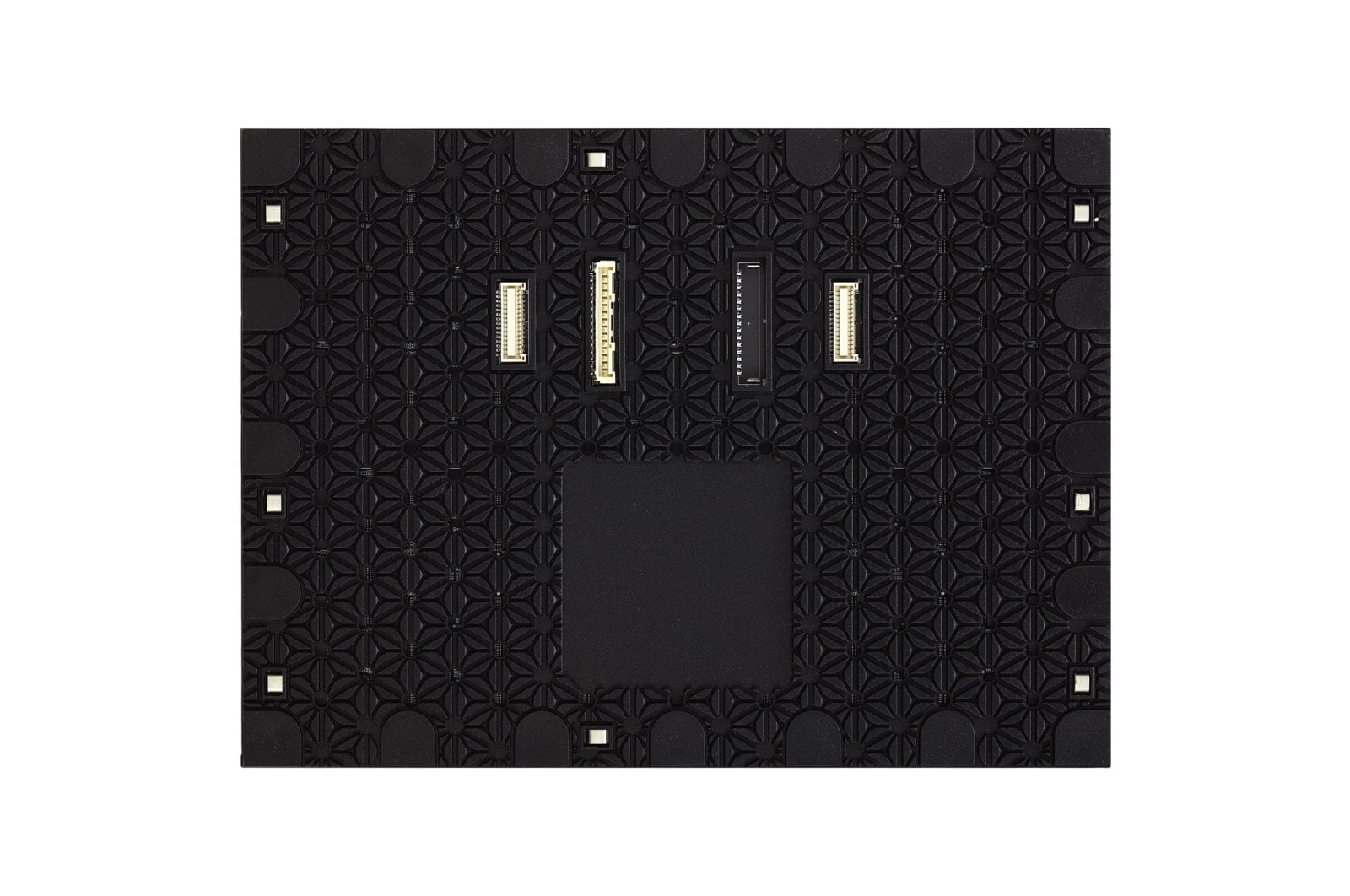

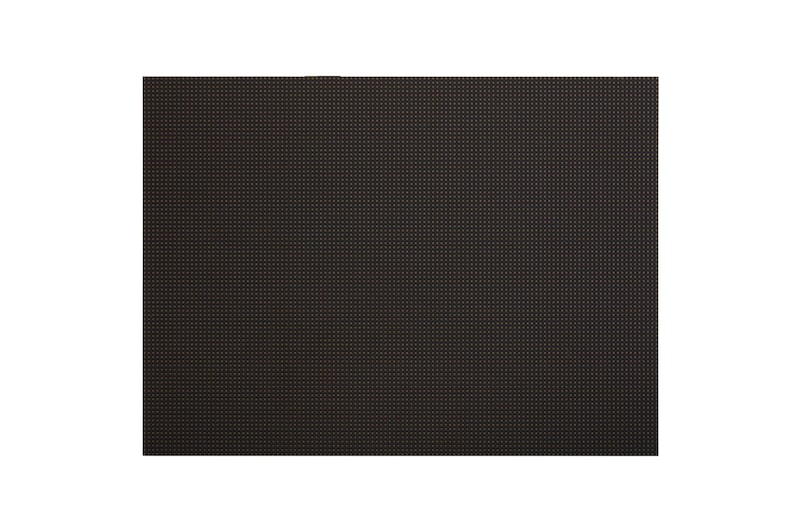

Module Resolution (W x H)
160 x 120

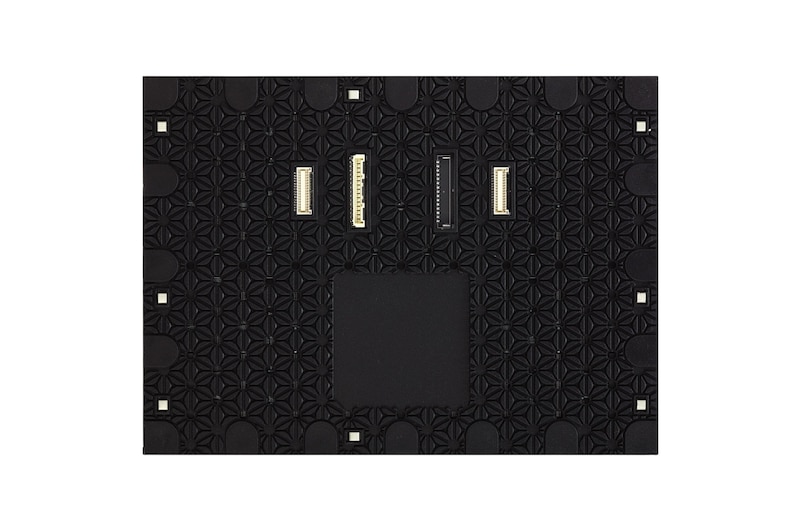

Module Dimensions (W x H, mm)
240 x 180
Weight per Module (kg)
0.36

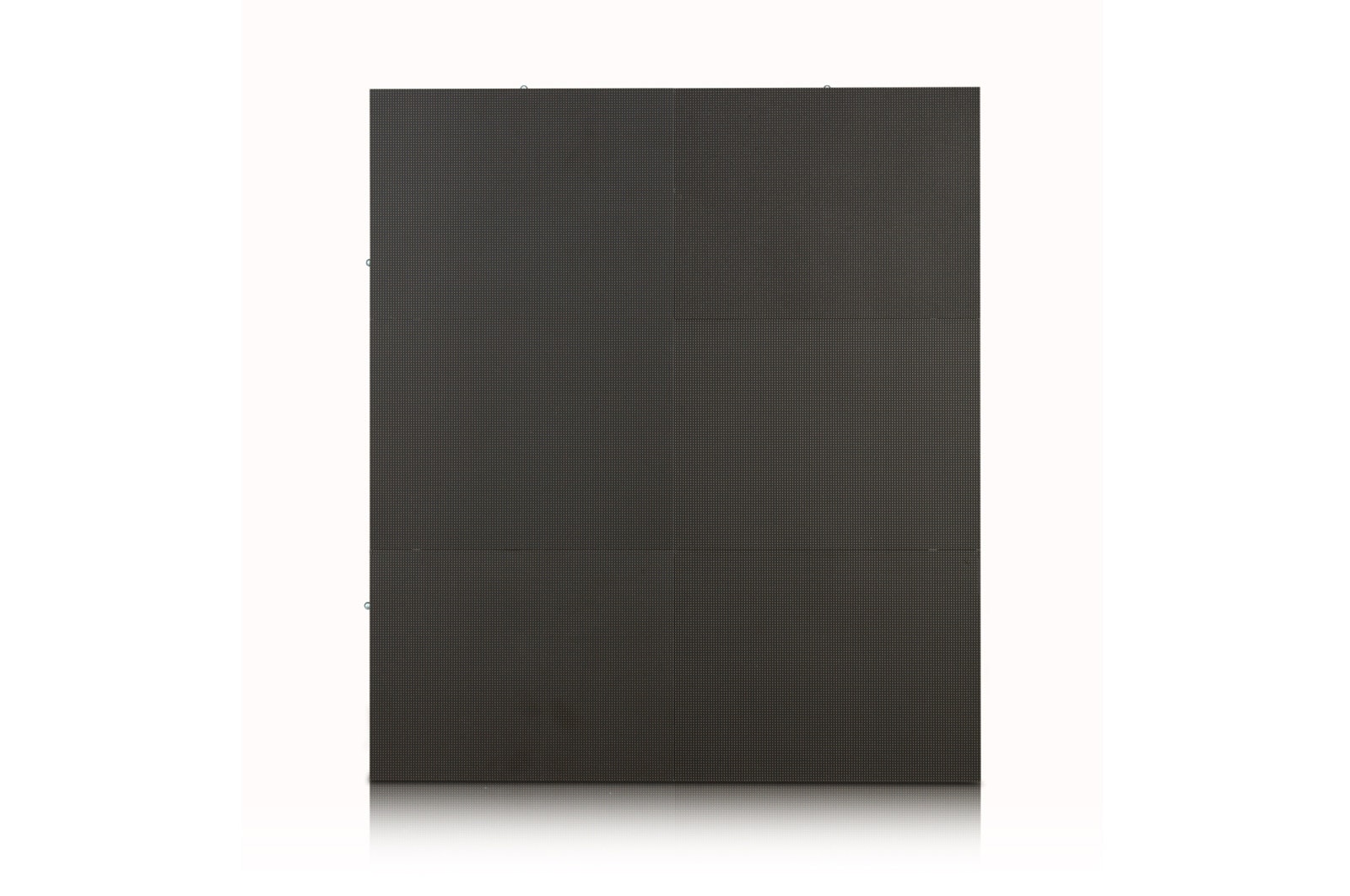

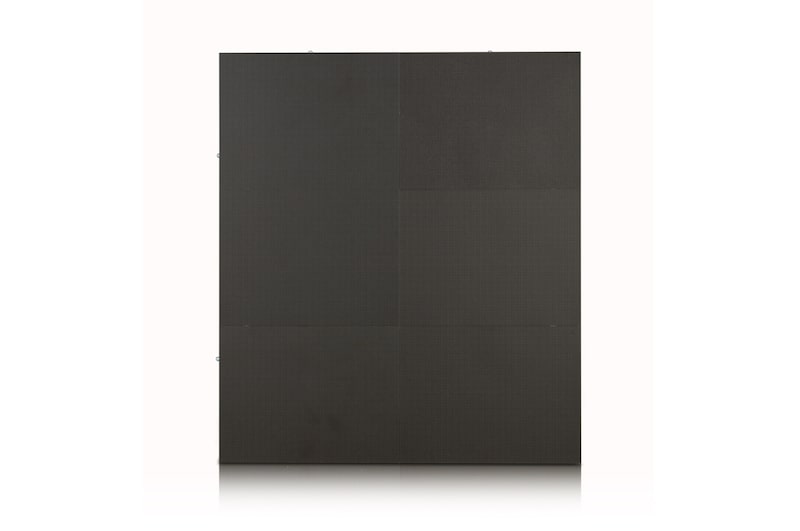

No. of Modules per Unit Case (W x H)
2 x 3
Unit Case Resolution (W x H)
320 x 360

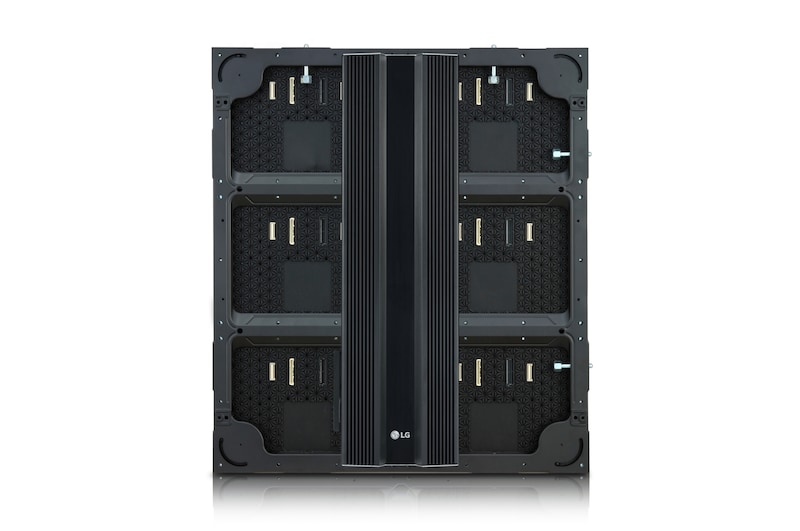

Unit Case Dimensions (W x H x D, mm)
480 x 540 x 105
Unit Case Surface Area (m²)
0.259
Weight per Unit Case (kg/unit)
10.1
Weight per Square Meter (kg/m²)
38.4
Physical Pixel Density (pixels/m²)
444,444
Flatness of Unit Case (mm)
±0.2
Unit Case Material
Die Casting Aluminum
Service Access
Front1) and Rear 1) Min. 400mm of space should be required between the cabinet rear and the wall.
