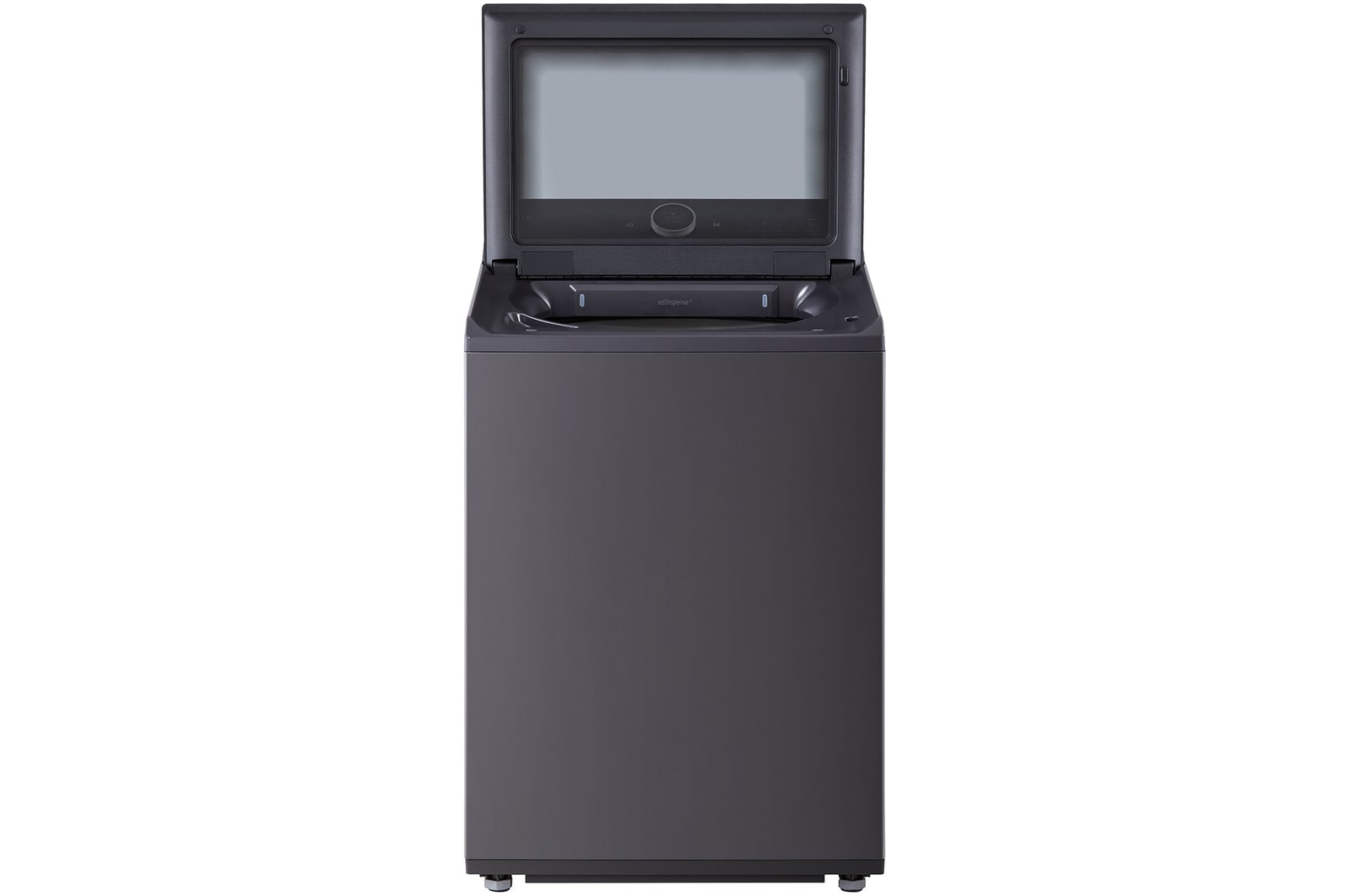

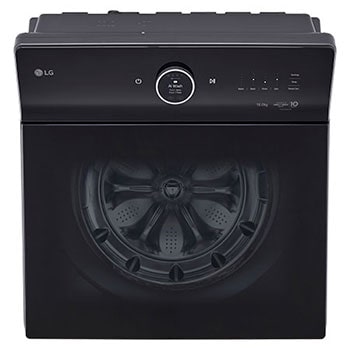

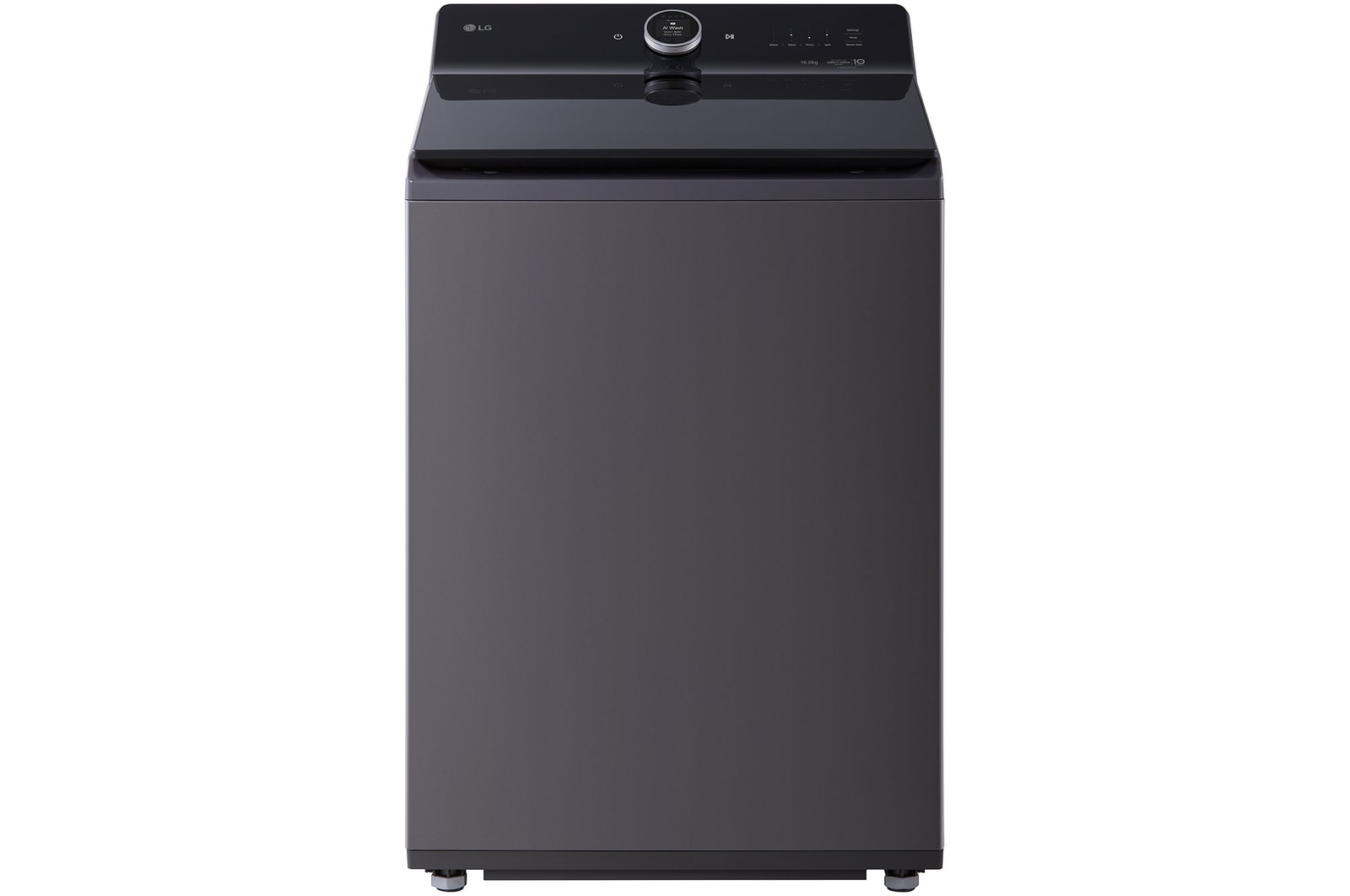

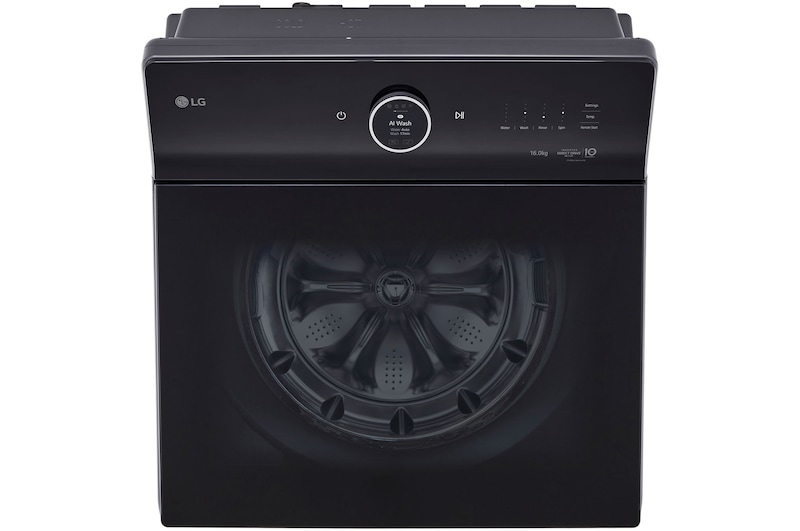

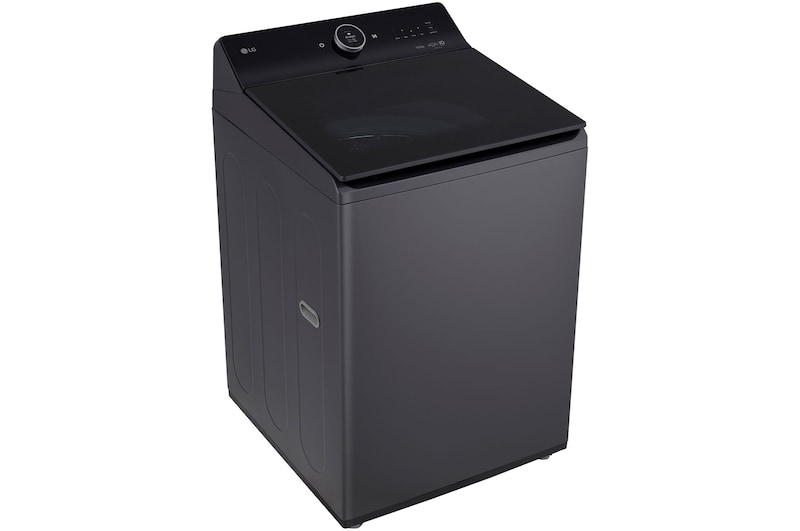

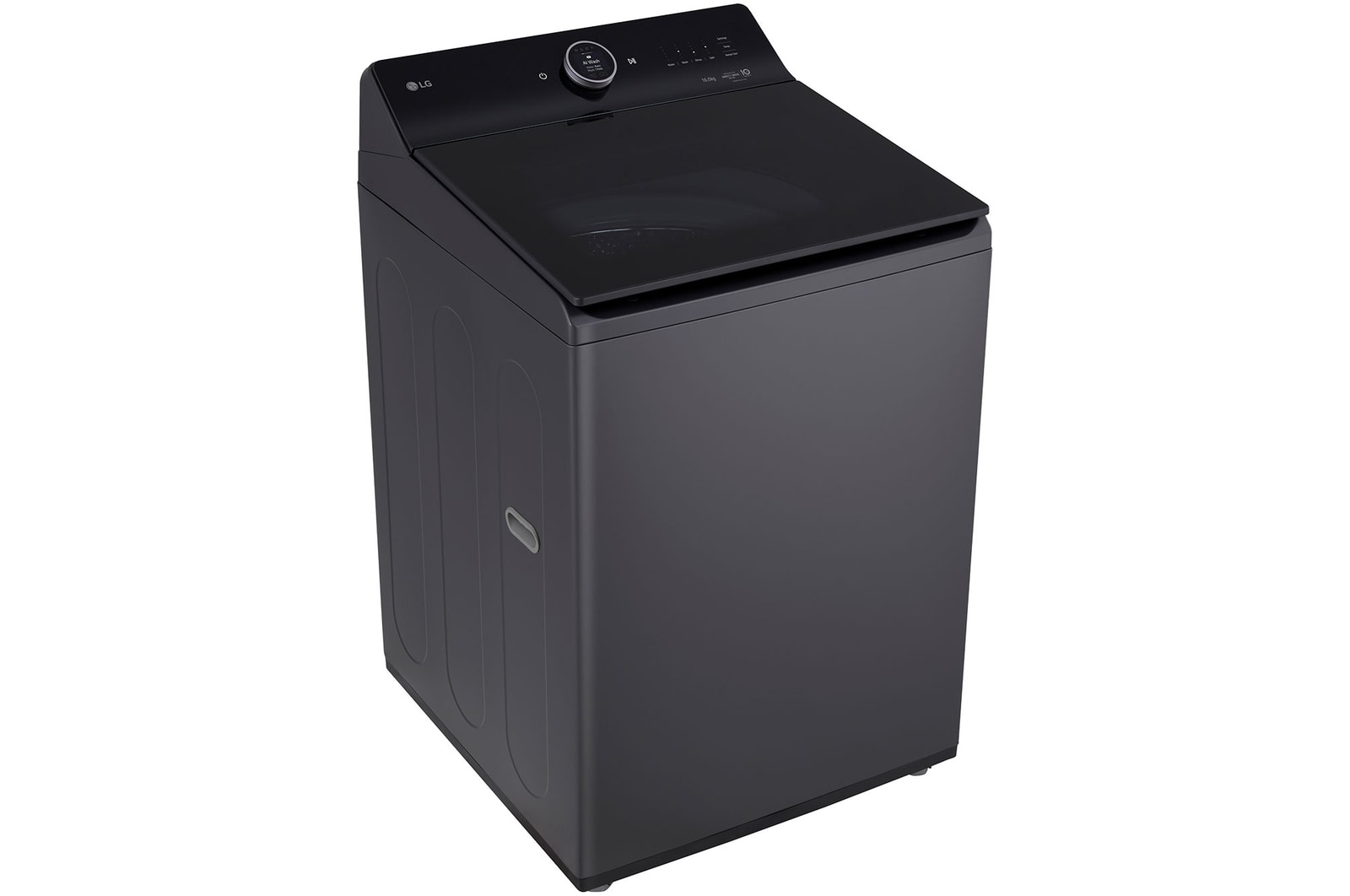

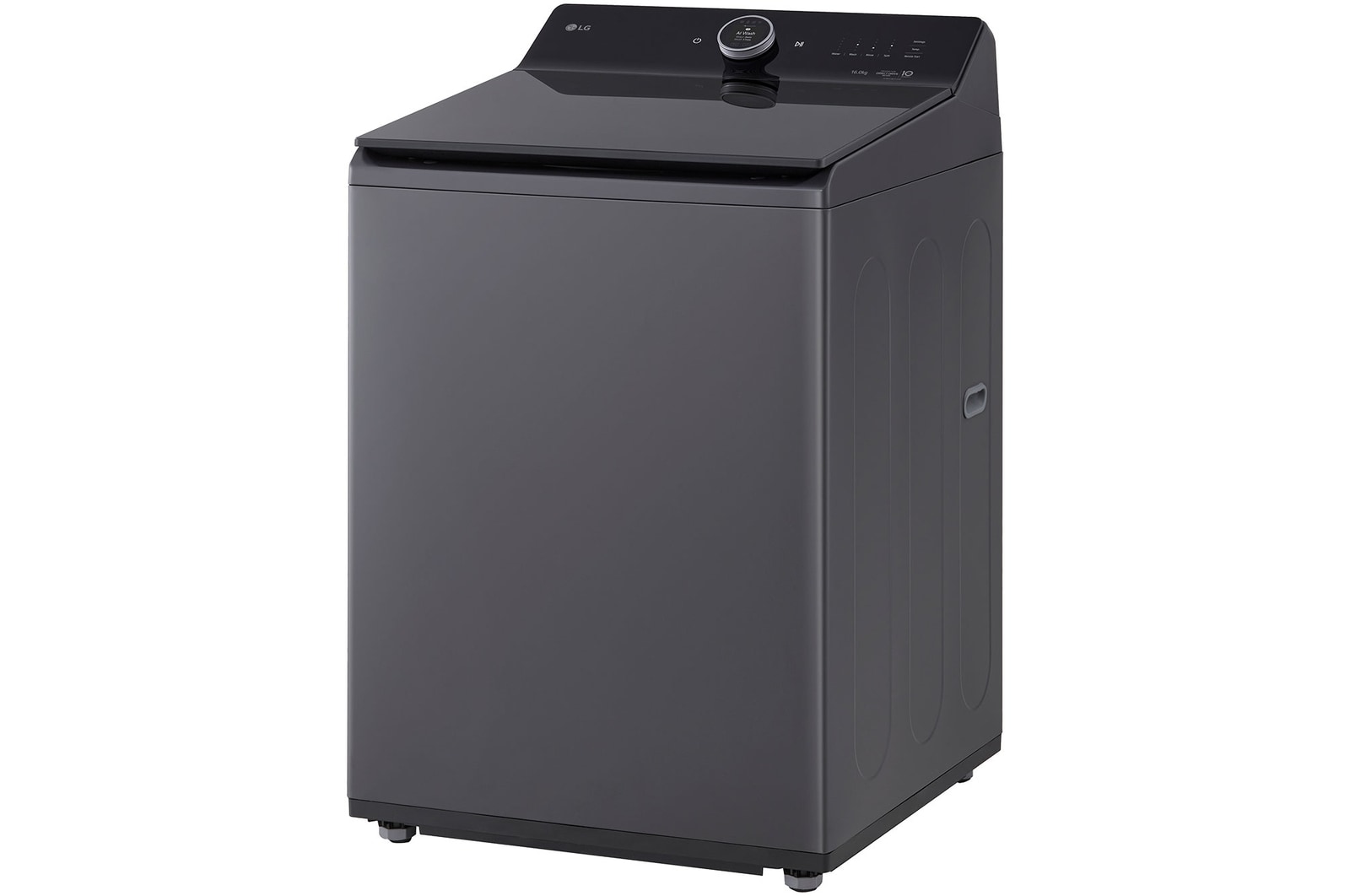

16kg Series 10 Top Load Washer - AI DD®

The product should be installed on a firm, even floor. If the product is not level, vibration and noise may occur.

If the product is not level, please adjust the height adjustment legs on the bottom of the product to level it. (Please do not overly loosen the screws. 10 mm or less)

Avoid installing the product in a place with high humidity as much as possible as this may cause product corrosion and malfunction.

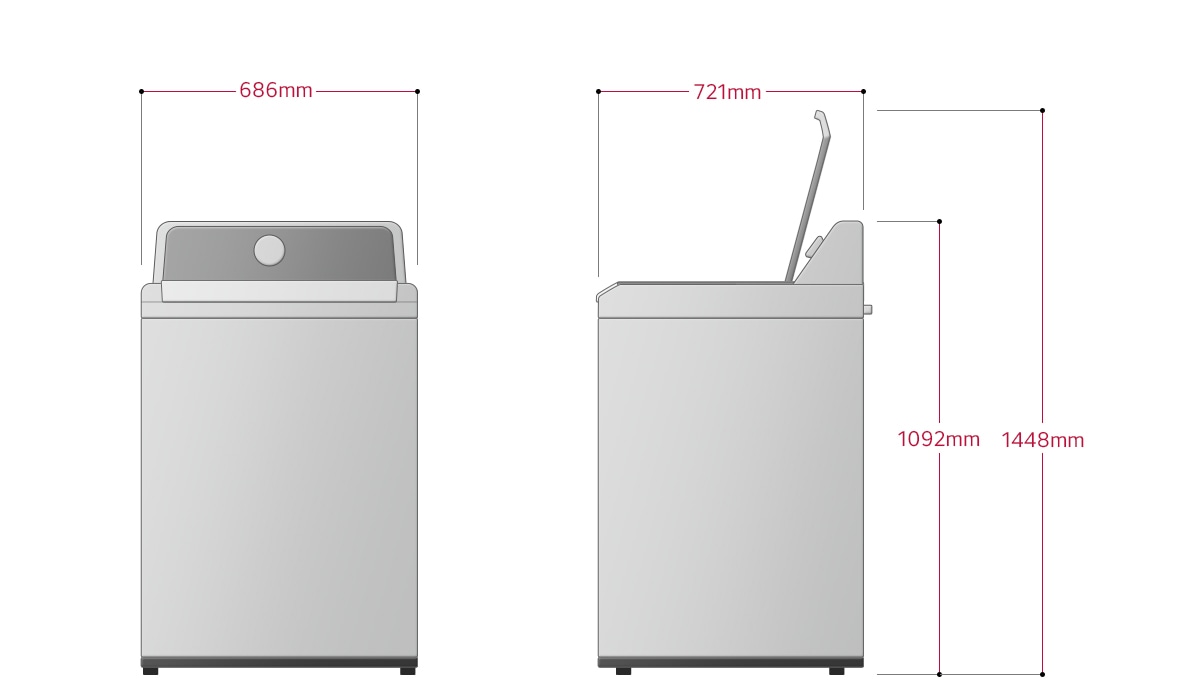

A minimum distance of 10 cm on the back and 5 cm on the left and right (excluding the drainage hose installation area) is required from the walls of where the product will be installed.

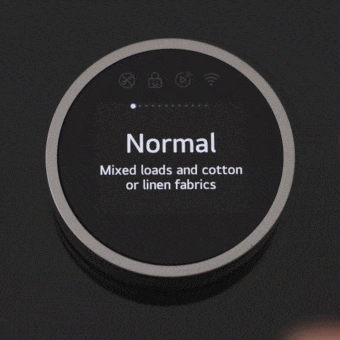

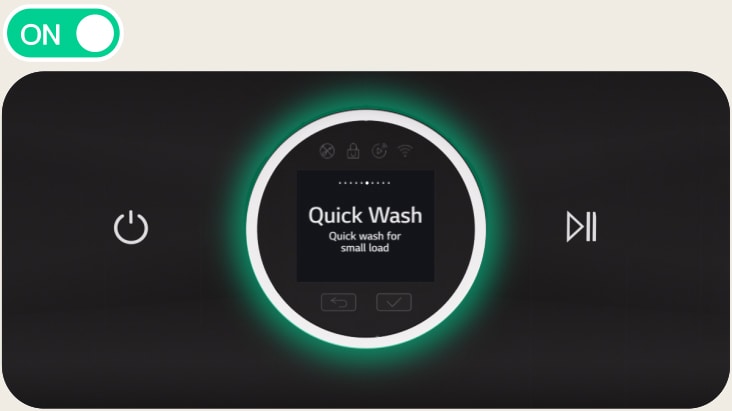

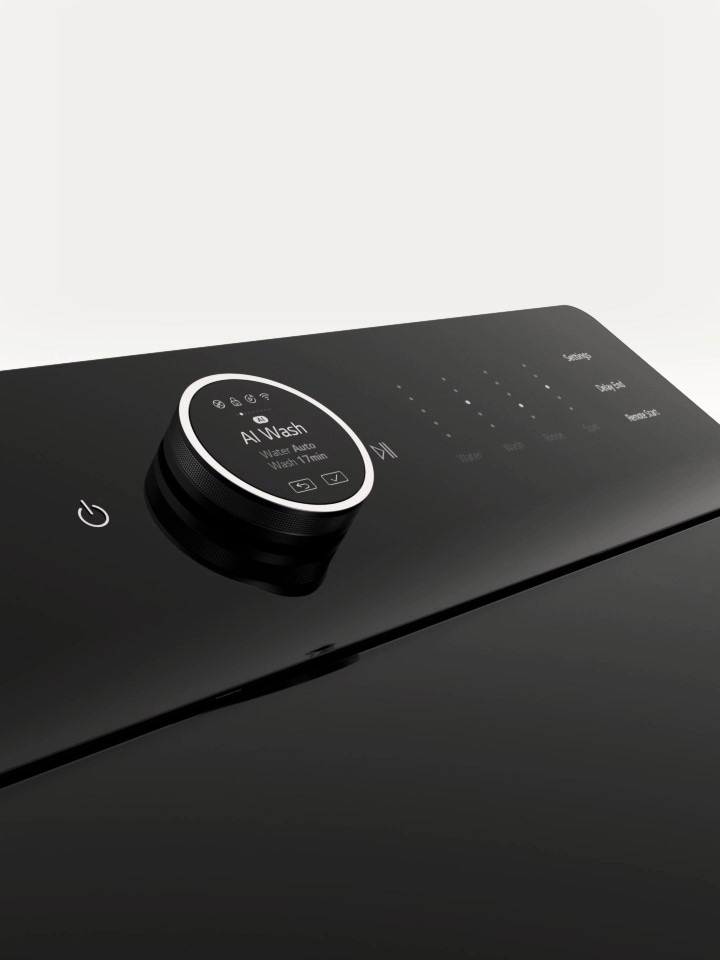

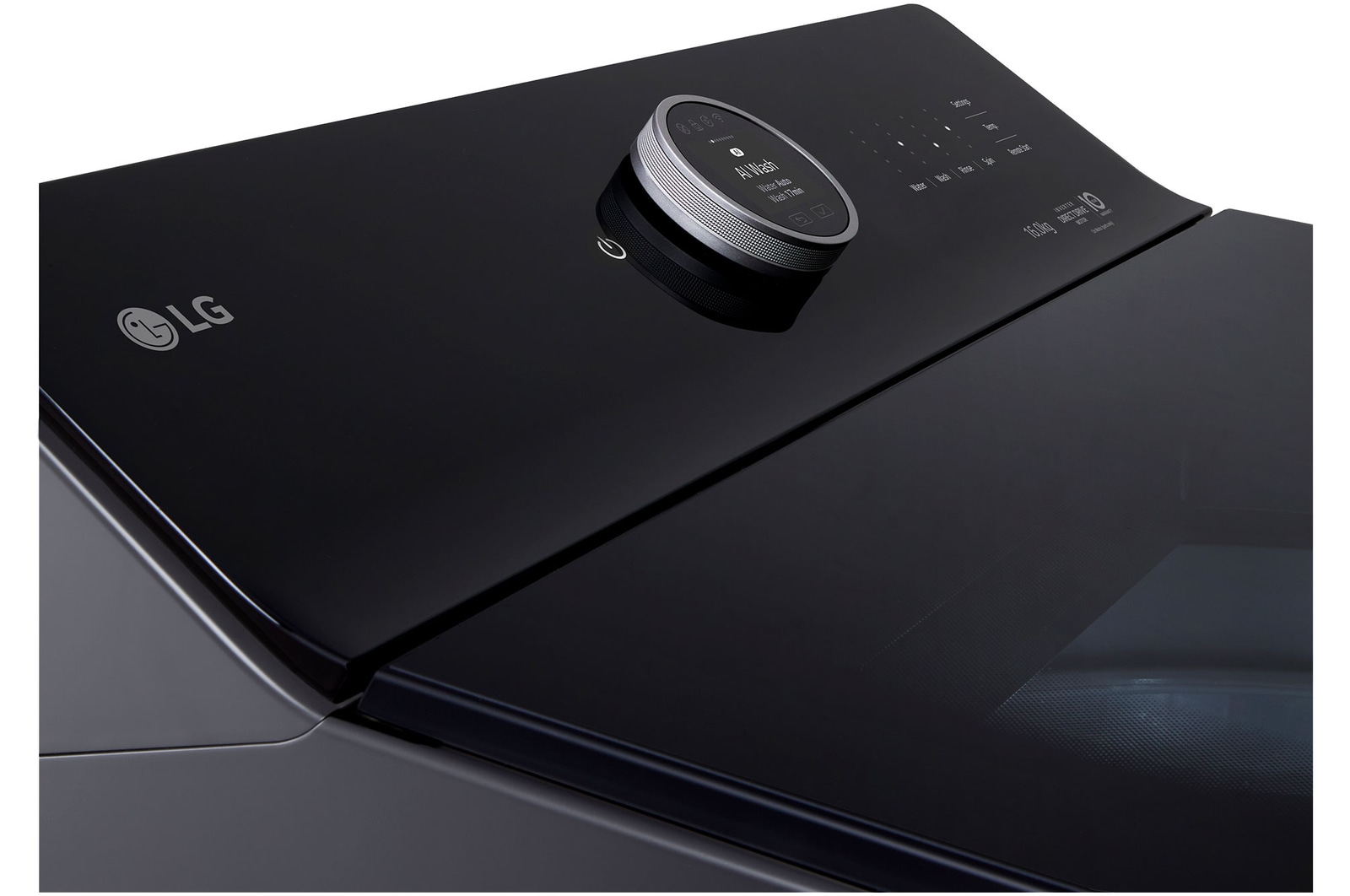

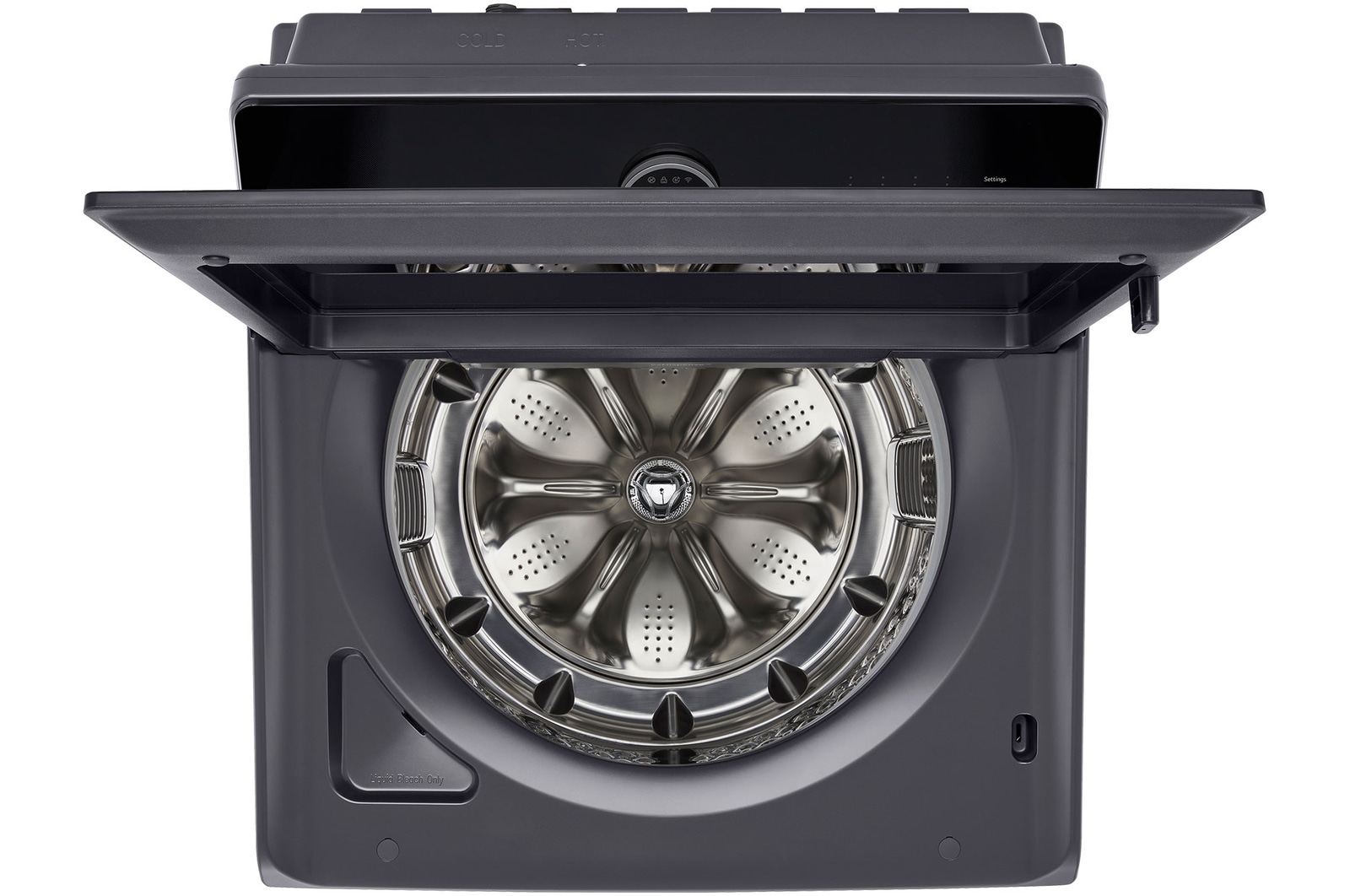

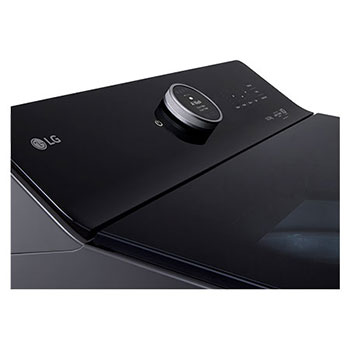

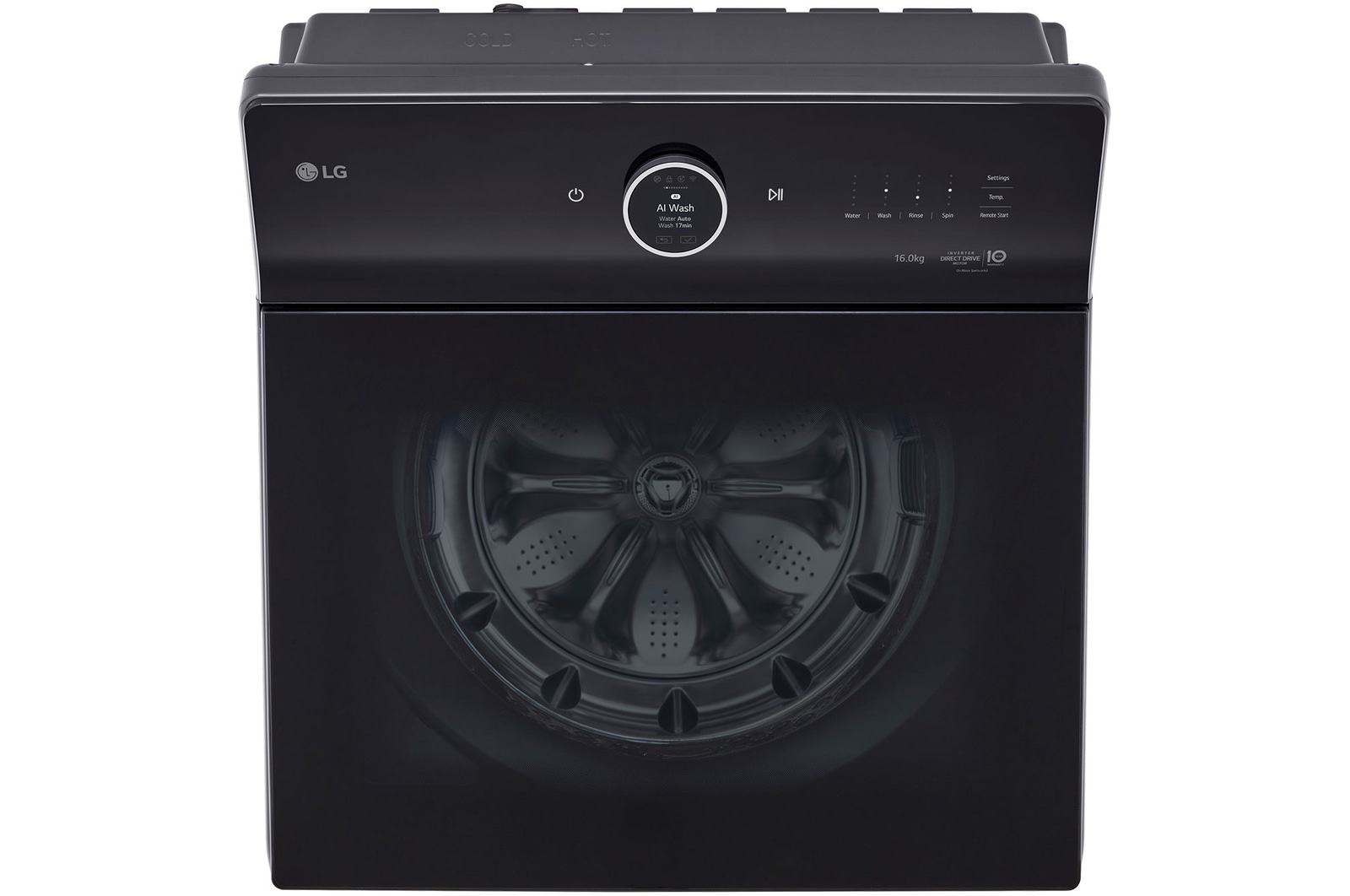

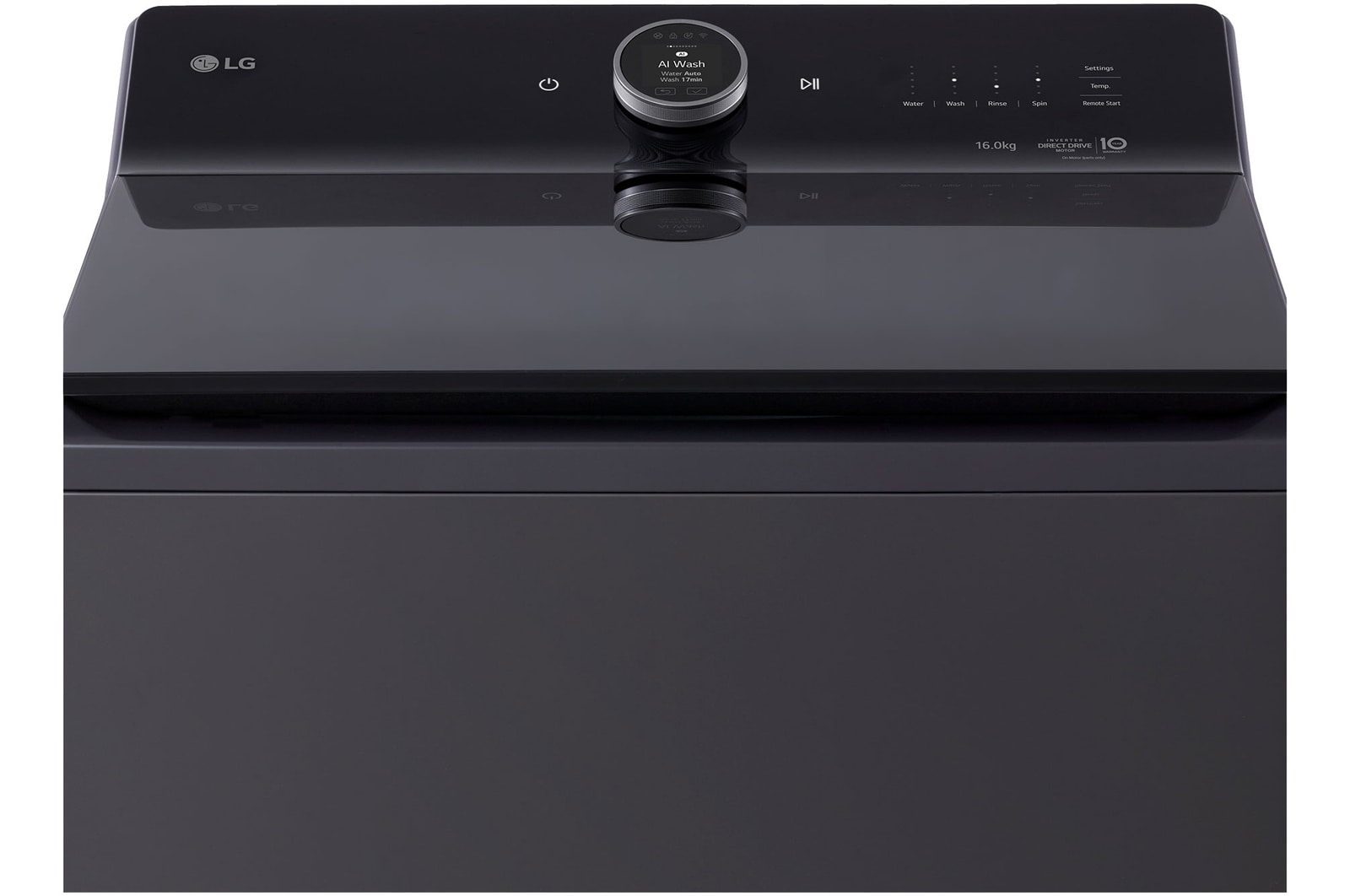

Navigate and select cycles by turning the LCD dial in the center of the control panel.

1. Press the Power button to turn on the washing machine.

2. Turn the dial to select a cycle (Default cycle: Normal)

3. After selecting a cycle, set the desired options (temperature, spin, soll level, etc.)

4. After selecting a cycle, press the Start button to start the laundry.

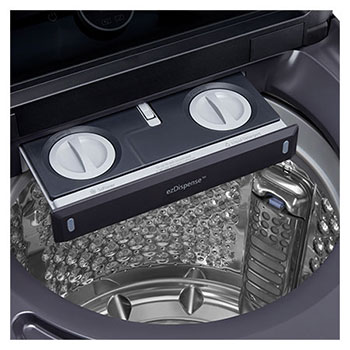

Clean the inside of the detergent compartment thoroughly with a soft brush, toothbrush, etc. If the inlet is clogged with leftover or hardened detergent, detergent may not dispense properly. Clean the detergent compartment about once a month to keep it clean and ready to use.

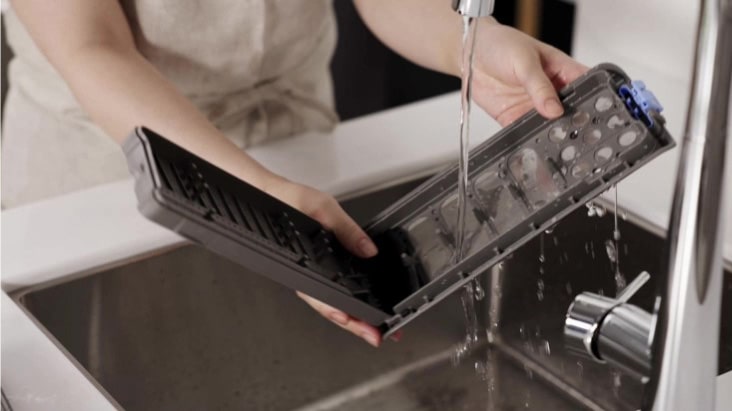

Clean the filter after every load of laundry to keep it even cleaner.

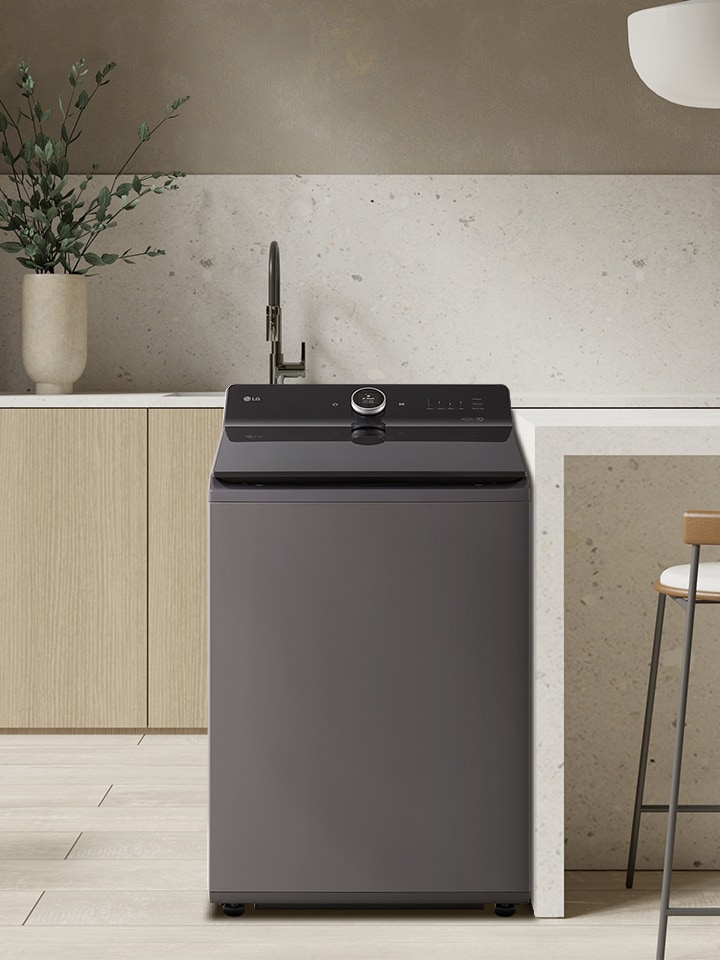

Generally speaking, you should consult the care label on your clothing and select the matching wash cycle on your machine. If you select AI Wash cycle, LG washing machines with AI DD function will then automatically weigh your laundry and detect softness to determine an appropriate washing pattern and adjust the washing motions during the wash accordingly.

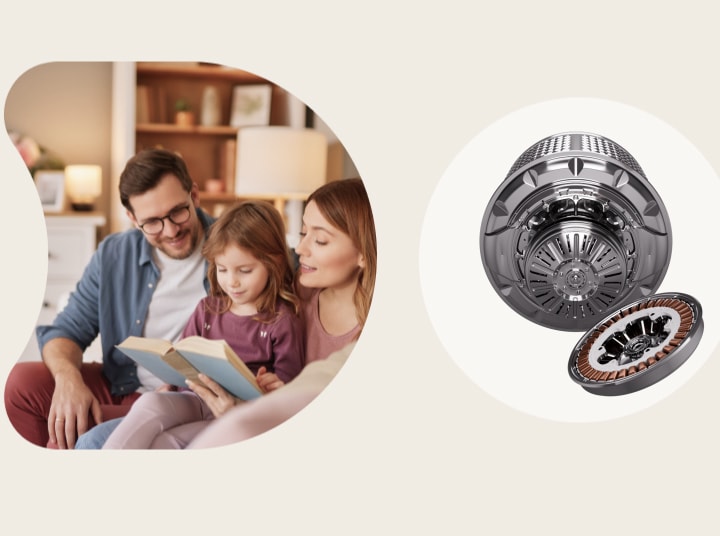

LG’s AI DD^® machines use smart technology to detect the weight and fabric softness of your load The result? Automatic washing motion optimisation by your machine helps to keep your precious clothes looking great. DirectDrive™ Motors deliver 6-motion technology for a thorough and efficient cleaning of clothes.

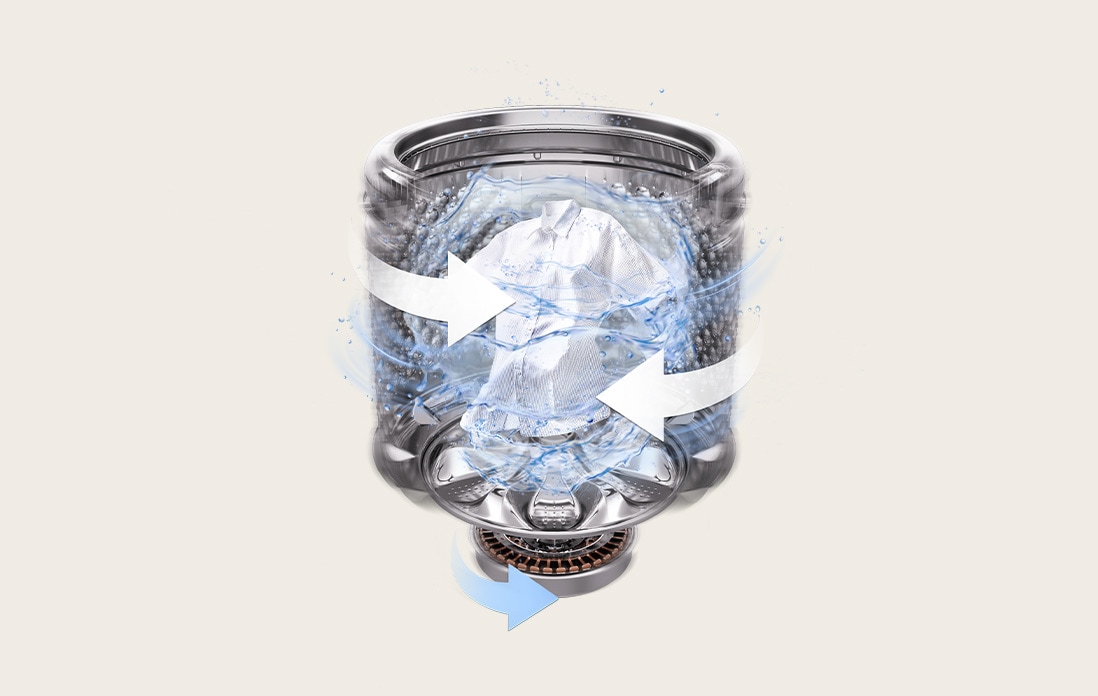

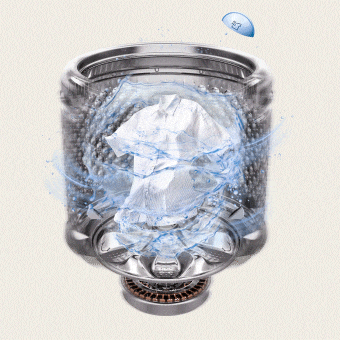

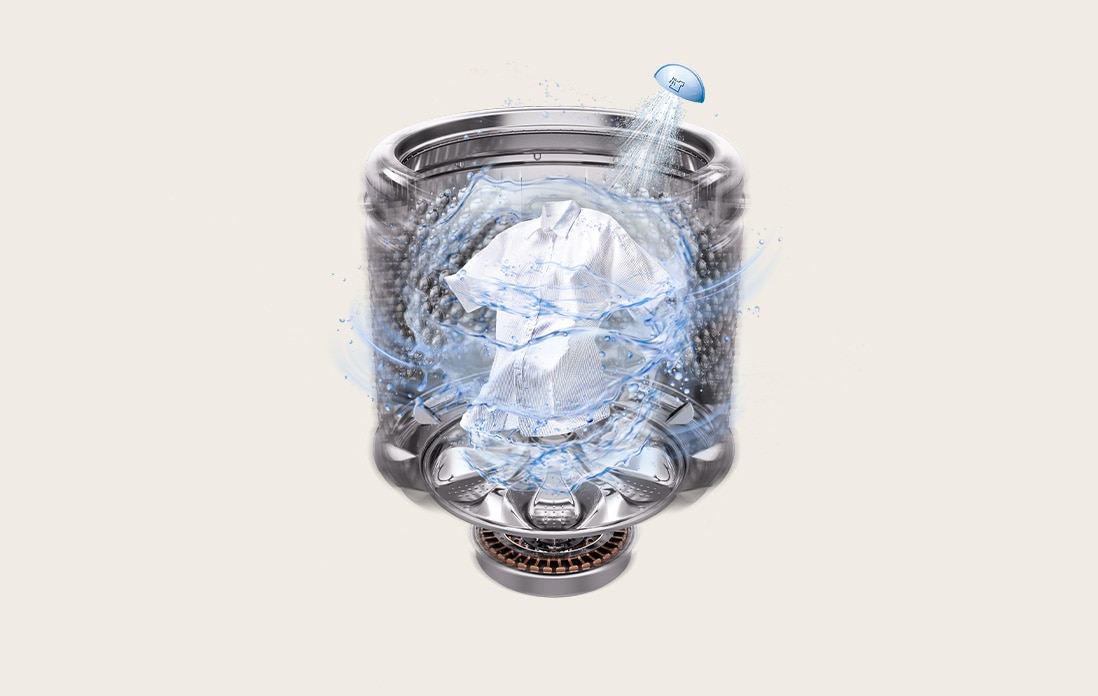

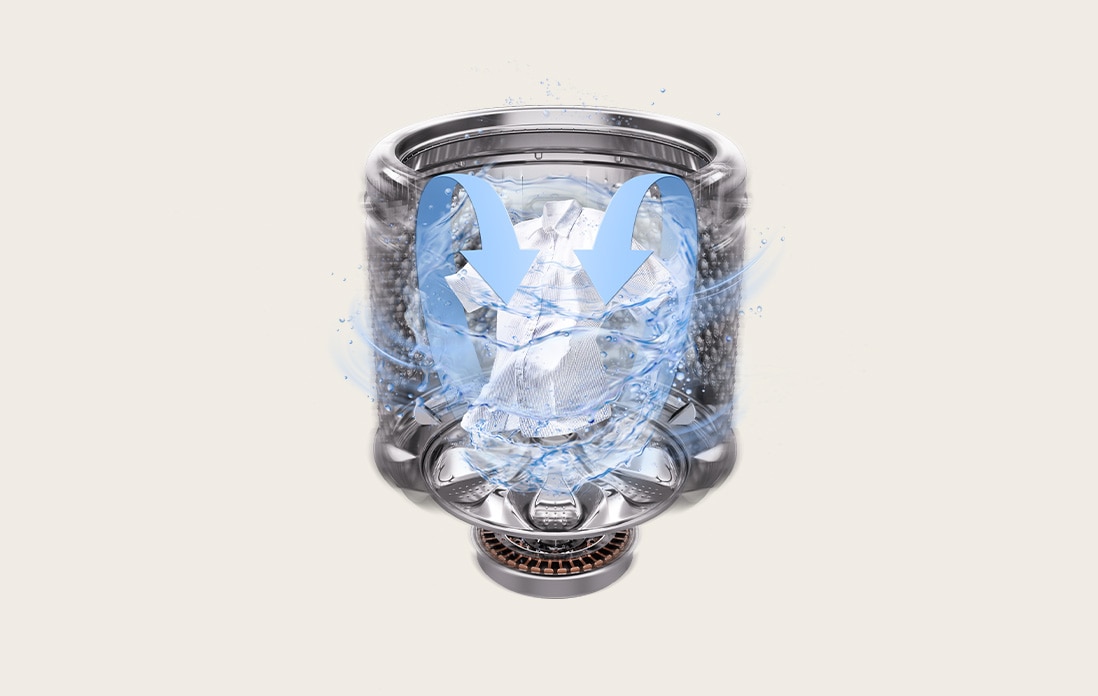

LG’s swift, TurboClean3D™ technology delivers thoroughly cleaned clothes in just 30 minutes for a 3kg load. A powerful jet spray, plus the tub and motor that rotate independently and in opposite directions, creates a powerful water flow that causes garments to rub against each other throughout the cycle for enhanced washing performance.

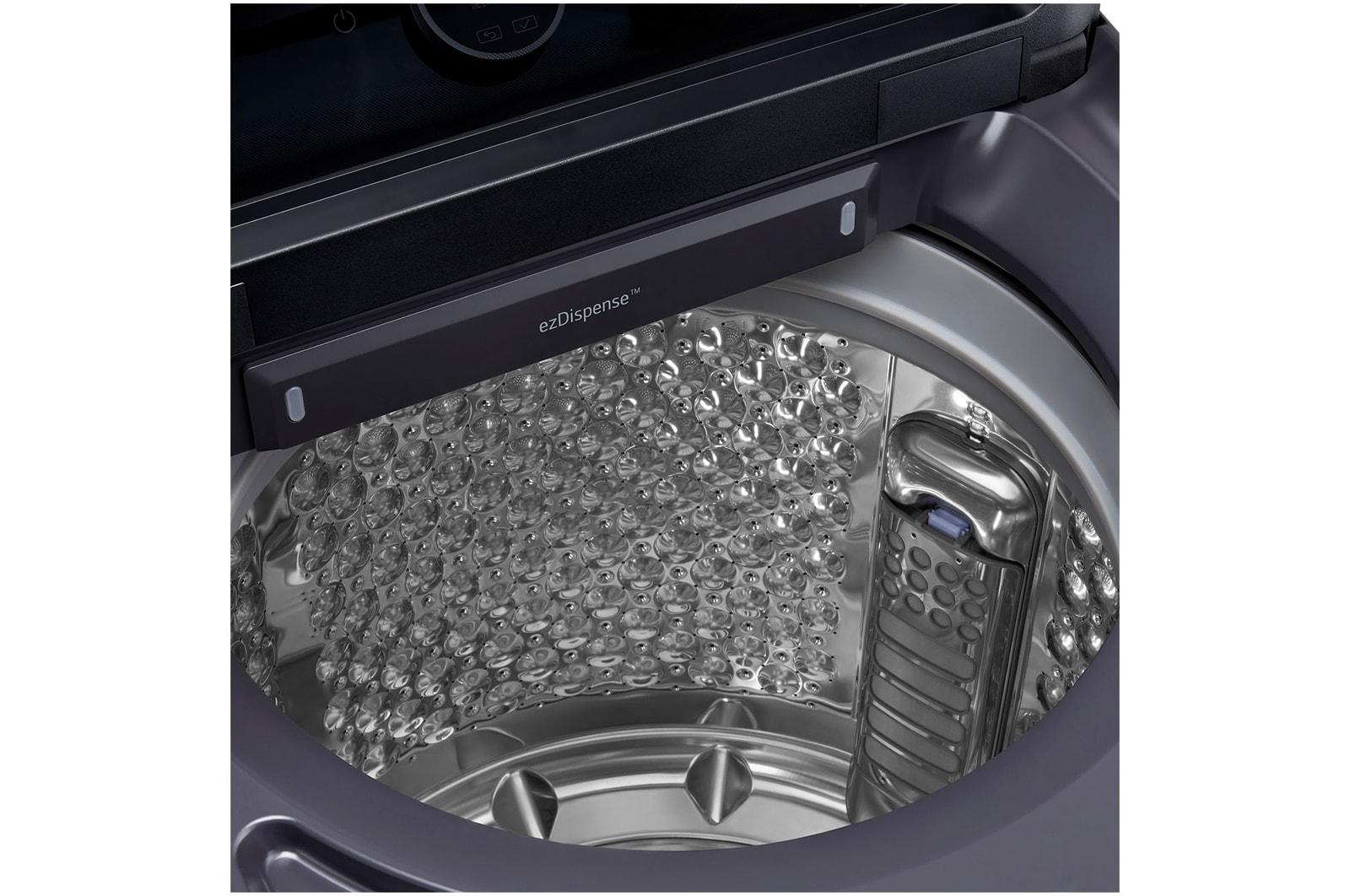

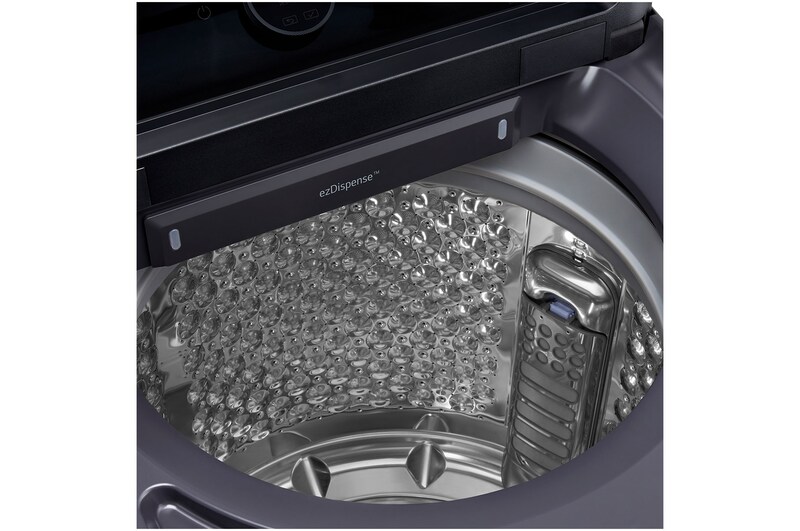

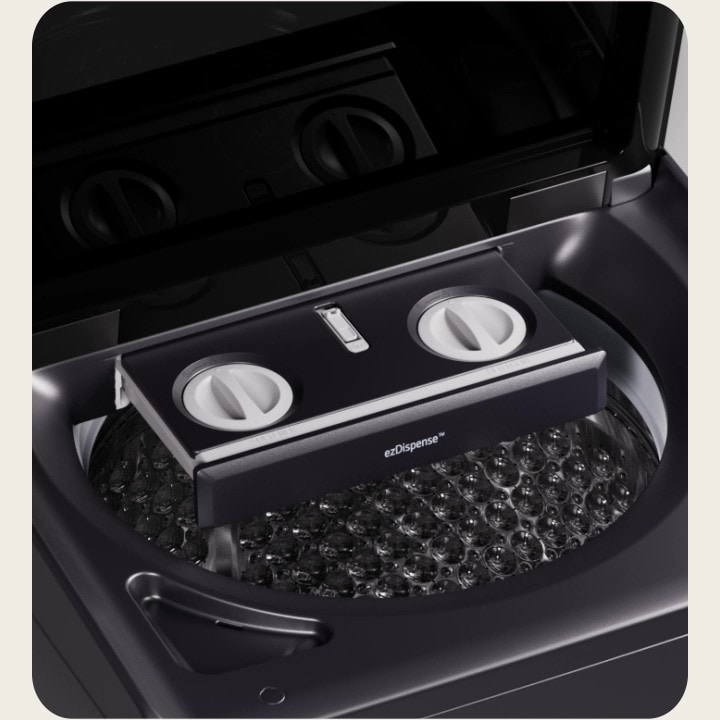

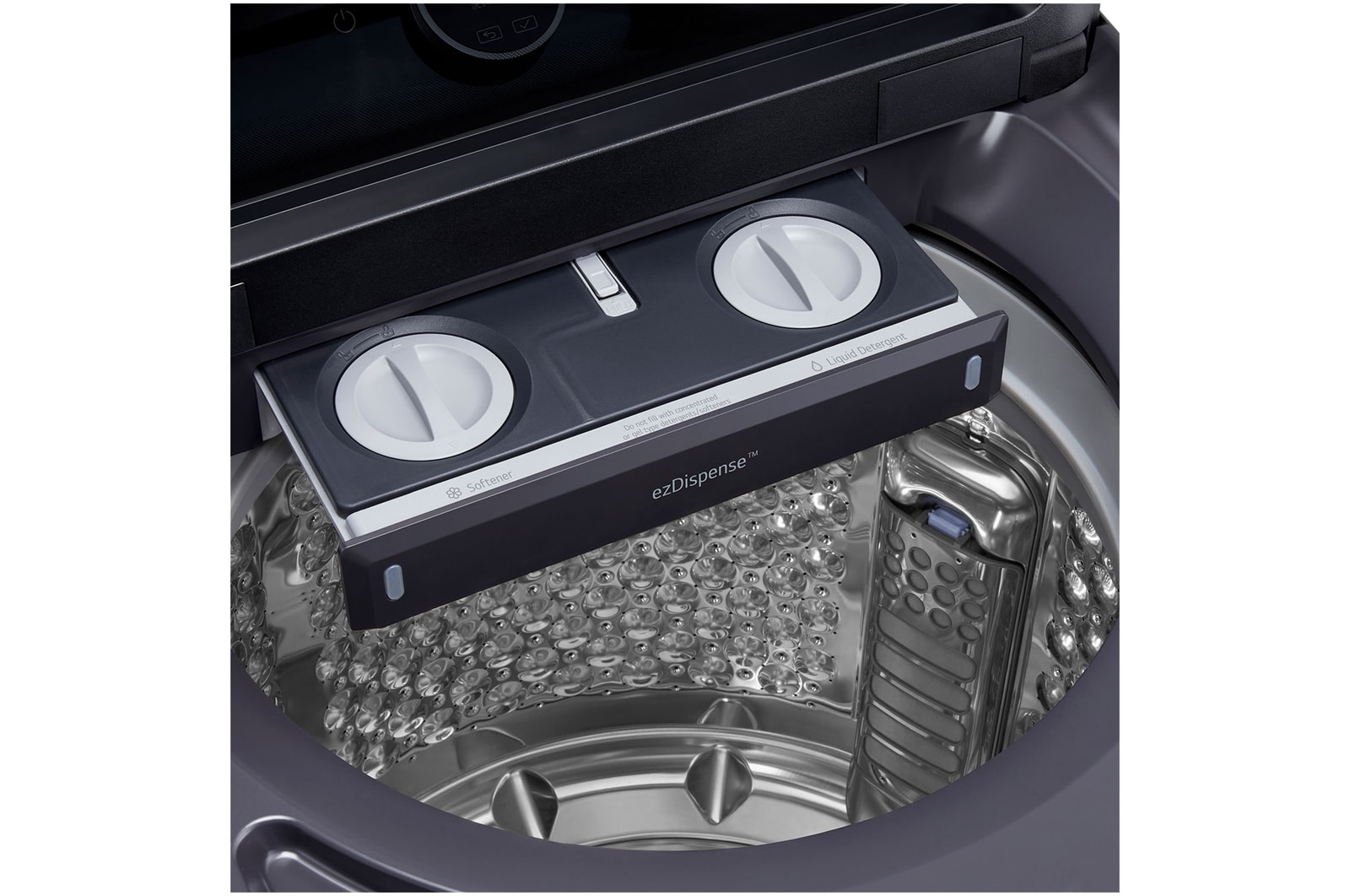

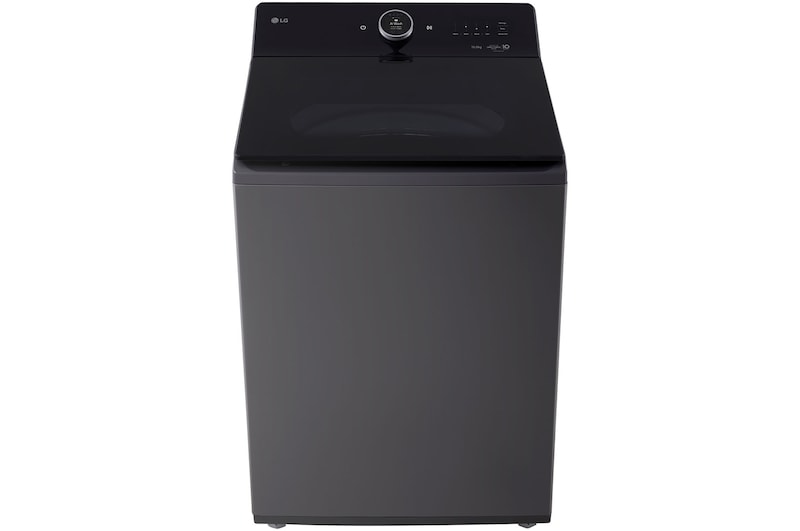

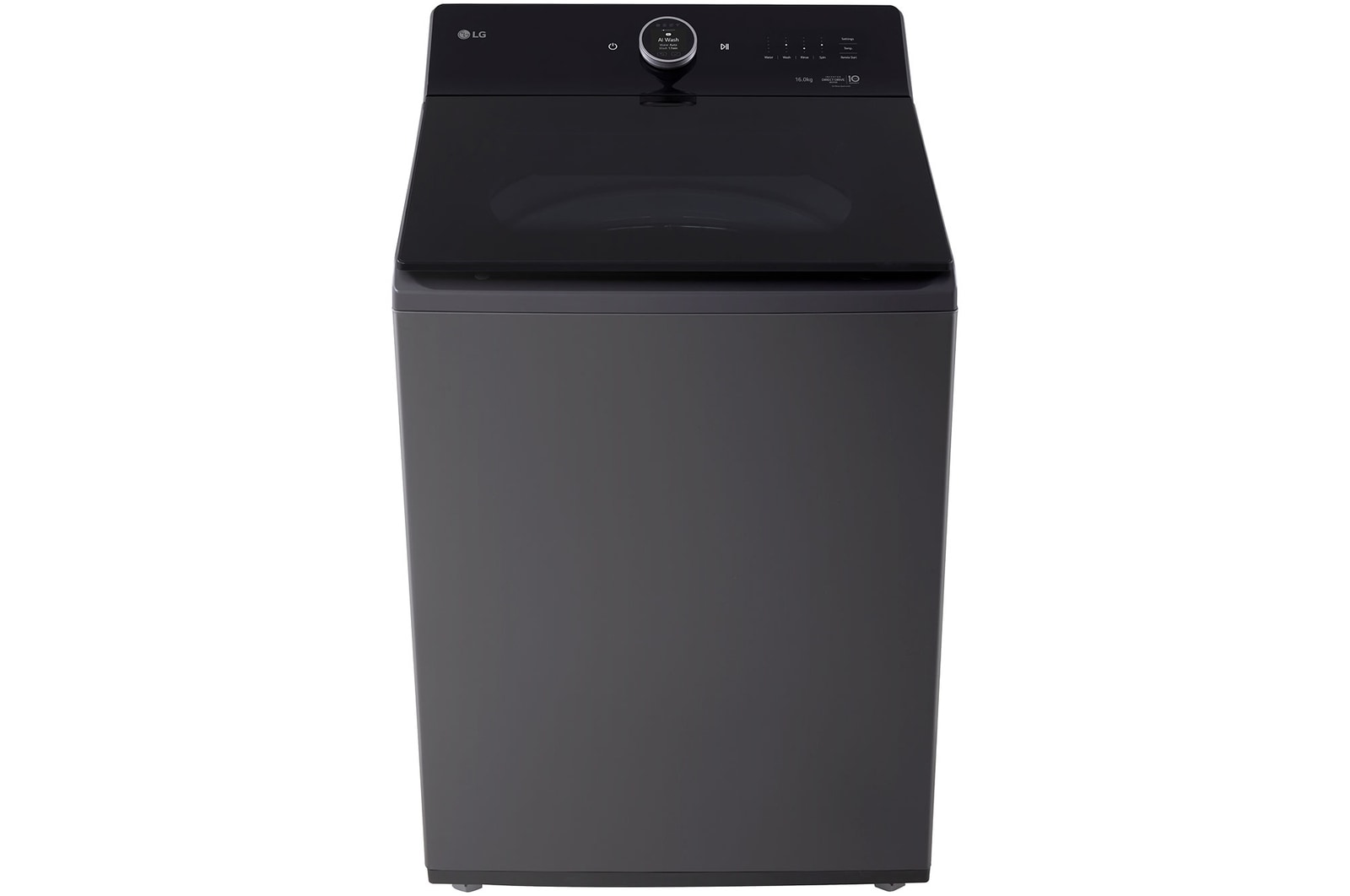

The LG Automatic Dispenser allows you to pre-load the detergent dispenser and leave your washing machine to do the work. In-appliance technology senses the weight of your laundry load and automatically adds the right amount of detergent every time. It reduces the risk of over-dosing, and helps saves you time. Correct detergent dosage also helps keep top loader washing machines in good operating condition. Detergent and softener compartments can be combined.

LG’s Steam™ technology (on selected models) effectively reduces exposure to allergens. The Allergy Care function steams clothes at the start of the wash cycle to loosen fibres and reduce exposure to allergens, including pollen and dust mites.*

*Tested by Intertek usgin a 4kg test load, the Allergy Care Cycle reduces exposure to common household allergens including house dust mite, cat, dog and pollen alergen, live mites (Dermatophagoides pteronyssinus), bacteria and fungi (Staphylococcus aureus, Enterococcus faecalis, and Escherichia coli and Aspergillus niger). The results may be different depending on the environment.

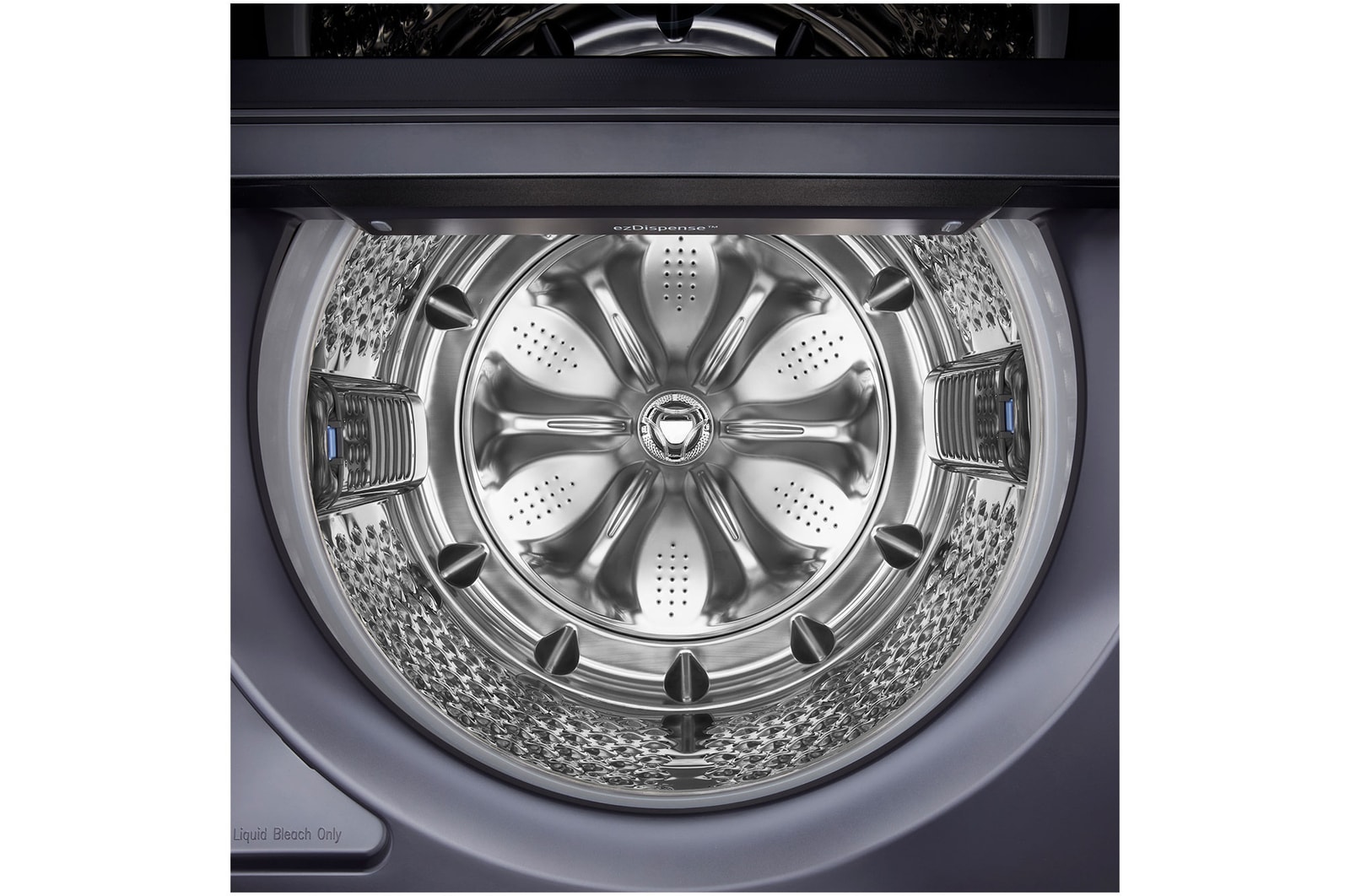

If there is lint build up on the tub or the tub smells mouldy, use washing machine cleaners to clean the tub regularly.

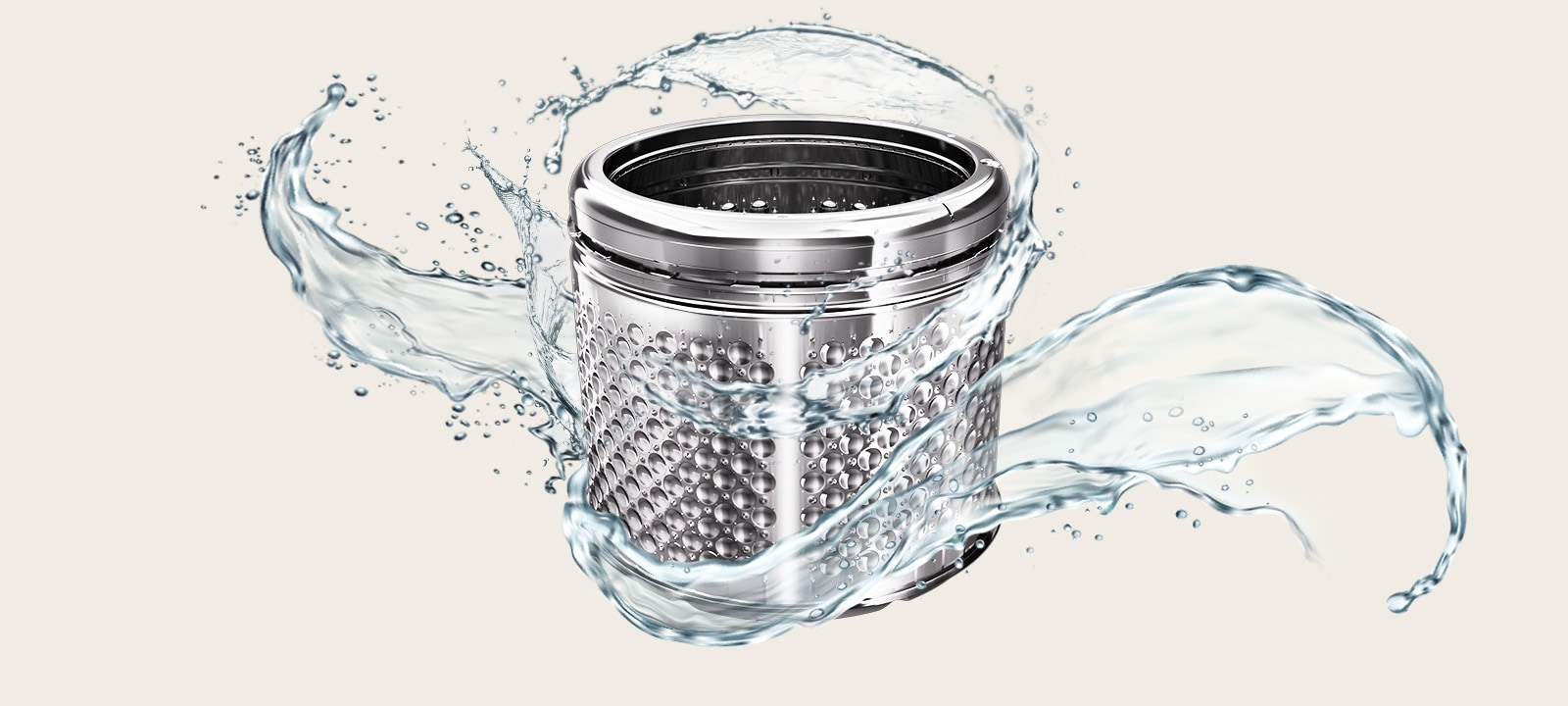

It is recommended to run the Tub Clean cycle once per month to maintain the tub clean.

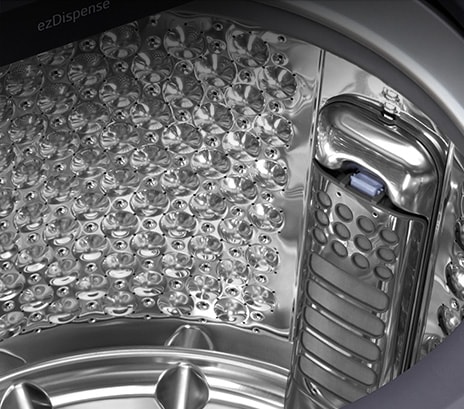

1. Dust generated during washing is filtered through a cleaning filter. If the cleaning filter is full, the dust may not be filtered out properly. The cleaning filter can be manually cleaned before each wash to help the machine capture dust and lint and prevent dust and lint on clothes.

2. Separate your coloured and white clothes from your black and lint-producing clothes. Wash them in different loads to further prevent unwanted dust and lint in your laundry.

1. Make sure that both your product and internet router are turned on.

2. If the distance between the product and the router is too far, the signal strength can be weak and it may take a long time to register your product.

3. Install the ThinQ application. Please refer to the page relevant to your country for further instructions on installing the ThinQ application and registering your product.
