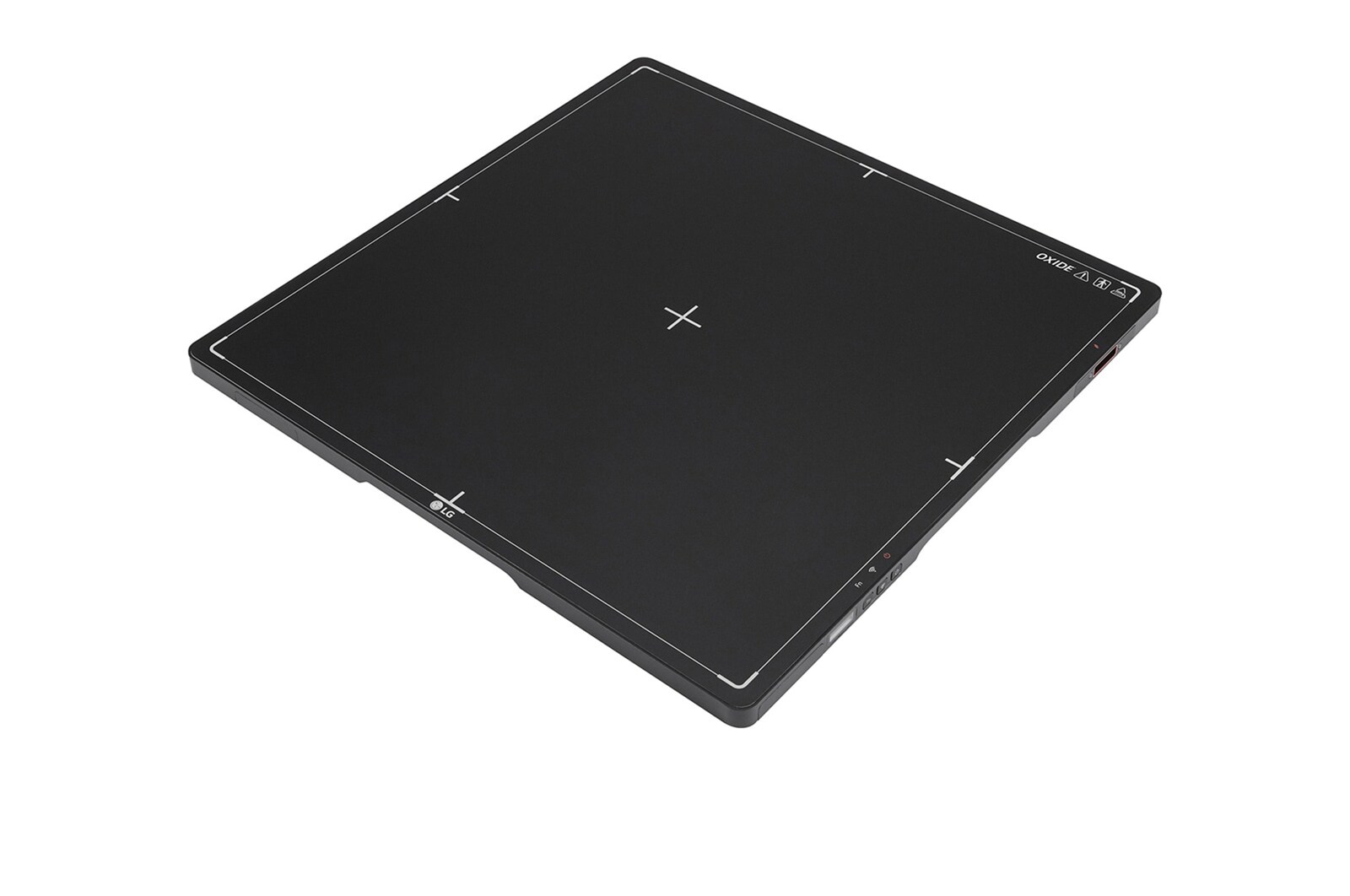

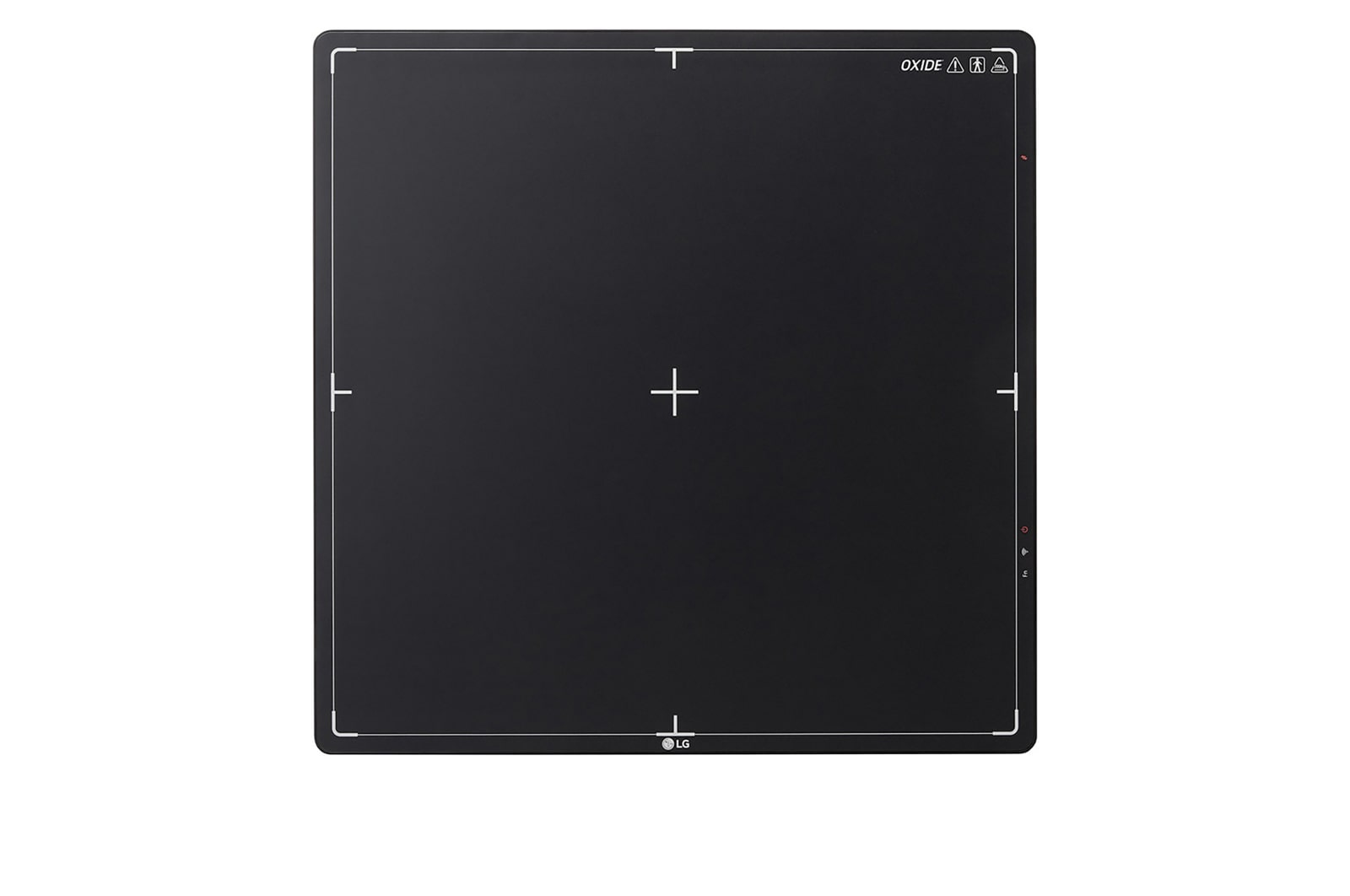

LG Digital X-ray Detector with Oxide TFT

17HQ901G-B

الميزات الرئيسية

Excellent DQE with Oxide TFT
140㎛ pixel size & 16bit A/D conversion
Raw Image in 2s (wireless) & 1.5s (wired)
AP Mode, Auto Storage on the DXD, Hot Swap
IP68 : Water Resistant and Dust Tight
Uniform Load : 400kg/ Point Load : 200kg

المزيد

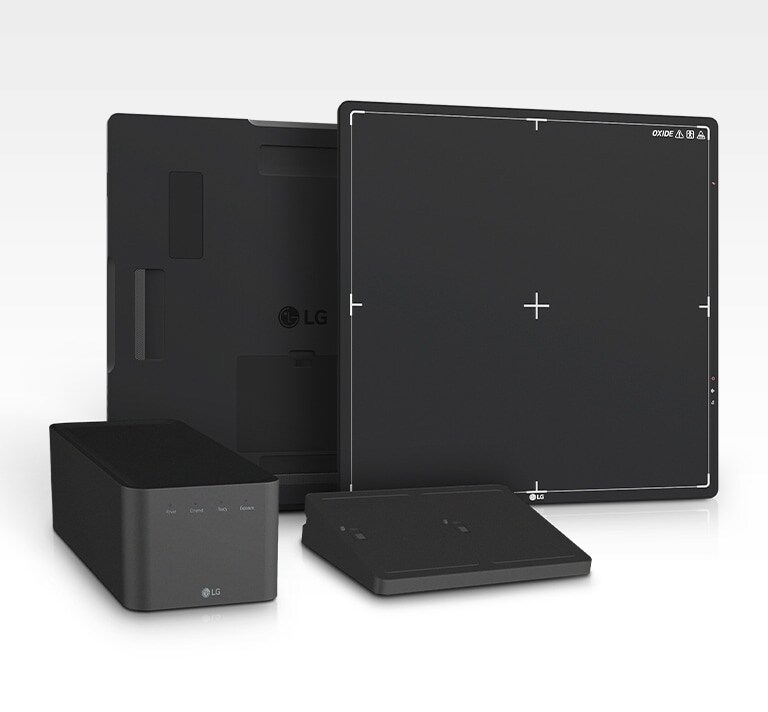

LG Digital X-ray Detector

It delivers high resolution and clear image quality. Plus, it also offers low noise images with Oxide TFT technology.

Image Quality

High DQE with Oxide TFT¹⁾

140㎛-pixel size & 16bit A/D conversion

Durability

IP68 Water Resistant & Dust Tight²⁾
Uniform Load 400kg & Point Load 200kg

Usability & Portability

LG Acquisition Workstation Software

Hot swap, AP Mode, Auto Storage

*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)Compared to products with a-Si TFT.
2)According to the Ingress Protection (IP) Rating System, an IP68 means protection against solid foreign objects Level 6 (Dust-tight: no ingress of dust), and protection against liquids Level 8 (Immersion beyond 1m: Protected against immersion in water with a depth of more than 1 meter.) This product has been tested under controlled laboratory conditions and received an IP68 rating. Under these conditions, product is water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet. Level of water resistance may change over time or with exposure to excessive amounts of liquid.

Get High-qualityImages with Oxide TFT

Outstanding Detective Quantum Efficiency (DQE)

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

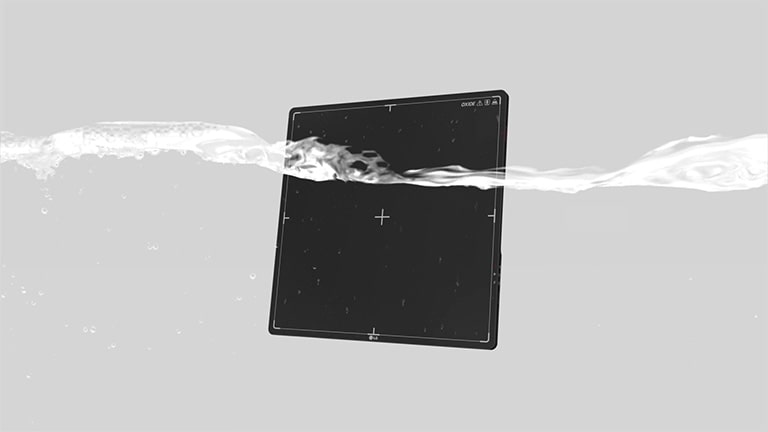

Light Yet Durable

Lightweight Meets Mighty Durability

Lightweight and durability of LG DXDs are key in responding to various medical situations. With an IP681) rating, this LG DXD is resistant to water and dust tight.

IP68¹⁾

Water Resistant & Dust Tight

400kg²⁾

Max. Uniform Load

200kg

Max. Point Load

1.5m³⁾

Max. Drop Distance

*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*The images that appear in the video used the 17HQ901G model.
1)According to the Ingress Protection (IP) Rating System, an IP68 means protection against solid foreign objects Level 6 (Dust-tight: no ingress of dust), and protection against liquids Level 8 (Immersion beyond 1m: Protected against immersion in water with a depth of more than 1 meter.) This product has been tested under controlled laboratory conditions and received an IP68 rating. Under these conditions, product is water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet. Level of water resistance may change over time or with exposure to excessive amounts of liquid.
2)Maximum uniform load and maximum point load when tested under laboratory conditions for 60 seconds. Results may differ during actual usage.
3)Drop test in a controlled laboratory environment. Can differ from actual usage.

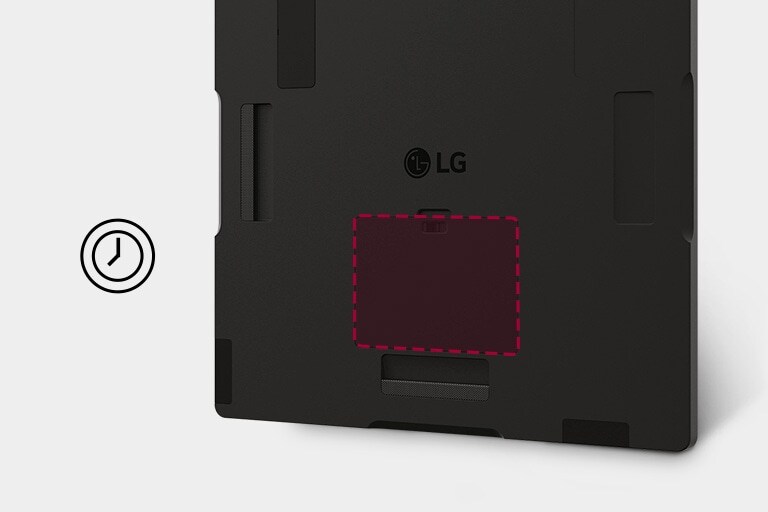

Up to 7.5 Hours without Charging

Uninterrupted Operating Time

When fully charged, the removable battery will have up to 7.5 hours of operation time. Hot swap, which can hold power for up to a minute, can provide virtually uninterrupted use even while replacing the removable battery.

Long Operation Time up to 7.5 Hours¹⁾

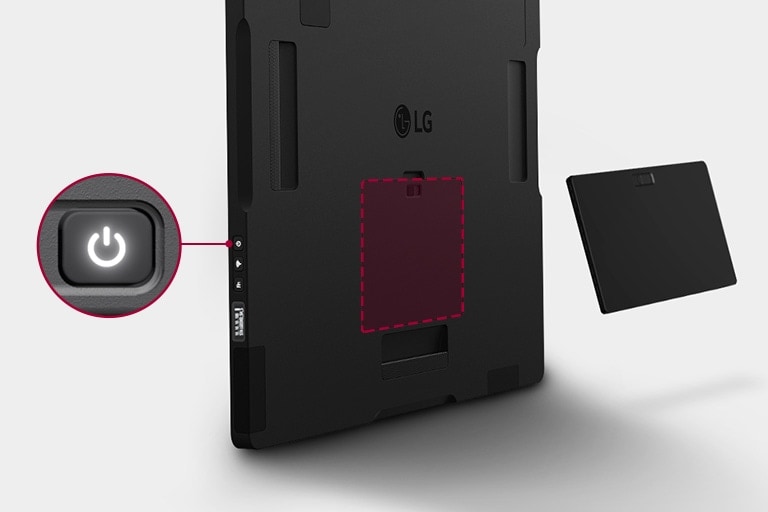

Hot Swap - 1 Min. without Battery

*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)Typical 7.5 hours, Typical 300 shots under conditions of cycle time 90 sec. Measured by irradiating image at a 90-second cycle (consisting of stand by mode, X-ray exposure, and image acquisition), obtaining approximately 300 shots. Actual battery usage time and performance may vary depending on network connectivity and application use.

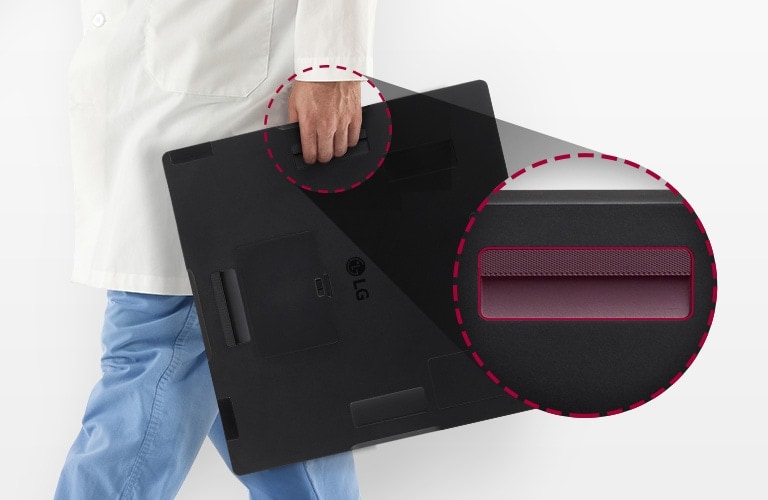

Light-weight Body with Handles

Designed for Portability

With a lightweight body (under 3.6kg) and chamfered edge and built-in handles, LG's DXD offers outstanding portability.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Work Efficiently

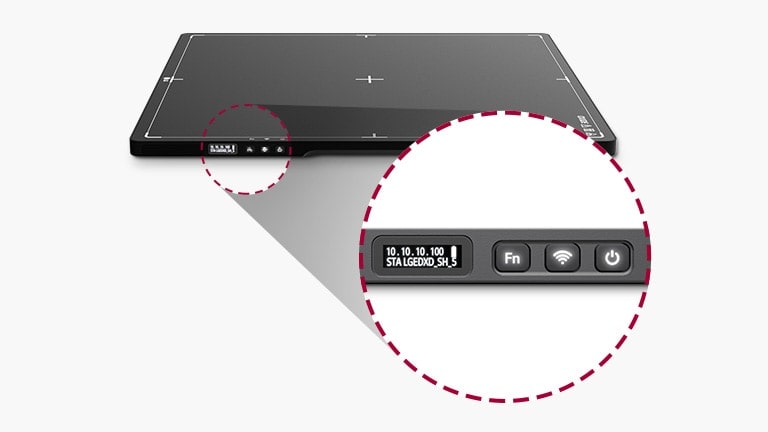

Information Display

Check and Monitor Directly

Thanks to the embedded OLED information display, you can directly check and monitor the current state of DXD such as connection state, remaining battery, AP (Access Point) mode, auto storage mode, and dynamic mode.

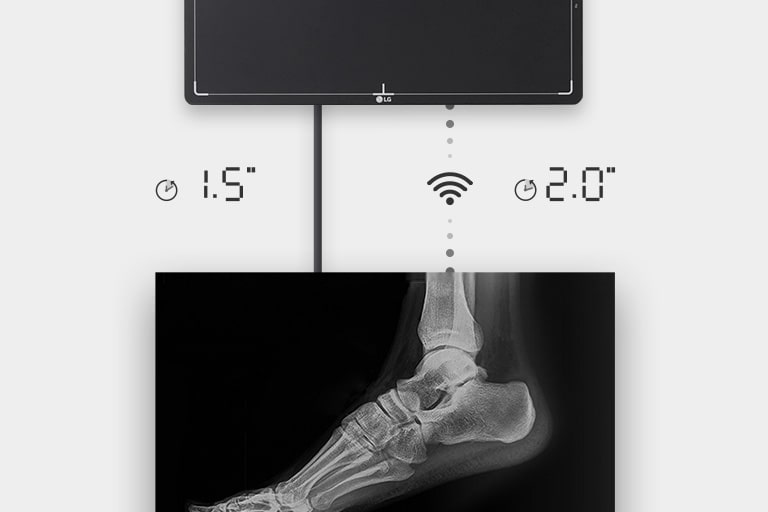

Rapid Image Availability

17HQ901G helps increase work productivity with fast processing speeds. It takes only 1.5 seconds with connection or 2 seconds for wireless to get a raw image.

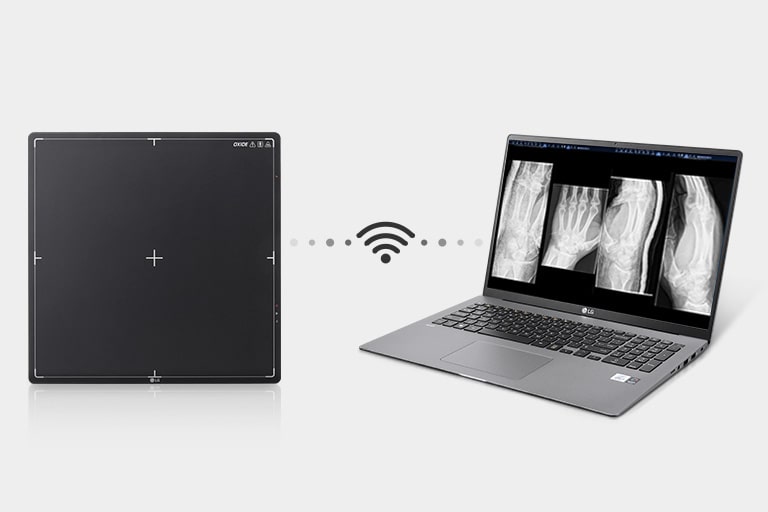

Access Point Mode

Access Point Mode enables point-of-care imaging via direct data transfer to your screen wirelessly. So, X-ray images can be referred in virtually anywhere, anytime by carrying your laptop, or other mobile devices.

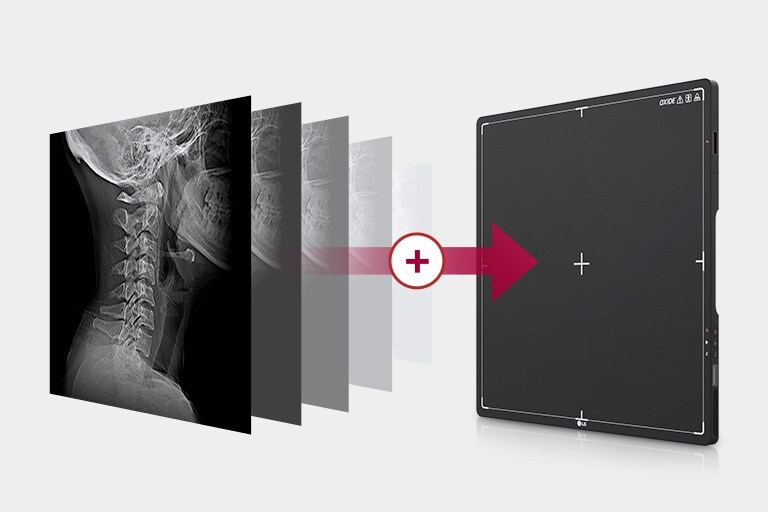

Auto Storage Up to 200 images¹⁾

A built-in memory storage allows you to take multiple images without a computer connection, providing a seamless workflow even offline.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)The oldest image (first in) is removed first (first out) from the internal memory storage once the storage space fills up with 200 images.
