Product Type
Sitting cassette canopy
Cooling / heating
Cooling and heating
Alanfrr Technology
Yes
Fast cooling
Yes
Super energy saving
Yes
Coolers protection of the environment
Yes

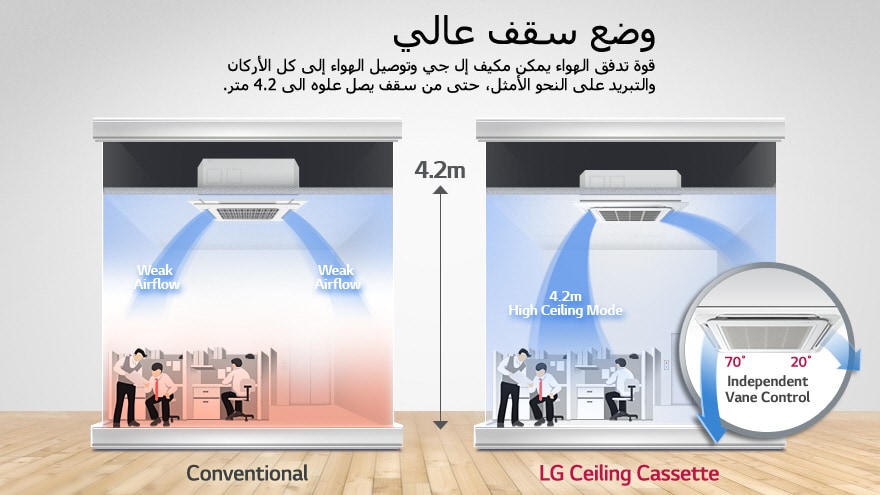

High-ceiling setting
Yes
Purification of the Clean Air
Yes
Separately run blades for guidance
Yes
Noise internal unit level (H / M / L)
40/38/36 dB (A)
Operating range
Up to 54 ° C
Power supply (ø / V / Hz)
1/230/60
Cooling capacity
7.0 Kw (24,000 Btu / h)
Energy used
2.1 kW
Energy Efficiency %
11.6 Btu / hr / W
COP
3.4 W / W
AC current
0.6 A.
Air flow rate (H / M / L)
23.0 / 21.0 / 19.0 CMM
Body dimensions (width × height × depth)
840 × 246 × 840 mm
Motherboard dimensions (width × height × depth)
950 × 25 × 950 mm
Net weight
22.3 kg
AC current
9.0 A.
Compressor Type
Rotary double
Sound level (H)
50 dB (A)
(Width × height × depth)
870 × 655 × 320 mm
Net weight
44 kg
Delivery pipes (liquid)
Ø 9.52 mm
Delivery pipes (gas)
Ø 15.88 mm
Exchange (external / internal)
Ø 32 mm / 25 mm
.toul Pipes maximum (the main pipeline)
50 m
Vertical height maximum. (internal external)
30 m
Houses
Yes
Shops
Yes
Restaurants
Yes
Offices
Yes
