SH7DD Series
Contact Us

SH7DD Series

Contact Us

SH7DD Series

43SH7DD-B

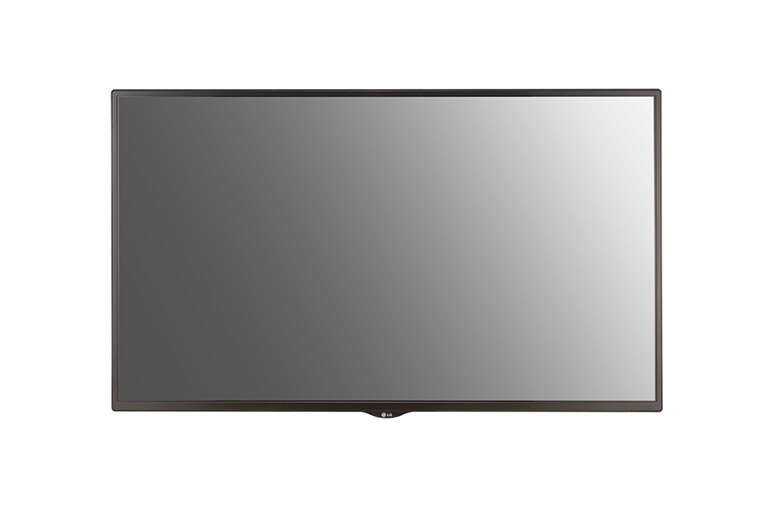

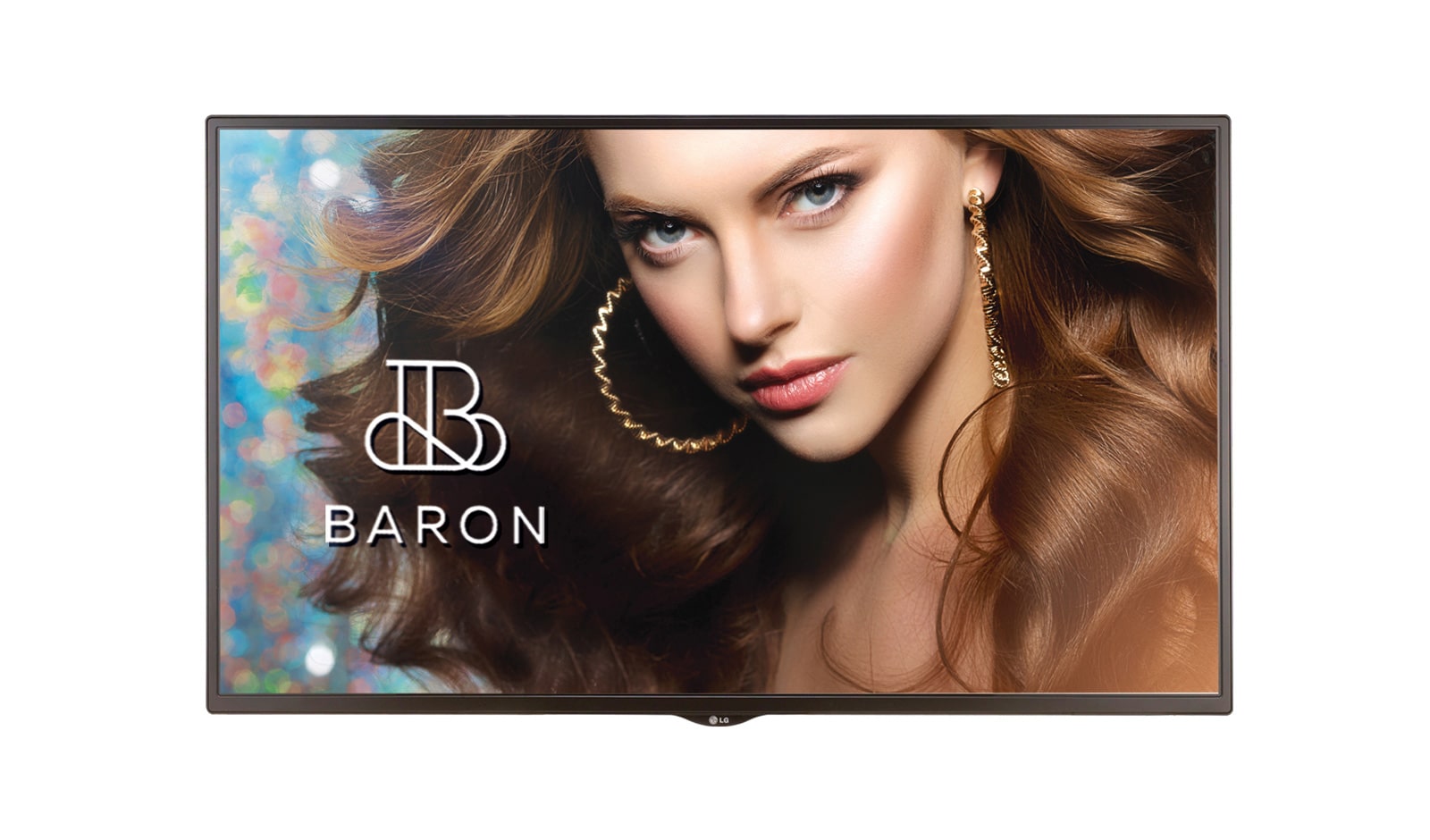

LG SH7DD Series, 43SH7DD-B
LG SH7DD Series, 43SH7DD-B
LG SH7DD Series, 43SH7DD-B
LG SH7DD Series, 43SH7DD-B
LG SH7DD Series, 43SH7DD-B
LG SH7DD Series, 43SH7DD-B
LG SH7DD Series, 43SH7DD-B
LG SH7DD Series, 43SH7DD-B
LG SH7DD Series, 43SH7DD-B
LG SH7DD Series, 43SH7DD-B
LG SH7DD Series, 43SH7DD-B
LG SH7DD Series, 43SH7DD-B

Key Features

  • Brightness(Typ.) : 700 cd/m²
  • Bezel : T/L/R 11.9 mm, B 18.0 mm

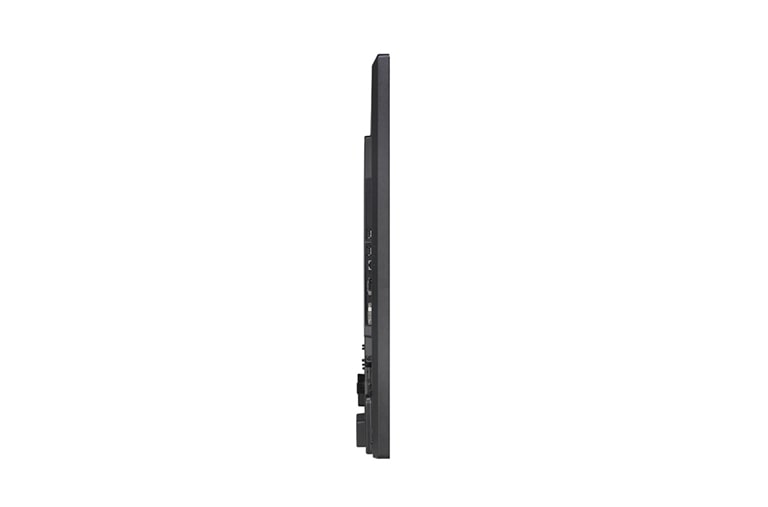

  • Depth : 54 mm(38.6mm:Thinnest Part)
  • Interface : HDMI(2), DVI, RGB, RJ45, IR, RS232C, USB
  • Built-in Speaker
  • USB Content Scheduling, PM Mode, Local Time Auto Setting, No Signal Image
More
Outstanding Visibility

Outstanding Brightness

The 700 cd/m² brightness is enough to stand out against the surrounding background, so signage can attract passerby and delivers content vividly and effectively.
Outstanding Visibility

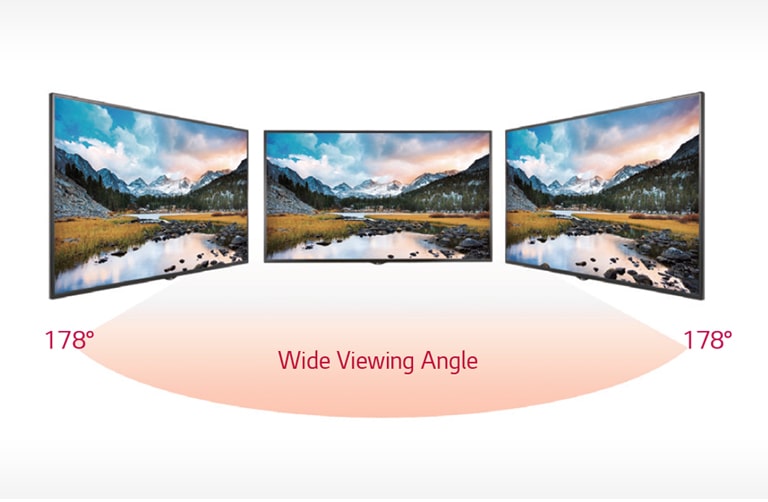

Wide Viewing Angle

Thanks to IPS technology, SH7DD series provides a clear, vibrant picture with no washed out tones at any angle.
Cost Effective

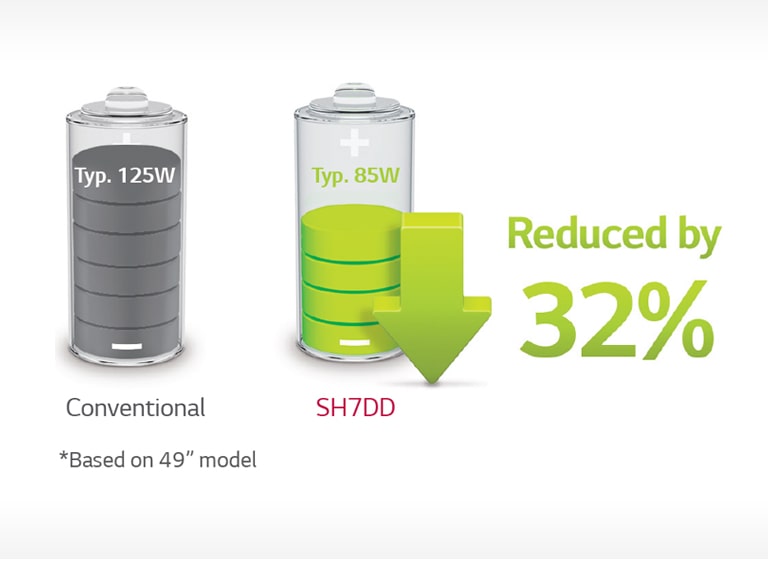

Low Power Consumption

SH7DD offers excellent energy efficiency and cost savings by decreasing power consumpton by approx. 32％ compared to the conventional model with equal luminance.
Cost Effective

Power Management Mode

Even without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables efficient management.
Convenient Managment

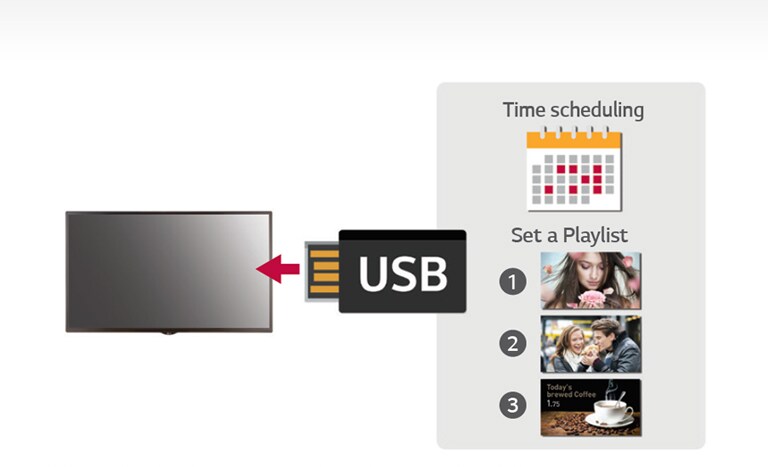

USB Content Scheduling

There is no need for additional server or media player connections because SH7DD supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB.
Convenient Managment

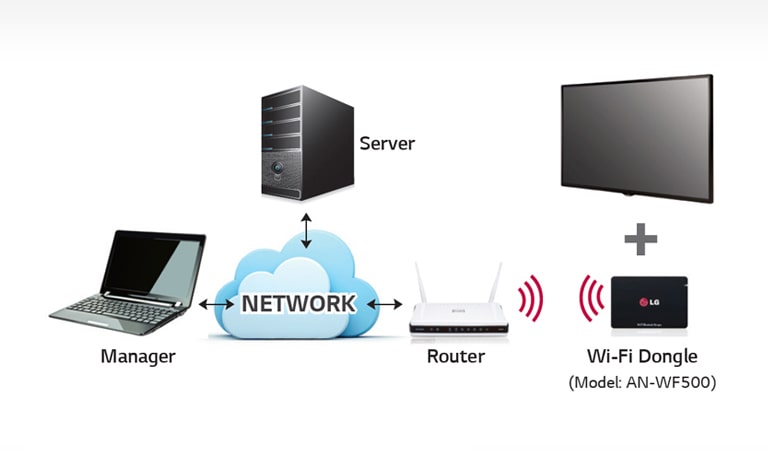

Wi-Fi Support

SH7DD series supports Wi-Fi dongle connection for easier content distribution and installation. And SNMP* support ensures convenient network management.
Convenient Managment

No Signal Image Setting

In case there is no signal input, it is possible to play back images preset by the user using a USB, instead of displaying the conventional no signal image.
Convenient Managment

Local Time Setting

A time zone can be configured at initial installament, so that the signage display accesses the local NTP* server and automatically sets the local time. In addition, the local time can be adjusted manually by grouping multiple signages using RS232C without a network connection.
Industrial Design

Detachable Logo & Built-in Speaker

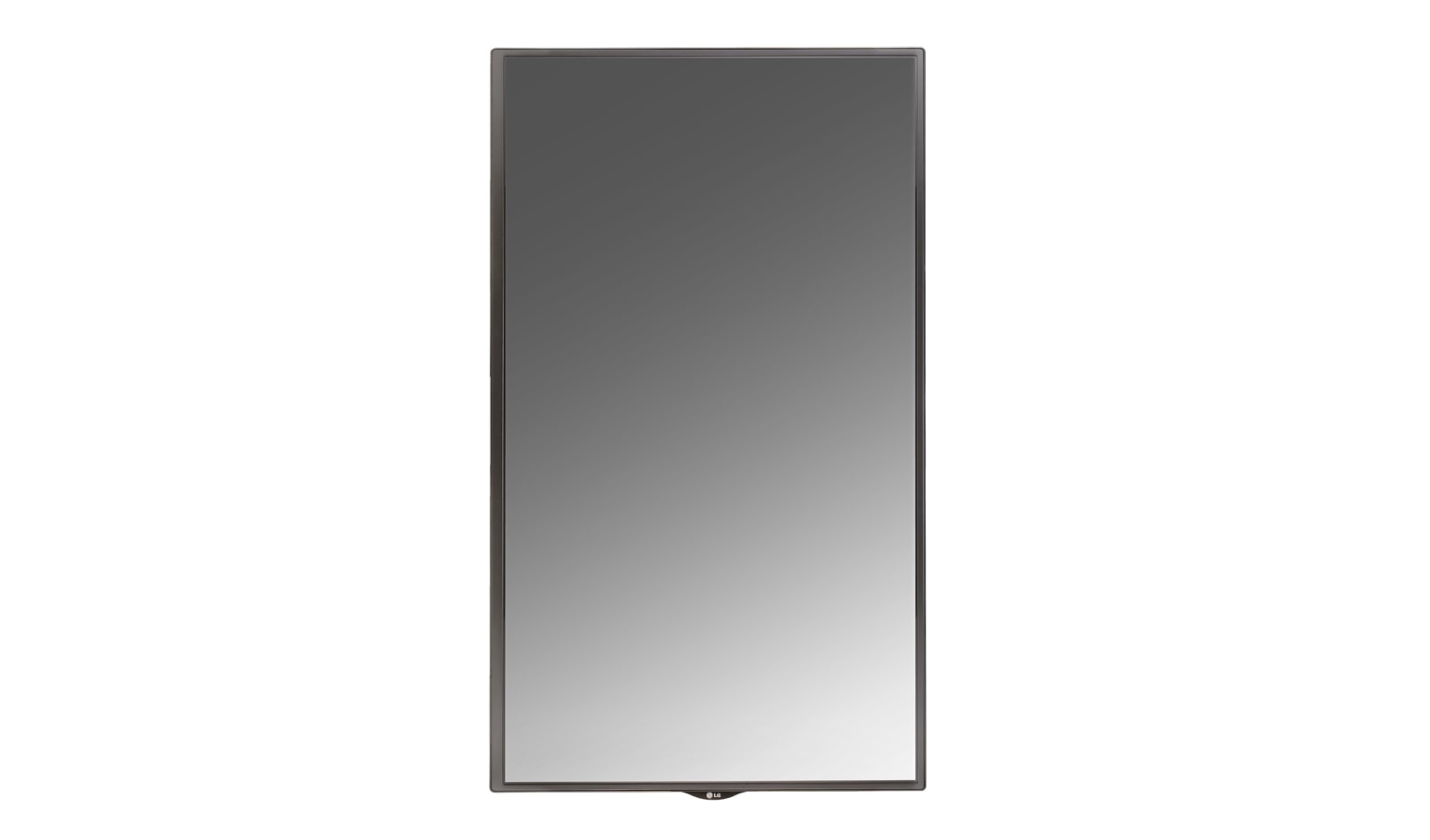

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, giving advertisements greater impact.

Alt text

*Based on 49'' model

Alt text

*Supported Content Type : Video(MPEG 1/2/4, H.264),,Audio (MP3, AC3, MPEG, AAC, HEAAC, LPCM), Image (JPEG, PNG, BMP)

Alt text

*SNMP: Simple Network Management Protocal

Alt text

*NTP: Network Time Protocol
Print

All Spec

ACCESSORY

  • Basic

    Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver

  • Optional

    Stand (ST-432T), Media player, Wall bracket (LSW230B), VESA Adapter (AM-B220S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T430)

CONNECTIVITY

  • Input

    HDMI (2), DVI, RGB, Audio, USB 2.0

  • Output

    Audio

  • External Control

    RS232C In/Out, RJ45 In, IR Receiver In

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    No

  • External Media player Attatchable

    Yes (MP500/MP700)

PANEL

  • Screen Size

    43"

  • Resolution

    1,920 x 1,080 (FHD)

  • Brightness(Typ.,cd/m²)

    700

PHYSICAL SPECIFICATION

  • Bezel Width

    11.9 mm (T/R/L), 18 mm (B)

  • Monitor Dimension (W x H x D)

    969.6 x 563.9 x 54 mm

  • Weight (Head)

    10.0kg

  • VESA™ Standard Mount Interface

    200 x 200 mm

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    75W

  • Smart Energy Saving

    55W

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign Premium

  • Control and Monitoring Software

    SuperSign C

STANDARD(CERTIFICATION)

  • Safety

    UL / cUL / CB / TUV / KC

  • EMC

    FCC Class "A" / CE / KCC

  • ErP / Energy Star

    Yes (N/A for EU ErP) / Yes (Energy Star 8.0)

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
