32” (3840x2160) LCD IPS 4K Surgical Monitor supports up to 4PBP, PIP and HDR10, Dustproof, Water-resistant

Find a Dealer

32” (3840x2160) LCD IPS 4K Surgical Monitor supports up to 4PBP, PIP and HDR10, Dustproof, Water-resistant

32HL710S-W

32” (3840x2160) LCD IPS 4K Surgical Monitor supports up to 4PBP, PIP and HDR10, Dustproof, Water-resistant

4K Surgical Display

Large Display for Surgical Precision

LG’s 4K surgical high-resolution monitor with provides accuracy, user convenience and reliability for precise surgery.

31.5-inch 4K IPS

Accuracy with Wide Viewing

With a 31.5-inch, 4K IPS LCD display, this LG surgical monitor provides image accuracy and visual confidence even when the surgical team is viewing off axis. The true 178° wide viewing angle reduces the risk of misperception and helps produce effective results.

*Image for illustration purposes only.

sRGB 115% (Area), Over 99% (Coverage)

Supporting sRGB 115% (Area) and Over 99% (Coverage), plus the DICOM Part 14 grayscale standard, the 32HL710S surgical monitor is designed for accurate color recognition and depth perception during invasive surgery. It is an excellent solution for critical image precision in real time.

Brightness Stabilization

The LG 32HL710S surgical monitor maintains constant and consistent brightness. An auto luminance sensor carefully measures the display backlight and local lighting conditions, and optimizes the screen brightness for the surgical procedure.

*Image for illustration purposes only.

Supports HDR10

The LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It delivers images in vivid color with accurate black levels and contrast, and clear details in the highlights and shadows.

*Image for illustration purposes only.

PBP, PIP & Multi-input

Multiple Signals on One Screen

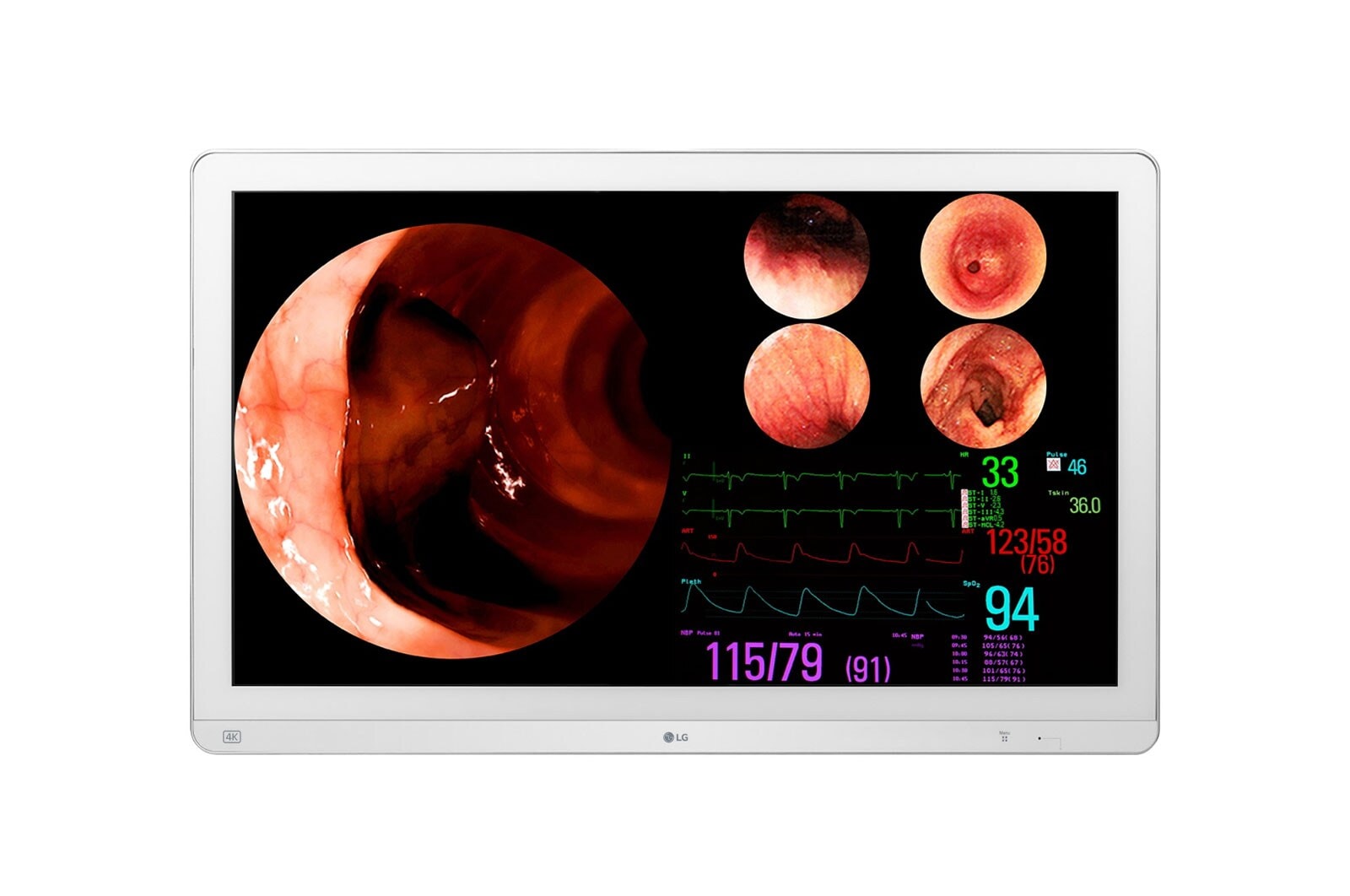

The 32HL710S supports up to 4PBP, PIP and extended ports to enable viewing images from multiple devices on one screen, and may even eliminate the need for a second monitor. For example, a combination screen can show an endoscopic video, vital signs imagery and fluoroscopic images.

Mirror & Rotation

Find the Perfect Operating View

The 32HL710S has Mirror & Rotate functions that help the surgeon set an optimal image view to improve efficiency and convenience during operations. One can select a 180-degree rotated image or a mirror image of the procedure.

Dustproof & Water-Resistant

The 32HL710S has a rating of IP35 on the front and IP32 on the back to help ensure protection against contact with water, blood, other fluids and contaminants. This surgical monitor feature a fanless design and is intended for easy cleaning and disinfection.

All Spec

POWER

AC Input: 100~240V (50/60Hz)

DC Output: 19V, 6.32A

Power Consumption (DC Off): Less than 0.3W

Power Consumption (Max.): 120W

Type: External Power(Adapter)

SW APPLICATION

Dual Controller: NO

LG Calibration Studio (True Color Pro): YES

Qubyx: NO

DIMENSIONS & WEIGHTS

Weight in Shipping [kg]: 17.4

Weight without Stand [kg]: 12.4

Weight with Stand [kg]: NO

MECHANICAL

Borderless Design: Normal

Display Position Adjustments: NO

Machanical Power Switch: YES

OneClick Stand: NO

Wall Mountable [mm]: 200 x 100 & 100 x 100

DISPLAY

Aspect Ratio: 16:9

Brightness (Typ.) [cd/m²]: 800

Color Bit: 10bit

Color Gamut (Typ.): sRGB 99% (CIE1931)

Contrast Ratio (Typ.): 1000:1

Pixel Pitch [mm]: 0.18159 x 0.18159

Resolution: 3840 x 2160

Response Time: 5ms (GtG at Faster)

Size [Inch]: 31.5

Surface Treatment: Protection Glass(1.6t, Anti-Reflection, Anti-fingerprint)

Viewing Angle (CR≥10): 178º(R/L), 178º(U/D)

ACCESSORY

Adapter: YES

Calibration Report (Paper): YES

Display Port: YES

DVI-D (Color/Length): NO

D-Sub: NO

HDMI (Color/Length): YES

Power Cord: YES

USB3.0 Upstream Cable: NO

STANDARD

CE: YES

EN (EN 60601-1 / EN 60601-1-2): YES

EN (EN 60950-1 / EN 55032, 55024): YES

FDA: Class I

GMP: YES

IEC (IEC 60601-1 / IEC 60601-1-2): YES

IEC (IEC 60950-1 / IEC 55032, 55024): YES

IP(Front/Except for front): IP35/IP32

ISO13485: YES

KC (for Rep. of Korea): NO

KGMP: YES

MFDS: YES

REACH: YES

RoHS: YES

UL (cUL): YES

Vandal-proof: IK06

WEEE: YES

CONNECTIVITY

12G-SDI: NO

3G-SDI: YES

Component (Resolution): NO

Composite (Resolution): NO

Daisy Chain: NO

DisplayPort: YES(In 1ea / Out 1ea)

DVI-D: YES(In 1ea / Out 1ea)

D-Sub: NO

HDMI: YES(1ea)

Headphone out: NO

RS-232: YES

S-Video: NO

Thunderbolt: NO

USB Downstream Port: YES(1ea/ver2.0)

USB Upstream Port: YES(1ea/ver2.0)

FEATURES

Auto Luminance Sensor: NO

Black Stabilizer: YES

Brightness stabilization: YES

Color Temperature: 6500K/7500K/9300K/Manual(5000K~10000K)

DICOM Compliant: YES

Failover Input Switch: YES

Flicker Safe: YES

Focus View: NO

Front Sensor: NO

HDR 10: YES

HDR Effect: YES

Hot Key: YES(2keys)

HW Calibration: HW Calibration Ready

Lighting: NO

Light Box Mode: NO

Pathology Mode: NO

PBP: 2PBP/3PBP/4PBP

PIP: YES

Presence Sensor: NO

Reader Mode: NO

Rotation & Mirror Mode: YES

Smart Energy Saving: YES

Super Resolution+: YES

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
