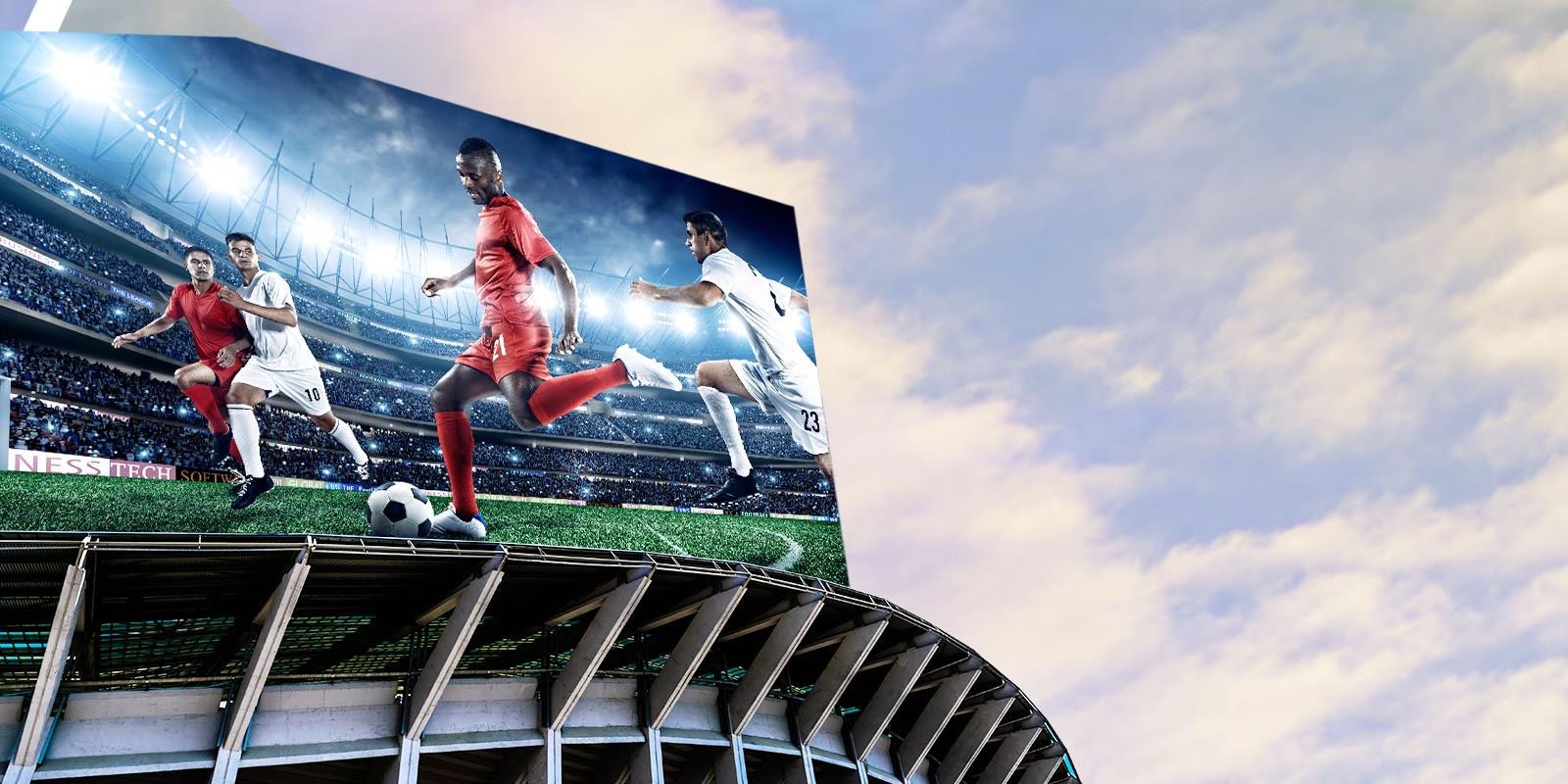

LBS Stadium
The Stadium Series is perfect for any outdoor use or applications. With its powerful display, it can adapt to any environment. Learn about the product features below.

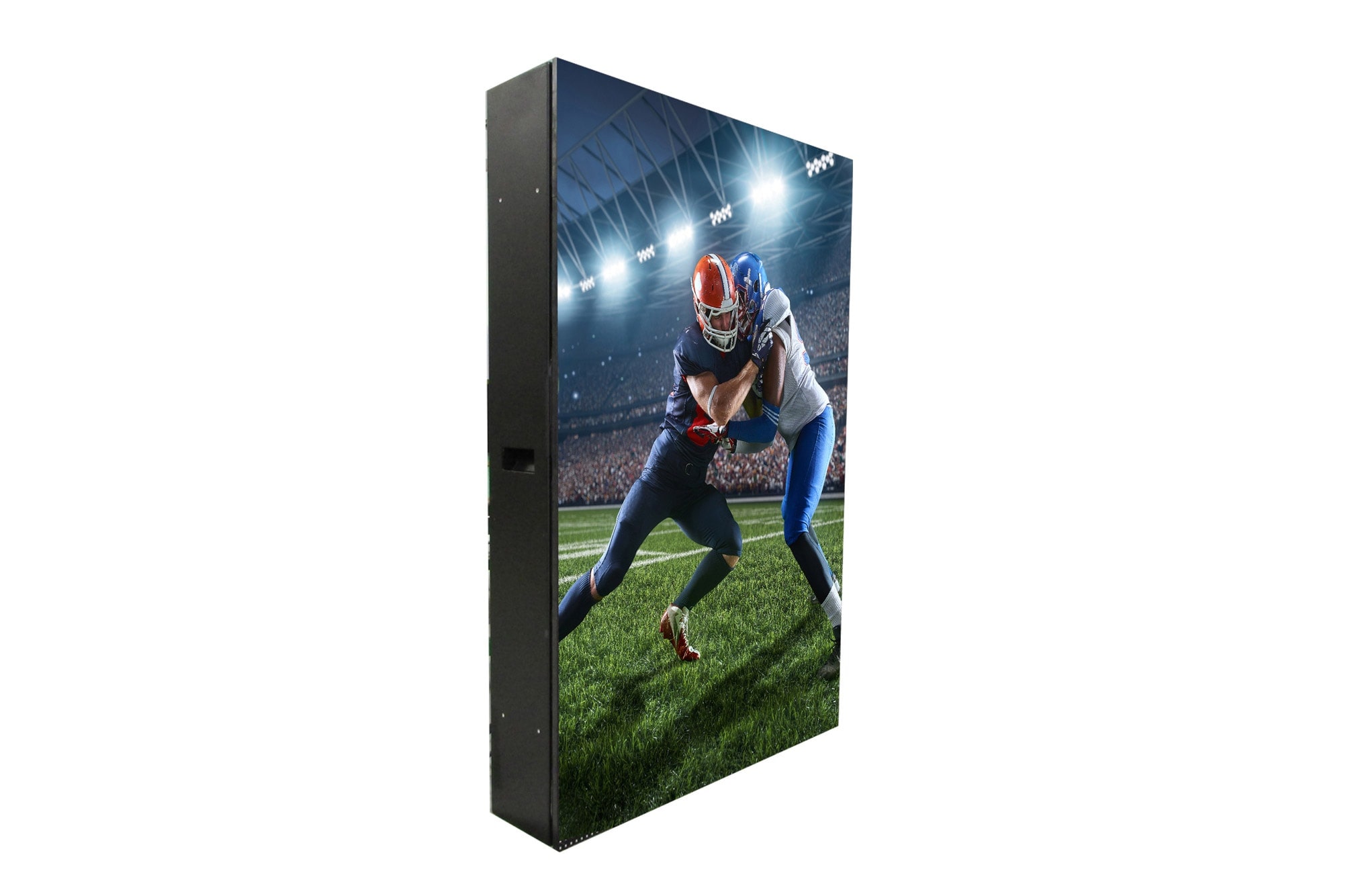

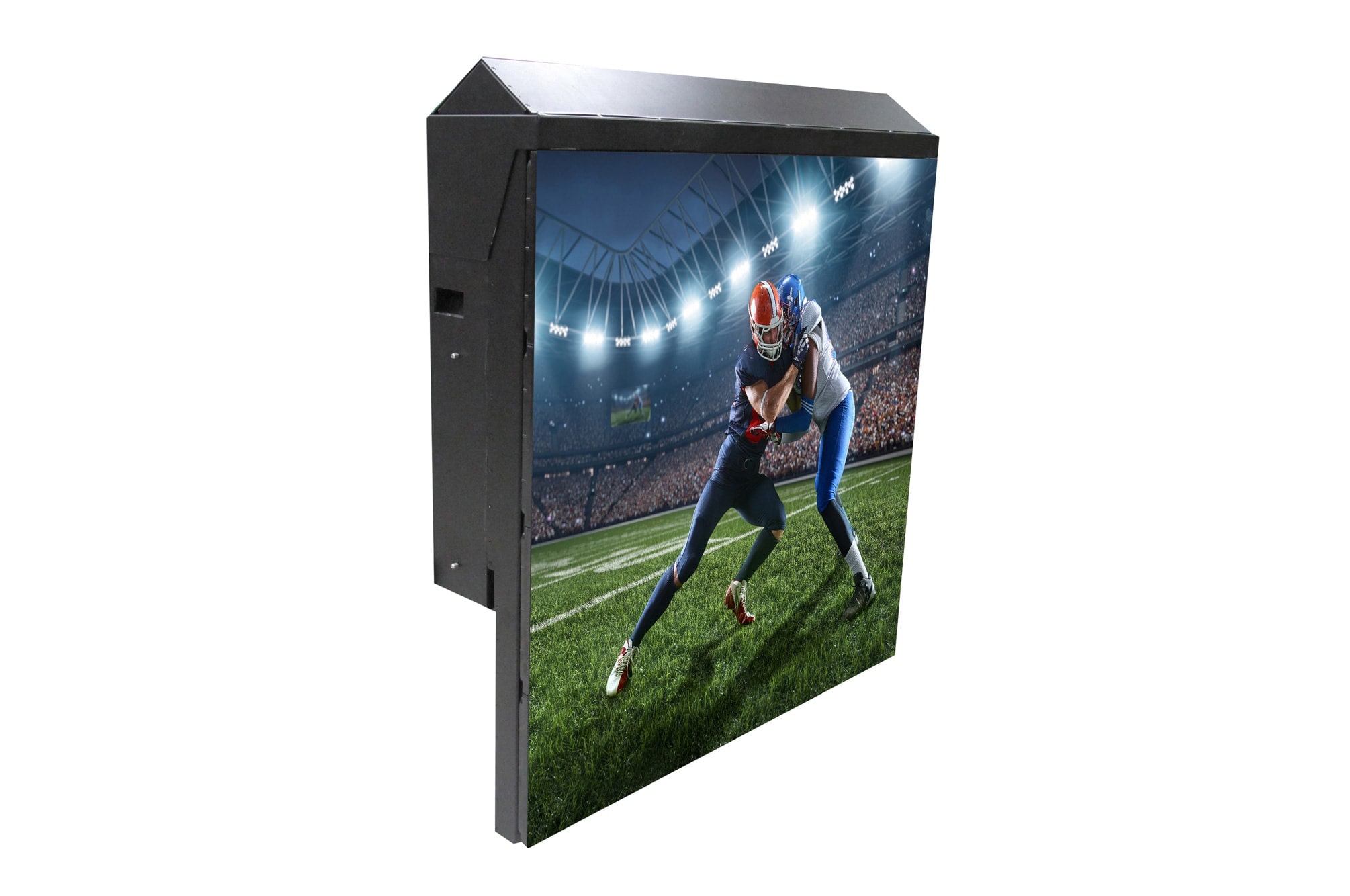

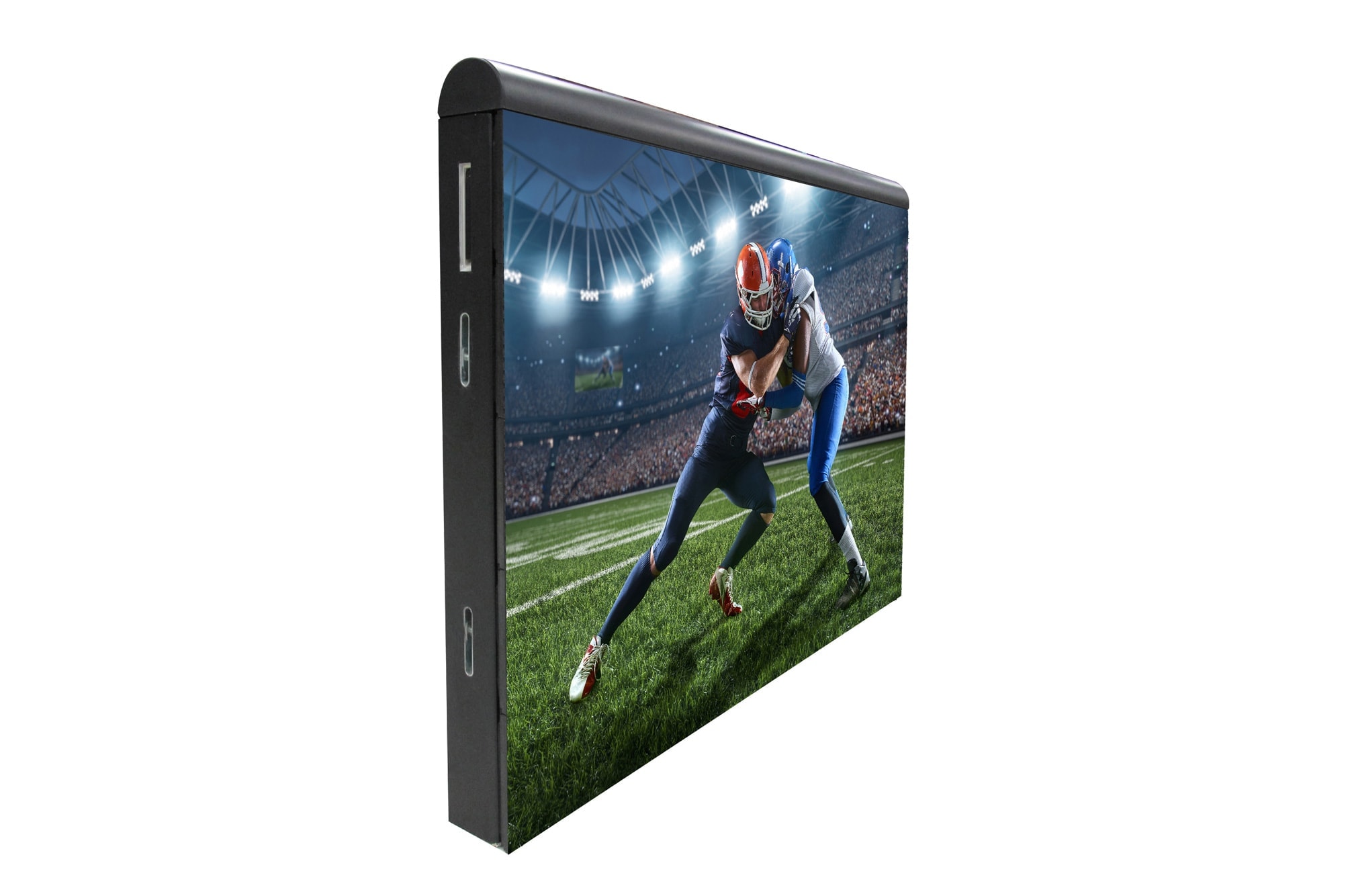

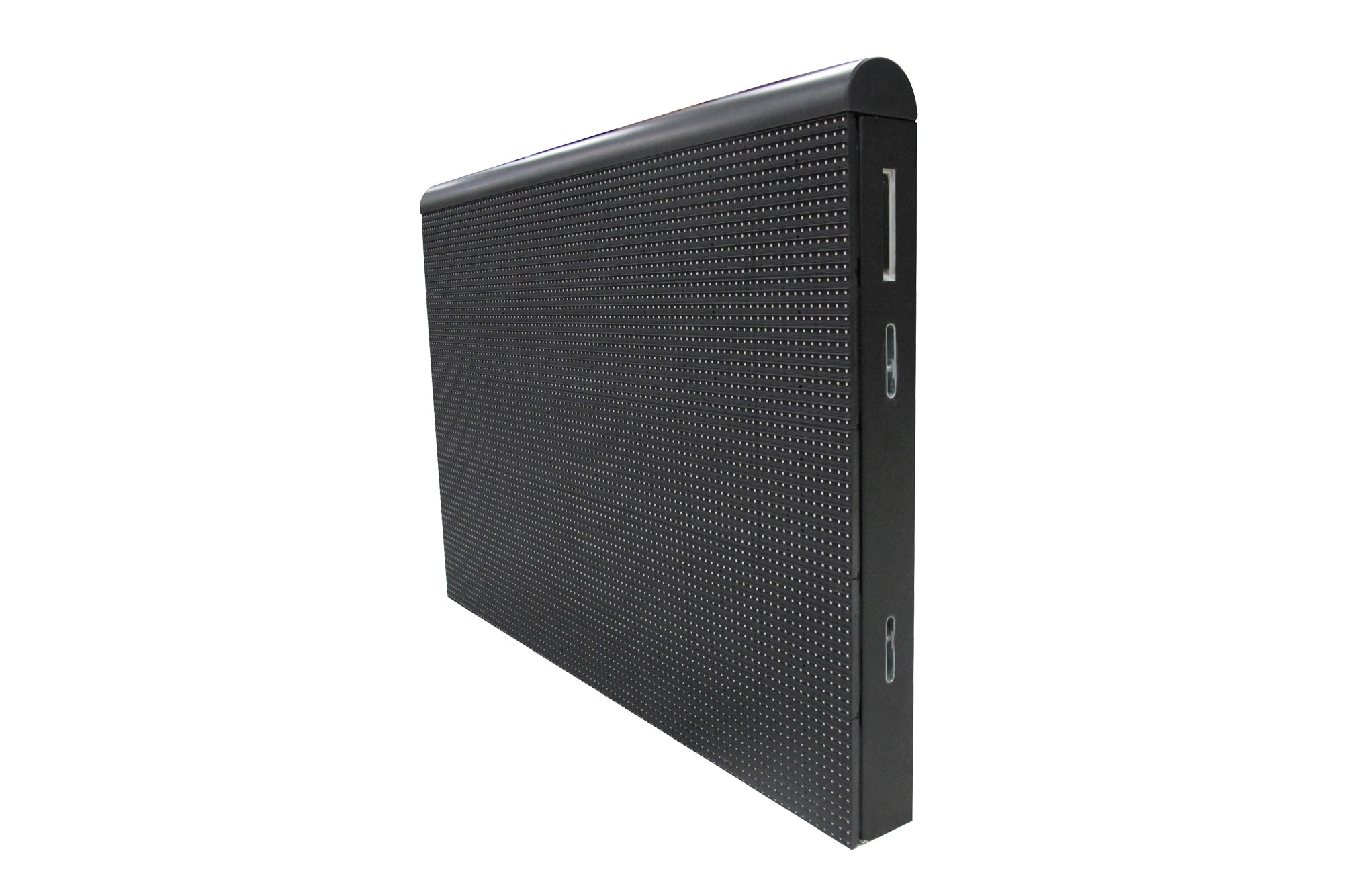

LBS Stadium
The LBS Stadium series comes in various formats for different types of stadiums and outdoor venue applications. It is designed and built to provide robust performance with exceptional image quality.

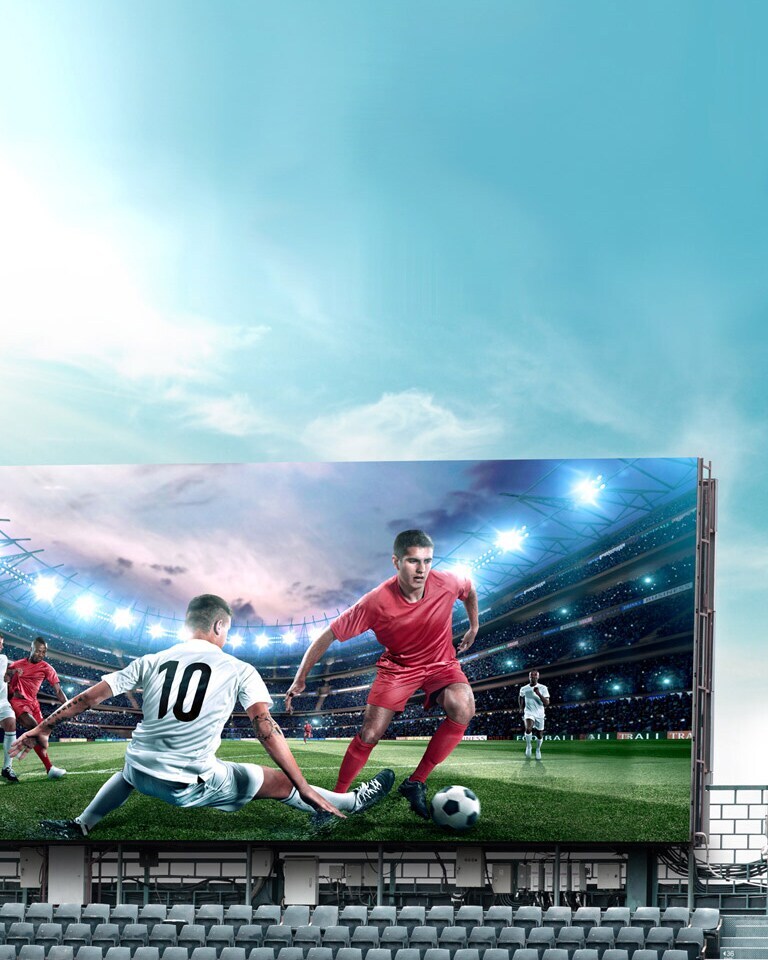

Outstading Visibility
Offering a powerful 6,000 nits brightness (customizable up to 8,500 nits), this super-bright display excels outdoors even in direct sunlight, instantly captivating attention and effectively delivering content.
Smooth Playback in Dynamic Motion
A high refresh rate of 4,000Hz ensures smooth playback. Flicker-free images prevent the black bars that appear in video recordings, as well as viewer eye strain and blurred vision.

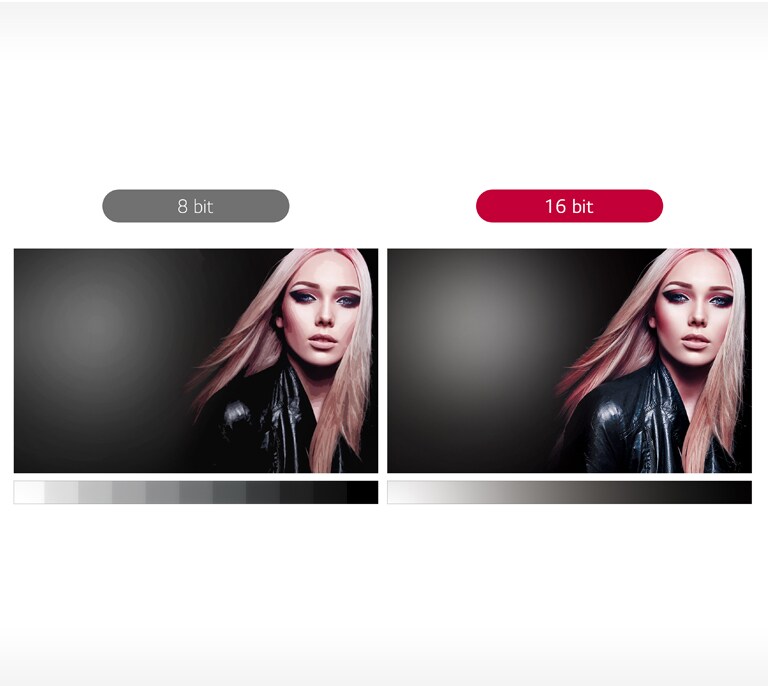

Detailed Expression of Color Depth
16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion, thereby giving a more realistic and sophisticated content.
Reliable Weatherproof Design
The front and back of the unit case are IP65- and IP54-certified*, respectively, allowing stable operation unaffected by weather and harmful outdoor environments.
*LBF160DA1D Rear: IP43-certified.
Front and Rear Serviceability
The product offers both front access and rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.
*Except the LBS060DA1D, LBS060DA3D, LBF160DA1D models.
Uniform Picture Quality
Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.
Vividness with Color Accuracy
LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.
RoHS Certified Safe Product
Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.
| Model Name | LBS060DA1D | LBS060DA3D | LBS080DA1D | LBS080DA3D |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 6.00 | 6.00 | 6.00 | 6.00 |
| Unit Case Resolution (WxH) |
192x128 | 192x128 | 192x192 | 192x192 |
| Unit Case Dimension (WxHxD, mm) |
1152x768x217 | 1152x768x217 | 1536x1536x222 | 1536x1536x222 |
| Weight per Unit Case / Square Meter (kg) |
42.0/47.5 | 42.0/47.5 | 104.0/44.1 | 104.0/44.1 |
| Service access | Front or Rear | Front or Rear | Front or Rear | Front or Rear |
| Min. Brightness (After Calibration) |
6,000 | 6,000 | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 | 3500-8500 | 3500-8500 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/135 | 160/135 | 160/135 | 160/135 |
| Brightness Uniformity / Color Uniformity | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) |
240/600 | 232/580 | 584/1460 | 552/1380 |
| Power Consumption (W/m², Max.) |
678 | 656 | 619 | 585 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 | 4,000 | 4,000 |
| Lifetime (Half brightness)* |
100,000 | 100,000 | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90%RH | -20° to 50°/< 90%RH | -20° to 50°/< 90%RH | -20° to 50°/< 90%RH |
| IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
*The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
**Models may vary by region. Check with local salesteam for availability.
| Model Name | LBS100DA1D | LBS100DA3D | LBS120DA1D | LBS120DA3D |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 10.667 | 10.667 | 12.00 | 12.00 |
| Unit Case Resolution (WxH) |
144x144 | 144x144 | 128x128 | 128x128 |
| Unit Case Dimension (WxHxD, mm) |
1536x1536x222 | 1536x1536x222 | 1536x1536x223 | 1536x1536x223 |
| Weight per Unit Case / Square Meter (kg) |
104.0/44.1 | 104.0/44.1 | 104.0/44.1 | 104.0/44.1 |
| Service access | Front or Rear | Front or Rear | Front or Rear | Front or Rear |
| Min. Brightness (After Calibration) |
6,000 | 6,000 | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 | 3500-8500 | 3500-8500 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/145 | 160/145 | 160/125 | 160/125 |
| Brightness Uniformity / Color Uniformity | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) |
616/1540 | 580/1450 | 580/1450 | 544/1360 |
| Power Consumption (W/m², Max.) |
653 | 615 | 615 | 576 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 | 4,000 | 4,000 |
| Lifetime (Half brightness)* |
100,000 | 100,000 | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90%RH | -20° to 50°/< 90%RH | -20° to 50°/< 90%RH | -20° to 50°/< 90%RH |
| IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
*The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
**Models may vary by region. Check with local salesteam for availability.
| Model Name | LBS160DA1D | LBS160DA3D | LBF160DA1D | LBB160DA1D2 |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 16.00 | 16.00 | 16.00 | 16.00 |
| Unit Case Resolution (WxH) |
96x96 | 96x96 | 48x60 | 96x60 |
| Unit Case Dimension (WxHxD, mm) |
1536x1536x227 | 1536x1536x227 | 768x960x254 | 1536x960x215 |
| Weight per Unit Case / Square Meter (kg) |
104.0/44.1 | 104.0/44.1 | 40.0/54.3 | 71.0/48.1 |
| Service access | Front or Rear | Front or Rear | TOP | Front or Rear |
| Min. Brightness (After Calibration) |
6,000 | 6,000 | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 | 3500-8500 | 3500-8500 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/105 | 160/105 | 160/105 | 160/105 |
| Brightness Uniformity / Color Uniformity | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) |
620/1550 | 584/1460 | 184/460 | 372/930 |
| Power Consumption (W/m², Max.) |
657 | 619 | 624 | 631 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 | 4,000 | 4,000 |
| Lifetime (Half brightness)* |
100,000 | 100,000 | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90%RH | -20° to 50°/< 90%RH | -20° to 50°/< 90%RH | -20° to 50°/< 90%RH |
| IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
*The Lifetime(Half brightness) spec is subject to LED package spec.
