43" UHD TV Signage

(6)

UHD Commercial TV with Essential Smart Function

The UT640S Series is specifically designed for diverse business environments. By providing compatibility with AV Control systems and DPM (Display Power Management) as well as its smart connectivity, simple user friendly interface, and UHD picture quality.

SIMPLE CONTENT MANAGEMENT

Embedded Content & Group Management

The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control Signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management much easier and more user-friendly.

*This images are provided for illustrative purposes, and the actual GU may differ.
*All displays must be connected to the same network.

SIMPLE CONTENT MANAGEMENT

SuperSign Control

SuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.

SIMPLE CONTENT MANAGEMENT

USB Data Cloning

USB data cloning increases efficiency in managing multiple displays for optimal operation since users don't have to set up each display one by one. Once users copy data to a USB device in one display, it can be easily distributed to the other displays through a USB plug-in.

SIMPLE CONTENT MANAGEMENT

Real-Time Remote Monitoring

Malfunctions or errors can be easily handled through real-time remote care. When an error occurs, notifications can be sent through the SNMP (Simple Network Management Protocol) protocol.

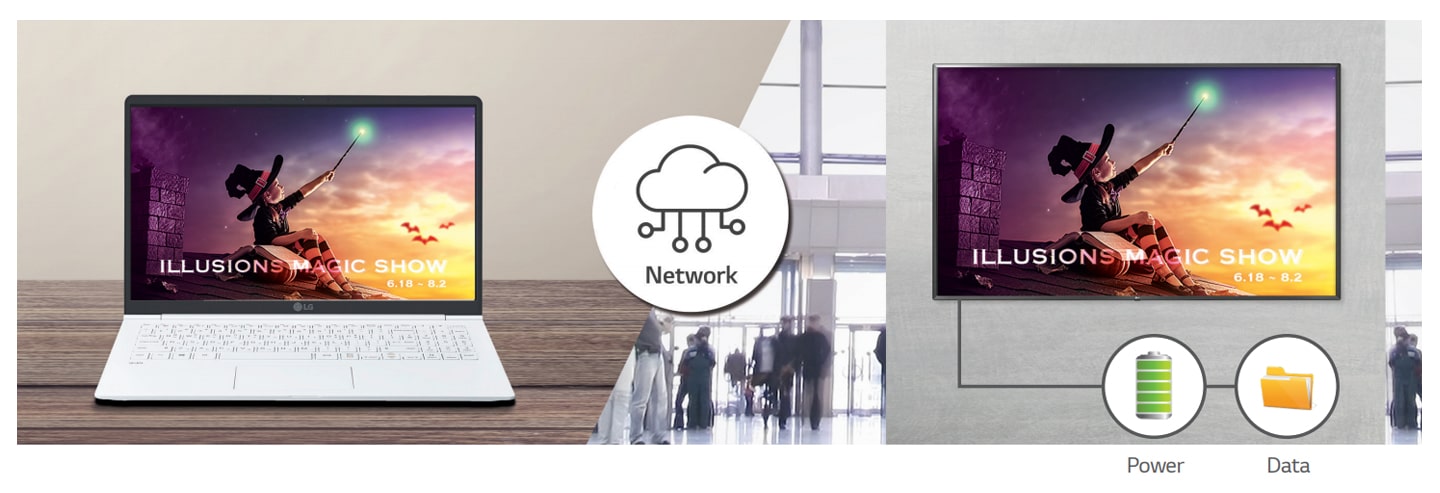

Power & Network with One Line

WOL (Wake-on-LAN) enables users to turn on displays by sending messages through the network. This greatly simplifi es the installation and maintenance processes since only a single wire is needed for power and network connection.

HIGHER VISIBILITY

True Color, Immersive View

The UT640S series is large in size to enhance the visibility of content and captivate viewers. The LG IPS panel provides a wide range of viewing angles so that content can be clearly seen, regardless of the viewer's position. Each pixel in the IPS panel reproduces true-to-life colors without distorting images.

HIGHER VISIBILITY

Perfect Picture Quality and Color

Enjoy Full HD content in 4K ULTRA HD quality, optimized by the 4K Upscaler. The 4K upscaler automatically upgrades Full HD content to ULTRA HD through several upscaling processes so that images look crisp and clear in any viewing situation.

BETTER USABILITY

Compatibility with AV Control Systems

The UT640S series has been certified Crestron Connected®, proving that it has a higher level of compatibility with professional AV controls. This results in seamless integration and automated control*, boosting business management efficiency.

*It is a network based control system. Available AV control systems may differ by regions.

BETTER USABILITY

DPM (Display Power Management)

From now on, you can configure the DPM (Display Power Management) function by setting it to On. When there is no signal, the TV enters DPM mode to manage power more efficiently.

All specs

INFO

Category: Smart TV Signage

POWER SPEC.

Power Supply (Voltage, Hz): AC 100~240V 50-60Hz

Power Consumption(Max): 123.7W

Power Consumption(Typ): 99.1W

Standby Power Consumption: Under 0.5W

ACCESSORIES

Power Cable: YES (1.5M, Angle Type)

Remote type: S-Con

BROADCASTING SYSTEM

Analog (NTSC / SECAM / PAL): -

Digital: DVB-T2/C

Teletext (Auto Teletext): YES

DESIGN

Stand Type: 2 Pole

Tool Name: UM73

Front Color: Ceramic Black

STANDARD

EMC: CE

Safety: CB, CU TR

Others: -

SUPERSIGN SW COMPATIBILITY

CMS(Premium): YES

Control / Control Plus: YES

LG Connected Care: -

Simple Editor: YES

VERTICAL FUNCTION (HOSPITAL)

Healthcare Headphone Mode: -

Pillow Speaker: -

Protection Cover (Glass): -

AUDIO (SOUND)

AI Acoustic Tuning: -

AI Sound: -

LG Sound Sync: YES

Speaker (Audio Output): 20W

MECHANICAL

Credenza/Security Screw Hole: -

Kensington Lock: YES

Lock Down Plate (for easy installing): -

VESA Compatible: 200 x 200 mm

DISPLAY

Brightness (Typ.): 300 nit

Resolution: 4K Ultra HD (3,840 x 2,160)

Size (Inch): 43

STANDARD (EU_NEW LABEL(`21.3~))

HDR Grade: -

HDR On mode: -

SDR Grade: -

SDR On mode: -

STANDARD (EU_OLD LABEL(~`21.3))

Average Annual Consumption(kWh): -

ErP Class: -

Luminance Ratio (%): -

On Power Consumption: -

DIMENSIONS/WEIGHT

Bezel Width (L/R/U/B, Off Bezel): 14.0/14.0/14.0/20.2 mm

Bezel Width (L/R/U/B, On Bezel): 15.5/15.5/15.5/21.7 mm

Dimension in Shipping (W x H x D): 1060 x 660 x 152 mm

Dimension without Stand (W x H x D): 973 x 572 x 85.0 mm

Dimension with Stand (W x H x D): 973 x 623 x 216 mm

Weight in Shipping: 10.2 kg

Weight without Stand: 8.0 kg

Weight with Stand: 8.1 kg

SMART FUNCTION

Wi-Fi: -

Bluetooth: YES

Screen Share: YES

AOD: -

Bluetooth Audio Playback: YES

DIAL: YES

Gallery Mode: -

HDMI-ARC: -

Home Office: -

IoT: -

Magic Remote Compatibility: -

Mood Display: -

Multi-View: -

Soft AP: YES

Voice Recognition (Standalone/Solution): -

webOS version: webOS 4.5

Web Browser: YES

HOSPITALITY FEATURE

IR Out: YES (RS-232C, HDMI)

SNMP: YES

b-LAN: -

Conformal Coating: -

Diagnostics: YES (Self Diagnostics(USB))

Energy Saving mode: YES

Enterprise Mode: -

External Power Out: -

External Speaker Out / Line Out: YES (Ext. Speaker Out)

EzManager: -

Full Touch Screen: -

Hotel Mode / PDM / Installer Menu: YES

HTNG-CEC (Version): -

Insert Image: YES

Instant ON: -

Lock mode: YES (Limited)

Mobile Remote: -

Multi IR Code: YES

One Channel Map: YES

Port Block: -

RJP (Remote Jack Pack) Compatibility: YES

Simplink(HDMI-CEC) (Version): YES (1.4)

USB Auto playback / playback+: -

USB Cloning: YES

V-Lan Tag: -

Wake on RF: -

Welcome Screen (Splash Image): YES

Welcome Video: -

WOL: YES

HOSPITALITY SOLUTION

Other DRM: -

Pro:Centric Cloud: -

Pro:Centric Direct: -

Pro:Centric Server: -

Pro:Centric Smart: -

Pro:Centric V: -

Pro:Idiom (DRM): -

Pro:Idiom Media (DRM): -

Quick Menu (Customizable Portal): -

webRTC (Real Time Communication): -

CONNECTIVITIES

Audio Line Out(3.5mm Phone jack): -

AV In: -

CI Slot: YES

Component in (Y,Pb,Pr-Video): -

DC Adapter In: -

Digital Audio Out (Optical): YES

ECI (RJ12 jack): -

Expansion slot (60pin): -

External Speaker Out(3.5mm Phone jack): YES

EXT. IR In: -

HDMI In: YES (3ea)

Headphone Out: -

LG SVC only (Phone jack type): YES

MPI Port (RJ12 jack): -

PC Audio Input: -

Pillow Speaker interface (6pin): -

PoC (Power over Coax): -

RF In: YES (1ea)

RGB In (D-sub 15pin) - PC: -

RJ45 (Usage Purpose): YES (Ethernet)

RS-232C (D-Sub 9pin / Phone jack): YES (D-Sub 9pin)

TV link Configuration (Phone jack type): -

USB (Ver.): YES (1ea / 2.0)

VERTICAL FUNCTION (CORPORATE/RETAIL)

BEACON: YES

Fail Over: -

Play Via URL: -

Video Tag: -

CISCO Certi. Compatibility: -

Crestron Certi. Compatibility: YES

DPM (Digital Power Management): YES

Embedded CM (Contents Manager): YES

Embedded GM (Group Manager): YES

NTP Server Setting: -

NTP sync timer: YES

Promota / Mobile CMS: -

RTC (Real Time Clock): YES

Time scheduler: YES

Vertical Setup: -

VIDEO

Game Optimizer: -

AI Picture Pro: -

HDR_HDR 10 Pro: YES

HDR_HLG (Hybrid Log Gamma): YES
