* All images in this page are for illustrative purposes only and may differ from the actual product.
A NATURAL BLEND WITH SPACE
* The examined brightness may differ from testing environments including a photometer.

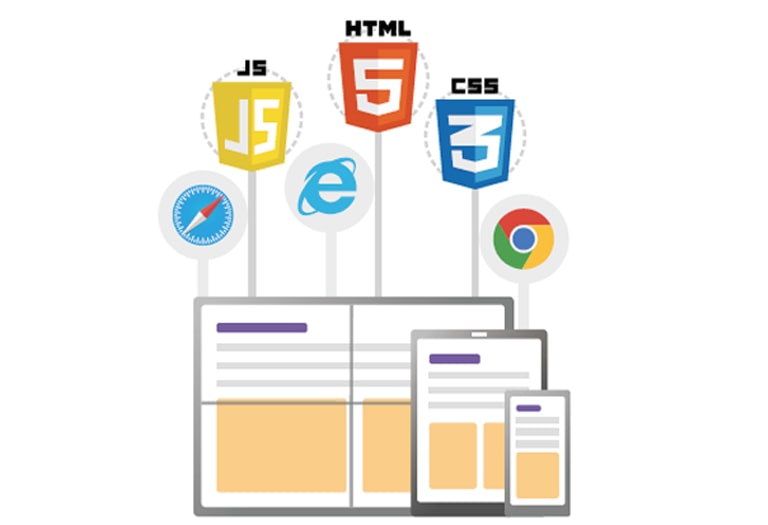

* webOS API will be provided to authorized SIs and developers.
SMART LED SIGNAGE
* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

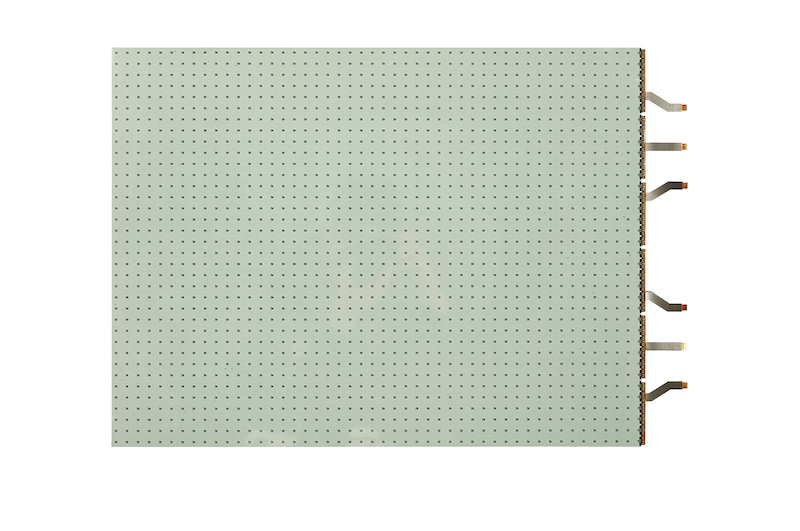

Pixel Pitch(mm)
13.7±0.2 mm
LED Type
R, G, B 3in1 Color Package (SMD2020)
Resolution
48 x 36
Pixels per Panel
1,728
Pixel Density (point/㎡)
5,102
Brightness (cd/㎡)
Typ.2,100nit
Contrast Ratio
≥ 100,000:1
Luminance Uniformity
≥ 70%
Viewing Angle (H x V)
120 x 120
Life Time (Duration of Half Brightness in Hours)
50,000 Hrs
Daily Usage
24h / 7days
Warranty
2 years
Transparency
Typ 53%
Operating Temperature
0℃ ~ 45℃ (Indoor Glass Installation Only)
Curved Installation
2,000 R (Concave, Convex with Glass Only)

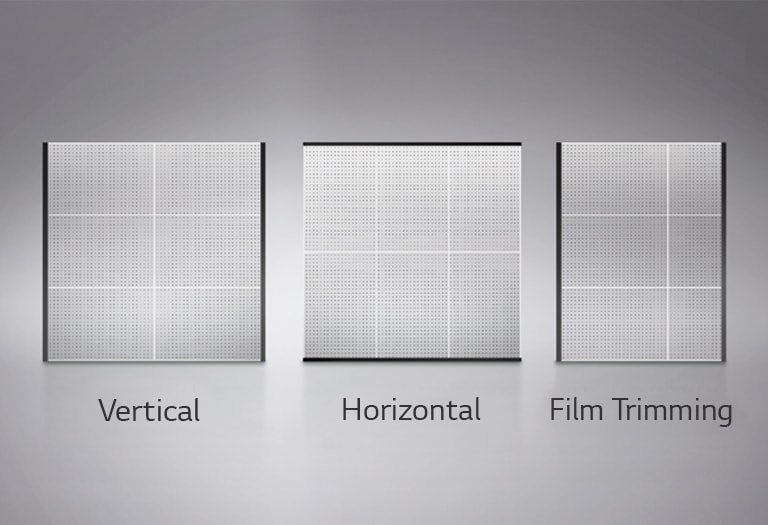

Film Trimming
Yes (Parallel to the Bezel Side Only)
Color Processing
(9bit) 500/500/500 Level (R, G, B)
Colors
125,000,000 Colors
Color Chromaticity
Cx: 0.25±0.03, Cy : 0.34±0.03
Dimension (W x H x D)
655 x 492 x 2.9mm
(with front & back protection film)
Weight
1kg
Power Consumption
37W (Transparent panel 1EA + Common Bezel kit 2EA)
Accessory
ESG, Regulation book, Warranty Card

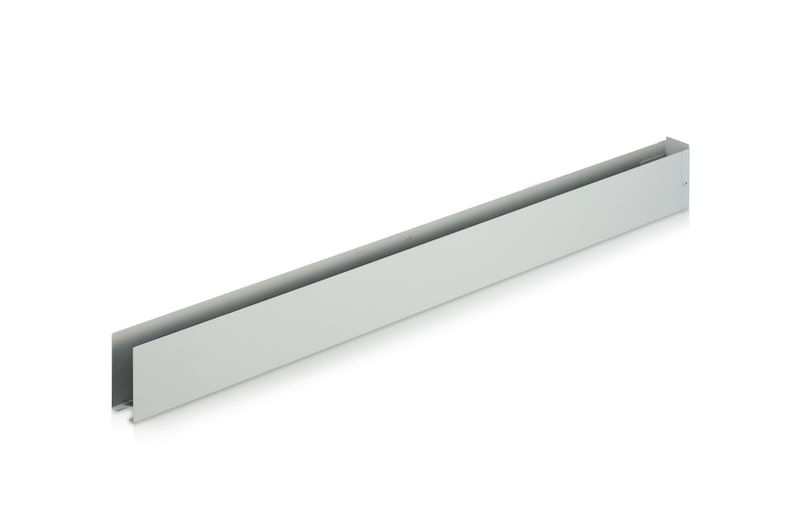

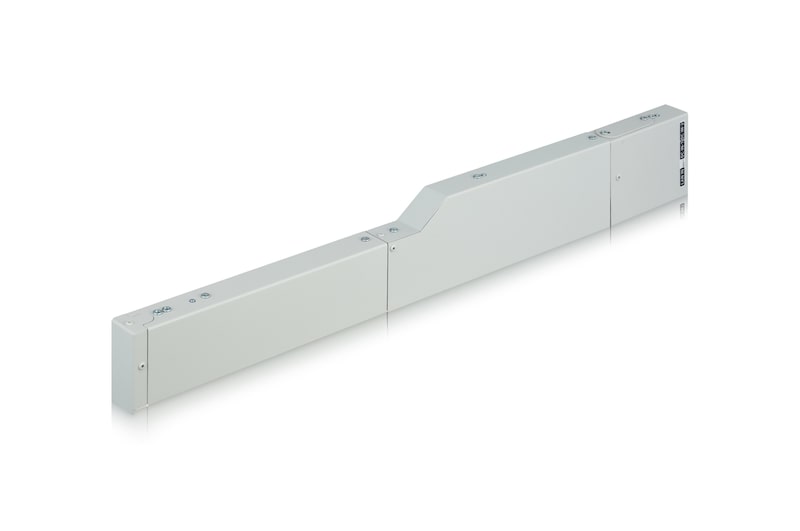

Dimension (W x H x D)
69.4 x 492 x 25mm (Cover)
Weight
0.4Kg
Dimension (W x H x D)
51.4 x 492 x 25mm (Cover)
Weight
0.3Kg
Resolution
960x540 (1/4 FHD)
Interface
Input : LVDS
Output : RJ45 x4EA
Maximum Transmission Length
100m (Cable types: CAT5E, CAT6)
Dimension (W x H x D)
293 x 188.7 x 37mm
Weight
1.5Kg
Temperature Sensor
Yes
Power Consumption
20 W
Video (Max. Input Resolution)
DP : 1920x1080@60Hz
HDMI : 1920x1080@60Hz
DVI-D : 1920x1080@60Hz
Interface (Input)
HDMI, DP, DVI-D, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (Phone Jacke Type), USB 3.0
Interface (Output)
DP, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), LVDS
Dimension (W x H x D mm)
293 x193.3 x 40.1mm
Weight (Head, Kg)
1.6kg
Temperature Sensor
Yes
Light Sensor
Yes
Source Selection
HDMI, DVI-D, DP
TPC (Temporal Peak luminance Control)
Yes
Motion Eye Care
Yes
Power Consumption
17W
CMS S/W
Yes (2.9)
Signage365care
Yes (2.7)
Accessory
Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card
Video
HDMI : 1920x1080@60Hz
Input
HDMI, RS232C (Phone Jack Type),
RJ45, IR Receiver, USB 3.0
Output
RS232C (Phone Jack Type), RJ45 (2)
Dimension (W × H × D)
333 x 186.8 x 40.1mm
Weight (Head)
1.82 kg
Temperature Sensor / Light Sensor
Yes / Yes
TPC(Temporal Peak Luminance Control)
Yes
Power Consumption
30 W
CMS S/W
SuperSign CMS
Accessory
Power cord, IR+Bright Sensor (1.5m),
4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card
Dimension (W x H x D)
183 × 86 × 28 mm
Weight
769g
Input
100~240V, 50~60Hz
Output
19.5V/10.8A (210W)
Color
White
DC Output Cable
14AWG, 1.5m
Type
L Type
