KEY FEATURES

  • Brightness(Typ.): 400 cd/m² (APL 25%)

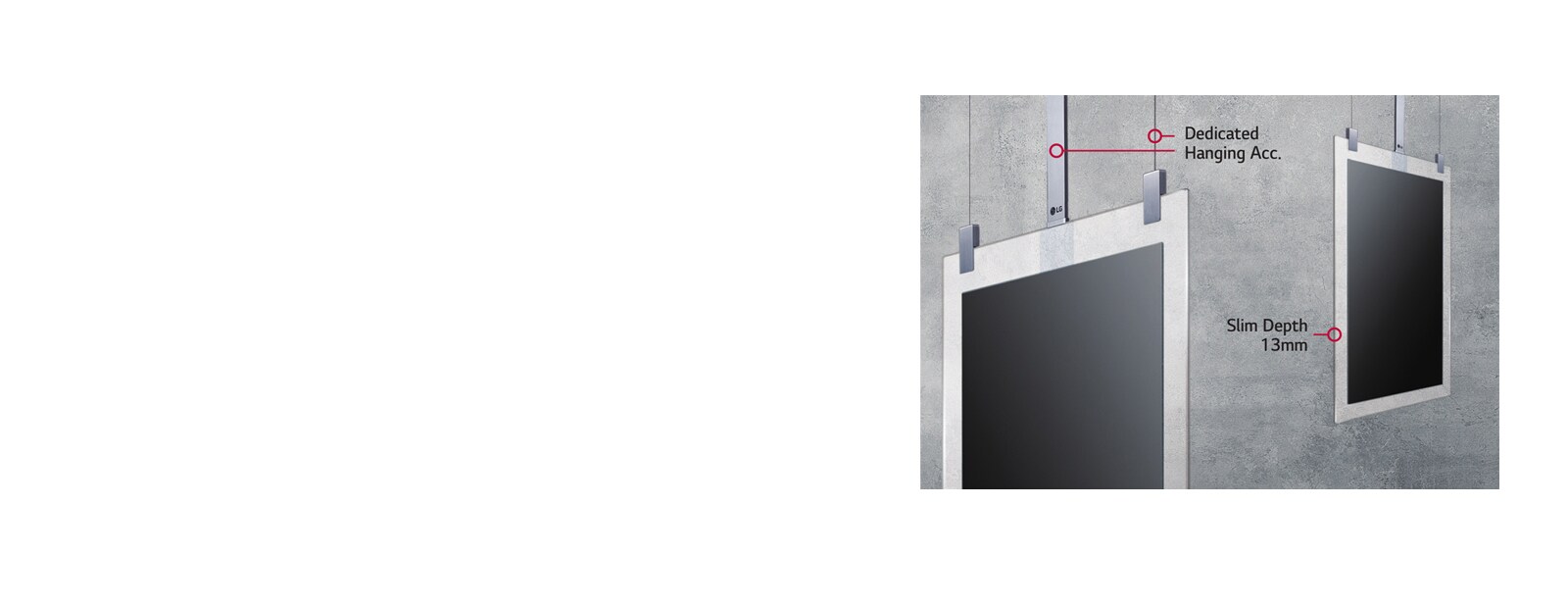

  • Depth: 13 mm (Head)
  • Interface: HDMI/ DP/ USB(2)/ RS232C/ RJ45/ Audio / IR

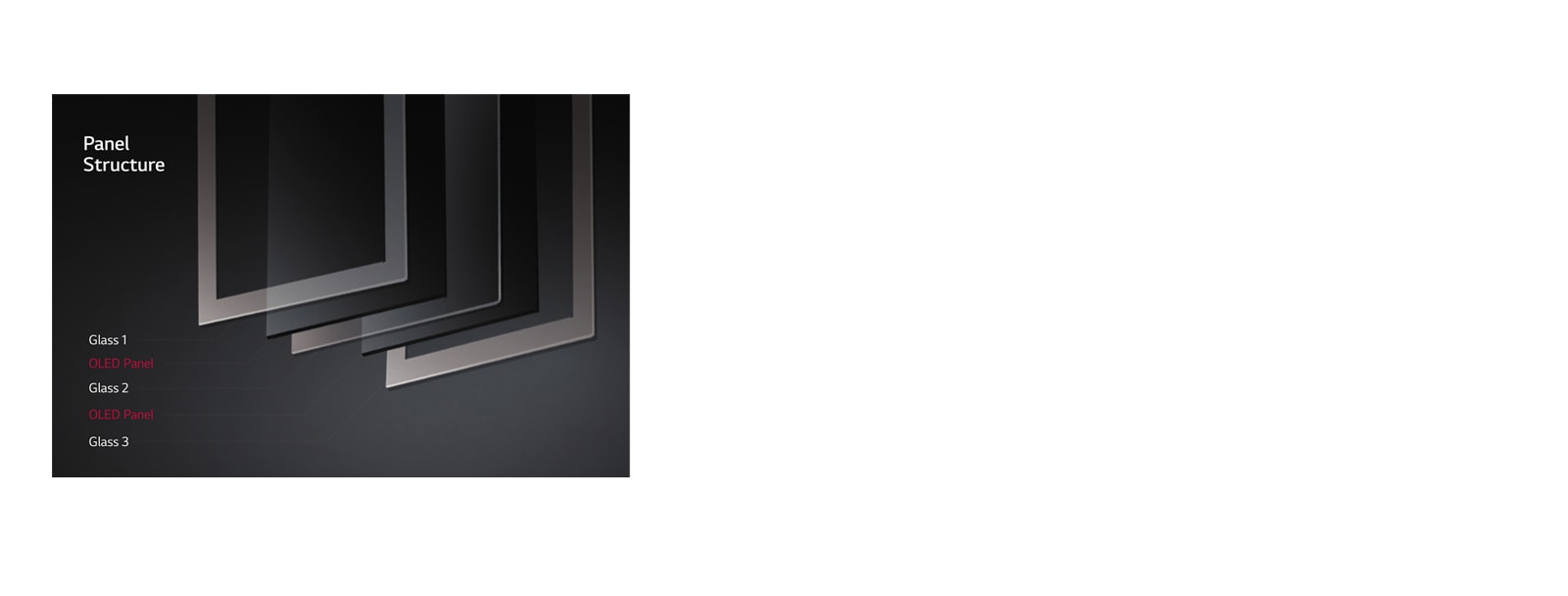

  • Wallpaper OLED in glass design

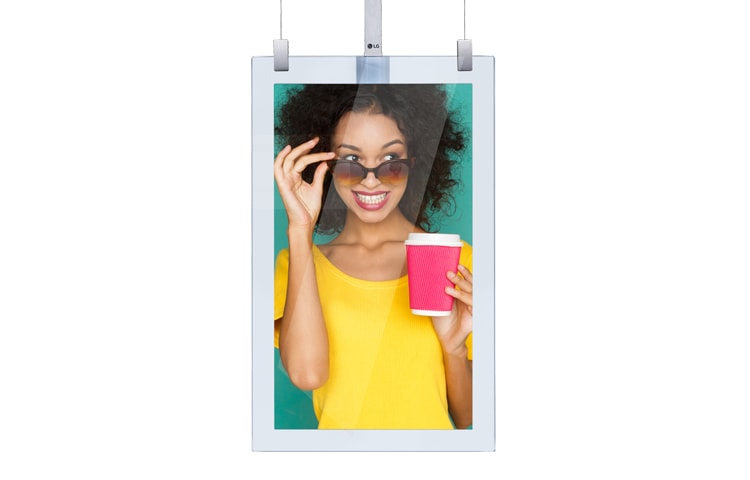

55" 55EG5CE Hanging In-glass Double-sided OLED Display

PANEL

    • Screen Size
    • 55"
    • Panel Technology
    • OLED
    • Response Time
    • 1 ms (G to G), 8 ms (MPRT)
    • Brightness
    • 400/150 cd/m2 (Average Picture Level 25%/100%)
    • Aspect Ratio
    • 16 : 9
    • Native Resolution
    • 1,920 x 1,080 (FHD)
    • Viewing Angle (H x V)
    • 178 x 178
    • Orientation
    • Landscape & Portrait
    • Lifetime (Typ.)
    • 30,000 hrs
    • Operation Hours
    • 18 Hrs / 7 days * Moving Video Only

CONNECTIVITY

    • Input
    • HDMI, DP, USB (2)
    • Output
    • DP, Audio
    • External Control
    • RS232C In/Out, RJ45 (LAN) In/Out, IR In

PHYSICAL SPECIFICATIONS

    • Bezel Color
    • Black
    • Bezel Width
    • 4.1" x 3.3" x 3.3" x 3.3" | 104.4 / 83.7 / 83.7 / 84.4 mm (T/B/L/R) * Off-bezel, w/ Glass 4.3" x 3.4" x 3.8" x 3.5" | 108.3 / 87.6 / 93.3 / 88.3 mm (T/B/L/R) * On-bezel, w/ Glass 0.13" x 0.13" x 0.13" x 0.3" | 3.5 / 3.5 / 3.5 / 6.9 mm (T/B/L/R) * On-bezel, w/o Glass
    • Dimensions (Carton) (W x H x D)
    • 74" x 40" x 14.3" (Pallet : 70.9" x 40" x 4.7") 1,880 x 1,015 x 363 mm (Pallet : 1,800 x 363 x 120 mm)
    • Weight
    • (Head) 62.8 lbs, 28.5 kg (Signage Box) 7.7 lbs, 3.5 kg
    • Dimensions (Monitor) (W x H x D)
    • 33.9" x 55.4" x 0.5" | (Head) 861.3 x 1,406.2 x 13 mm * w/o Hanging Acc. 165.3" x 13.9" x 2.3" | (Signage Box) 413 x 353 x 57.3 mm
    • Packed Weight
    • 141.1 klbs, 64.0 kg (incl. Glass Module 1ea, Signage Box 2ea)

SPECIAL FEATURES

    • Yes
    • Internal Memory (64GB), Temperature Sensor, Embedded CMS, Fail Over, Content Sync., OSD Rotation, Lock Mode, Content Rotation, Gapless Playback, Tile Mode Setting, Setting Data Cloning, Firmware Update by Network, SNMP, ISM Mode, Control Manager, Crestron Connected1, DPM, PM Mode, Wake on LAN, HDMI-CEC2, SI Server Setting

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • 32°F to 104°F / 0°C to 40°C
    • Operation Humidity
    • 10 % to 80 %

POWER

    • Power Supply
    • 100–240V~, 50/60Hz
    • Power Type
    • Built-In Power
    • Power Consumption (Typ)
    • 309 W *8 color bar
    • Power Consumption (Max)
    • 318 W *8 color bar

STANDARD CERTIFICATION

    • Safety
    • IEC 60950-1 / EN 60950-1 / UL 60950-1
    • EMC
    • FCC Class "A" / CE / KC
    • ErP / Energy Star
    • Yes/No

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attachable
    • Yes
    • OPS Type Compatible
    • No

SOFTWARE COMPATIBILITY

    • Content Management Software
    • SuperSign CMS
    • Control and Monitoring Software
    • SuperSign Control/Control+

ACCESSORIES

    • Basic
    • Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)

OTHER

    • Warranty
    • 3-Year Limited Warranty
    • UPC
    • 7 19192 62952 3

Brochures

CAD

Case Study

Specification Sheet

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
