55LW540S

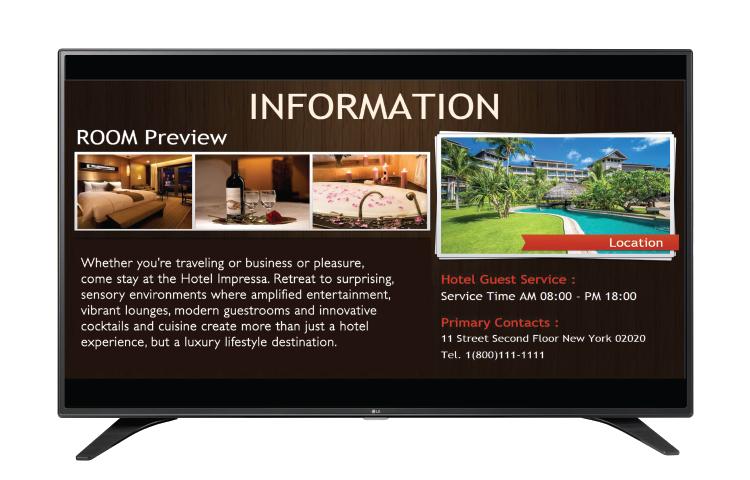

55” (54.9” Diagonal) Direct LED SuperSign Commercial TV Signage

55” (54.9” Diagonal) Direct LED SuperSign Commercial TV Signage

DISPLAY

    • Screen Size
    • 43"/ 49"/ 55"
    • Type
    • Direct LED
    • Resolution
    • 1,920 x 1,080 (FHD)
    • Brightness
    • 300cd/m2

BROADCASTING SYSTEM

    • Analog
    • NTSC
    • Digital
    • ATSC / VSB / Clear QAM

AUDIO

    • Audio Output
    • 10W + 10W

GENERAL FEATURES

    • Management
    • Self Diagnostics
    • Interactivity
    • HTNG / HDMI-CEC
    • RJP Interface
    • RS-232C, HDMI
    • RJP Compatibility
    • Teleadapt (RS-232C), Teleadapt / Guestlink (HDMI CEC)
    • USB Media
    • Moving Picture Playback (DivX HD), Picture (JPEG), Audio Codec (MP3, AC3, MPEG, AAC, HEAAC, CDDA, LPCM)
    • Advanced Setting Option
    • Auto Off / Auto Sleep, Motion Eye Care
    • Smart Energy Saving
    • Yes
    • Anti-theft System
    • Kensington Lock

CABINET

    • Bezel Width (L/R, U, B) : on bezel based (mm)
    • 12.9, 12.9, 15.9
    • Bezel Width (L/R, U, B) : off bezel based (mm)
    • 10.4, 10.4, 13.4
    • Vesa (mm)
    • 300 x 300
    • WxHxD / weight (w/o stand)
    • 48.9" x 28.4" x 1.6" (SPK2.5") / 35.9lb
    • WxHxD / weight (with stand)
    • 48.9" x 30.5" x 8.5" / 35.6lb
    • WxHxD / weight (carton)
    • 53.5" x 32.9" x 6.0" / 47.0lb

COMMERCIAL FEATURES

    • Yes
    • Welcome Screen (Splash Image), Lock Mode, Multi-IR Code, Public Display Mode, USB Cloning, IR Out, USB Auto Playback+, External Speaker Out, SNMP, RTC (Real Time Clock), Internal Memory, Wi-Fi Dongle Ready, NTP (Network Time Protocol)

INTERFACE

    • Side
    • HDMI In, USB 2.0 (2)
    • Rear
    • RF In, AV In (Sharing with Component In), Component In, Optical Audio Out, RGB In, PC Audio Input (Sharing with Component In), RS-232C, HDMI In, LAN Port, External Speaker Out

VIDEO

    • Resolution
    • 1920 x 1080 (FHD)
    • Triple XD Engine
    • Yes
    • Dynamic Color Enhancer
    • Yes
    • Aspect Ratio
    • 6 modes (16:9, Just Scan, Set by Program, 4:3, Zoom, Cinema Zoom1)
    • Clear Voice
    • Yes

ACCESSORY

    • Yes
    • L-Con, Power Cable, Simple Manual

POWER

    • Voltage, Hz
    • 100 ~ 240V, 50/60Hz
    • Typical (Watts)
    • 54.6
    • Stand-by (Watts)
    • 0.5

SOFTWARE COMPATIBILITY

    • Yes
    • SuperSign Lite, SuperSign C, SuperSign Simple Editor

WARRANTY

    • Warranty
    • 2-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

UPC

    • Yes
    • 719192200241

CAD

Specification Sheet
