KEY FEATURES

  • Slimmer Bezel
  • Detachable Logo
  • Cable Management
  • USB Content Scheduling
  • Conformal Coating

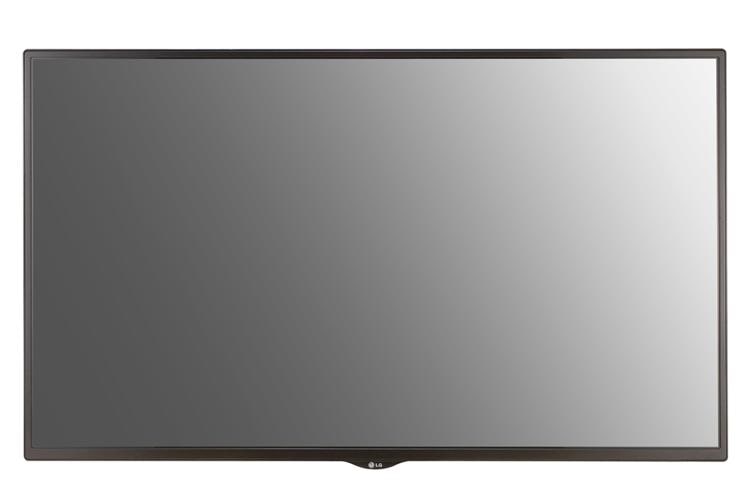

32” Standard Commercial Display

PANEL

    • Screen Size
    • 32"
    • Panel Technology
    • IPS (PD)
    • Contrast Ratio
    • 1,000:1
    • Response Time
    • 10 ms (G to G BW), 7.1 ms (WOT)
    • Dynamic Contrast Ratio
    • 500,000:1
    • Brightness
    • 350cd/m2
    • Aspect Ratio
    • 16 : 9
    • Native Resolution
    • 1,920 x 1,080 (FHD)
    • Viewing Angle (H x V)
    • 178°/178°
    • Surface Treatment
    • Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1% (Typ.))
    • Guaranteed Operating Hour
    • 18 Hours
    • Orientation
    • Landscape & Portrait

CONNECTIVITY

    • Input
    • HDMI (2), DVI, RGB, Audio, USB
    • Output
    • Audio
    • External Control
    • RS232C (In/Out), RJ45, IR Receiver

PHYSICAL SPECIFICATIONS

    • Bezel Color
    • Black
    • Bezel Width
    • 13 mm (T/R/L), 18 mm (B)
    • Monitor Dimension (W x H x D)
    • 28.7" x 16.9" x 2.2"
    • Weight (Head)
    • 11.9 lbs
    • Monitor w/opt. Stand Dimensions (W x H x D)
    • 28.7" x 18.9" x 6.1"
    • Weight (Head + Stand)
    • 13.7 lbs
    • Carton Dimensions (W x H x D)
    • 31.9" x 20.1" x 5.2"
    • Packed Weight
    • 14.8 lbs
    • VESA TM Standard Mount Interface
    • 200mm x 200mm

SPECIAL FEATURES

    • Yes
    • USB Content Scheduling, Conformal Coating, SNMP Support, Wi-Fi Ready (Dongle), Power Management Modes (Sustain Aspect Ratio / Stand-by Screen, etc.), No Signal Image setting, Enhanced ISM (Image Sticking Minimization) Mode, Holiday Schedule / Local Time Auto Setting, Fail-over (USB, RGB, DVI, HDMI), Wake on LAN

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • 0°C to 40°C / 32°F to 104°F
    • Operating Humidity Range
    • 10 % to 80 %

POWER

    • Power Supply
    • 100-240 V~, 50/60 Hz
    • Power Type
    • Built-In Power
    • Power Consumption (Smart Energy Saving)
    • 35 W
    • Power Consumption-Typ
    • 50 W

STANDARD CERTIFICATIONS

    • Safety
    • UL / cUL / CB / TUV / KC
    • EMC
    • FCC Class "A" / CE / KCC

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attatchable
    • No

SOFTWARE COMPATIBILITY

    • Content Management Software
    • SuperSign W
    • Control and Monitoring Software
    • SuperSign C

ACCESSORIES

    • Basic
    • Remote Controller (2 batteries included), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender
    • Optional
    • Stand (ST-322T)
