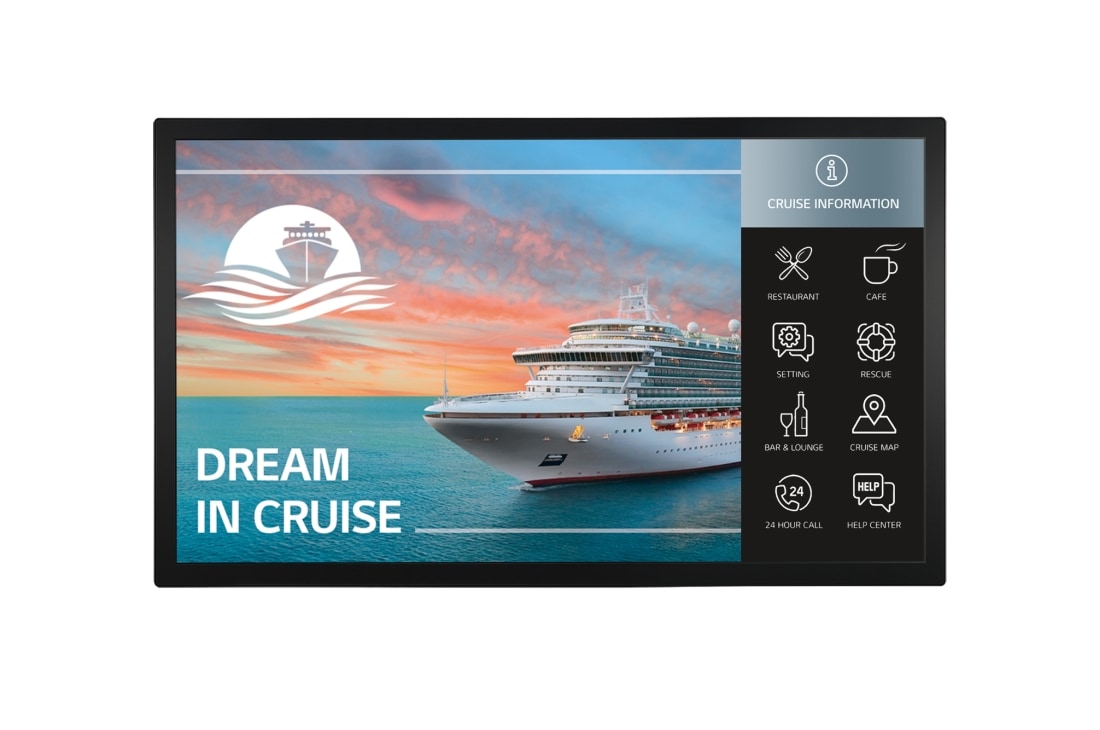

55TC3CD-B
Built-in Touch Display
  • Brightness(Typ.): 500 cd/m²
  • Touch Type: P-Cap(Ag Metal Mesh)
  • Touch Point: Max. 40 points
  • Interface: HDMI (2)/ DP/ DVI-D/ USB/ Touch USB/ SD Card/ RS232C/ RJ45/ Audio/ External Speaker(L/R)/ IR & Light / Pixel Sensor
Built-in Touch Display
$
*Additional sofeware is required for touch performance.
*Additional sofeware is required for touch performance.
*The above image is for illustration-purposes only.
*CMS: Content Management System
**The above image is for illustration-purpises only,
All devices must be connected to the same network.

PANEL

  • Screen Size
    55"
    Native Resolution
    3,840 x 2,160 (UHD)
  • Brightness (Module, Typ., cd/m²) w/o Protection Glass
    500

CONNECTIVITY

  • Input
    HDMI (2), DP, DVI-D, Audio, USB 3.0, USB 2.0 (Type A for Wi-Fi Dongle), SD Card
    Output
    DP, Audio, External Speaker (L/R 6ohm), Touch USB 2.0
  • External Control
    RS232C In/Out, RJ45 In, IR Receiver In, Pixel Sensor In

PHYSICAL SPECIFICATION

  • Bezel Width
    32.95/ 36.55/ 32.4/ 32.4 mm(T/B/R/L)
    Dimensions (Monitor) (W x H x D)
    1,276.4 x 751.9 x 63.9mm
  • Weight (Head)
    29.1 kg
    Dimensions (Carton) (W x H x D)
    1,406 x 203 x 807 mm
  • Weight (Packed)
    34.9kg
    VESA™ Standard Mount Interface
    300 x 300mm

ENVIRONMENTAL CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER CONSUMPTION

  • Typ./Max.
    140 W/ 116 W
    Smart Energy Saving
    80 W

STANDARD CERTIFICATION

  • Safety
    UL/ cUL
    EMC
    FCC Class "A"
  • ErP / Energy Star
    N/A / Yes (Energy Star 7.0)

SOFTWARE COMPATIBILITY

  • Control and Monitoring Software
    SuperSign CMS
    Content Management Software
    SuperSign C* * Software compatibility may chnage over time. Please contact LG sales representative for details.

ACCESSORY

  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable(2M), Regulation Book, Phone to RS232C Gender, IR Dongle, Touch USB Cable
    Optional
    Speaker (SP-5200), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit(KT-OPSA), Wi-Fi Dongle(AN-WF500)

TOUCH

  • Touch Type
    P-Cap
    Available object size for touch
    Ø6 mm†
  • Accuracy
    2 mm + 0.2 mm
    Interface
    USB 2.0
  • Protection Glass Thickness
    3.2T (Anti-Glare)
    Multi touch point
    Max. 40 Points
