PANEL
-
- Panel Technology
- IPS
- Aspect Ratio
- 16 : 9
-

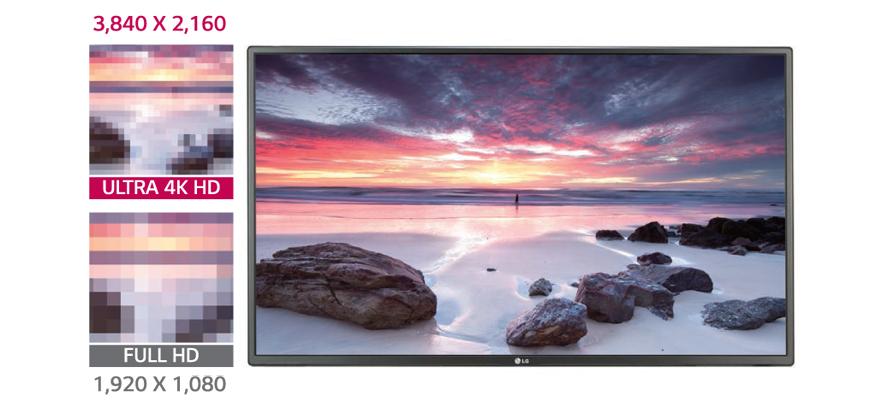

- Native Resolution
- 3,840 x 2,160 (UHD)
- Brightness
- 500 cd/m^2
-
- Dynamic CR
- 500,000:1
- Viewing Angle (H x V)
- 178 x 178
-
- Surface Treatment
- Anti-reflection Treatment of the Front Polarizer (Reflectance < 2%)
- Orientation
- Portrait & Landscape
-

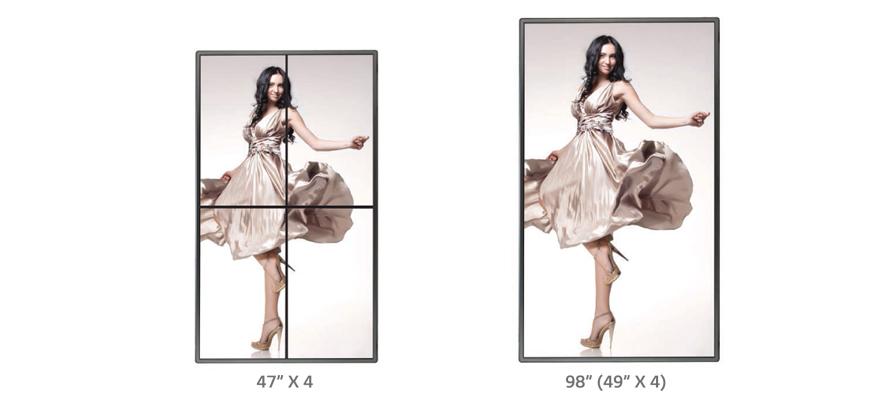

- Panel Size
- 98" class (97.52" measured diagonal)
- Pixels (H x V x 3)
- 24,883,200
-
- Response Time
- 8ms (G to G) typ
- Contrast Ratio (Typ.)
- 1,200:1
-
- Color Depth
- 1.06B
CONNECTIVITY (INPUT)
-
- External Control
- RS232C(1), RJ45(1), IR / Light sensor(1)
- Digital
- HDMI(2), DP(1), DVI-D(1)
-
- Audio
- DVI-D, Component
- USB
- Yes(3) USB 3.0 : 1EA USB 2.0 : 2EA
-
- HDTV Formats
- HDMI, Display Port : 720p, 1,080i, 1,080p, 2,160p (HDMI_1 : Up to 60Hz, Other : Up to 30Hz), DVI : 720p, 1,080i, 1,080p
CONNECTIVITY (OUTPUT)
-
- External Control
- RS232C(1)
- Digital
- DP(1)
-
- Audio
- SPDIF(1)
CABINET DIMENSIONS
-
- Monitor Dimension (WxHxD)
- 86.3” x 49.1” x 2.7”
- Color
- Black
-
- Bezel Width
- Even bezel: 14.9mm
- Weight(Head)
- 194.0 Ibs
-
- Packed Weight
- 271.2 Ibs
- VESA™ Mount
- 800mm x 400 mm
-
- Carton Dimensions (W x H x D)
- 92.2” x 54.6” x 15.8”
SPECIAL FEATURES
-
- Temperature Sensor
- Yes
- Auto Brightness Sensor
- Yes
-
- Source Selection
- DVI-D, HDMI, Display Port, USB
- Brightness / Contrast / Backlight
- Yes
-
- Position / Size
- Yes
- Auto Config / Phase
- Yes
-
- Advanced
- Dynamic Contrast, Dynamic Color, Clear White, Skin Color, Noise Reduction, Digital Noise Reduction, Gamma, Black Level
- Time
- Clock, On/Off Time, Sleep Timer, Power on Delay, Auto Off, Automatic Standby
-
- Information
- Model / Type, Software Version, Serial Number, IP Address, Temperature, Power On/Off History, Homepage
- Input Label
- Yes (PC / DTV)
-
- Auto Power / Source Memory
- Yes
- File Play with USB
- Yes
-
- Internal Memory
- 8GB (System 4GB + Available 4GB)
- Wi-Fi
- Dongle Ready
-

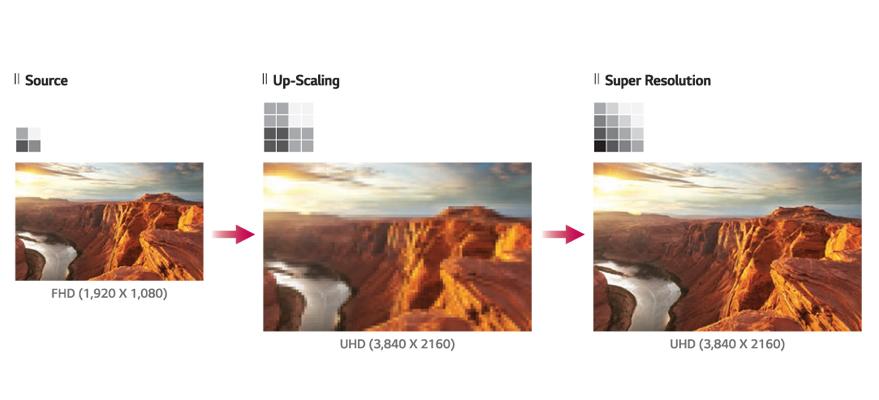

- 4K Up Scaling
- Yes
- Key Lock
- Yes
-
- DPM Select
- Yes
ENVIRONMENT CONDITIONS
-
- Operation Temperature
- 0 °C to 40 °C
- Operation Humidity
- 10 % to 80 %
POWER
-
- Power Supply
- 100-240V~, 50/60Hz
- Power Type
- Built-In Power
-
- Power Consumption-Typ
- 400W
- Power Consumption-DPM Off
- 2W(RGB)/4W(HDMI/DVI)
-
- Power Consumption-Switch Off
- 2W (DVI-D, HDMI, DP)
AUDIO
-
- Balance
- Yes
- Audio Power
- 20W (10W x 2) for External Speaker
-
- Sound Mode
- Standard, News, Music, Cinema, Sport, Game
- Clear Voice II
- Yes
STANDARD CERTIFICATIONS
-
- Safety
- UL / cUL / CB / TUV / KC
- EMC
- FCC Class "A" / CE / KCC
WARRANTY
-
- Warranty
- 3-Year Limited Warranty (Parts/Labor/Backlight)
UPC
-
- 98LS95A-5B
- 7 19192 19486 1
MEDIA PLAYER COMPATIBILITY
-
- External Media Player Attatchable
- Yes (MP500/MP700)
ACCESSORIES
-
- Accessories
- Remote Controller(include battery 2ea), Power Cord, IR / Light sensor receiver, CD (Owner’s Manual, SuperSign Program / Manual), HDMI 2.0 Cable, DP cable, Phone jack to BNC cable, RS-232C, Wi-Fi Dongle, EYE-bolt
- Optional Accessory
- SP-2200 (External Speaker)
SOFTWARE COMPATIBILITY
-
- SuperSign-w lite / Super Sign-c
- Yes/ Yes (SuperSign software is available from http://www.lg.com/us/commercial/led-backlit-monitors)
