KEY FEATURES

  • Pro:Centric® Smart IPTV Platform
  • Embedded Pro:Idiom® decryption for non-Pro:Idiom TV's
  • IP Streaming and RF Tuning
  • HD Channel Support (up to 1080p)
  • Pro:Centric Application Support for non-Pro:Centric TVs
Pro:Centric® SMART Set Top Box

GENERAL SPECIFICATION

    • Dimensions
    • 8.7” x 1.1” x 6.9”
    • Weight (w/o package)
    • 1.1 lbs
    • Weight (with package)
    • 3.1 lbs

POWER

    • Voltage, Hz
    • 100V - 240V, 50/ 60 Hz
    • Typical (Watts)
    • 15W
    • Stand-by
    • 0.3W↓

REQUIRED LISTING (CERTIFICATION)

    • Safety
    • UL
    • EMC
    • FCC
    • ETC
    • RoHS, cUL, NOM, Energy Star 4.1

BROADCASTING SYSTEM

    • Analog
    • Yes, NTSC
    • Digital
    • Yes, ATSC, Clear QAM / VSB

VIDEO

    • Triple XD Engine
    • Yes
    • Output Resolution
    • 720p/1080p/1366 x 768

AUDIO

    • Optical Sound Sync
    • YES (SPDIF)

SPECIAL FEATURES

    • Pro:Centric Smart
    • Yes
    • Hybrid Streaming (IP & RF) ※ MultiCast/HTTP Data Carousel
    • Yes
    • Pro:Centric Application
    • Yes
    • RF (1/2Tuner)
    • 1 Tuner
    • HCAP (GEM/FLASH/HTML) ※Service Carousel (TLX)
    • Yes
    • Auto Configuration
    • Yes (EZ-Manager)
    • Remote Diagnosis
    • Yes (IP)
    • Multicast/ Unicast ready
    • Yes
    • IP Streaming
    • Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (※IGMPv3 SSM Support)
    • Application (P:C Smart)
    • Yes (Commercial CP/Apps)
    • DLNA(Movie/Photo/Music)
    • Yes (Smart Share)
    • Miracast (Mobile to TV)
    • Yes
    • WiDi
    • Yes
    • WiFi Direct
    • Yes
    • Pro:Idiom
    • Yes
    • SI Compatible
    • YES (MPI protocol/TVLink Tuner Protocol)
    • Wi-Fi
    • Yes (Built-in type)
    • Hotel Mode/ PDM /Installer Menu
    • Yes (Installer Menu)
    • IR Out
    • Yes (MPIJack/RS232)
    • IR In
    • Yes (Display Control 1 & 2, External IR Receiver)
    • BT (Blue Tooth)
    • Yes (Built-in)
    • Audio Line Out
    • Yes (3.5mm, Stereo, Single Ended (GND, L+,R+)
    • USB
    • USB 2.0
    • Picture
    • JPEG
    • Audio Codec
    • AC3 (Dolby Digital), EAC3, AAC, MPEG, MP3, PCM
    • SAP (Soft Access Point)
    • Yes (Built-in)
    • USB Cloning
    • Yes
    • Logical Channel Map
    • Yes
    • Multi IR Code
    • Yes
    • Auto Off /Auto Sleep
    • Yes
    • Video Mute
    • Yes
    • Smart Energy Saving (Auto Power Off)
    • Yes

INTERFACE (FRONT)

    • Display Control 2 (RJ-12)
    • Yes
    • MPI
    • Yes
    • HDMI (1,2)
    • Yes
    • USB (1,2)
    • Yes

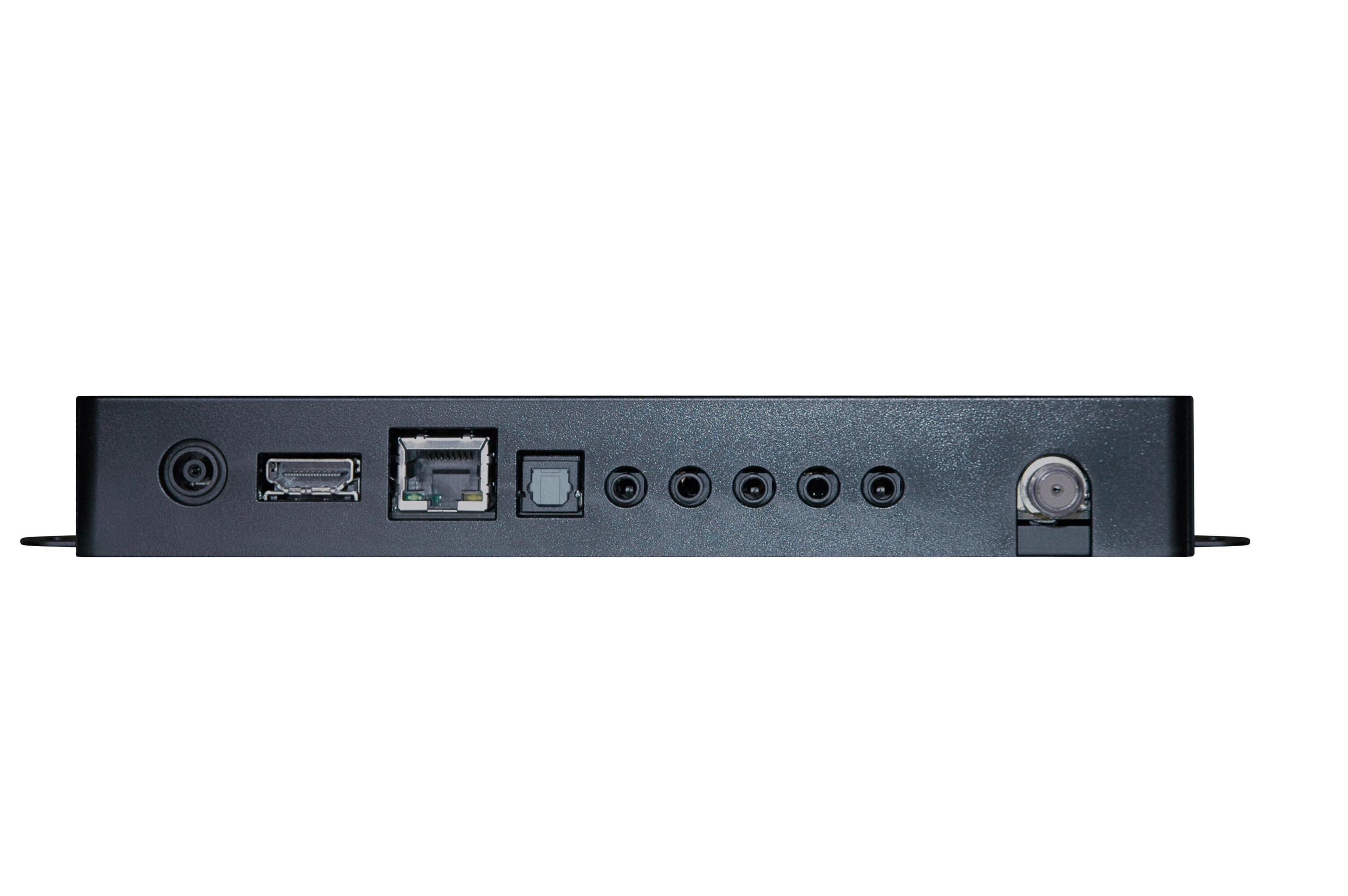

INTERFACE (REAR)

    • Power
    • Yes
    • Tuner
    • Yes
    • Display Control 1(4 Pin 3.5mm Jack)
    • Yes
    • External IR (3Pin 3.5mm Jack)
    • Yes
    • Service (3 Pin 3.5mm Jack)
    • Yes
    • AV In (4 Pin 3.5mm Jack)
    • Yes
    • Digital Audio Out (Optical)
    • Yes
    • LAN Port
    • Yes
    • HDMI Out
    • Yes

ACCESSORIES

    • Adapter
    • Yes
    • Cable
    • HDMI, MPI, RS232, AV gender
    • Manual/ESG
    • Simple book

Specification Sheet
