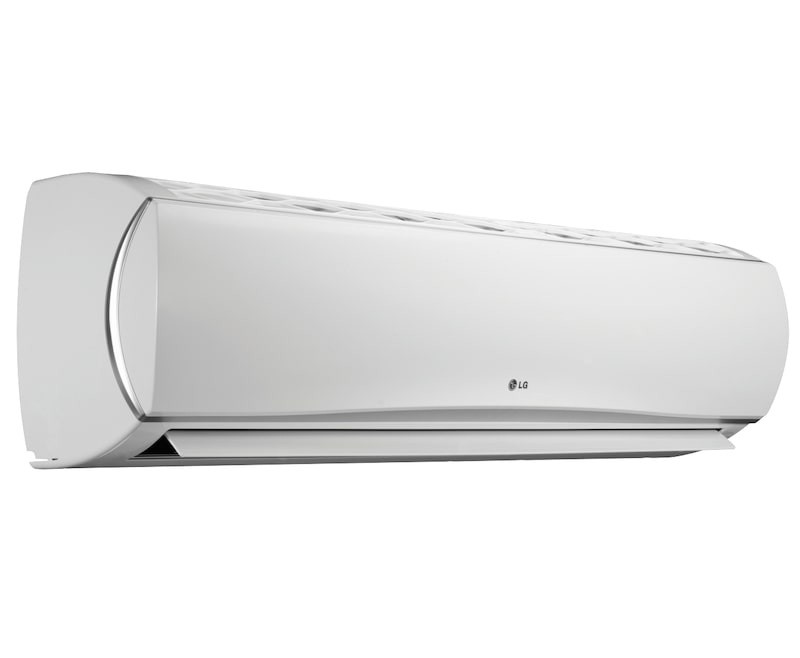

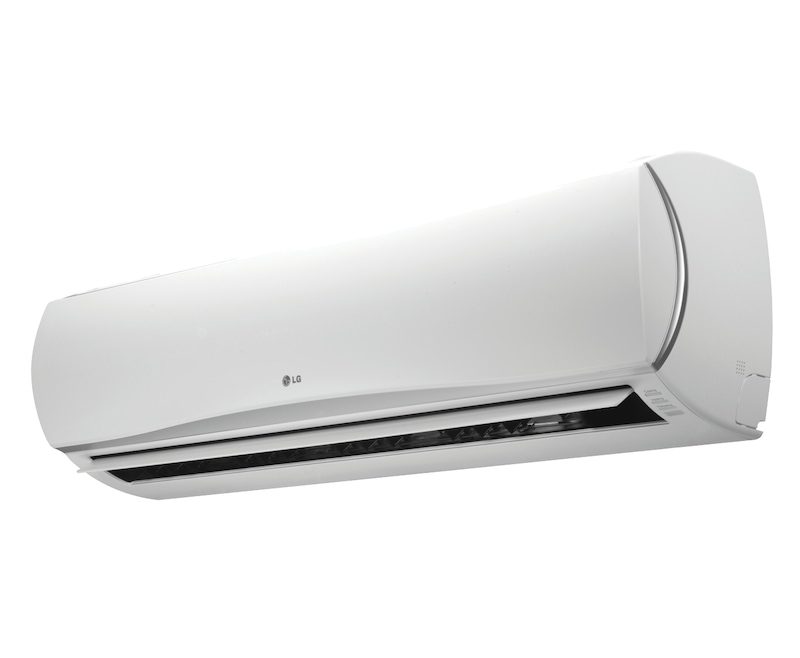

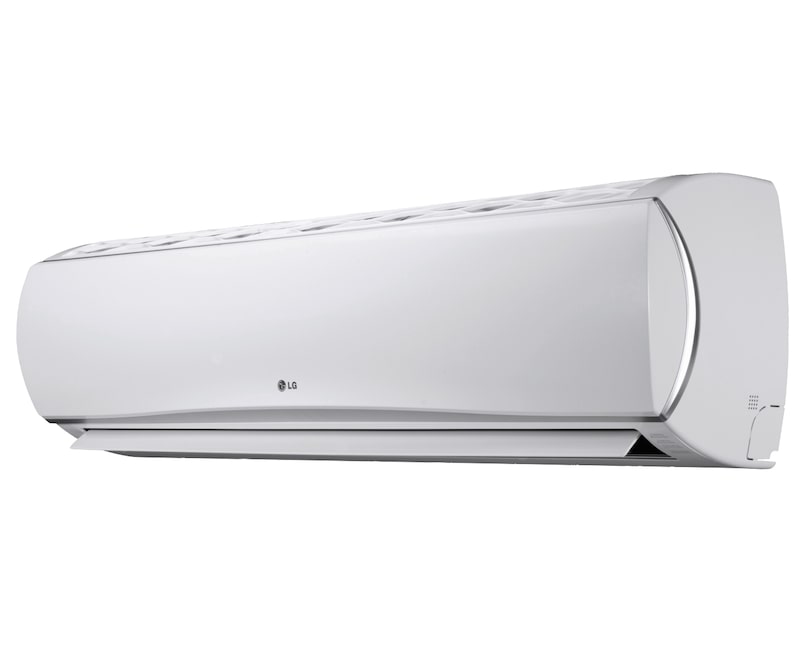

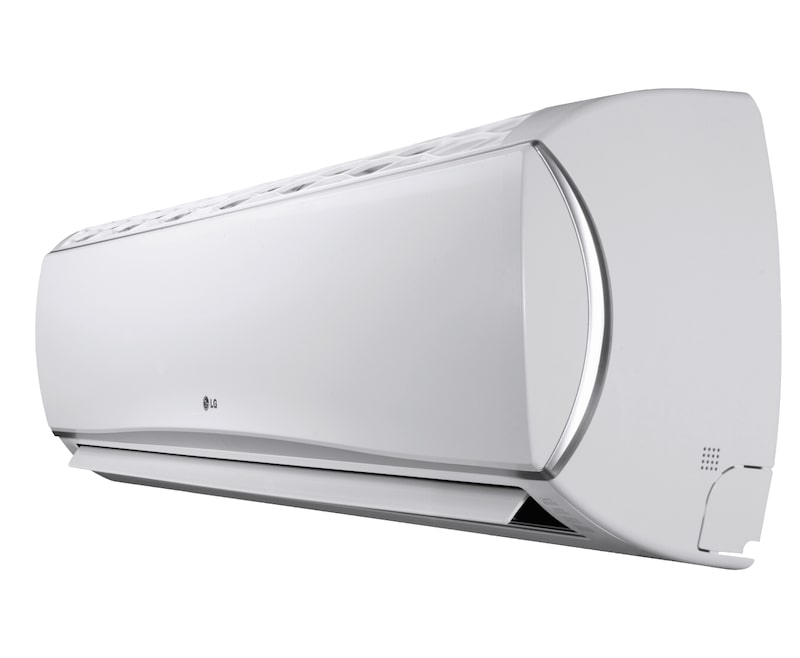

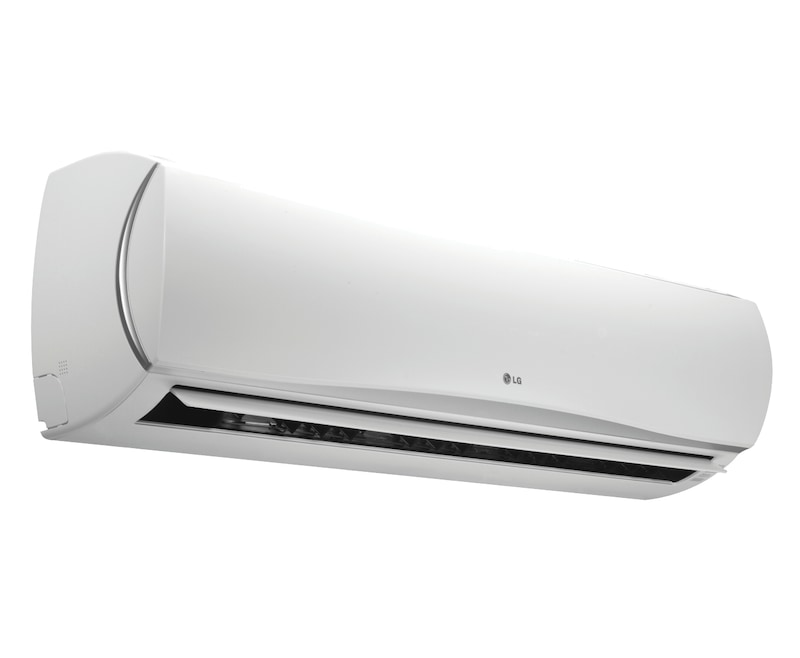

INVERTER SERIES ECONO – COOLING (9.0KW) AND HEATING

  • E32AWN-13

Key Features

  • ACTIVE ENERGY CONTROL
  • DUAL FILTRATION SYSTEM
  • SLEEP MODE SOUND LEVEL
  • WIRELESS REMOTE CONTROL

ACTIVE ENERGY CONTROL

Active Energy Control allows the user to adjust the energy levels to improve cooling efficiency and reduce power consumption.

ACTIVE ENERGY CONTROL

LOW STANDBY POWER

The Low Standby Power mode operates three minutes after the air conditioner is turned off via the remote control. Power is only fed to the indoor unit so that the remote control remains active during standby, thus keeping the standby power to a minimum.

LOW STANDBY POWER

DUAL FILTRATION SYSTEM

The first medium coarse filter captures dust size over 3µm. The second filter captures microscopic particles down to 0.3µm in size.

DUAL FILTRATION SYSTEM

AUTO CLEANING

A main cause of air conditioner odours is mould and bacteria that breed in the heat exchanger. The Auto Clean function dries the wet heat exchanger to help prevent mould and bacteria from breeding thus significantly reducing the mildew odours and saves you from frequent cleaning.

AUTO CLEANING

SLEEP MODE SOUND LEVEL

The low noise level in sleep mode creates a quieter sleeping environment.
E09 & E12 models achieve 19db, a noise level which is lower than that of a library.

SLEEP MODE SOUND LEVEL

OUTDOOR QUIET MODE

Lowers sound level of outdoor unit by up to 3dB. Also reduces the sound level of indoor unit.

OUTDOOR QUIET MODE

OPTIMISED 4-WAY AIRFLOW

4-way swing disperses cool air quickly and effectively in multiple directions.

OPTIMISED 4-WAY AIRFLOW
PERFORMANCE
Cooling Capacity (Rating) 9.00 kW
Heating Capacity (Rating) 10.00 kW
Power Input Cooling: 2,900W, Heating: 3,220W
Rated Running Current Cooling: 12.8A, Heating: 14.2A
Maximum Running Current Cooling: 14.5A, Heating: 16A
AEER Cooling 3.1 (3.92) W/W
ACOP Heating 3.1 (3.92) W/W
Air Flow Rate (Indoor, Max) 466 l/sec
Indoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S) 49 / 40
Outdoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S) 52
Moisture Removal (l/h) 3
Sleep Mode Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/L) 37
FEATURES
Auto Cleaning Yes
Auto Changeover Yes
Jet Cool / Jet Heat Yes
Auto Swing Yes (4-way)
Wireless Remote Control Yes (Luminous)
Sleep Mode Yes
Dehumidification Mode Yes
24-hour On / Off Timer Yes
Natural Wind by CHAOS Swing Yes
OPTIONAL ACCESSORIES
Wired Remote Controller Yes
Dry Contact Yes
TECHNICAL
Refrigerant Charge (R410A) at 7.5m 2200 g
Pipe Run (Min / Max) (max elevation 10m) 2.3 m / 30 m
Circuit Breaker Size 240 Volt 25 Amps
Additional Refrigerant (g/meter) 35
Demand Response Enabling Device (DRED) Yes
Operating Range (Outdoor) Cooling -10 ~ 48°C, Heating -15 ~ 24°C
Outdoor Sound Power Level² (SWL) 66 dB(A) (Sound Power Level specification is measured in a reverberation test room according to ISO 3741)
Service Valve (Ø) Liquid mm 9.52 (3/8), Gas mm 15.88 (5/8)
ENERGY CONSUMPTION
Energy Rating (Heating) 1.5 Stars
Energy Rating (Cooling) 1.5 Stars
WARRANTY
Warranty Details Please see http://www.lg.com/au/support/warranty/ac-air-conditioners
DIMENSIONS
Indoor Product (W x H x D) 1190mm x 346mm x 265mm
Outdoor Product (W x H x D) 870mm 800mm 320mm
Weight (Indoor / Outdoor) 18.5kg / 56kg
