LG LED Bloc

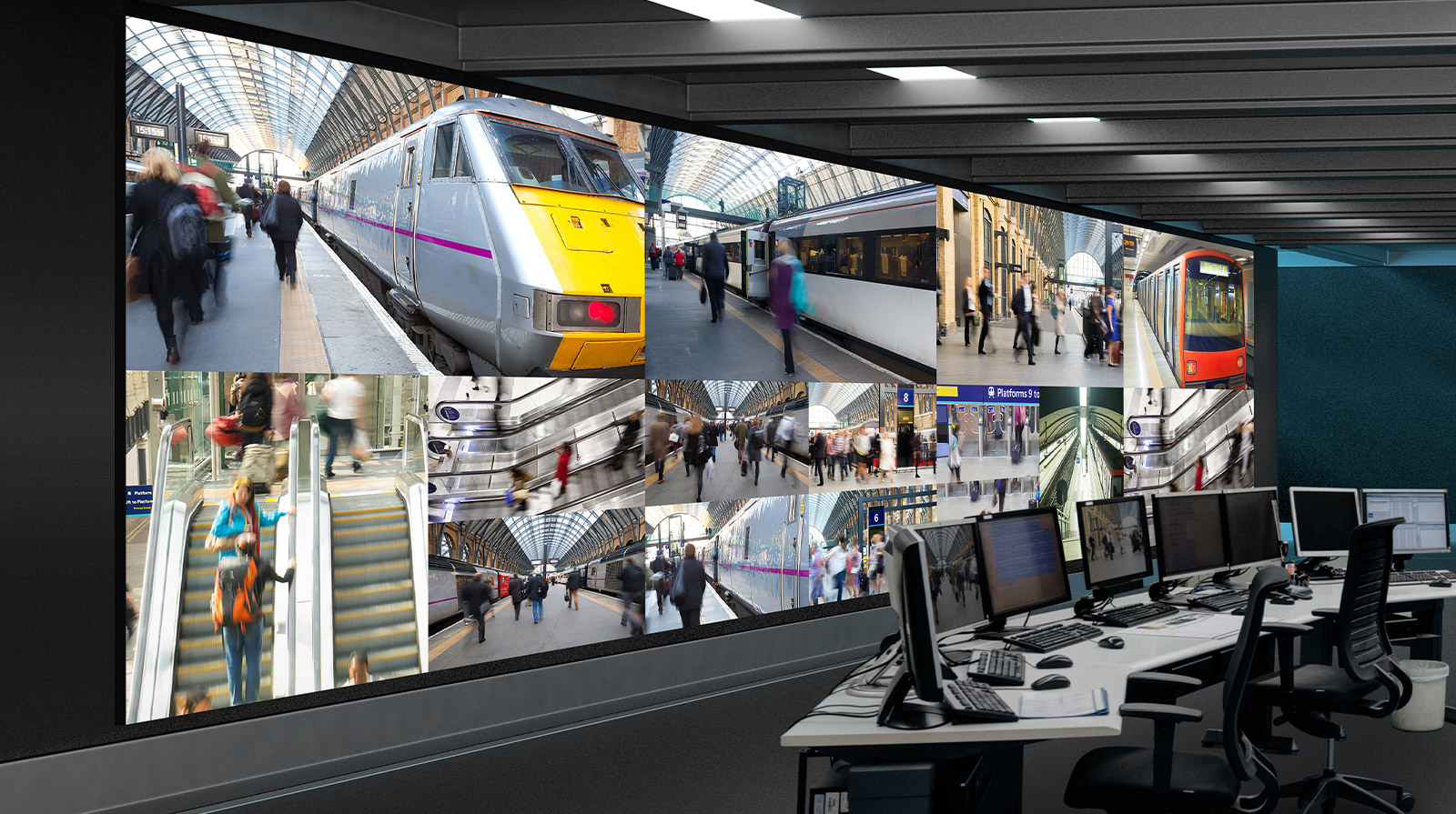

54” LED Video Wall Display

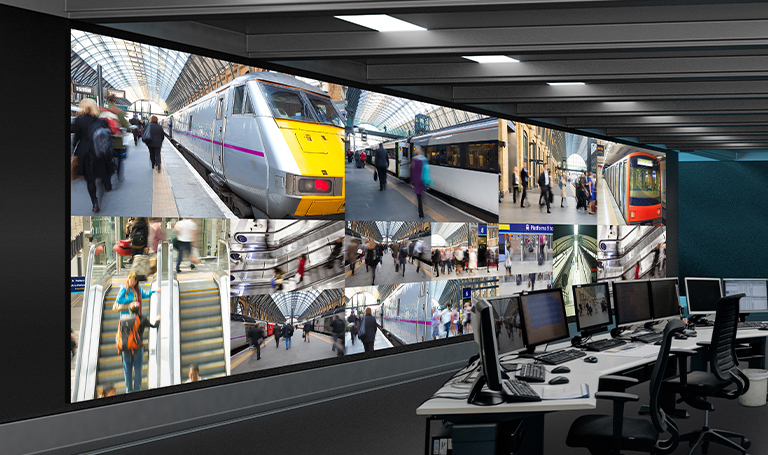

The CCTV security operation room is monitoring the on-site situation with a large LED video wall. The CCTV security operation room is monitoring the on-site situation with a large LED video wall.
*All images in this web page are for illustrative purposes only.

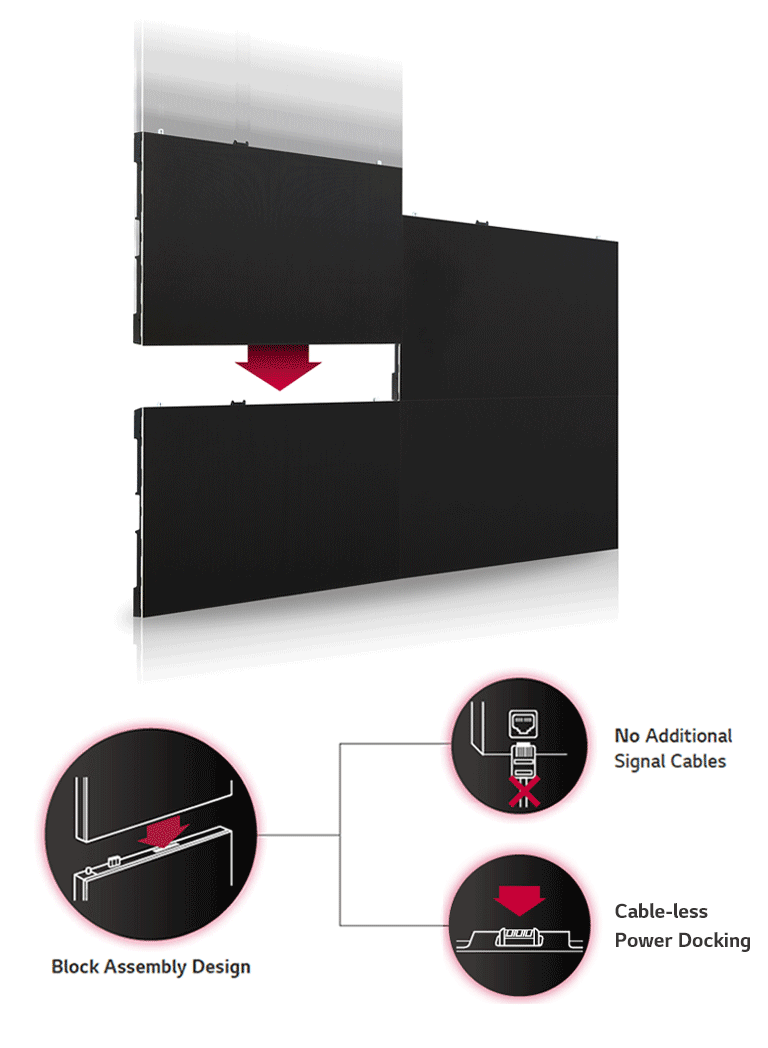

Cable-less Signal Transmission & Power Docking

The LSAC series is the innovative LED signage applying the cableless transmission technology with non connectors*. For up to UHD resolution with the 16:9 ratio, it does not require a cable connection between the cabinets to supply signal & power. Its block assembly design makes the LSAC series easier to be installed than before.

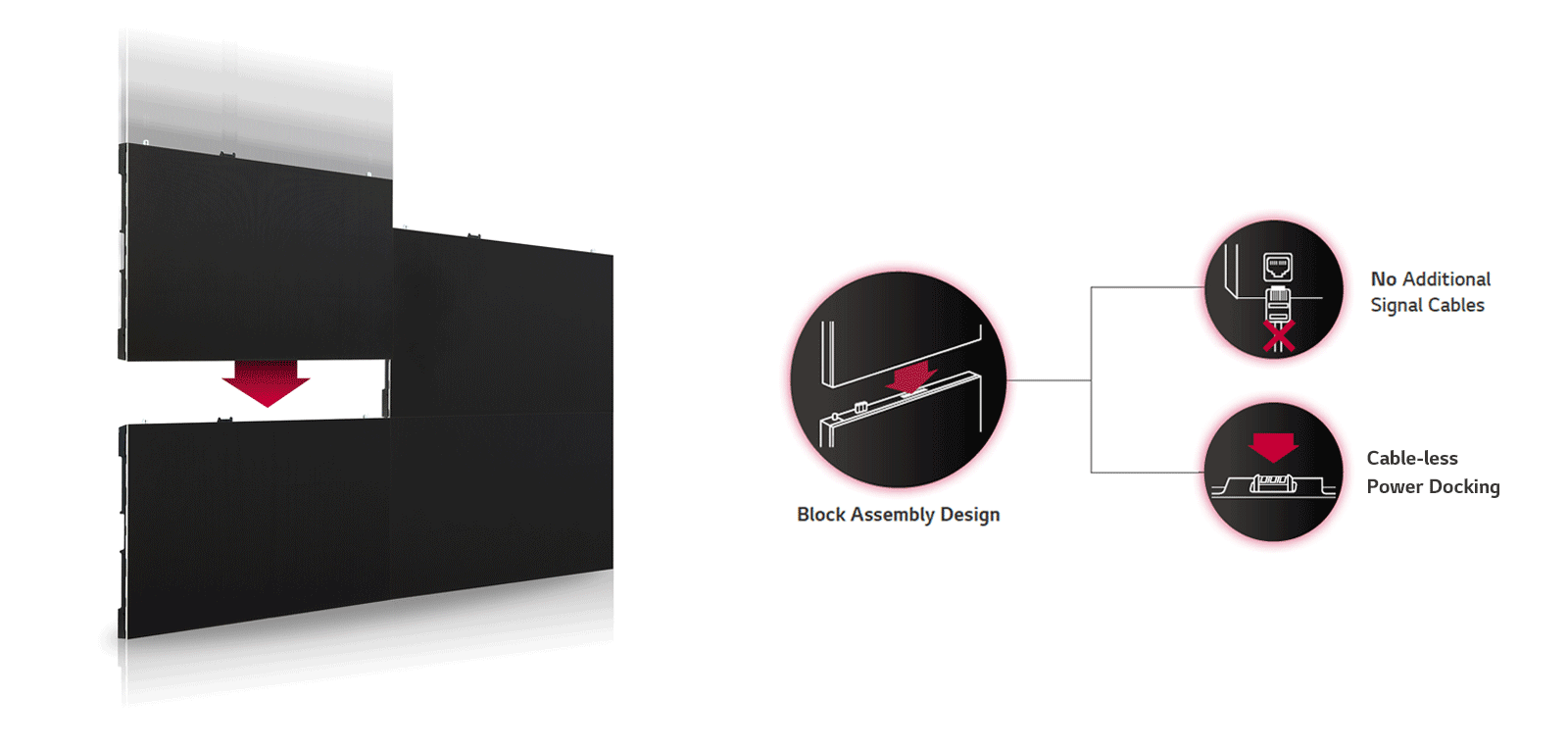

Unlike an LCD video wall, the LSAC series can perform signal transmission & power docking with a cable-less design. Unlike an LCD video wall, the LSAC series can perform signal transmission & power docking with a cable-less design.
*Non Connectors: Connectors that use RF (Radio Frequency) to transmit and receive data between two devices.

Easy Replacement and Undemanding Maintenance

Upgrade your existing 55-inch LCD video wall to the latest technology and LED display without having to secure additional space.

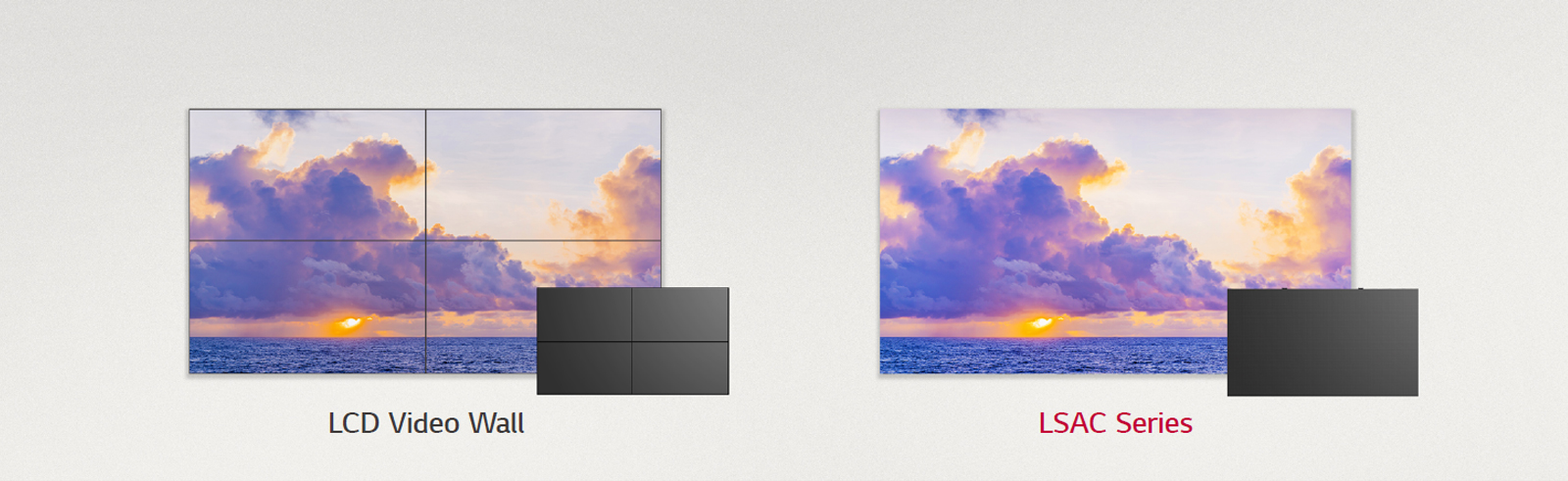

Without the need for a separate installation space, the LSAC series can replace an existing LCD video wall. Without the need for a separate installation space, the LSAC series can replace an existing LCD video wall.
*The product can be installed using VESA wall-mount (600×400) and screws.
*The VESA wall-mount or any other wall-mounts are sold separately.
*HDR10 Pro is LG's own HDR solution for processing HDR signal by using enhanced dynamic tone mapping.

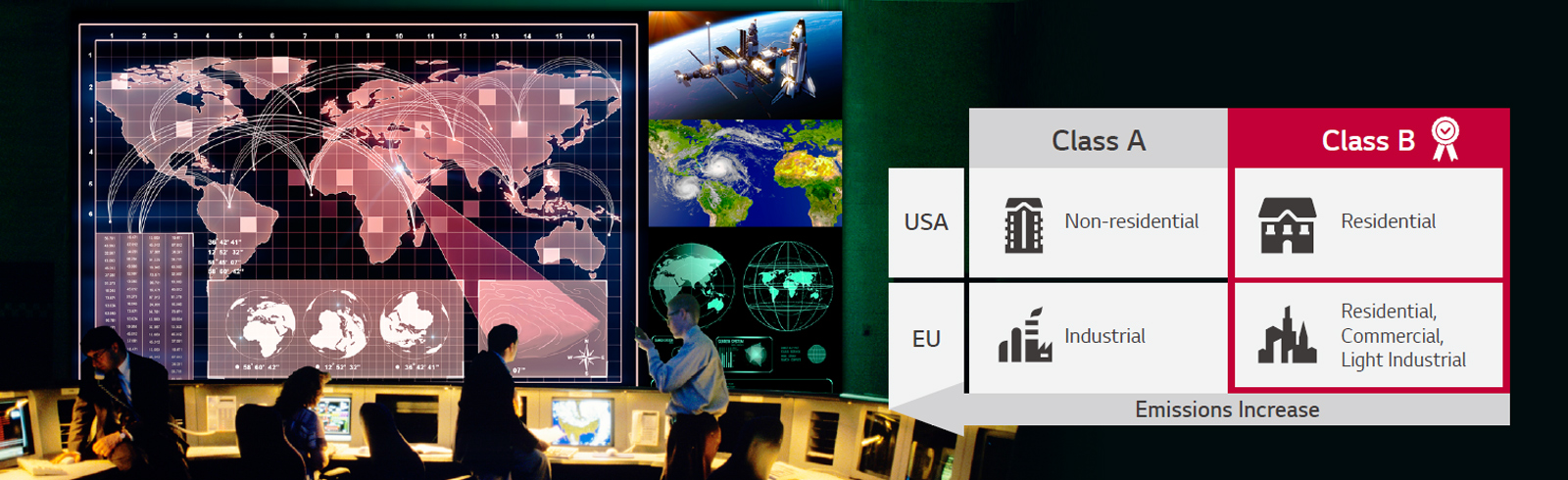

EMC Class B Certified

The LSAC series is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

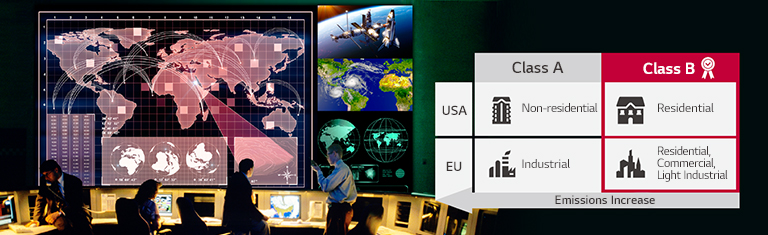

The LSAC series, certified with EMC class B, is installed on the control room wall. The LSAC series, certified with EMC class B, is installed on the control room wall.

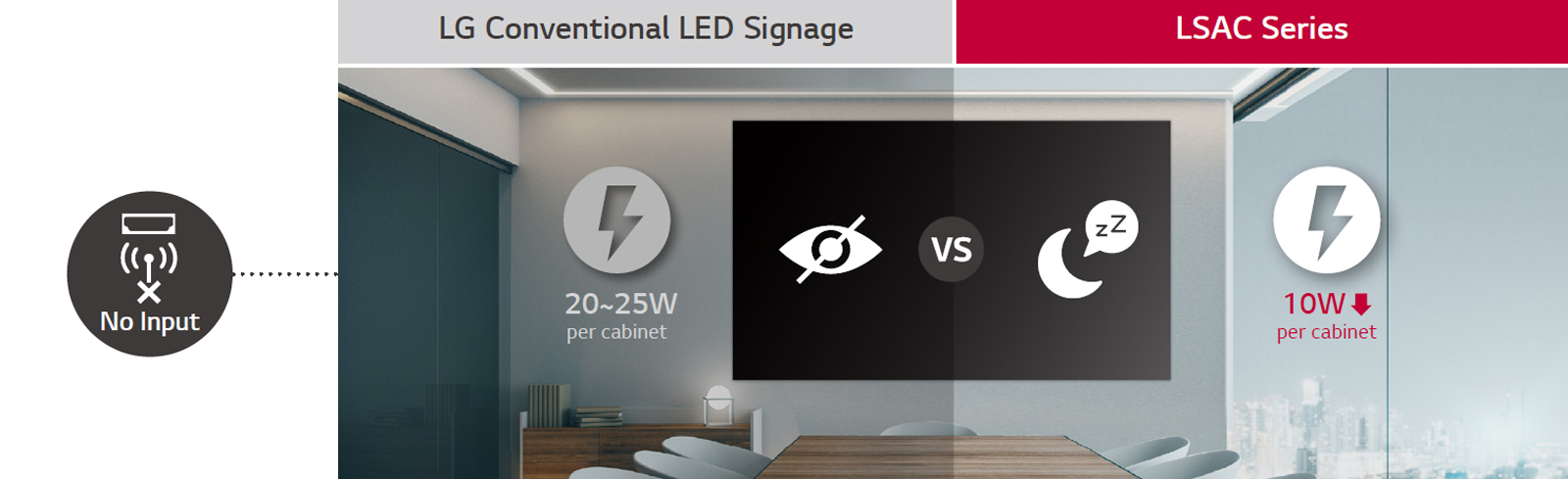

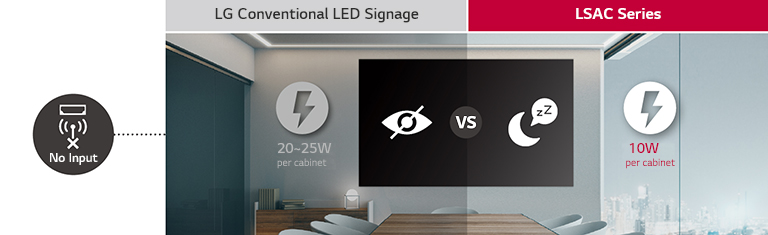

Standby Mode

When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.
In standby mode, the LSAC series consumes less power than LG’s conventional LED signage. In standby mode, the LSAC series consumes less power than LG’s conventional LED signage.

Optimized Image Quality with α 7 Intelligent Processor

The "Alpha 7 Intelligent Processor" applied to the LSAC series recognizes and analyzes the original content, optimizing the clarity and sharpness of the content for itself.

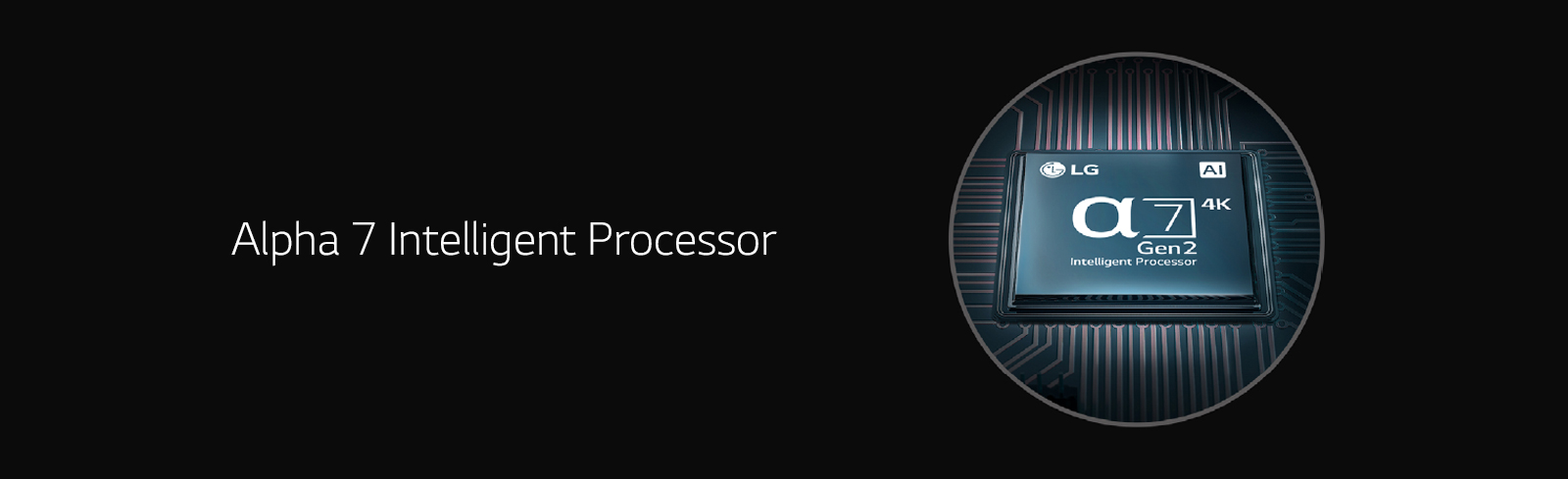

The LSAC series is equipped with the Alpha 7 Intelligent Processor. The LSAC series is equipped with the Alpha 7 Intelligent Processor.

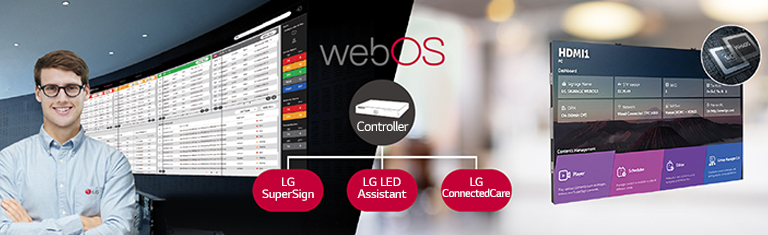

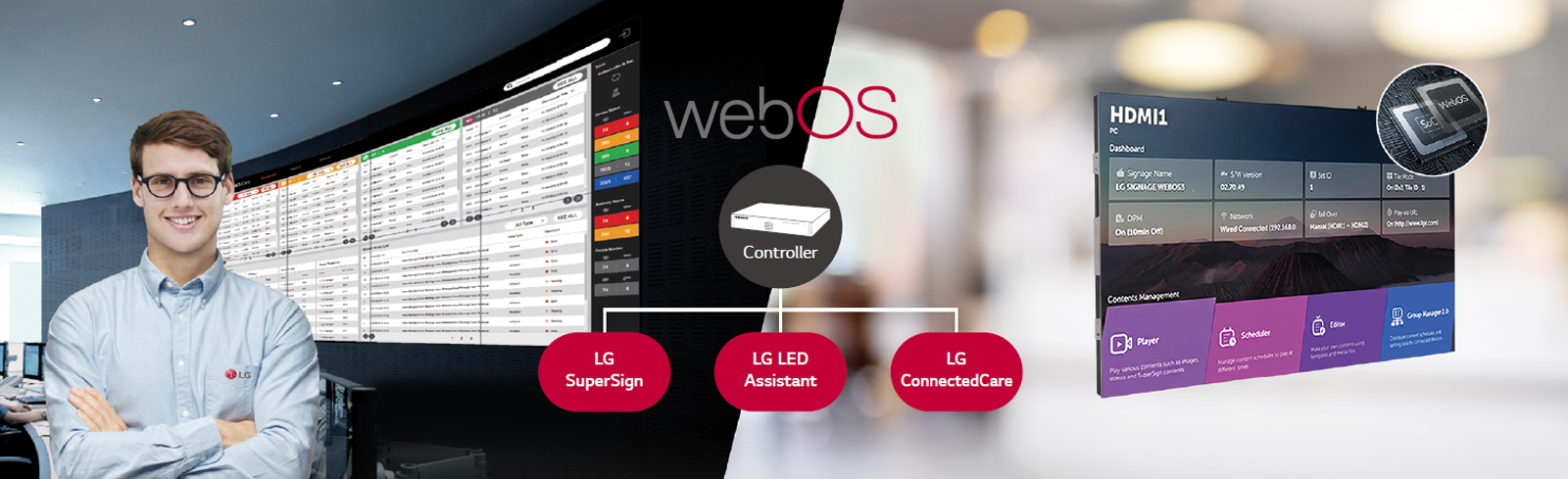

Compatibility with LG Software Solutions

owered by LG’s high performance system controller, the LSAC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
The LG employee is remotely monitoring the LSAC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSAC series to be compatible with LG software solutions. The LG employee is remotely monitoring the LSAC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSAC series to be compatible with LG software solutions.
*'LG ConnectedCare' and 'SuperSign CMS' need to be purchased separately.
*The availability of the 'LG ConnectedCare' service differs by region, so please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power).
*Actual GUI may vary in different webOS versions.
PHYSICAL PARAMETERS
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    2.5
  • Module Resolution (W × H)
    120 × 90
    Module Dimensions (W × H, mm)
    300 × 225
  • Weight per Module (g)
    430
    No. of Modules per Cabinet (W × H)
    4 × 3
  • Cabinet Resolution (W × H)
    480 × 270
    Cabinet Dimensions (W × H × D, mm)
    1,200 × 675 × 51
  • Cabinet Surface Area (m²)
    0.81
    Weight per Cabinet (kg/Cabinet)
    22.5
  • Weight per Square Meter (kg/m²)
    27.8
    Physical Pixel Density (pixels/m²)
    160,000
  • Flatness of Cabinet (mm)
    ±0.5
    Cabinet Material
    Die-cast Aluminum
  • Service Access
    Front
OPTICAL SPECIFICATIONS
  • Max Brightness (nit)
    600
    Color Temperature (K)
    3,200~9,300
  • Visual Viewing Angle (H × V)
    160 × 160
    Brightness Uniformity
    95%
  • Color Uniformity
    ±0.015 Cx,Cy
    Contrast Ratio
    Typ. 5,000 : 1 / Peak. 9,000 : 1
  • Processing Depth (bit)
    20
    (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    290
    Power Consumption (W/Cabinet, Avg.)
    190
  • Power Consumption (W/m², Max.)
    358
    Heat dissipation (BTU/Cabinet, Max.)
    990
  • Heat dissipation (BTU/Cabinet, Avg.)
    648
    Heat dissipation (BTU/m², Max.)
    1,222
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • Lifetime (Half brightness)
    100,000
    Operating Temperature (°C)
    0 to +40
  • Operating Humidity
    10-80% RH
    IP Rating Front / Rear
    IP20 / IP20
CERTIFICATION
  • Certification
    Safety 60950-1, EMC Class B
Environment
  • Environment
    RoHS
SYSTEM CONTROLLER
  • System Controller
    CSAC-025K
90 degree corner cut
  • 90 degree corner cut
    No
SERVICE ACCESS
  • Service Access
    Front
