65UT660H0TA
UT660H Series
  • Pro:Centric Hotel Management Solution
  • Conformal Coating
  • Voice Recognition

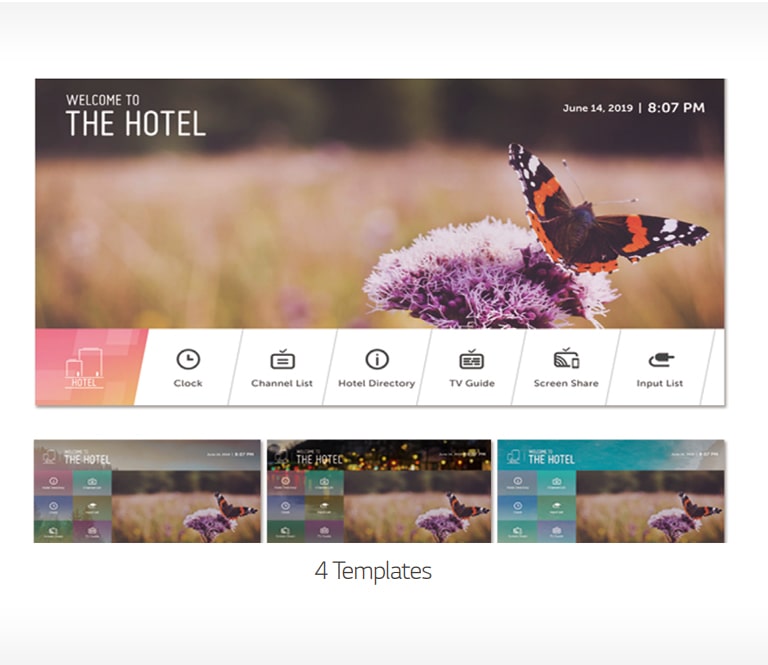

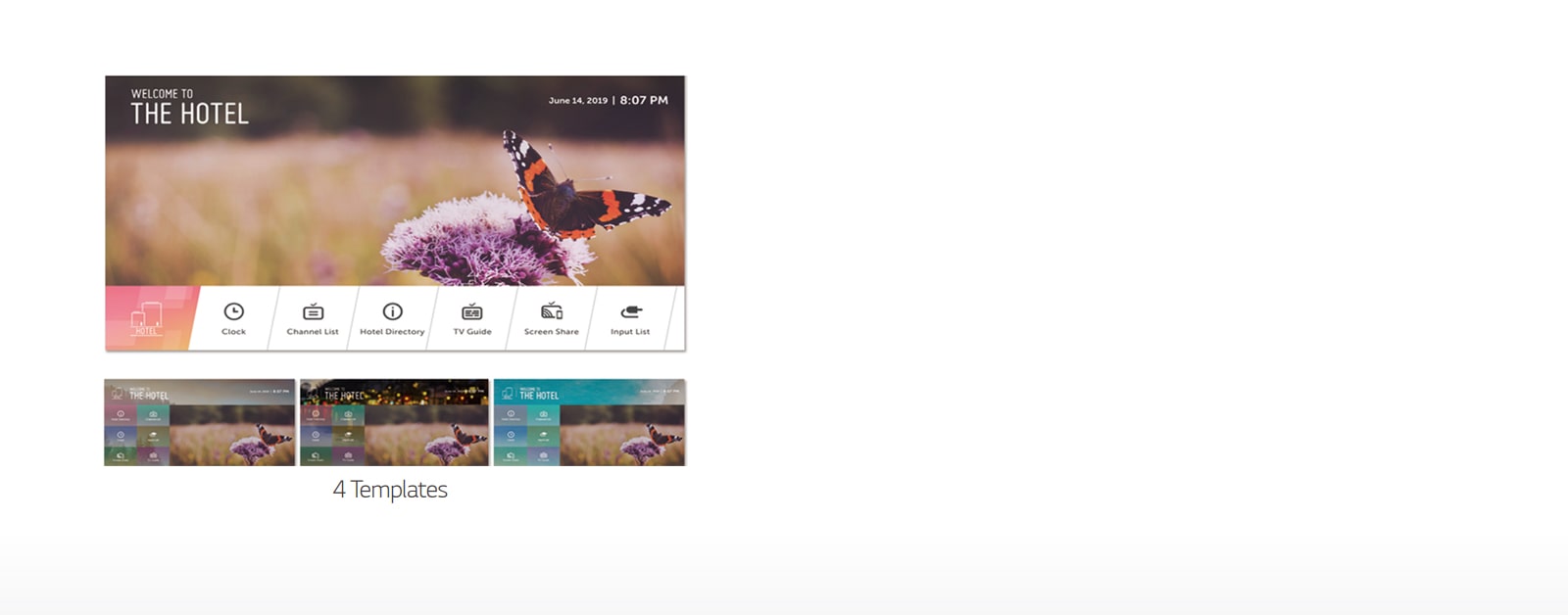

  • Quick Menu

component-OBScountrySelectDesc

UT660H Series
* Customized Ul may be little different.
* Actual Ul may slightly differ when implemented
* When PCS40OR and PCD 2.0 are used, PCD feature is available, even in RF infrastructure. However, to provide interactive services in an RF infrastructure, Wi-Fi is required (RF+Wireless Infrastructure).
* Actual In-screen image may slightly differ
* TV native Control
* Server Based control
* Magic Motion Remote is required (sold separately)

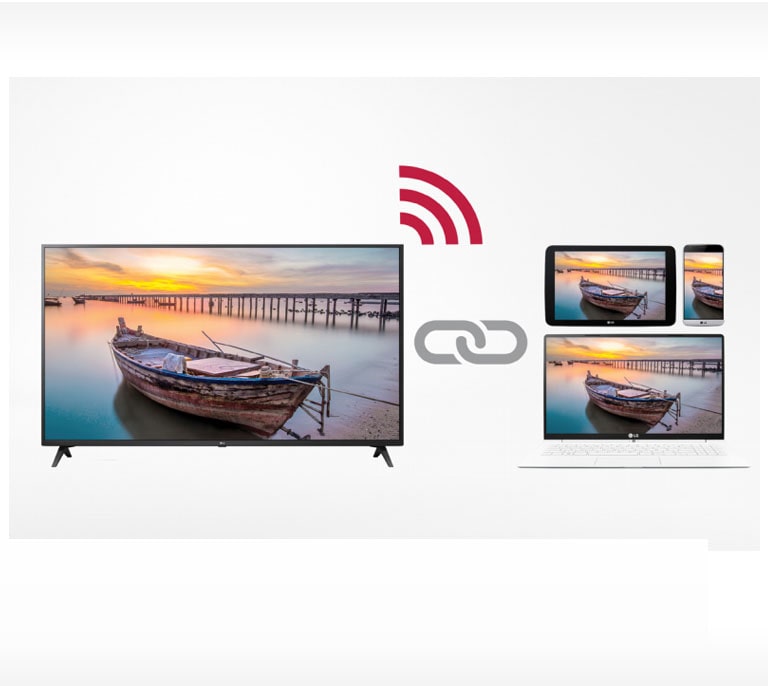

* SoftAP should be set in installation menu after TV is on.

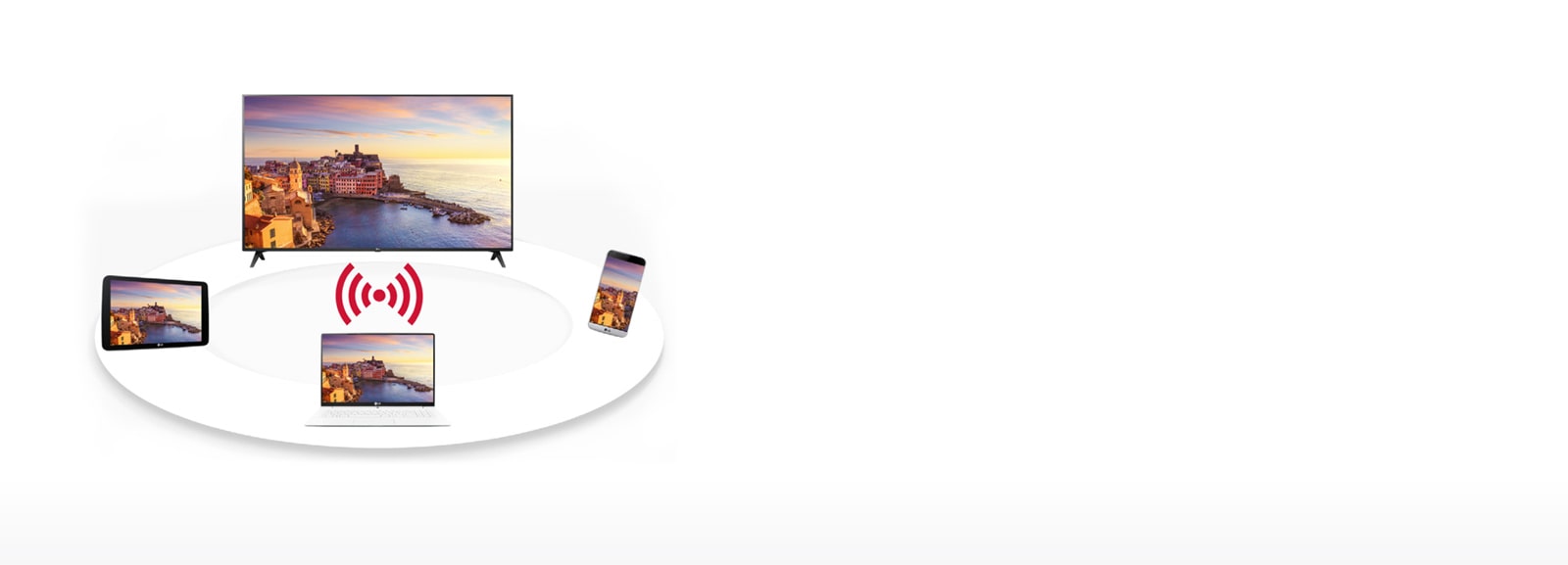

* Smart Mirroring may not be operated at the same time

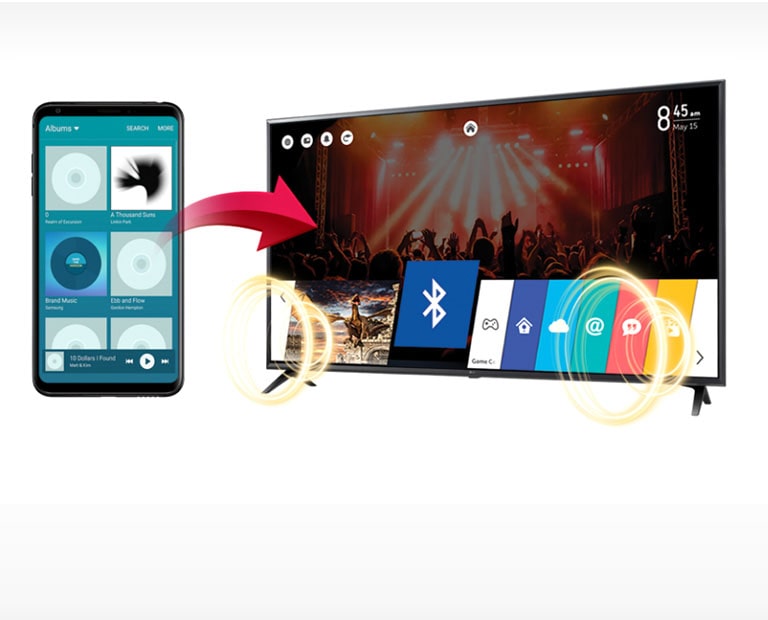

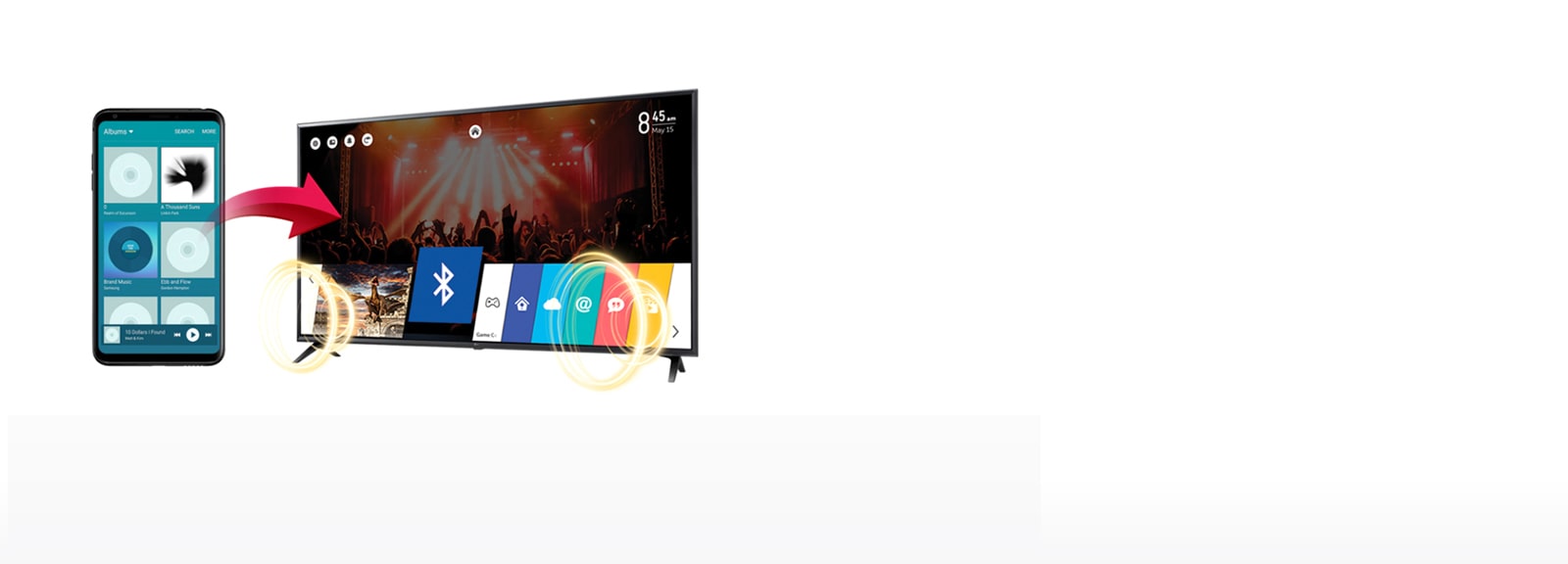

* Support devices for Bluetooth Sound Sync: Android (above v4.4 KitKat) /iOS based mobile device

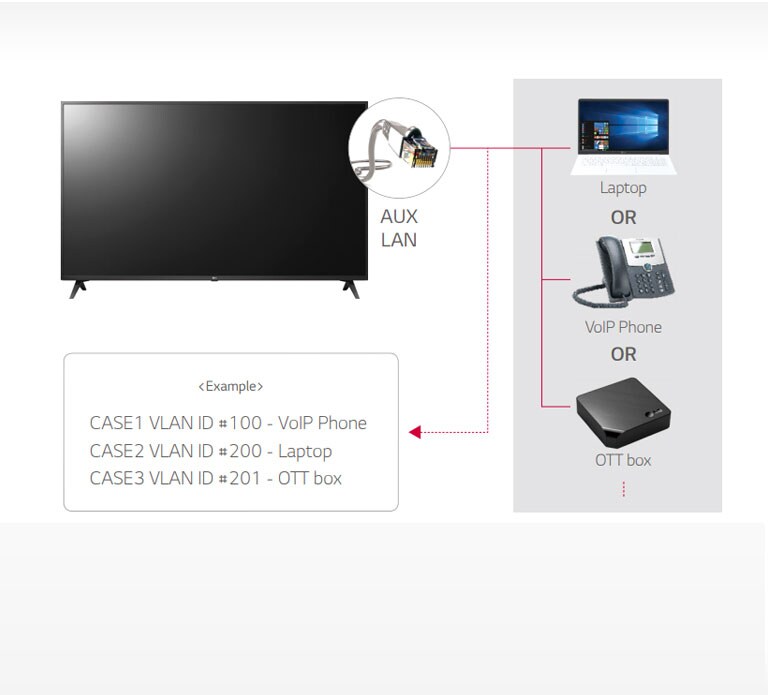

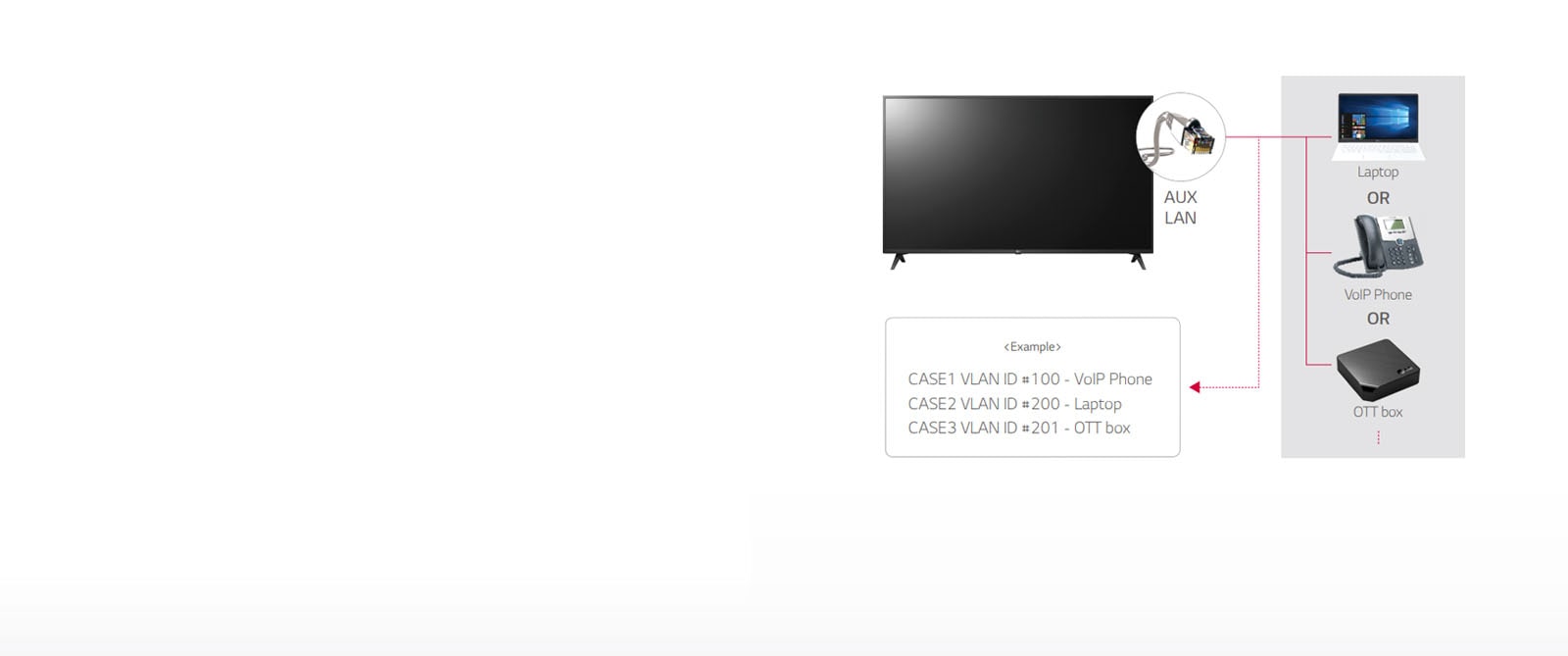

* AUX LAN (LAN out) ID: Set a VLAN ID to be assigned to external devices connected . to the LAN out port. (An AUX LAN is used for assigning a VLAN ID.)
* VLAN ID: Create a separate Virtual LAN group with IDs (tagging).

DISPLAY

  • Inch
    65
    Resolution
    3,840 x 2,160 (UHD)
  • Backlight Unit Type
    Direct
    Brightness (cd/m²)
    400

BROADCASTING SYSTEM

  • Digital
    Yes (DVB -T2 / C)

VIDEO

  • HDR (10 Pro / HLG)
    Yes / Yes

AUDIO

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • One Touch Sound Tuning
    Yes (Ready)
    LG Sound Sync
    Yes (Bluetooth required)

HOSPITALITY SOLUTION

  • Solution Type
    Pro:Centric (Smart, V, Direct), Quick Menu 3.0
    Data Streaming (IP & RF)
    Yes
  • HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / HTML5
    IP Return path
    Yes
  • Multicast / Unicast ready
    Yes
    webRTC (Real Time Communication)
    Yes
  • Pro:Centric Application (version)
    Yes (PCA3.8)
    Pro:Centric Server
    PCS400R
  • DRM
    Pro:Idiom (S/W Type), Pro:Idiom Media

FEATURES

  • Hospitality
    Hotel Mode(Installer Menu), Lock mode (Limited), Welcome Video / Screen(Splash Image), Insert Image, One Channel Map, IP Channel Manager, External Speaker Out (Int / Ext Variable / Fixed), Instant ON, External Power Out, V-Lan Tag, RJP (Remote Jack Pack) Compatibility, External Clock Compatibility (LEC-005), Moving Picture Playback (SD / HD / Plus HD), Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care

JACK INTERFACE

  • Set Side
    HDMI In 2.0, USB 2.0 (2), CI Slot
    Set Rear
    HDMI In (HDCP, 2.0), Headphone Out, RF In, AV In (Phone Jack Type), Component in (Y, Pb, Pr-Video, Phone Jack Type), Digital Audio Out (Optical), RS-232C (Control & Service), Clock Interface (RJ12), RJ45 (Usage Purpose : 2 (Ethernet, Aux)), External Speaker Out (3.5mm Phone Jack) : 2 (Spk-out 1, 4W (Stereo, R : 2.0W, L : 2.0W, 8Ω) - Vol. Control1)

DIMENSION (UNIT: MM / KG)

  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,463 x 914 x 269 / 21.6
  • W x H x D / Weight (without stand)
    1,463 x 850 x 87.8 / 21.3
    W x H x D / Weight (Shipping)
    1,600 x 970 x 190 / 28.4

POWER (UNIT : WATTS)

  • Power Supply (Voltage, Hz)
    100 ~ 240V, 50/60Hz
    Typical
    177W
  • Stand-by
    0.5W

GENERAL

  • Region
    ASIA
