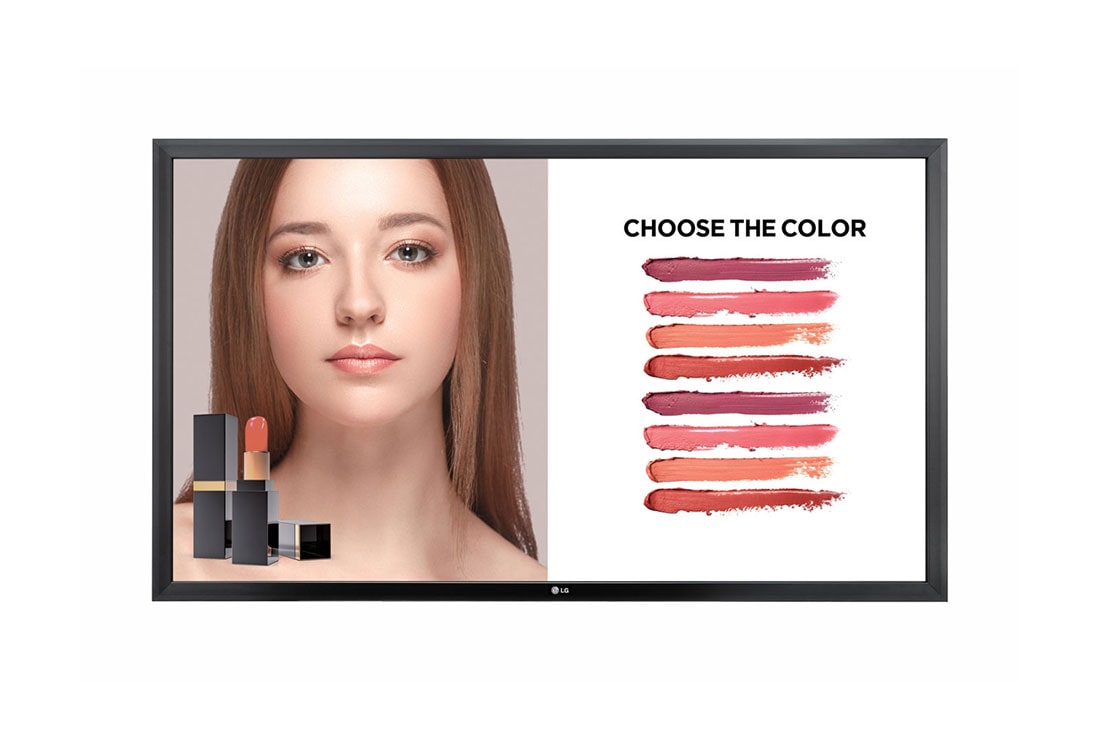

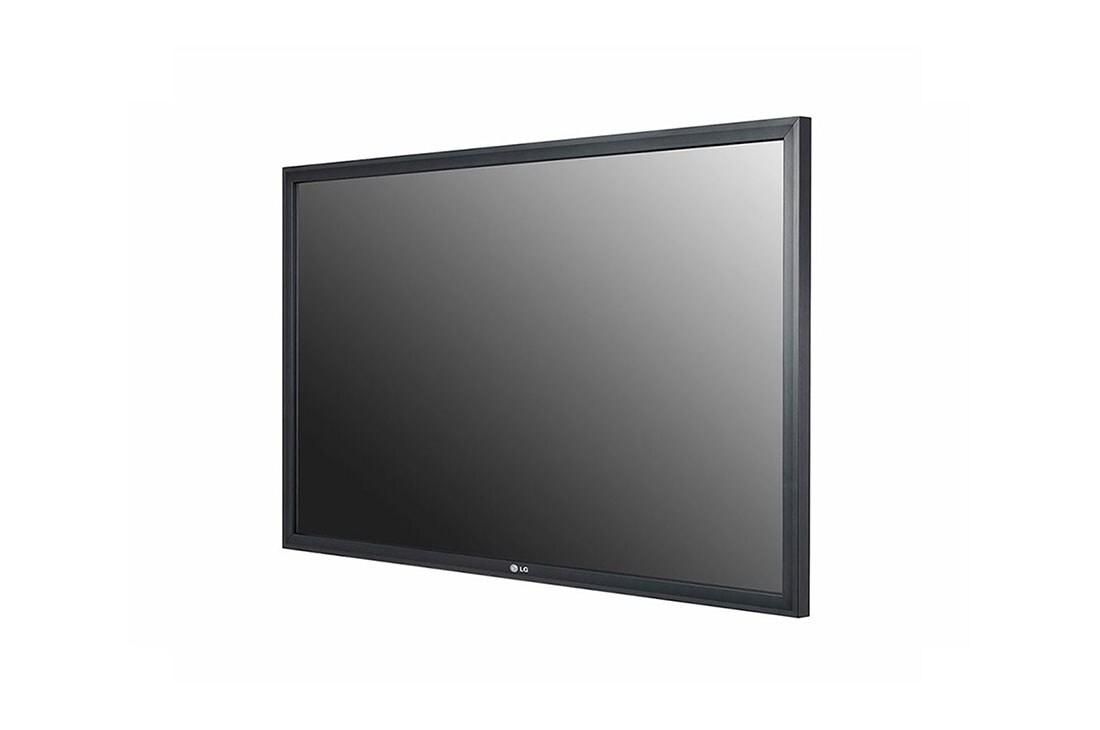

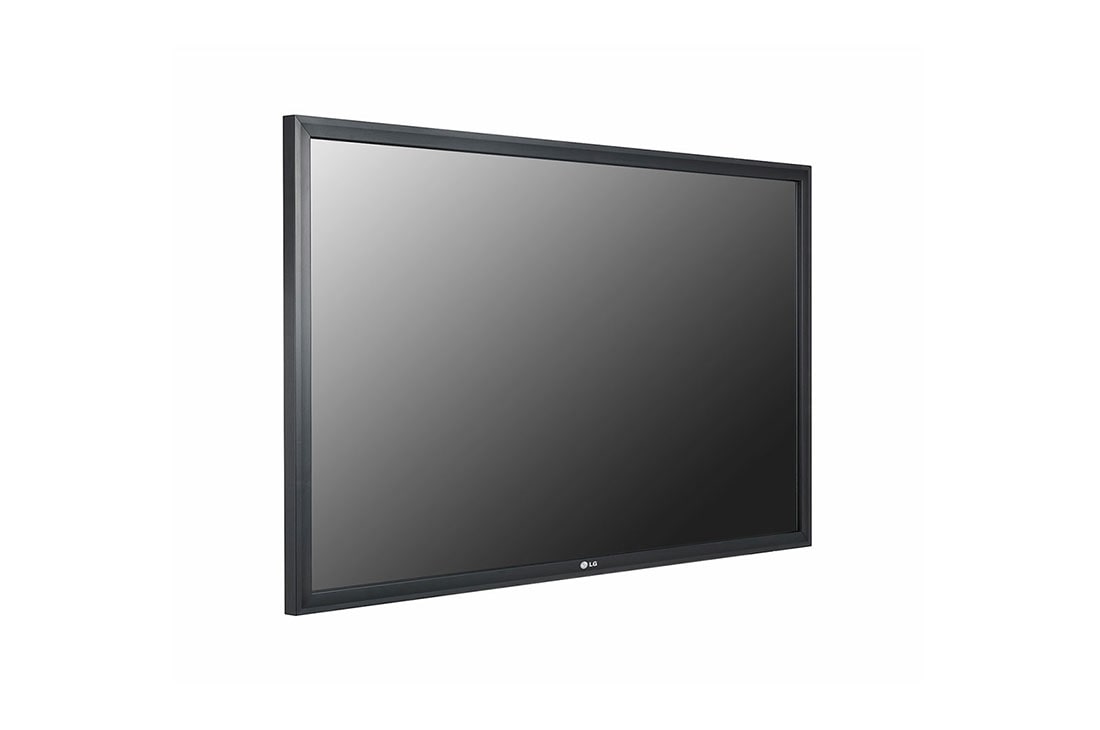

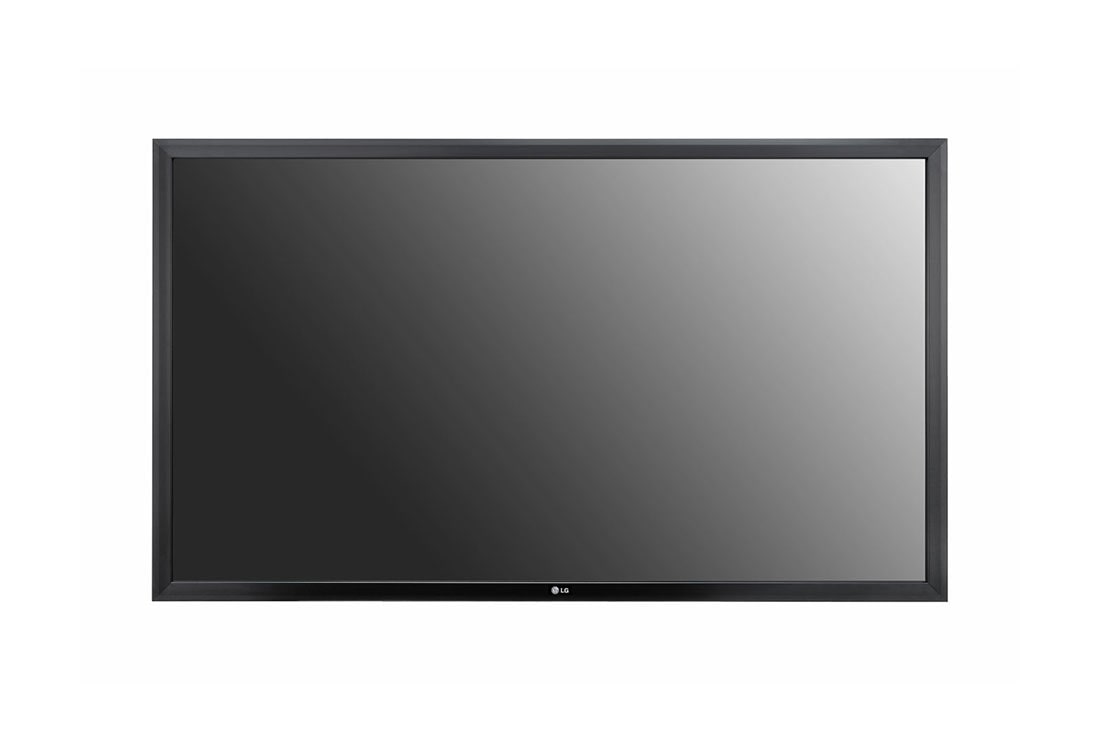

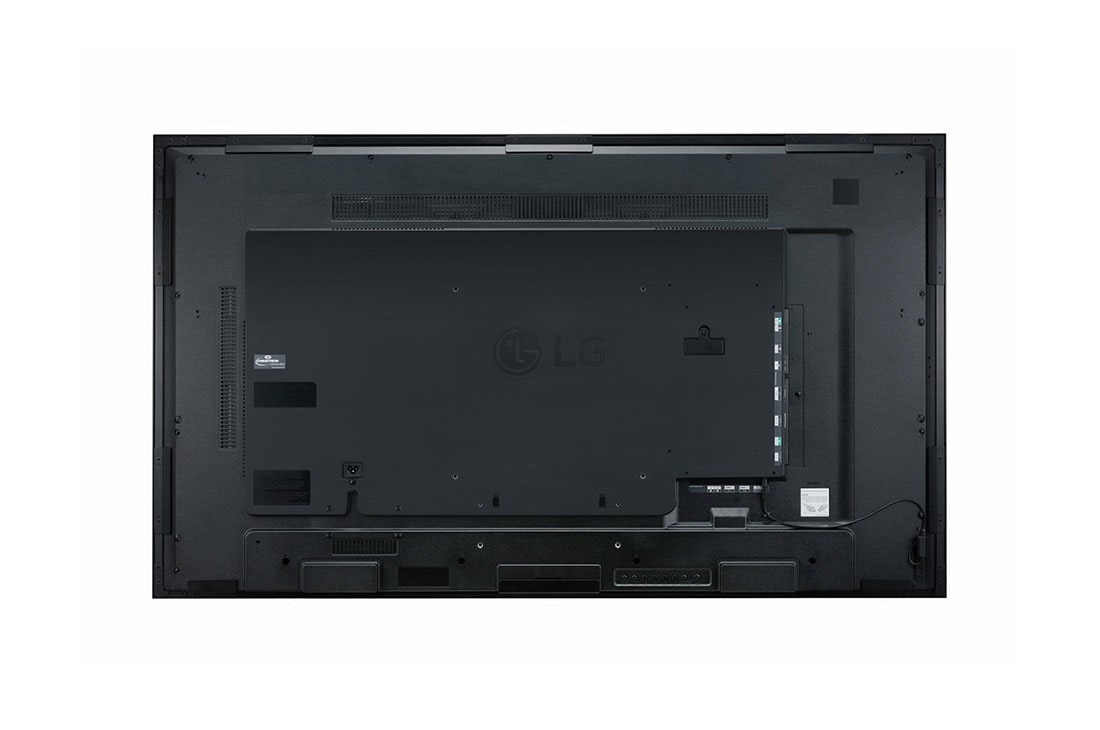

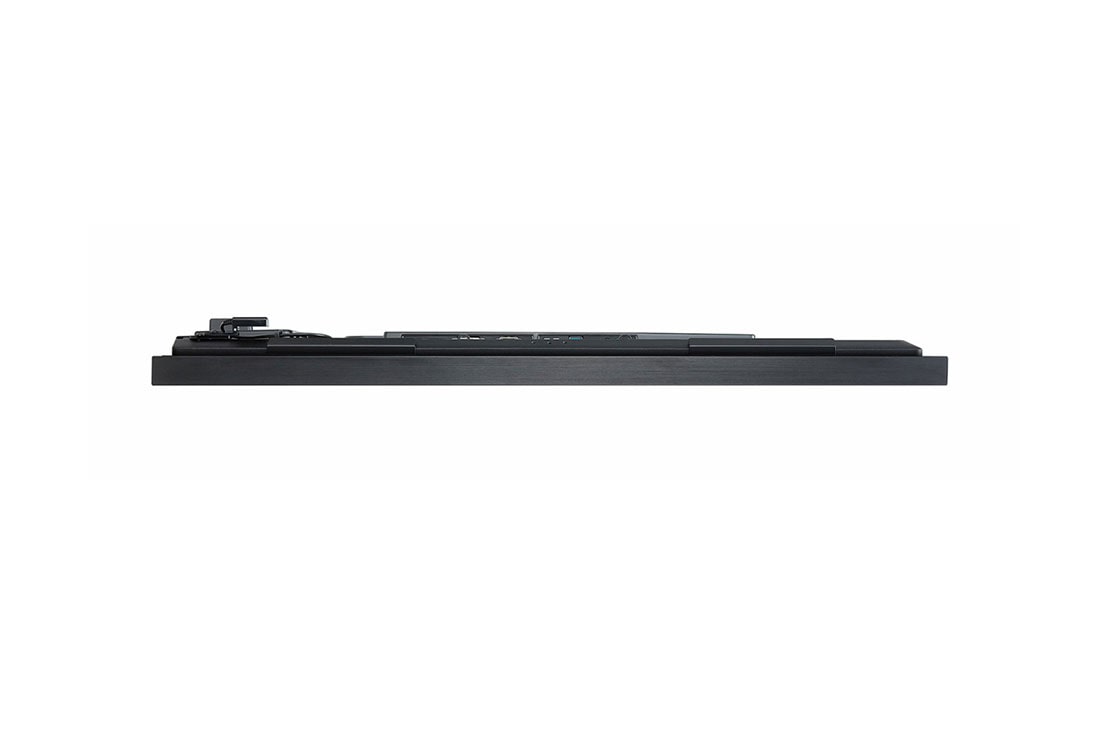

43TA3E
TA3E Series
  • Brightness(Typ.): 450 cd/m² *w/o protection glass
  • Touch Type: IR (Scattering)
  • Multi touch point: Max 10 Points
  • Interface: HDMI (2), DP, DVI-D, RGB, USB 3.0, RS232C, RJ45, IR Receiver, Pixer Sensor

component-OBScountrySelectDesc

TA3E Series
*Touch points can vary depending on the connection environment.

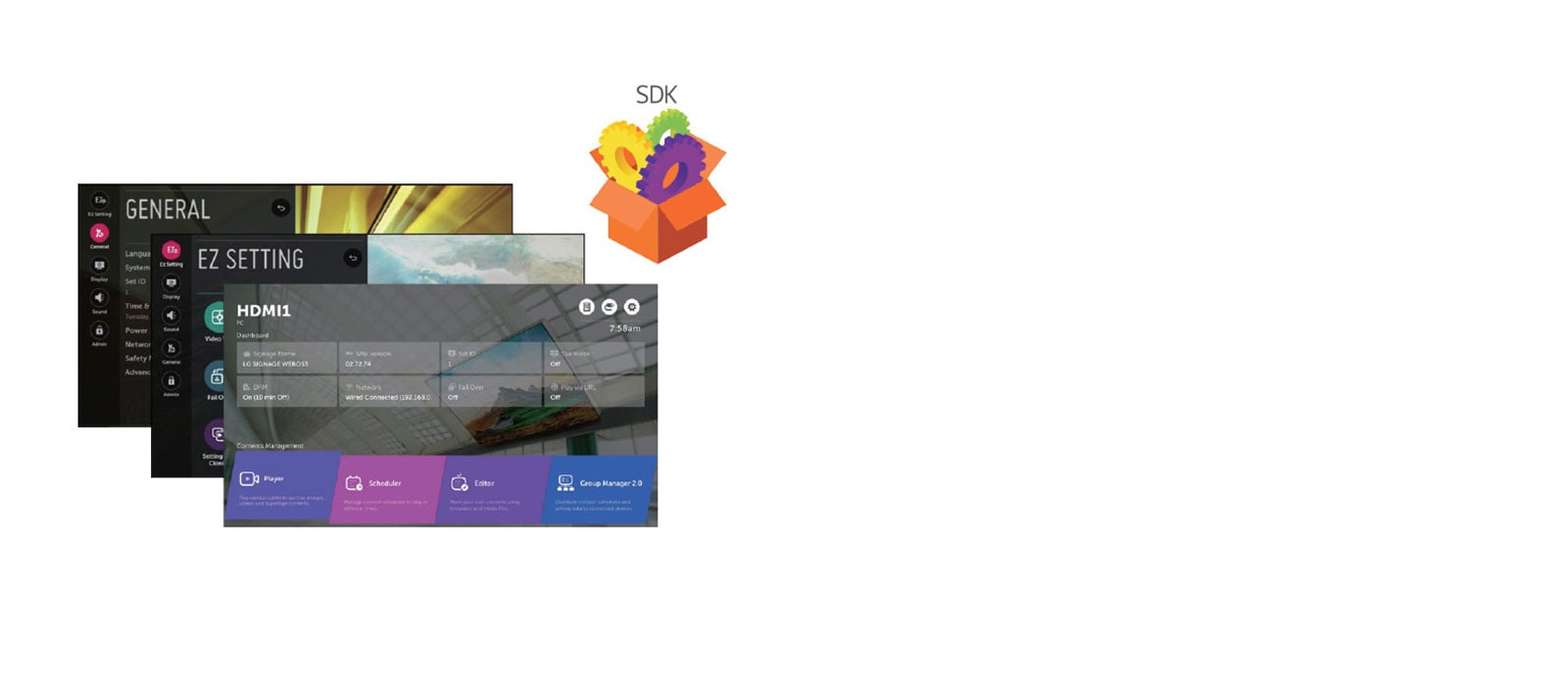

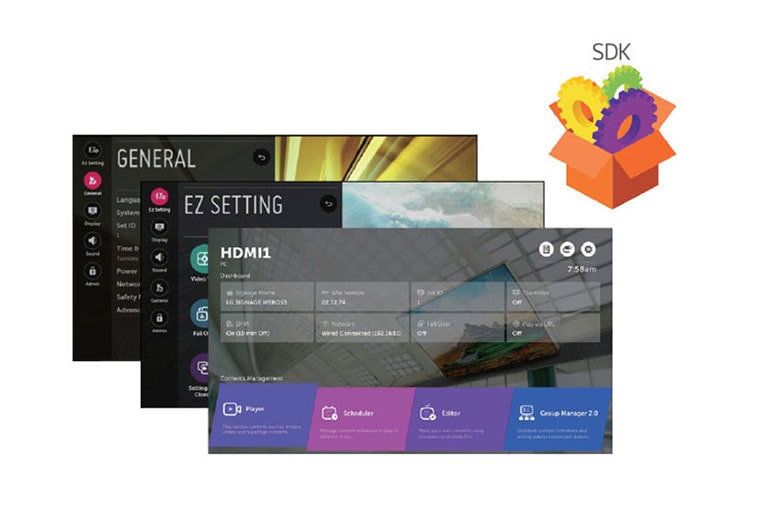

*SDK: Software Development Kit.

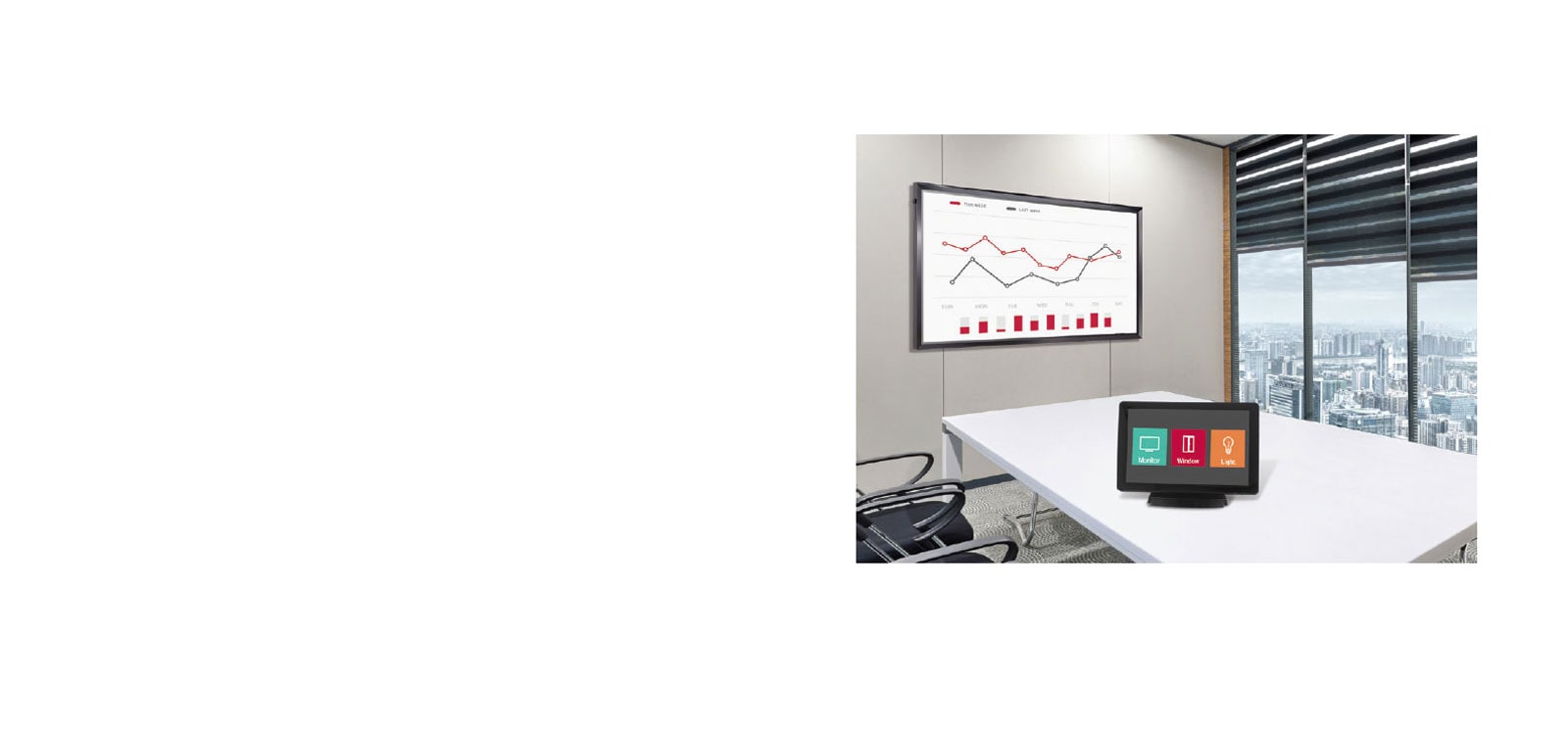

*It is a network based control system. Available AV control systems may differ by regions.

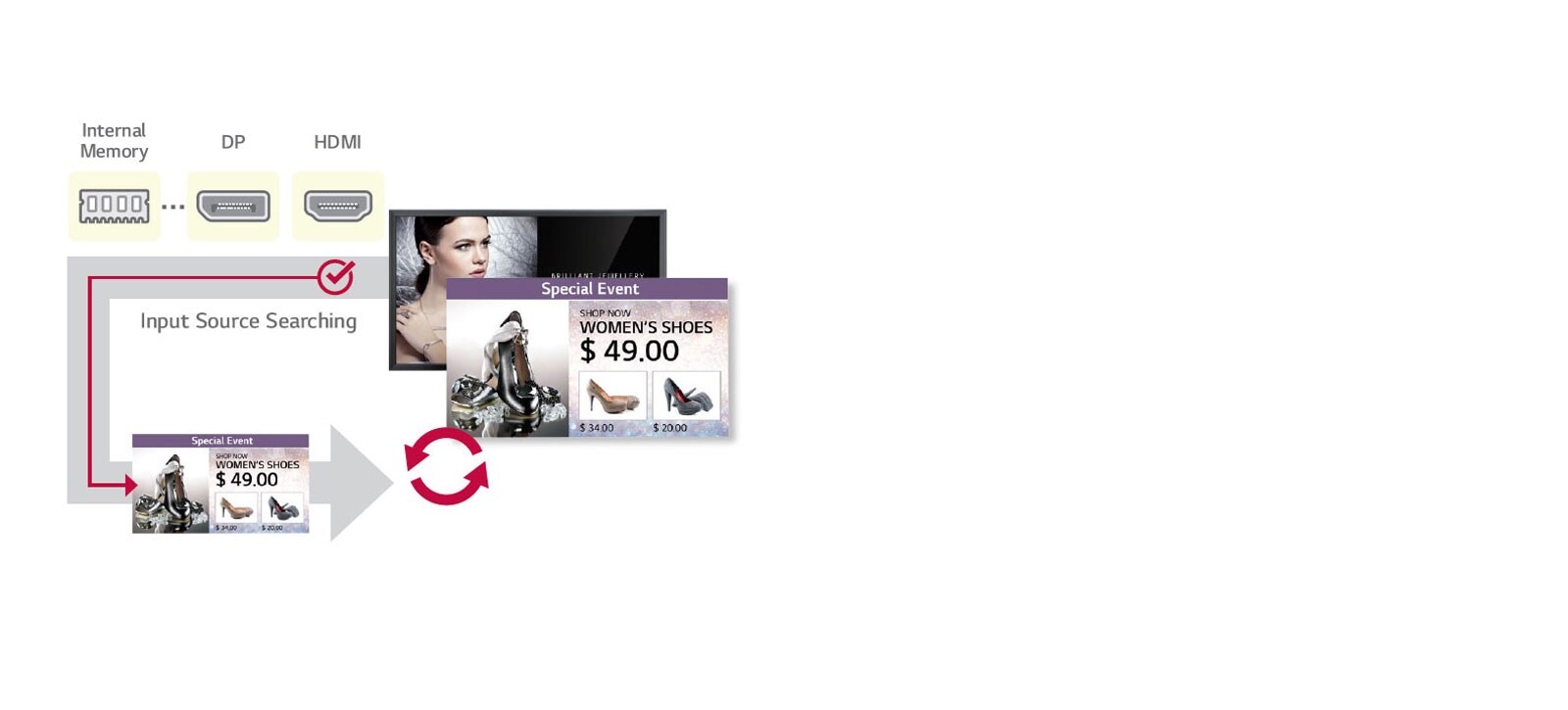

*The priority can be set by users.

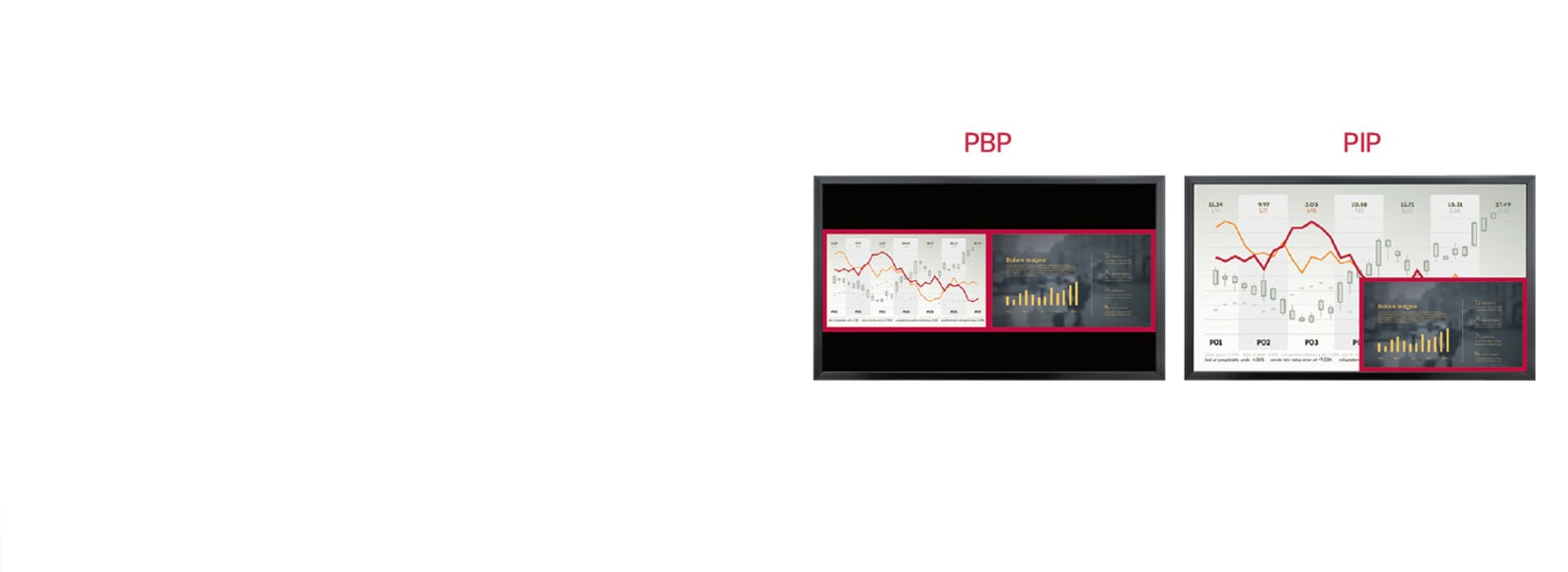

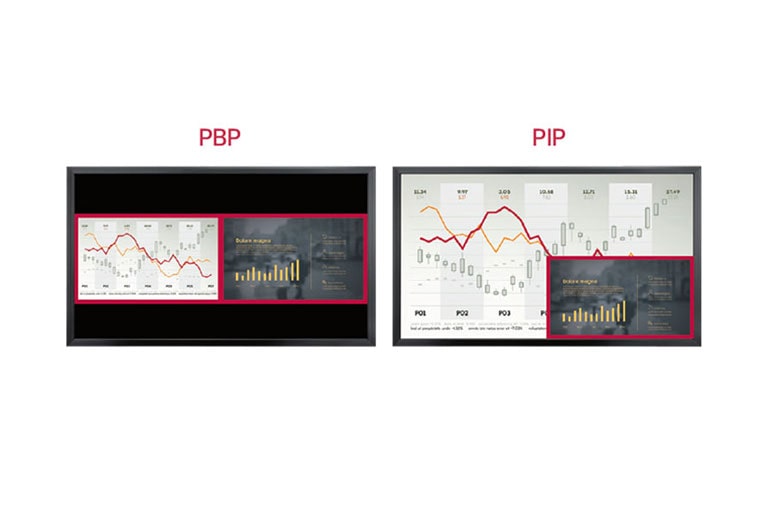

*PBP: Picture-by-Picture.
**PIP: Picture-in-Picture.

ACCESSORY

  • Basic
    Remote Controller (2ea batteries included), Power cord, QSG, RGB cable, Regulation book, Phone to RS232C gender, Memory cover
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA)

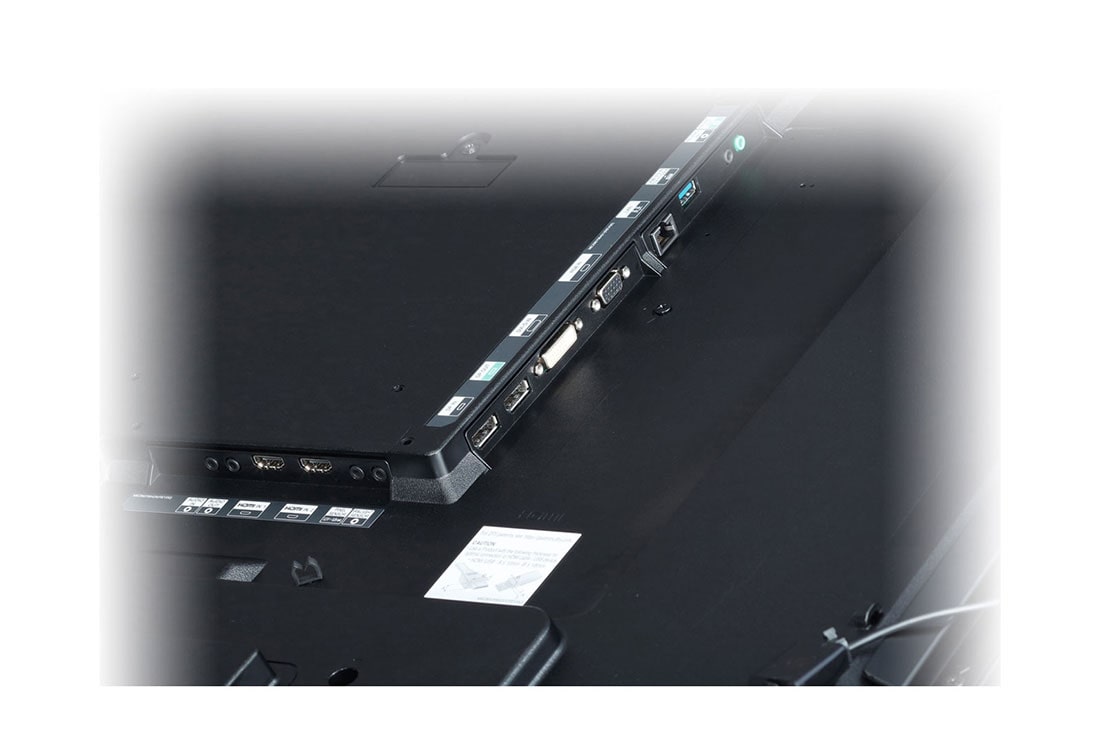

CONNECTIVITY

  • External Control
    RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In
    Input
    HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0
  • Output
    DP, Audio Out

ENVIRONMENT CONDITIONS

  • Operation Humidity
    10% to 80%
    Operation Temperature
    0°C to 40°C

PANEL

  • Brightness (w/o Protection Glass, Typ., cd/m²)
    450
    Screen Size
    43"

PHYSICAL SPECIFICATION

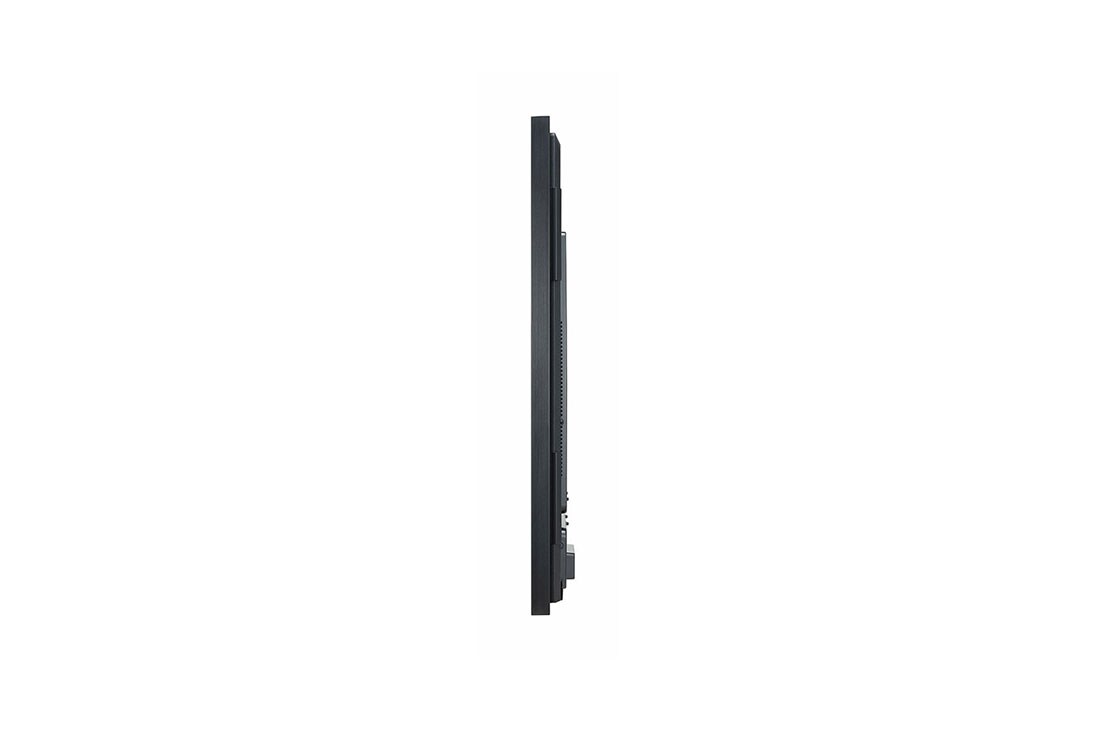

  • Bezel Width
    32.7mm (Even)
    Carton Dimensions (W x H x D)
    1,122 x 720 x 162 mm
  • Monitor Dimension (W x H x D)
    1,009.6 x 597.8 x 71.4 mm
    Packed Weight
    20.1kg
  • VESA™ Standard Mount Interface
    200 x 200 mm
    Weight (Head)
    17.1kg

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Smart Energy Saving
    55W
    Typ. / Max.
    75W/100W

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+
    *Software compatibility may change over time.

TOUCH

  • Touch type
    IR (Scattering)
    Scan Time
    10 ms ↓
  • Interface
    USB 2.0
    Protection Glass Thickness
    2.8T (Anti-Glare)
  • Operating Systme Support
    Windows 7, Windows 8, Windows 8.1, Windows 10, Android (Kernel Version 3.5 Over), Linux(Kernel Version 3.5 Over), Mac OS X (10.9 Over), Chrome (39 Over)
    Multi touch point
    Max 10 Points
