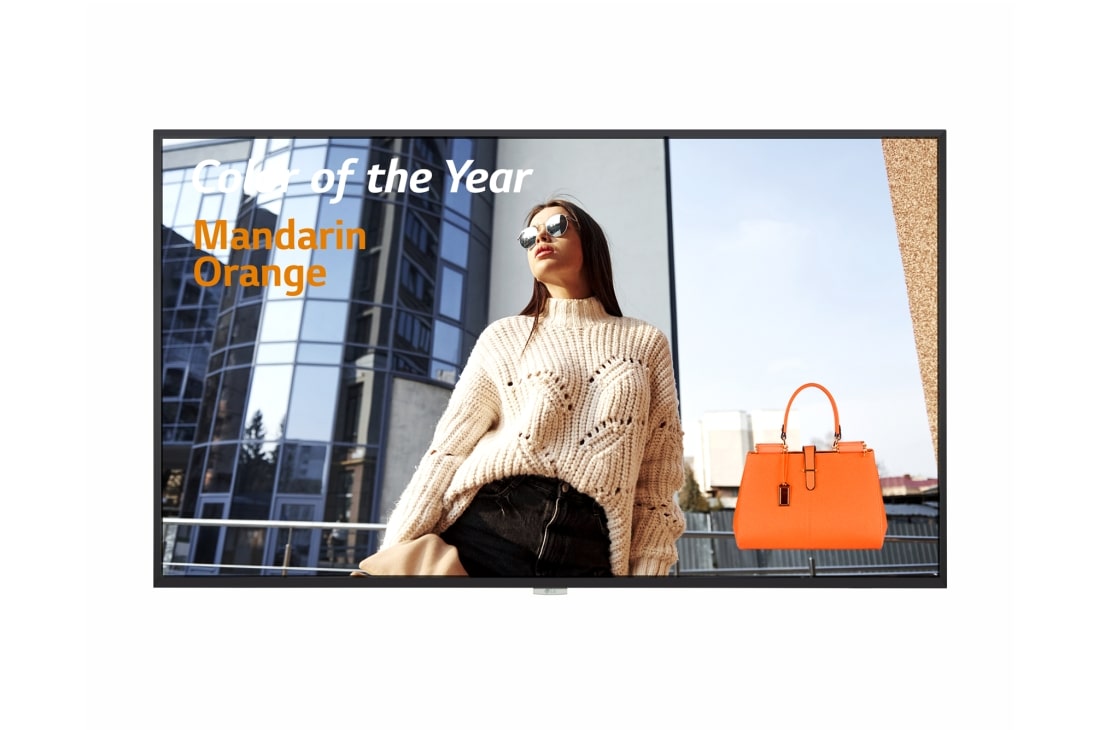

49UH5F-B
UH5F Series
  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 9.9 mm (T/R/L), 14.4 mm (B)

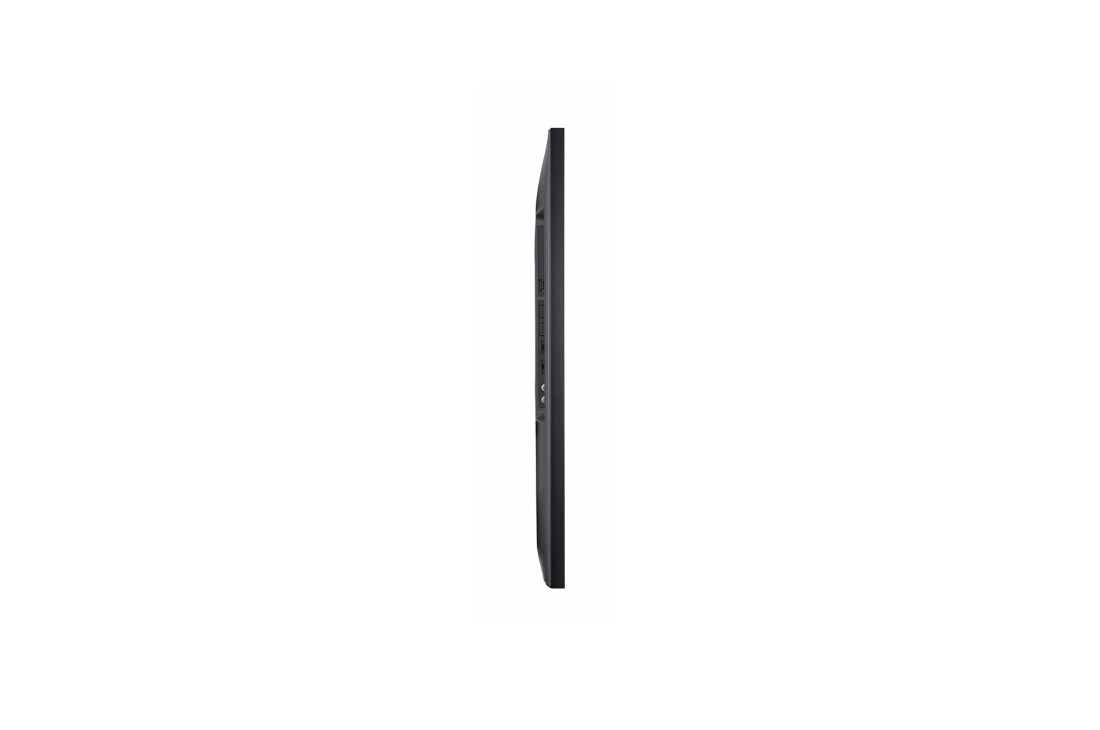

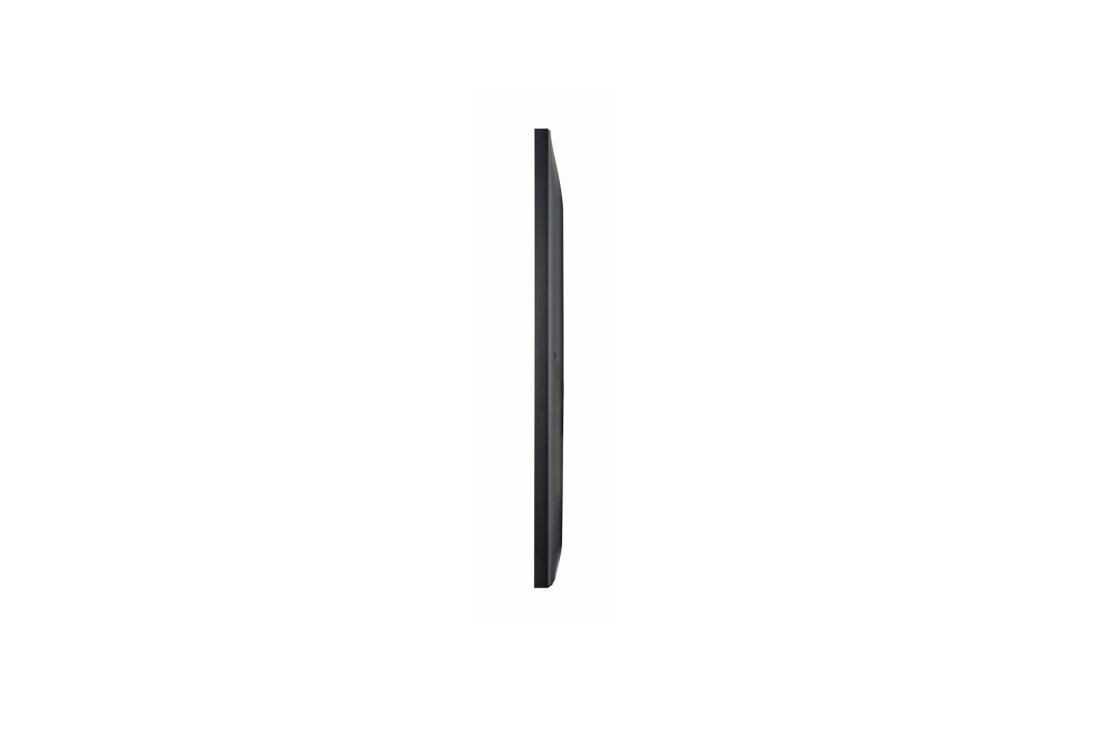

  • Depth : 39.9 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker and Detachable Logo
  • 30º Tilting Installation

component-OBScountrySelectDesc

UH5F Series
*HEVC : High Efficiency Video Coding
* Tilt installation of up to 30 deqrees facedown is supported.(in conditions within 30℃ temperature, 50% humidity)
* Network based control
* Using an HDMI cable connection

ACCESSORY

  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand(ST-653T), Media Player, Wall Bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)

CERTIFICATION

  • EMC
    FCC Class "A" / CE / KC
    ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 8.0)
  • Safety
    CB / NRTL

CONNECTIVITY

  • External Control
    RS232C In/out, RJ45 (LAN) In, IR In
    Input
    HDMI (3), DP, DVI-D, Audio, USB 2.0
  • Output
    DP, Audio (Off/Fixed/Variable)

ENVIRONMENT CONDITIONS

  • Operation Humidity
    10 % to 80 %
    Operation Temperature
    0°C to 40°C

MECHANICAL SPECIFICATION

  • Bezel Color
    Black
    Bezel Width
    9.9mm(T/R/L), 14.4mm(B)
  • Carton Dimensions (W × H × D)
    1,197mm x 775mm x 162mm
    Handle
    No
  • Monitor Dimension (W × H × D)
    1,098.6mm x 644.5mm x 39.9mm
    Packed Weight
    18.8 kg
  • VESA™ Standard Mount Interface
    300 x 300
    Weight (Head)
    15.4 kg

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes

PANEL

  • Aspect Ratio
    16:09
    Brightness(Typ.,cd/m²)
    500
  • Contrast Ratio
    1,100:1
    Life Time (Typ.)
    50,000 Hrs (Typ.)
  • Native Resolution
    3,840 x 2,160 (UHD, RGB)
    Operation Hours
    24 Hrs
  • Orientation
    Portrait & Landscape
    Panel Technology
    IPS
  • Response Time
    8ms (G to G)
    Screen Size
    49"
  • Surface Treatment (Haze)
    Haze 3%
    Viewing Angle (H x V)
    178 x 178

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Smart Energy Saving
    66.5W
    Typ. / Max.
    95W / 130W

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
  • Signage365Care
    Yes

SPECIAL FEATURE

  • IP Rating
    IP5x
    Tilt (Facedown)
    Max. 30º *In conditions within 30ºC temperature, 50% humidity
