55EF5E

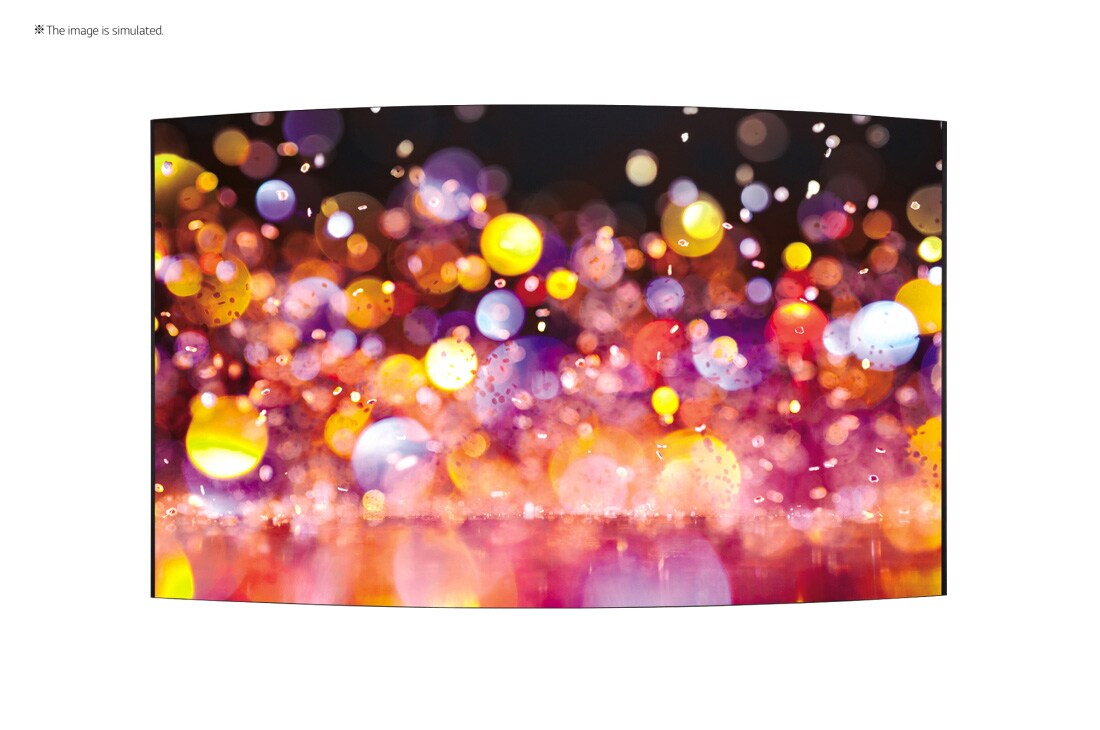

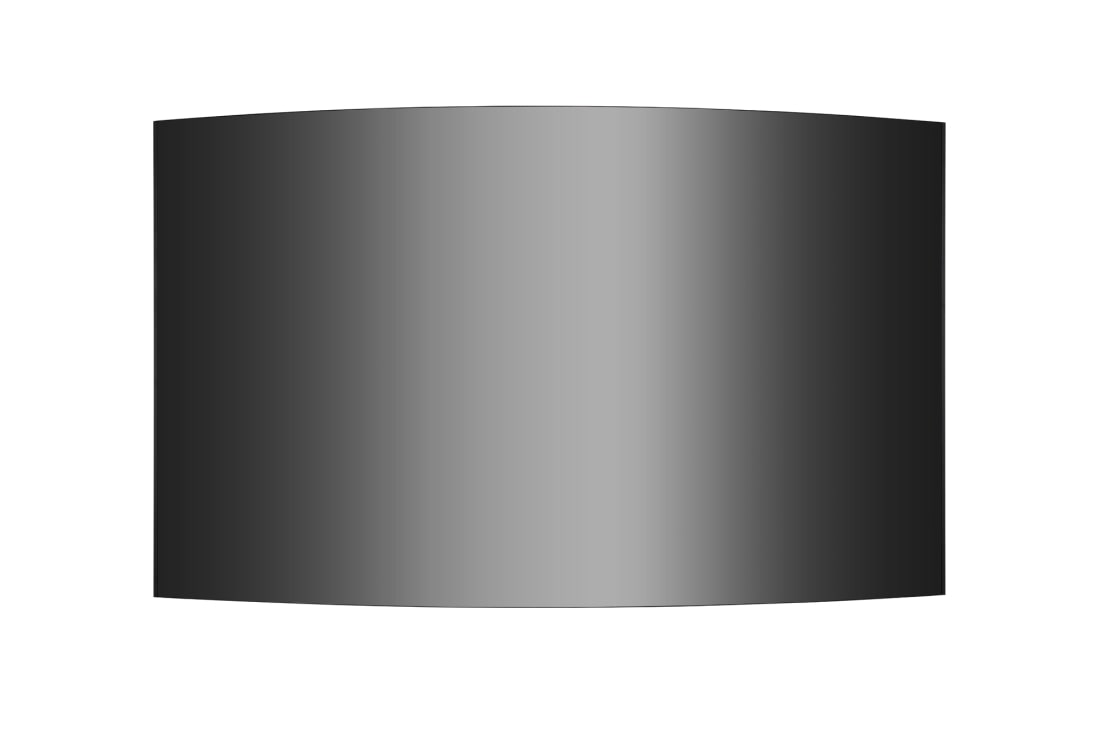

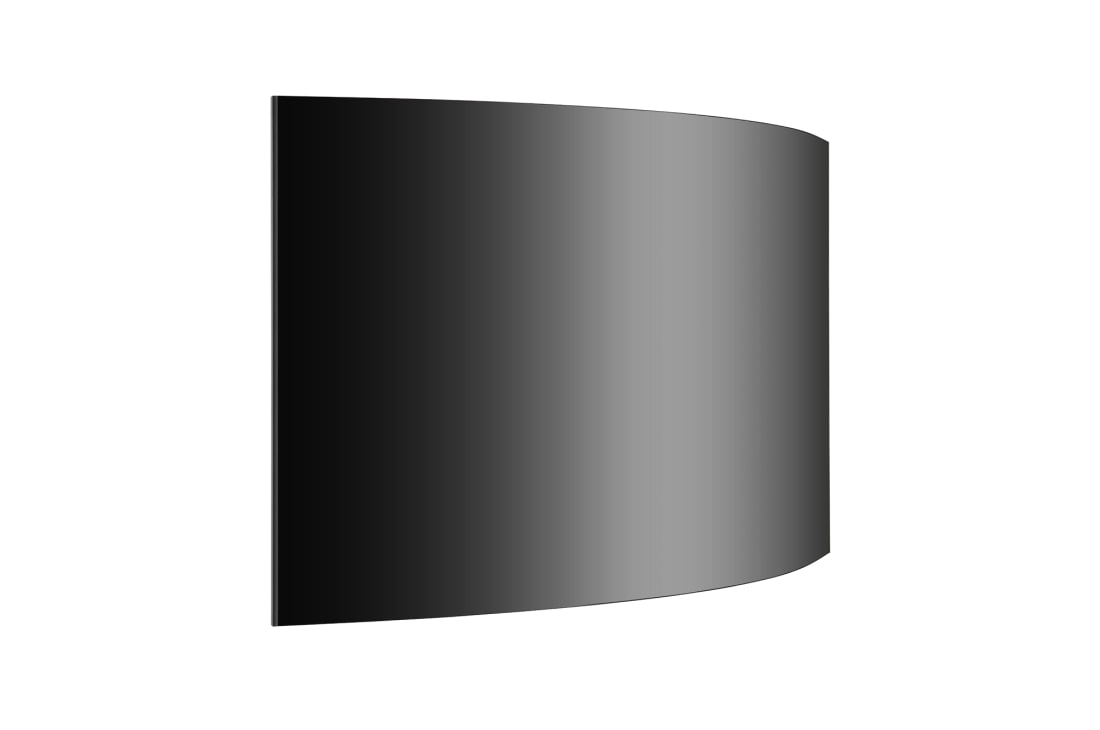

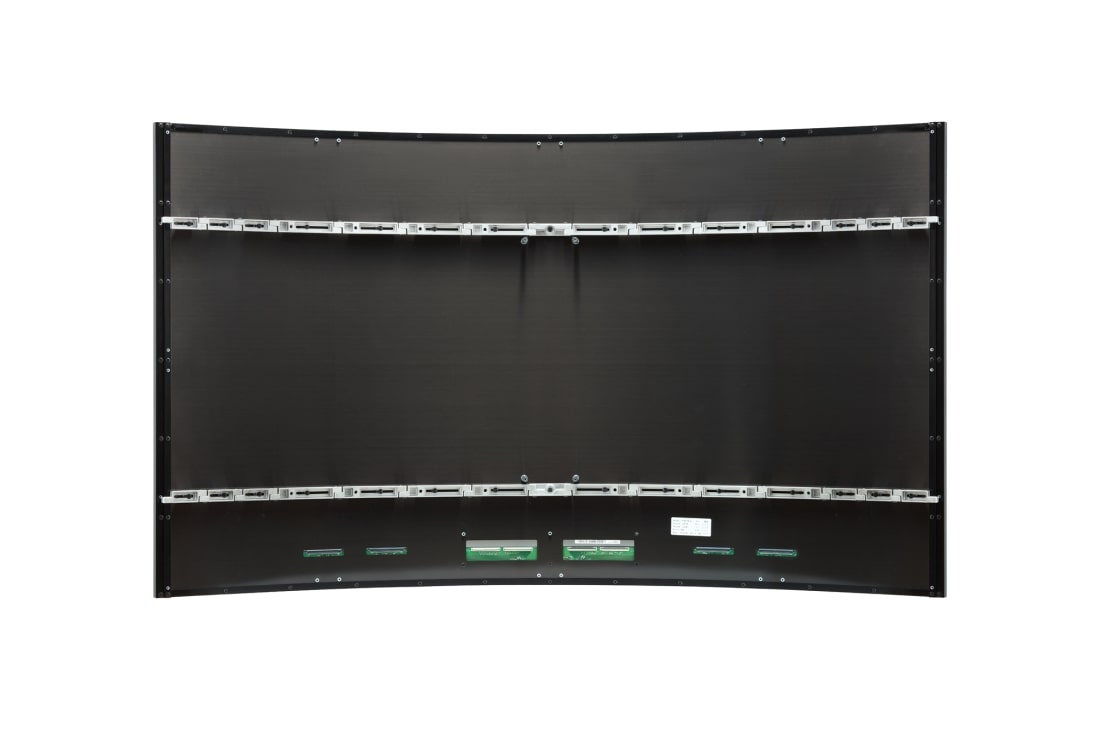

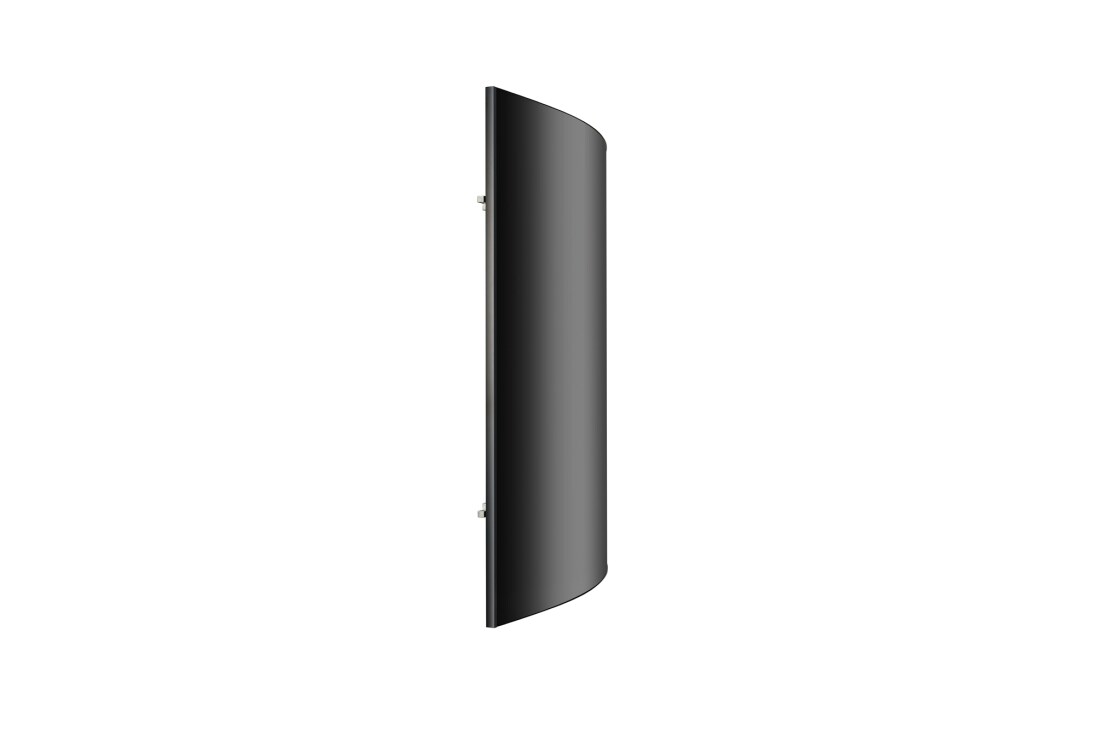

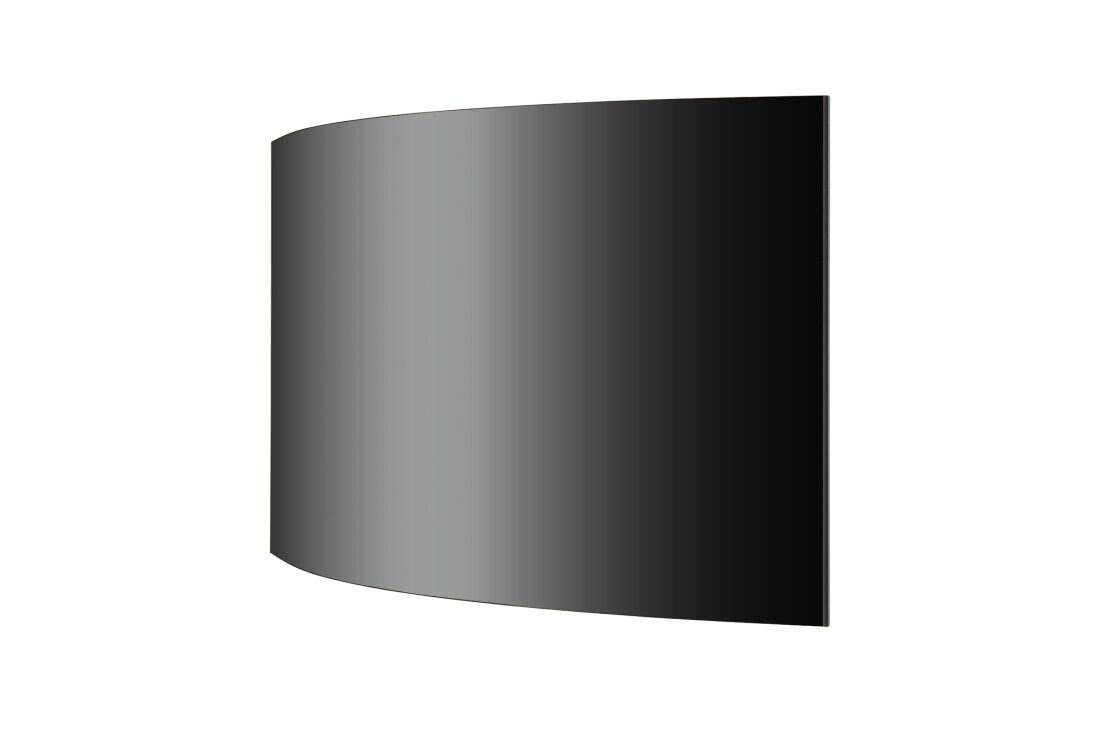

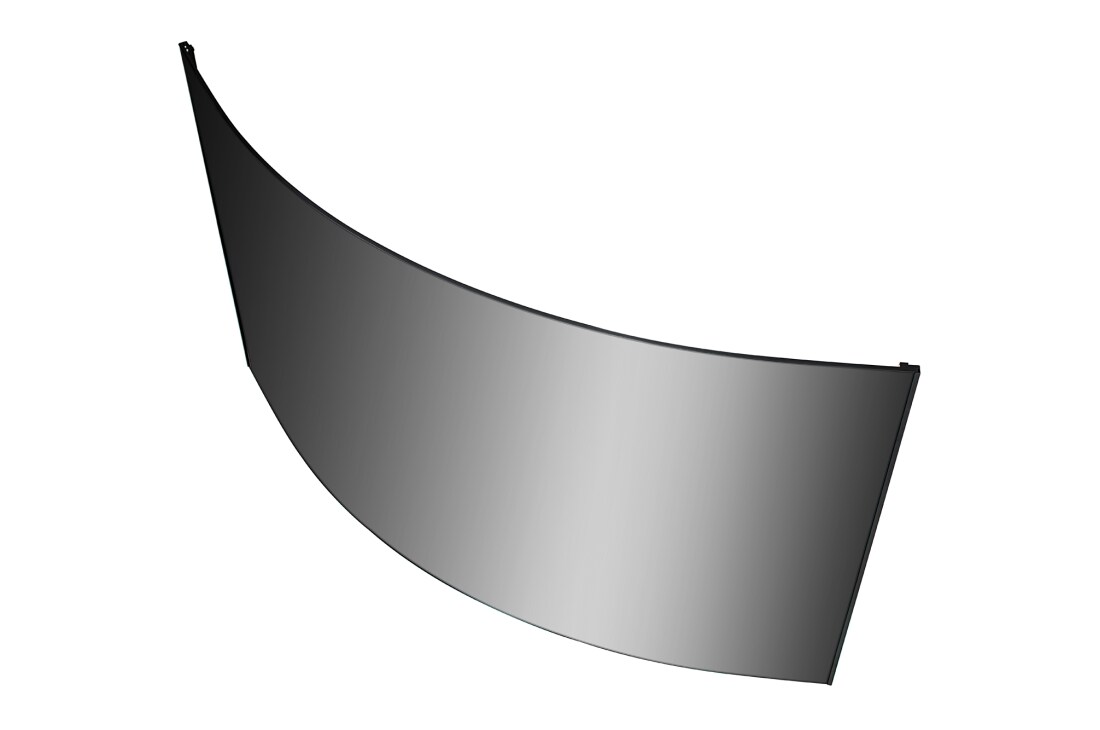

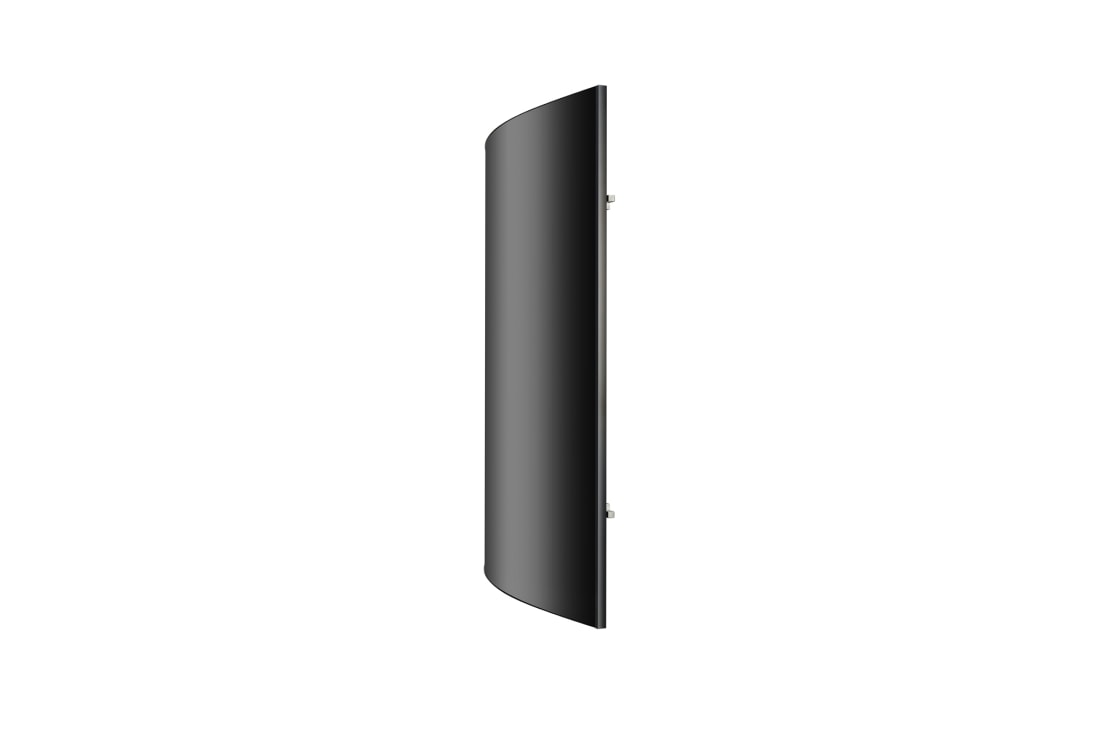

Flexible Curved Open Frame
55"
  • Brightness(Typ.): 400 cd/m² (Average Picture Level 25%)
  • Depth: 12.4 mm (Head Only)

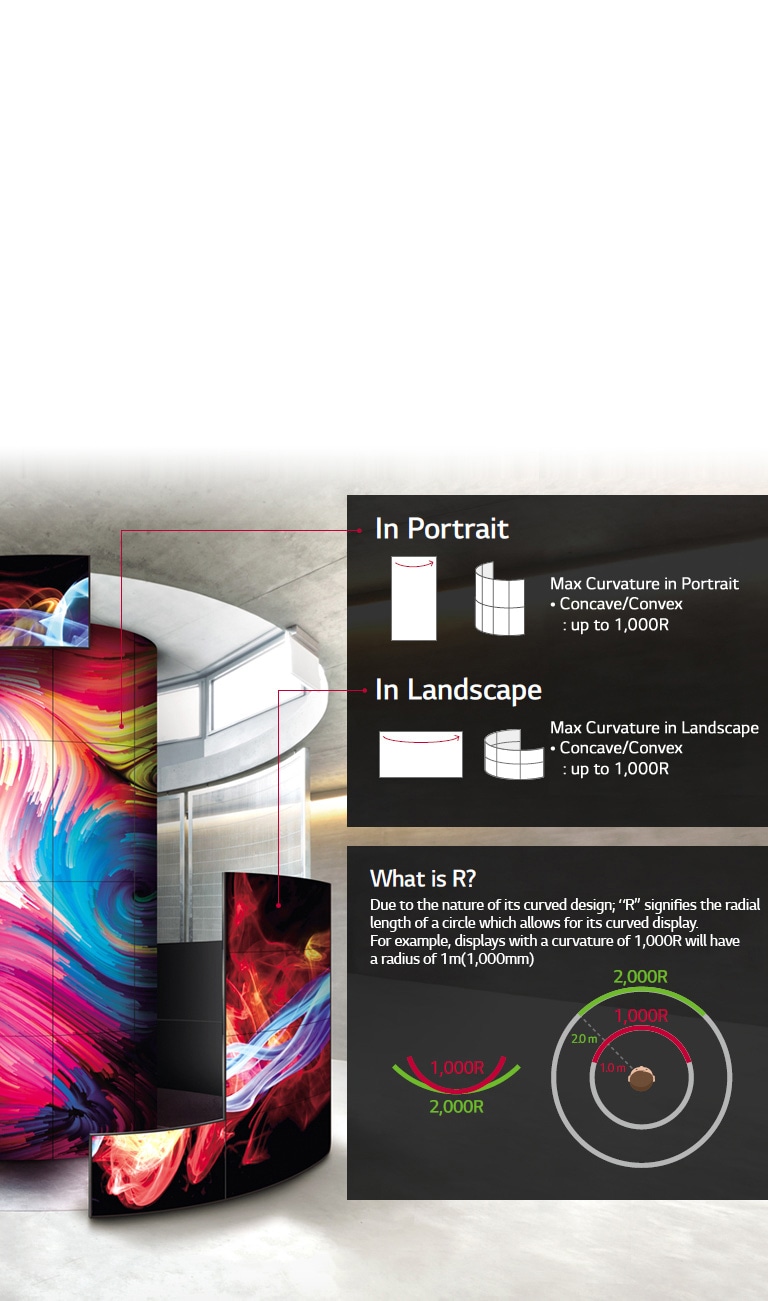

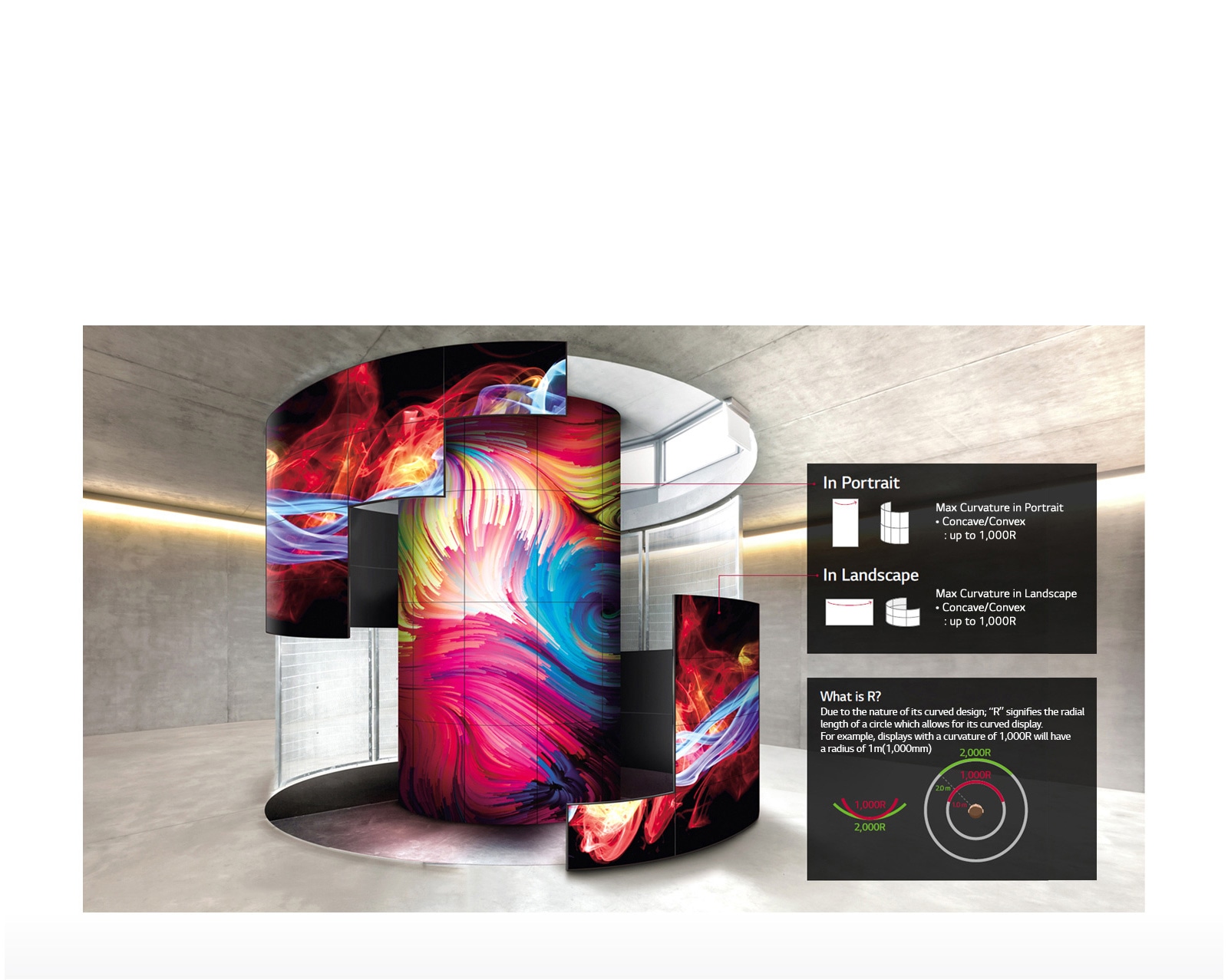

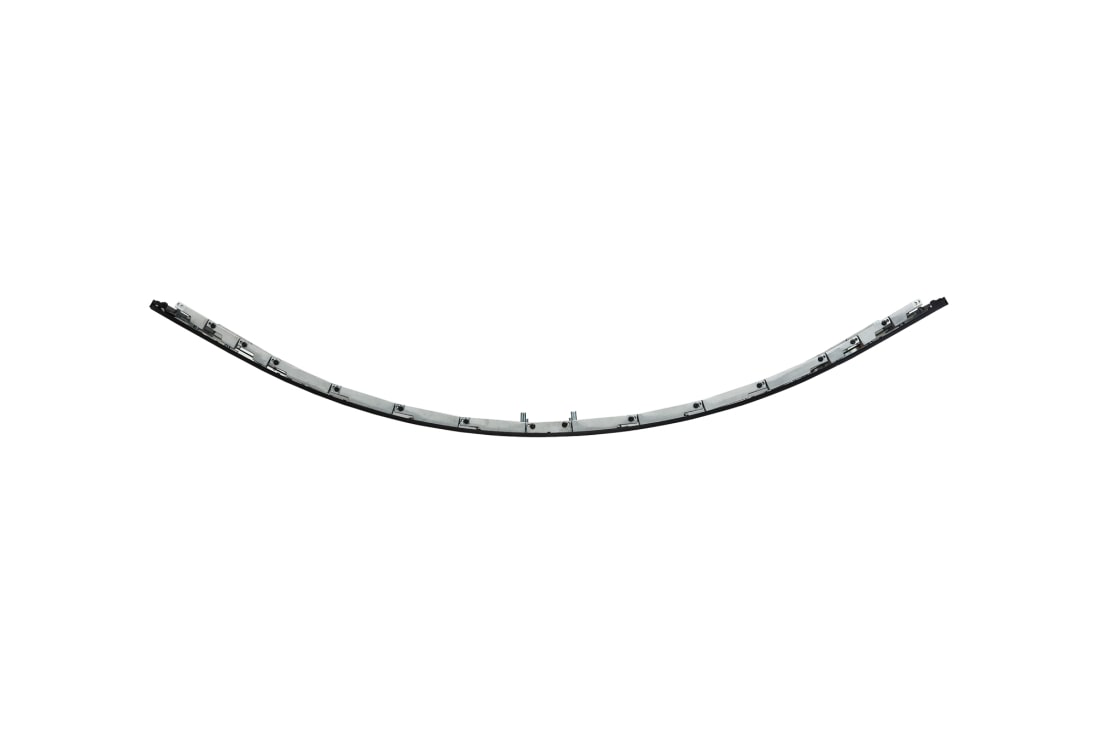

  • Supported Curvature: Up to 1,000R(Concave/Convex)
  • Interface: HDMI, DP, USB, Audio, RS232C, RJ45, IR

component-OBScountrySelectDesc

Flexible Curved Open Frame

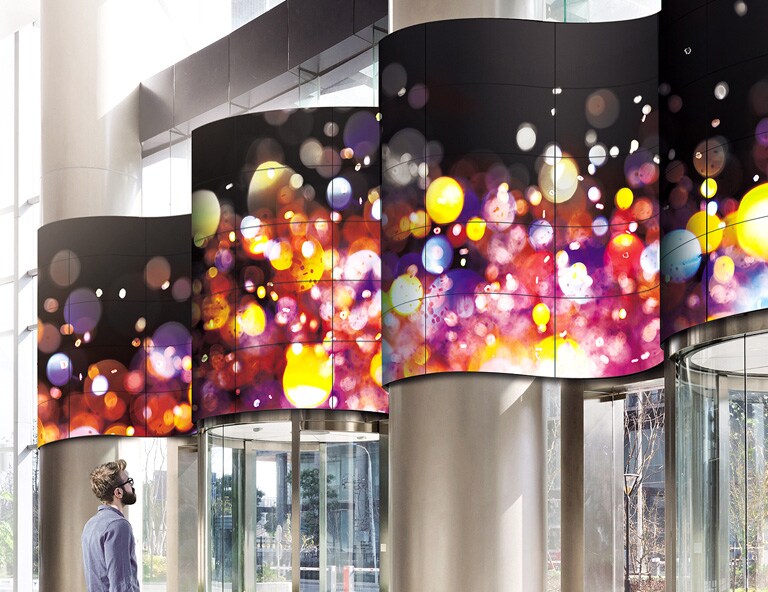

* Actual on-site appearance may differ from the above simulated scene.

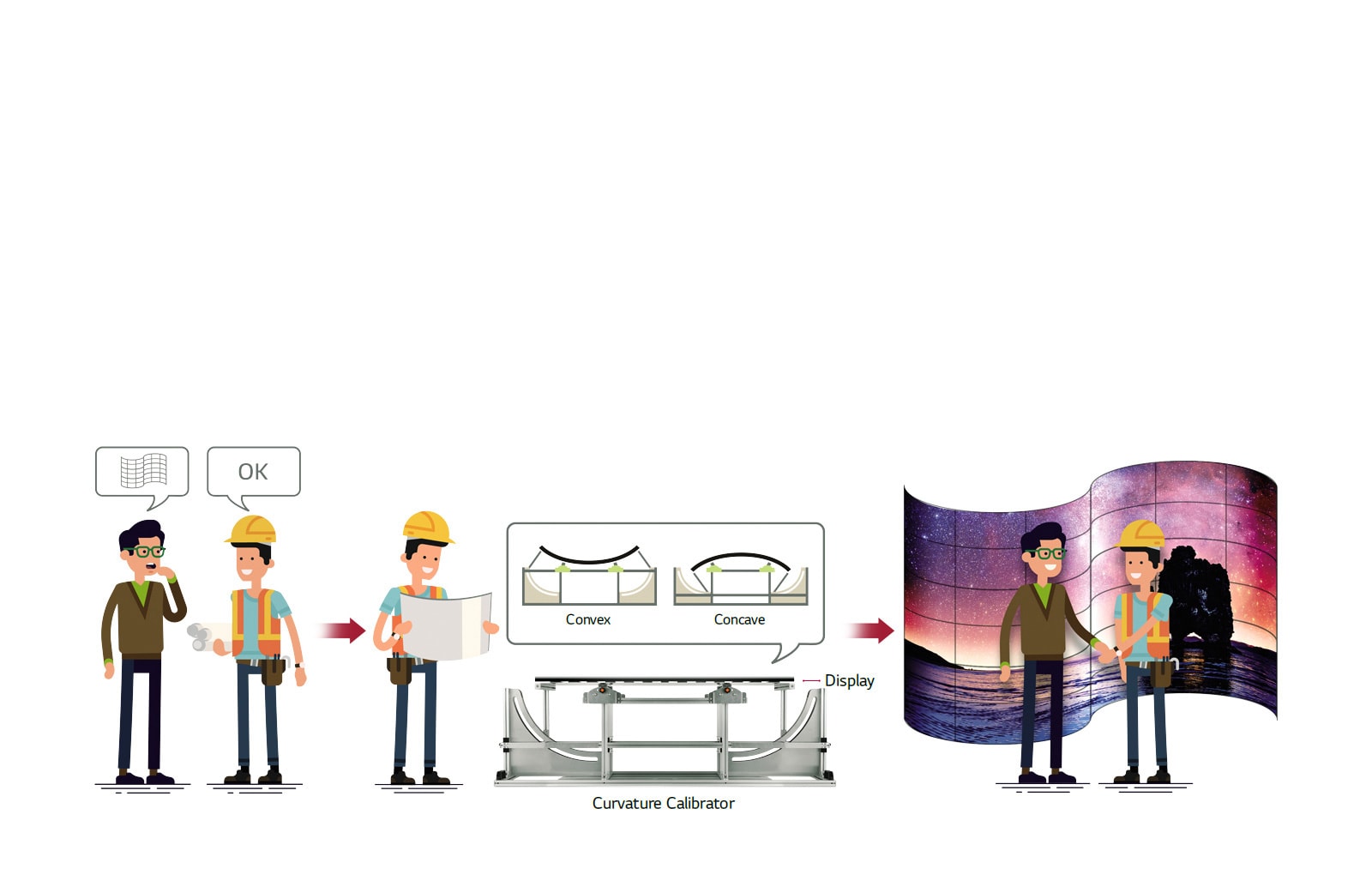

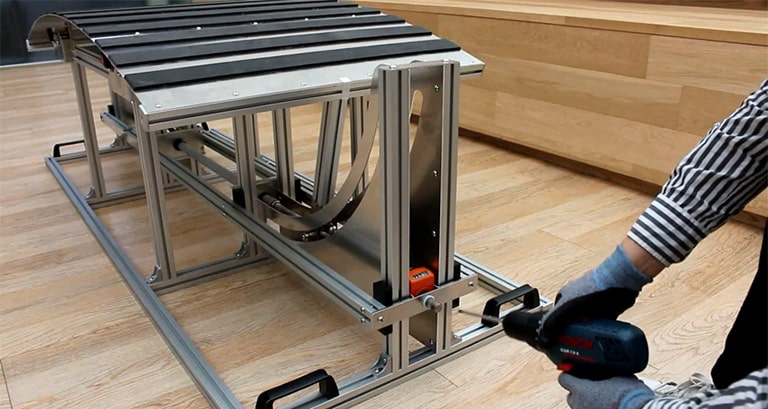

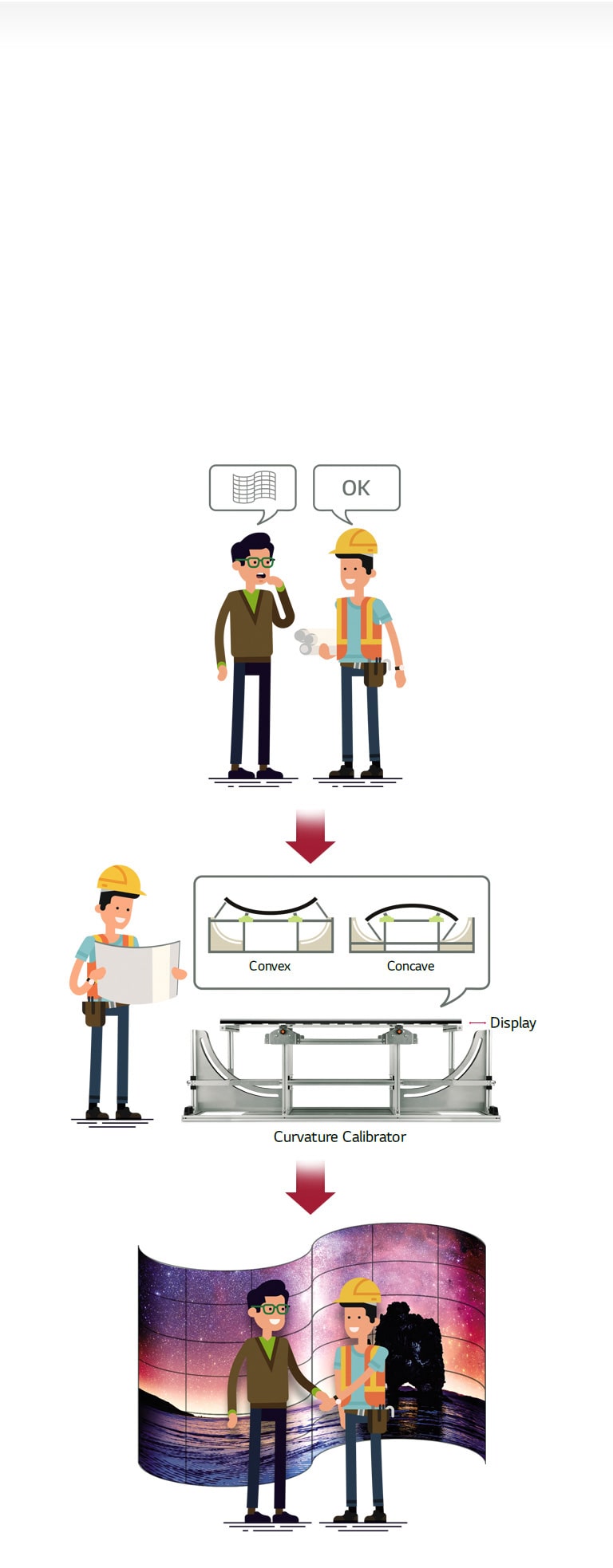

1)A Curvature Calibrator needs to be purchased separately. Please contact your regional LG sales representatives for details.

ACCESSORY

  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (220mm x 4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)
    Optional

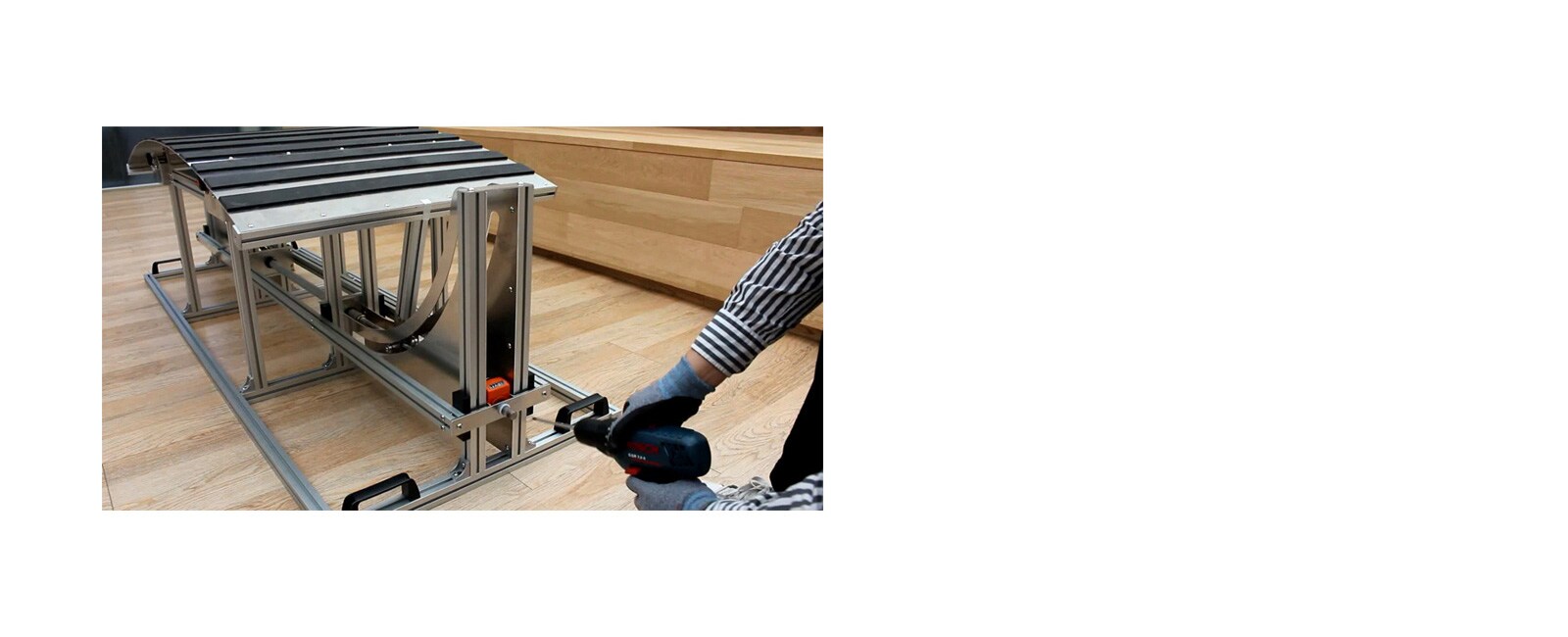

    Curvature Calibrator (ACC-CC-EF5E)

CONNECTIVITY

  • External Control
    RS232C In/out, RJ45 In/out, IR In
    Input
    HDMI, DP, USB 2.0 (2)
  • Output
    DP, Audio (Fixed/Off/Variable)

ENVIRONMENT CONDITIONS

  • Operation Humidity
    10% to 80%
    Operation Temperature
    0°C to 40°C

MEDIA PLAYER COMPATIBILITY

  • External Media player Attatchable
    Yes
    OPS Type Compatible
    No

PANEL

  • Brightness (Average Picture Level 100%, Typ., cd/m²)
    150
    Brightness (Average Picture Level 25%, Typ., cd/m²)
    400
  • Resolution
    1,920 x 1,080 (FHD)
    Screen Size
    55"

PHYSICAL SPECIFICATION

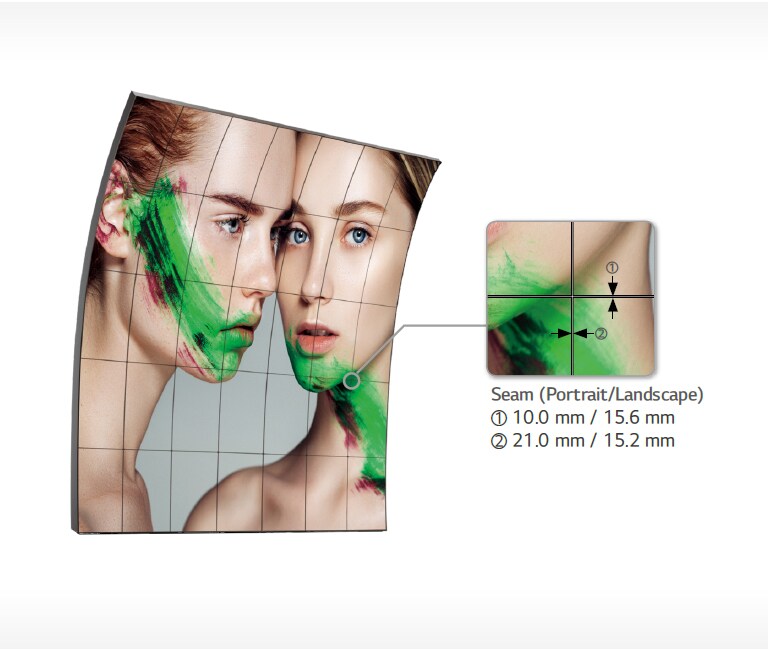

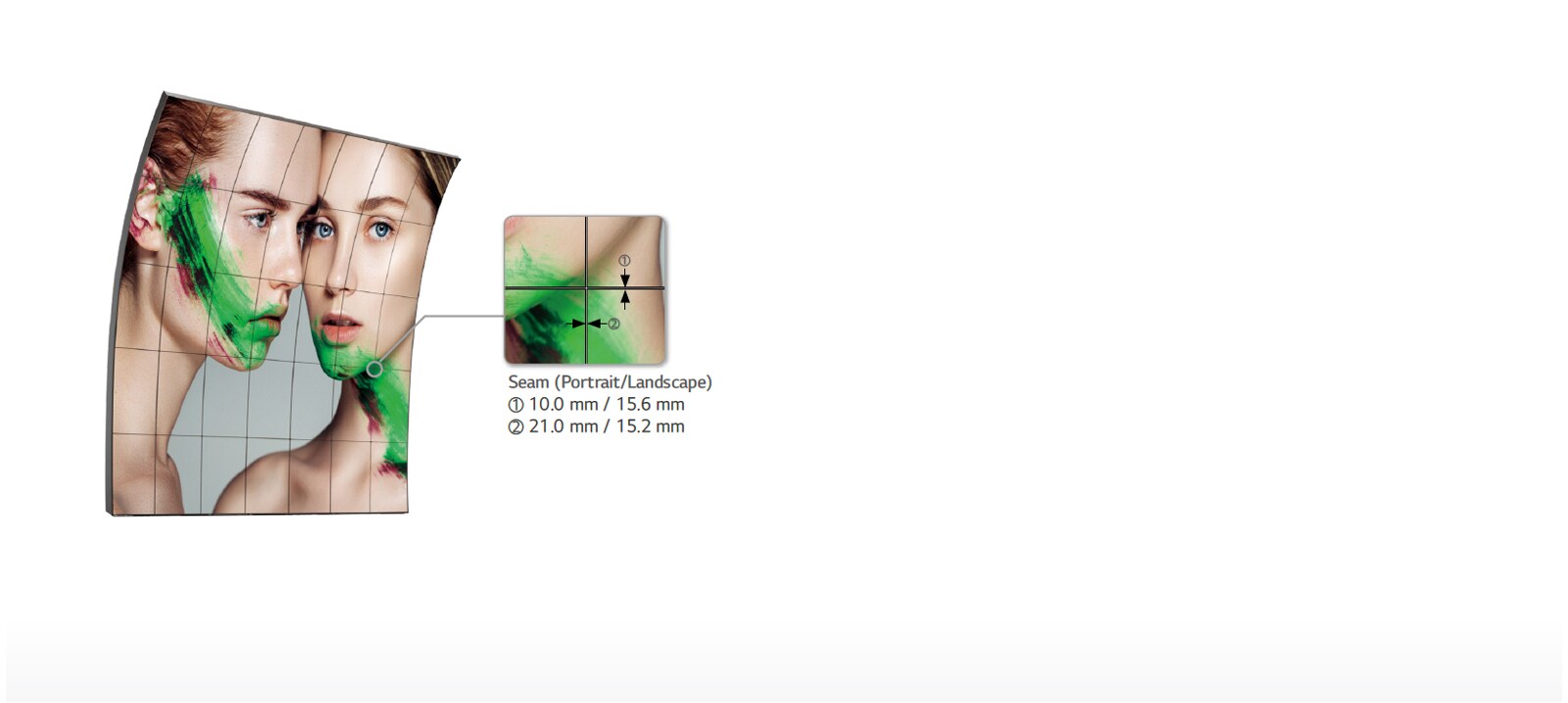

  • Bezel Width (T/B/L/R)
    0.6 / 0.6 / 6.7 / 6.7 mm (Flat, Off Bezel)
    5.0 / 10.6 / 7.6 / 7.6 mm (Flat, On Bezel)
    Carton Dimensions (W x H x D)
    1,350 x 837 x 250 mm
  • Monitor Dimension (W x H x D)
    1,224.9 x 696.2 x 38.0 mm (Head, w/Pem-nut)
    1,224.9 x 696.2 x 12.4 mm (Head Only)
    Packed Weight
    17 kg
  • Weight
    Set: 9.9 kg
    Signage Box: 3.5 kg

POWER

  • Power Consumption(Typ./Max., Based on 8 Color Bar)
    309 W / 318 W
    Power Supply
    100-240 V~, 50/60Hz
  • Power Type
    Built-In Power

SOFTWARE COMPATIBILITY

  • Content Management Software

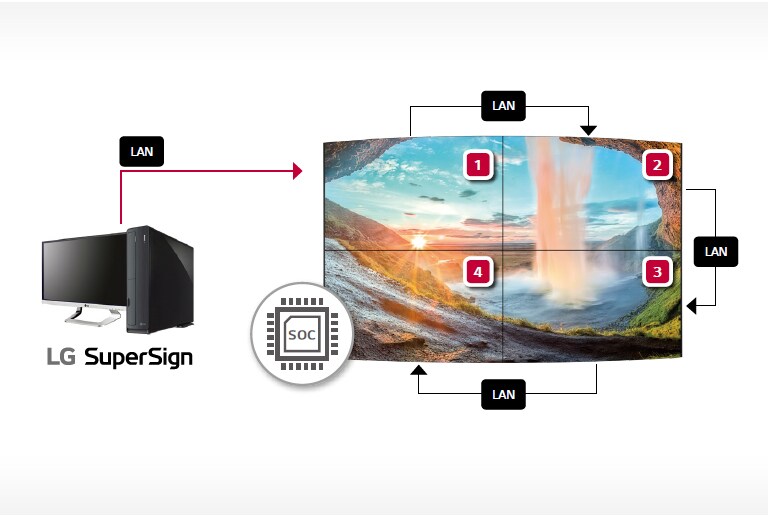

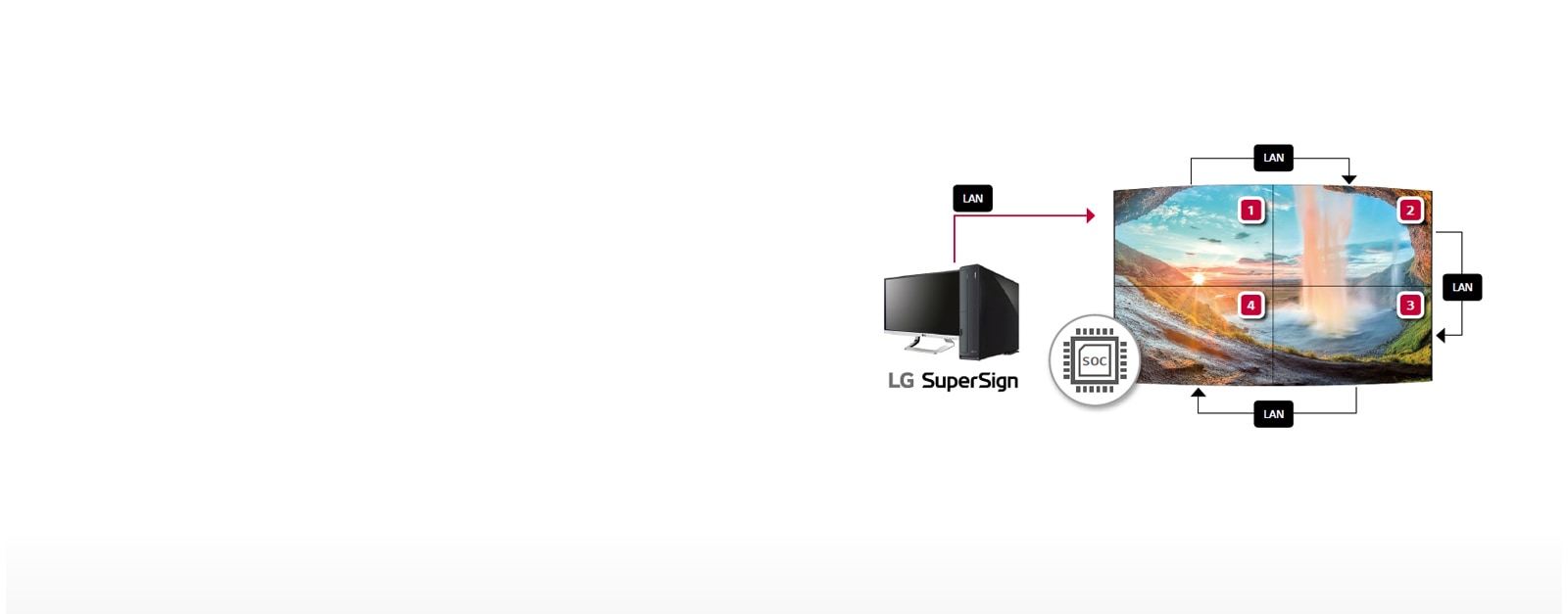

    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+ / Control

STANDARD (CERTIFICATION)

  • EMC
    FCC Class "A" / CE / KCC
    ErP/Energy Star
    Yes / No
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
