55LV75D
Ultra Narrow Bezel Video Wall
  • Brightness(Typ.): 500 cd/m²

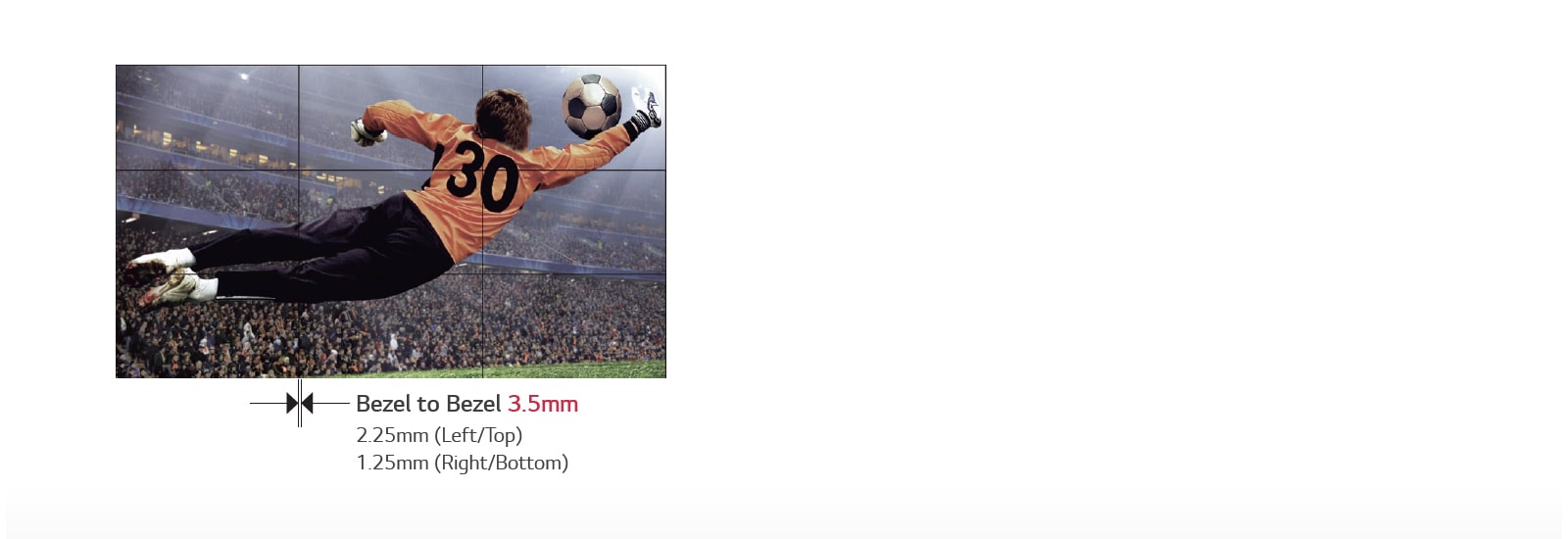

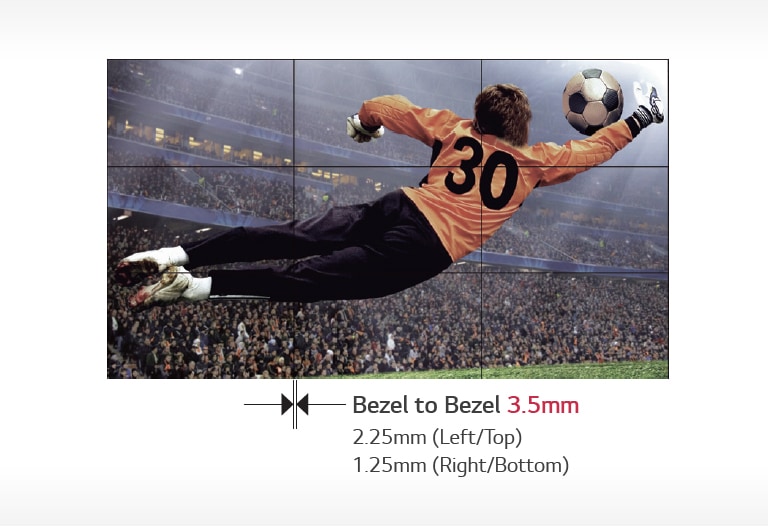

  • Bezel: 2.25 mm (Top/Left), 1.25 mm (Bottom/Right)
  • Depth: 88.5mm
  • Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB/IR Receiver/Audio

component-OBScountrySelectDesc

Ultra Narrow Bezel Video Wall

ACCESSORY

  • Basic
    Remote controller, Power cable, DP cable, IR receiver, RS-232C cable, Tiling guide, Screw
    Optional
    WM-L640V (Landscape), WM-P640V (Portrait), Frame kit (Horizontal: FK-55V10 / Vertical: FK-55V20)

CONNECTIVITY

  • External Control
    RS232C In/Out, RJ45 In, IR Reciever
    Input
    HDMI, DP, DVI, RGB, Audio, USB
  • Output
    DP, Audio

ENVIRONMENT CONDITIONS

  • Operation Humidity
    10% to 80%
    Operation Temperature
    0°C to 40°C

MEDIA PLAYER COMPATIBILITY

  • External Media player Attatchable
    Yes
    OPS Type Compatible
    No

PANEL

  • Brightness(Module, Typ., cd/m²)
    500
    Native Resolution
    1,920 x 1,080 (FHD)
  • Orientation
    Landscape & Portrait
    Screen Size
    55"

PHYSICAL SPECIFICATION

  • Bezel Width
    2.25 mm (L/T) / 1.25 mm (R/B)
    Carton Dimensions (W x H x D)
    1,337 x 828 x 239 mm
  • Handle
    Yes
    Monitor Dimension (W x H x D)
    1,213.4 x 684.2 x 88.5 mm
  • Packed Weight
    30.5 kg
    VESA™ Standard Mount Interface
    600 x 400 mm
  • Weight (Head)
    23 kg

POWER CONSUMPTION

  • Max
    230 W
    Smart Energy Saving
    130 W
  • Typ.
    160 W

SOFTWARE COMPATIBILITY

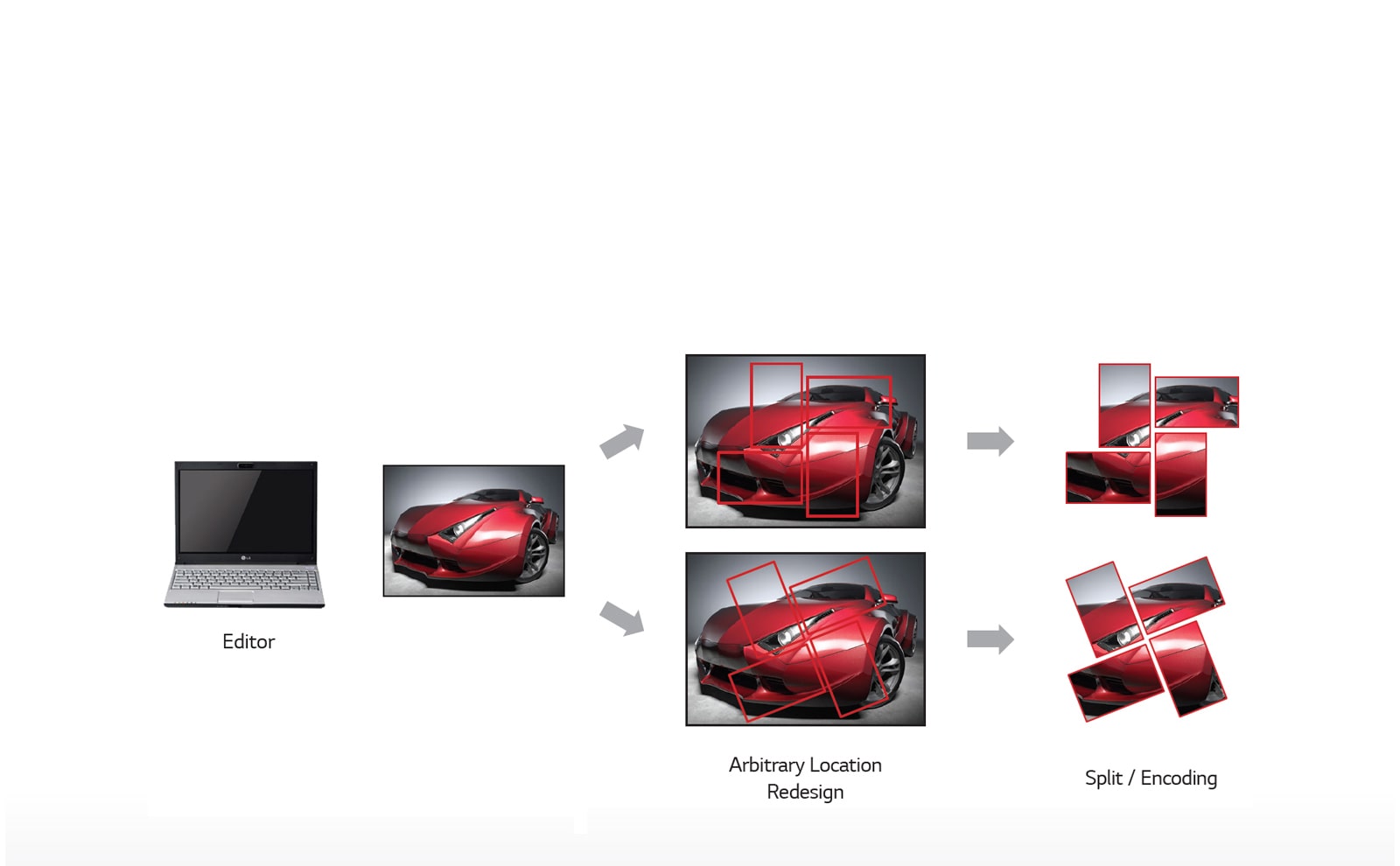

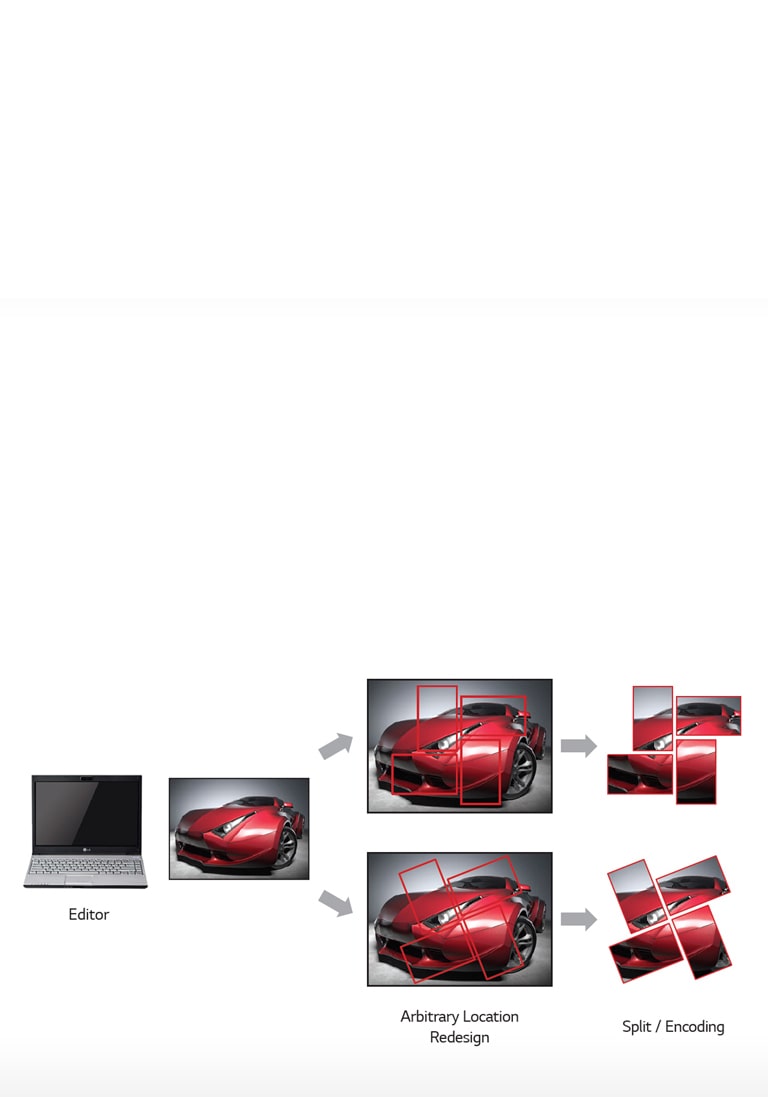

  • Content Management Software
    SuperSign W
    Control and Monitoring Software
    SuperSign C

STANDARD (CERTIFICATION)

  • EMC
    FCC Class "A" / CE / KCC
    ErP/Energy Star
    NA / Yes (Energy Star 7.0)
  • Safety
    UL / cUL / CB / TUV / KC
