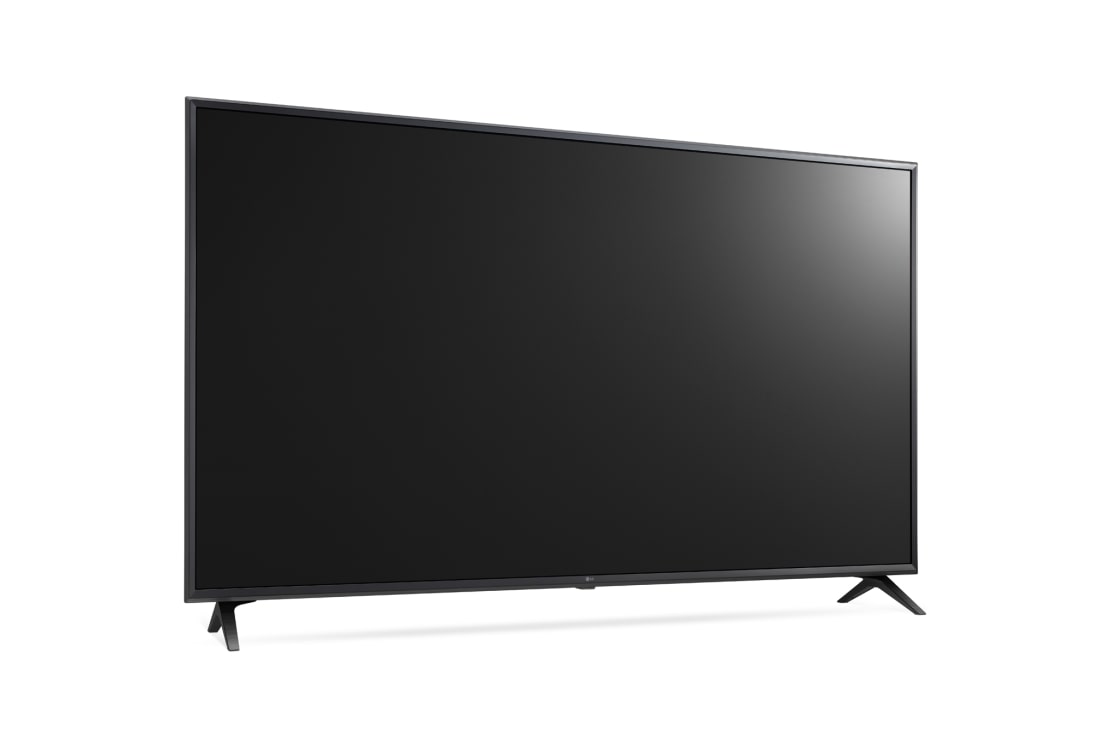

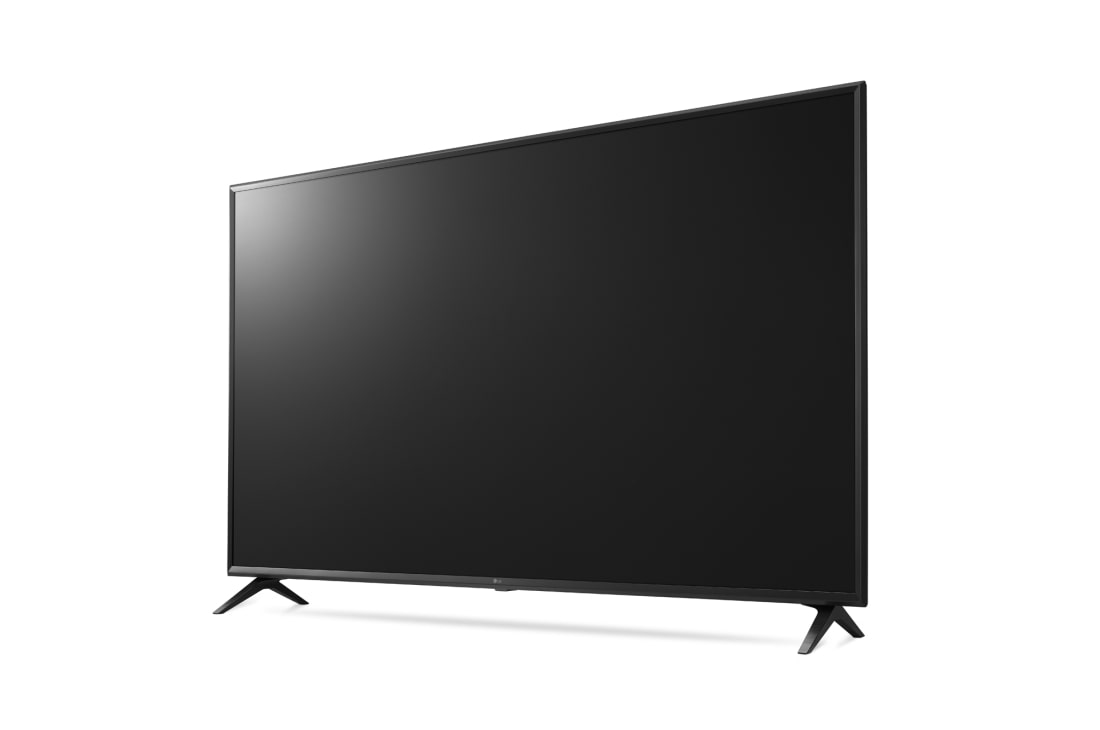

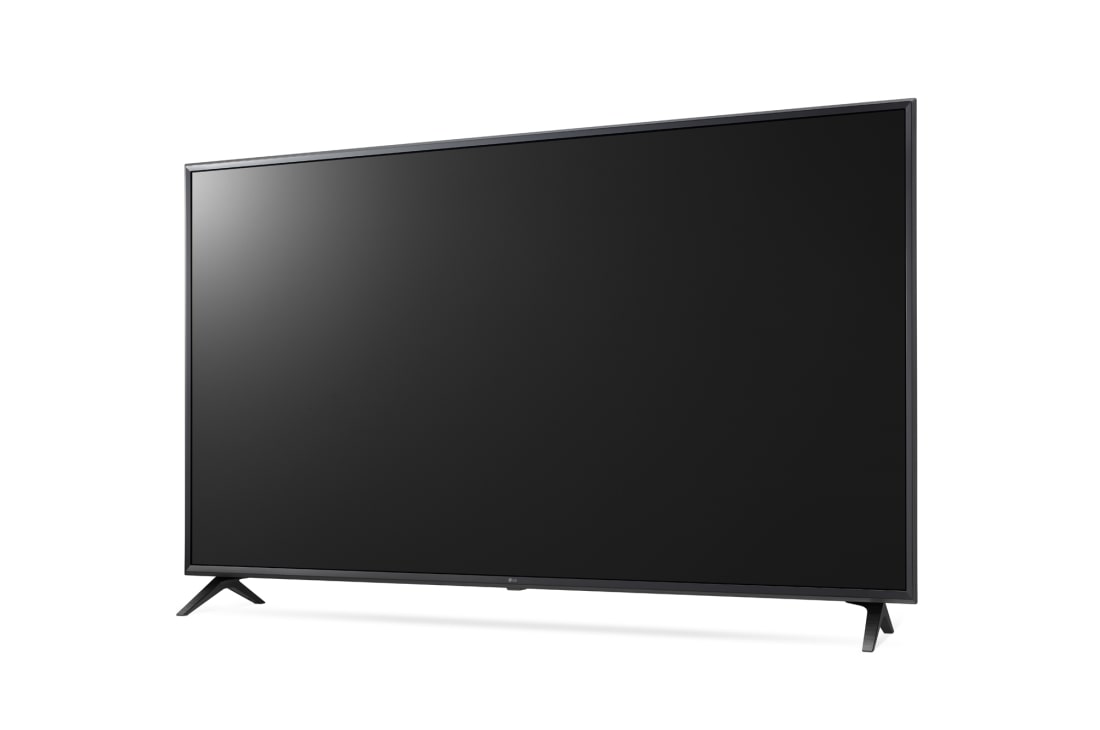

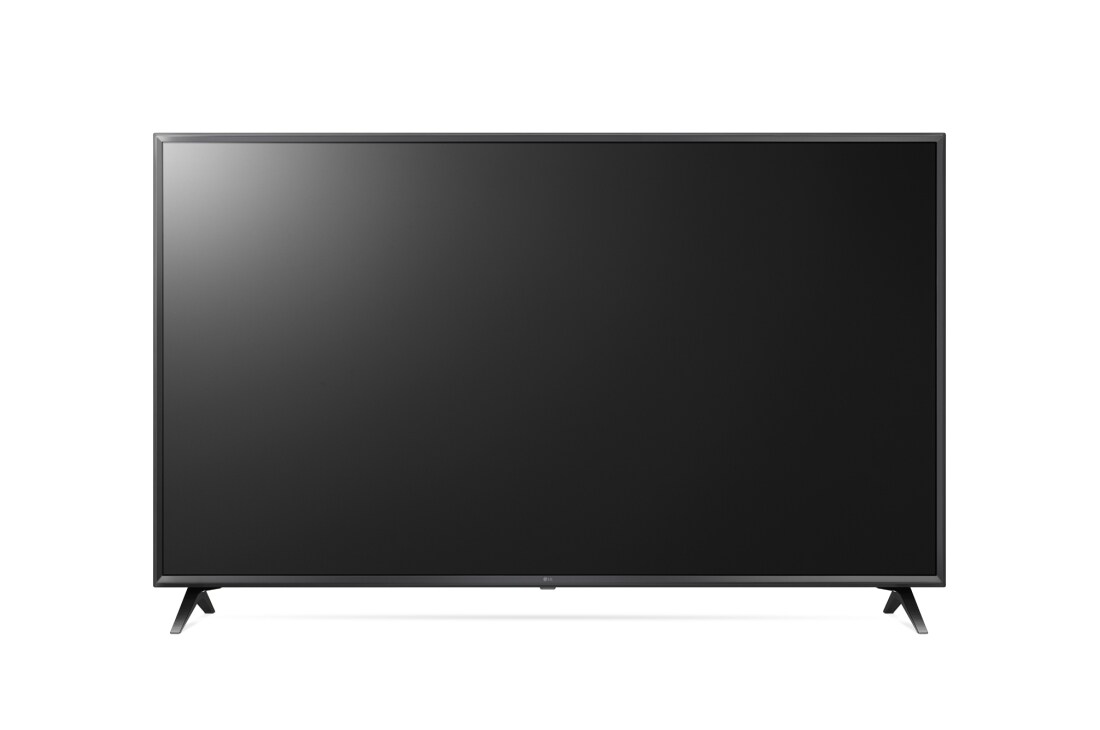

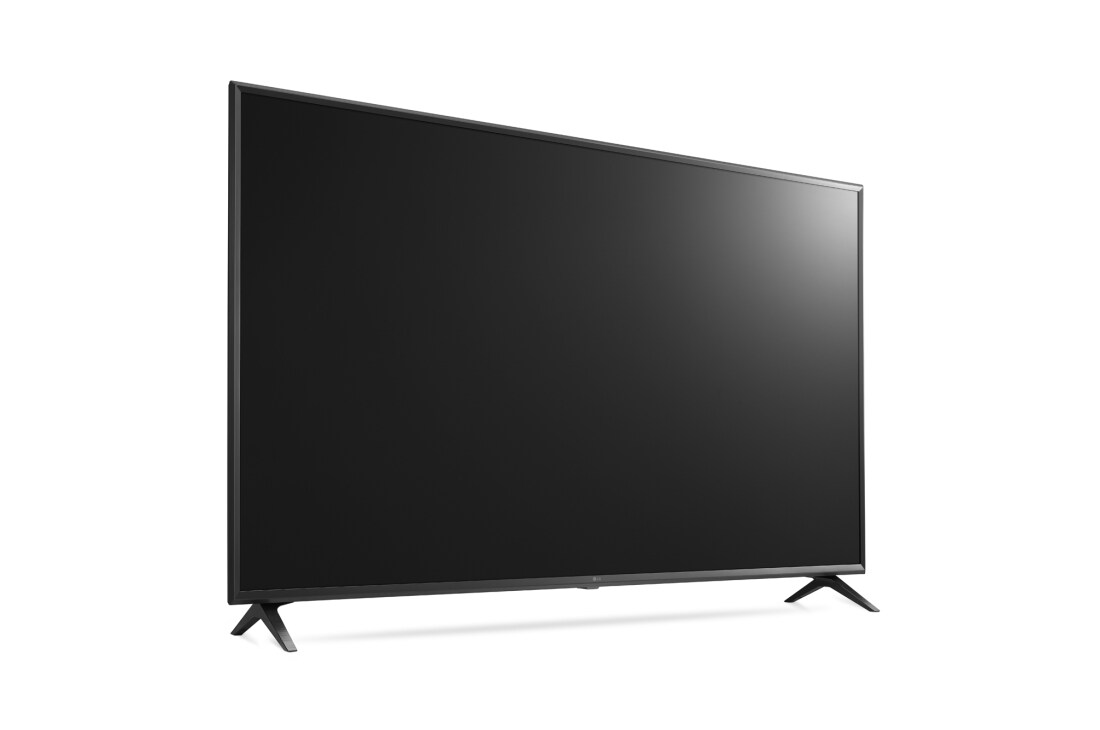

55UU660H
UU660H Series

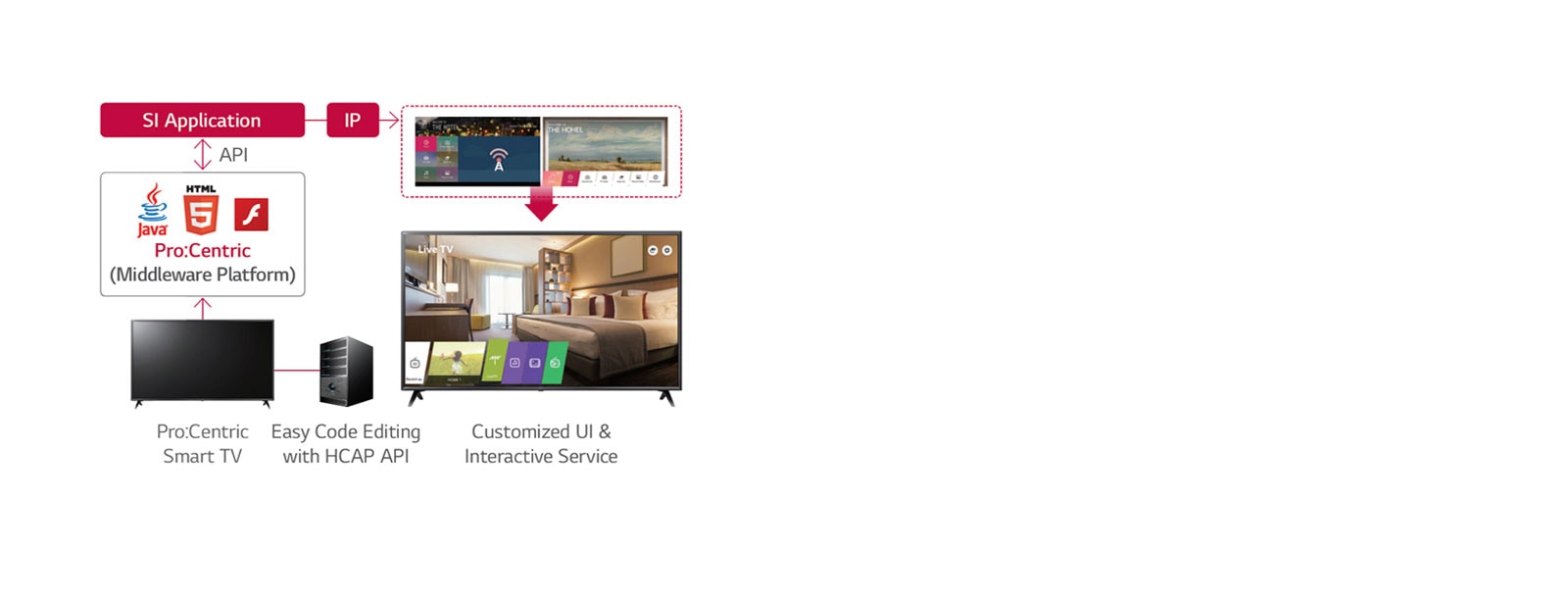

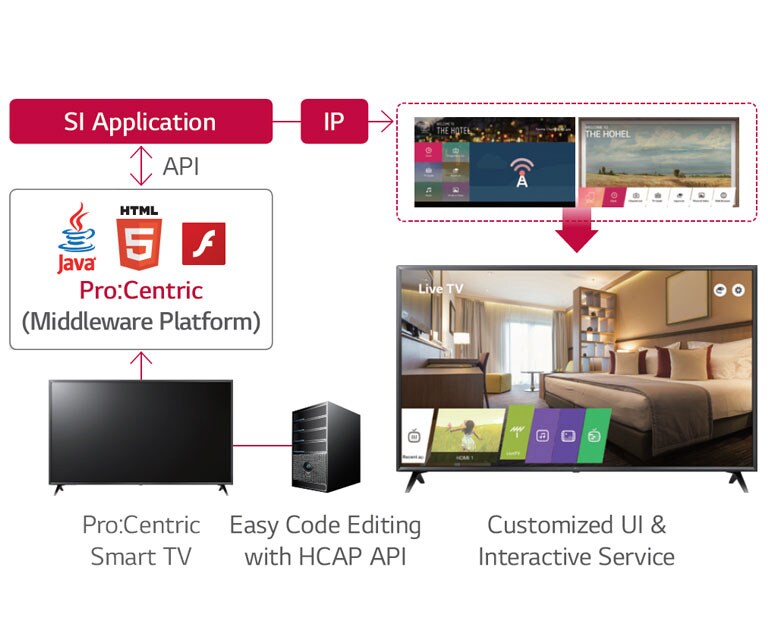

  • Pro:Centric Hotel Management Solution
  • TV Link Interactive
  • EzManager

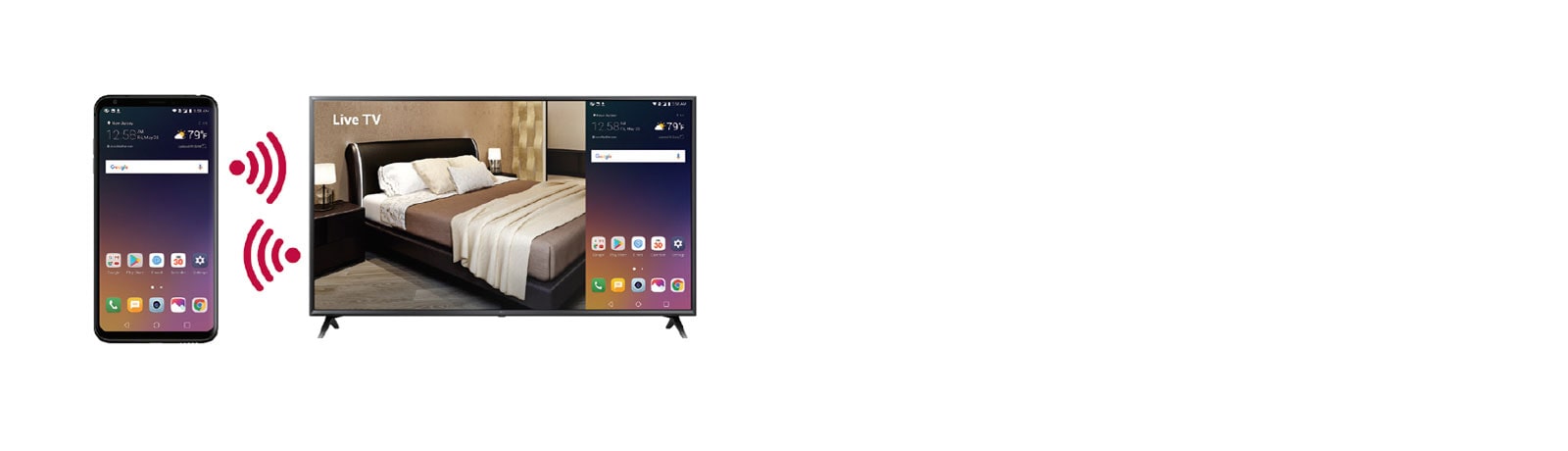

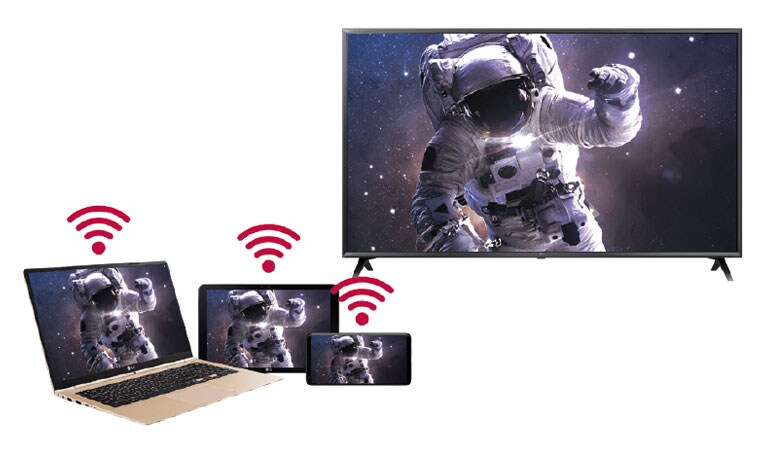

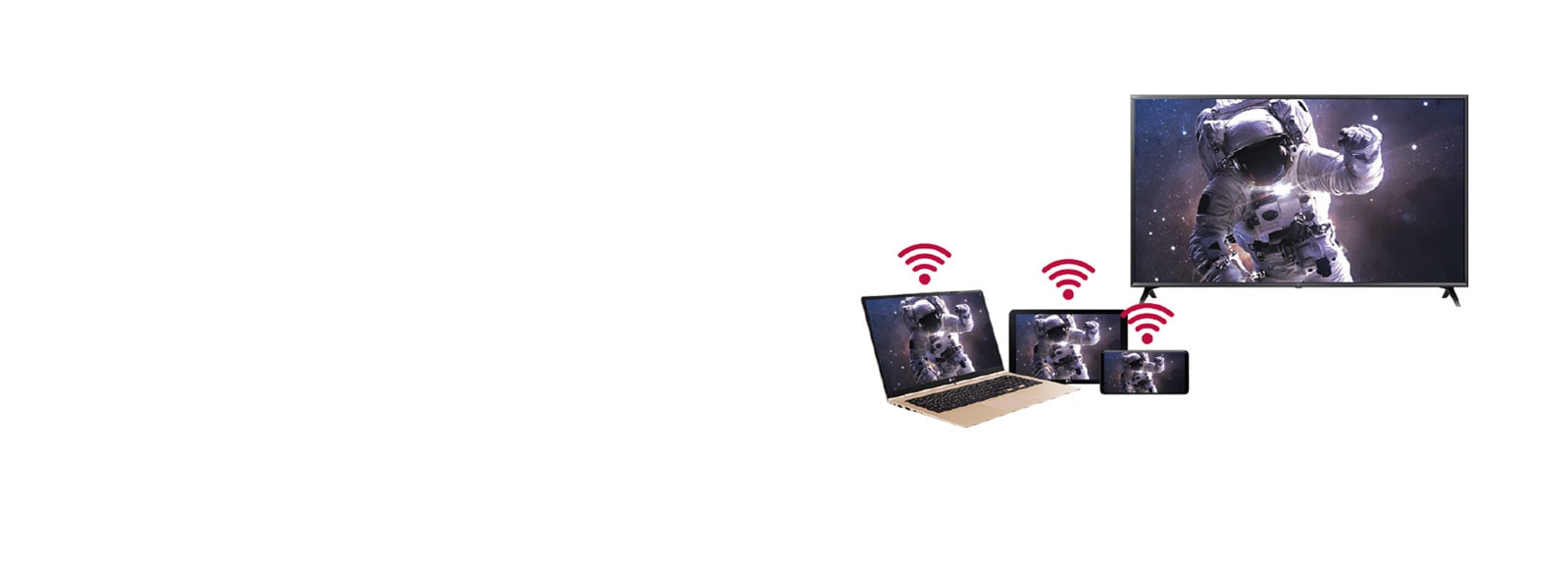

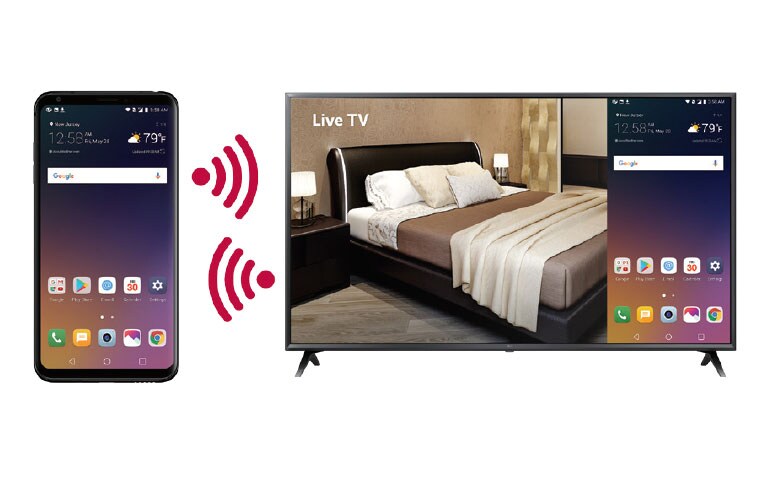

  • SmartShare/ScreenShareNew

component-OBScountrySelectDesc

UU660H Series
*Customized UI may be little different.
*Actual UI may be little different.
*Actual In-screen image may be little different.
*Actual In-screen image may be little different.
*All pictures shown below are for illustration purpose only (for a better understanding). Actual device and screen may differ.

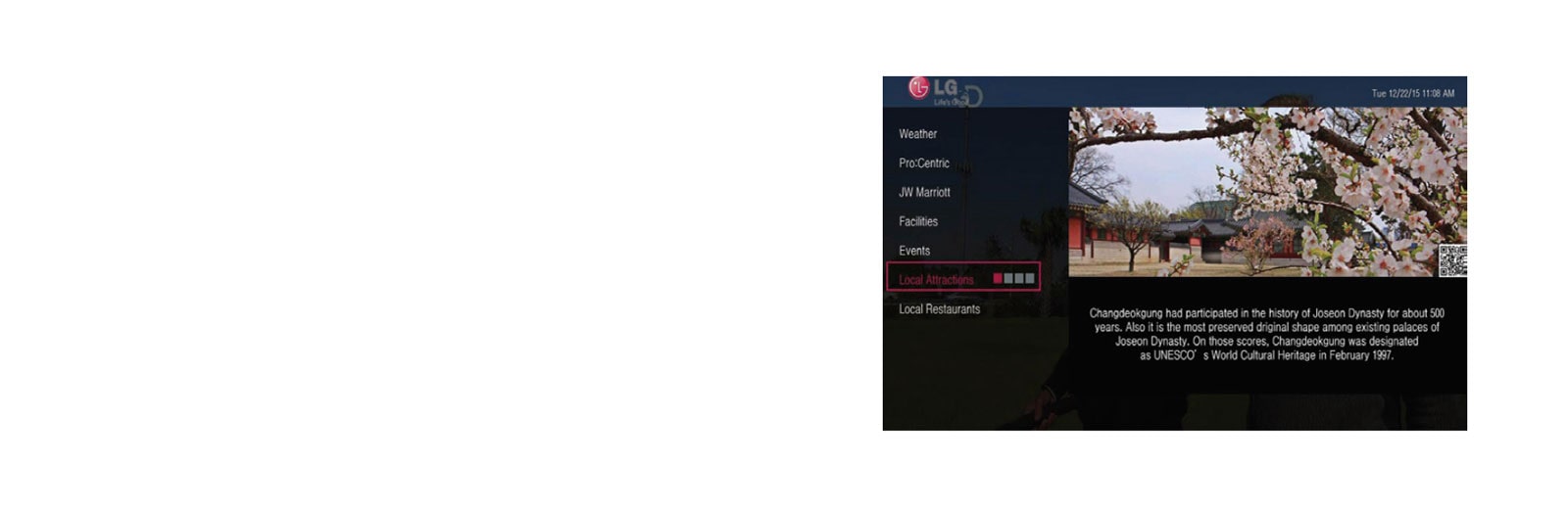

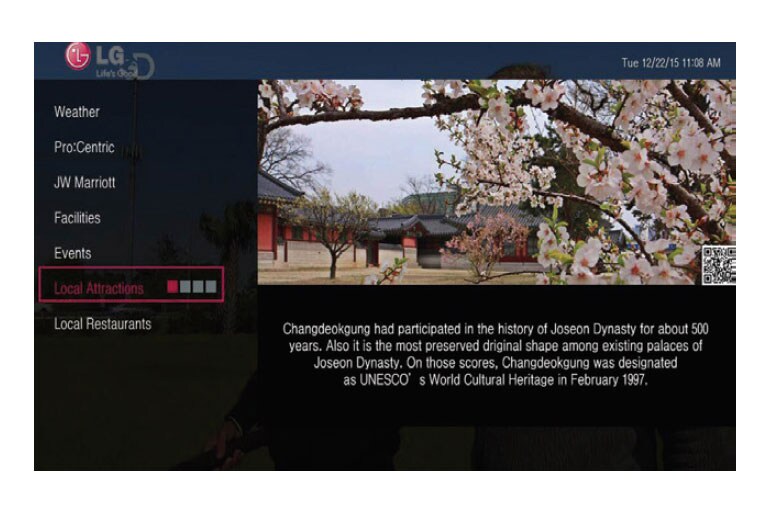

*Contents have to be uploaded by Hotel.

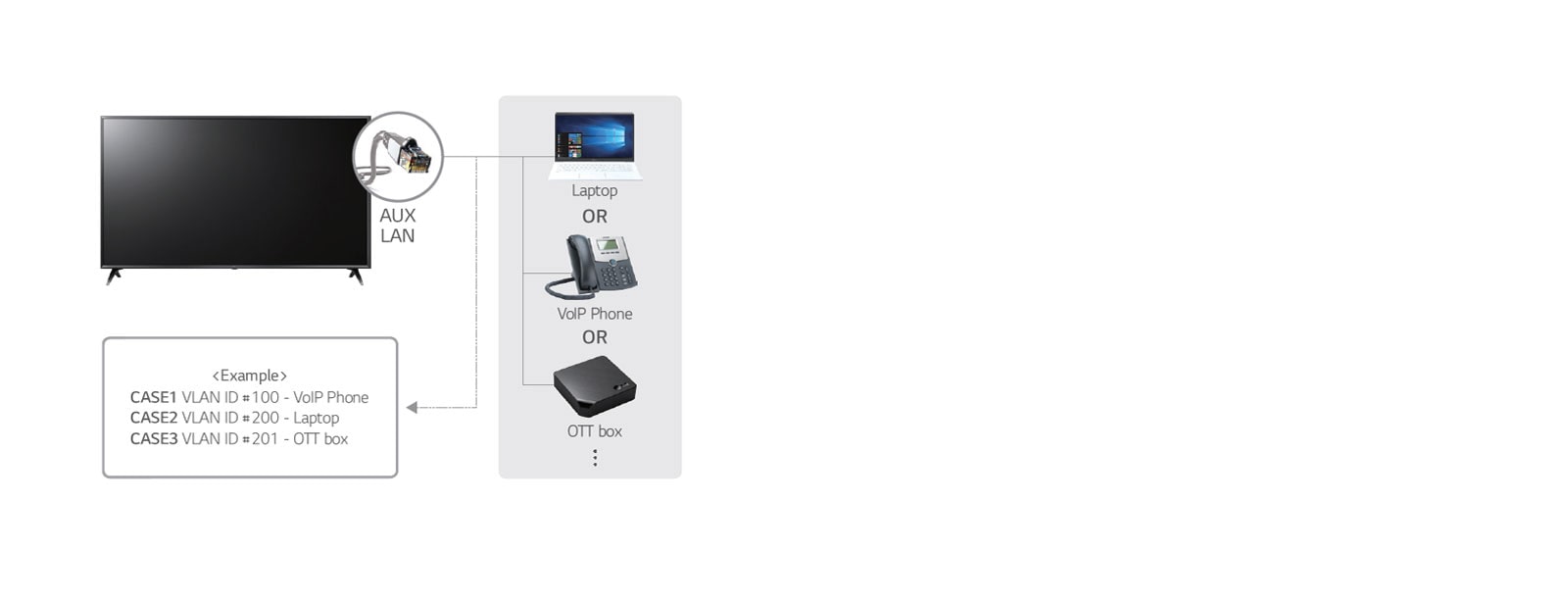

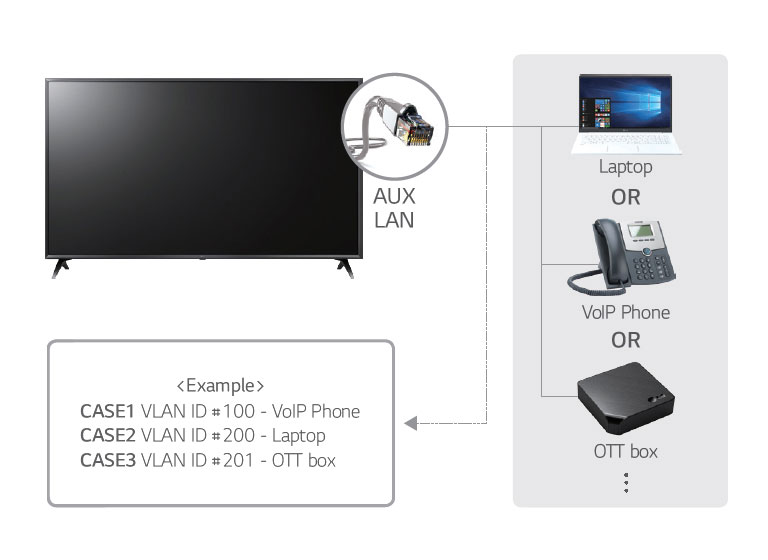

*AUX LAN (LAN out) ID: Set a VLAN ID to be assigned to external devices connected to the LAN out port. (a AUX LAN is used for assigning a VLAN ID).
*VLAN ID: Create separate Virtual LAN group with ID (tagging).
*TV native Control.

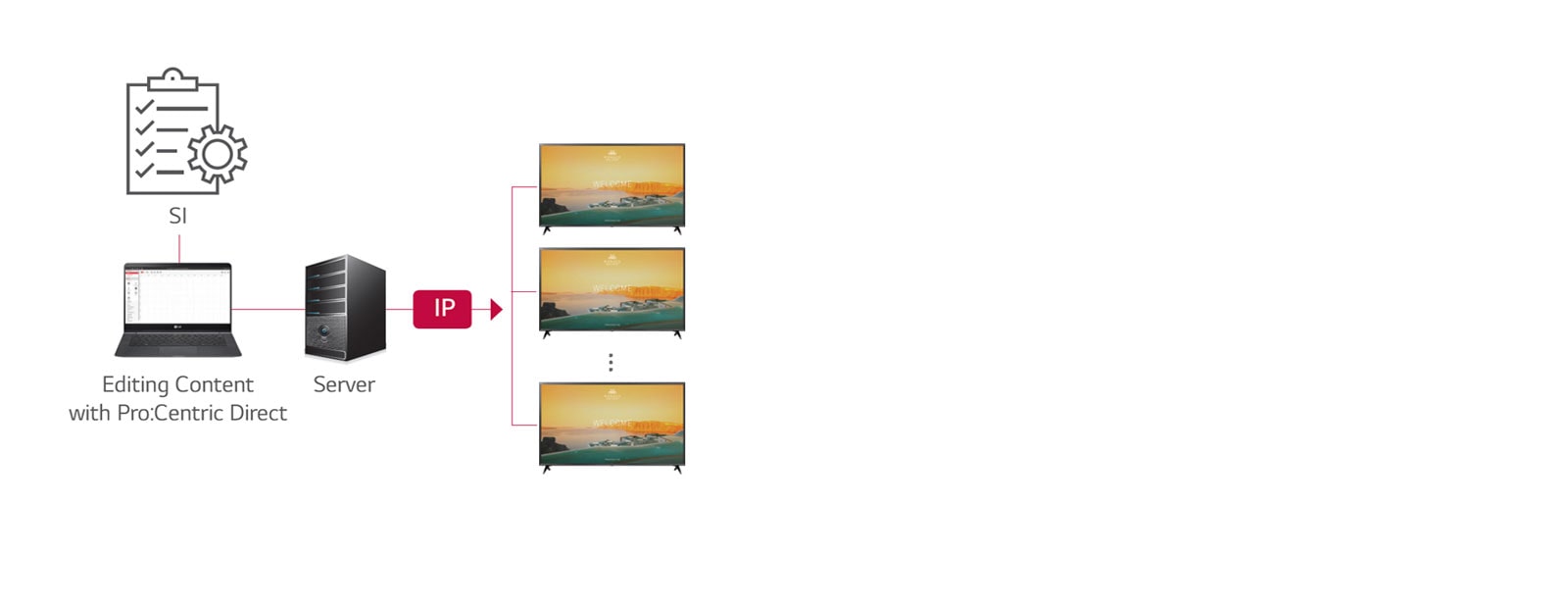

*Server Based control.
*Magic Motion Remote is required (sold separately).

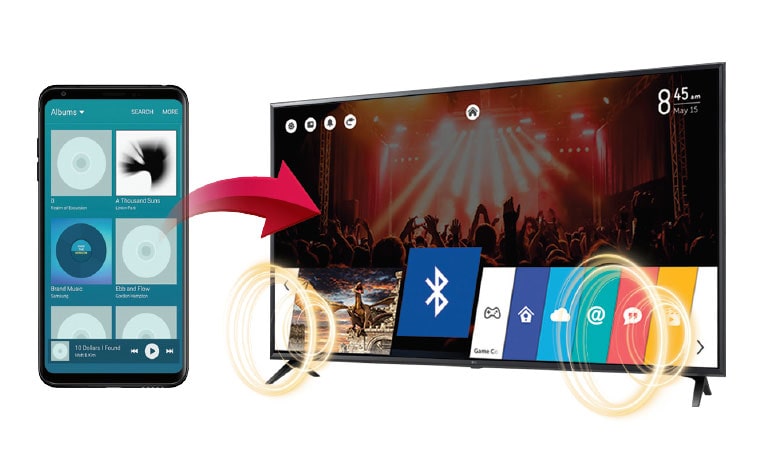

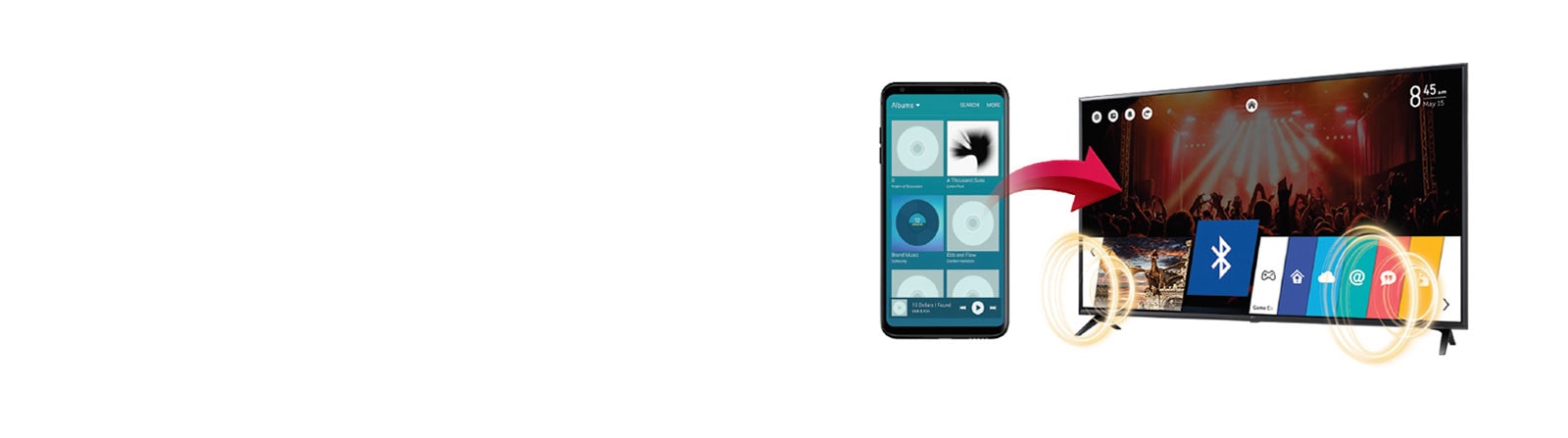

*Support devices for Bluetooth Sound Sync: Android (above v4.4 KitKat)/iOS based Mobile Device.
PANEL
  • Backlight Type
    LED (Direct)
    Brightness (cd/m²)
    500
  • Resolution
    3,840 x 2,160 (4K UHD)
    Screen Size
    55"
BROADCASTING SYSTEM
  • Analog
    Yes (PAL/SECAM)
    Digital
    Yes
VIDEO
  • XD Engine
    Yes
    Aspect Ratio
    Yes 6 modes (16:9, Original, Full wide, 4:3, Vertical Zoom, All-Direction Zoom)
AUDIO
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    Yes 6 modes (16:9, Original, Full wide, 4:3, Vertical Zoom, All-Direction Zoom)
    Clear Voice
    Yes (Clear VoiceⅢ)
HOSPITALITY SOLUTION
  • Solution Type

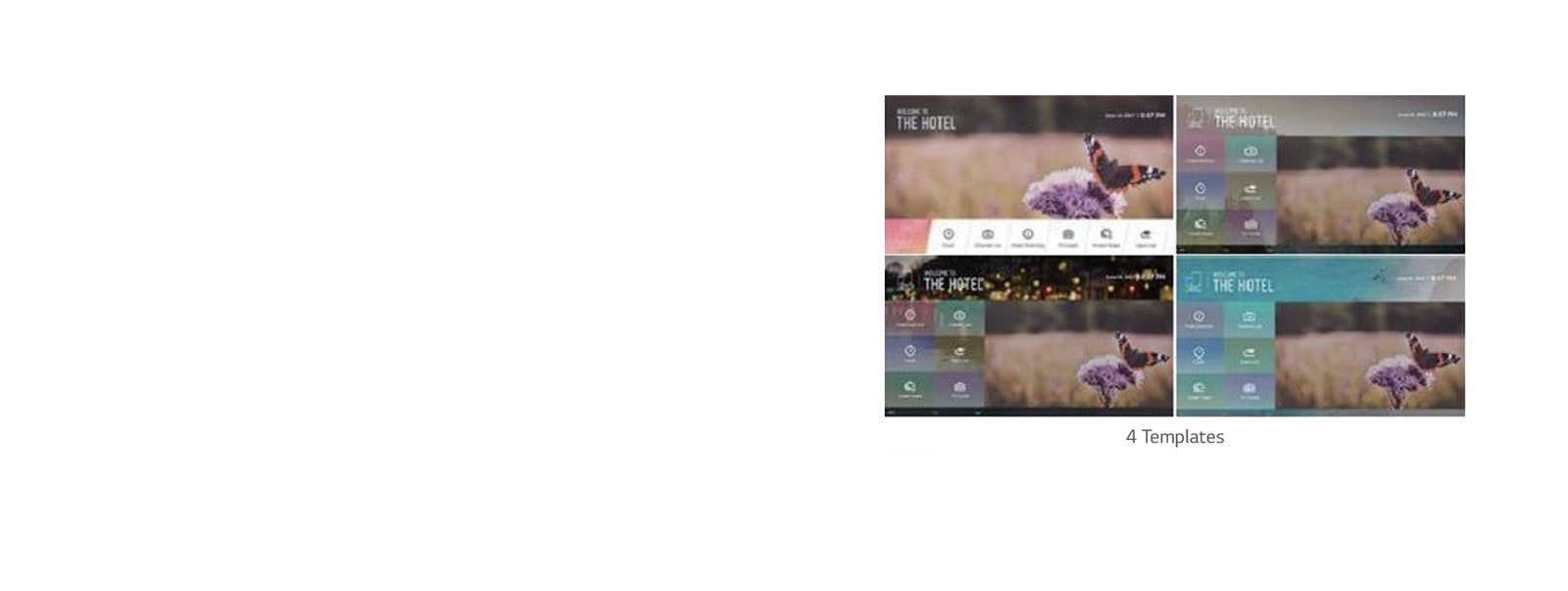

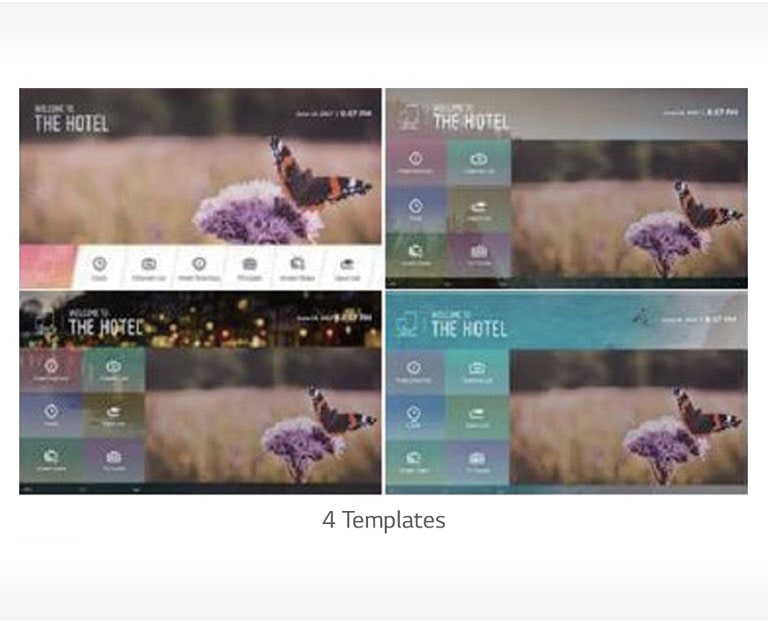

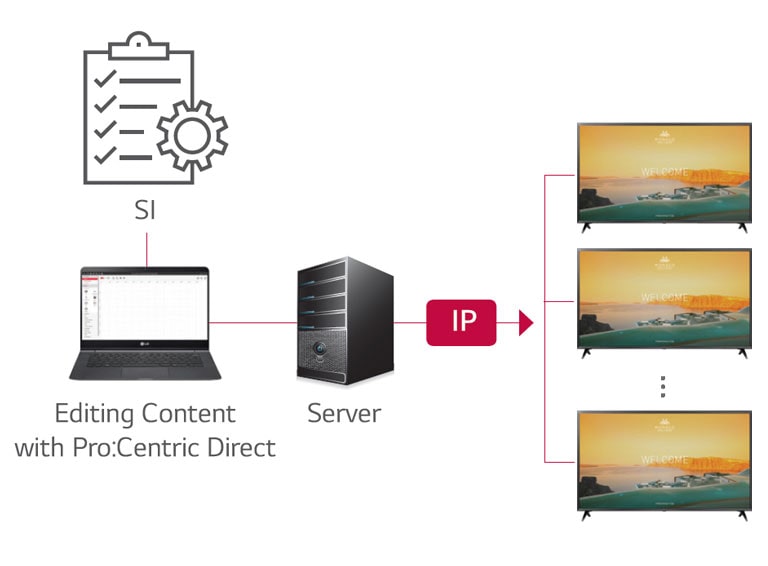

    Pro:Centric (Smart, V, Direct), Quick Menu 2.0
    Data Streaming (IP & RF)
    Yes
  • HCAP (EM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / Flash / HTML5
    Pro: Centric Application
    PCA 3.7
  • DRM
    Pro: Idiom (S/W Type)
    RF (1/2Tuner)
    Yes (1 Tuner)
FEATURE
  • Hospitality

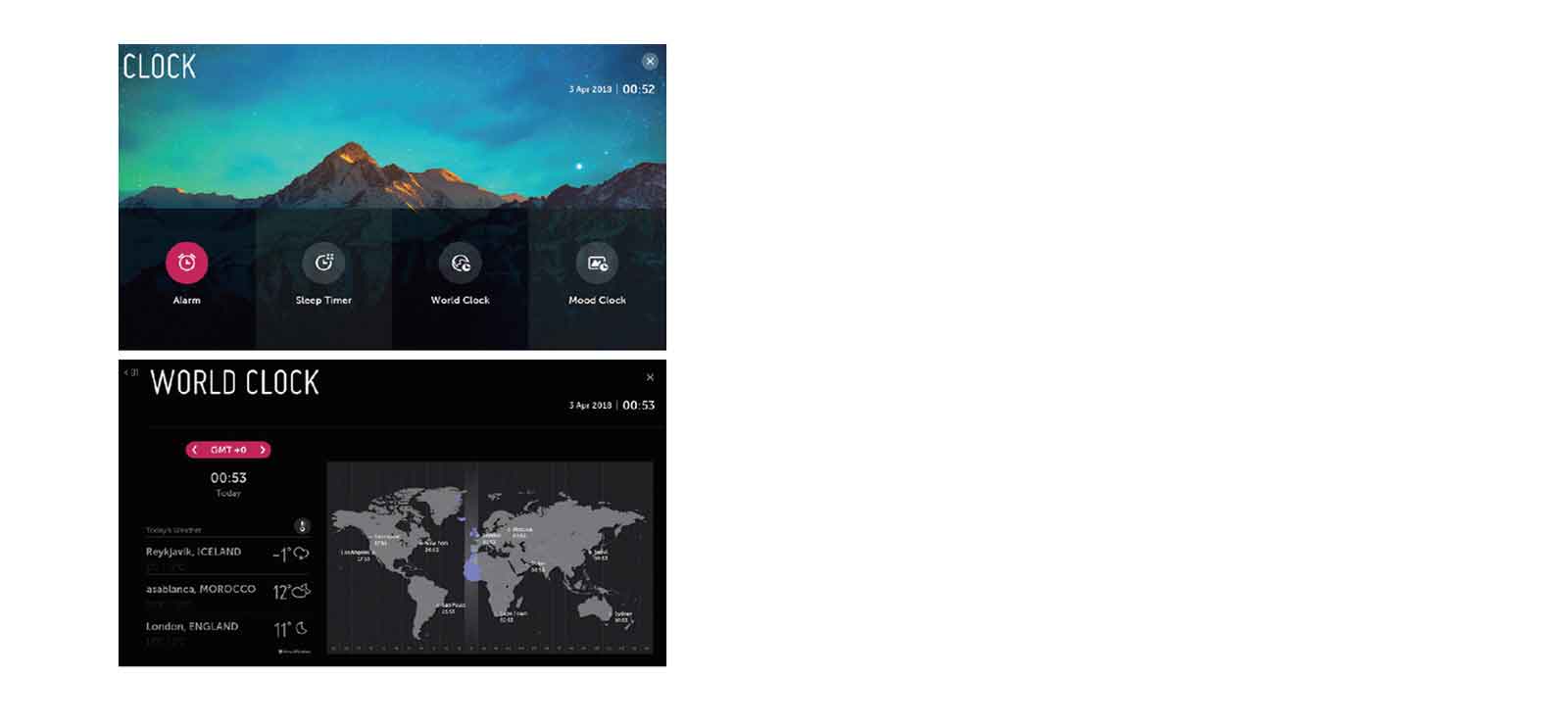

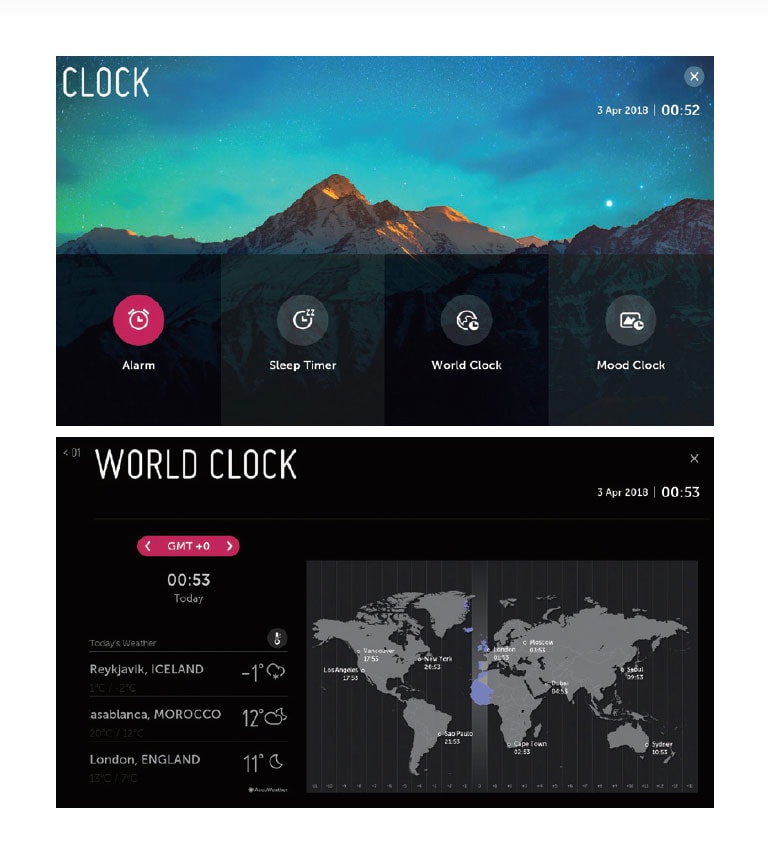

    Hotel Mode, Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Instant On, V-Lan Tag, RJP Interface, RJP Compatibility, External Clock Compatibility, Clock (World Clock / Alarm), 360 Viewer, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
JACK INTERFACE
  • Set Side
    HDMI In 2.0, USB 2.0 (2), CI Slot

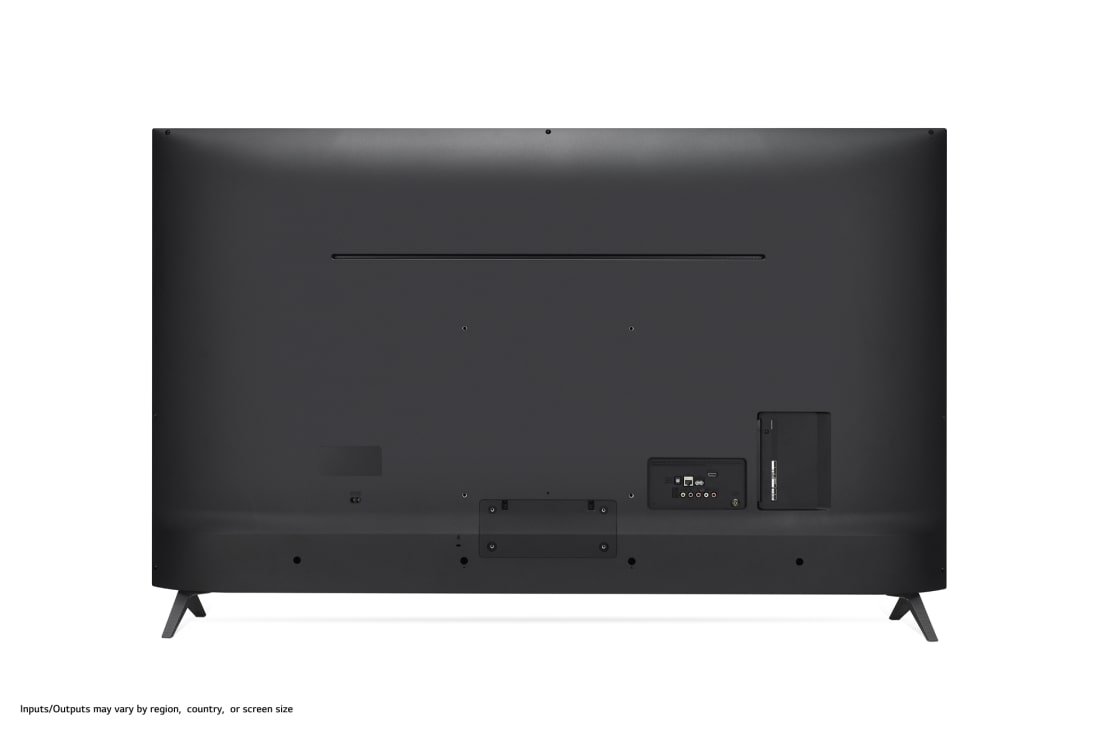

    Set Rear
    RF In (2), AV In, Component in (Y,Pb,Pr-Video), Digital Audio Out, HDMI/HDCP Input, RS232C (Control & Service), Headphone Out, Clock Interface, RJ45, External Speaker Out (2)
POWER (UNIT : WATTS)
  • Voltage, Hz
    100~240V, 50 / 60 Hz
    Max
    152.2
  • Typical
    126.5
    Energy saving (Min / Med / Max)
    101.2 / 69.57 / 37.95
  • Stand-by
    0.5 ↓
GENERAL
  • Region
    Middle East & Africa
MECHANIC
  • VESA Compatible
    300 x 300
    W x H x D / Weight (with stand)
    1,247 x 785 x 231 / 13.8kg
  • W x H x D / Weight (without stand)
    1,247 x 729 x 78 (SPK: 88.6) / 13.7kg
    W x H x D / Weight (Packing)
    1,360 x 835 x 175 / 18.4kg
