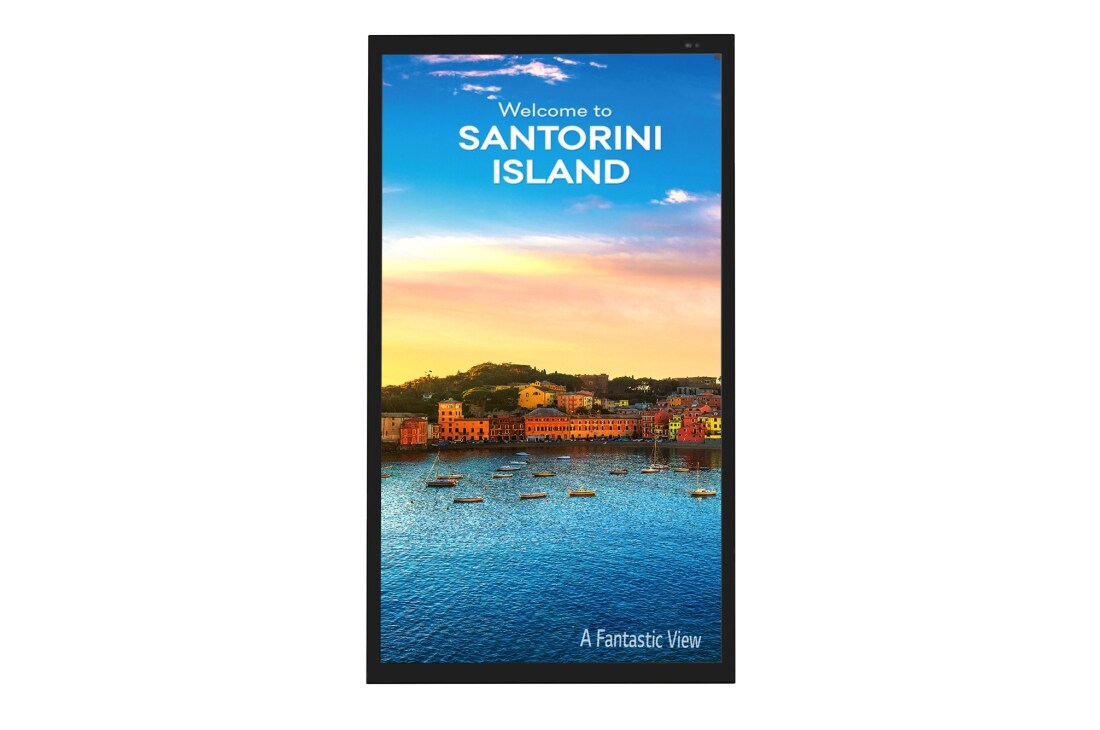

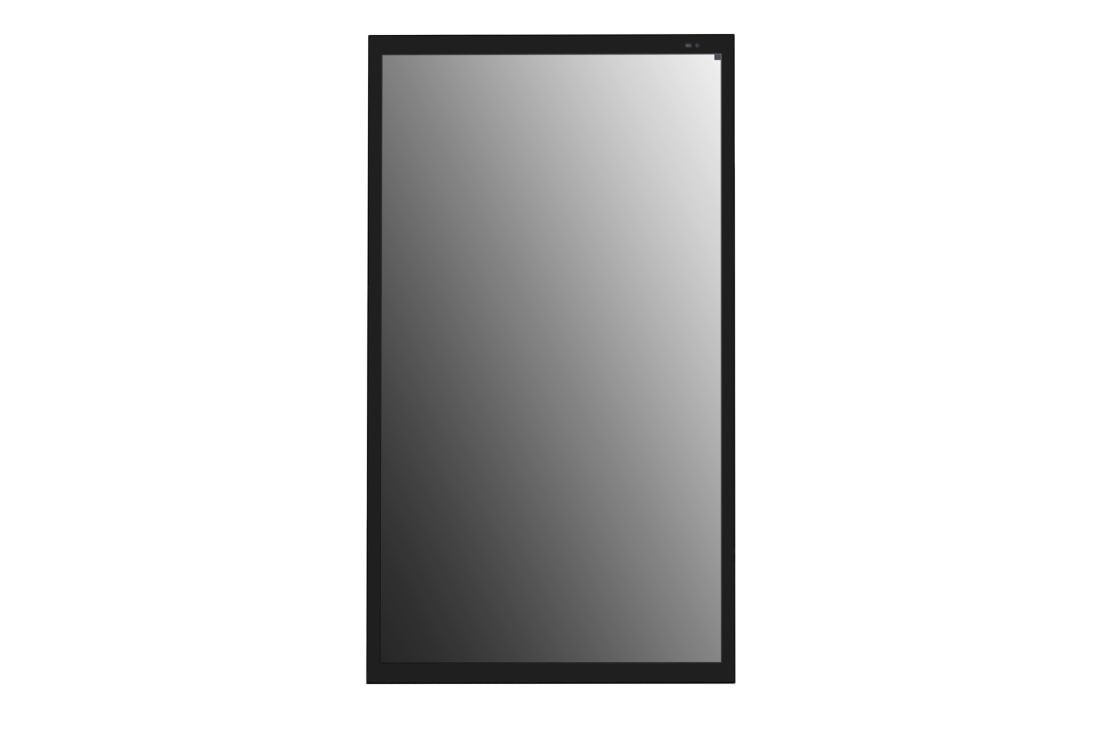

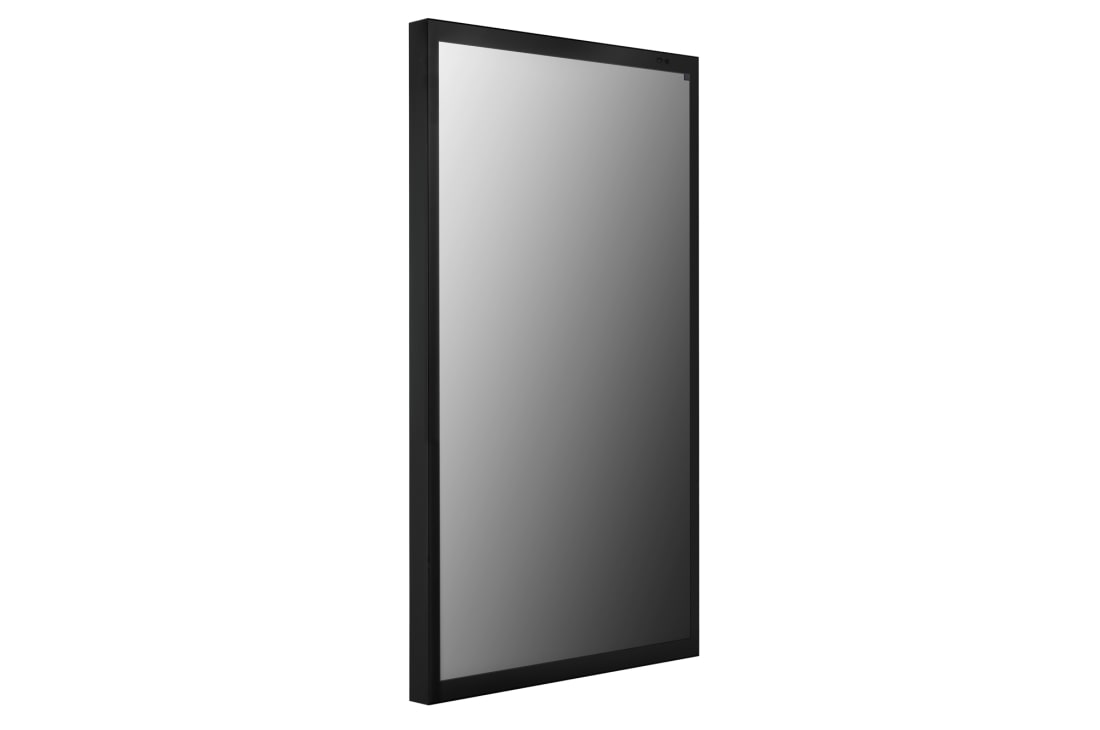

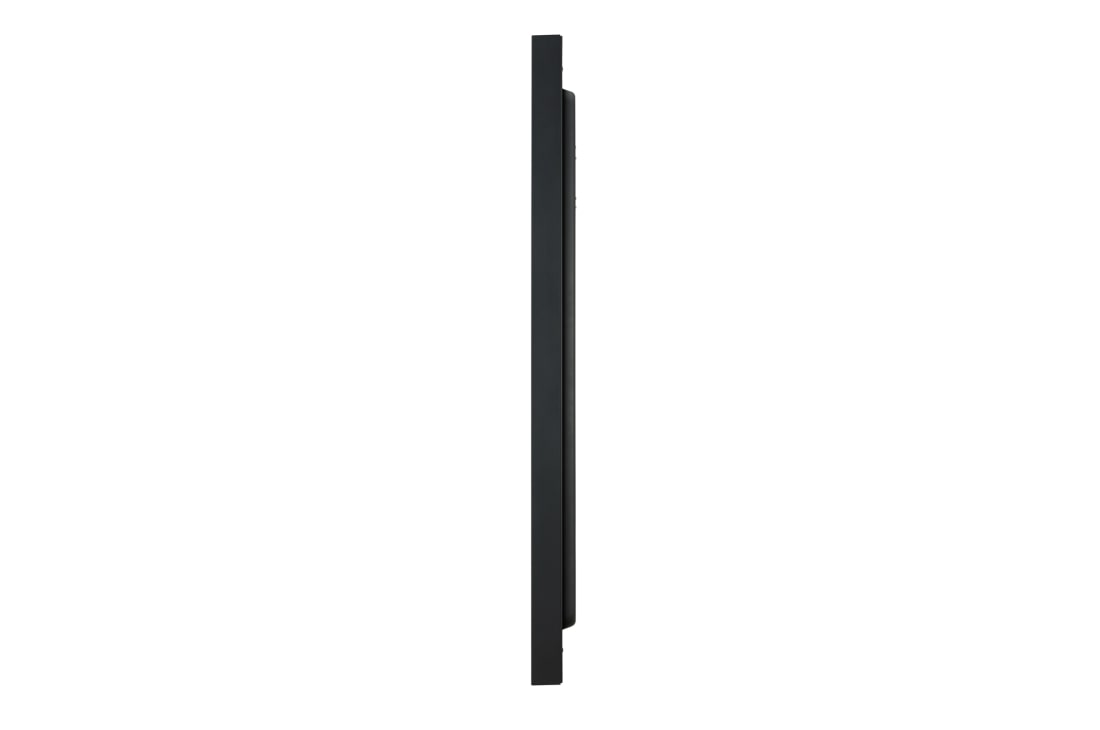

55XE4F-B
XE4F Series

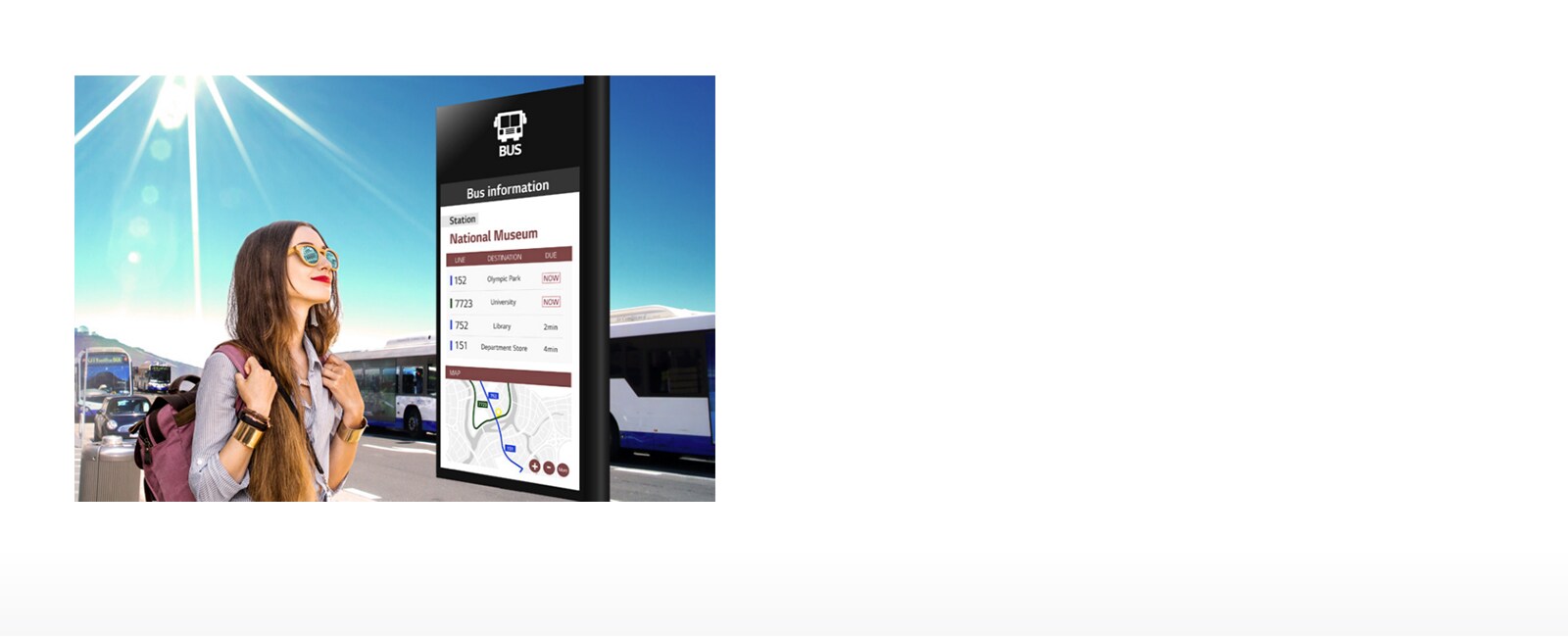

  • Brightness(Typ.) : 4,000 cd/m²

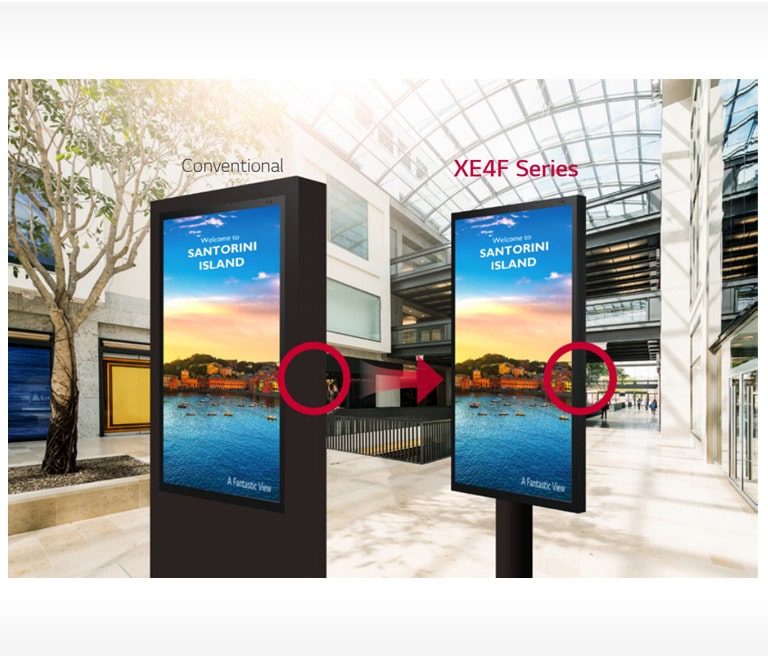

  • Bezel : 38.4 mm (T/B), 26.0 mm (L/R)

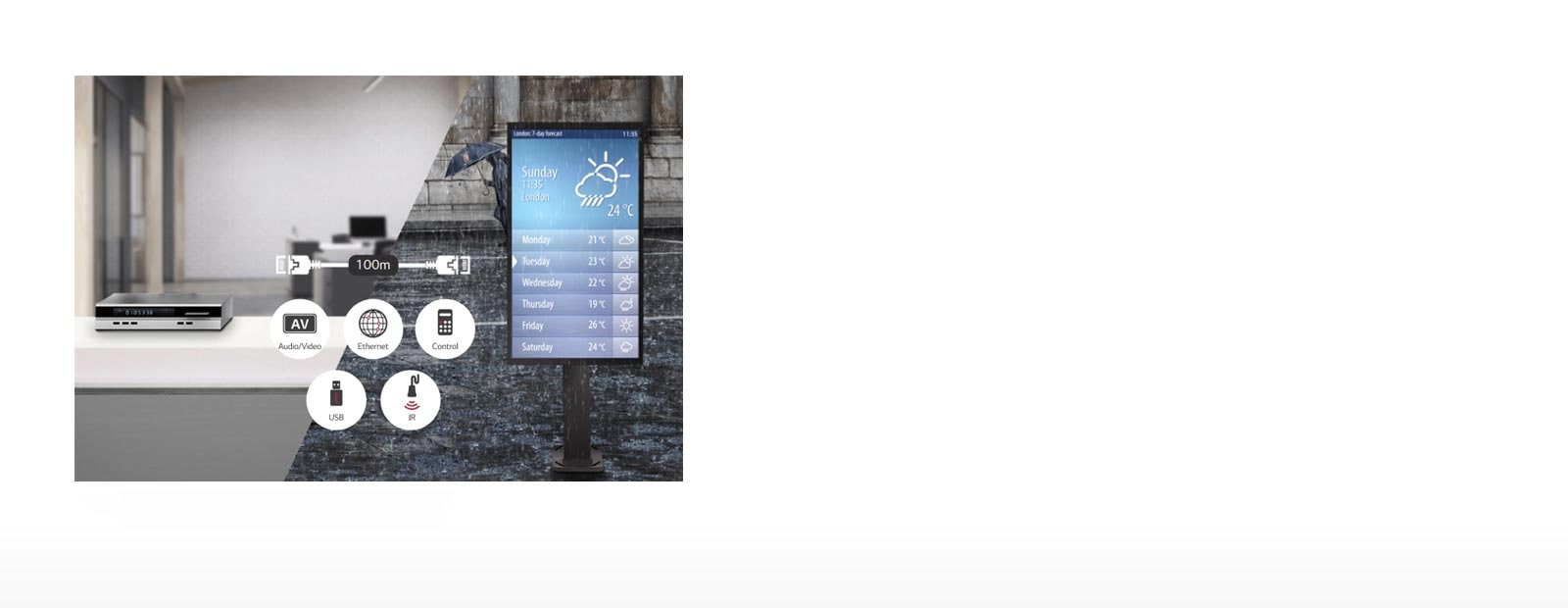

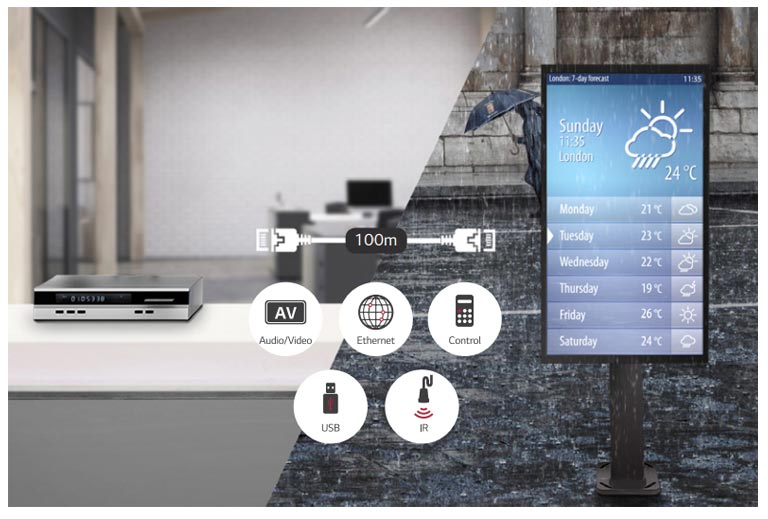

  • Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45
  • Anti-Reflection Coating

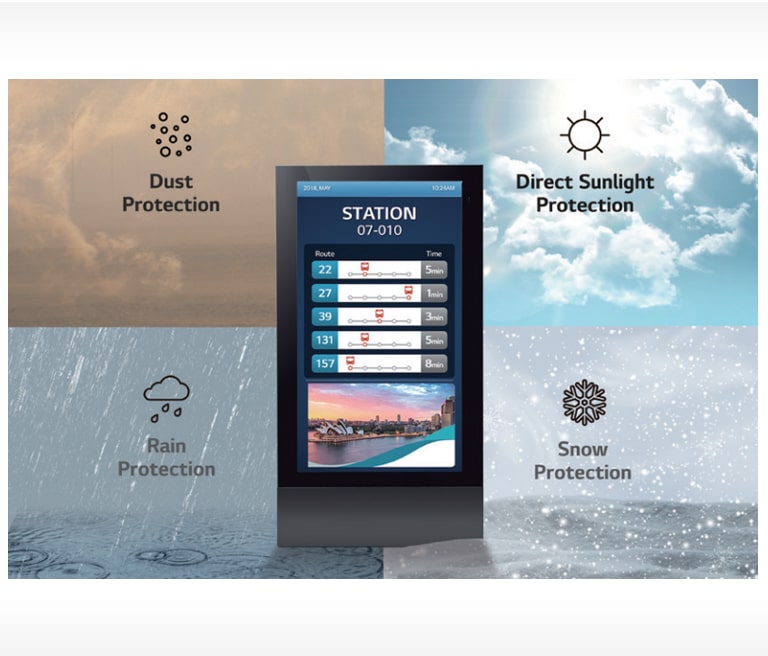

  • IP56 Design, IK10 Protective Glass

component-OBScountrySelectDesc

XE4F Series
* Quarter Wave Plate
* The image is for illustrative purposes only

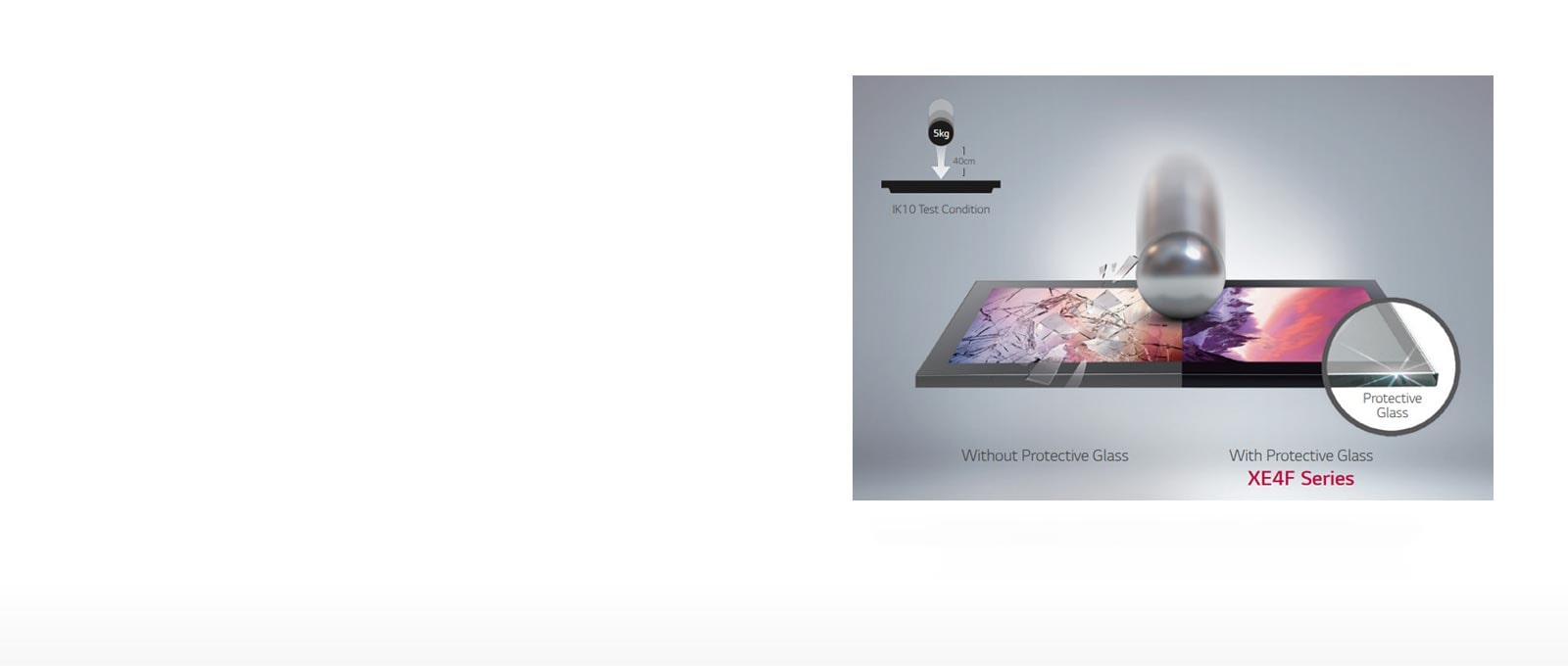

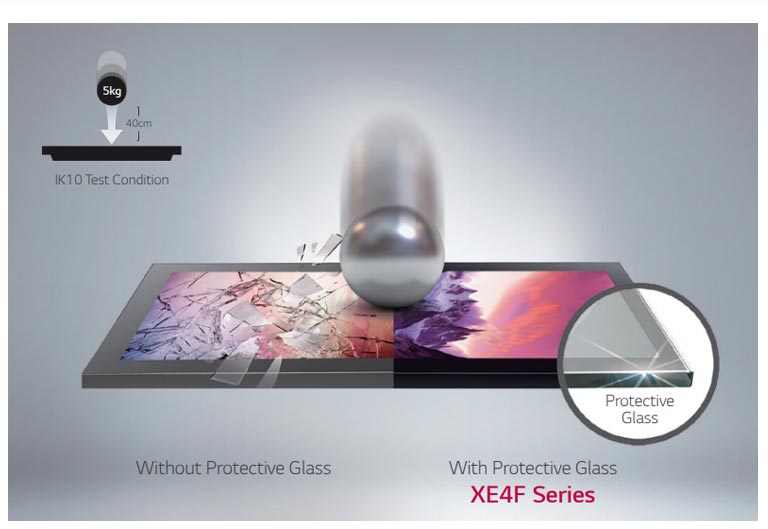

* IK rating refers to the deqree of resistance against external impacts on a scale of O to 10. (10 indicates the highest level of protection.).
* XE4F Series don't support the power supply
* The image is for illustative purposes only

ACCESSORY

  • Basic
    Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE

CONNECTIVITY

  • External Control
    RS232C In/Out, RJ45(LAN) In/Out
    Input
    HDMI(2), DP, HDBaseT, USB(2)
  • Output
    External Speaker Out(L/R)

ENVIRONMENT CONDITIONS

  • Operation Humidity
    5 % to 100 %
    Operation Temperature
    -30°C to 50 °C

PANEL

  • Aspect Ratio
    16 : 9
    Backlight Type
    Direct
  • Brightness (Min., cd/m²)
    3200
    Brightness (Typ., cd/m²)
    4000
  • Contrast Ratio
    1,000:1
    Dynamic CR
    500,000:1
  • Life Time (Typ.)
    50,000 Hrs
    Local dimming
    48 Blocks
  • Native Resolution
    1,920 x 1,080 (FHD, WRGB)
    Operation Hours
    24 Hrs
  • Orientation
    Portrait & Landscape
    Panel Technology
    IPS, M+(WRGB)
  • Response Time
    Typ. 9ms (G to G BW)
    Screen Size
    55
  • Surface Treatment (Haze, Quarter Wave Plate)
    Haze 3%, QWP

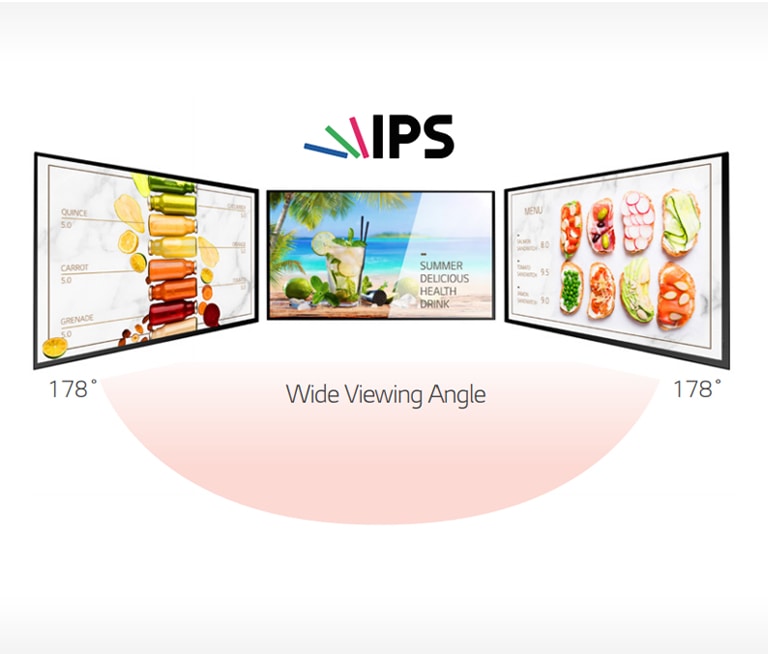

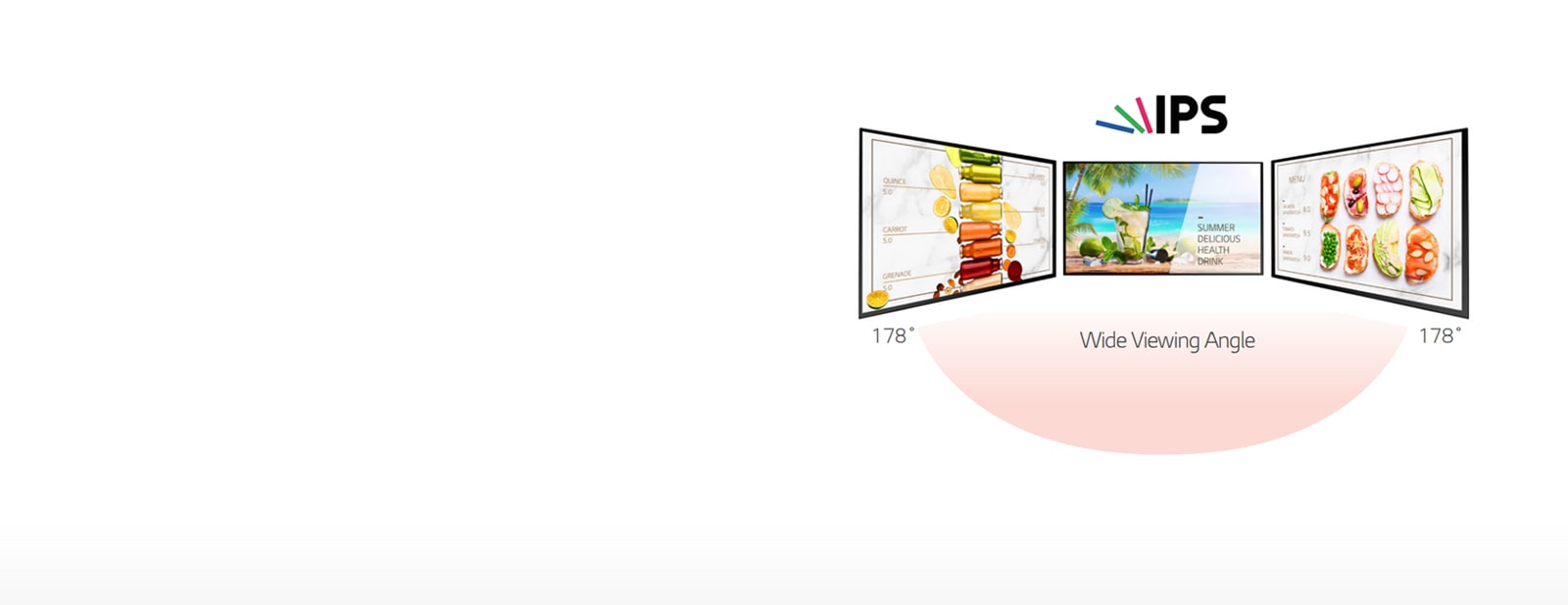

    Viewing Angle (H x V)
    178 x 178

PHYSICAL SPECIFICATION

  • Bezel Color
    Black
    Bezel Width
    38.4mm(T/B), 26.0mm(L/R)
  • Handle
    X
    Monitor Dimension (W x H x D)
    1,292.5 x 737.4 x 88.0mm
  • Packed Weight
    45kg
    Packing Dimensions (W x H x D)
    1,446 x 890 x 207 mm
  • Protection Glass
    5mm(IK 10, Degree of Protection, Chemical Strengthening,Anti-Reflective)
    Weight (Head)
    40kg

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Smart Energy Saving
    170W
    Typ./Max.
    310/390W

SOFTWARE COMPATIBILITY

  • Signage365Care
    Yes
    SuperSign
    Yes(CMS, Control)

STANDARD (CERTIFICATION)

  • EMC
    FCC Class "A" / CE / KCC
    ErP / Energy Star
    No /NA
  • Safety
    CB / NRTL
