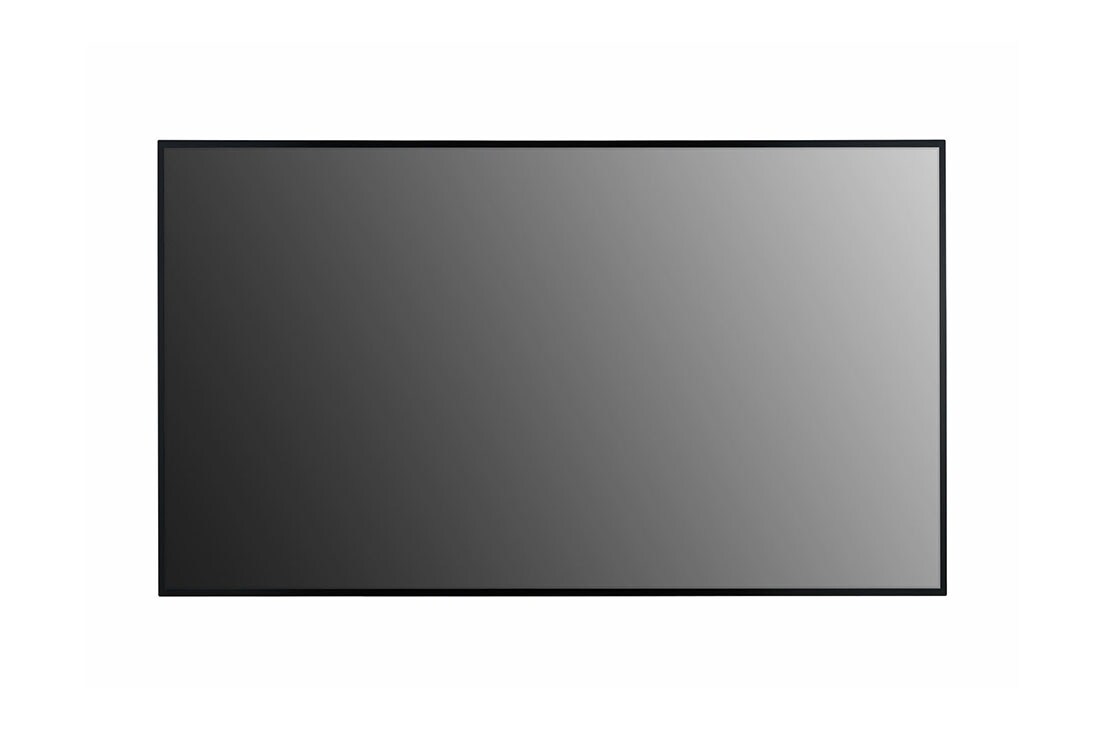

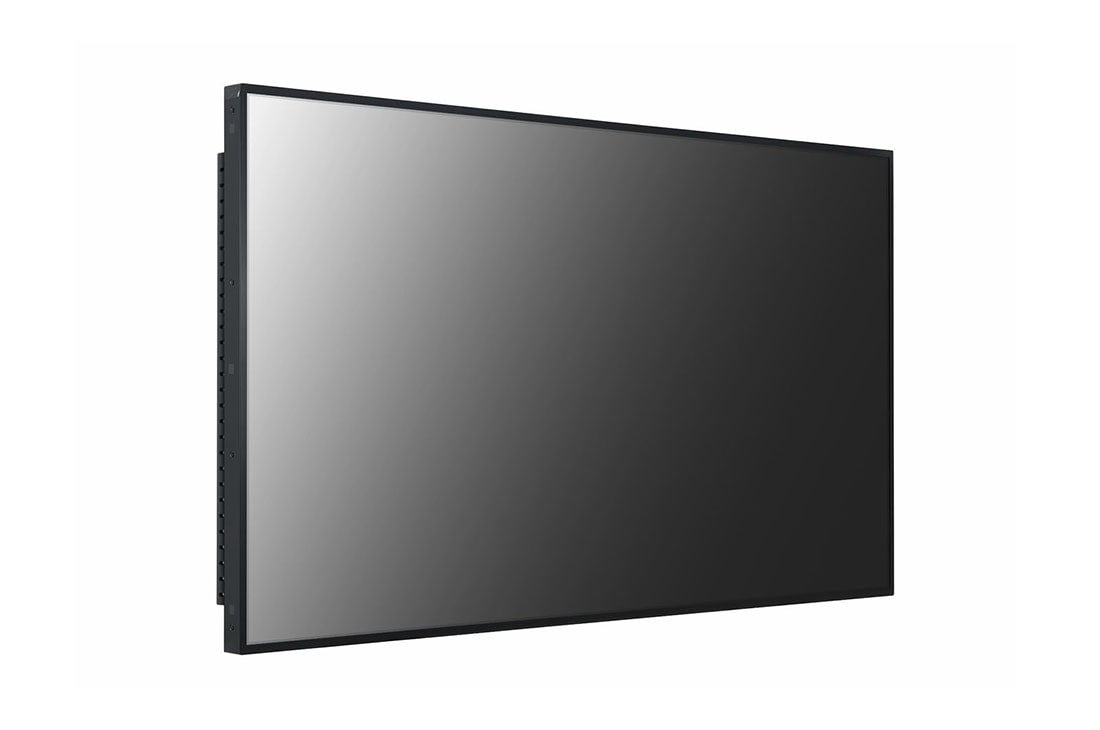

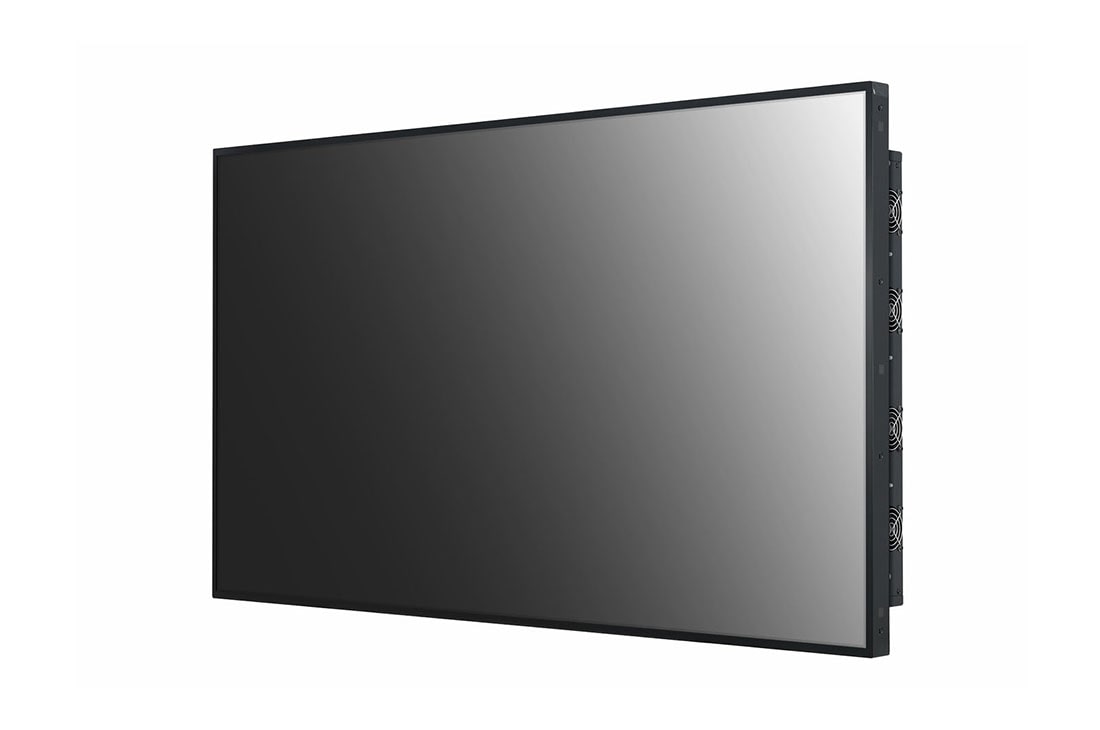

55XF3E-B
Open Frame
55"
  • Brightness : 3,000 cd/㎡ (Typ.)
  • Life Time : 50,000 hours
  • Bezel : 9.9 mm (L/R), 12 mm (T/B)

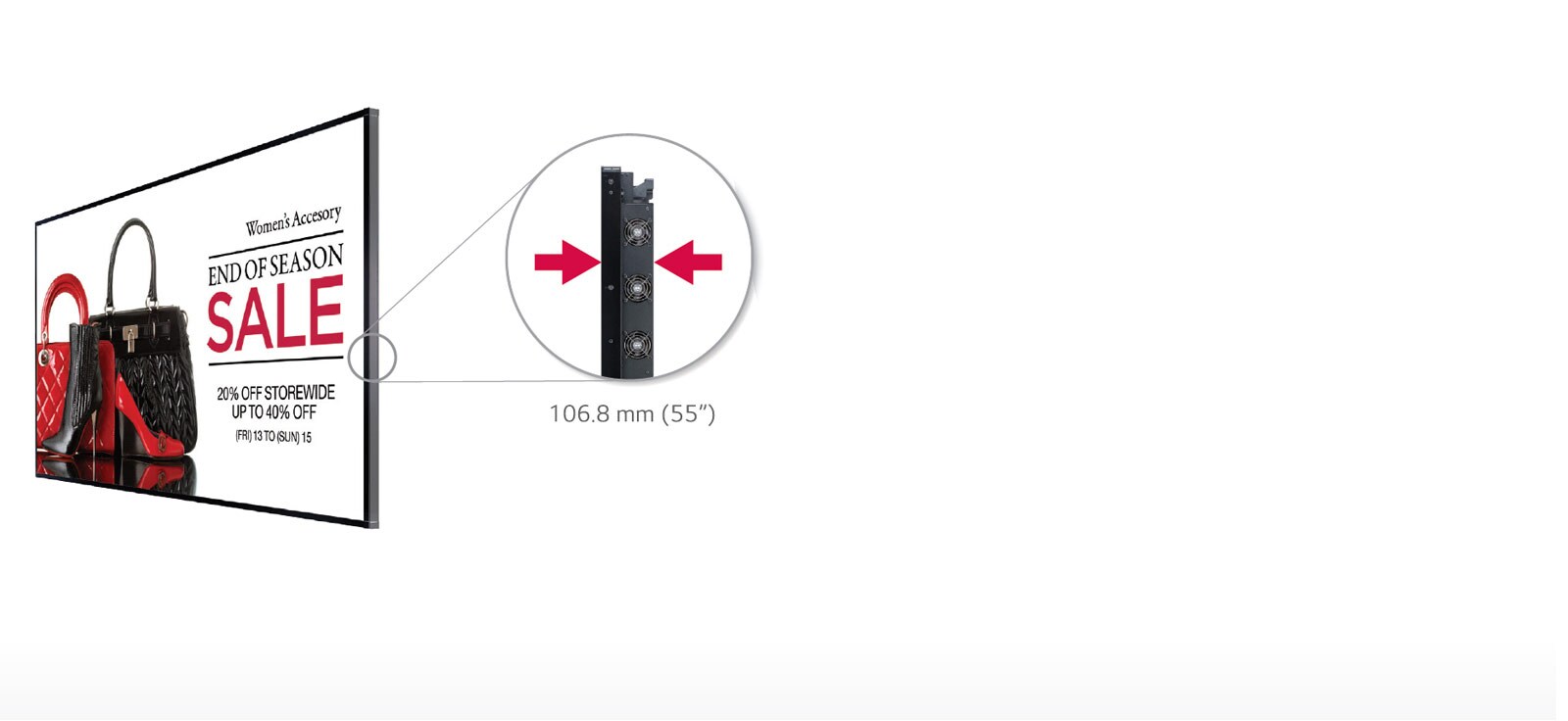

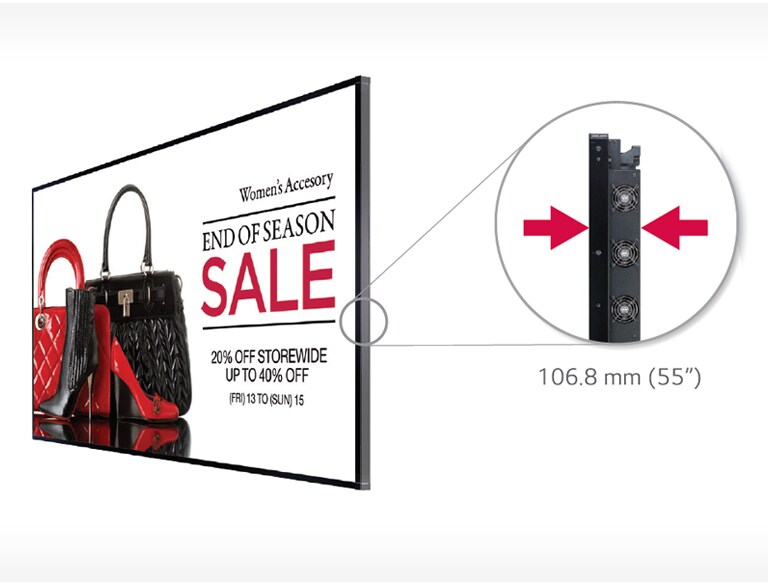

  • Depth : 106.8mm

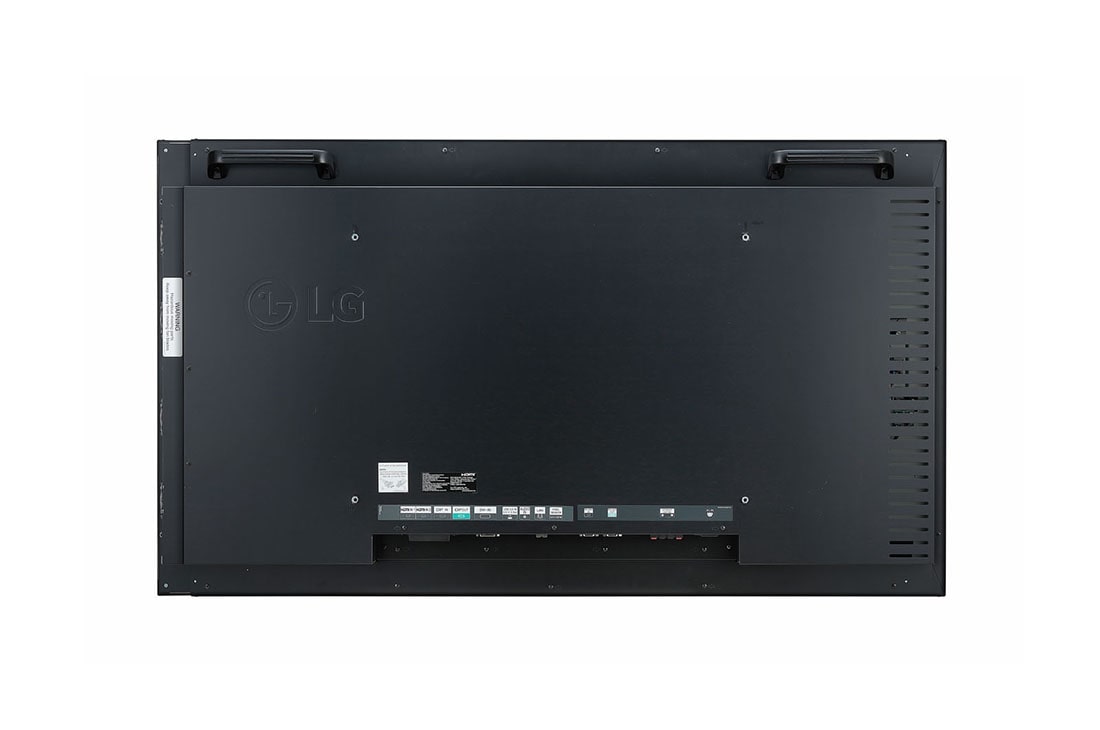

  • Interface: HDMI(2) / DP / DVI-D / RJ45 / RS232C / USB / External speaker out (L/R)

component-OBScountrySelectDesc

Open Frame
* Quarter Wave Plate
PANEL
  • Screen Size
    55" (54.64" Measured Diagonal)
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Typ., cd/m²)
    3000
CONNECTIVITY
  • Input
    HDMI (2), DP, DVI-D, Audio, USB
    Output
    DP, External Speaker
  • External Control
    RS232C In/Out, RJ45 In, IR Receiver In
PHYSICAL SPECIFICATION

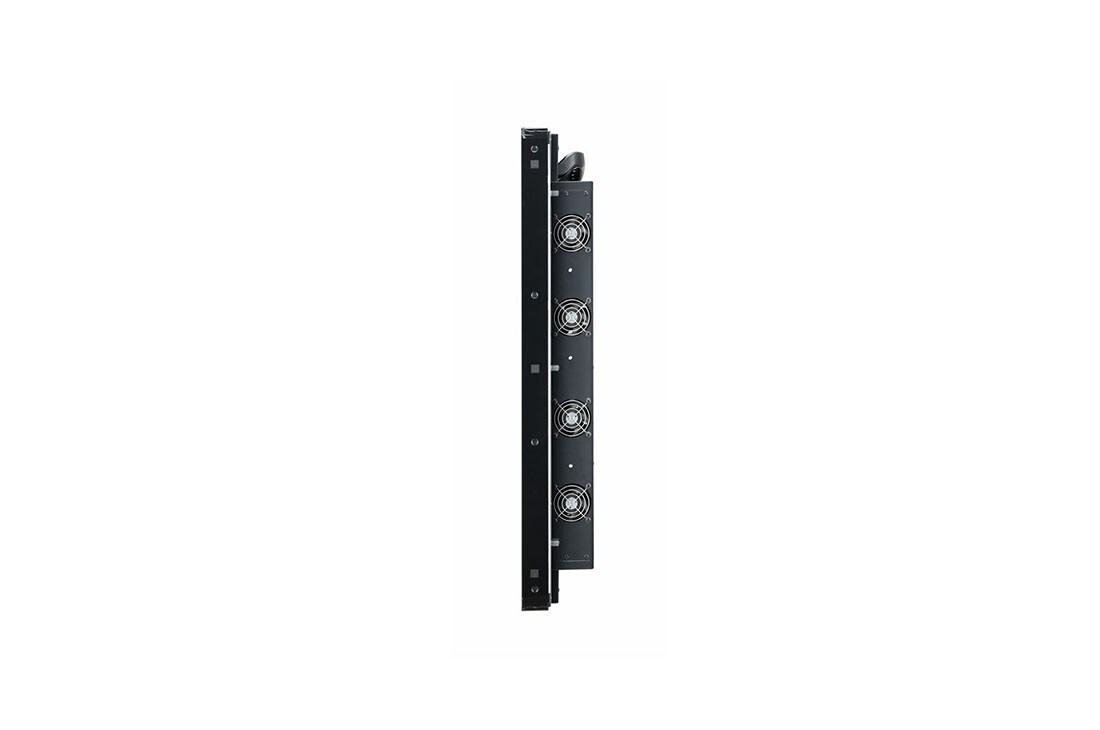

  • Bezel Width
    9.9mm (L/R),12mm (T/B)
    Monitor Dimension (W x H x D)
    1,235.5 x 709.4 x 106.8 mm
  • Weight (Head)
    26.5kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0℃ to 50℃(w/o Direct Sunlight or with Cooling Systems in Direct Sunlight)
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ./Max
    250 W / 300 W
    Smart Energy Saving
    120 W
STANDARD (CERTIFICATION)
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC

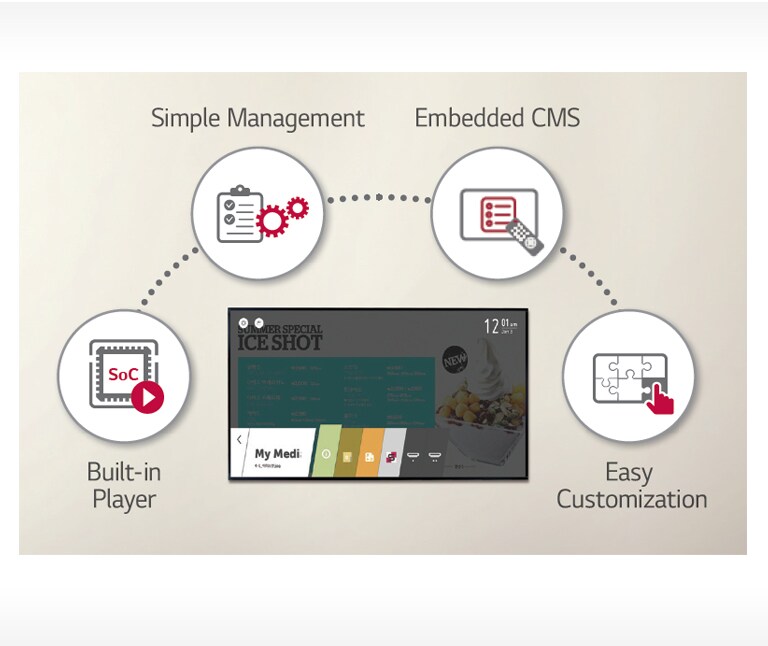

SOFTWARE COMPATIBILITY

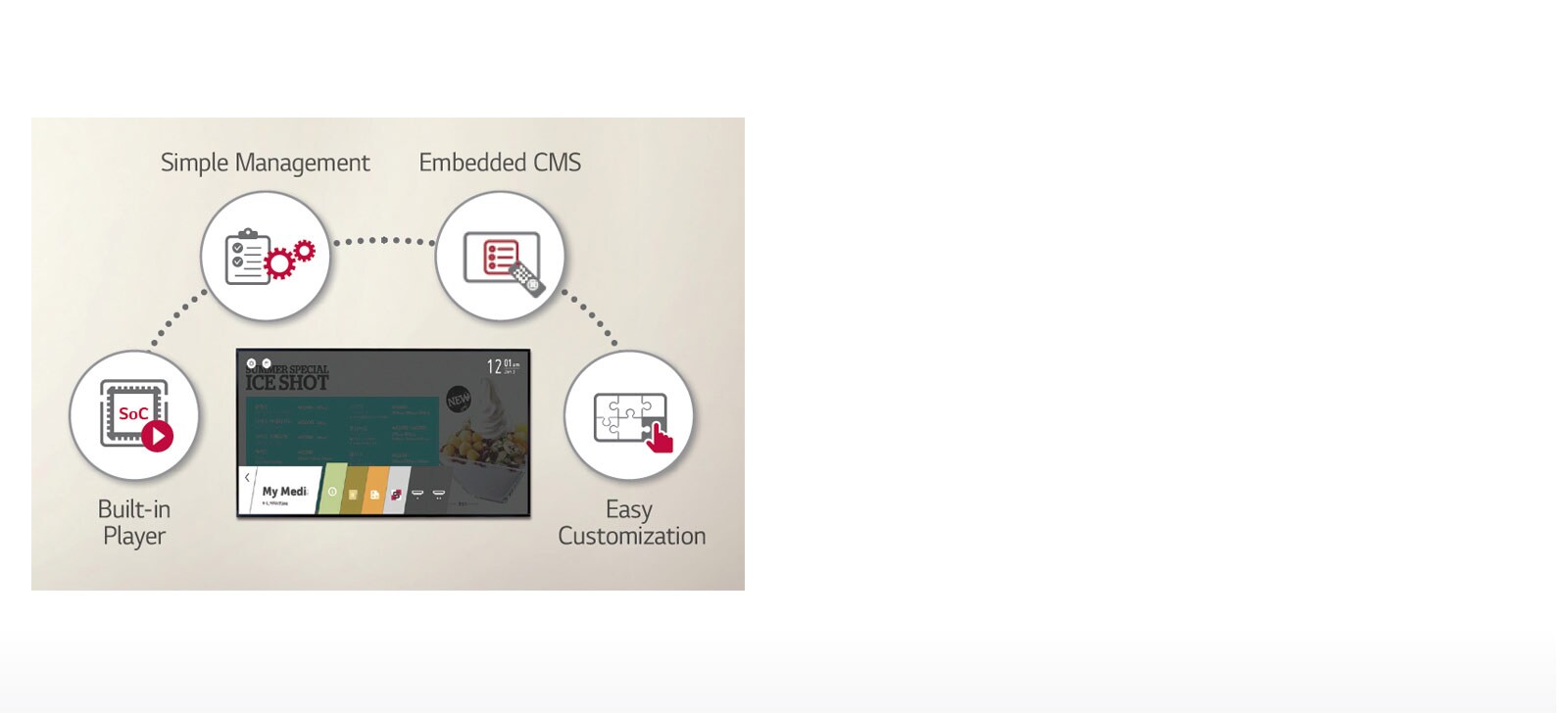

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+ / Control
ACCESSORY
  • Basic
    Remote Controller, Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)
    Optional
    Wi-Fi Dongle (AN-WF500)
