UHD Signage

UHD Signage Display with LG webOS Platform and Advanced Security

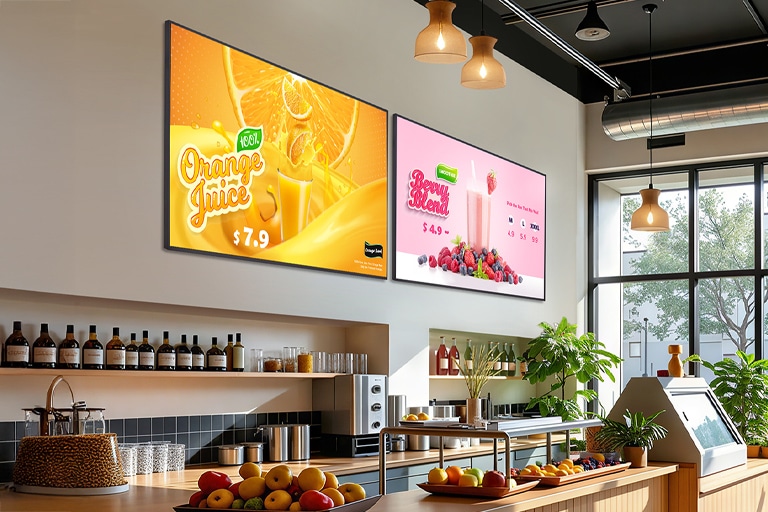

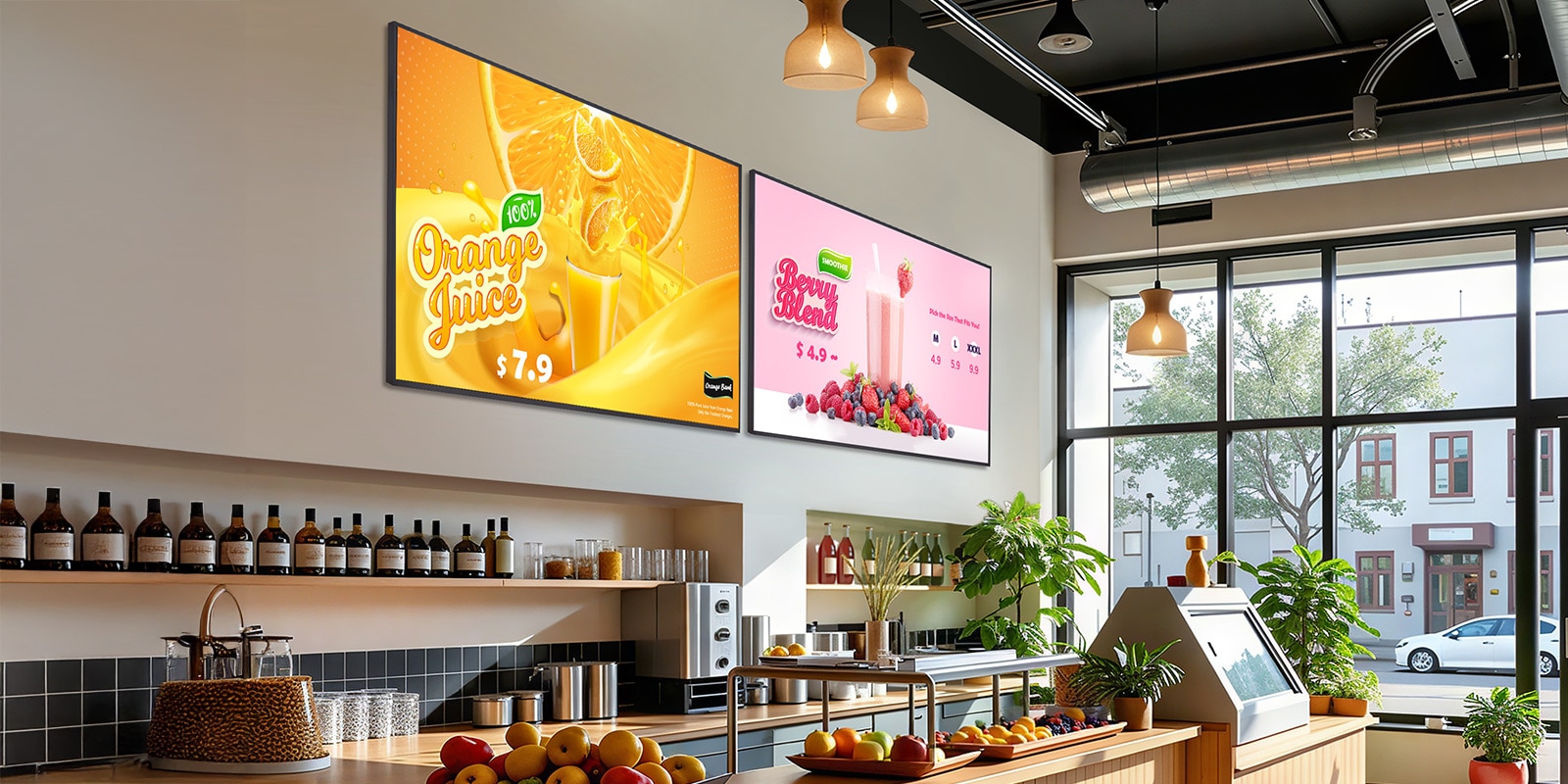

Inside the café, two signage displays are mounted on the wall, each vividly showcasing menu images. Inside the café, two signage displays are mounted on the wall, each vividly showcasing menu images.
* All images in this page are for illustrative purposes only.

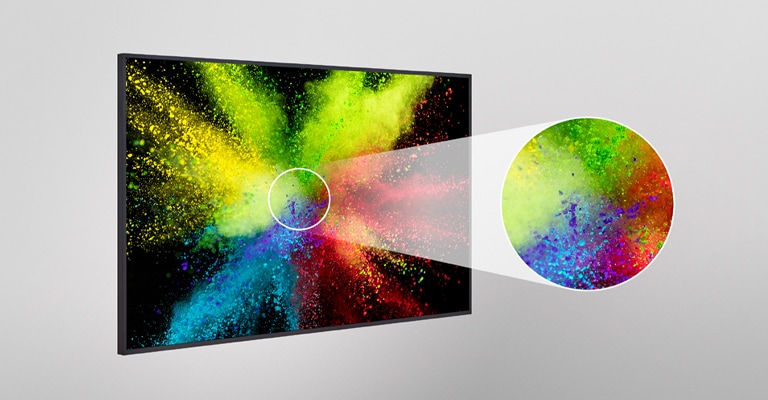

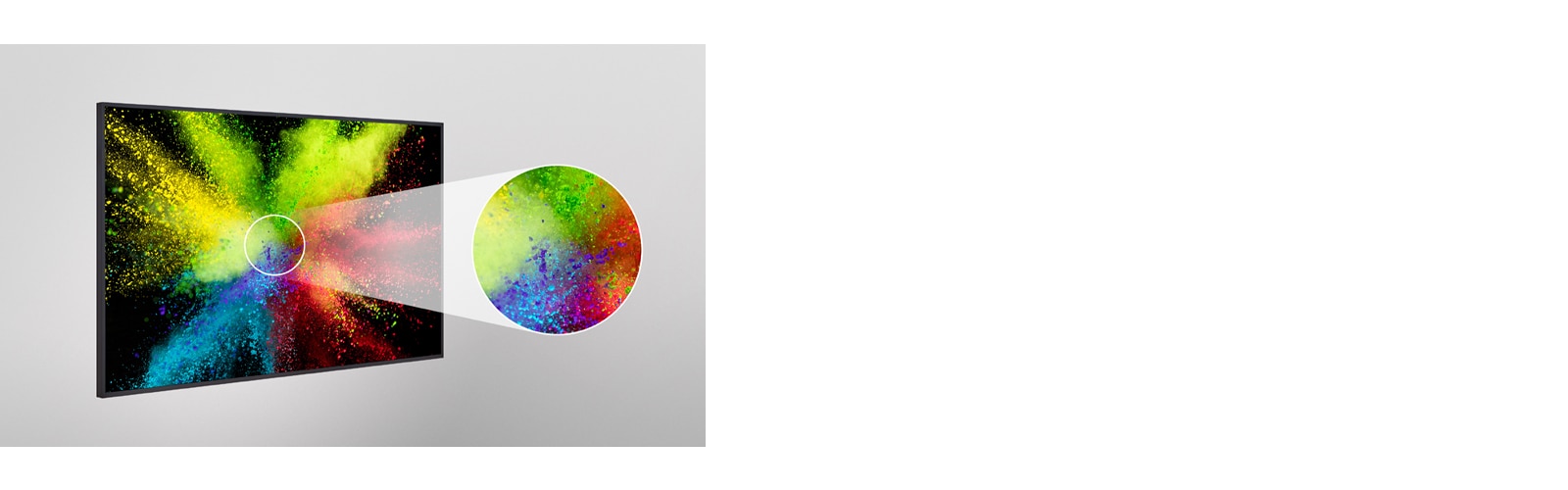

Presenting vivid and lively screen quality by magnifying part of the display’s content. Presenting vivid and lively screen quality by magnifying part of the display’s content.

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

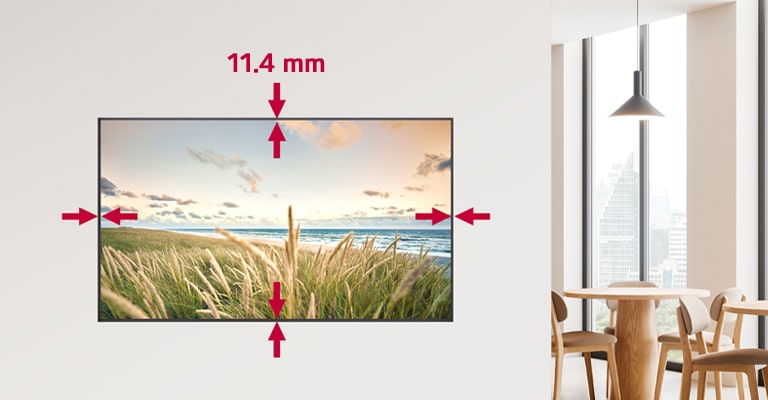

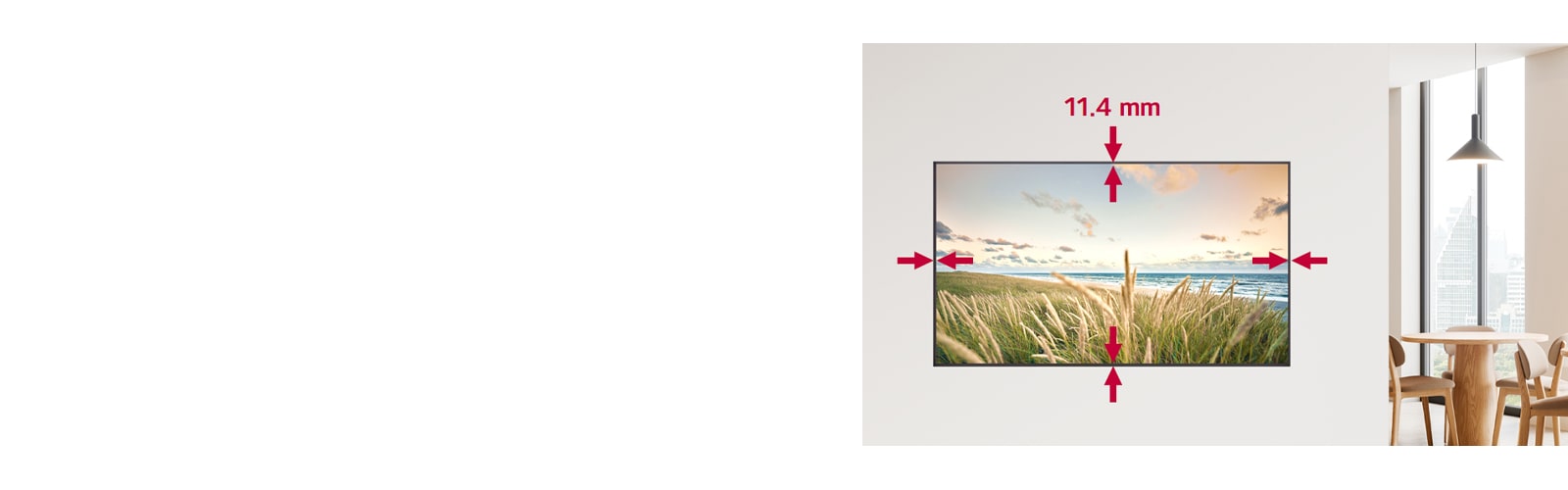

The UH5Q clearly shows its uniform 11.4 mm bezel thickness on all sides. The UH5Q clearly shows its uniform 11.4 mm bezel thickness on all sides.

Even & Slim Bezel Design

The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.

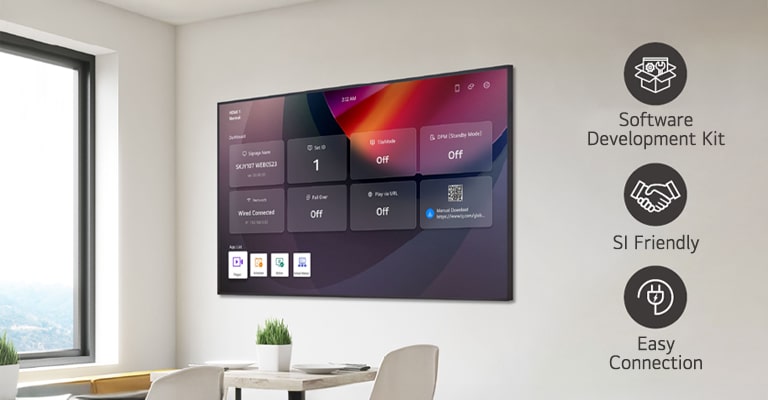

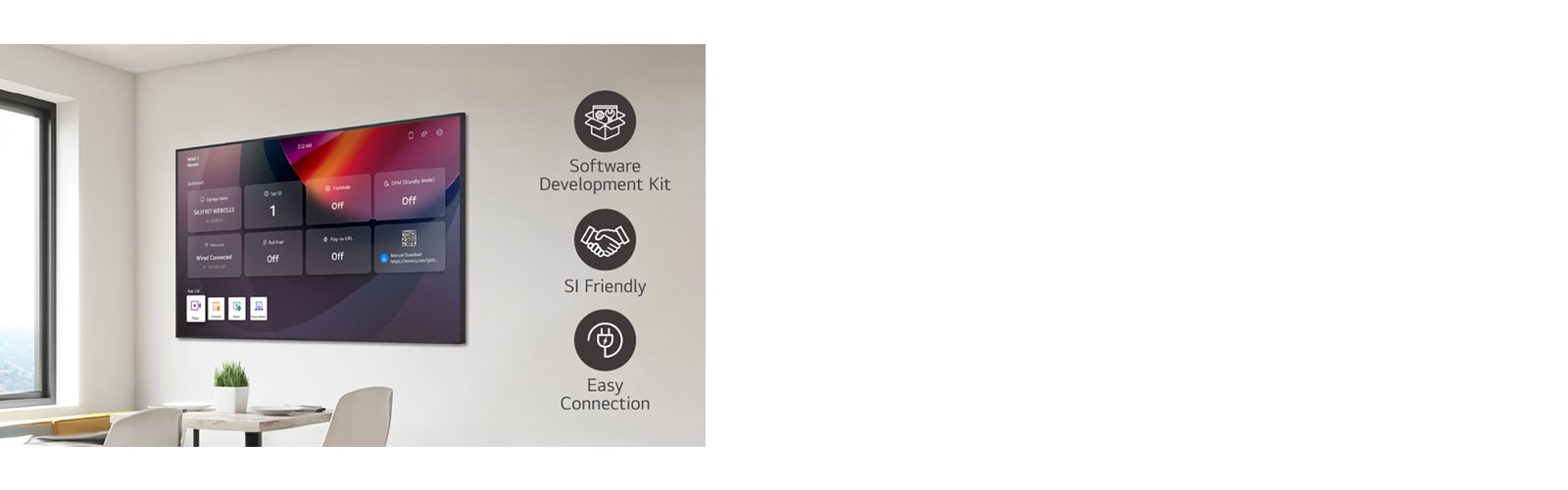

A number of tasks can be done at the same time with the intuitive UI. A number of tasks can be done at the same time with the intuitive UI.

Convenient webOS Platform

The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

* SoC : System On Chip
** SI : System Integrator

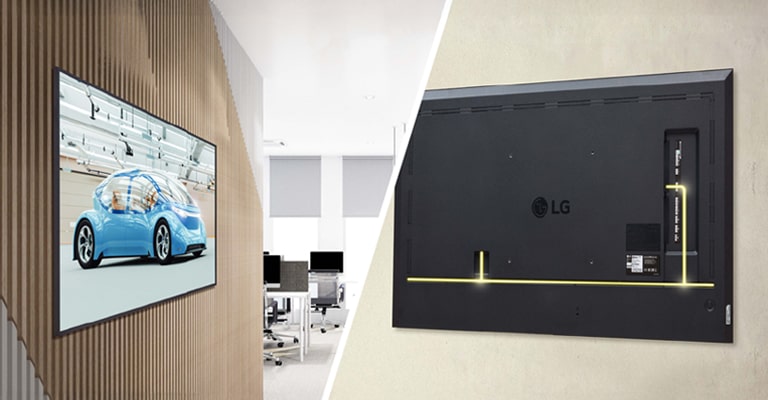

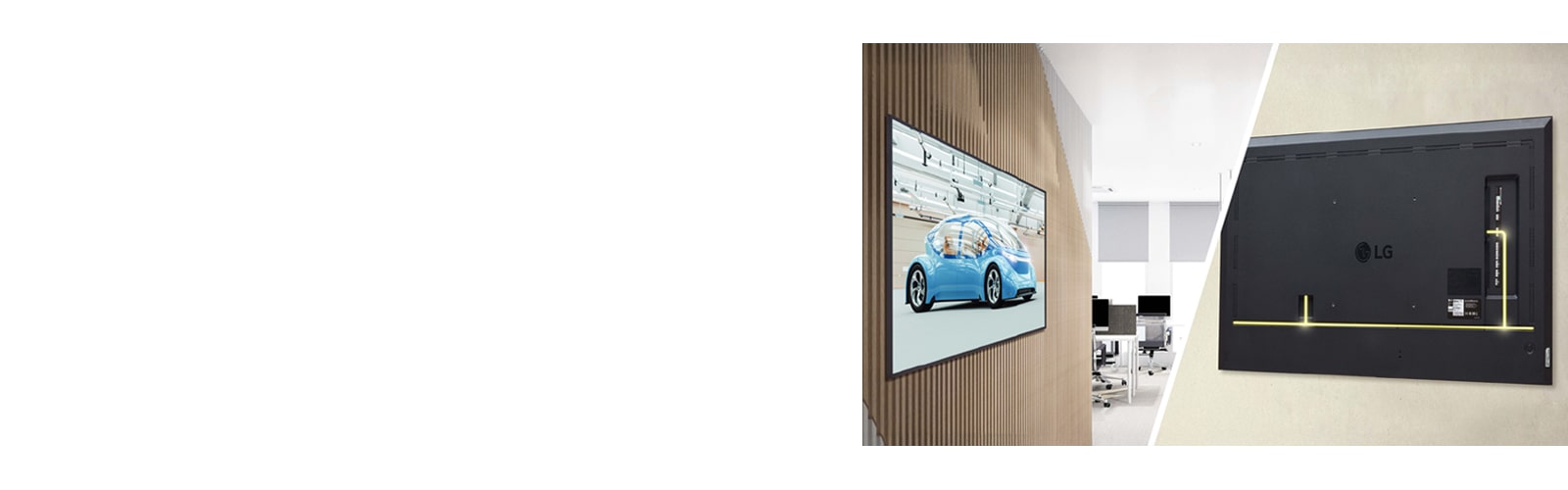

The UH5Q, with slim bezels, is mounted close to the wall, showcasing a rear design optimized for space-saving with a simple cable management system. The UH5Q, with slim bezels, is mounted close to the wall, showcasing a rear design optimized for space-saving with a simple cable management system.

Design for Space Utilization

Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.

* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

Durability that Provides Reliability

Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.

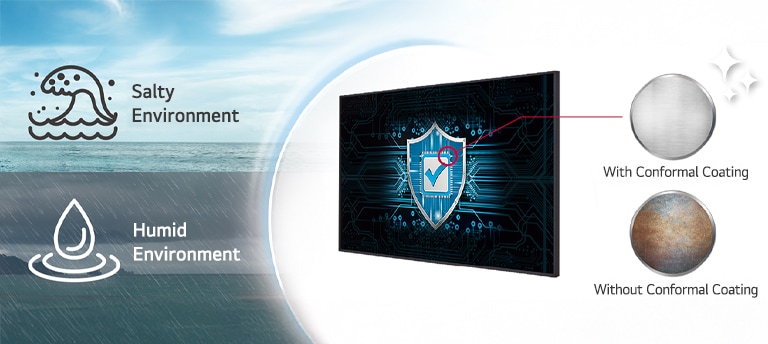

The UH5Q has conformal coating to protect the display even in salty or humid environments. The UH5Q has conformal coating to protect the display even in salty or humid environments.
* When a physical impact occurs on the product, an alert is provided to the administrator through the media controller.
The UH5Q with LG Shield offers security features that protect its system and network. The UH5Q with LG Shield offers security features that protect its system and network.

Comprehensive Security

webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.
Café managers are creating menus that will be displayed on the display installed on the café wall using content management software. Café managers are creating menus that will be displayed on the display installed on the café wall using content management software.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

* SuperSign must be purchased separately.
Close
PANEL
  • Screen Size (Inch)
    55"
    Aspect Ratio
    16:9
  • Back Light Type
    Edge
    Brightness
    500nit (Typ.)
  • Color Depth (Number of Colors)
    10bit(D), 1.07Billion colors
    Color gamut
    BT709 95%
  • Contrast Ratio
    1,200:1 (Typ.)
    Dynamic CR
    1,000,000:1
  • Life time
    50,000Hrs (Min.)
    Native Resolution
    3840 x 2160 (UHD)
  • Operation Hours (Hours/Day)
    24/7
    Panel Technology
    ADS
  • Portait / Landscape
    Yes / Yes
    Refresh Rate
    60Hz
  • Response Time
    8m (G to G)
    Surface Treatment (Haze)
    25%(Typ)
  • Viewing Angle (H x V)
    178 x 178
CONNECTIVITY
  • Audio Out
    Yes(1)
    DP In
    Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
  • HDMI In
    Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
    IR In
    Yes (1)
  • IR Out
    No (Support IR daisy chain via RS232C IN/OUT)
    RJ45(LAN) In
    Yes (1)
  • RS232C In
    Yes (1), 4pin Phone-jack
    RS232C Out
    Yes (1), 4pin Phone-jack
  • USB In
    USB2.0 Type A(2)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    Even bezel : 11.4mm
  • Carton Dimensions (W x H x D)
    1360.0 x 810.0 x 152.0mm
    Monitor Dimensions (W x H x D)
    1240.1 x 711.9 x 29.7mm
  • Packed Weight
    18.1 kg
    VESA Standard Mount Interface
    300 x 300
  • Weight (Head)
    14.3 kg
FEATURE - HARDWARE
  • Acceleration(Gyro) Sensor
    Yes
    Auto Brightness Sensor
    Yes(Built-in for Europe only, sold separately in other regions)
  • Internal Memory (eMMC)
    16GB
    Local Key Operation
    Yes
  • Temperature Sensor
    Yes
    Wi-Fi/BT (Built-in)
    Yes
FEATURE - SOFTWARE
  • Auto Set ID
    Yes
    Beacon
    Yes
  • Booting Logo Image
    Yes
    Cisco Certification
    Yes
  • Control Manager
    Yes
    Crestron Connected
    Yes
  • External Input Rotation
    Yes
    Fail over
    Yes
  • Gapless Playback
    Yes
    Group Manager
    Yes
  • HDMI-CEC
    Yes
    ISM Method
    Yes
  • Local Contents Scheduling
    Yes
    Local Network Sync
    Yes
  • Network Ready
    Yes
    No Signal Image
    Yes
  • OS Ver. (webOS)
    webOS8.0
    PBP
    Yes (4)
  • PIP
    Yes
    Play via URL
    Yes
  • PM mode
    Yes
    Pro:Idiom
    Yes
  • RS232C Sync
    Yes
    Screen Rotation
    Yes
  • Screen Share
    Yes
    Setting Data Cloning
    Yes
  • SI Server Setting
    Yes
    Smart Energy Saving
    Yes
  • SNMP
    Yes
    Status Mailing
    Yes
  • USB Plug & Play
    Yes
    Video Tag
    Yes (4)
  • Wake on LAN
    Yes
    webRTC
    Yes
ENVIRONMENT CONDITIONS
  • Operation Humidity
    10 % to 80 %
    Operation Temperature
    0°C to 40°C
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • BTU (British Thermal Unit)
    351 BTU/Hr(Typ.), 525 BTU/Hr(Max)
    DPM
    0.5W
  • Max.
    154 W
    Power off
    0.5W
  • Smart Energy Saving (70%)
    72W
    Typ.
    103W
SOUND
  • Speaker (Built-in)
    Yes (10W X 2)
CERTIFICATION
  • EMC
    FCC Class "B" / CE / KC
    ePEAT(US only)
    Yes / Carbon "Reducing CO2"(TBD)
  • ErP / Energy Star
    Yes / Yes
    Safety
    CB / NRTL
SOFTWARE COMPATIBILITY
  • Connected Care
    Yes
    Mobile CMS
    Yes
  • SuperSign Cloud
    Yes
    SuperSign CMS
    Yes
  • SuperSign Control+
    Yes
    SuperSign WB
    Yes
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder (For Power Cord), IR/Light sensor receiver(EU/EK Only), Magnetic sheet(2EA, EU/EK Only)
    Optional
    Slim Wall Mount (WB21LMA/B), Normal Wall Mount (OLW480A/B), IR/Light sensor receiver (ACC-L)
SPECIAL FEATURE
  • Conformal Coating (Power Board)
    Yes (Partial space coating)
    IP Rating
    IP5x
  • Tilt (Face Down)
    Yes(Max 15˚ degree, 40℃ temperature) (TBD)
