55VL5PJ-A component-copyModelName

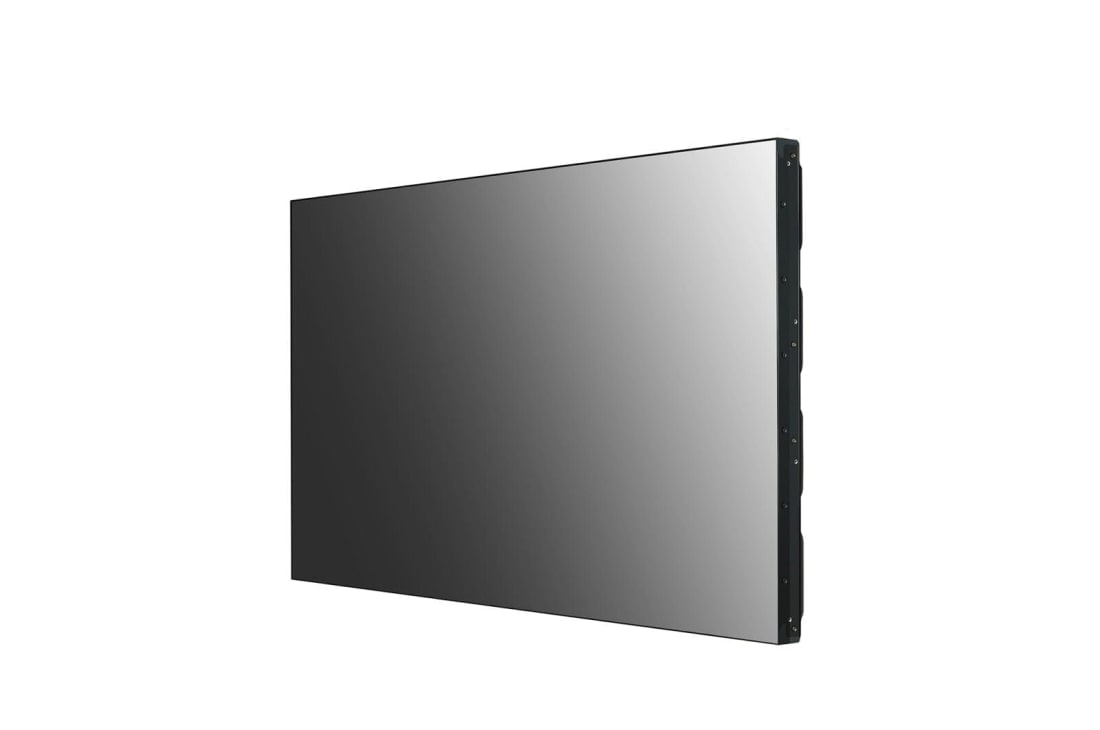

55'' 500 nits FHD Slim Bezel Video Wall

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55VL5PJ-A)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55VL5PJ-A)
    $
    $
    LG Members Price
Total
55'' 500 nits FHD Slim Bezel Video Wall

Artistic Immersion, Overwhelming Captivation

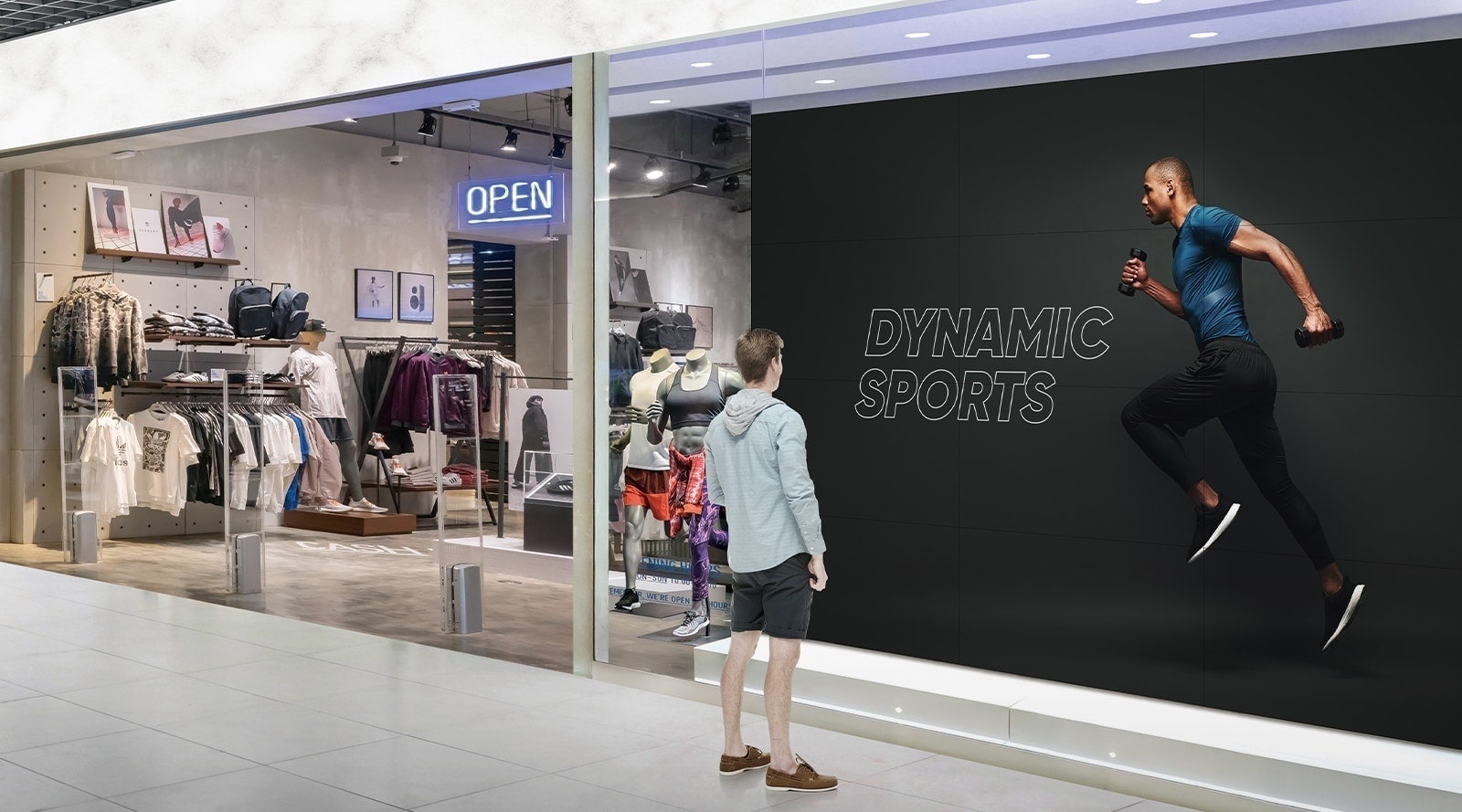

A man is looking at a big screen attached to the window of a sports store. A man is looking at a big screen attached to the window of a sports store.
* All images in this web page are for illustrative purposes only.

Daisy Chain Capability

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

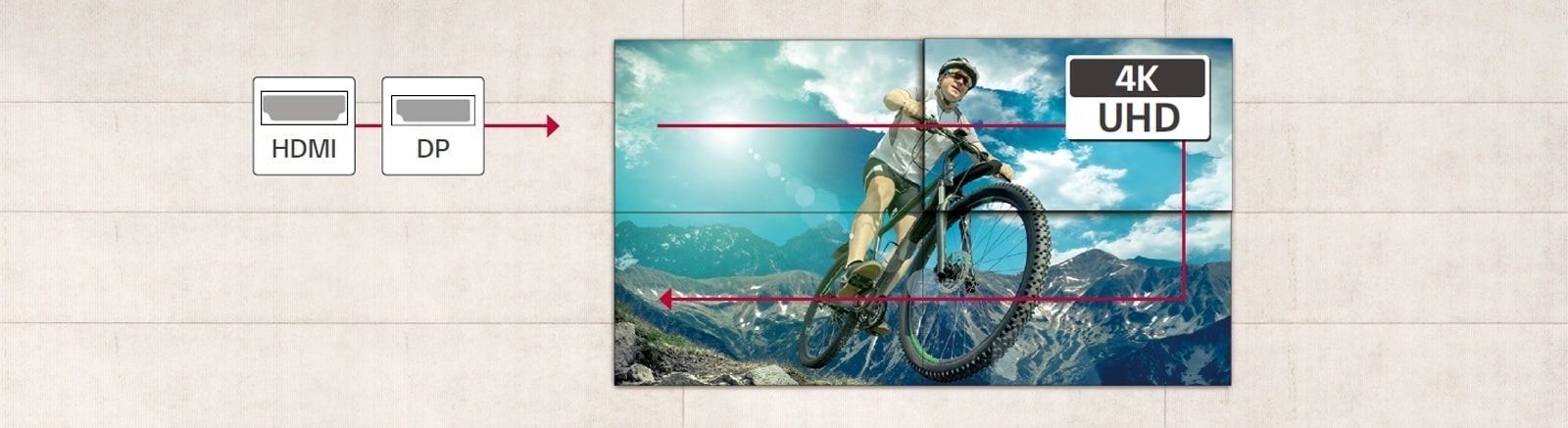

Multiple displays are being managed simultaneously through the daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings. Multiple displays are being managed simultaneously through the daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

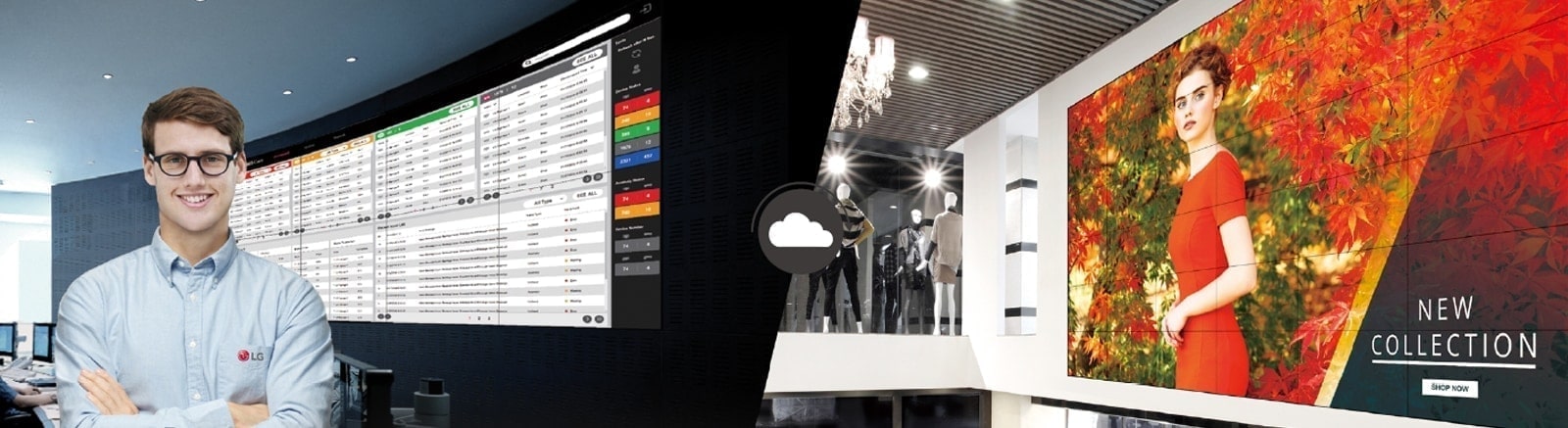

The LG employee is remotely monitoring the VL5PJ installed in a different place by using cloud-based LG monitoring solution. The LG employee is remotely monitoring the VL5PJ installed in a different place by using cloud-based LG monitoring solution.
* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

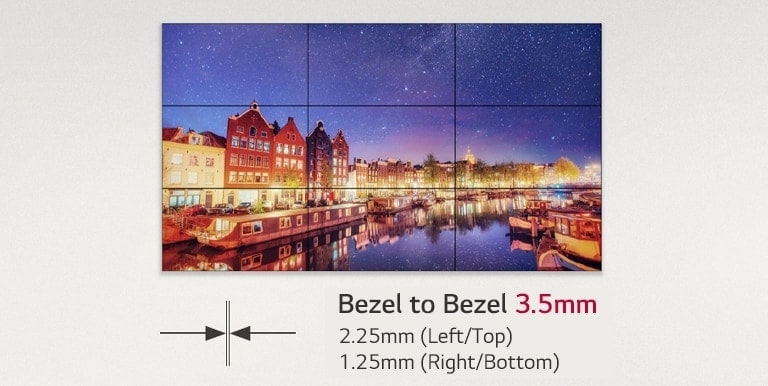

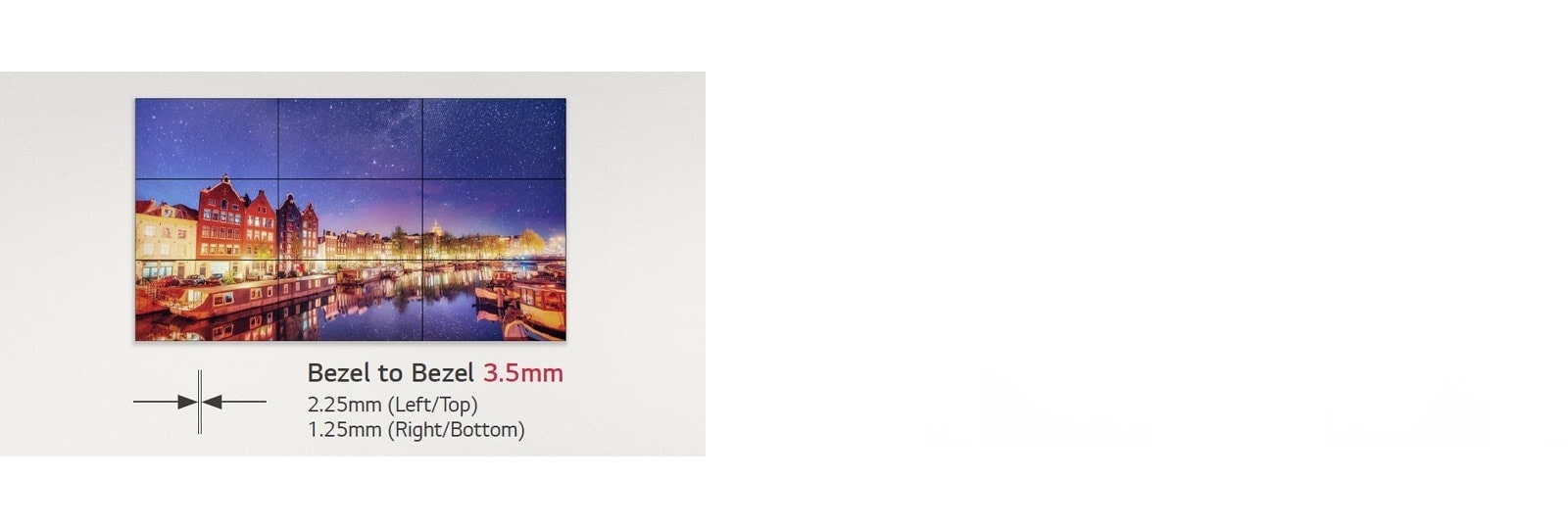

The ultra narrow bezel provides immersive images continuously. The ultra narrow bezel provides immersive images continuously.

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

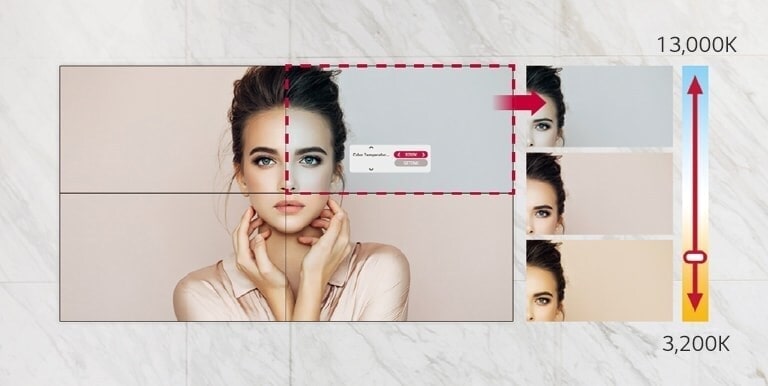

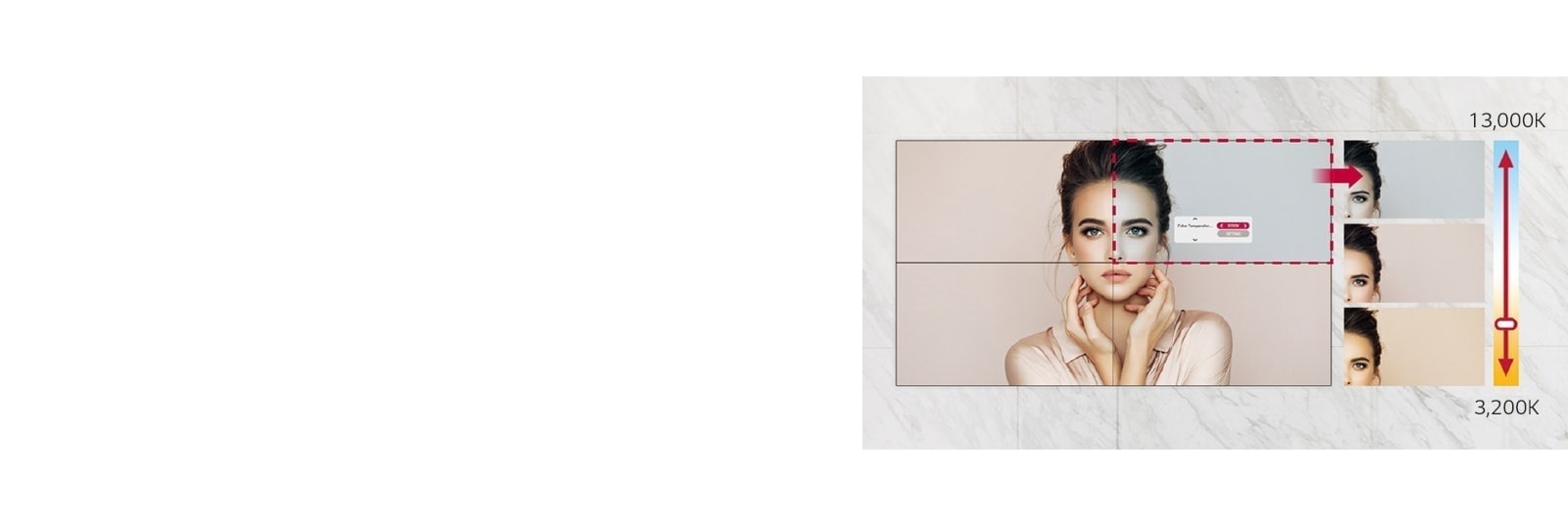

VL5PJ can adjust the color temperature from 3,200K to 13,000K in units of 100K. VL5PJ can adjust the color temperature from 3,200K to 13,000K in units of 100K.

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

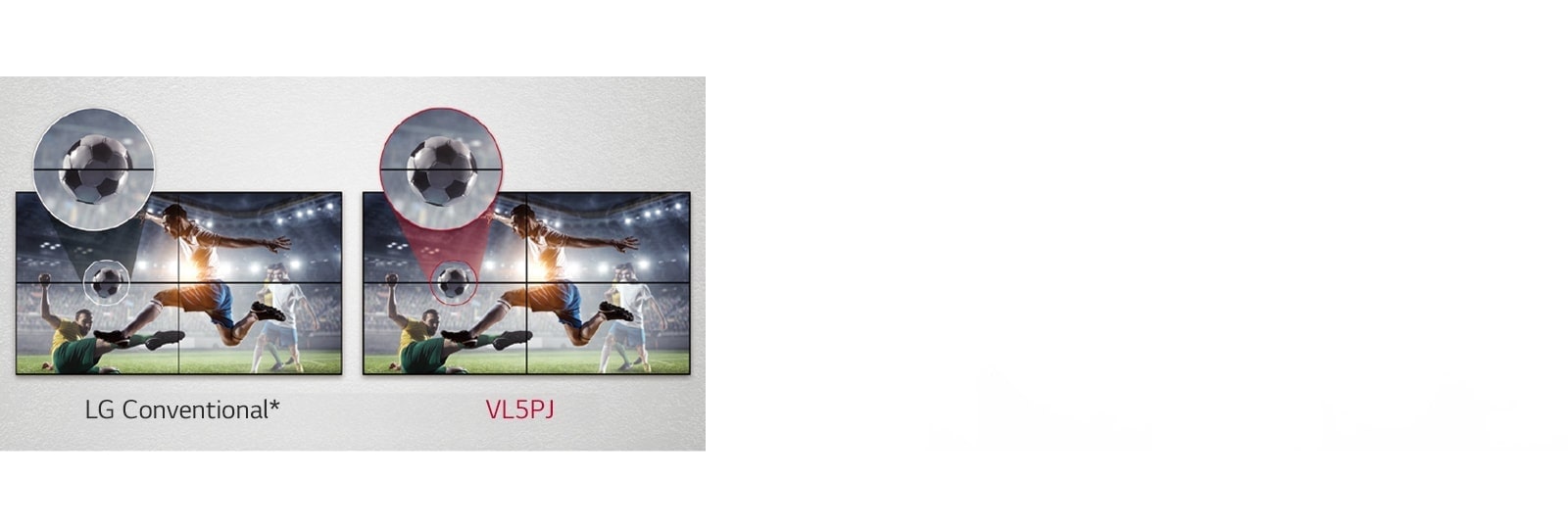

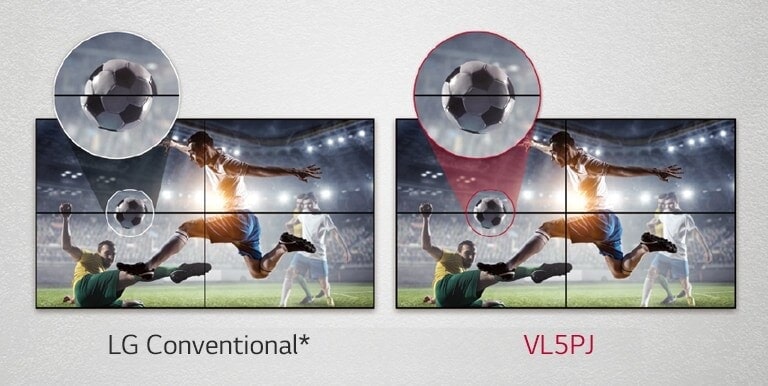

VL5PJ consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps. VL5PJ consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.

Image Gap Reduction

The VL5PJ includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
* The "LG Conventional" refers to displays which do not include an image improvement algorithm.
** The image shown above are for illustration purposes only.
The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once. The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once.

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VL5PJ can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
* SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)
Close
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
CERTIFICATION
  • EMC
    FCC Class "A" / CE / KC
    ErP / Energy Star
    Yes / Energy Star 8.0
  • Safety
    CB / NRTL
ENVIRONMENT CONDITIONS
  • Operation Humidity
    10 % to 80 %
    Operation Temperature
    0 °C to 40 °C
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek,Turkish, Arabic
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    T/R/L/B : 2.25/1.25/2.25/1.25mm
  • Carton Dimensions (W x H x D)
    1,337 x 247 x 833 mm
    Handle
    Yes
  • Monitor Dimensions (W x H x D)
    1,213.4 x 684.2 x 93.1 mm
    Packed Weight
    26.9 Kg
  • VESA Standard Mount Interface
    600 x 400
    Weight (Head)
    23.5 kg
PANEL
  • Aspect Ratio
    16:9
    Back Light Type
    Direct
  • Brightness
    500
    Color Depth (Number of Colors)
    10bit, 1.07Billion colors
  • Color gamut
    NTSC 72%
    Contrast Ratio
    1,200:1
  • Dynamic CR
    500,000:1
    Life time
    60,000Hrs (Typ.) / 50,000Hrs (Min.)
  • Native Resolution
    1,920 x 1,080 (FHD)
    Operation Hours (Hours/Day)
    24/7
  • Panel Technology
    IPS
    Portait / Landscape
    Yes / Yes
  • Refresh Rate
    60Hz
    Response Time
    8ms (G to G)
  • Screen Size (Inch)
    55"
    Surface Treatment (Haze)
    3%
  • Viewing Angle (H x V)
    178 x 178
POWER
  • Power Supply
    AC 100-240 V~, 50/60 Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • BTU (British Thermal Unit)
    461 BTU/Hr(Typ.), 512 BTU/Hr(Max)
    DPM
    0.5 W
  • Max.
    150W
    Power off
    0.5 W
  • Smart Energy Saving (70%)
    115 W
    Typ.
    135 W
SOFTWARE COMPATIBILITY
  • Connected Care
    Yes
    SuperSign CMS
    Yes
  • SuperSign Control+
    Yes
    SuperSign WB
    Yes
SPECIAL FEATURE
  • IP Rating
    IP5X tested
