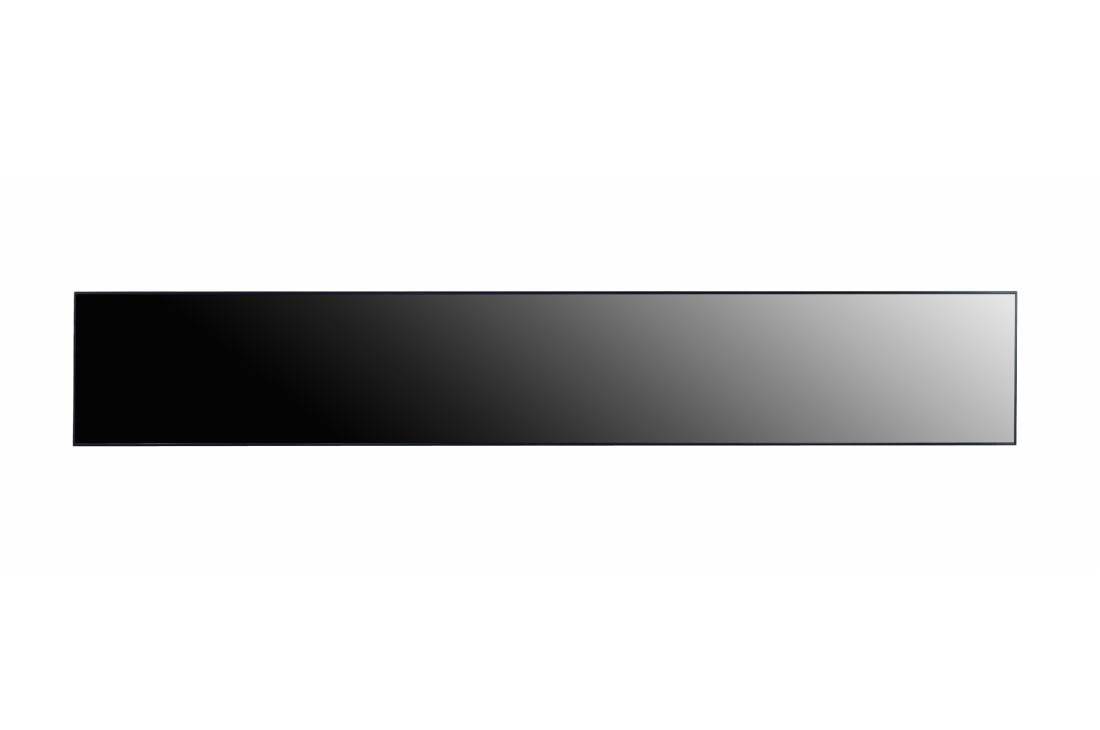

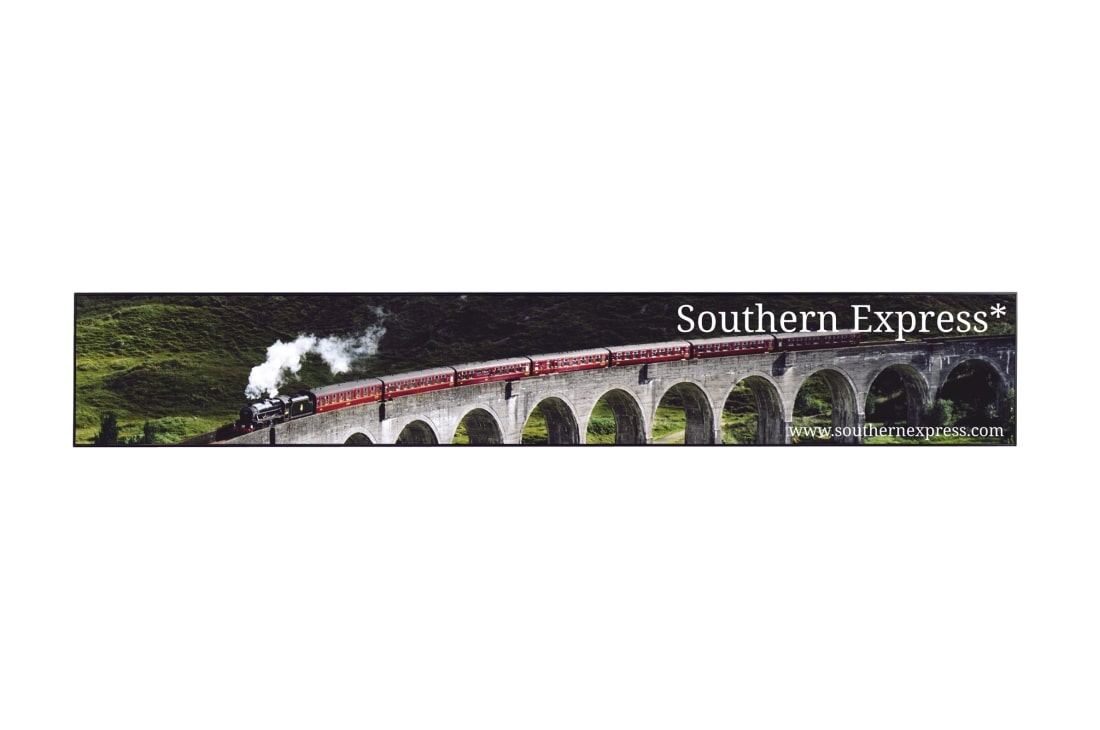

86" Ultra Stretch Signage
MSRP
$*rPrice*
MSRP
$*rPromoPrice*
*discountMsg*
MSRP
$
See Retailer for Pricing
MSRP
vip-price-message
$

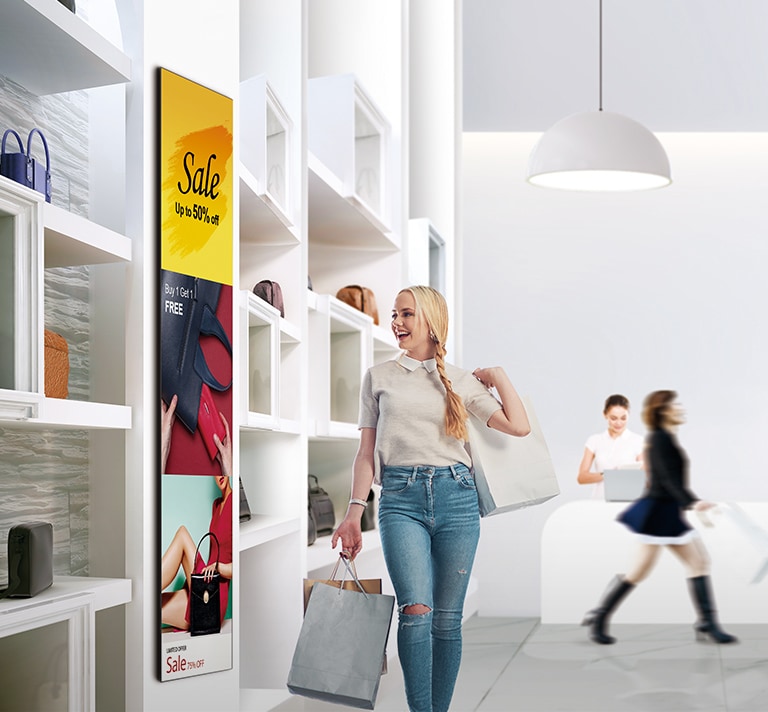

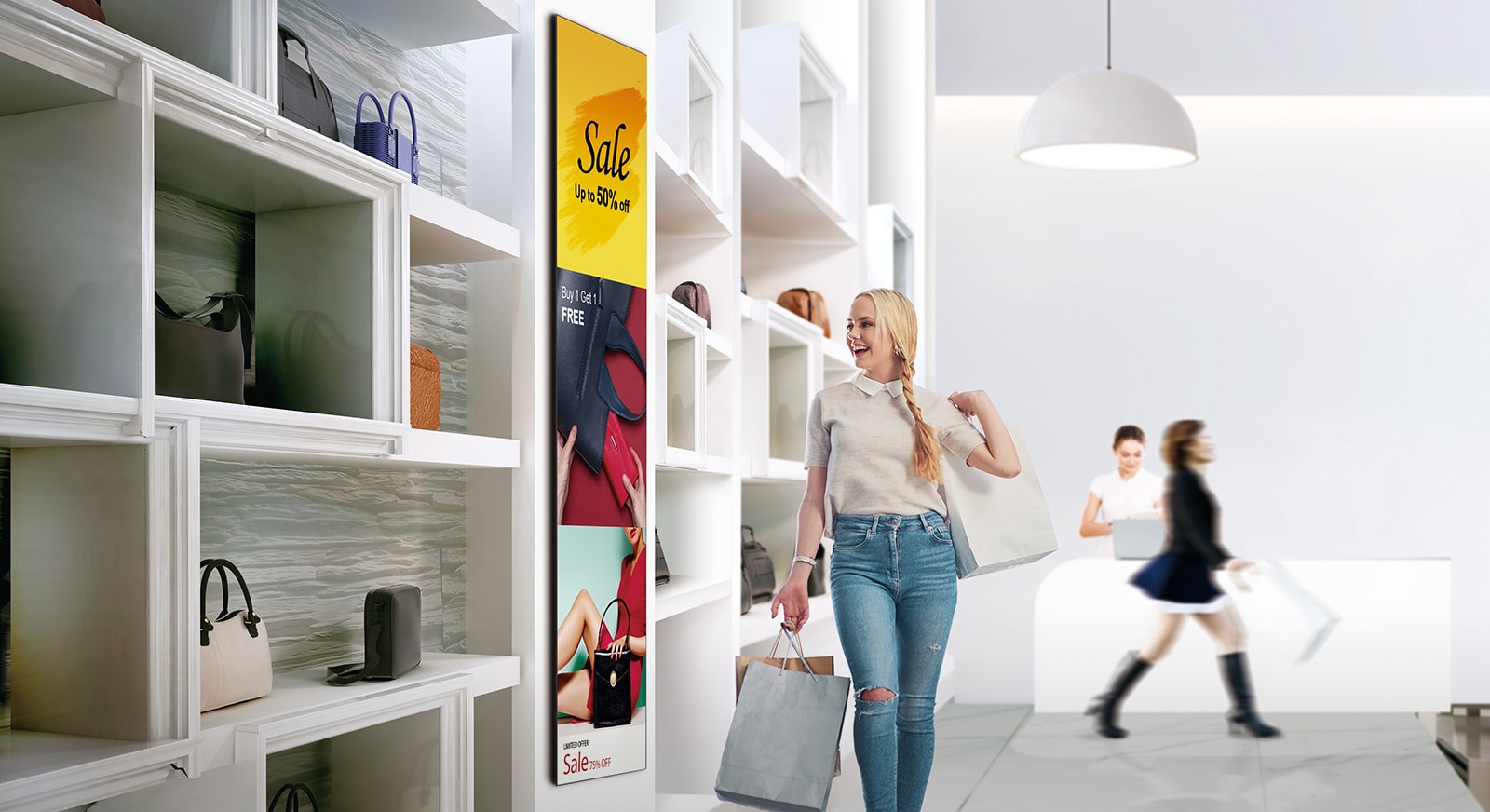

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
* All images in this page are for illustrative purposes only.

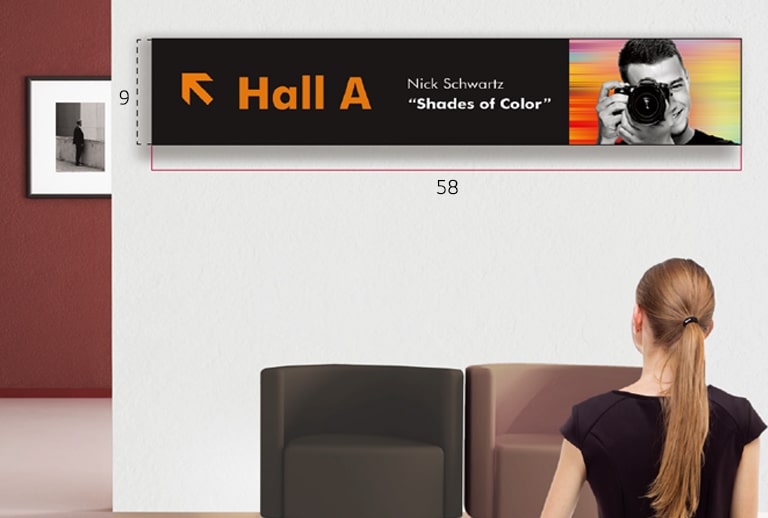

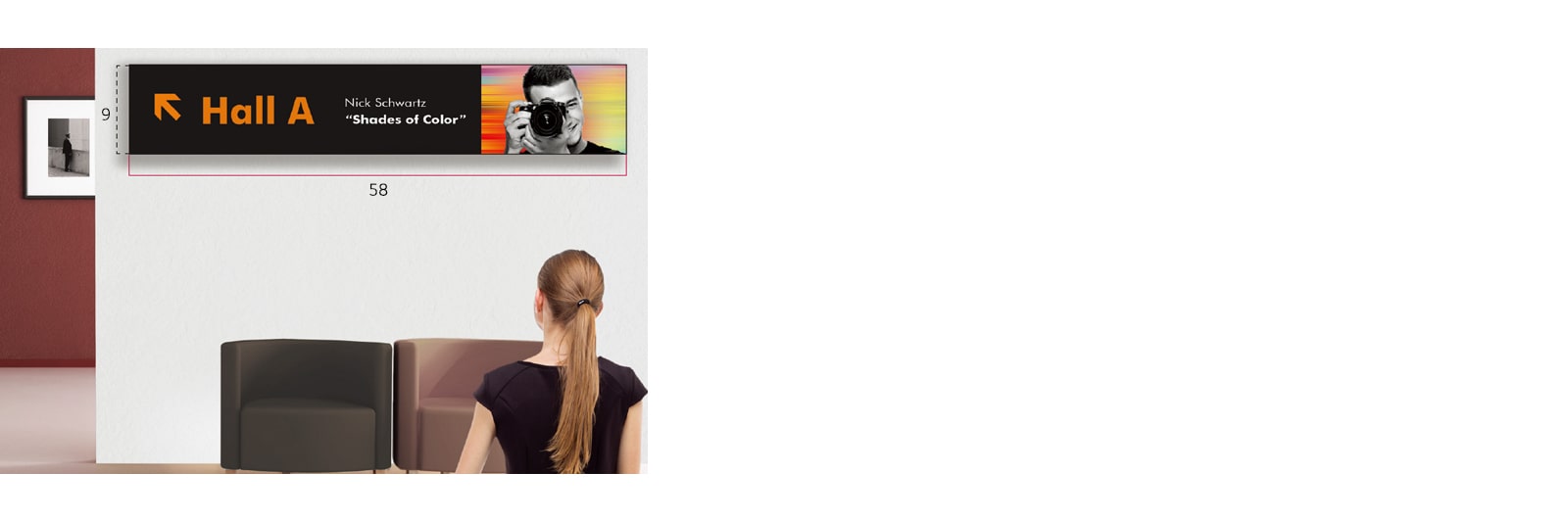

58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.
* Video content only. (Images not supported)
-Special-Digital-Signage-ID-D.jpg)
-Special-Digital-Signage-ID-M.jpg)

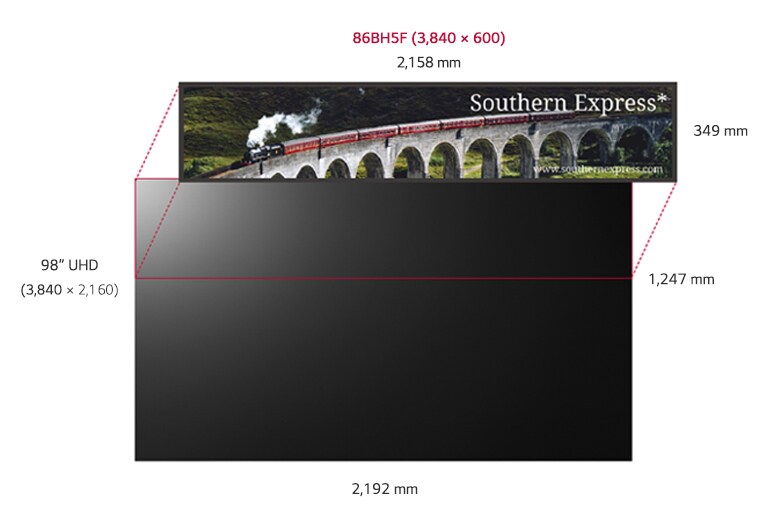

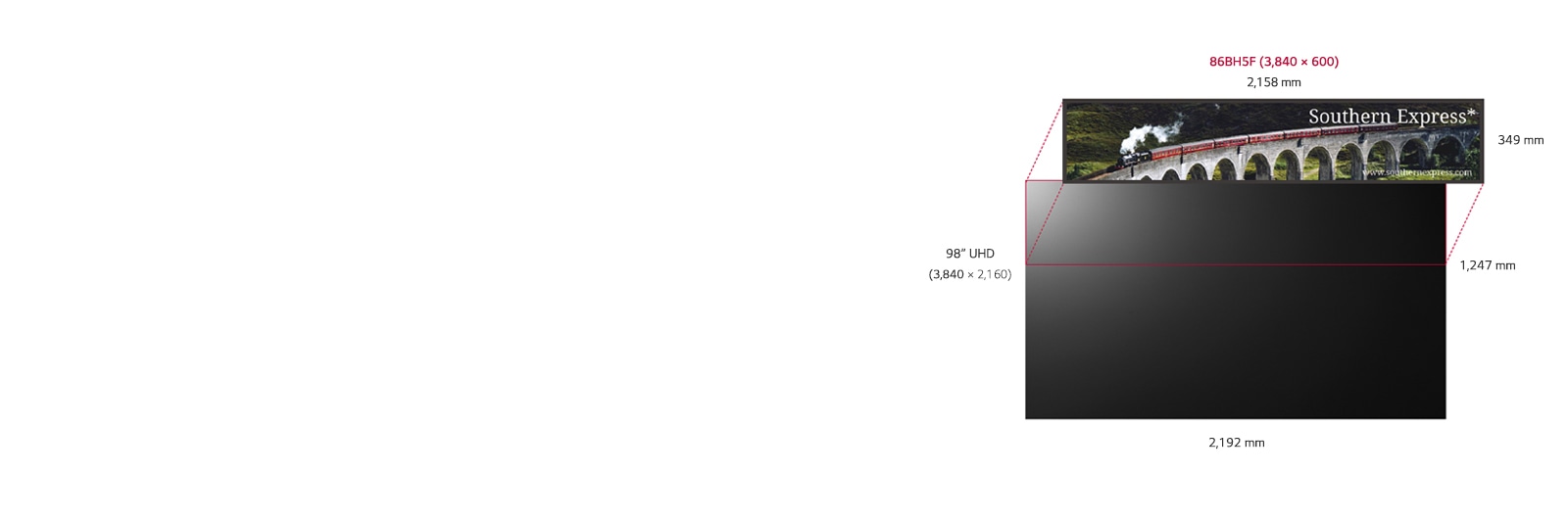

Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

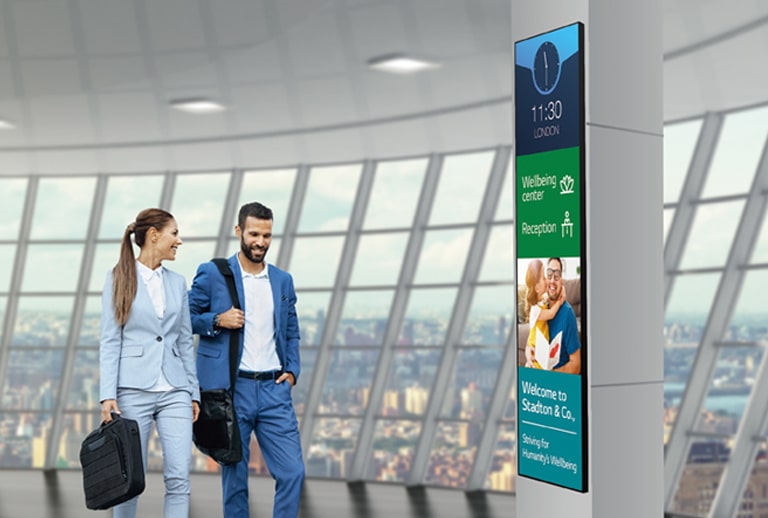

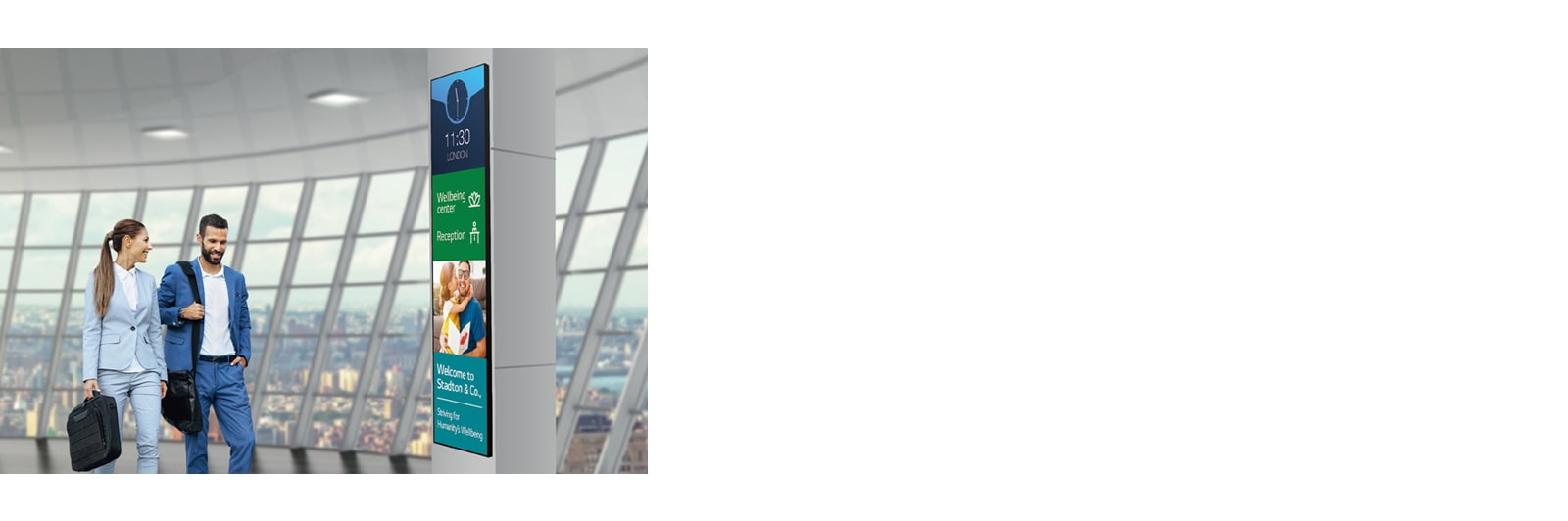

Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

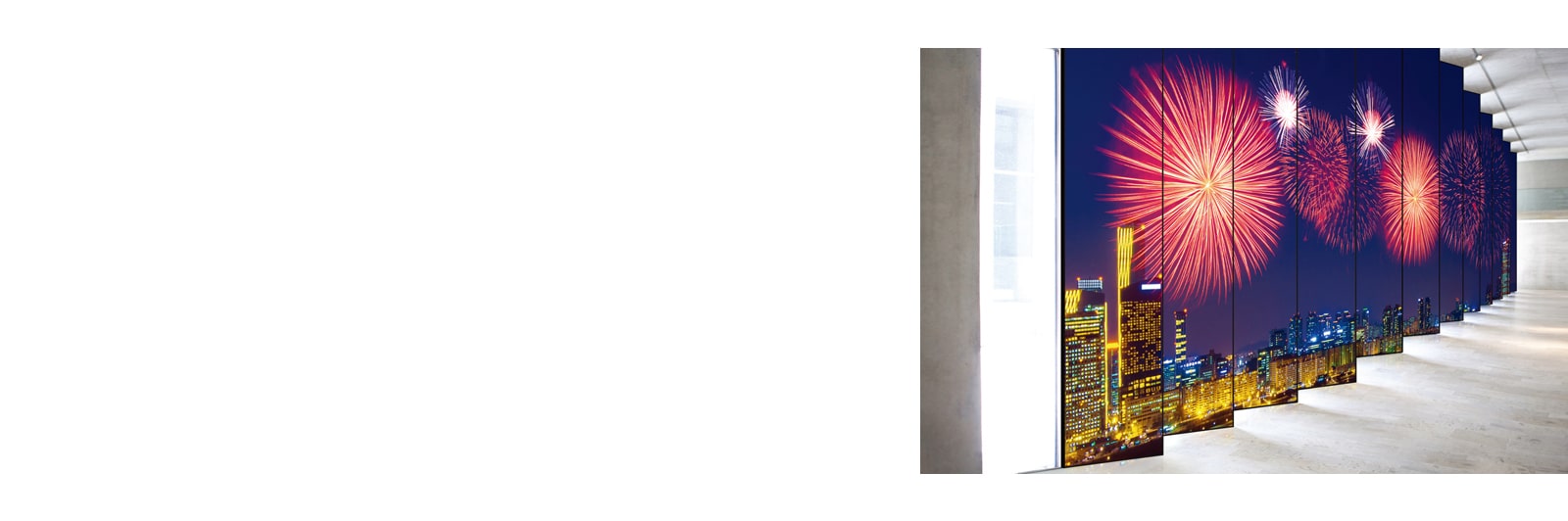

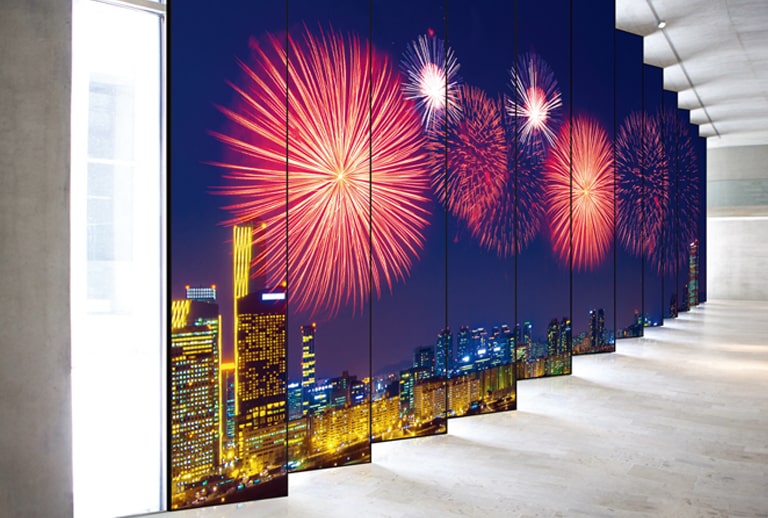

Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

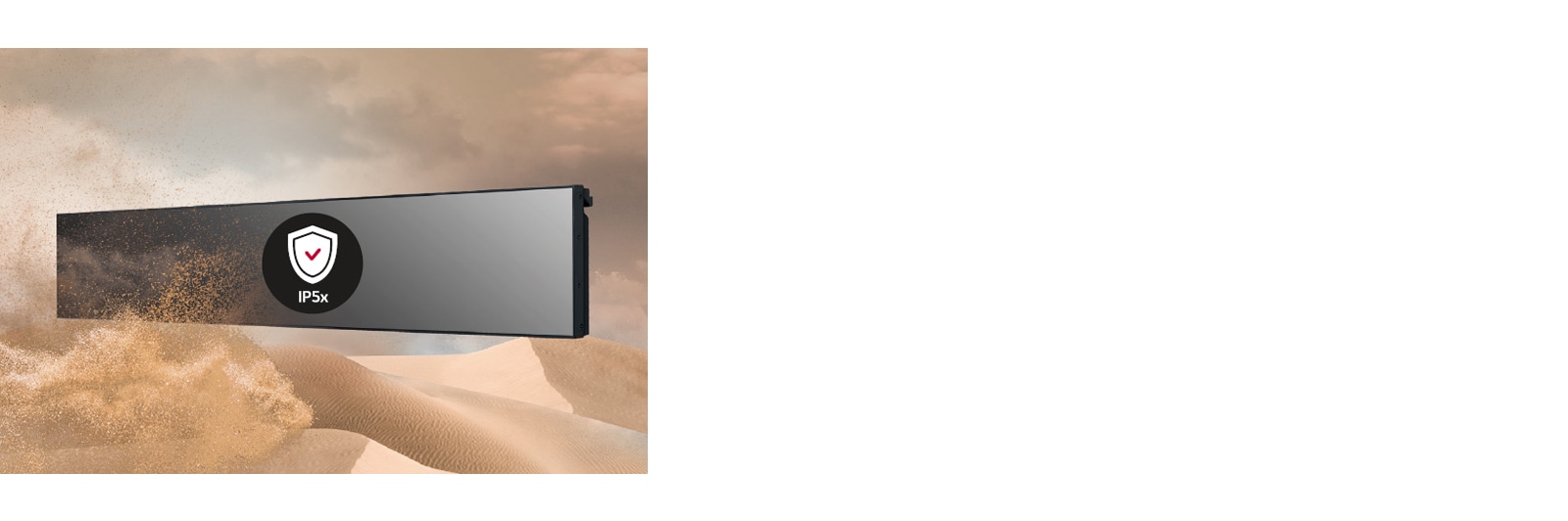

IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

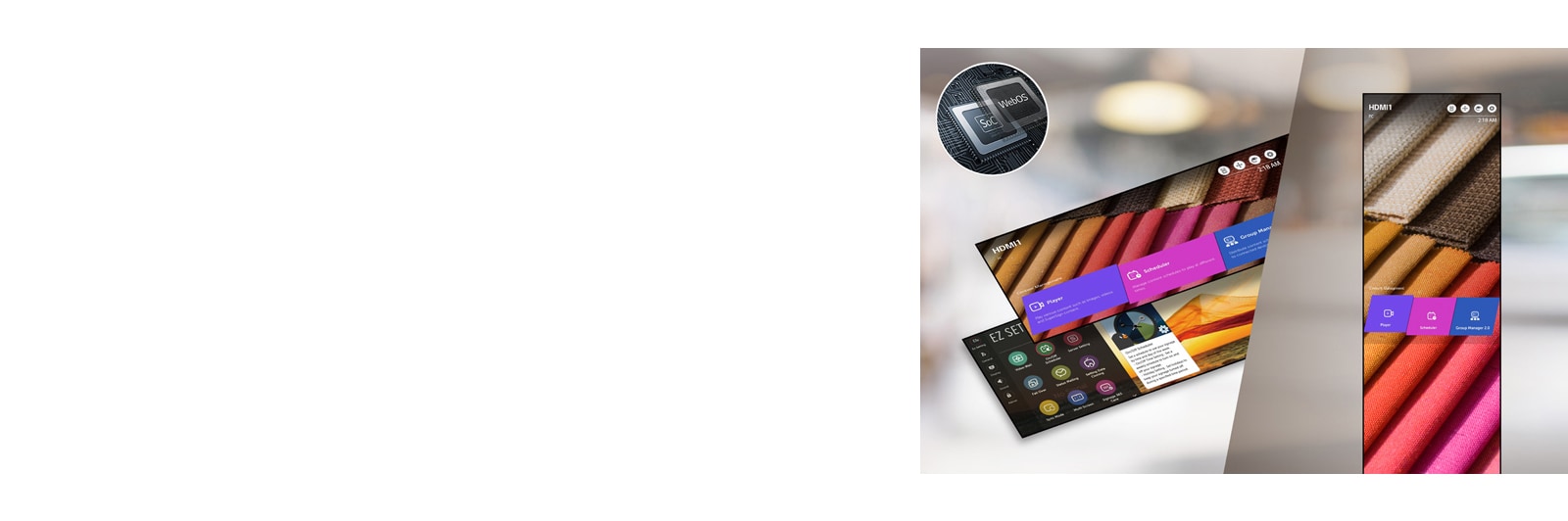

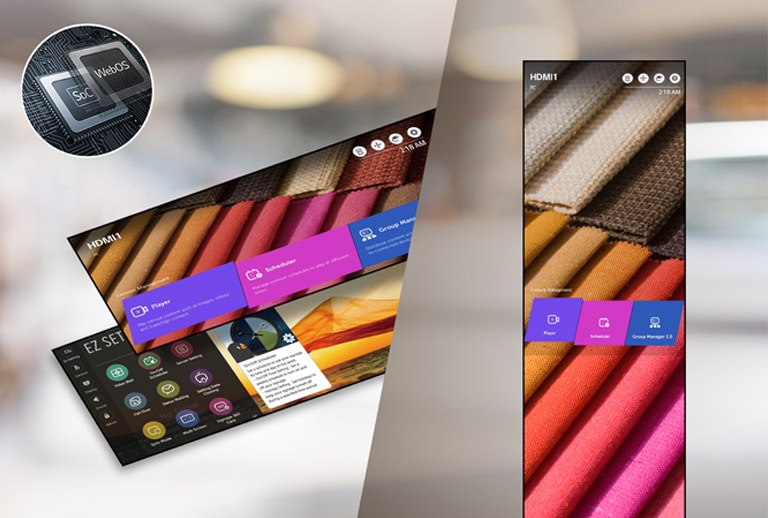

User-Friendly UX
The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.
*OSD : On Screen Display

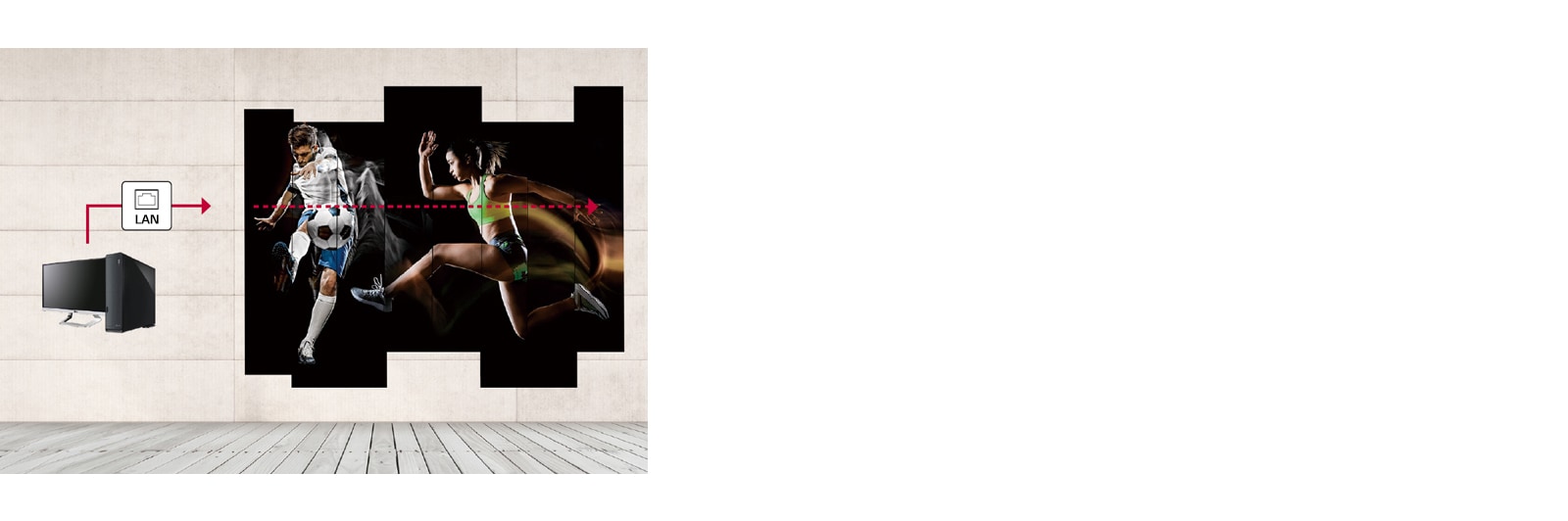

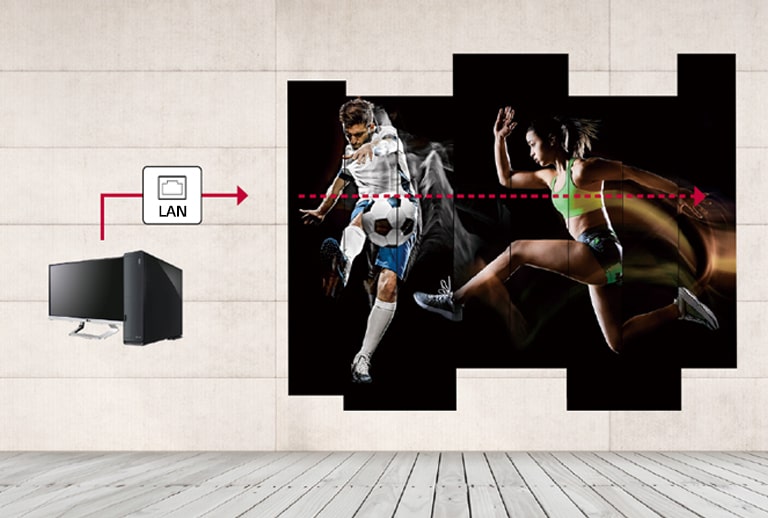

LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

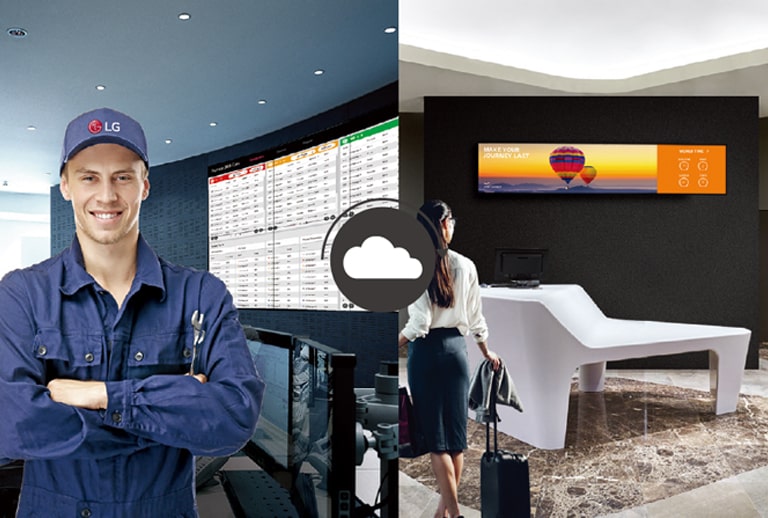

Real-Time Monitoring with ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

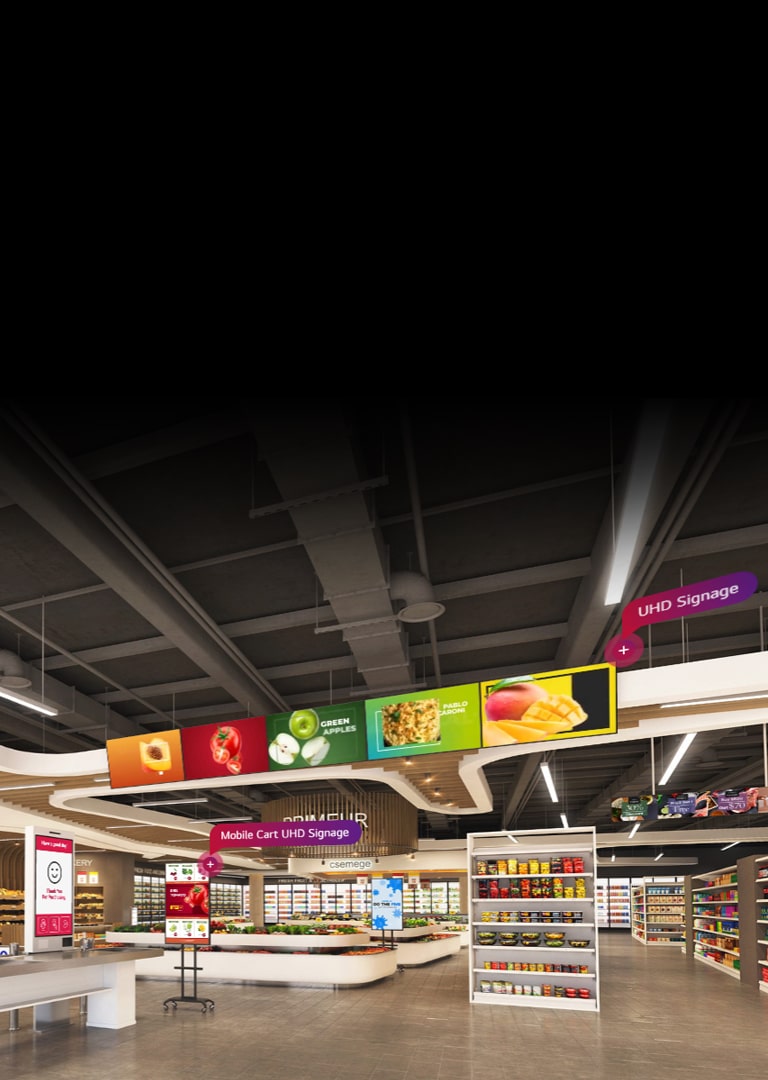

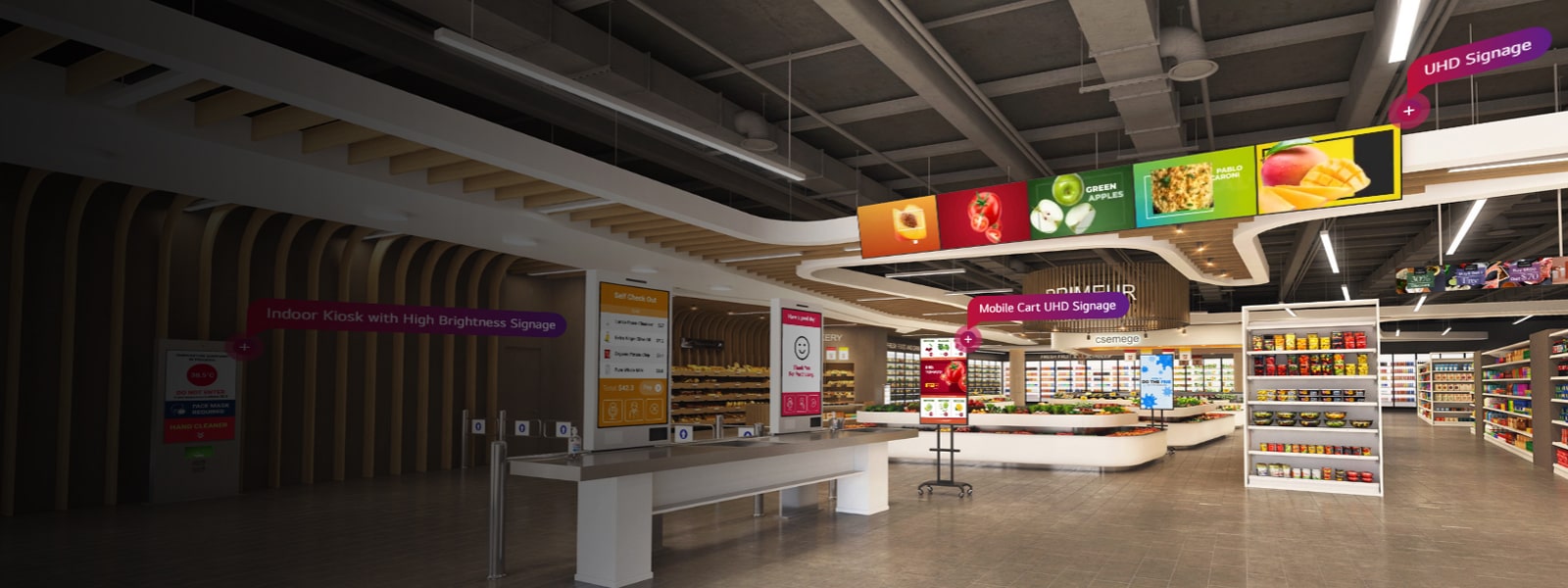

Explore more showroom at
LG Digital Connect
PANEL
-
- Aspect Ratio
- 58:9
- Back Light Type
- Direct
-
- Brightness
- 500nit (Typ.)
- Color Depth (Number of Colors)
- 1.07 Billion colors
-
- Color gamut
- NTSC 72%
- Contrast Ratio
-
1,100:1
-
- Dynamic CR
- 500,000:1
- Life time
- 50,000Hrs (Typ.)
-
- Native Resolution
- 3840 x 600 (FHD)
- Operation Hours (Hours/Day)
- 24/7
-
- Panel Technology
- IPS
- Portait / Landscape
-
YES / YES
-
- Refresh Rate
- 60Hz
- Response Time
- 8ms (G to G)
-
- Screen Size (Inch)
- 86
- Surface Treatment (Haze)
- Haze 3%
-
- Viewing Angle (H x V)
- 178º x 178º
MECHANICAL SPECIFICATION
-
- Bezel Color
- Black
- Bezel Width
- T/R/L/B : 5.9/4.4/4.4/5.9mm
-
- Carton Dimensions (W x H x D)
- 2290 x 599 x 228mm
- Handle
-
YES
-
- Monitor Dimensions (W x H x D)
- 2158.3 x 348.5 x 81.7mm
- Packed Weight
- 38.2Kg
-
- VESA Standard Mount Interface
- 600 x 200 mm
- Weight (Head)
- 20.5Kg
POWER CONSUMPTION
-
- BTU (British Thermal Unit)
- 751 BTU/Hr(Typ.), 819 BTU/Hr(Max.)
- DPM
- 0.5W
-
- Max.
- 240W
- Power off
- 0.5W
-
- Smart Energy Saving (70%)
- 100W
- Typ.
- 220W
FEATURE - SOFTWARE
-
- Auto Set ID
- Yes
- Beacon
- Yes
-
- Booting Logo Image
- Yes
- Control Manager
- Yes
-
- Crestron Connected
- Yes
- External Input Rotation
- Yes
-
- Fail over
- Yes
- Group Manager
- Yes
-
- HDMI-CEC
- Yes
- ISM Method
- Yes
-
- Local Contents Scheduling
- Yes
- Local Network Sync
- Yes
-
- No Signal Image
- Yes
- OS Ver. (webOS)
- webOS 4.0
-
- PBP
- YES (4PBP)
- PM mode
- Yes
-
- RS232C Sync
- Yes
- Screen Rotation
- Yes
-
- Setting Data Cloning
- Yes
- Smart Energy Saving
- Yes
-
- SNMP
- Yes
- Status Mailing
- Yes
-
- Tile Mode Setting
- YES
- USB Plug & Play
- Yes
-
- Wake on LAN
- Yes
CONNECTIVITY
-
- Audio In
- YES
- Audio Out
- YES
-
- Daisy Chain
- Input : HDMI, DP, DVI-D / Output : DP
- DP In
- YES (HDCP 2.2/1.3)
-
- DP Out
- YES
- DVI-D In
- YES (HDCP 1.4)
-
- HDMI In
- YES (3ea)
- HDMI In (HDCP Ver.)
- 2.2/1.4
-
- IR In
- YES
- RJ45(LAN) In
- YES (1ea)
-
- RJ45(LAN) Out
- YES
- RS232C In
- YES
-
- RS232C Out
- YES
- USB In
- USB2.0 Type A (2ea)
FEATURE - HARDWARE
-
- Auto Brightness Sensor
- YES
- Current Sensor
- YES
-
- Internal Memory (eMMC)
- 8GB
- Local Key Operation
- Yes
-
- Temperature Sensor
- Yes
- Wi-Fi/BT (Built-in)
- Yes
SOFTWARE COMPATIBILITY
-
- Connected Care
- Yes
- Mobile CMS
- Yes
-
- SuperSign Control+
- Yes
- SuperSign WB
- Yes
OPS COMPATIBILITY
-
- OPS Type Compatible
- Yes (Piggyback)
POWER
-
- Power Supply
- AC 100-240V~, 50/60Hz
- Power Type
- Built-In Power
LANGUAGE
-
- OSD
- English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic
ENVIRONMENT CONDITIONS
-
- Operation Humidity
- 10 % to 80 %
- Operation Temperature
- 0 °C to 40 °C
CERTIFICATION
-
- EMC
- FCC Class "A" / CE / KC
- ErP / Energy Star
- YES(EU Only) / NO
-
- Safety
- CB / NRTL
SPECIAL FEATURE
-
- Conformal Coating (Power Board)
- Yes
- IP Rating
- IP5x
ACCESSORY
-
- Basic
- Remote Controller(including battery 2ea), Power Cord, DP cable, RS-232C Cable, IR/Light sensor receiver, Manual
- Optional
- OPS Kit(KT-OPSF)
