98UM5K-B component-copyModelName
UM5K Series - 98'' UHD Large Screen Signage

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (98UM5K-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (98UM5K-B)
    $
    $
    LG Members Price
Total

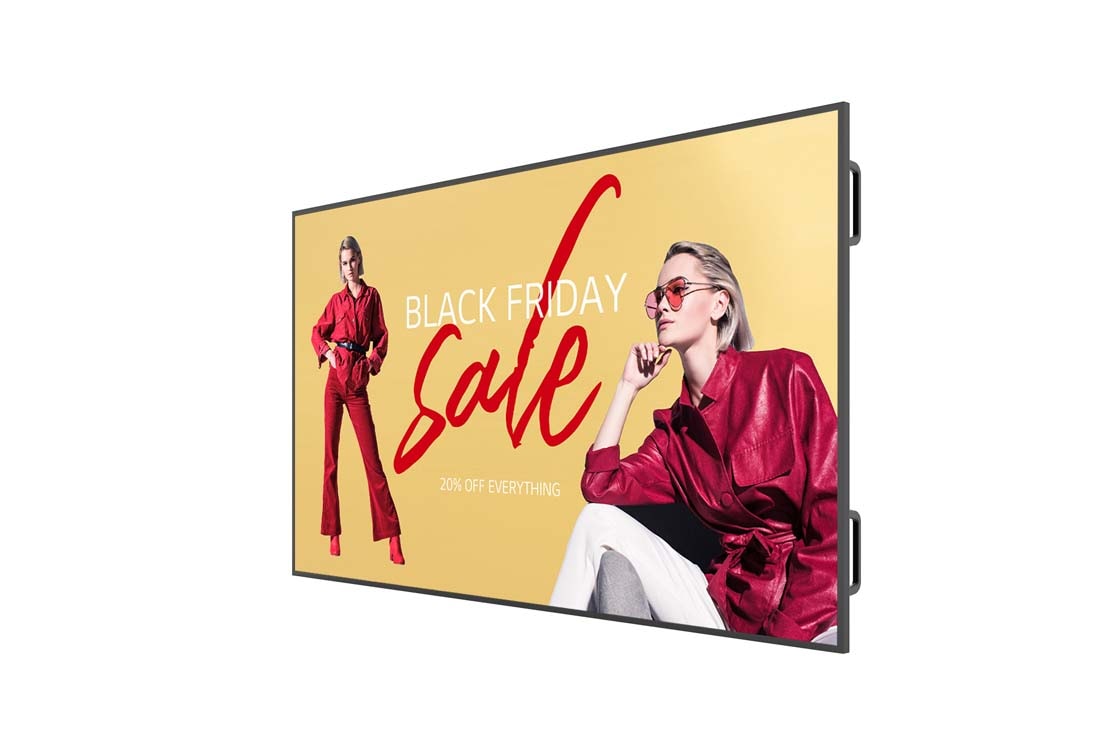

UM5K Series - 98'' UHD Large Screen Signage
A large display is installed on a shopping mall’s interior wall, and the display’s screen is showing advertisements clearly and vibrantly. A large display is installed on a shopping mall’s interior wall, and the display’s screen is showing advertisements clearly and vibrantly.

UHD Large Screen Signage Display with LG webOS Platform

* All images in this page are for illustrative purposes only.
The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD. The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.
UM5K has a brightness of 500 nits, so it is clearly visible, even under strong light. UM5K has a brightness of 500 nits, so it is clearly visible, even under strong light.

Adequate Brightness Level

The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.

* Actual images available may differ from the example images shown.
A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
One signage on the wall has a built-in speaker which renders rich audio. One signage on the wall has a built-in speaker which renders rich audio.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

* Internal Built-in Speaker Support (L/R max 10 W)

Slim Design

Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.
The bezel size of UM5K is 17mm. And the depth of the UM5K 98" is 79.5mm, and 110" is 99mm. The bezel size of UM5K is 17mm. And the depth of the UM5K 98" is 79.5mm, and 110" is 99mm.
The AV control system helps users control the UM5K The AV control system helps users control the UM5K

Compatible with AV Control System

The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software. Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
Close
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes(NewErP) / No
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic, Polski
MECHANICAL SPECIFICATION
  • Bezel Width
    Even bezel : 17mm
    Bezel Color
    Black
  • Weight (Head)
    78Kg
    Packed Weight
    105Kg
  • Monitor Dimensions (W x H x D)
    2198 x 1253 x 79.5mm
    Carton Dimensions (W x H x D)
    2455 x 1458 x 288mm
  • Handle
    Yes
    VESA Standard Mount Interface
    800 x 400
ENVIRONMENT CONDITIONS
  • Operation Humidity
    10 % to 80 %
    Operation Temperature
    0 °C to 40 °C
POWER
  • Power Type
    Built-In Power
    Power Supply
    AC 100-240V~, 50/60Hz
SOFTWARE COMPATIBILITY
  • Connected Care
    Yes
    SuperSign CMS
    Yes
  • SuperSign Control+
    Yes
    SuperSign WB
    Yes
  • SuperSign Cloud
    Yes
    Mobile CMS
    Yes
PANEL
  • Contrast Ratio
    1,200:1
    Screen Size (Inch)
    98"
  • Panel Technology
    ADS
    Back Light Type
    Direct
  • Aspect Ratio
    16:9
    Native Resolution
    3840 x 2160 (UHD)
  • Refresh Rate
    60Hz
    Dynamic CR
    200,000:1
  • Color gamut
    DCI-P3 88%↑
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    8ms (G to G)
    Surface Treatment (Haze)
    1%
  • Color Depth (Number of Colors)
    8bits + FRC, 1.07Billion colors
    Life time
    30,000Hrs (Min)
  • Operation Hours (Hours/Day)
    16/7
FEATURE - HARDWARE
  • Local Key Operation
    Yes
    Temperature Sensor
    Yes
  • Auto Brightness Sensor
    YES
    Acceleration(Gyro) Sensor
    Yes
CONNECTIVITY
  • Daisy Chain
    Yes(Input HDMI, DP, DVI / Output HDMI)
    HDMI In
    Yes(3), HDMI1/HDMI2 : HDCP 2.2/1.4 HDMI3 : HDCP 1.4
  • DP In
    Yes(1), HDCP2.2/1.3
    DVI-D In
    Yes(1), HDCP1.4
  • Audio In
    Yes(1)
    RS232C In
    Yes(1), 4pin Phone-jack
  • RJ45(LAN) In
    Yes(1)
    IR In
    Yes(1)
  • USB In
    USB2.0 Type A(1)
    HDMI Out
    Yes(1)
  • Audio Out
    Yes(1)
    RS232C Out
    Yes(1), 4pin Phone-jack
FEATURE - SOFTWARE
  • Pro:Idiom
    Yes
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    PIP
    Yes
  • PBP
    Yes (4)
    Screen Share
    Yes
  • Video Tag
    Yes (4)
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes (Max. 15x15)
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Smart Energy Saving
    Yes
    PM mode
    Yes
  • Wake on LAN
    Yes
    Network Ready
    Yes
  • Beacon
    Yes
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
POWER CONSUMPTION
  • BTU (British Thermal Unit)
    1467 BTU/Hr(Typ.), 1911 BTU/Hr(Max)
    Smart Energy Saving (70%)
    301W
  • DPM
    0.5W
    Power off
    0.5W
  • Max.
    560W
    Typ.
    430W
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, IR/Light sensor receiver, Regulation Book, Phone to RS233C Gender
