Get ready for true-to-life colors, deep black levels and rich colors for amazing contrast and color detail at virtually angle.
IPS (In-plane switching) is a screen technology for liquid crystal displays (LCDs). It was designed to solve the main limitations of the twisted nematic field effect (TN) matrix LCDs in the late 1980s. These limitations included strong viewing angle dependence and low-quality colour reproduction.
In-plane switching involves arranging and switching the orientation of the molecules of the liquid crystal (LC) layer between the glass substrates. This is done, essentially, parallel to these glass plates.
1. Wide Viewing Angle
No Color Wash from any angle!
Comparison in Color Coordinates (viewing angle 60˚)
Received a certificate from intertek
LG Display 84” UHD IPS Panel showed better performance than 85” UHD VA Panel in terms of color shift, the viewability and the directional Gamma Distortion Ratio
Received Test Report from CIEA
IPS Panel had better viewability compared to VA Panel.

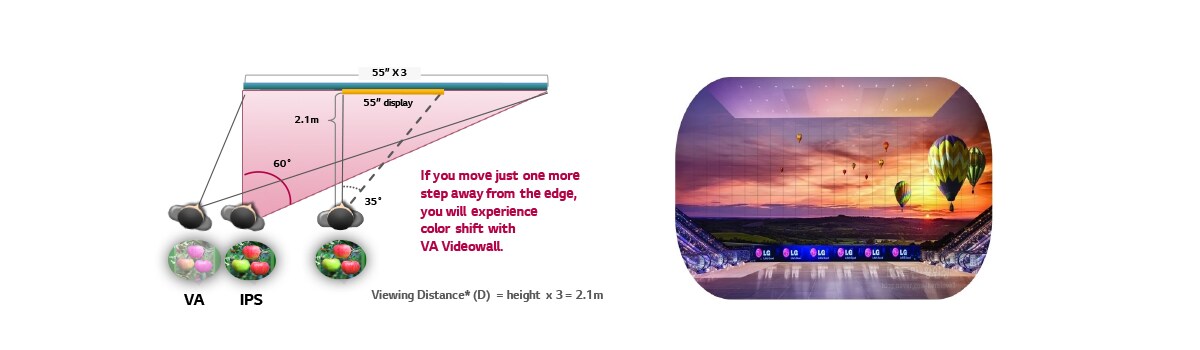

Importance of Viewing Angle in Video Wall
Video Wall consists of multiple displays tiled together. Video Wall has larger screen sizes and more influenced by viewing angle. (Color wash is detected in VA with viewing angle 60˚)
Interactive White Board
When Teachers or presenters explain, they stand very closely at the corner to the panel.
2. Color Accuracy
Because IPS projects the color close to real objects, it is widely used in broadcasting, medical and professional designing.
(Testing with Mcbeth24color chart, IPS shows the accurate color between input and output color signal)
For IPS, Actual color and the color on the screen are the same.
3. Stable Panel
IPS has a fast Liquid Crystal recovery property. Therefore, no flash occurs when touching the screen.
However, VA panels have a slower Liquid Crystal recovery property which causes flash upon touch of screen.
Why LG IPS (vs. TV)
Commercial display needs exclusive developments due to various usage conditions.
Yogore defects , When a static picture is displayed for a long time, the Yogore Defect may happen. The exclusive liquid crystal applied to all LGD’s CD panels improves the defect.
Blackening defects , causes when liquid crystal loses its own characteristics over the critical point of temperature. LG improves it by increasing the critical point up to 110 degree.
LG improves gravity defect by optimizing volume of liquid crystal and increasing cohesive power.
With QWP application, Display is still visible even with wearing polarized sunglasses.
(Over 50 of drivers put on sunglasses and about 10 among them uses polarized sunglasses in US)
M+ Panel Far Exceeds Conventional Panel in Terms of Transparency
IPS panel vs VA panel
Check the remarkable difference between IPS panel and VA panel when it comes to external pressure, temperature, and blackening defect.
