AK-Q150BC00

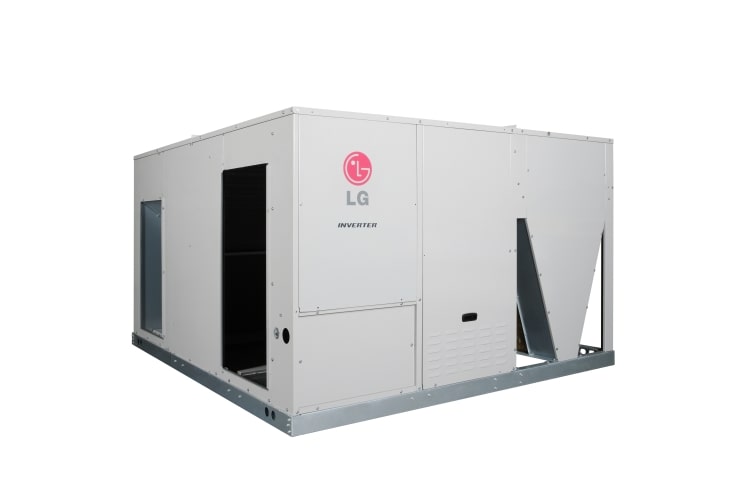

LG INVERTER SINGLE PACKAGE
  • OPERACIÓN SILENCIOSA
  • LA MEJOR EFICIENCIA
  • RESPALDO DE EMERGENCIA
  • LG V-NET (ACCESORIOS DE CONTROL REMOTO)
LG INVERTER SINGLE PACKAGE

COOLING CAPACITY

  • Net Capacity
    42.8(kW)/36,800(kcal/h)/146,000(Btu/h)
    Gross Capacity
    44(kW)/37,800(kcal/h)/150,000(Btu/h)

POWER INPUT

  • Cooling
    11.2 kW

INDOOR COIL

  • Fin Type
    Wide Louver
    Tube Size/Outer Dia
    7 (9/32) mm(inch)
  • (Row x Column x Fins per inch) x No.
    (3x30x14)x2
    Face Area
    1.23 (13.24) m2 (ft2)

INDOOR FAN

  • Type
    Sirocco Fan
    Diameter
    380(15)/mm(inch)
  • Motor Output
    3 Hp
    Air Flow Rate
    141.6 m3/min - 5,000 ft3/min
  • Drive type
    Belt

COMPRESSOR (#1)

  • Type
    HSS DC SCROLL
    Motor Output
    5,208 W x 1 No.
  • OilType
    FVC68D
    Oil Charge
    1,400cc x 1 No.

OUTDOOR COIL

  • FinType
    Wide Louver
    Tube Size
    7
  • Outer Dia.
    9/32
    (Row x Column x Fins per inch) x No.
    (2x42x14)x2
  • Face Area
    3.53 m2/ 37.99 ft2

OUTDOOR FAN

  • Type
    Propeller Fan
    Diameter
    680 (26-25/32)/mm (inch)
  • Motor Output
    900x2/WxNo.
    Air Flow Rate
    224 x 2 (m3/minxNo.)/7,910 x 2 (ft3/minxNo.)
  • Drive
    BLDC Inverter
    Discharge Direction
    Top

DEHUMIDIFICATION RATE

  • l/h
    13.77

REFRIGERANT

  • Refrigerant Name
    R410A
    Precharged Amount
    7 kg
  • Control
    EEV

DIMENSIONS (W*H*D)

  • mm
    2,230 x 1,244 x 1,970
    inch
    91-11 / 32 x 48-31 /32x77-9/16

NET WEIGHT

  • kg
    550
    lbs
    1,212

SOUND PRESSURE LEVELS

  • Cooling Min-Max dB (A)
    75

OPERATION RANGE (OUTDOOR TEMPERATURE)

  • Cooling Min-Max CºDB(ºFDB)
    -5ºC ~56ºC (23ºF ~132.8ºF)
