Indoor LED Series

Indoor LED Series

Indoor LED Series

LSBE015-GD

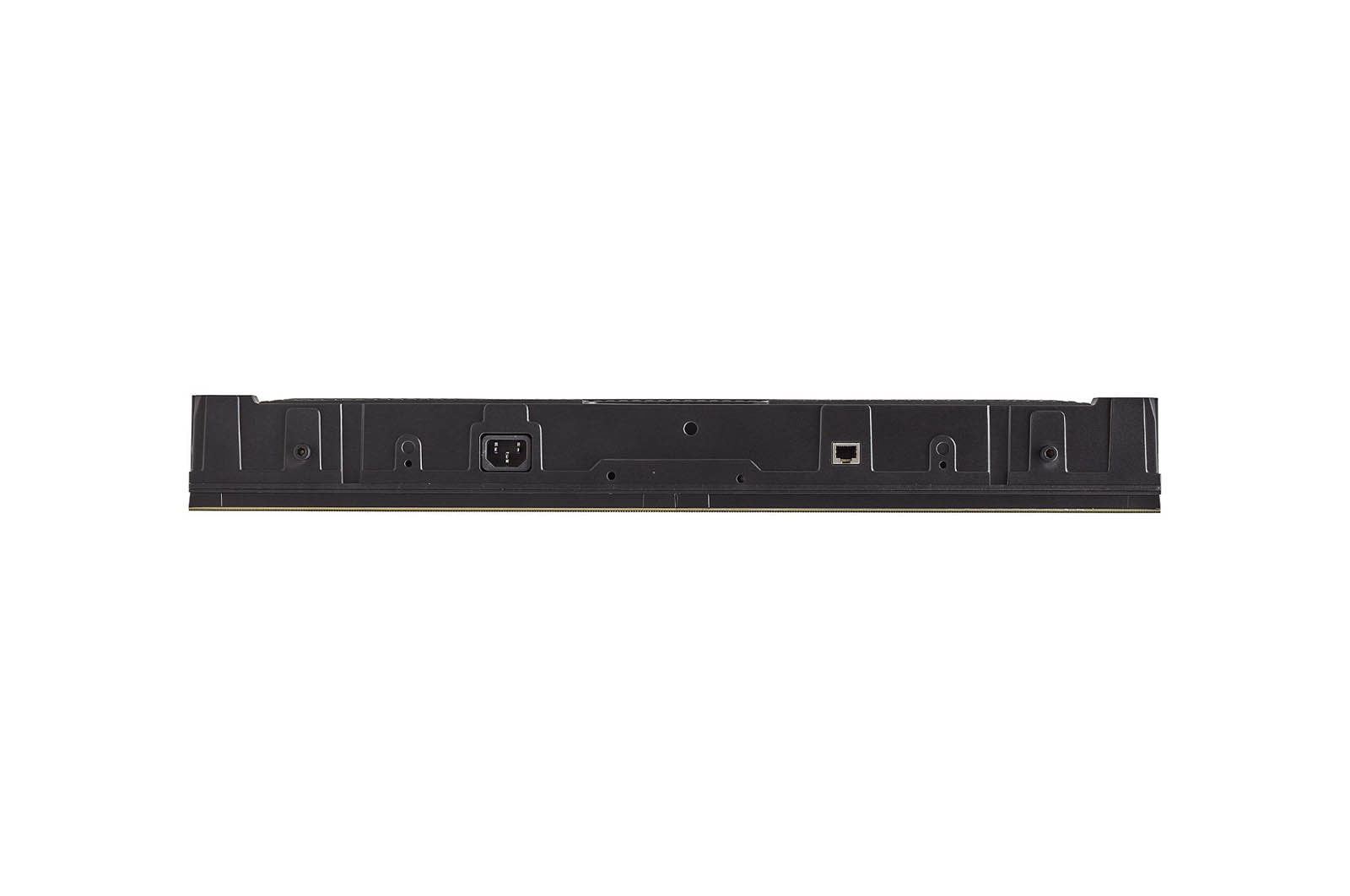

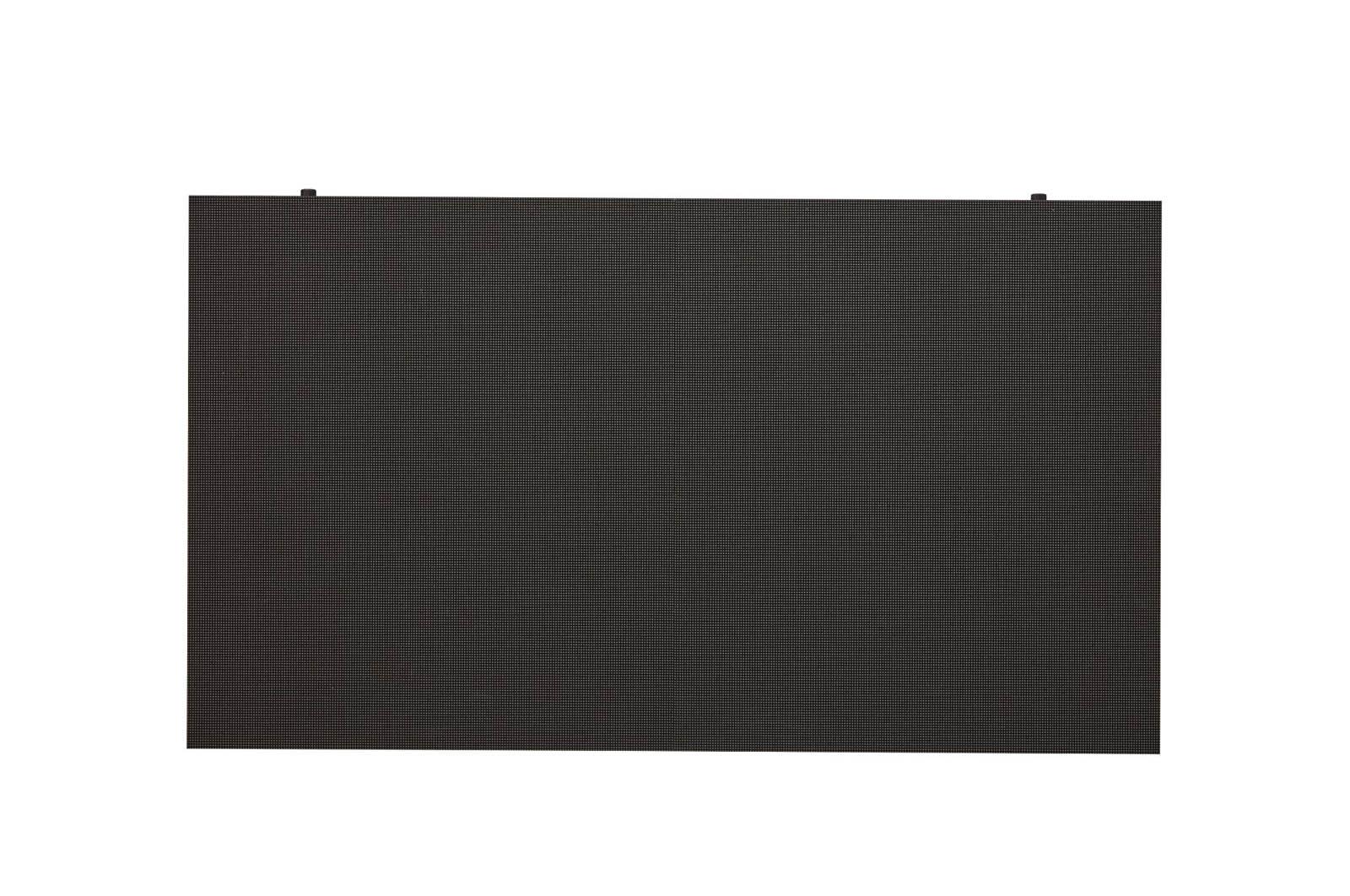

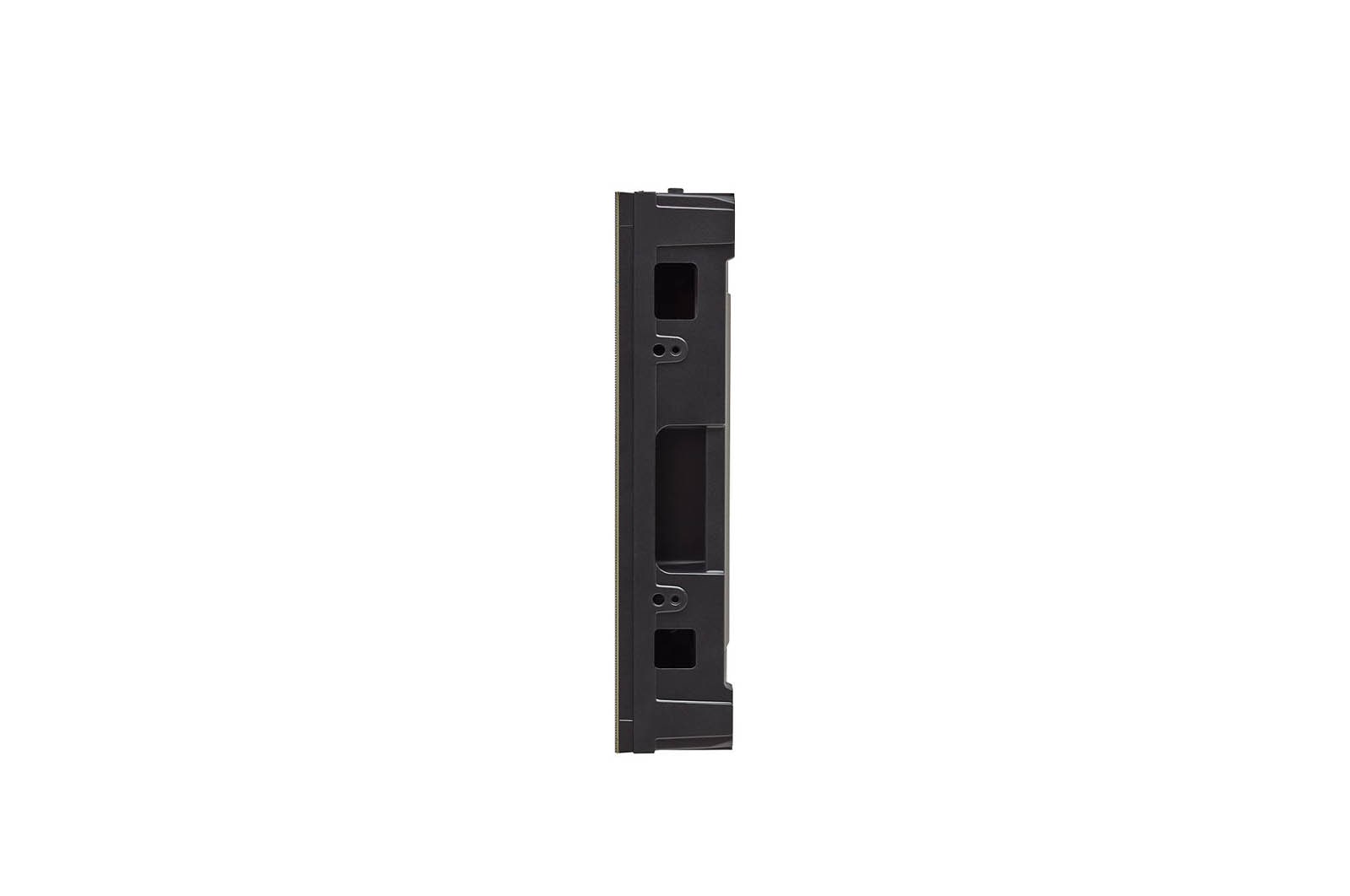

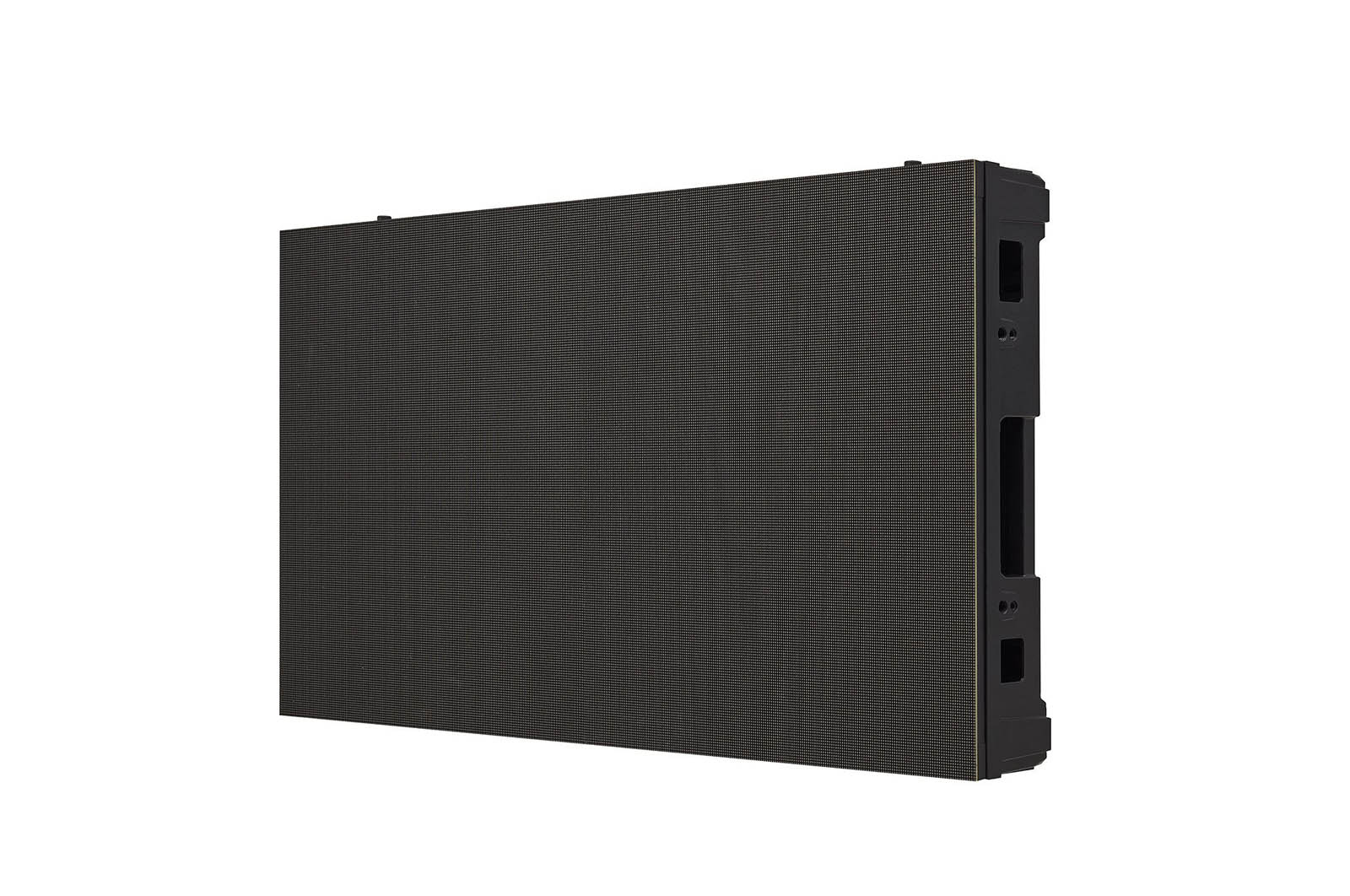

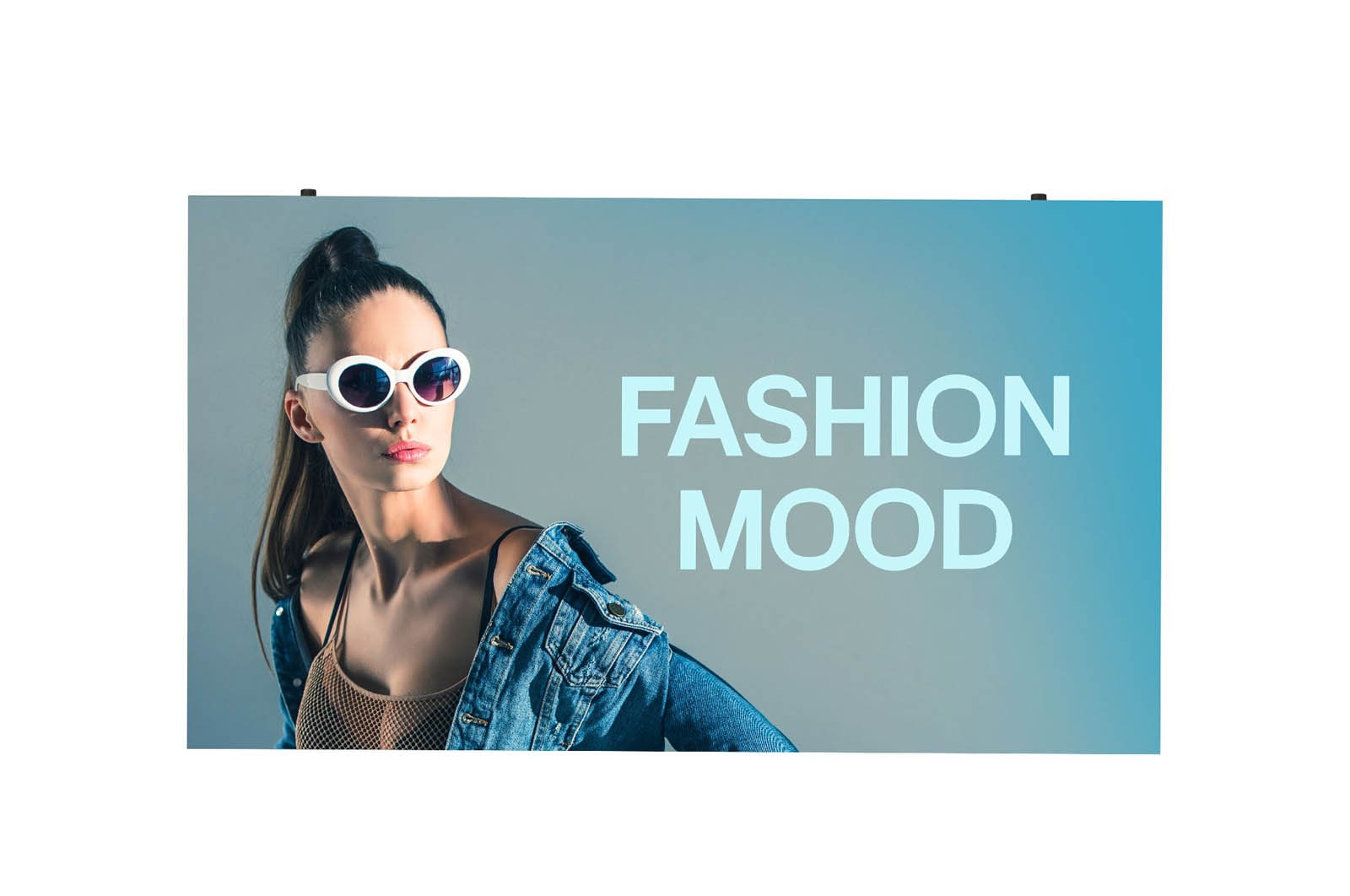

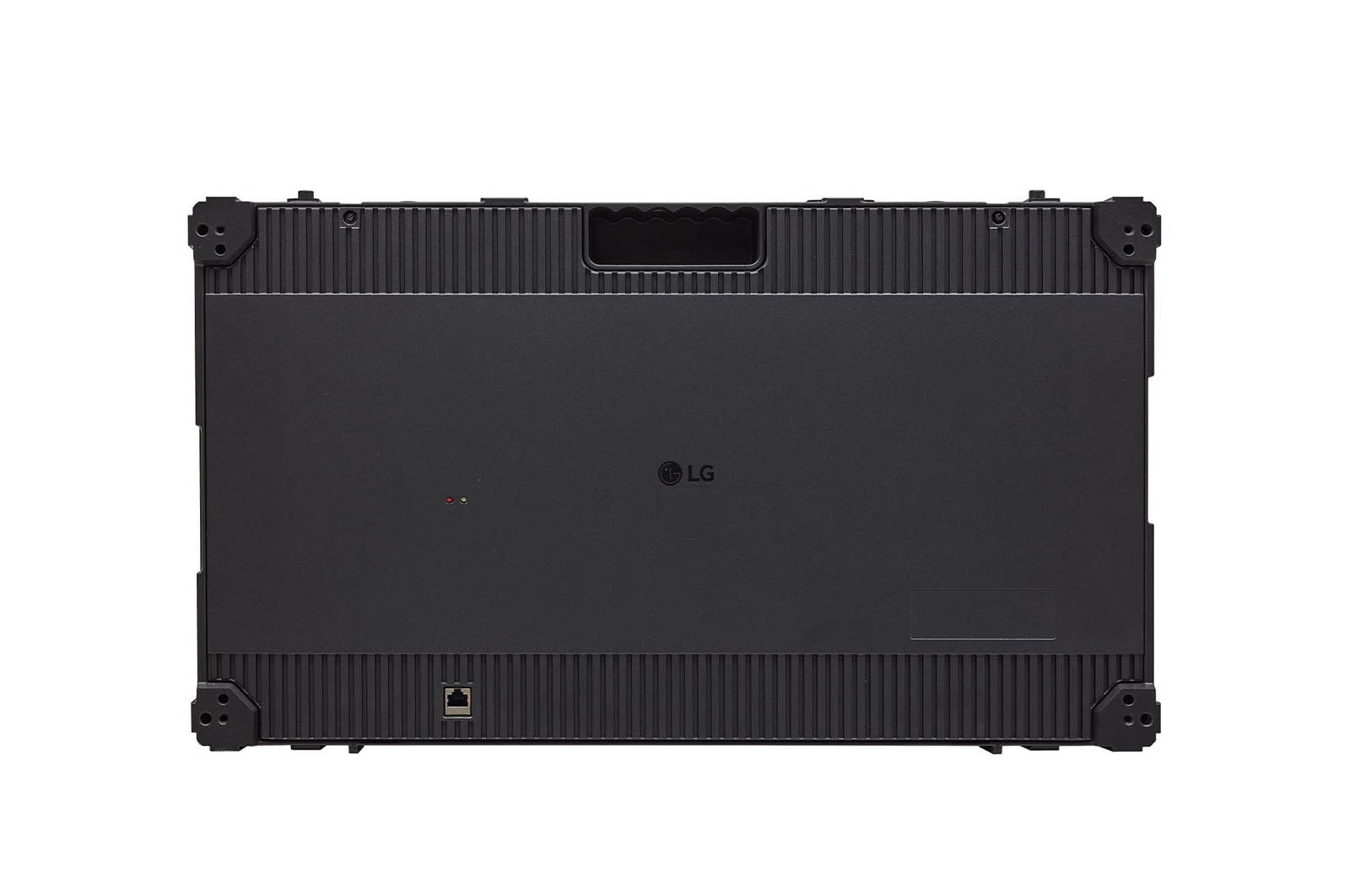

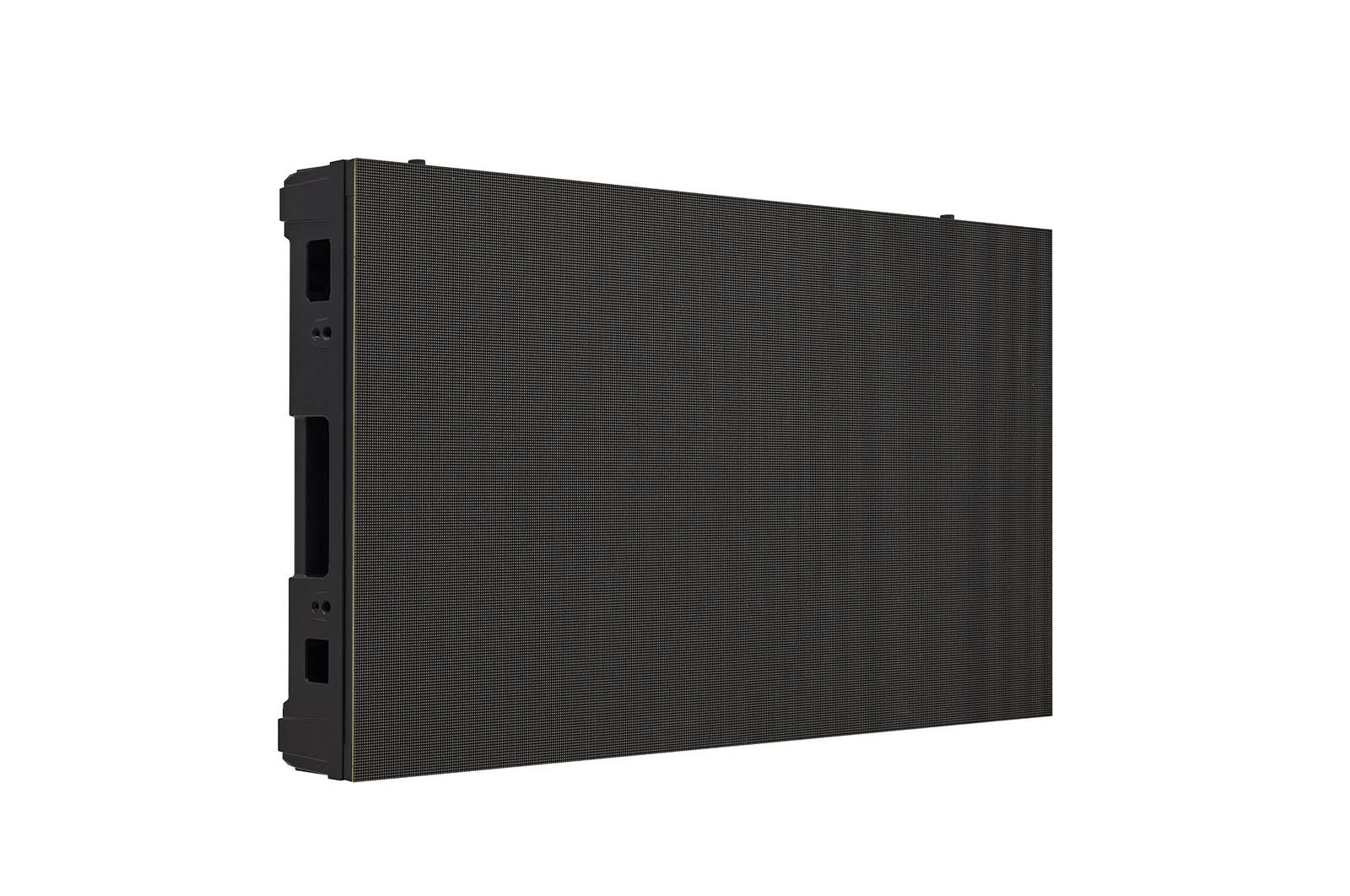

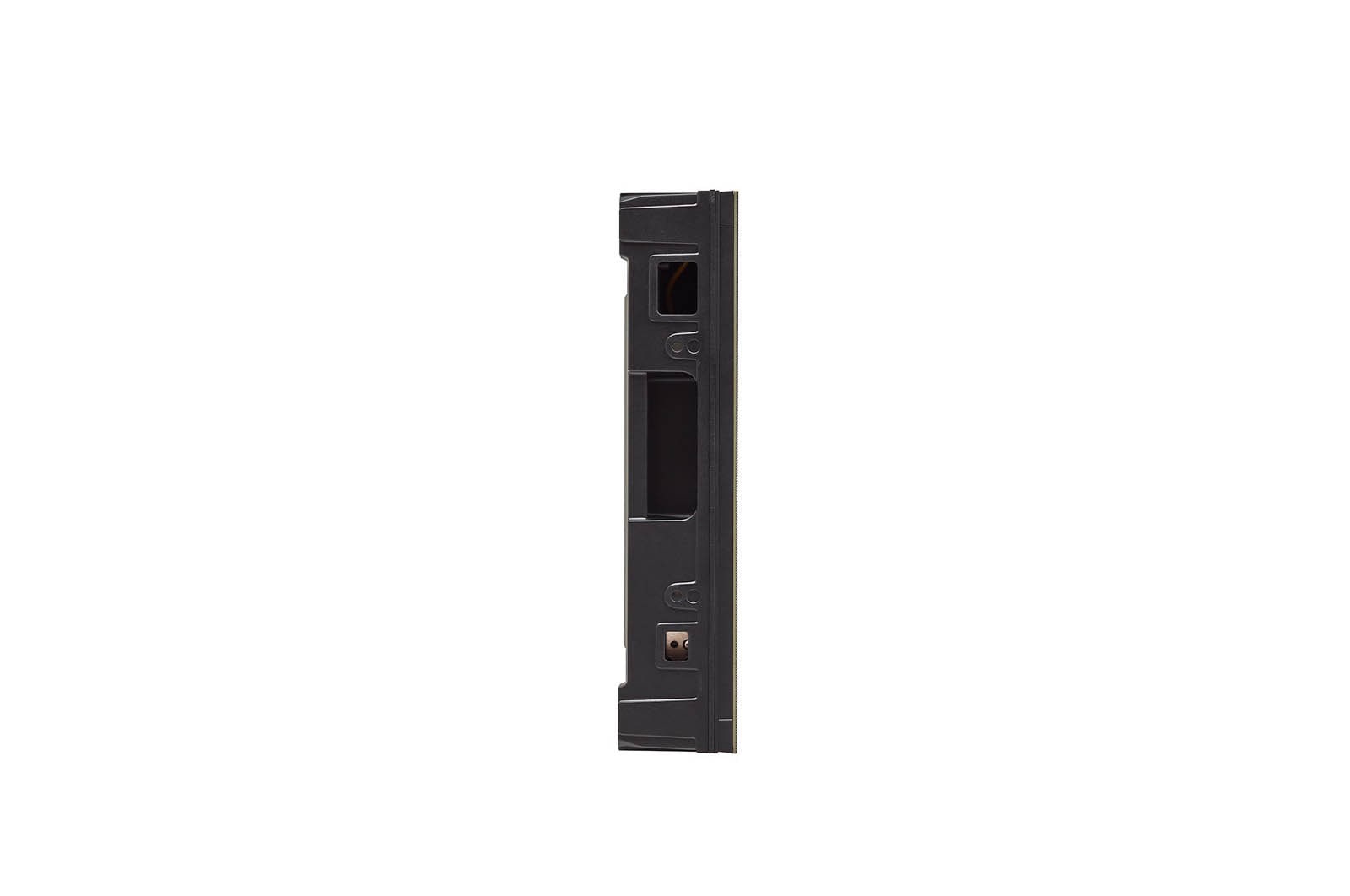

LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD
LG Indoor LED Series, LSBE015-GD

Fitur Utama

  • Pitch Piksel: 1,56 mm
  • Kecerahan: 600 nit
  • Instalasi dan Perawatan yang Mudah
  • Desain Rangka Tahan Lama
  • Kompatibilitas dengan Solusi Perangkat Lunak LG
  • IP Rating : IP50 / IP50 (Depan / Belakang)
Lebih banyak
Cetak

Semua Spesifikasi

FISIK PARAMETER

  • Nama Pitch

    P1.5

  • Konfigurasi Piksel

    SMD Tunggal

  • Pitch Piksel (mm)

    1,5625

  • Resolusi Modul (PxL)

    192x216

  • Dimensi Modul (PxL, mm)

    300x337,5x13

  • Berat per Modul (kg)

    0,95

  • Jumlah Modul per Kabinet (PxL)

    2x1

  • Resolusi Kabinet (PxL)

    384x216

  • Dimensi Kabinet (PxLxD,mm)

    600x337,5x72

  • Area Permukaan Kabinet (㎡)

    0,2025

  • Berat per Kabinet (kg/unit)

    6,5

  • Berat per Meter Persegi (kg/㎡)

    32.0

  • Densitas Piksel Fisik (piksel/㎡)

    409,600

  • Kerataan Kabinet (mm)

    ±0,3

  • Material Kabinet

    Cetakan aluminium

  • Akses servis

    Depan

OPTIKAL SPESIFIKASI

  • Kecerahan Maksimal (Setelah Kalibrasi, nit)

    600

  • Suhu Warna (K)

    3.200~9.300

  • Sudut Menonton Visual (Horizontal)

    160

  • Sudut Menonton Visual (Vertikal)

    150

  • Keseragaman Kecerahan

    97%

  • Rasio Kontras

    5.000:1

  • Keseragaman Warna

    ±0,003Cx,Cy

  • Kedalaman Pemrosesan (bit)

    14

KELISTRIKAN SPESIFIKASI

  • Konsumsi Daya (Dengan Kabinet, Maks.)

    107

  • Konsumsi Daya (Dengan Kabinet, Rata-rata)

    45

  • Konsumsi listrik (W/㎡, Maks.)

    530

  • Pembuangan Panas (BTU/jam/Kabinet, Maks.)

    365

  • Pembuangan Panas (BTU/jam/Kabinet, Rata-rata)

    153

  • Pembuangan Panas (BTU/jam/㎡, Maks.)

    1,808

  • Sumber Listrik (V)

    100 hingga 240

  • Frame Rate (Hz)

    50/60

  • Refresh Rate (Hz)

    3,840

OPERASI SPESIFIKASI

  • LED Lifetime (Half brightness)

    100,000

  • Suhu Pengoperasian (℃)

    -20℃ to +40℃

  • Kelembapan Pengoperasian

    10~80%RH

  • IP rating Depan

    IP50

  • IP rating Belakang

    IP50

STANDAR

  • Sertifikasi

    CE, FCC, cTUVus, CB, KC, CCC

LINGKUNGAN

  • Lingkungan

    RoHS, REACH

KONTROLER

  • Kontroler

    CVBA

POTONGAN SUDUT 90 DERAJAT

  • Potongan sudut 90 derajat

    Yes
